LinkPro Z
Installation Instructions
Thank you for purchasing an SI product. If you have
any questions or need any assistance with your
LinkPro Z, we would love to help you.
Technical Support: 512.832.6939
Hours of Support: 7:30am - 5pm CST
screeninnovations.com
LinkPro Z
Please use this QR Code to access more documents
and Video Tutorials related to the product.
CONTENTS
Initial Consideration .................................................. 2
Parts in the Box ........................................................... 3 - 4
Installation - Ceiling/Wall mount or
Magnetic mount ........................................................... 5 - 11
Additional Accessories ................................................ 13
Additional Connectivity Products .............................. 14
Example System Drawing ........................................... 15
Using Multiple LinkPro Z units .....................................16
Setup ................................................................................ 17 - 18
1
2
INITIAL CONSIDERATIONS
Thank you for your purchase of LinkPro Z.
This is a Zigbee Mesh Controller which operates at
2.4GHz. Minimize or eliminate any sources of RF
interference and shielding. Any metal, wire, or foliage
near the product can reduce or block the signal -
reducing the operating range of the device. Other
nearby transmitters may also cause interference.
Initial Considerations
3
PARTS IN THE BOX

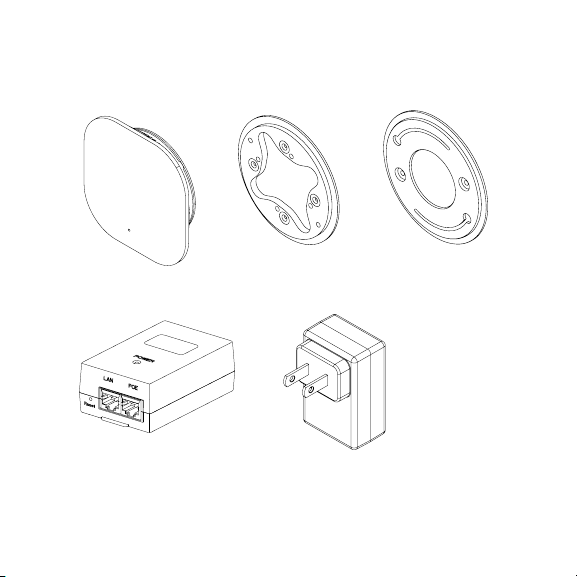

LinkPro Z - Parts in the Box
(1) Magnetic Mounting
Ring - Pre-installed
(1) LinkPro Z Unit
(1) 48v Passive PoE
Injector - Wall Wart
(1) 48v Passive PoE
Injector - Brick
(1) Original
Mounting Ring
4
LinkPro Z - Parts in the Box
(2) Mounting
Screws (PH2)
(2) Original Mounting
Ring Screws (PH2)
(1) Injector Power Cable (1) 5 Meter CAT5e
(1) 2 Meter CAT5e
(2) Drywall
Anchors
5
1. Position the Wall/ Magnetic mounting bracket in the
desired location in the orientation illustrated.
NOTE: Original Mounting Ring installation process is
similar to Magnetic Mount. For more details
contact support.
2. Mark the mounting hole locations (these holes are
Original Mounting RingMagnetic Mounting Ring
(preferred)
LinkPro Z - Installation
INSTALLATION - CEILING/WALL
MOUNT or MAGNETIC MOUNT
up
6
LinkPro Z - Installation
3/4" hole for
CAT5e/6
properly spaced for a standard 4/0 ceiling junction
box if one is available). Drill holes using a 7/32" drill.
3. Drill a 3/4” hole in the center of the space illustrated
for the CAT5e/6 cable.
7
4. Gently drive the drywall anchors into the 7/32" holes.
Locate your CAT5e/6 cable and pass it through the
hole drilled.
5. Mount the bracket to the ceiling using the provided
Phillips screws in the orientation illustrated.
LinkPro Z - Installation
