SCOTTY SCP

Equipment Manual

Disclaimer

SCOTTY Group Austria GmbH (SCOTTY) retains copyright in this manual and associated user

documentation (the Documentation). The Documentation must not be reproduced or used for

any purpose other than intended without written permission. The information provided in the

Documentation is believed to be accurate and reliable; however, SCOTTY does not accept

responsibility for loss or damage arising out of errors or omissions, and reserves the right to

revise the documentation without notice.

SCOTTY and its suppliers retain all copyright and other intellectual property rights in the

software embedded in and associated with the product described in the documentation (the

Software). Some products include software distributed under GNU General Public License (GPL)

and other licenses; please contact SCOTTY for further information and source code. By

purchasing the product described in the documentation you are granted a limited license to use

the Software, provided you do not copy, alter or adapt the Software in any way including

decompiling, disassembling or reverse-engineering.

No liability for consequential damages.

SCOTTY, the SCOTTY logo, TeleporterTM, and SCPTM are Trademarks of SCOTTY.

Microsoftand Windowsare registered Trademarks of Microsoft Corporation.

Version V1.05

SD208272A

This document is under electronic revision control.

SCOTTY SCP Equipment Manual

Table of Contents

1 Welcome.............................................................................................5

1.1 Welcome .............................................................................................................5

1.2 About the Manuals..............................................................................................6

1.3 Customer Support ...............................................................................................6

2 Introduction........................................................................................7

2.1 Scope ...................................................................................................................7

2.2 System Overview.................................................................................................8

3 Operation............................................................................................9

3.1 Status LEDs ..........................................................................................................9

3.2 Starting the SCOTTY Communication Platform.................................................10

3.3 Turning Off the System......................................................................................10

4 Installation........................................................................................11

4.1 Mounting Instructions.......................................................................................11

4.2 Cooling and Ventilation.....................................................................................12

4.3 Electrical Installation .........................................................................................12

4.4 Software Configuration .....................................................................................12

5 Maintenance.....................................................................................13

5.1 Internal Battery Replacement ...........................................................................13

6 Physical Specifications...................................................................15

6.1 Weight and Dimensions ....................................................................................15

6.2 Outline Drawings...............................................................................................16

7 Electrical Interfaces.........................................................................19

7.1 Overview............................................................................................................19

7.2 Hardware Specification .....................................................................................20

7.3 Video Interfaces ................................................................................................20

7.4 Audio Interfaces ................................................................................................21

7.5 Data Interfaces ..................................................................................................22

7.6 Other Inputs/Outputs........................................................................................23

7.7 Power Requirements.........................................................................................24

8 Connectors and Pin-Outs ...............................................................25

8.1 Con 1..................................................................................................................26

8.2 Con 2..................................................................................................................28

8.3 Con 3..................................................................................................................30

9 Environmental Specifications ........................................................33

SCOTTY SCP Equipment Manual

9.1 Operation.......................................................................................................... 34

9.2 Storage.............................................................................................................. 34

10 Options...........................................................................................35

SCOTTY SCP Equipment Manual

1Welcome

1.1 Welcome

Welcome to the world of advanced communication... welcome to the world of

SCOTTY!

SCOTTY provides a unique offering of live HD video, audio, and data

communication, live HD video surveillance transmission, and imagery transfer

from air, land, and sea –over satellite and terrestrial networks. This package is

used by customers around the world to support their border control,

intelligence gathering, reconnaissance, surveillance, search and rescue, and

other missions which require beyond line-of-sight connectivity and

ruggedized/reliable equipment.

SCOTTY is EN9100 certified and has over fifteen years' experience serving

customers around the world.

Please find detailed information on our website: www.scottygroup.com

SCOTTY SCP Equipment Manual

1.2 About the Manuals

The Equipment Manual describes the hardware aspects of your SCOTTY

system, serving as a valuable source of information not only for integrators

but also for users.

The Software Manual accompanies the Equipment Manual. It describes the

software aspects of your SCOTTY system, and is geared toward the user and

administrator.

Both manuals help you take full advantage of your SCOTTY solution. They are

not only a comprehensive guide to the operation of the system, they also

provide technical details, simple step by step instructions on how to perform

the most common applications, and more. We recommend you read the

manuals carefully in order to fully benefit from SCOTTY's advanced solutions.

Furthermore, Quick Reference Guides are available describing the basic

functionality on a single page –these are suitable for daily use.

1.3 Customer Support

The Support section on our website www.scottygroup.com offers help to

maximize the functionality of your SCOTTY system.

Choose Downloads to retrieve the latest documents, manuals and software.

Find updated information about our demo numbers to place demonstration

and test calls to our demonstration systems.

Find out how to get in contact with our support experts.

Please help our support team provide the best support possible by including

the serial number of your SCOTTY unit in all requests.

SCOTTY SCP Equipment Manual

2Introduction

2.1 Scope

This document covers the specifications, including interface control, usage

and maintenance of the following component:

SD207893A SCOTTY Communication Platform (SCP) and variants

The SCOTTY Communication Platform

SCOTTY SCP Equipment Manual

2.2 System Overview

The SCOTTY Communication Platform (SCP) delivers superior full high

definition video and audio, even over satellite or other challenging networks

with bandwidth constraints and high latency.

The system supports both common videoconference standards and SCOTTY

proprietary, highly optimized communication protocols. By providing bi-

directional low latency real time communication, unidirectional live video

streaming and video recording for store-and-forward applications, many

different application requirements can be fulfilled. Parallel data channels

enable bidirectional communication of supplementary data and also remote

control of cameras and other equipment. Designed for demanding

environmental needs, the platform is qualified for integration in airborne

systems.

The platform supports a wide range of video interfaces like Composite, HD-

SDI, HDMI, DVI, and VGA with resolutions of up to 1080p60. Highly adaptable

audio interfaces support a wide range of signal requirements. Flexible data

interfaces support various data sources and sinks to be integrated in the

communication system.

The mechanically very robust platform also provides standard PC interfaces

like DVI/HDMI, LAN and USB. An internal solid state disk is used for the

operating software and is available for storage of user data. The SCP is based

on a PC platform running Microsoft Windows. The proven SCOTTY Teleporter

provides a flexible, highly configurable user interface.

The system is qualified according to DO160 standards. Excellent EMC

characteristics allow employment in setups required to fulfill Zone 1 –NATO

SDIP 27 Class B (AMSG 788).

SCOTTY sees this platform as a building block for highly adapted, optimized

systems; selecting the required hardware and software modules and fitting

them into the optimal mechanical structure will result in optimized, small,

light and low-power solutions.

SCOTTY SCP Equipment Manual

3Operation

3.1 Status LEDs

Three LED’s on the front of the unit provide information on the system status.

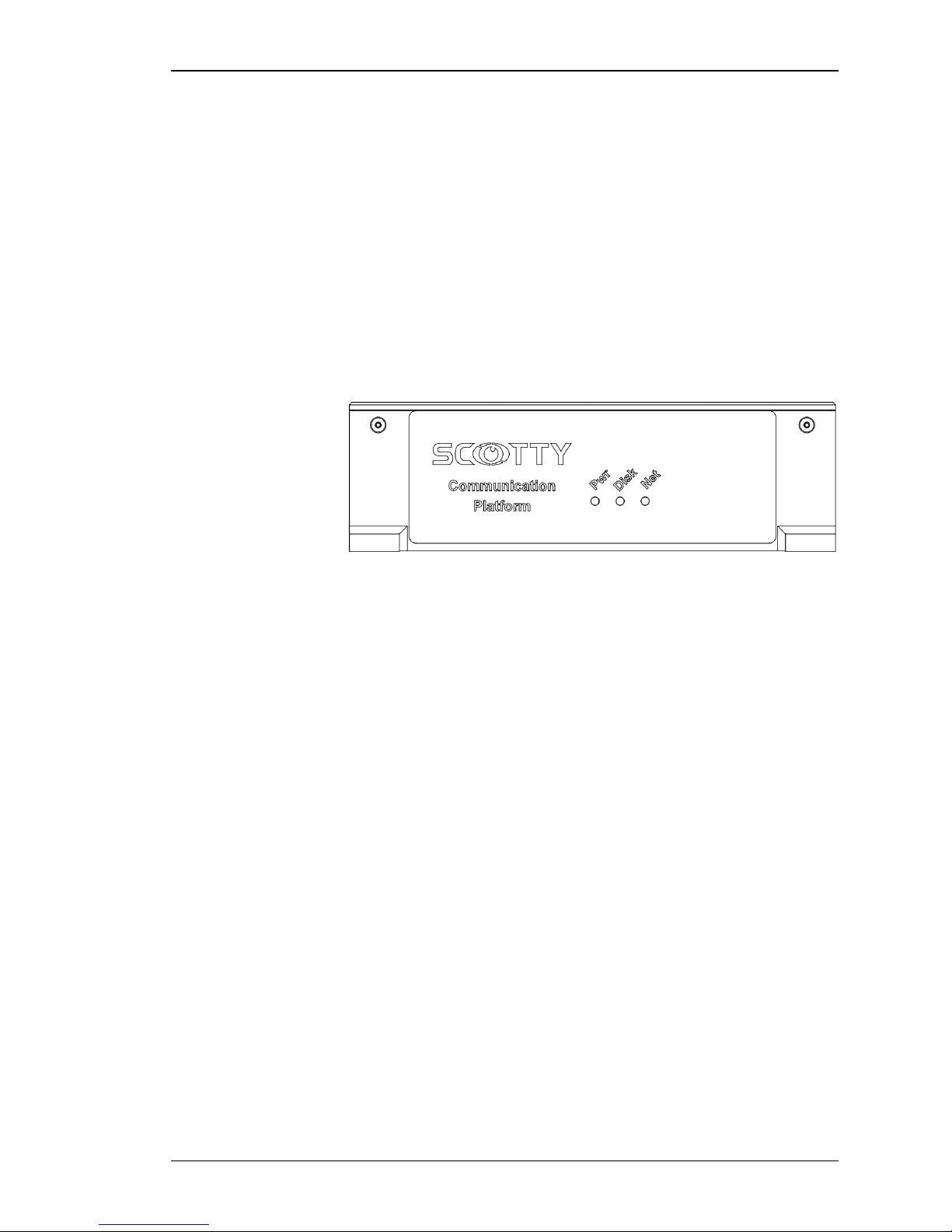

SCOTTY Communication Platform front view with status LEDs

Pwr Power LED: indicates the power on state of the system.

Disk Disk LED: irregular flashing indicates internal solid state disk activity.

Net Network LED: indicates LAN activity.

Disk and LAN LED, two short flashes repeated once a second: the system

temperature violates the operational limits.

SCOTTY SCP Equipment Manual

3.2 Starting the SCOTTY Communication Platform

If Autostart Power is configured, the system starts automatically when power

is applied.

If Manual Power is configured, an external power button should be available.

Push this button to start the unit.

Alternatively, the SCOTTY logo on the top of the unit can be used as power

button.

SCOTTY logo on top of the SCP

3.3 Turning Off the System

The preferred way to power down the system is to close the software and to

shut down Windows; see the Software Manual for details.

The unit can also be turned off with an external power button or the SCOTTY

logo on the top of the unit (see previous chapter). Pushing the button will

gracefully shutdown Windows.

Holding the power button for more than four seconds will result in an

immediate power off without shutting down Windows first.

If the system is not shut down in the correct fashion, data-loss can occur.
