RANSOM
GEOMETRY & TECHNICAL DATA 03
HEADSET ADJUSTMENT 05
SETTING SAG 06
TWINLOC / BEARINGS / FLIP CHIP 07
CABLE ROUTING 08
GENERAL SPARE PARTS 09
MANUFACTURE’S GUARANTEE 12
CONTENT
THE RANSOM SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY.
Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.
LEGEND
TORQUE REQUIRED
TASK DIFFICULTY
TORX TOOL SIZE
T 25
TORQUE AMOUNT
5 Nm
HEX TOOL SIZE
8
THREADLOC REQUERIDA
BEARING FIT REQUERIDA
CARBON GREASE
GREASE REQUIRED
NO GREASE
2024 RANSOM | ENGLISH 3
|
RANSOM
GEOMETRY & TECHNICAL DATA
2024 RANSOM SM MED LG XL
AHead tube angle °63.8 63.8 63.8 63.8
BHead tube length mm 95 100 115 125
CTop tube horizontal mm 569.9 598.7 624.4 649.1
Dstandover height mm 719.2 725.4 736.7 755.3
EBB offset mm -25 -25 -25 -25
FBB height mm 350 350 350 350
G Wheelbase mm 1206.6 1238.8 1270.4 1299.8
IBB center to TST mm 380 410 440 470
JSeat angle °77.0 77.2 77.4 77.6
K Chainstay mm 440 440 440 440
L Reach mm 428 458 483 508
M Stack mm 614.8 619.3 632.8 641.7
Fork Length mm 581 581 581 581
Trail mm 135.5 135.5 135.5 135.5
SEATPOST mm 31.6
SEATPOST CLAMP mm 34.9
TRAVEL mm 170 Rr 170 Fr
SHOCK LENGTH mm 205
SHOCK STROKE mm 65
HARDWARE M.FRAME mm Trunnion
HARDWARE LINKAGE mm 8 x 20
MAX TYRE WIDTH in 2.5
CHAINLINE mm 55
MAX CHAINRING Tooth 34
MAX ROTOR mm 203 Rr 203 Fr
(200m Direct)
2024 RANSOM | ENGLISH 4
|
RANSOM
RANSOM
GEOMETRY & TECHNICAL DATA CONT.
Please note on small sized frames it si only
possible to use a 500ml water bottle, with a
side entry cage.
COMPATIBLE SHOCK OPTIONS:
⚠Always check there is enough
clearance before riding.
FOX: Float X/Float X2/DHX/DHX 2
ROCKSHOX: Superdeluxe Air
OHLINS: TTX22 Coil / TTX2 Air
Marzocchi: Bomber Air + Coil
Please observe the maximum seatpost
insertion so not to damage the frame.
Small: 184 mm Max Insertion
Medium: 214 mm Max Insertion
Large: 244 mm Max Insertion
XL: 273 mm Max insertion
2024 RANSOM | ENGLISH 5
|
RANSOM
RANSOM
It is important to install the headset correctly
depending on the set up required. There are
two types of headset cups.
0° & 0.6° ( 64° & 65°) These can be indentified
from the stamp on the inner surface of the
headset cup.
The headset is available in two options:
288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB
290060 SCO HEADSET CUP KIT SPARK 22
Do not use a standard headset tool to
remove these plastic headset cups.
HEADSET ADJUSTMENT
Slacker
Steeper
2024 RANSOM | ENGLISH 6
|
RANSOM
RANSOM

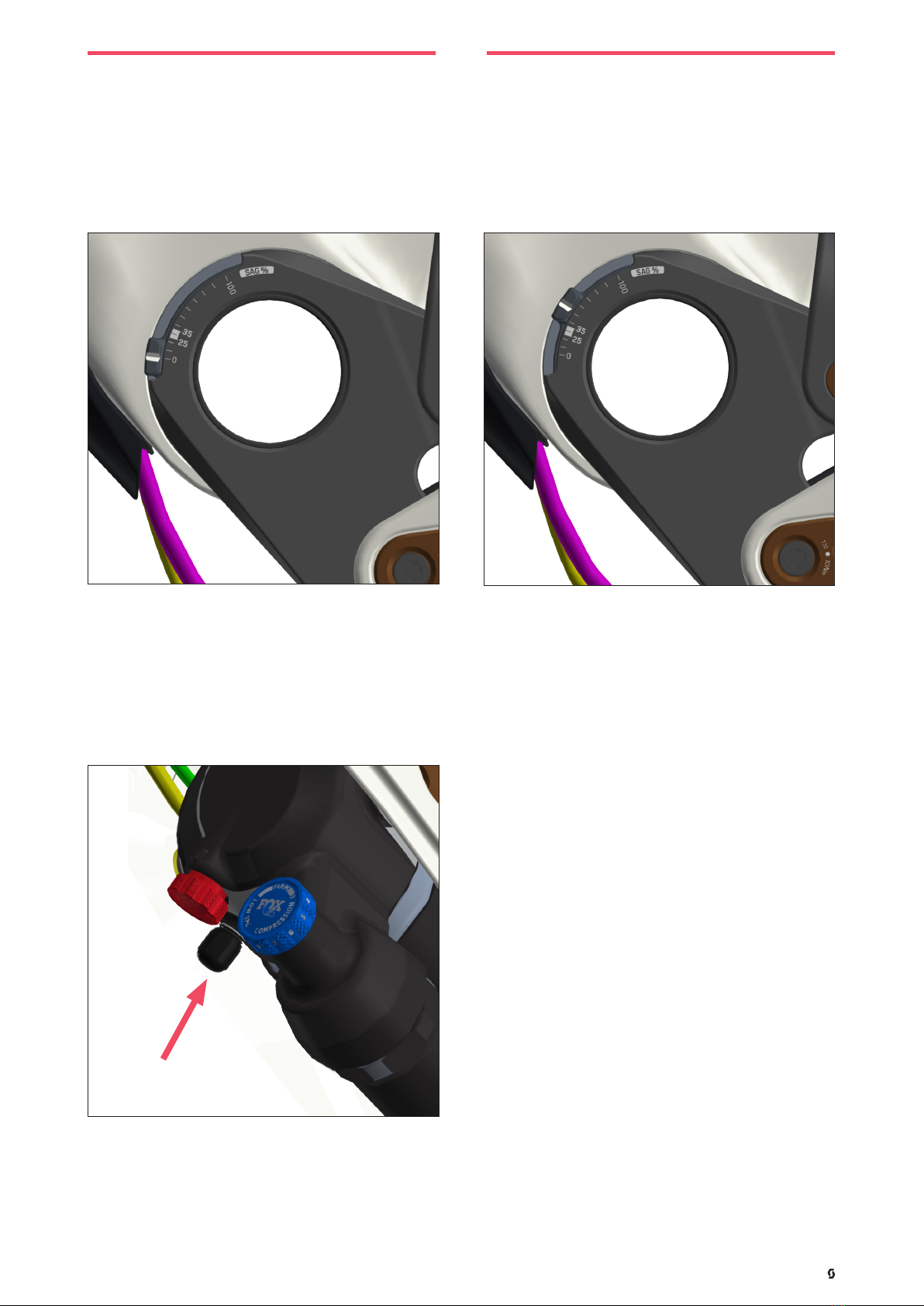

SETTING SAG
01 02
Put the Tracloc lever in the OPEN
position.
Wear your normal riding gear,
set the sage meter to zero.
Gently sit on the bike allowing the
sag meter to move. Once completed
dismount the bike gently. Check the
value.
If the sag value is not to your liking within
the sag range indicated, access the shock
by removing the cover and adjusting the
pressure as indicated.
2024 RANSOM | ENGLISH 7
|
RANSOM
RANSOM
TRACLOC ONLY
LINKAGE BEARINGS
FLIP CHIP
BOLD TRACLOC LINKIN 22 P/N: 291219
SCO TWINLOC ADAPTER OFFSET 23 P/N: 421286
SCO TWINLOC ADAPTER INLINE 23 P/N: 421287
SCO TWINLOC BAR CLAMP 22 P/N: 292621
LOWER LINKAGE / CHAINSTAY 61802
LINKAGE / SEAT TUBE 61802
LINKAGE / SEATSTAY 61802
SEATSTAY / CHAINSTAY 61802
BOTTOM BRACKET 61810
TIE LINKS (TOP AND BOTTOM) 61810
RANSOM
RANSOM
27”
29”
2024 RANSOM | ENGLISH 8
|
RANSOM
RANSOM
CABLE ROUTING
Brake/Derailleur/Tracloc/Dropper Cable Routing
2024 RANSOM | ENGLISH 9
|
RANSOM
RANSOM
GENERAL SPARE PARTS
421610 SCO Link Tie Ransom 24
421612 SCO SWINGARM REP KIT RANSOM 24
421611 SCO SAG INDICATOR RANSOM 24
421623 SCO M/P COVER RANSOM 24
421589 SCO LINK LOWER OUTER LINK RANSOM 24
2024 RANSOM | ENGLISH 10
|
RANSOM
RANSOM
GENERAL SPARE PARTS
421624 SCO CABLEGUIDE SET RANSOM 24
296609 SCO AXLE RWS REAR 148X12 GENSCAL PLUG 23
297522 SCO STEM SPACER/TOP CAP GENIUS 23
25 Nm
286000 SCO DROPOUT SRAM UDH 21
Reverse Thread
421621 SCO CABLE/SHOCK DT COVER RANSOM 24
