SERVICE MANUAL

NW307/308/507/508

(22inch Model)

NW457/458/608/1008/1408

(30inch Model)

Electronic Modular Cubers

Part Number : 98020304-00 Version : C

TABLE OF CONTENTS

Table of contents 1

Specifications 2-13

FOR THE INSTALLER

Introduction 14

Storage bin 14

Standard legs 14

Important operating requirements 14

Select location 14

Storage bin 14

Ice machine 14

Air Baffle 15

Stacking instructions 15

FOR THE PLUMBER

Conform to all applicable codesWater inlet 15

Drains 16

For the electrician 16

Electrical connections 17

Final check list 18

START-UP

Start-up cycle 19

Freezing cycle 19

Harvest cycle 20

OPERATION

Refrigeration during freeze 21

Water system 22

Refrigeration system during harvest 23

Water system 23

Control sequence 23-24

Alarm conditions 24-25

PC Board set up 26-27

SERVICE SPECIFICATIONS

Component 28

Operating characteristics 28

COMPONENT DESCRIPTION 29-31

WIRING DIAGRAM

NW 308/508

NW307/507/457

NW 458/608 34

NW 1008 (220V) 35

NW 1008 (380V) 36

NW 1408 (380V) 37

SERVICE DIAGNOSIS

MAINTENANCE & CLEANING INSTRUCTION

Icemaker 38

Ice storage bin 39

Cabinet exterior 39

Cleaning (Icemaker) 40

SPECIFICATIONS

MODULAR CUBER NW 308/508

Ice Making Capacity

NOTE.

To keep your Modular cuber performing at its maximum capacity, it is necessary to

perform periodic maintenance as outlined on page 34&35 of this manual.

SPECIFICATIONS

MODULAR CUBER NW 308/508

SPECIFICATIONS

MODULAR CUBER NW 307/507/457

Ice Making Capacity

NOTE.

To keep your Modular cuber performing at its maximum capacity, it is necessary to

perform periodic maintenance as outlined on page 34&35 of this manual.

SPECIFICATIONS

MODULAR CUBER NW 307/507

SPECIFICATIONS

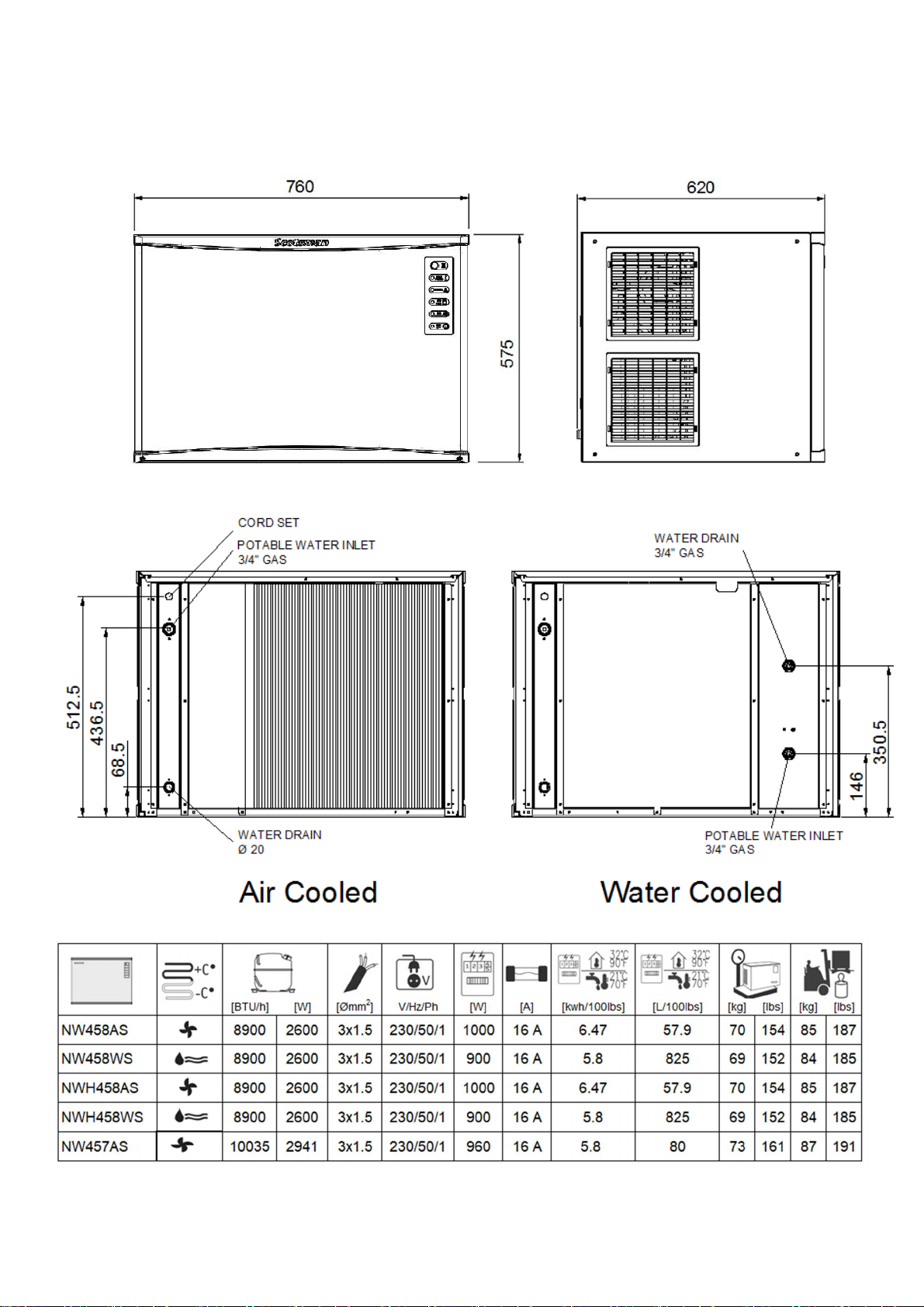

MODULAR CUBER NW 458

Ice Making Capacity

NOTE.

To keep your Modular cuber performing at its maximum capacity, it is necessary to

perform periodic maintenance as outlined on page 34&35 of this manual.

SPECIFICATIONS

MODULAR CUBER NW 458/457

SPECIFICATIONS

MODULAR CUBER NW608

Ice Making Capacity

NOTE.

To keep your Modular cuber performing at its maximum capacity, it is necessary to

perform periodic maintenance as outlined on page 34&35 of this manual.

SPECIFICATIONS

MODULAR CUBER NW608
