User Manual

SCI120-S LED Digital Dry Bath

Please read the User Manual carefully before use, and follow

all operating and safety instructions!

Technical specifications and outline are subject to change

without prior notice.

www.scilogex.com

Contents

Preface

Service

Warranty

1.Safety Instructions

2.Proper Use

3.Inspection





4.Control 

 

!

5.Trial Run!

6.Function: Heating"

7.Function: timing"

8.Faults#

9.Maintenance and Cleaning#

10.Associated Standards and Regulations$

11.Specifications

12.Ordering Information

Preface

Welcome to the “Dry Bath User Manual”. Users should

read this Manual carefully, follow the instructions and

procedures, and be aware of all the cautions when using this

instrument.

Service

When help needed, you can always contact the service

department of manufacturer for technical support in the

following ways:

SCILOGEX, LLC

1275 Cromwell Ave.

Suite C6

Rocky Hill, CT 06067 USA

Tel: +1(860) 436-9221

Fax: +1(860) 436-9745

[email protected]

www.scilogex.com

Please provide the customer care representative with the

following information

• Serial numberon the rear panel

•Certification

• Description of problem (i.e., hardware or software)

• Methods and procedures adopted to resolve the problems

• Your contact information

Warranty

Changes or modifications not expressly approved by the

party responsible for compliance could void the user's

authority to operate the equipment.

NOTE: This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may

cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

This instrument is warranted to be free from defects in

materials and workmanship under normal use and service,

for a period of 24 months from the date of invoice. The

warranty is extended only to the original purchaser. It shall

not apply to any product or parts which have been damaged

on account of improper installation, improper connections,

misuse, accident or abnormal conditions of operation.

For claims under the warranty please contact your local

supplier. You may also send the instrument directly to

manufacturer, enclosing the invoice copy and by giving

reasons for the claim

1. Safety Instructions

Warning!

•Read the operating instructions carefully

before use.

•Ensure that only trained staff works with the

instrument.

Risk of burn!

•Caution when touch the housing parts and

the dry bath which can reach temperature of

120°C.

•Pay attention to the residual heat after

switching off.

Protective ground contact

•Make sure that socket must be grounded

(protective ground contact) before use.

• When working wear personal safety guards to avoid the

risk from:

- Splashing and evaporation of liquids

- Release of toxic or combustible gases

• Set up the instrument in a spacious are on a stable, clean,

non-slip, dry and fireproof surface. Do not operate the

instrument in explosive atmospheres, with hazardous

substances or under water.

• Temperature must always be set at least 50lower than

the fire point of the media used.

• Be aware of hazards due to:

- Flammable materials or media with a low boiling

temperature

- Overfilling of media

- Unsafe container

• Process pathogenic materials only in closed vessels.

• Check the instrument and accessories prior to each use.

• Do not use damaged components. Safe operation is only

guaranteed with the accessories provided by the

manufacturer. Accessories must be securely attached to

the device and can’t come off by themselves. Always

disconnect the plug before fitting accessories.

• The instrument can only be disconnected from the main

power supply by pulling out the main or the connector plug.

• The voltage stated on the label must correspond to the

main power supply.

• Ensure that the main power supply cable does not touch

the dry bath. Do not cover the device.

• The instrument may only be opened by experts.

2. Proper Use

The instrument is designed for heating liquids in schools,

laboratories or factories.

• Observe the minimum distances between the devices,

between the device and the wall and above the assembly

(min. 100 mm)

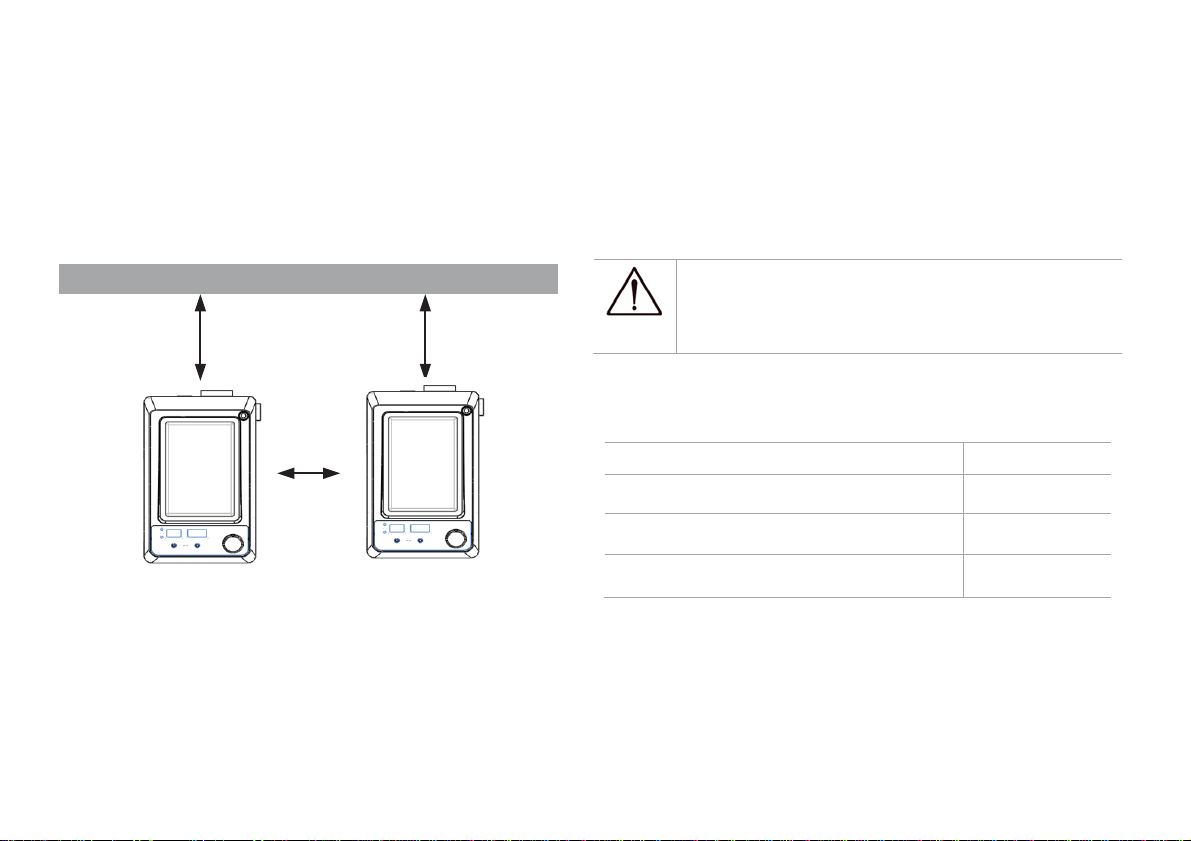

>100mm



Figure 1

This device is not suitable for using in residential areas or

other constraints mentioned in Chapter 1.

3. Inspection

3.1 Receiving Inspection

Unpack the equipment carefully and check for any damages

which may have arisen during transport. Please contact

manufacturer/supplier for technical support.

Note:

If there is any apparent damage to the system,

please do not plug it into the power line.

3.2 Listing of Items

The package includes the following items:

Items Qty

Main unit 1

Power cable 1

User Manual 1

Table 1

4. Control

4.1 Control elements

Time switch button

Parameter

setting knob

Temperature switch

button

LED display

Power switch

LED light



Figure 2 Dry bath

Table 2

Items Descriptions

Temperature

switch button

Press the button, can set the target

temperature

Time switch

button Press the button, can set the target time

LED Display LED displays the real working state

and all settings.

LED Lignt The LED light shows green when the

parameter is set

Parameter setting

knob

Rotate the knob to set the target

parameters, press the knob to turn on

the settings.

Power Switch Switch ON or OFF the instrument.

4.2 Display

Temperature display area Time display area



Figure 3 Digital hotplate model

Characters Descriptions

Temperature

display area

Press the temperature switch button, the

characters in temperature display area will

be flashing, and then rotate the parameter

setting knob to set the target temperature,

press the parameter setting knob to turn on

the setting.

When the heating function is switched

ON, the LED temperature light will turn

green, and the temperature display area

displays the temperature real value until

real temperature reaches the set point.

Time display

area

Press the time switch button, the

characters in time display area will be

flashing, and then rotate the parameter

setting knob to set the target time, press

the parameter setting knob to turn on the

setting. The LED time light will turn

green, then start countdown.

Table 3

5. Trial Run

• Make sure the required operating voltage and power

supply voltage match.

• Ensure the socket must be properly grounded.

• Add the medium into the vessel

• Place vessel on the work plate.

• Plug in the power cableensure the power is on and begin

initializing.

• Set the target temperature and begin.

• Set the time, if not, the machine will work continuously

• Observe the LED display

• Stop the heating and stirring functions.

If these operations above are normal, the device is ready to

operate. If not, the device may be damaged during

transportation, please contact manufacturer/supplier for

technical support

6. Function: Heating

The device is controlled by digital temperature control

technology, and it has a over temperature protection, the

safety temperature is 140

Press the temperature switch button, the characters in

temperature display area will be flashing, and then rotate

the parameter setting knob to set the target temperature,

press the parameter setting knob to turn on the setting.

Note:

•Set the temperature via rotating the parameter setting

knob slowly to the target value.

•When the heating function is switched on, the LED

displays the temperature value on the left-hand side.

•The heating function is switched on or off by pushing

heating knob.

The instrument automatically displays the last running

speed and temperature parameters once turned on.

Generally, the LED screen cannot display the actual

temperature of sample in the vessel or dry bath surface,

temperature differences as following:

Dry bath center and outer edge.

The sample in the vessel and dry bath surface.

7. Function: Timing

The device can work in accordance with the timing mode or

continuous operation mode.

Timing Mode: Press the time switch button, the characters

in time display area will be flashing, and then rotate the

parameter setting knob to set the target time, press the

parameter setting knob to turn on the setting.

During operation, motion can be stopped at any time by

pressing the speed/timer control knob. If the knob is

pressed again, motion will start again and the timer will

restart countdown. When the timer reaches zero, the unit

will be automatically halted.

Continuous Mode: Press the time switch button, the

characters in time display area will be flashing, make sure

the setting time is zero, press the parameter setting knob to

turn on the continuous operation mode.

8. Faults

•Instruments can’t be power ON

Check whether the power line is unplugged

Check whether the fuse is broken or loose

•Fault in power on self test

-Switch OFF the unit, then switch ON and reset

the instruments to factory default setting.

If these faults are not resolved, please contact

manufacturer/supplier.

9. Maintenance and Cleaning

•Proper maintenance can keep instruments working

properly and lengthen its lifetime.

•Do not spray cleanser into the instrument when

cleaning.

•Unplug the power line when cleaning.

•Only use recommended cleansers:

Dyes Isopropyl alcohol

Construction materials Water containing tenside

/ Isopropyl alcohol

Cosmetics Water containing tenside

/ Isopropyl alcohol

Foodstuffs Water containing tenside

Fuels Water containing tenside

Table 4

•Before using other method for cleaning or

decontamination, the user must ascertain with the

manufacturer that this method will not harm the

instrument. Wear the proper protective gloves during

cleaning of the instrument.



Note:

•Electronic device can not clean with

cleanser.

•If you require maintenance service, must be

cleaned the instrument in advance to avoid

pollution of hazardous substances, and to

send back into original packing.

•If the instrument will not use for a long time,

please switch off and place in a dry, clean,

room temperature and stable location.

Table des matières

Autres manuels Scilogex Équipement de laboratoire

Scilogex

Scilogex SCI636 Manuel utilisateur

Scilogex

Scilogex HB120-S Manuel utilisateur

Scilogex

Scilogex D160 Manuel utilisateur

Scilogex

Scilogex D-500 Manuel de l'opérateur

Scilogex

Scilogex SCI550-H Manuel utilisateur

Scilogex

Scilogex SCI280-Pro Manuel utilisateur

Scilogex

Scilogex MS-H280 Manuel utilisateur

Scilogex

Scilogex SCI100-Pro Manuel utilisateur

Scilogex

Scilogex MX-RD-PRO Manuel utilisateur

Scilogex

Scilogex MS-H-Pro-T Manuel utilisateur

Scilogex

Scilogex DM 0412 Manuel utilisateur

Scilogex

Scilogex SCI100-S Manuel utilisateur

Scilogex

Scilogex SCI7-S Manuel utilisateur

Scilogex

Scilogex DM0636 Manuel utilisateur

Scilogex

Scilogex SCI100VC Manuel utilisateur

Scilogex

Scilogex MS7-S Manuel utilisateur

Scilogex

Scilogex SCI-T6-Pro Manuel utilisateur

Scilogex

Scilogex SCI340-ProT Manuel utilisateur

Scilogex

Scilogex SCI20-S Manuel utilisateur

Scilogex

Scilogex SCI-L180-E Manuel utilisateur

Scilogex

Scilogex D2012 Manuel utilisateur

Scilogex

Scilogex SCI412S Manuel utilisateur

Scilogex

Scilogex SK-R1807-E Manuel utilisateur

Scilogex

Scilogex MS-H-Pro Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
