Scientific Atlanta EXPLORER 3000 Guide de dépannage

1394 1394

DIGITAL

AUDIO

EXPLORER 3000

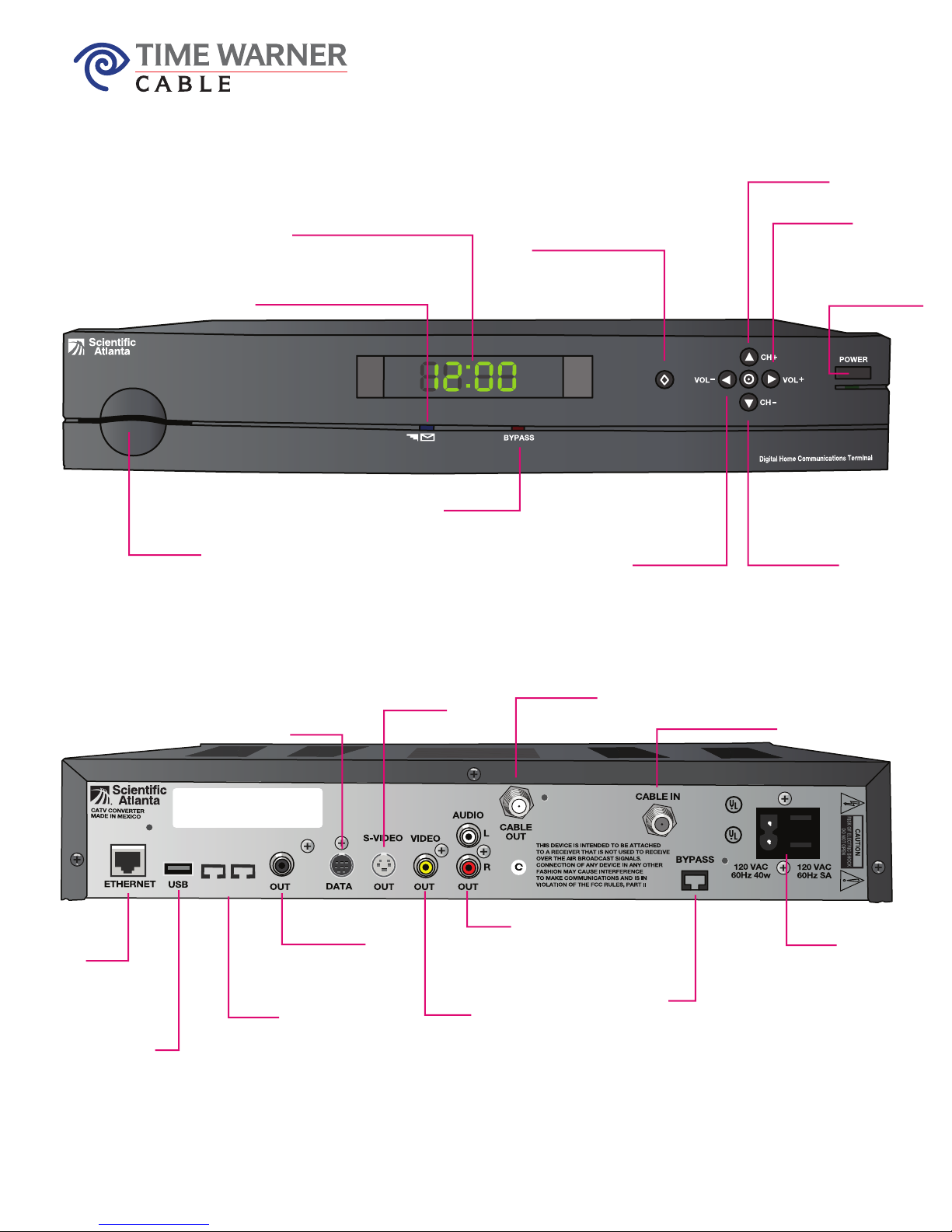

Smart Card slot

Allows smart card use

S-Video output

Connect to S-Video

input of TV or VCR

Data port

Connect optional VCR

Commander module

USB

Connect external equipment

Digital Audio output

Connect external digital

surround-sound receiver

Video Out

Connect to video

input of TV or VCR

Cable Out

Connect to cable input

of TV or VCR Cable In

Connect to cable signal

from cable service provider

AC Power

Connect the DHCT to an

AC electrical outlet and

Connect the AC power cord

from another device, such as

a TV or DVD player.

Message Indicator

Indicates message from service provider.

Press Info key to access message.

Display

Channel Number and Time of Day Display

(For technician use only)

Increase volume

Channel scroll up

Decrease Volume Channel scroll down

Power

ON/OFF button

Bypass Indicator

Indicates optional bypass feature

is on when illuminated

Ethernet

Connect an

Ethernet-equipped

computer, optional IEEE 1394

Connect 1394-equipped

devices, optional

Audio Out (L/R)

Connect to left/right audio

channels of a stereo receiver

or a TV with stereo sound

RF Bypass

Connect an optional

RF Bypass module

Scientific Atlanta

EXPLORER 3000/3030/3040

User’s Installation Guide

EXPLORER®

Digital Home Communications Terminal

Note to the Installer

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS

Note to CATV System Installer

This reminder is provided to call the CATV

system installer’s attention to Article 820-40

of the NEC (Section 54, Part I of the Canadian

Electrical Code), that provides guidelines for

proper grounding and, in particular,

specifies that the CATV cable ground shall

be connected to the grounding system of

the building, as close to the point of cable

entry as practical.

CAUTION: To reduce the risk of electric

shock, do not remove cover (or back).

No user-serviceable parts inside. Refer

servicing to qualified service personnel.

This symbol is intended to alert you of the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying this product.

This symbol is intended to alert you that

uninsulated voltage within this product may

have sufficient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of

contact with any inside part of this product.

WARNING

TO PREVENT FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE.

Read and Retain These

Instructions

• Read all of the instructions

before you operate this

equipment. Give particular

attention to all safety

precautions. Retain the

instructions for future

reference.

• Comply with all warning

and caution statements in

the instructions. Observe all

warning and caution

symbols that are affixed to

this equipment.

• Comply with all instructions

that accompany this

equipment.

IMPORTANT RULES FOR SAFE OPERATION

Cleaning the Equipment

Before cleaning this equipment, unplug it from the

electrical outlet. Use a damp cloth to clean this

equipment. Do not use a liquid cleaner or an aerosol

cleaner. Do not use a magnetic/static cleaning device

(dust remover) to clean this equipment.

Placement

Place this equipment in a location that is close enough

to an electrical outlet to accommodate the length of the

power cord. Place this equipment on a stable surface.

The surface must support the size and weight of this

equipment.

WARNING:

Avoid personal injury and damage to this

equipment. An unstable surface may cause

this equipment to fall.

Accessories

Do not use accessories with this equipment unless

recommended by your cable company.

IMPORTANT RULES FOR SAFE OPERATION,continued

Ventilation

This equipment has openings for ventilation that protect

it from overheating. To ensure the reliability of this

equipment, do not obstruct the openings.

• Do not place other equipment, lamps, books, or any

other object on the top of this equipment.

• Do not place this equipment in any of the locations that

follow:

- On a bed, sofa, rug, or similar surface

- Over a radiator or a heat register

- In an enclosure, such as a bookcase or equipment

rack, unless the installation provides proper

ventilation

WARNING:

Avoid electric shock and fire hazard. Never

push objects through the openings in this

equipment. Objects can touch dangerous

voltage points or cause electrical shorts that

can result in electric shock or fire.

Liquid or Moisture

Do not expose this equipment to liquid or moisture. Do

not place this equipment on a wet surface. Do not spill

liquids on or near this equipment.

Lightning and Power Surges

Ground (earth) your cable system to provide some

protection against voltage surges and built-up static

charges. If you have questions, call your cable company.

Servicing

Do not open the cover of this equipment. If you open the

cover, your warranty will be void. Refer all servicing to

qualified personnel only. Contact your cable company

for instructions.

Power Cord Protection

Arrange all power cords so that people cannot walk on

the cords, place objects on the cords, or place objects

against the cords, which can damage the cords. Pay

particular attention to cords that are at plugs, at

electrical outlets, and at the places where the cords exit

the equipment.

IMPORTANT RULES FOR SAFE OPERATION,continued

Power Sources

A label on this equipment indicates the correct power

source for this equipment. Operate this equipment only

from an electrical outlet that has the voltage and

frequency that the label indicates.

If you are unsure of the type of power supply to your

residence, consult Scientific-Atlanta, Inc., or your local

power company.

WARNING:

Avoid electric shock and fire hazard. Do not

overload electrical outlets and extension cords.

For equipment that requires battery power or

other sources to operate, refer to the operating

instructions for that equipment.

IMPORTANT RULES FOR SAFE OPERATION,continued

Grounding

This equipment has a two-prong plug. Properly ground

(earth) this equipment by inserting the plug into a

grounded electrical, two-socket outlet. If this plug is

polarized it has one wide prong and one narrow prong.

This plug fits only one way.

CAUTION:

To prevent electric shock, match wide blade of

plug to wide slot, fully insert.

If you are unable to insert this plug fully into the outlet,

contact an electrician to replace your obsolete outlet.

Damage that Requires Service

For damage that requires service, unplug this equipment

from the electrical outlet. Refer service to qualified

service personnel when any of the following occurs:

• There is damage to the power cord or plug

• Liquid enters the equipment

• A heavy object falls on the equipment

• There is exposure to rain or water

• Operation is not normal (the instructions describe the

proper operation)

• If you drop this equipment, or damage the cabinet of

this equipment

• If this equipment exhibits a distinct change in

performance

Upon completion of any service or repairs to this

equipment (home terminal), ask the service technician to

perform safety checks to determine that the equipment is

in proper operating condition.

Contents

Overview

Getting Started ......................................................... 7

Using This Guide ..................................................... 8

Selecting Your Connection Diagrams................... 9

Explorer DHCT Front Panel................................. 10

Explorer DHCT Back Panel .................................. 11

Using an RF Bypass Module ................................ 14

Optional Devices................................ 12 through 16

Connection Diagrams........................ 17 through 27

Using the DHCT .................................................... 28

Tips for Improved Performance .......................... 29

Notices ..................................................................... 31

FCC Compliance ..................................... Back cover

Optional Devices

Connecting a VHF Transformer for

Non-Cable-Ready TV ............................................ 12

Connecting a TV with the PIP Feature

to a Signal Splitter.................................................. 13

Using an RF Bypass Module ................................ 14

Connecting a Digital Audio Decoder ................. 16

Connection Diagrams

Connecting a Non-Stereo TV ............................... 17

Connecting a Stereo TV ........................................ 18

Connecting a Non-Stereo TV and a

Non-Stereo VCR..................................................... 19

Connecting a Non-Stereo TV and a

Stereo VCR .............................................................. 20

Connecting a Stereo TV and a

Non-Stereo VCR..................................................... 21

Connecting a Stereo TV and a

Stereo VCR .............................................................. 22

Connecting a Stereo TV with S-Video Input ..... 23

Connecting a Stereo TV and VCR with

S-Video Input ......................................................... 24

Connecting a Non-Stereo TV, Non-Stereo

VCR, and Stereo Receiver or Amplifier.............. 25

Connecting a Stereo TV, Stereo VCR, and

Stereo Receiver or Amplifier ................................ 26

Connecting a Stereo TV, Stereo VCR, and

Home Theatre Receiver......................................... 27

Installation Overview

The following list provides an overview of the

installation process.

1. Determine the electronic devices you must

connect using the information on page 9.

2. Connect the DHCT and your electronic devices

using the diagrams in this guide, based upon

the information on page 9.

3. Plug in the DHCT to an AC power source, but

do not press the Power key on the DHCT.

4. Set the input channel (3 or 4) on your TV and

VCR.

5. Wait for the time to display on the LED. Then,

press the Power on the DHCT. See page 28 for

detailed instructions.

6. Program your remote control to operate your

TV and VCR. (See your remote control user’s

guide.)

7. Use the IPG to browse and view your program

preferences. (See the IPG user’s guide.)

Getting Started

Installation Tips

Follow these tips for proper DHCT operation:

• Do not plug the DHCT into a wall outlet that is

controlled by a wall switch. The IPG data does

not update when the outlet is switched to the off

position.

• You can plug your TV into the AC Switched

Outlet on the back of the DHCT.

• To ensure proper ventilation, do not place any

objects on top of the DHCT, including devices

such as your TV.

• If your TV is equipped with a picture-in-picture

(PIP) feature, see the connection diagram on

page 13.

Important Messages

Please read this entire guide before you install or

operate this equipment. Look for the following

safety symbol throughout this guide:

Read the caution or warning that appears with

each safety symbol throughout this guide.

CAUTION:

Do not place a magnet, or any type

of magnetic/static dust removal device on or

near this equipment. Magnetic/static devices

may affect the operation of this equipment.

About This Guide

Using This Guide

Introducing the Explorer DHCT

The Explorer®Digital Home Communications

Terminal (DHCT) is a converter that can view

analog and digital signals. The Explorer DHCT

provides exceptional picture quality and an

Interactive Program Guide (IPG)–an interactive,

on-screen browsing and program-selecting menu.

This guide provides diagrams of the front and

back panels of the DHCT, diagrams for connecting

the DHCT to other electronic devices, basic

instructions for using the DHCT, and

troubleshooting tips for proper operation.

Joining the Explorer Club

Scientific-Atlanta invites you to join the Explorer

Club. This online club provides news and “what’s

up” information about the Explorer DHCT and

offers you a chance to win prizes and other

premium items.

You can access the Explorer Club by logging on to

the Internet and entering our address

http://www.scientificatlanta.com. Then, click the

Explorer user? Join the Explorer Club icon and

follow the instructions.

Selecting Your Connection Diagrams

Introduction

This section provides a list of electronic devices

that connect to your DHCT. The Optional Devices

list includes devices that may be required for

specific combinations of viewing and listening

preferences. The TV and VCR Setup table

includes the audio and video options (non-stereo,

stereo, and S-Video) on your TV and VCR. Identify

all of your devices, then go to the page number

shown and use the diagrams and instructions to

connect your devices to the DHCT.

Optional Devices

Some optional devices must be installed to provide

specific sound and viewing preferences. Review

the list and go to the page shown for instructions

on connecting the device in your system.

• VHF Transformer for non-cable-ready TV ...... 12

• RF Splitter for PIP viewing ................................ 13

• RF Bypass Module for viewing cable

programming while recording premium

programming ....................................................... 14

• Digital Audio Receiver for surround sound ... 16

• Stereo Receiver or Amplifier for using

external speakers ....................................... 25 or 26

• Home Theatre Receiver for using

external speakers ................................................. 27

TV and VCR Setup

Use the table below to find the page number of the

connection diagrams for your style of TV and VCR.

Find your TV style in the left column and find your

VCR style across the top row. The intersection of

the row and column contains the page number of

the connection diagram for your specific TV and

VCR.

Stereo

VCR with

S-Video Input

VCR

Stereo

VCR

None VCR

Non-Stereo

2218 21

Non-Stereo n/a

n/a

2017 19

TV with

S-Video Input 24

n/a

23 n/a

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Scientific Atlanta Décodeur

Scientific Atlanta

Scientific Atlanta Explorer 3240HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3250HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3240HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 4240C Manuel utilisateur

Scientific Atlanta

Scientific Atlanta 8600 Series Manuel utilisateur

Scientific Atlanta

Scientific Atlanta 4240HDCTM Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 4250HDC Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 1850 Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3250HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 940 Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 4240C Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3250HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta FiberEdge Manuel utilisateur

Scientific Atlanta

Scientific Atlanta 8500 SERIES Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3250HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3170HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 940 Manuel utilisateur

Scientific Atlanta

Scientific Atlanta IPN330HD Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 940 Manuel utilisateur

Scientific Atlanta

Scientific Atlanta Explorer 3270HD Manuel utilisateur

Manuels Décodeur populaires d'autres marques

VBrick

VBrick 8000-0188 Manuel utilisateur

Kogan

Kogan KGNPVR500VAA Manuel utilisateur

Asus

Asus O!PLAY MEDIA PRO Manuel utilisateur

Samsung

Samsung ICU 100 Manuel utilisateur

VECTORMAX

VECTORMAX A12E Manuel utilisateur

DStv

DStv Explora Manuel utilisateur

Ace Digital TV

Ace Digital TV ADB 3800 Manuel utilisateur

Cisco

Cisco 4398DVB Manuel utilisateur

Polaroid

Polaroid KHA-01651B Manuel utilisateur

Samsung

Samsung GX-SM530CF Manuel utilisateur

BT Business Total Broadband Manuel utilisateur

Megasat

Megasat HD 720 plus Manuel utilisateur

Sungale

Sungale STB608 Manuel utilisateur

Amino

Amino Amigo 7X Manuel utilisateur

Geniatech

Geniatech ATV225 Manuel utilisateur

Android

Android Androidminibox mx2 se Manuel utilisateur

Hama

Hama Internet TV Box Manuel utilisateur

Ariva

Ariva T650i Manuel utilisateur
