ASSEMBLY
MANUAL
MPower™ Echelon2G Console
Core Health & Fitness
Page 1
Echelon2G Assembly Manual
Applies to: Echelon2G
Required Tools:
• #2 Phillips Screwdriver
• 2.5mm Allen Key

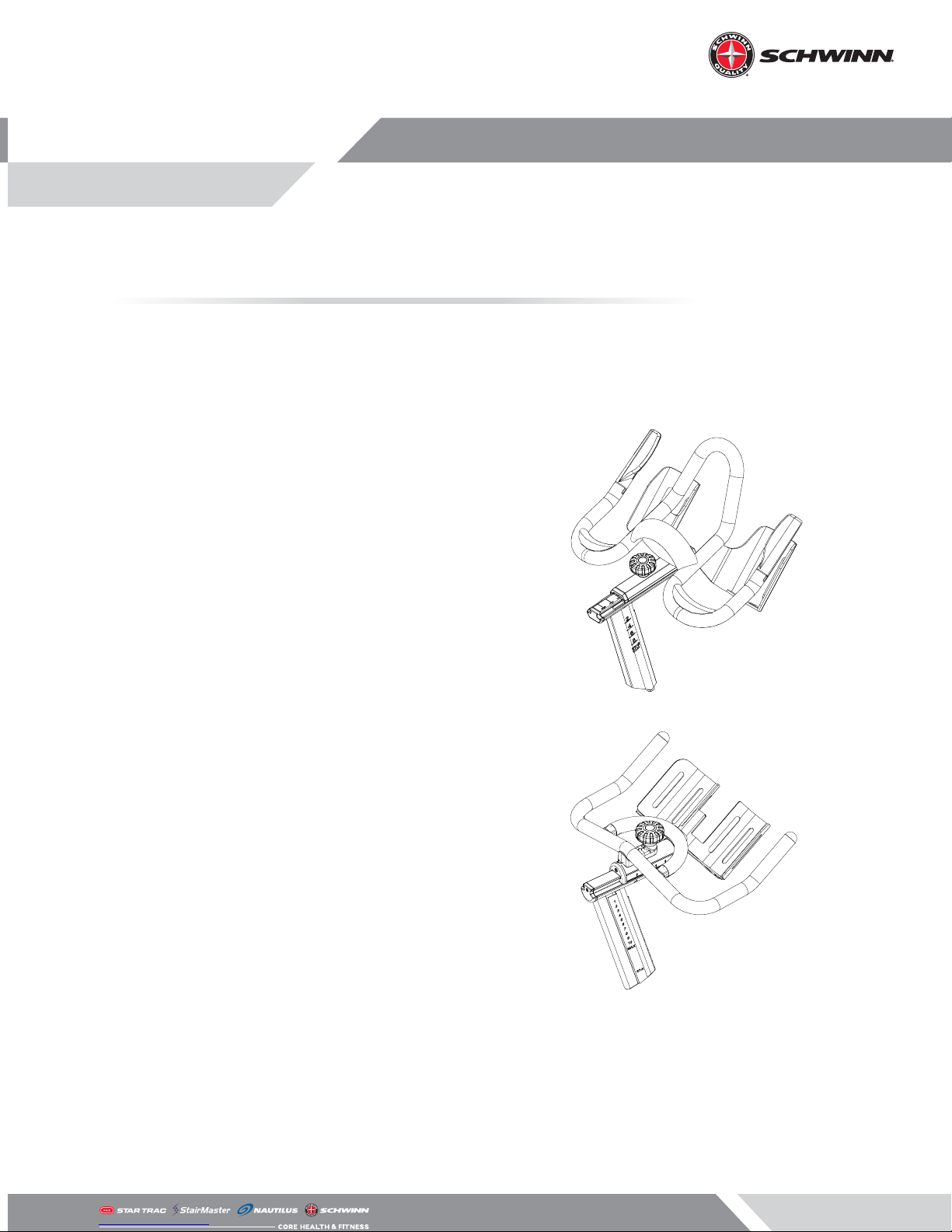

1. Identify which handlebar style is present on the
bike. If the handlebars are the Performance-style
(pictured right), please proceed to Page 2 - Step
1. Otherwise, please continue to Step 2.
2. If the handlebar style present on the bike is the
Studio-style handlebars (pictured right), please
proceed to Page 4 - Step 1.
Page 2

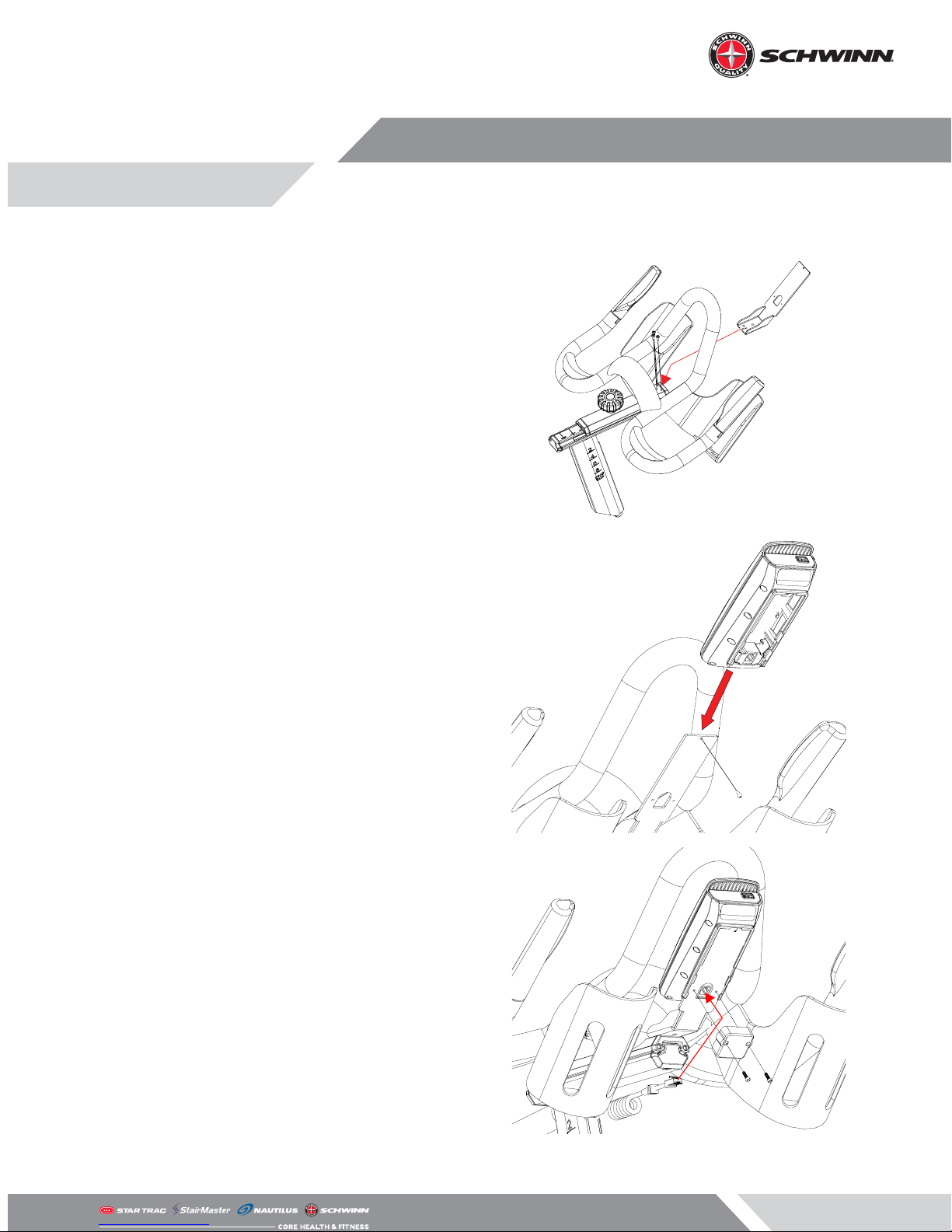

1. Use a #2 phillips screwdriver to secure the con-
sole bracket to the handlebars using three (3)
pieces of the M4 x 10mm screws.
2. Slide the console onto the console bracket, then
secure the console to the bracket using one (1)
piece of the M3 x 6mm screw.
3. Plug the console data cable into the back of the
console, insert the strain relief grommet into the
strain relief cover, then use a 2.5mm allen key to
attach the strain relief cover to the console brack-
et using two (2) pieces of the M3 x 12mm screws.
Page 3

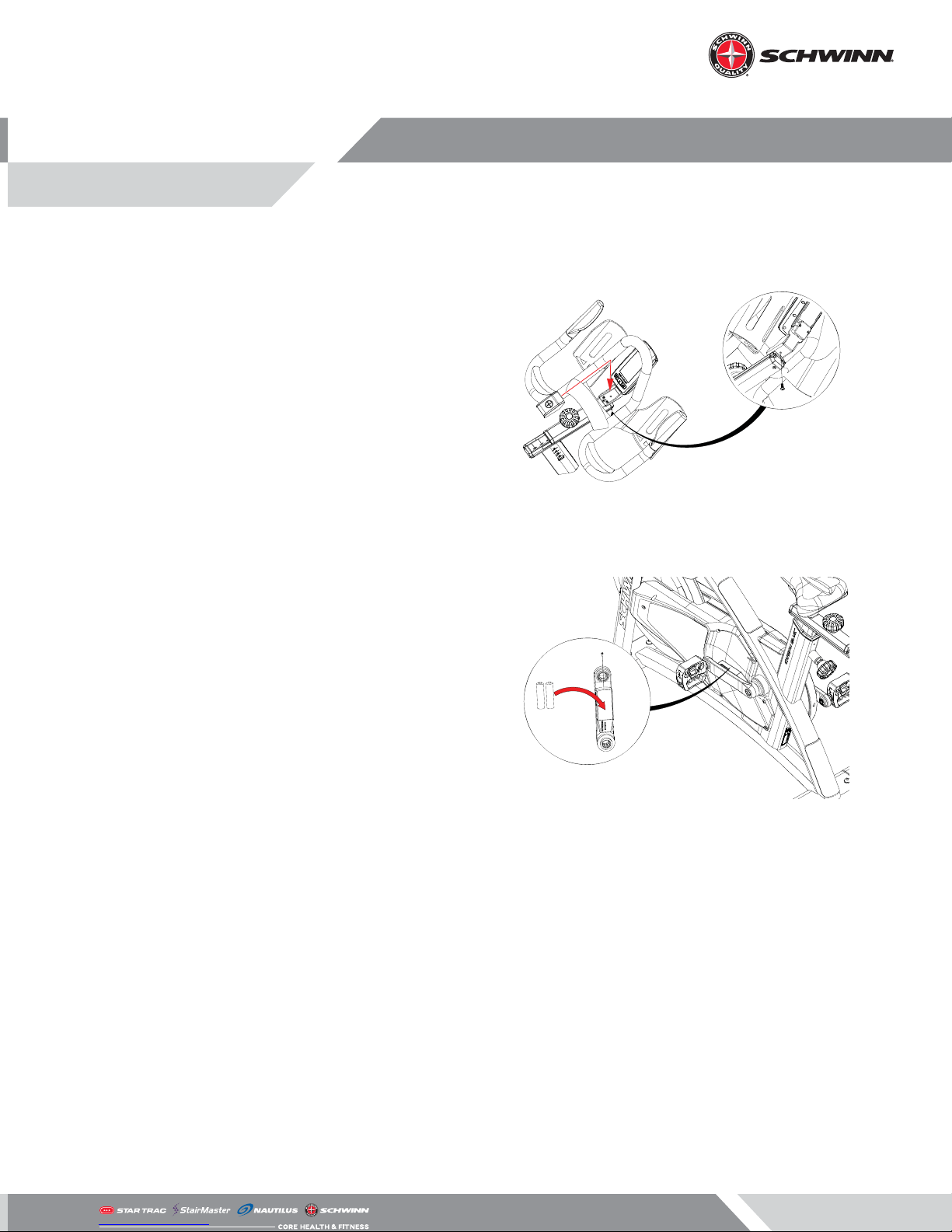

4. Attach the console bracket cover to the console
bracket using one (1) piece of the M5 x 16mm
screw.
5. Open the 4iiii Powermeter battery compartment
on the user left side crank arm using a #2 phillips
screwdriver, then install the two AA batteries.
6. After completing this step, please proceed to
Page 6 - Step 1.
Page 4

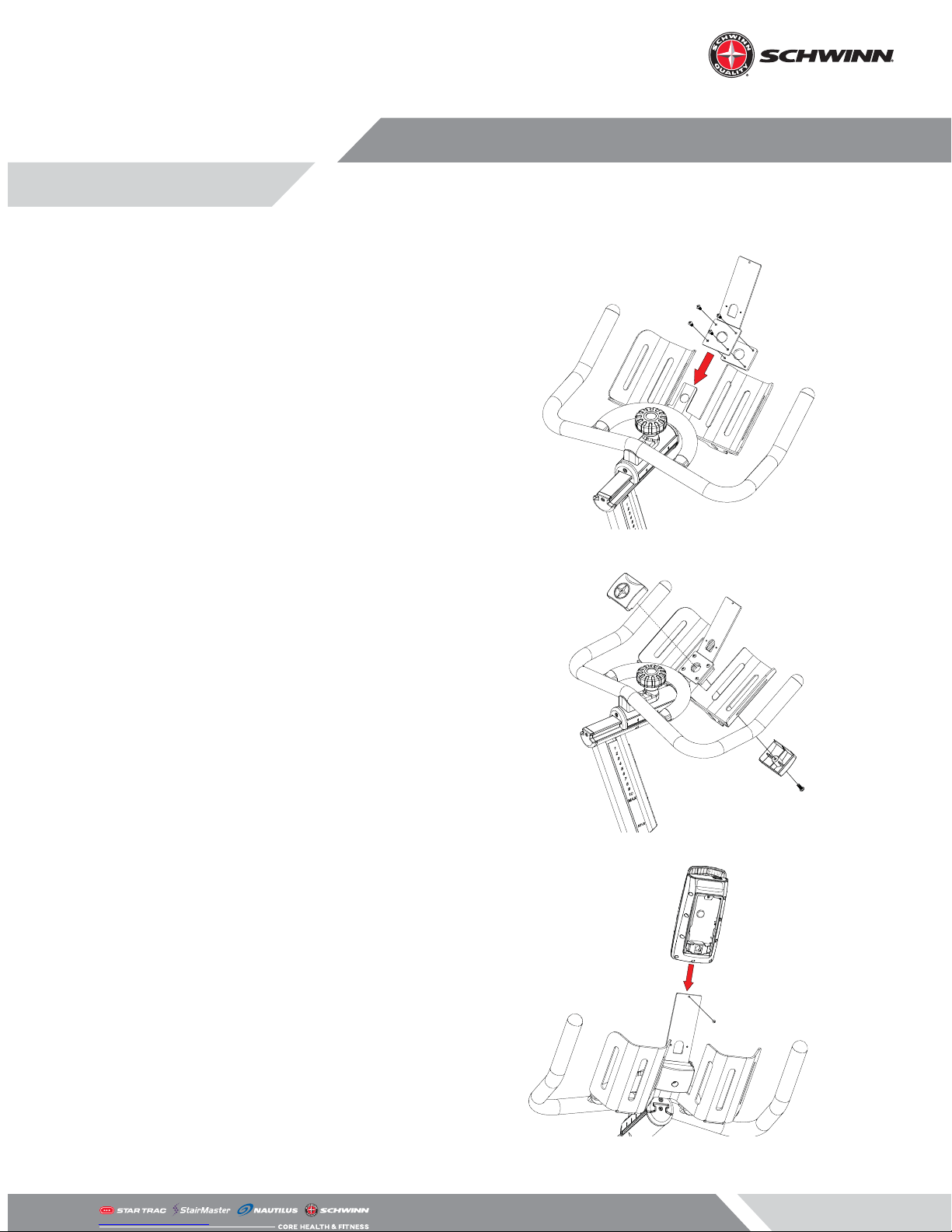

1. Use a 2.5mm allen key to secure the console
bracket to the handlebars using four (4) pieces of
the M4 x 14mm screws.
2. Use a #2 phillips screwdriver to secure the brack-
et cover to the bracket using one (1) piece of the
M5 x 16mm screw.
3. Slide the console onto the console bracket, then
secure the console to the bracket using one (1)
piece of the M3 x 6mm screw.
Page 5

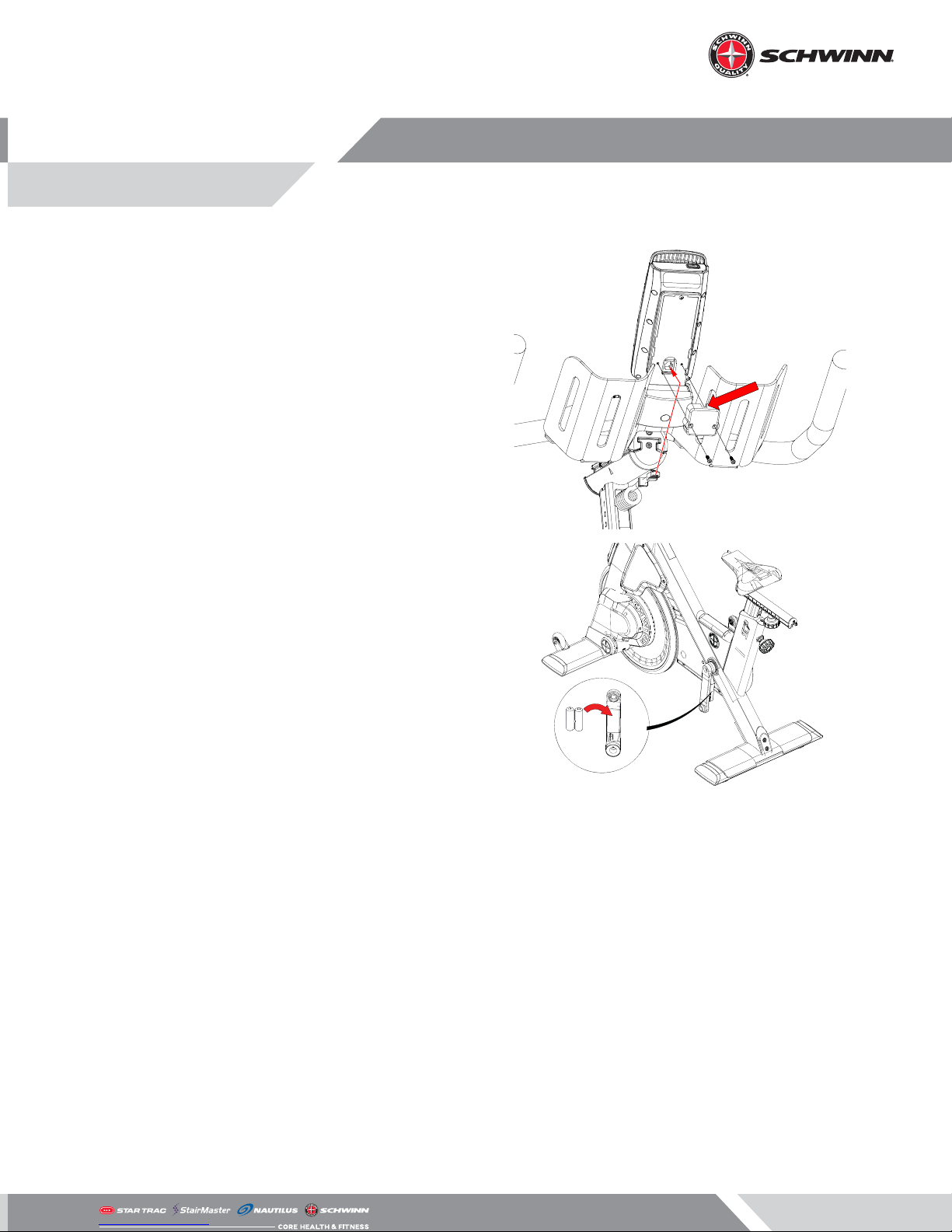

4. Plug the console data cable into the back of the
console, insert the strain relief grommet into the
strain relief cover, then use a 2.5mm allen key to
attach the strain relief cover to the console brack-
et using two (2) pieces of the M3 x 12mm screws.
NOTE: Ensure that the hole for the data cable is fac-
ing upwards, otherwise the data cable will interfere
with installation of the console bracket cover.
5. Open the 4iiii Powermeter battery compartment
on the user left side crank arm, then install the
two AA batteries.
6. After completing this step, please proceed to
Page 6 - Step 1.
Page 6

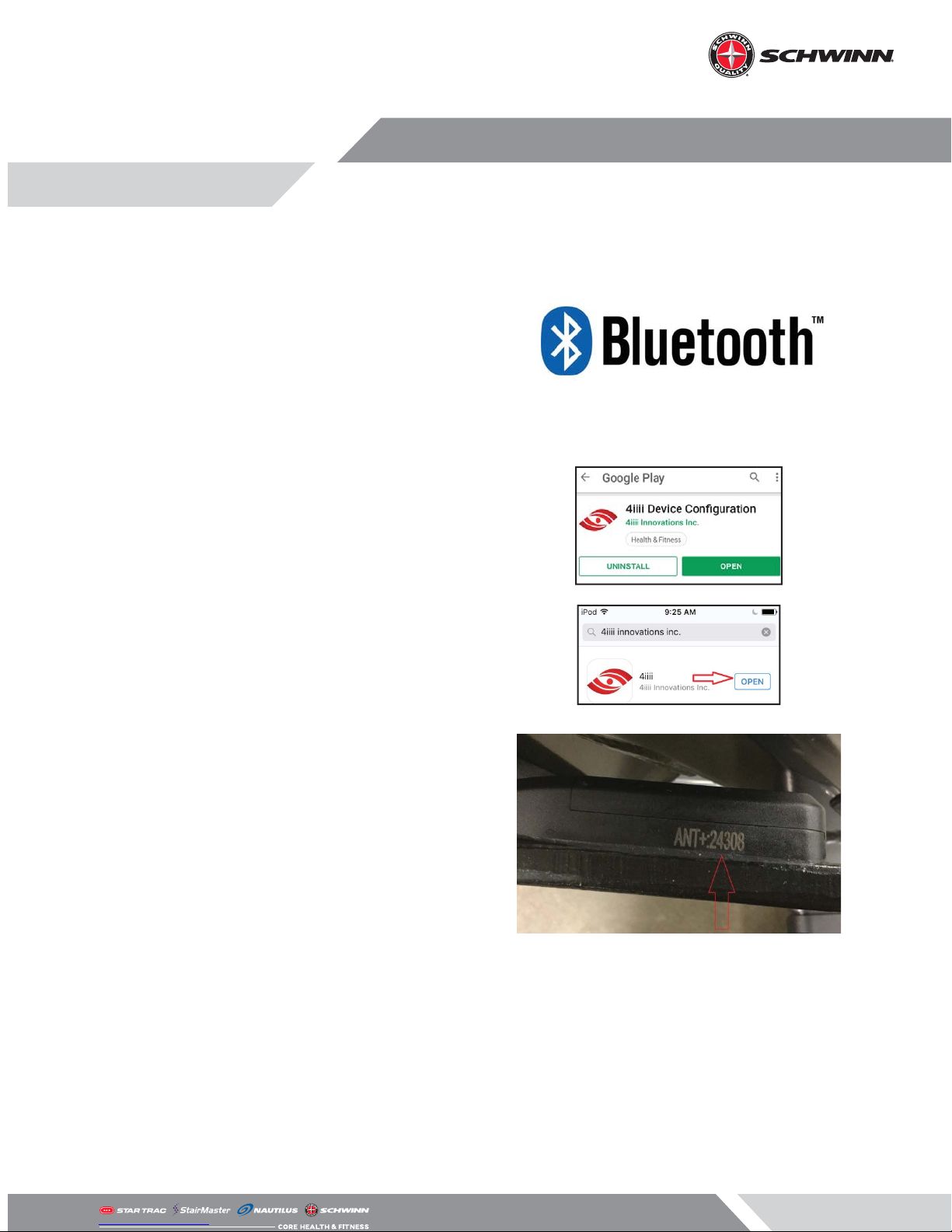

1. Ensure that the 4iiii crank is up to date. To do this,
heck that Bluetooth is enabled on the phone
then follow the proceeding directions.
2. Download the 4iiii app from the app store BUT
DO NOT CREATE A LOGIN. Android
iOS
3. Record the ANT+ ID of the powermeter that
needs to be updated.
NOTE: The ANT+ ID is a 4 OR 5 digit number located
on the underside of the 4iiii sensor. If the number is 4
digits, the rst number of the ANT+ ID is zero (0).
Page 7
4. Open the 4iiii app and select the “Prole” menu
in the upper left corner of the main screen then
select “PRECISCION Conguration”
5. Spin the 4iiii crank arm of the target bike >30
RPM; the 2-5 digit ANT+ ID should show up on
the “Select your Powermeter”screen.
6. Select the corresponding ANT+ ID of the bike
from Step 5 and set up the powermeter as “Single
Sided.”
Page 8
7. On the next screen, a rmware update prompt
should appear if newer rmware is available.
Select “Upgrade”to begin the update.
8. The update procedure will now run. This may
take several minutes to complete.
Page 9

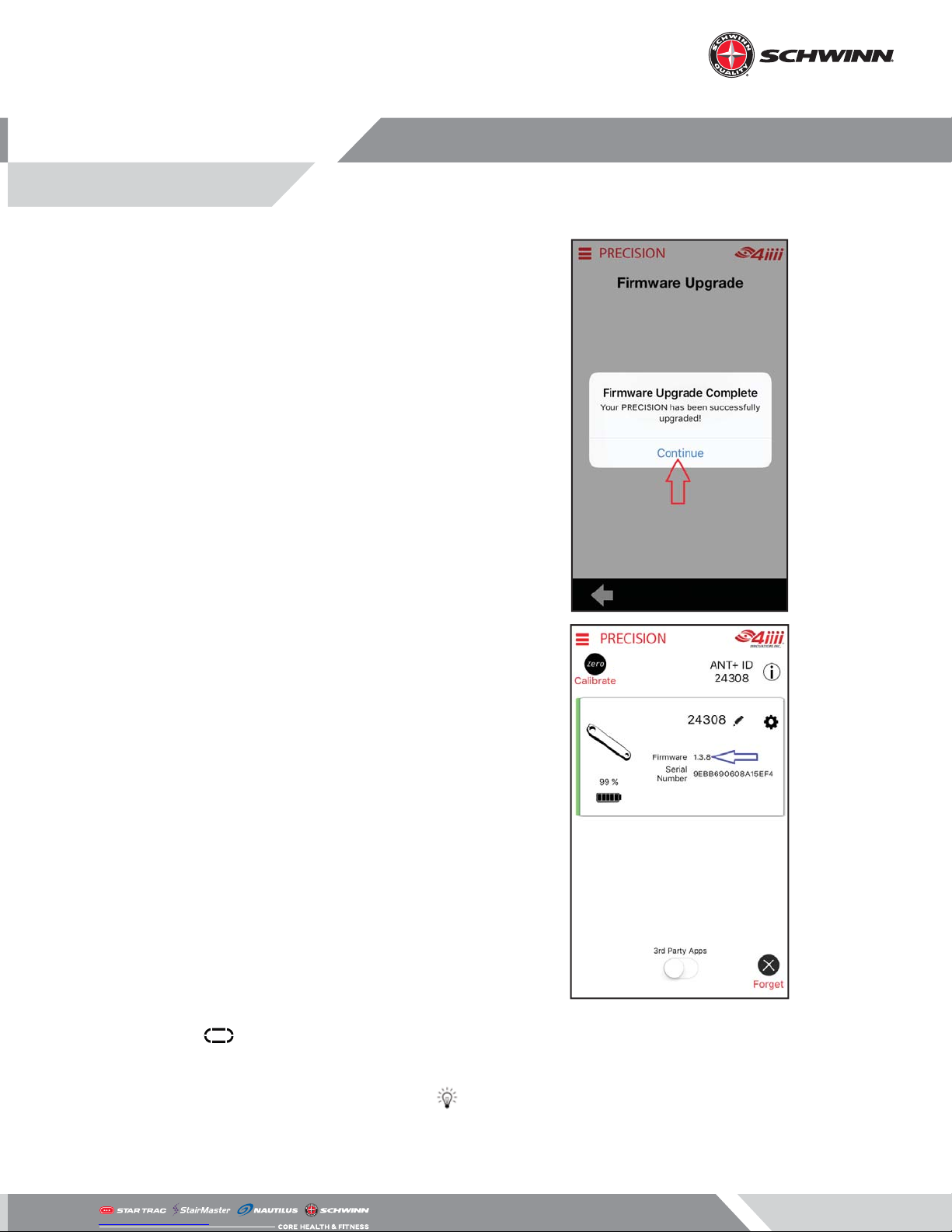

9. Once the update is complete, select“Continue.”
10. Enable the “3rd Party Apps” option.
11. Select “Forget” to disconnect from this poweme-
ter once the rmware has been updated.
12. On the Echelon2G console, press and hold
STAGE and “AVG/MAX” for 3-5 seconds to
access the service menu.
13. Use AVG/MAX to scroll until SENSOR TYPE is
displayed then push the back-light button to
access the sensor menu. Ensure that “4iiii” is dis-
played as the sensor type.
