ASSEMBLY MANUAL / OWNER’S MANUAL

This product is compliant with the

applicable CE requirements.

Important Safety Instructions 3

Safety Warning Labels / Serial Number 5

Earthing Instructions 6

Specications  7

BeforeAssembly  7

Parts 8

Hardware 9

Tools 9

Assembly 10

Moving the Machine 22

Leveling the Machine 23

Features 24

Console Features 25

Bluetooth®Connectivity 28

Remote Heart Rate Monitor 29

Operations 31

Power Up / Idle Mode 31

Initial Setup 32

Quick Start Program 32

 UserProles  32

 ProlePrograms  34

Pausing or Stopping 38

Results / Cool Down Mode 38

GOAL TRACK Statistics 38

Console Setup Mode 40

Maintenance 41

Maintenance Parts 42

Troubleshooting 44

TABLE OF CONTENTS

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty, contact your local distributor.

For details regarding product warranty or if you have questions or problems with your product, please contact

yourlocalNautilusdistributor.Tondyourlocaldistributor,goto:www.nautilusinternational.com

Nautilus,Inc.,www.nautilusinternational.com|Nautilus,Inc.,18225NERiversideParkway,Portland,OR97230USA|Printedin

nationsorotherwiseprotectedbycommonlaw.Schwinn,theSchwinnQualitylogo,Schwinn570E,SchwinnConnect,Bowex,

Nautilus, and Universal are trademarks owned by or licensed to Nautilus, Inc. Polar®, OwnCode®, Loctite®, iTunes®, Under

Armour®, and MyFitnessPal®are trademarks of their respective owners. The Bluetooth®word mark and logos are registered

trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Nautilus, Inc. is under license.

ORIGINAL MANUAL - ENGLISH VERSION ONLY

When using an electrical appliance, basic precautions should always be followed, including the following:

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious

injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions. Read and understand the complete

Manual. Keep the Manual for future reference.

To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug this

machine from the electrical outlet immediately after using and before cleaning.

To decrease the risk of burns, electric shock, or injury to persons, read and understand the com-

plete Owner’s Manual. Failure to follow these guidelines can cause a serious or possibly fatal electrical shock or

other serious injury.

• Keep bystanders and children away from the product you are assembling at all times.

• Do not connect power supply to the machine until instructed to do so.

• The machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting

on or taking off parts.

• Beforeeachuse,examinethemachinefordamagetopowercord,loosepartsorsignsofwear.Donotuseiffoundin

this condition. Contact your local distributor for repair information.

• Do not drop or put objects into any opening of the machine.

• Do not assemble this machine outdoors or in a wet or moist location.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps

involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and

will void the warranty.

• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use

genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the

warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the

Manual.

• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by

the manufacturer.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

• Connect this machine to a properly grounded outlet only (see Earthing Instructions).

• Keep the power cord away from heat sources and hot surfaces.

• Do no operate where aerosol products are being used.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose

range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given

the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical

provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”

section to determine the location of the magnets on this product.

• SAVE THESE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

Before using this equipment, obey the following warnings:

Read and understand the complete Manual. Keep the Manual for future reference.

Read and understand all warnings on this machine. If at any time the Warning labels become loose,

unreadable or dislodged, contact your local Schwinn distributor for replacement stickers.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be dangerous

to children.

• Not intended for use by anyone under 14 years of age.

• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyour

chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the values

calculated or measured by the machine’s computer for reference purposes only.

• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffoundinthiscondition.Monitor

the Pedals and Crank Arms closely. Contact your local Schwinn distributor for repair information.

• Maximumuserweightlimit:136kg(300lbs.).Donotuseifyouareoverthisweight.

• This machine is for home use only.

• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputngersorotherobjectsinto

movingpartsoftheexerciseequipment.

• Set up and operate this machine on a solid, level, horizontal surface.

• Make the Foot Pedals stable before you step on them. Use caution when you step on and off the machine.

• Disconnect all power before servicing this machine.

• Do not operate this machine outdoors or in moist or wet locations.

• Keep at least 0.6 m ( 24” ) on each side of the machine clear. This is the recommended safe distance for access and

passage around and emergency dismounts from the machine. Keep third parties out of this space when machine is in

use.

• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.

• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do not

hit the user.

• Keep the Foot Pedals and Handlebars clean and dry.

• Exerciseonthismachinerequirescoordinationandbalance.Besuretoanticipatethatchangesinspeedand

resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.

• A machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting

on or taking off parts.

• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by

the manufacturer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities,orlackofexperienceandknowledge,unlesstheyhavebeengivensupervisionorinstructionconcerning

use of the appliance by a person responsible for their safety.

SAFETY WARNING LABELS AND

SERIAL NUMBER

Serial Number

REVISIONS

ECO

REVISION

REV DESCRIPTION

APPROVED

DATE

TITLE.

PART NO.

REV.

SHEET 1 OF 1

SCALE: 1:1

DO NOT SCALE DRAWING

1. ALL ITEMS MUST BE RoHS COMPLIANT

2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.

3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.

4. ALL MACHINES SURFACES Ra 3.2 uM.

5. ALL APPLICABLE NAUTILUS STANDARDS AND

SPECIFICATIONS APPLY.

6. ALL DIMENSIONS ARE IN MILLIMETERS

7. ALL DUAL DIMENSIONS ARE IN INCH

UNLESS OTHERWISE SPECIFIED:

METRIC

THIRD ANGLE

PROJECTION

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

2.5

1.5

0.75

0.25

1°

X.X

X.XX

X.XXX

ANGULAR

SIZE

This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.

TOLERANCES.

DRAWN

DESIGNED

DATE

METRIC_C_REV G

NAUTILUS, INC.

16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683

LIFECYCLE

7-22-10

APPROVALS

- -

- - - -

WARRANTY ITEM:

A RELEASED

NPI 13149 DLOVELY 7-22-10

D.LOVELY

07 /22 / 2010

D.LOVELY

004-0930

CRUSH WARNING

21.78mm

54.8mm

MATERIAL.

COLOR.

DIE LINE

PMS 152

PMS 109

BLACK

WHITE

Labels must be created from an agency approved tamper proof labeling system

such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.

Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),

Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.

•

ProductSpecication

WARNING!

• Keep hands and feet away.

Earthing Instructions

This product must be electrically earthed. If a malfunction occurs, correct earthing decreases the risk of electric shock.

The power cord is equipped with an equipment-earthing conductor, and must be connected to an outlet that is properly

installed and earthed.

The electrical wiring must comply with all applicable local and provincial standards and

requirements. Incorrect connection of the equipment-earthing conductor can result in a risk of

electric shock. Consult a licensed electrician if you are not sure that the machine is correctly

earthed. Do not change the plug on the machine – if it does not t the outlet, have a correct outlet

installed by a licensed electrician.

If you connect the machine to an outlet with RCBO (Residual-Current circuit Breaker with Overload protection), machine

operation can cause the circuit to trip. A Surge Protector Device is recommended to protect the machine.

!If a Surge Protector Device (SPD) is used with this machine, be sure that it matches the power rating of

this equipment (220-240V AC). Do not connect other appliances or devices to the surge protector in

combination with this machine.

Make sure that the product is connected to an outlet having the same conguration as the plug. No

adapter should be used with this product.

SPECIFICATIONS

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a

hard,levelsurface.Allowaworkoutareaofaminimum193cmx305cm(76”x120”).Besurethattheworkoutspace

youareutilizinghasadequateheightclearance,takingintoconsiderationtheheightoftheuserandthemaximumincline

of the elliptical machine.

Basic Assembly Tips

Follow these basic points when you

assemble your machine:

• Read and understand the “Impor-

tant Safety Instructions” before

assembly.

• Collect all the pieces necessary for

each assembly step.

• Using the recommended wrench-

es, turn the bolts and nuts to the

right (clockwise) to tighten, and the

left (counterclockwise) to loosen,

unless instructed otherwise.

• When attaching 2 pieces, lightly

lift and look through the bolt holes

to help insert the bolt through the

holes.

• The assembly can require 2

people.

3.0m ( 118.1” )

1.93m

( 76.2” )

0.6m

( 24” )

0.6m

( 24” )

0.6m

( 24” )

0.6m

( 24” )

Maximum User Weight: 136 kg ( 300 lbs. )

Maximum Pedal Height - with full incline: 66.1 cm ( 26.0” )

Machine Weight:   76.5kg(168.7lbs.)

Total Surface Area (foot print) of equipment:

      12734.2cm2(1976.8inches2)

Power Requirements:

Operational Voltage: 220V - 240V AC, 50Hz

Operating Current: 1A

Complies with the following:

ISO20957Compliant

Connectivity:

160.5 cm

( 63.2” )

178.1 cm

( 70.1” )

71.5 cm

( 28.2” )

DO NOT dispose of this product as refuse. This product is to be recycled. For proper disposal of this product,

please follow the prescribed methods at an approved waste center.

PARTS

A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.

Item Qty Description Item Qty Description

1 1 Console Mast 13 1 Front Stabilizer

2 1 Static Handlebar 14 2 Handlebar Shroud, Inner

3 1 Arm Pivot Rod 15 2 Handlebar Shroud, Outer

4 1 Water Bottle Holder 16 1 Right Leg

5 1 Console 17 1 Right Pedal

6 1 Upper Left Handlebar Arm 18 1 Shroud Cap

71 Lower Left Handlebar Arm 19 1 Lower Right Handlebar Arm

8 1 Left Pedal 20 1 Upper Right Handlebar Arm

9 1 Rail Assembly 21 1 Power Cord

10 1 Left Leg 22 1 MP3 Cord

11 1 Frame 23 1 Silicone Lubricant, bottle (not shown)

12 1 Upper Shroud

Item Qty Description Item Qty Description

A 6 ButtonHeadHexScrew,M8x16(with

Loctite® adhesive)

F 6 Wave Washer

B 4 Flat Washer, M8 G 12 Lock Washer, M8

C 8 Wide Washer, M8 H 2 Pivot Sleeve

D 4 ButtonHeadHexScrew,M8x16 I 4 PhillipsHeadScrew,M5x12

E 2 HexHeadScrew,M8x20

Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remain-

ing Hardware after the proper assembly of your machine.

HARDWARE / TOOLS

Tools

Included

6 mm

13 mm

15 mm

19 mm

A B C D E F G H I

ASSEMBLY

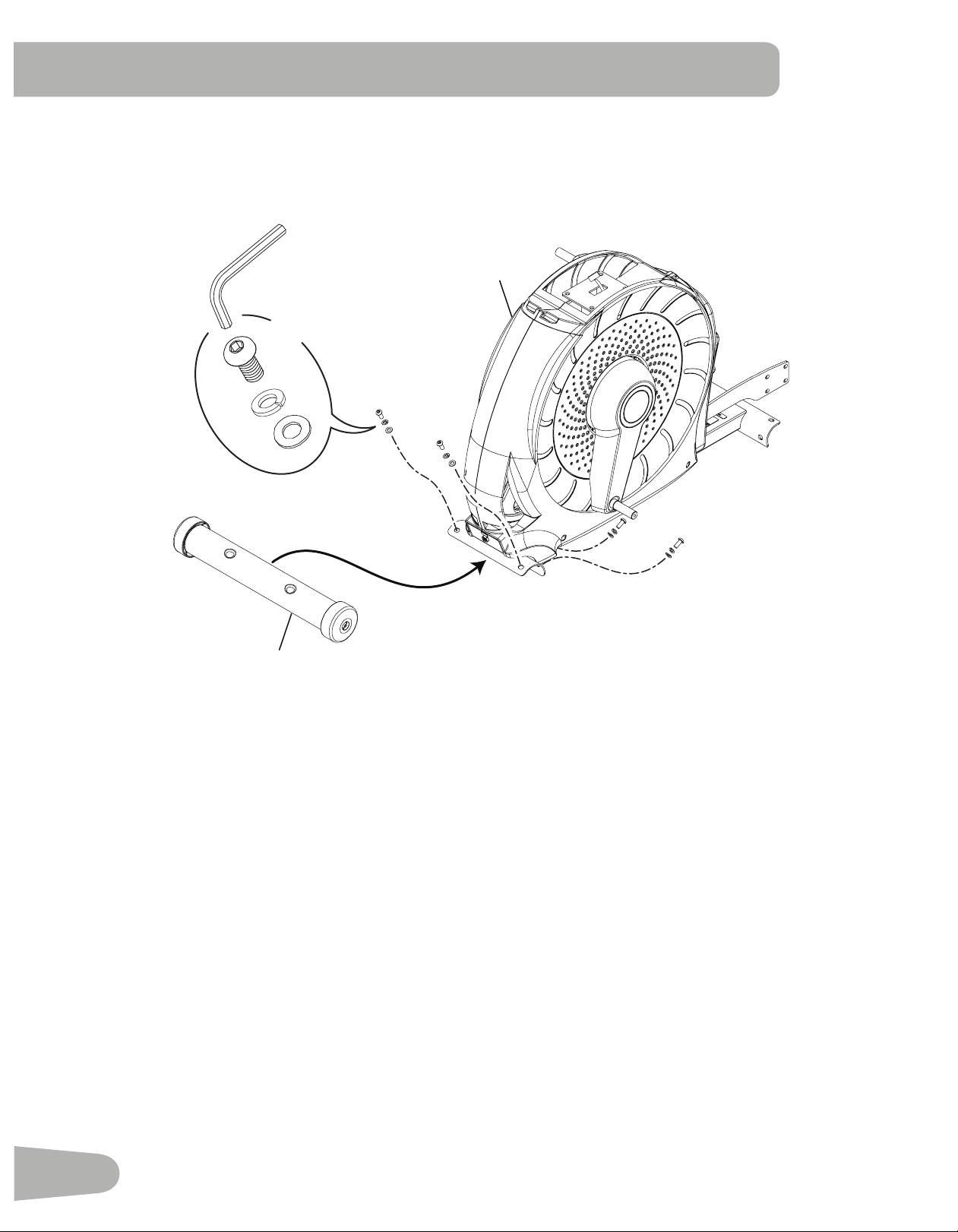

1. Attach Front Stabilizer to Frame

Note: Hardware is pre-installed and not on the Hardware Card. *

6mm

Table des matières

Autres manuels Schwinn vélo elliptique

Schwinn

Schwinn 470 Elliptical Manuel utilisateur

Schwinn

Schwinn Fitness A40 Manuel utilisateur

Schwinn

Schwinn Elliptical Trainer Manuel utilisateur

Schwinn

Schwinn 460 Variable Stride Elliptical Manuel utilisateur

Schwinn

Schwinn Fitness A40 Manuel utilisateur

Schwinn

Schwinn AD6 Manuel utilisateur

Schwinn

Schwinn 438 Manuel utilisateur

Schwinn

Schwinn 430 Manuel utilisateur

Schwinn

Schwinn 420 Manuel utilisateur

Schwinn

Schwinn 420 Elliptical - 2010 Model Manuel utilisateur

Schwinn

Schwinn Journey 4.5 Elliptical Manuel utilisateur

Schwinn

Schwinn 460 Variable Stride Elliptical Manuel utilisateur

Schwinn

Schwinn 460 Variable Stride Elliptical Manuel utilisateur

Schwinn

Schwinn 438 Manuel utilisateur

Schwinn

Schwinn 470i Manuel utilisateur

Schwinn

Schwinn 430i Elliptical Manuel utilisateur

Schwinn

Schwinn 425 Elliptical Manuel utilisateur

Schwinn

Schwinn 411 Manuel utilisateur

Schwinn

Schwinn 430 Manuel utilisateur

Schwinn

Schwinn Fitness A40 Manuel utilisateur

Schwinn

Schwinn 418P Manuel utilisateur

Schwinn

Schwinn 430 Manuel utilisateur

Schwinn

Schwinn 426 Manuel utilisateur

Schwinn

Schwinn 431 Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
