Schumacher Electric SL1317 Manuel utilisateur

0099001883-04

PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE

EACH USE. This manual will explain how to use the unit safely

and effectively. Please read and follow these instructions and

precautions carefully.

POR FAVOR GUARDE ESTE MANUAL DEL PROPIETARIO Y

LEER ANTES DE CADA USO. En este manual se explica cómo

utilizar la unidad segura y efectiva. Por favor, lea y siga las siguientes

instrucciones y precauciones.

ESSAYER DE GARDER LE MANUEL D’INSTRUCTIONS ET LE

LIRE AVANT CHAQUE UTILISATION. Ce manuel explique comment

utiliser l’unité d’une façon sûre et efcace. S’il vous plaît lisez et suivez

ces instructions et précautions.

MODEL / MODELO / MODÈLE :

SL1317

Jump Starter

Arrancador

Aide de Démarrage

OWNER’S MANUAL / MANUAL DEL USUARIO

MANUEL D’UTILISATION

• 2 •

1. IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

WARNING – RISK OF EXPLOSIVE GASES.

WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS

DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES

DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU

FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT.

To reduce the risk of battery explosion, follow these instructions and

those published by the battery manufacturer and the manufacturer

of any equipment you intend to use in the vicinity of a battery.

Review cautionary markings on these products and on the engine.

WARNING! RISK OF ELECTRIC SHOCK OR FIRE.

1.1 Read the entire manual before using this product. Failure to do so

could result in serious injury or death.

1.2 Keep out of reach of children.

1.3 Do not put ngers or hands into any of the unit’s outlets.

1.4 Do not expose the unit to rain or snow.

1.5 Use only recommended attachments (Schumacher SA884 or SA866

jump cable). Use of an attachment not recommended or sold by

Schumacher® Electric Corporation for the SL1317 may result in a risk of

re, electric shock or injury to persons or damage to property.

1.6 To reduce the risk of damage to the electric plug or cord, pull by the

adaptor rather than the cord when disconnecting the unit.

1.7 Do not operate the unit with damaged cables or clamps.

1.8 Do not operate the unit if it has received a sharp blow, been dropped or

otherwise damaged in any way; take it to a qualied service person.

1.9 Do not disassemble the unit; take it to a qualied service person when

service or repair is required. Incorrect reassembly may result in a risk of

re or electric shock.

1.10 Changes or modications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

this device.

WARNING! RISK OF EXPLOSIVE GASES.

1.11 To reduce the risk of a battery explosion, follow these instructions and

those published by the battery manufacturer and the manufacturer of

any equipment you intend to use in the vicinity of the battery. Review

the cautionary markings on these products and on the engine.

1.12 Do not set the unit on ammable materials, such as carpeting,

upholstery, paper, cardboard, etc.

1.13 Never place the unit directly above battery being jumped.

1.14 Do not use the unit to jump start a vehicle while charging the internal battery.

• 3 •

2. PERSONAL PRECAUTIONS

WARNING! RISK OF EXPLOSIVE GASES. A SPARK NEAR THE

BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE

RISK OF A SPARK NEAR THE BATTERY:

2.1 NEVER smoke or allow a spark or ame in the vicinity of a battery or engine.

2.2 Remove personal metal items such as rings, bracelets, necklaces and

watches when working with a lead-acid battery. A lead-acid battery

can produce a short-circuit current high enough to weld a ring to

metal, causing a severe burn.

2.3 Be extra cautious, to reduce the risk of dropping a metal tool onto the

battery. It might spark or short-circuit the battery or other electrical

part that may cause an explosion.

2.4 Do not permit the internal battery of the unit to freeze. Never charge a

frozen battery.

2.5 To prevent sparking, NEVER allow clamps to touch together or

contact the same piece of metal.

2.6 Consider having someone nearby to come to your aid when you work

near a lead-acid battery.

2.7 Have plenty of fresh water, soap and baking soda nearby for use, in

case battery acid contacts your eyes, skin, or clothing.

2.8 Wear complete eye and body protection, including safety goggles and

protective clothing. Avoid touching your eyes while working near the

battery.

2.9 If battery acid contacts your skin or clothing, immediately wash

the area with soap and water. If acid enters your eye, immediately

ood the eye with cold running water for at least 10 minutes and get

medical attention right away.

2.10 If battery acid is accidentally swallowed, drink milk, the whites of eggs

or water. DO NOT induce vomiting. Seek medical attention immediately.

2.11 Neutralize any acid spills thoroughly with baking soda before attempting

to clean up.

2.12 This product contains a lithium ion battery. In case of re, you

may use water, a foam extinguisher, Halon, CO2, ABC dry chemical,

powdered graphite, copper powder or soda (sodium carbonate)

to extinguish the re. Once the re is extinguished, douse the

product with water, an aqueous-based extinguishing agent, or other

nonalcoholic liquids to cool the product and prevent the battery from

re-igniting. NEVER attempt to pick up or move a hot, smoking, or

burning product, as you may be injured.

2.13 NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

• 4 •

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

3. PREPARING TO USE THE UNIT

WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY

ACID IS A HIGHLY CORROSIVE SULFURIC ACID.

3.1 Make sure the area around the battery is well ventilated while the unit

is in use.

3.2 Clean the battery terminals before using the jump starter. During

cleaning, keep airborne corrosion from coming into contact with your

eyes, nose and mouth. Use baking soda and water to neutralize the

battery acid and help eliminate airborne corrosion. Do not touch your

eyes, nose or mouth.

3.3 Determine the voltage of the battery by referring to the vehicle

owner’s manual and make sure that the output voltage is 12V.

3.4 Make sure that the unit’s cable clamps make tight connections.

4. FOLLOW THESE STEPS WHEN CONNECTING TO A BATTERY

WARNING! A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY

EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY:

4.1 Plug the clamps into the unit, and then attach the output cables to

the battery and chassis as indicated below. Never allow the output

clamps to touch each other.

4.2 Position the DC cables to reduce the risk of damage by the hood, door

and moving or hot engine parts. NOTE: If it is necessary to close the hood

during the jump starting process, ensure that the hood does not touch the

metal part of the battery clips or cut the insulation of the cables.

4.3 Stay clear of fan blades, belts, pulleys and other parts that can cause injury.

4.4 Check the polarity of the battery posts. The POSITIVE (POS, P, +)

battery post usually has a larger diameter than the NEGATIVE (NEG,

N, -) post.

4.5 Determine which post of the battery is grounded (connected) to the

chassis. If the negative post is grounded to the chassis (as in most

vehicles), see step 4.6. If the positive post is grounded to the chassis,

see step 4.7.

4.6 For a negative-grounded vehicle, connect the POSITIVE (RED) clamp

from the jump starter to the POSITIVE (POS, P, +) ungrounded post

of the battery. Connect the NEGATIVE (BLACK) clamp to the vehicle

chassis or engine block away from the battery. Do not connect the

clamp to the carburetor, fuel lines or sheet-metal body parts. Connect

to a heavy gauge metal part of the frame or engine block.

• 5 •

4.7 For a positive-grounded vehicle, connect the NEGATIVE (BLACK)

clamp from the jump starter to the NEGATIVE (NEG, N, -) ungrounded

post of the battery. Connect the POSITIVE (RED) clamp to the vehicle

chassis or engine block away from the battery. Do not connect the

clamp to the carburetor, fuel lines or sheet-metal body parts. Connect to

a heavy gauge metal part of the frame or engine block.

4.8 When nished using the jump starter, remove the clamp from the

vehicle chassis and then remove the clamp from the battery terminal.

Disconnect the clamps from the unit.

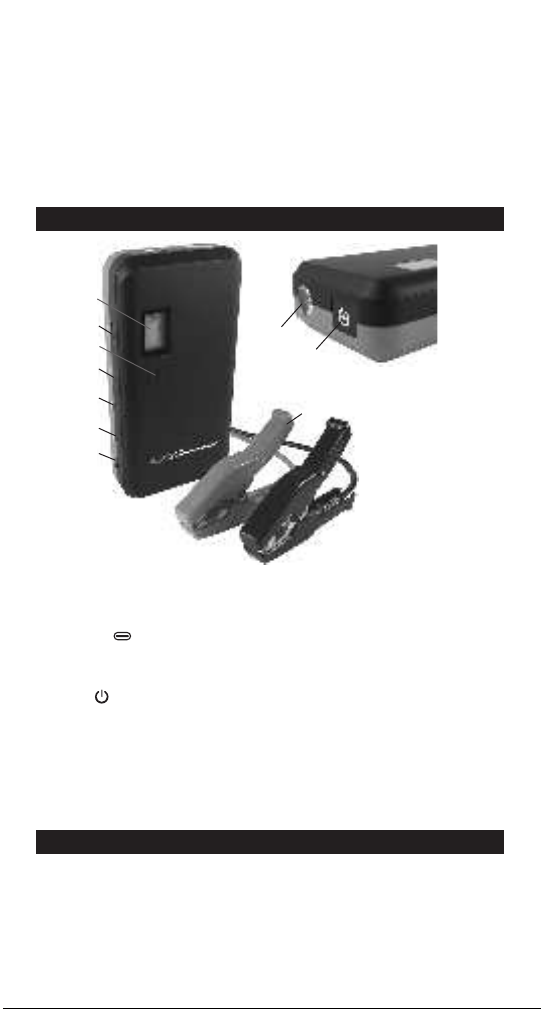

5. FEATURES

1. ON/OFF switch

2. Micro USB input port

for recharging

3. 3A input/output USB port

4. Qualcomm® Quick Charge™3.0

Technology USB output port

5. Display button

6. 2.4A USB output port

7. LCD display

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.

Quick Charge is a trademark of Qualcomm Incorporated. All Qualcomm Incorporated trademarks

are used with permission.

8. LED light

9. Jump start

output socket

10. Battery clamps

with smart cable

Not shown:

11. Micro USB-USB

charging cable

12. Carrying bag

6. CHARGING THE JUMP STARTER

IMPORTANT! CHARGE IMMEDIATELY AFTER PURCHASE,

AFTER EACH USE AND EVERY 30 DAYS, OR WHEN THE

CHARGE LEVEL FALLS BELOW 85%, TO KEEP THE INTERNAL

BATTERY FULLY CHARGED AND PROLONG BATTERY LIFE.

• 6 •

6.1 CHECKING THE LEVEL OF THE INTERNAL BATTERY

1. Slide the ON/OFF switch to the ON position. The LCD display will show

the battery’s percentage of charge. A fully charged internal battery will read

100%. Charge the internal battery if the display shows it is under 85%.

2. To reduce the risk of electric shock, unplug the unit’s charging cable from

a USB or wall charger before attempting any maintenance or cleaning.

Simply turning off the controls will not reduce this risk.

3. When charging the internal battery, work in a well ventilated area and do

not restrict the ventilation in any way.

6.2 CHARGING THE INTERNAL BATTERY

NOTE: Use a 2A USB charger (sold separately), or a 2A USB

charging port to quickly recharge the jump starter. Using a charger

with less than 2A will increase charge time.

1. Plug the Micro USB end of the charging cable into the input port. Next,

plug the USB end of the charging cable into a charger’s USB port.

2. Plug your charger into a live AC or DC power outlet.

3. The LCD display will light, the digit begins to ash and show “IN”, indicating

that charging has begun.

4. The jump starter will fully charge in 7-8 hours. When the unit is fully

charged, the display will show “100%”.

5. When the battery is fully charged, disconnect your charger from the

outlet, and then remove the charging cable from the charger and the

unit. Slide the ON/OFF switch to the OFF position, if you are not using

the unit immediately.

7. OPERATING INSTRUCTIONS

7.1 JUMP STARTING A VEHICLE ENGINE

NOTE: Use either model number SA884 or SA866 jump cable.

IMPORTANT: Do not use the jump starter while charging its internal battery.

IMPORTANT: Using the jump starter without a battery installed in the

vehicle will damage the vehicle’s electrical system.

NOTE: The internal battery must have a charge if at least 40% to

jump start a vehicle.

1. Turn the ignition OFF.

2. Plug the battery clamp cable into the jump starter’s output socket.

3. Lay the DC cables away from any fan blades, belts, pulleys and other

moving parts. Make sure all of the vehicle’s electrical devices are turned off.

4. For a negative-grounded vehicle, connect the POSITIVE (RED) clamp

from the jump starter to the POSITIVE (POS, P, +) ungrounded post

of the battery. Connect the NEGATIVE (BLACK) clamp to the vehicle

chassis or engine block away from the battery. Do not connect the

clamp to the carburetor, fuel lines or sheet-metal body parts. Connect

to a heavy gauge metal part of the frame or engine block.

5. For a positive-grounded vehicle, connect the NEGATIVE (BLACK)

clamp from the jump starter to the NEGATIVE (NEG, N, -) ungrounded

post of the battery. Connect the POSITIVE (RED) clamp to the vehicle

chassis or engine block away from the battery. Do not connect the

clamp to the carburetor, fuel lines or sheet-metal body parts. Connect to

a heavy gauge metal part of the frame or engine block.

• 7 •

6. Slide the ON/OFF switch to the ON position. The green LED on the

smart cable should light.

NOTE: If the vehicle battery is extremely discharged, the initial current

draw from the jump starter may activate short circuit protection in the

smart cable. When the condition is corrected, the smart cable will

automatically reset.

7. After a proper connection has been made, crank the engine. If the engine

does not start within 5-8 seconds, stop cranking and wait at least 1 minute

before attempting to start the vehicle again.

NOTE: If the car does not crank a second time, check the smart

cable to see if the green LED is lit. If you hear beeping or an LED is

ashing, refer to section 10, Troubleshooting. When the condition is

corrected, the smart cable will automatically reset.

NOTE: Cold weather may affect the performance of the jump starter’s

lithium battery. If you hear only a click and the engine does not turn

over, try the following:

With the jump starter connected to the car battery and the green LED

illuminated on the smart cable, turn on all lights and electrical accessories for

one minute. This draws current from the jump starter and warms the battery.

Now try to crank the engine. If it does not turn over, repeat the procedure.

Extremely cold weather may require two or three battery warmings before

the engine will start.

NOTE: If no activity is detected, the smart cable will automatically shut

off after 120 seconds, and the red and green LEDs will be solid. To reset,

disconnect the clamps from the vehicle battery, and then reconnect.

IMPORTANT: DO NOT attempt to jump start your vehicle more

than three consecutive times. If the vehicle will not start after three

attempts, consult a service technician.

8. After the engine starts, unplug the battery clamps from the jump starter

socket and then disconnect the black clamp (-) and the red clamp (+),

in that order. Slide the ON/OFF switch to the OFF position.

9. Recharge the unit as soon as possible after each use.

7.2 CHARGING A MOBILE DEVICE, USING THE USB PORTS

The SL1317 includes three USB ports. The standard one provides up

to 2.4A at 5V DC.

The second port is a 3A

input/output USB.

The

third port is a Quick Charge 3.0, which provides up to 5V at 3A, 9V at

2A or 12V at 1.5A.

1. Consult your mobile device manufacturer for proper charging power

specications. Connect a mobile device cable to the appropriate USB port.

2. Slide the ON/OFF switch to the ON position. Charging should begin

automatically. The display will show which port is in use.

3. Charging time will vary, based on the mobile device’s battery size and the

charging port used.

NOTE:

Most devices will charge with any of the USB ports, but may

charge at a slower rate.

NOTE:

The 3A

USB port requires a specic charging cable

(not included).

• 8 •

4. When nished using the USB port, disconnect the charging cable from

your mobile device and then disconnect the charging cable from the unit.

Slide the ON/OFF switch to the OFF position.

5. Recharge the unit as soon as possible after each use.

NOTE:

If no USB device is connected, power to the USB ports will

automatically shut off after 30 seconds.

7.3 USING THE LED LIGHT

1. Slide the ON/OFF switch to the ON position.

2. Hold down the display button for 3 seconds.

3. Once the LED light is on, press and release the display button to cycle

through the following modes:

• Steady glow

• Flash for an SOS signal

• Flash in strobe mode

4. When nished using the LED light, press and hold the display button

until the light turns off.

5. Slide the ON/OFF switch to the OFF position.

6. Recharge the unit as soon as possible after each use.

8. MAINTENANCE INSTRUCTIONS

1. After use and before performing maintenance, unplug and disconnect

the unit.

2. Use a dry cloth to wipe all battery corrosion and other dirt or oil from

the battery clamps, cords, and the outer case.

3. Do not open the unit, as there are no user-serviceable parts.

9. STORAGE INSTRUCTIONS

1. Charge battery to full capacity before storage.

2. Store this unit at temperatures between -4°F-+140°F (-20°C-+60°C).

3. Never completely discharge the battery.

4. Charge after each use.

5. Charge at least once every month, if not in frequent use, to prevent

over-discharge.

10. TROUBLESHOOTING

Jump Starter

PROBLEM SOLUTION

The jump starter’s display will

not turn on.

Make sure the unit is charged.

Connect to a power source, to reset.

Make sure the ON/OFF switch is set to

the ON position.

The thermometer symbol

is ashing.

The unit is too hot or cold. The thermometer

symbol will disappear when the condition

is removed.

• 9 •

PROBLEM SOLUTION

The jump starter will not

recharge.

Make sure the power source is live.

The jump starter turns on, but

won’t jump start my vehicle.

Check connections.

Verify the charge level of the jump starter is

at least 40%.

Do not attempt to jump start your vehicle

more than three consecutive times. If

the vehicle still does not start, consult a

qualied service technician.

When cable is connected only

to the battery: Solid Red LED,

(Green LED off); beeps once

per second

The vehicle battery voltage is lower than

10.5V. User can connect to jump starter

and turn key to jump start the vehicle.

When cable is correctly

connected to both battery

and jump starter: Green LED

blinking; Red LED off; no beep.

“Fake” high battery voltage is detected,

but reverse charging protection did not

activate. User can turn key to jump start

the vehicle.

Smart Cable LED and Alarm Behavior

BEHAVIOR REASON

Green LED blinking; Red LED

off; no beep.

Cable is connected to battery only.

Cable is connected to jump starter only.

Green LED solid; Red LED off;

no beep.

Cable is connected correctly to both

battery and jump starter.

Solid Red LED, Green LED off;

beeps once per second

Low voltage protection

Solid Red LED, Green LED off;

beeps twice per second

Reverse polarity protection

Alternating Red and Green

ashing LEDs; no beep

Reverse charging protection

Solid Red LED, Green LED off;

rapid beeping

Short circuit protection

Solid Red and Green LEDs;

no beep.

Auto shut-off, due to inactivity. Disconnect

and reconnect clamps to the vehicle battery.

Solid Red and Green LEDs;

beeps once per second

Temperature protection

NOTE: When the condition is corrected, the smart cable will automatically reset.

• 10 •

11. SPECIFICATIONS

Internal battery type .......................................... Lithium ion polymer

Capacity .............................................................................. 55.5 Wh

USB output................................................... Standard: 5V DC, 2.4A

USB input/output, 3A

Quick Charge 3.0: 5V, 3A / 9V, 2A / 12V, 1.5A

Jump start ..............................................1000A peak/500A cranking

Charging Temperature..................................... 32°-122°F (0°-50°C)

12. REPLACEMENT PARTS

Battery clamps/smart cable.....................94500884Z or 94500866Z

Micro USB-USB charging cable ................................. 3899003781Z

13. BEFORE RETURNING FOR REPAIRS

For REPAIRS OR RETURNS, visit 365rma.com

Visit batterychargers.com for Replacement Parts.

14. LIMITED WARRANTY

For information on our one year limited warranty, please visit

batterychargers.com or call 1-800-621-5485 to request a copy.

Go to batterychargers.com to register your product online.

Schumacher® and the Schumacher logo are registered trademarks

of Schumacher Electric Corporation.

Table des matières

Langues :

Autres manuels Schumacher Electric Démarreur à distance

Schumacher Electric

Schumacher Electric DSR141 Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER IP-1850FL Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1441 Manuel utilisateur

Schumacher Electric

Schumacher Electric ip-75 Manuel utilisateur

Schumacher Electric

Schumacher Electric DSR142 Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1396 Manuel utilisateur

Schumacher Electric

Schumacher Electric Instant Power 00-99-000656 Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1327 Manuel utilisateur

Schumacher Electric

Schumacher Electric IP-125C Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER IP-125 Manuel utilisateur

Schumacher Electric

Schumacher Electric XJS22 INSTANT POWER Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1316I Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1314 Manuel utilisateur

Schumacher Electric

Schumacher Electric DSR141 Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1474 Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER XP400 Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1452 Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER IP-1875C Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER IP-1875C Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1464 Manuel utilisateur

Schumacher Electric

Schumacher Electric BE01253 Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1314 Manuel utilisateur

Schumacher Electric

Schumacher Electric INSTANT POWER XP750C Manuel utilisateur

Schumacher Electric

Schumacher Electric SL1435 Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel
