USER’S GUIDE
Lock with Built-in
Alarm
24043309
Para el idioma español,
consulte la página 15.
Pour la version française,
consultez la page 29.
Security You Hear Instantly
When you choose Schlage, you choose
a product backed by nearly a century of
total dedication to security, quality and
innovation. And, today, products like the
Lock with Built-in Alarm offer you
another key advantage: convenience and
control.
The Lock with Built-in Alarm combines
proven Schlage security with the added
safeguard of a sensor alarm. Specifically
engineered to detect vibration and
motion, it sounds an alarm—based on the
alert setting you choose—to alert you to
activity at the door on first contact with
the door or handle. Best of all, the alarm
is easily adjusted as your needs change—
either day to day or over the years.
DID YOU KNOW?
Schlage is the most preferred
residential door lock brand by
consumers* and most used by
builders.**
* Nooro Research Report, independent
research funded by Ingersoll Rand Co., 2011.
** Builder Magazine, April 2011
»
2
Security
• Tested and rated to meet ANSI lock security
and durability standards
• Only audible residential alarm lock to alert
you to activity upon first contact at lock
handle—not just when door is opened
Quality
• Rugged, all-metal construction
• Lifetime limited warranty on mechanical
components and finish
• One-year electronics warranty
Convenience
• Easy to use—press Schlage button
to program
• Various mode and sensitivity level options
to meet different needs
• Installed with just a screwdriver in minutes
• Uses two AAA batteries (included)—
3-year battery life with low battery indicator
ENGLISH
DID YOU KNOW?
Lock with Built-in Alarm has a faster
response mechanism than a standard home
security system because it senses activity
at the lock handle before a door is even
open. While it is not designed to connect
with your home security system, it can
complement it, if you choose.
»
3
The Lock with Built-in Alarm was
designed with you in mind. It provides
a more sophisticated security option
to the standard lockset—but without
the complexity that often accompanies
electronic alarm systems.
This owner’s guide provides easy
step-by-step instructions.
If you have other questions, we’re simply
a call—or a live chat—away.
Toll-Free: 1.888.805.9837
Live Chat: schlage.com
INSTRUCTIONS
ENGLISH
IMPORTANT!
If you have questions about
installation or programming,
don’t return the Lock with
Built-in Alarm to the store,
contact Schlage Customer
Service at 1.888.805.9837.
»
To learn more about this
product scan the code with
your smartphone.
Download the app at scanlife.com
4
Powering On the Alarm
To turn on the alarm:
• Insert two AAA batteries
• Push the Schlage button for 5 seconds
The alarm is activated when a light flashes
around the Schlage button.
Important: The alarm has been pre-set
to the Forced Entry setting and is ready to
use. If you wish to switch to another alert
setting (three options: Activity, Tamper
and Forced Entry), turn to page four for
instructions. The different alert settings
are explained on pages 6-8.
Powering Off the Alarm
To turn the product completely off:
• Push the Schlage button until you see the
second LED flash – then let go
• The alarm functionality is now completely
turned off. You can verify this by quickly
pushing the Schlage button – there should
be no light or beep when you push the
button.
TIP: Not sure your alarm is activated?
Simply press the Schlage button and it will
beep and light up to confirm it is activated.
If it does not, confirm new batteries are
installed properly. Then press the Schlage
button for 5 seconds (until it beeps) to power
on the alarm.
5
INSTRUCTIONS
Programming Your Alert Setting
The alarm comes pre-set to the Forced
Entry setting and is ready to use. If you
want to change it from Forced Entry
to another alert setting, follow these
simple steps:
1. Press the Schlage button for 2 seconds until
it flashes. After you let go, the alarm will beep.
(When the alarm first turns on, the light on
the right side of the LED track will flash to
indicate it is in the Forced Entry Alert.)
2. Continue tabbing the Schlage button to
cycle through the different alert settings:

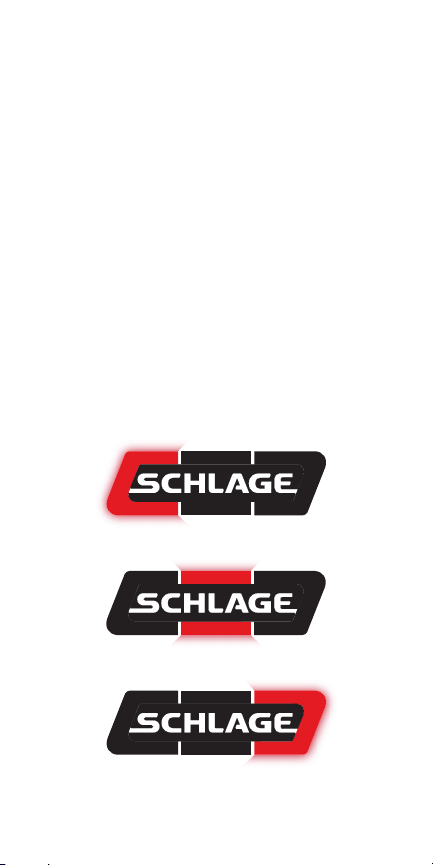

LEFT LED LIGHT: Activity Alert
MIDDLE LED LIGHT: Tamper Alert
RIGHT LED LIGHT: Forced Entry Alert
6
3. When the light flashes on the setting
you prefer, stop tabbing. The alarm will
automatically program to that alert setting.
Remember: The control pad for the alarm
is located on the inside of your door.
TIP: If you want to check which alert setting
the alarm is currently activated to, lightly press
the Schlage button and release. The alarm will
light up on the left, middle or right of the LED
track to indicate the alert setting.
DID YOU KNOW?
70% of home break-ins
are kick-ins to a door—
which is why the factory
settings default to the
forced entry mode.
»
7
INSTRUCTIONS
Choosing Your Alert Setting
Activity Alert
Your little one is
now able to reach
door handles and
loves to explore…
you’re caring for
an elderly parent
or a child with
special needs…
or maybe you simply feel more secure
knowing every time there’s activity at your
door. Whatever your reason or season of
life, the Activity Alert setting is perfect for
monitoring doors while you’re at home.
• Alarm beeps twice every time a door opens
or closes
• Middle LED light flashes
• Functions in both lock and unlocked mode
• Sound: Two short beeps
TIP: When door opens or closes, there is a
built-in 3 second delay for it to reset.
8
Tamper Alert
If you’re home
alone during the
day or evening, or
want to monitor
a secondary entry
door, the Tamper
Alert is the ideal
setting. As the
most sensitive alert setting, the Tamper
Alert senses even subtle activity at the
lock handle – not just when the door
opens – notifying you immediately of any
tampering.
• Alarm sounds for about 15 seconds when
the door knob/lever is disturbed
• Left and right LED lights flash alternately
• Functions in both lock and unlocked mode
• Built-in 60-second delay before device
alarms to allow you to exit and lock the
door
• Sound: Longer alarm sound
(90 dB = the sound of your smoke alarm)
TIP: If the alarm sounds, you can silence it
early by pressing down on the Schlage button
until the alarm sound stops.
9
INSTRUCTIONS
Choosing Your Alert Setting (continued)
Forced Entry Alert
Daily opening and
closing of doors
may no longer be
a worry for you…
but you may be
concerned about
protecting against
break-ins. The
Forced Entry Alert is perfect for nighttime
or when you’re away from home.
• Three-minute alarm sounds when significant
force pushes against the door—like when
someone tries to kick it in
• Acts as an effective deterrent by instantly
alerting you – and others nearby – at first
impact against your door
• Least sensitive mode – many choose to
program this alert setting all the time
• All lights on the LED track flash
• Functions in both lock and unlocked mode
• Sound: Shrill, steady siren
(90 dB=the sound of your smoke alarm)
TIP: If the alarm sounds, you can silence it
early by pressing down on the Schlage button
until the alarm sound stops.
