Schier FCR10 Manuel utilisateur
Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Special Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Getting to Know the FCR10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
SPECIFICATION AND INSTALLATION GUIDE
FCR10 Field Cut Riser System
For Use with Sampling Port Model SV10
Notes

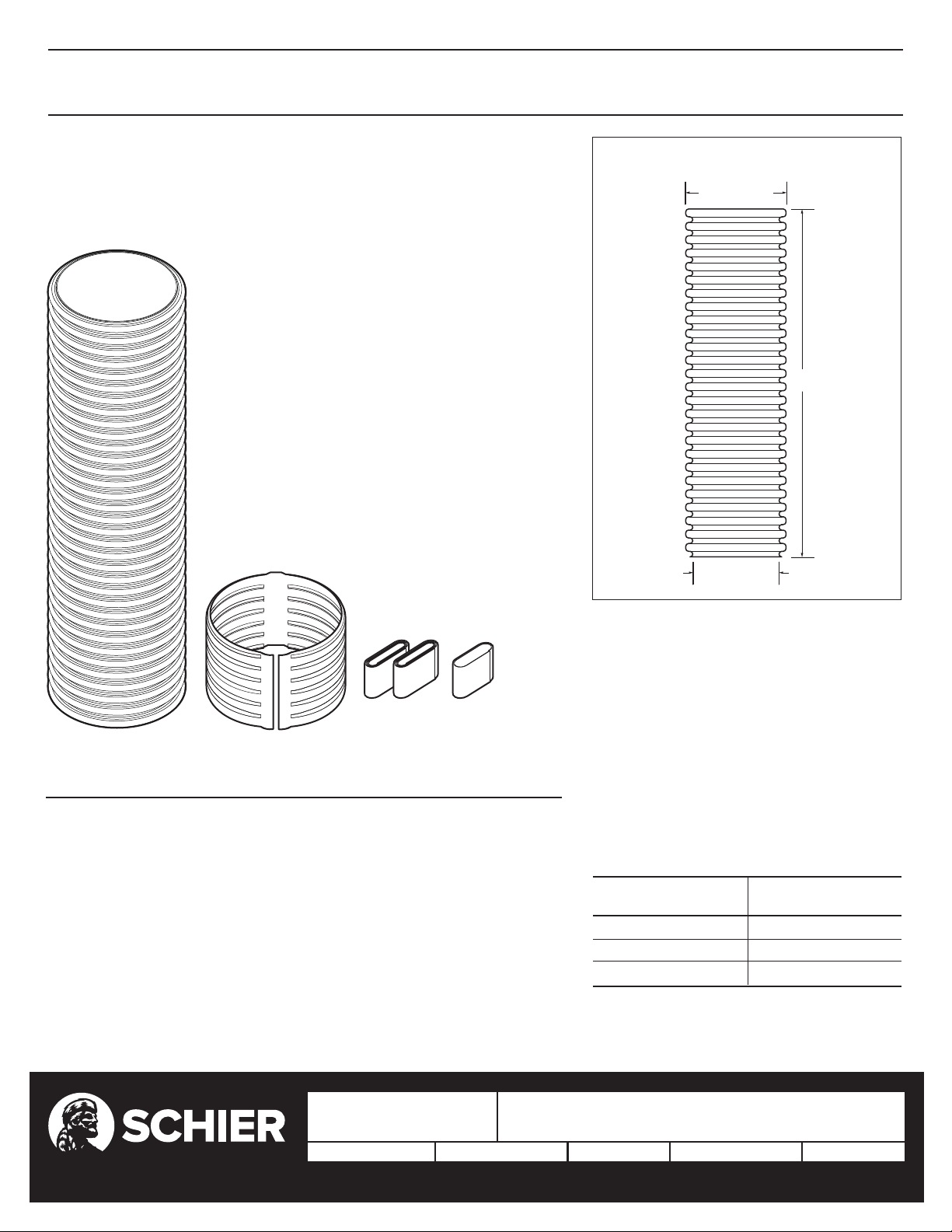

RISER SIDE VIEW
ø 7-7/8" ID
ø 9-1/8" OD
33"
Riser Height Needed Risers Required
0" - 31" FCR10
>31" - 64" FCR10 (x2)
>64" - 97" FCR10 (x3)
1. Unit weight: 6 lbs.
2. Riser not designed to hold water
Engineer Specification Guide:
Field-cut adjustable riser system to consist of 8"
nominal diameter polyethylene corrugated
drainage pipe and coupling, and butyl mastic
tape for riser joints. Riser shall allow field
adjustability of cover to grade.
Installation Note
Riser system may be stacked no more than three
units high to a maximum of 97" extension.
9500 Woodend Road | Edwardsville, KS 66111 | 913-951-3300 | schierproducts.com © Copyright 2020 Schier, All Rights Reserved
MODEL NUMBER:
FCR10
DESCRIPTION: SV10 Sampling Port Field Cut Riser System
PART #: 8010-020-01 DWG BY: B. Karrer DATE: 3/1/2020 REV: ECO:

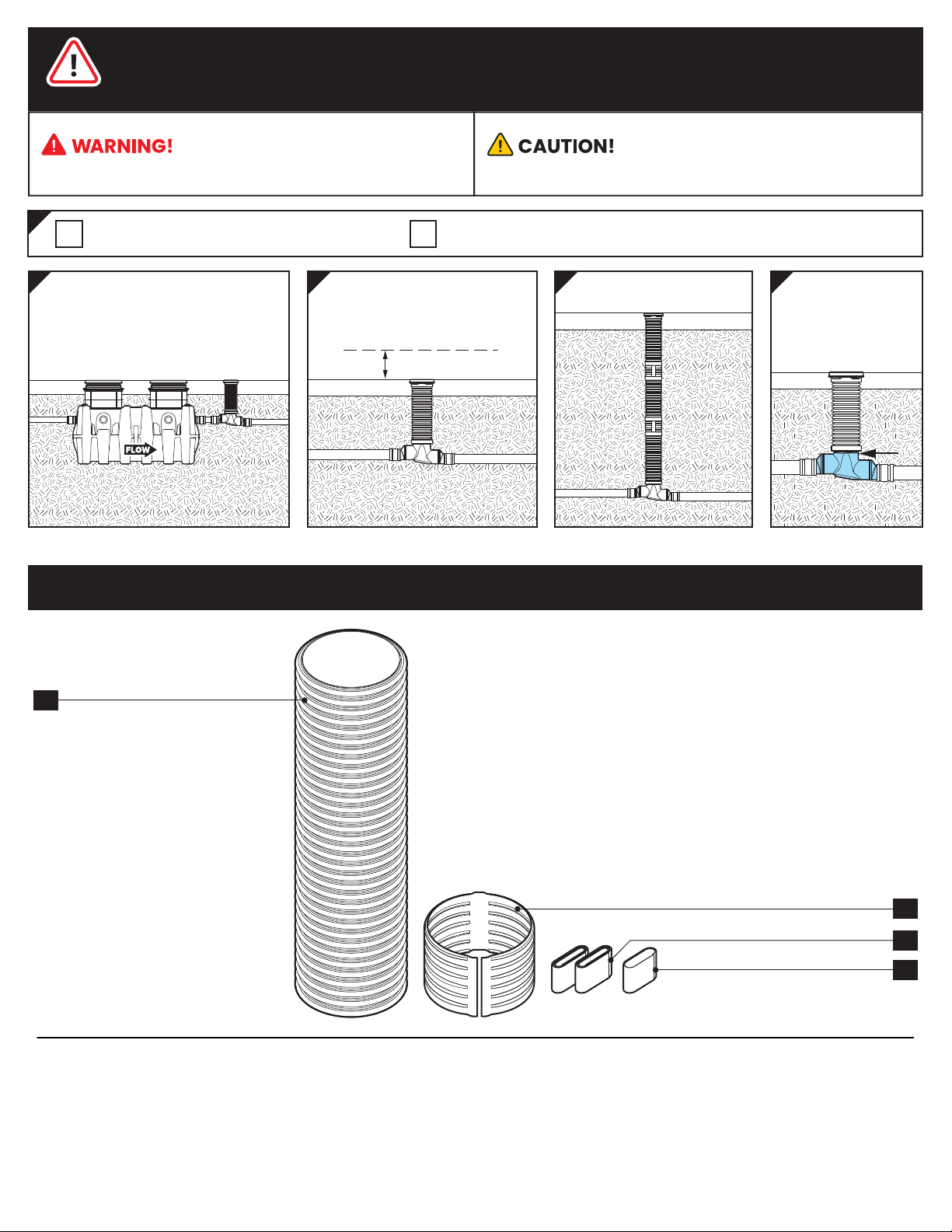

GETTING TO KNOW THE FCR10
Read all instructions before installation Install in conformance with all local codes
1
SPECIAL PRECAUTIONS
Do not install this unit in any manner
except as described in these instructions.
Doing so may result in property damage, personal injury or death.
DO NOT AIR TEST UNIT OR RISER SYSTEM!
For Schier Grease Interceptor Installations - Failure to follow this guidance
voids your warranty
3 Risers (97") Max
4
Provide at least 16"
clearance above unit for
routine maintenance.
3
16" min.
Max Water Level
Risers are
not designed
to retain water
5
2Install sampling port as
close as possible to and
downstream from
interceptor being served
1. Corrugated Riser Pipe (8" nominal diamater - 33" height)
2. Riser-Riser Coupling
3. 2" x 33" Butyl Mastic Tape (x2)
4. 2" x 6" Butyl Mastic Tape
page 2 of 4
FCR10 Installation Guide
2
3
4
1
INSTALLATION
Tools You
Will Need

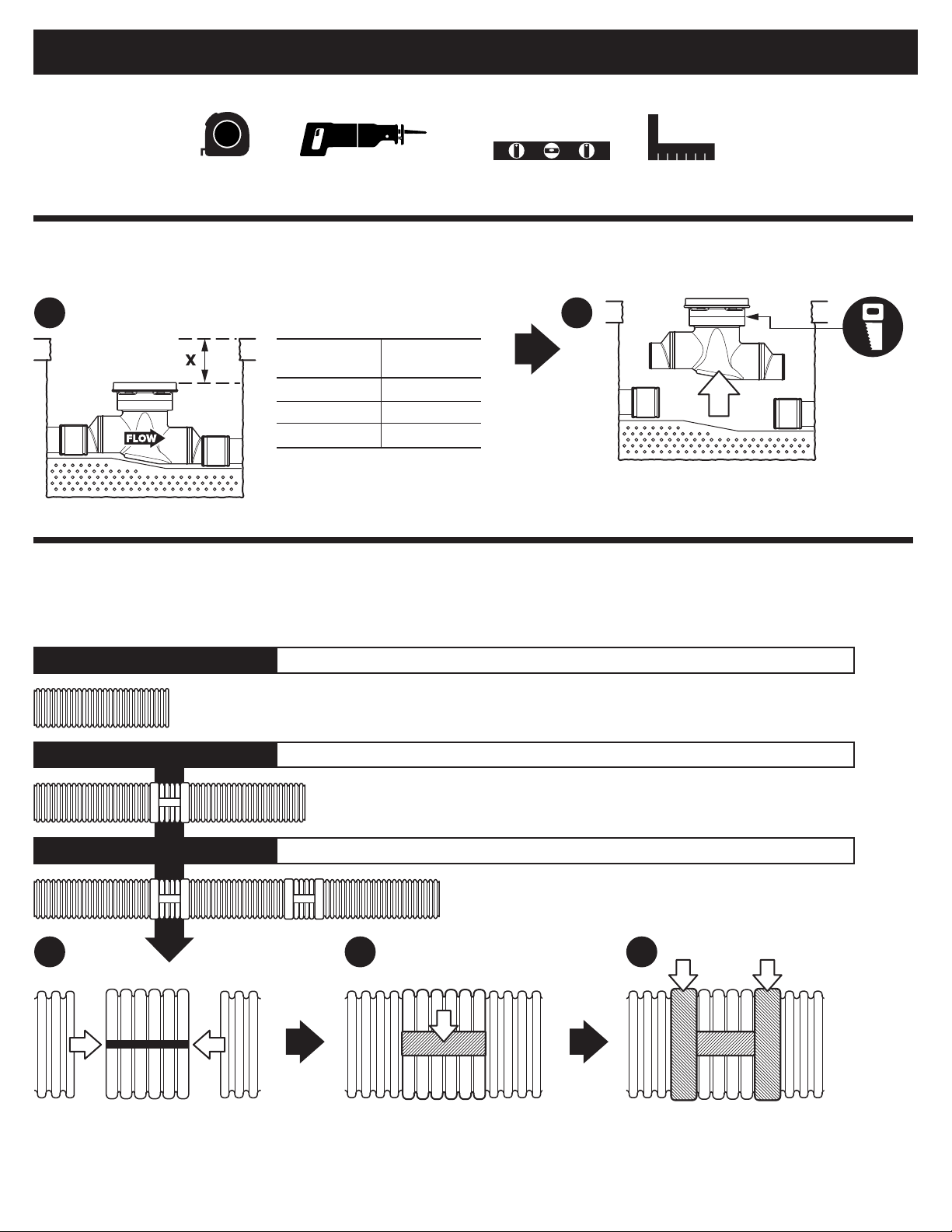

1 Prepare SV10 Sampling Port for Riser Installation
Measure dimension X to determine riser height needed.
1a
Disconnect the SV10 and remove it from the burial
pit. Cut the SV10 at the Riser Cut Line, freeing the
cover adapter from the sampling port body.
1b
Riser Height Risers
Needed Required
>0" - 31" FCR10
>31" - 64" FCR10 (x2)
>64" - 97" FCR10 (x3)
Reciprocating Saw,
Circular Saw or Jigsaw
Tape
Measure Level Square
page 3 of 4
FCR10 Installation Guide
Go to Step 3 - Cut and Install Riser>0 - 31"
RISER HEIGHT NEEDED
Follow Steps 2a -2c to join two FCR10 risers>31 - 64"
Follow Steps 2a -2c to join three FCR10 risers>64 - 97"
2a
Spread open the corrugated pipe
coupling slightly and slip in the
ends of the riser pipes to be joined.
2c
Use the 2 - 33" long rolls of butyl
tape provided to seal and secure
the horizontal riser seams.
2b
Use the 6" long roll of butyl tape
provided to seal and secure the
vertical coupling seam.
2Assemble Multiple Risers for Deep Burials
INSTALLATION

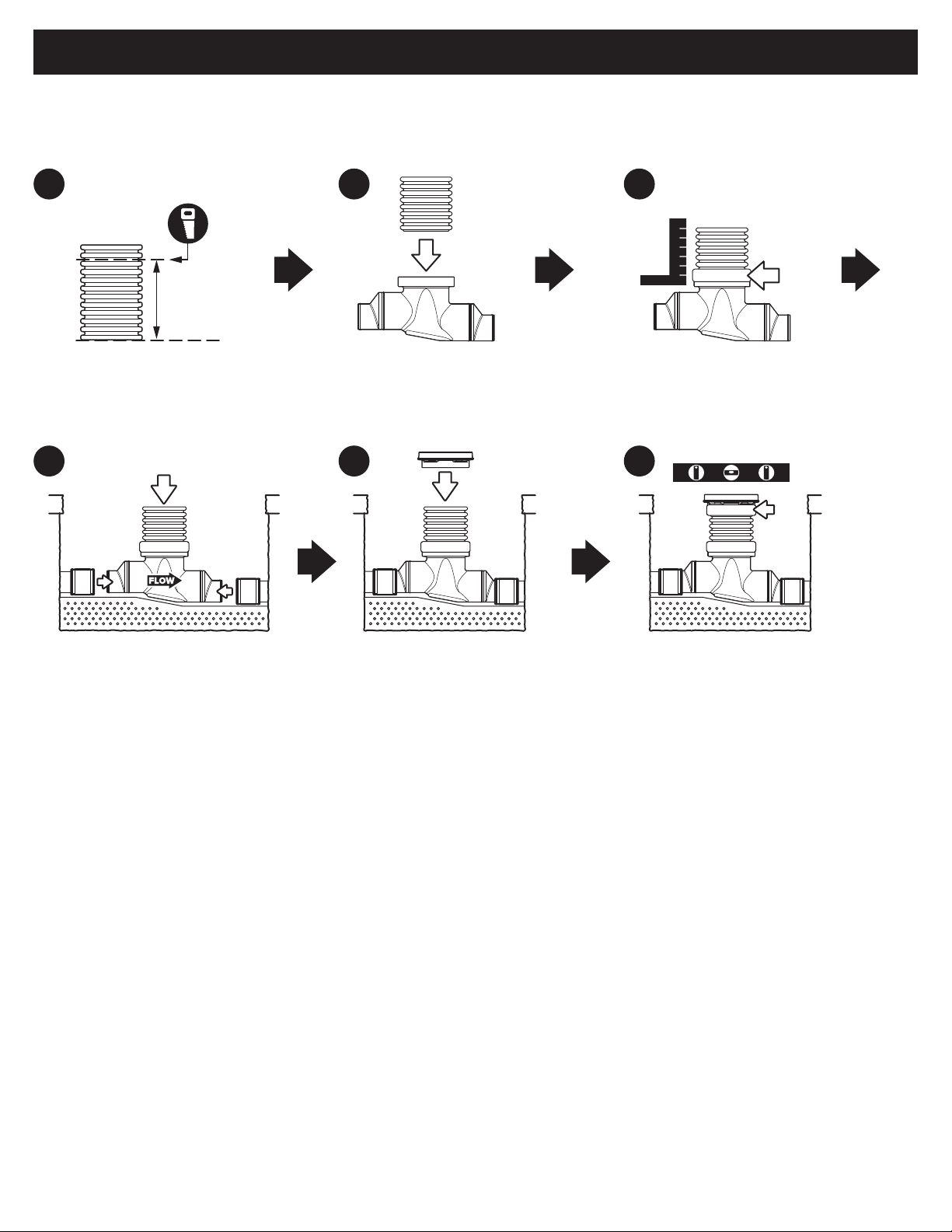

3 Cut and Install Riser
3b
Insert Riser into SV10 Body.
3f
Return the SV10 to the burial pit and
reconnect the drain lines
3d 3e
Place the cover/cover adapter
onto the top of the riser and
check to see if flush with grade.
If too high, remove cover and
trim riser as needed.
Secure cover/cover adapter using
the other 33" length of butyl tape
(provided with SV10). Make sure joint
is completely sealed and cover is
level and flush-to-grade.
Use a 33" length of butyl tape (provided
with SV10) to secure the riser joint. Make
sure joint is completely sealed and riser
is aligned square to the SV10 Body.
3c3a
Cut riser to a length 2" longer than
the riser height needed.
x+2"
page 3 of 4
FCR10 Installation Guide
