Schenker S413 Manuel utilisateur

Preface

Instructions for Care and Operation

The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This

is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.

3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save

your work. Remember to periodically save your data as data may be lost if the battery is depleted.

Do not expose the computer

to any shock or vibration.

Do not place it on an unstable

surface.

Do not place anything heavy

on the computer.

Do not expose it to excessive

heat or direct sunlight.

Do not leave it in a place

where foreign matter or mois-

ture may affect the system.

Don’t use or store the com-

puter in a humid environment.

Do not place the computer on

any surface which will block

the vents.

Do not turn off the power

until you properly shut down

all programs.

Do not turn off any peripheral

devices when the computer is

on.

Do not disassemble the com-

puter by yourself.

Perform routine maintenance

on your computer.

Preface

4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-

netic fields. These can hinder proper performance and damage your data.

5. Take care when using peripheral devices.

Power Safety

The computer has specific power requirements:

• Only use a power adapter approved for use with this computer.

• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are

unsure of your local power specifications, consult your service representative or local power company.

• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do

not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power supplies.

Use only approved brands of

peripherals.

Unplug the power cord before

attaching peripheral devices.

Do not plug in the power

cord if you are wet.

Do not use the power cord if

it is broken.

Do not place heavy objects

on the power cord.



Power Safety

Warning

Before you undertake

any upgrade proce-

dures, make sure that

you have turned off the

power, and discon-

nected all peripherals

and cables (including

telephone lines and

power cord). It is advis-

able to also remove

your battery in order to

prevent accidentally

turning the machine

on.

Preface

VII

Preface

Battery Precautions

• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.

• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the

computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.

• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service

personnel.

• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode

or leak if exposed to fire, or improperly handled or discarded.

• Keep the battery away from metal appliances.

• Affix tape to the battery contacts before disposing of the battery.

• Do not touch the battery contacts with your hands or metal objects.

Battery Guidelines

The following can also apply to any backup batteries you may have.

• If you do not use the battery for an extended period, then remove the battery from the computer for storage.

• Before removing the battery for storage charge it to 60% - 70%.

• Check stored batteries at least every 3 months and charge them to 60% - 70%.



Battery Disposal

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-

ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste

officials for details in your area for recycling options or proper disposal.

Caution

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Discard used battery according to the manufacturer’s instructions.

Battery Level

Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%

will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface

VIII

Preface

Related Documents

You may also need to consult the following manual for additional information:

User’s Manual on CD/DVD

This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-

gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

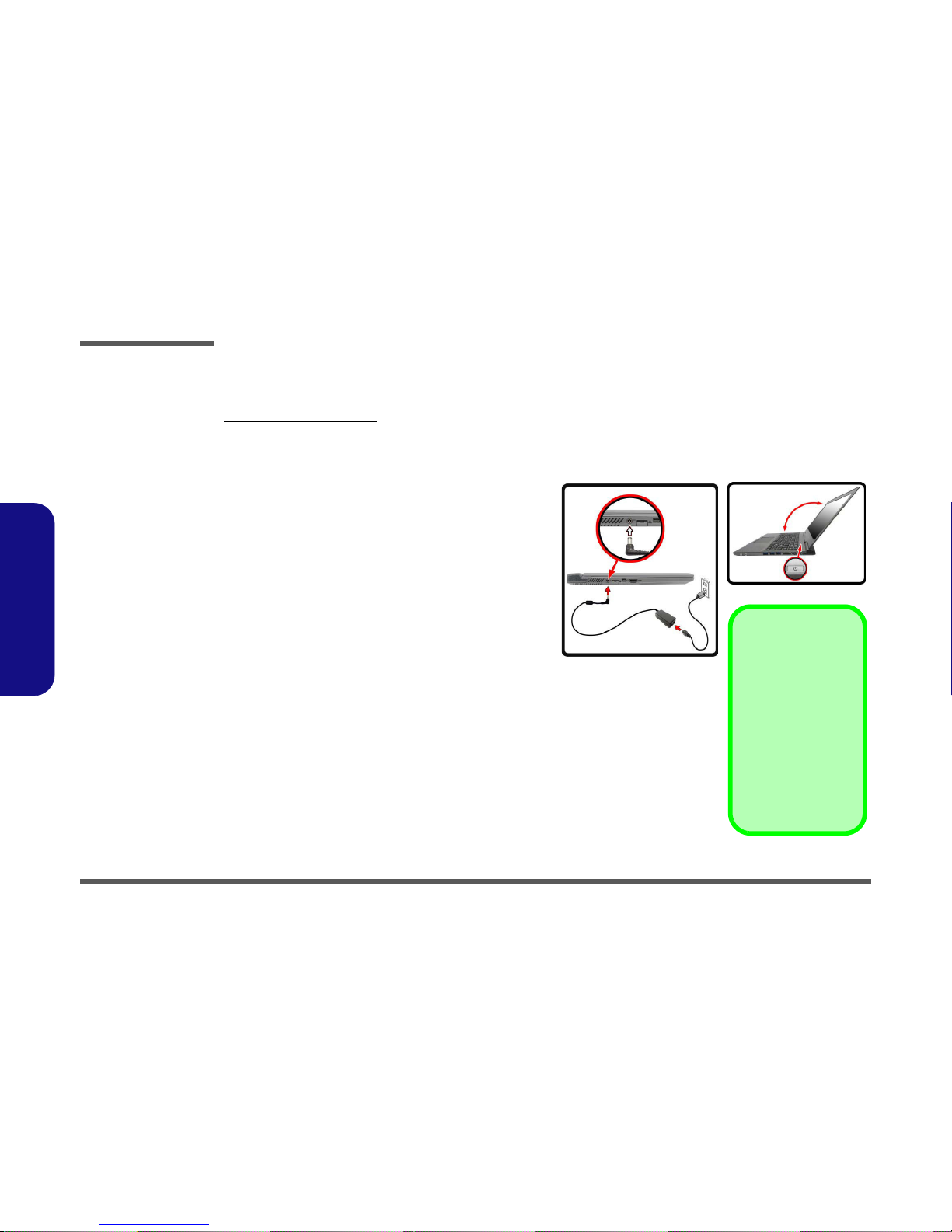

System Startup

1. Remove all packing materials.

2. Place the computer on a stable surface.

3. Insert the battery and make sure it is locked in position.

4. Securely attach any peripherals you want to use with the

computer (e.g. keyboard and mouse) to their ports.

5. Attach the AC/DC adapter to the DC-In jack on the left of the

computer, then plug the AC power cord into an outlet, and

connect the AC power cord to the AC/DC adapter.

6. Use one hand to raise the

lid/LCD to a comfortable viewing

angle

(do not exceed 130 degrees)

;

use the other hand (as

illustrated in Figure 1) to support the base of the computer

(Note: Never lift the computer by the lid/LCD).

7. Press the power button to turn the computer “on”.



Shutdown

Note that you should al-

ways shut your computer

down by choosing the

Shut Down command

from the Power item in

Settings in the Charms

Bar (use the Windows

Logo Key + C key com-

bination to access the

Charms Bar) in Win-

dows 8. This will help

prevent hard disk or sys-

tem problems.

Figure 1

Opening the Lid/LCD/

Computer with AC/DC

Adapter Plugged-In

130°

Introduction

1 - 2 Specifications

1.Introduction

Specifications



Latest Specification Information

The specifications listed here are correct at the

time of sending them to the press. Certain items

(particularly processor types/speeds) may be

changed, delayed or updated due to the manu-

facturer's release schedule. Check with your

service center for more details.



CPU

The CPU is not a user serviceable part. Ac-

cessing the CPU in any way may violate your

warranty.

Processor Options

Intel® Core™ i7 Processor

i7-4750HQ (2.0GHz)

6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W

Core Logic

Intel®HM87 Chipset

BIOS

48Mb SPI Flash ROM

AMI BIOS

Memory

Two 204 Pin SO-DIMM Sockets Supporting DDR3L

1600MHz Memory

Memory Expandable up to 16GB

(The real memory operating frequency depends on the

FSB of the processor.)

LCD

14" (35.56cm) HD/ FHD LCD

Storage

(Factory Option) One Changeable 2.5" 9.5mm (h)/7.0mm

(h) SATA HDD

(Factory Option) One mSATA Solid State Drive (SSD)

Audio

High Definition Audio Compliant Interface

2 * Built-In Speakers

Built-In Microphone

Security

Security (Kensington® Type) Lock Slot

BIOS Password

Keyboard

“WinKey” keyboard (with embedded numeric keypad)

Pointing Device

Built-in Touchpad

Interface

Three USB 3.0 Ports (Including one AC/DC Powered USB

port)

One HDMI-Out Port

One Mini Display Port

One Headphone-Out Jack

One Microphone-In Jack

One RJ-45 LAN Jack

One DC-in Jack

Mini Card Slot

Slot 1 for WLAN Module or WLAN and Bluetooth Combo

Module

(Factory Option) Slot 2 for mSATA SSD

Video Adapter

Intel® HD Graphics 5200

Dynamic Frequency (Intel Dynamic Video Memory Tech-

nology for up to 1.7GB)

Microsoft DirectX®11 Compatible

Card Reader

Embedded Multi-In-1 Card Reader

MMC (MultiMedia Card) / RS MMC

SD (Secure Digital) / Mini SD / SDHC/ SDXC

Introduction

Specifications 1 - 3

1.Introduction

Communication

Built-In Gigabit Ethernet LAN

1.0M HD PC Camera Module

WLAN/ Bluetooth Half Mini-Card Modules:

(Factory Option) Intel® Centrino® Advanced-N 6235

Wireless LAN (802.11a/g/n) + Bluetooth 4.0

(Factory Option) Intel® Centrino® Advanced-N 6205

Wireless LAN (802.11a/g/n)

(Factory Option) Third-Party Wireless LAN (802.11b/g/n)

+ Bluetooth 4.0

Environmental Spec

Temperature

Operating: 5°C - 35°C

Non-Operating: -20°C - 60°C

Relative Humidity

Operating: 20% - 80%

Non-Operating: 10% - 90%

Power

Full Range AC/DC Adapter

AC Input: 100 - 240V, 50 - 60Hz

DC Output: 19V, 4.74A (90W)

Polymer Smart Lithium-Ion Battery Pack, 53.28WH

Dimensions & Weight

340mm (w) * 253mm (d) * 20.8mm (h)

1.9kg (with Battery)

Introduction

1 - 4 External Locator - Top View with LCD Panel Open

1.Introduction

External Locator - Top View with LCD Panel Open

Figure 1

Top View

1. Built-in PC

Camera

(Optional)

2. PC Camera LED

3. Built-In

Microphone

4. LCD

5. Power Button

6. Keyboard

7. Touchpad &

Buttons

Introduction

External Locator - Front & Right Side Views 1 - 5

1.Introduction

External Locator - Front & Right Side Views

Figure 2

Front View

1. LED Power

Indicator

Figure 3

Right Side View

1. Headphone-Out

Jack

2. Microphone-In

Jack

3. USB 3.0 Port

4. 1 * Powered (AC/

DC) USB 3.0

Port

5. Multi-in-1 Card

Reader

6. Vent/Fan Intake/

Outlet

FRONT VIEW

RIGHT SIDE VIEW

1 2 3

456

Introduction

1 - 6 External Locator - Left Side & Rear View

1.Introduction

External Locator - Left Side & Rear View

Figure 4

Left Side View

1. Vent/Fan Intake/

Outlet

2. DC-In Jack

3. RJ-45 LAN Jack

4. Mini Display Port

5. HDMI-Out Port

LEFT SIDE VIEW

2345

Figure 5

Rear View

1. Security Lock Slot

2. Vent/Fan Intake/

Outlet

REAR VIEW

2 2

Autres manuels pour s413

Table des matières

Autres manuels Schenker Ordinateur portable

Schenker

Schenker PC70DS Manuel utilisateur

Schenker

Schenker GM5MG0O Manuel utilisateur

Schenker

Schenker XMG-P723 Manuel utilisateur

Schenker

Schenker XMG A502 Manuel utilisateur

Schenker

Schenker S306 Manuel utilisateur

Schenker

Schenker XMG A500 Manuel utilisateur

Schenker

Schenker XMG P724 Manuel utilisateur

Schenker

Schenker PC70DS Manuel utilisateur

Schenker

Schenker WORK 15 Manuel utilisateur

Schenker

Schenker M704 Manuel utilisateur

Schenker

Schenker XMG U726 Manuel utilisateur

Schenker

Schenker M504 Manuel utilisateur

Schenker

Schenker XMG P504 Manuel utilisateur

Schenker

Schenker s413 Manuel utilisateur

Schenker

Schenker XIRIOS D501 Manuel utilisateur

Schenker

Schenker XMG A722 Manuel utilisateur

Schenker

Schenker XMG P511 Manuel utilisateur

Schenker

Schenker a522 Manuel utilisateur

Schenker

Schenker XMG A505 Manuel utilisateur

Schenker

Schenker XMG P505 Manuel utilisateur

Schenker

Schenker M506 Manuel utilisateur

Schenker

Schenker F516 Manuel utilisateur

Schenker

Schenker W703 Manuel utilisateur

Schenker

Schenker xirios d301 Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
