User manual & repair guide

MB-BOX

Ref : 36.159xx.00

Acknowledgement...................................................P.2

Safety Warnings.........................................................P.2

Related accessories ..............................................P.2

Equipment description..........................................P.2

Technical characteristics........................................P.3

Electrical characteristics.........................................P.3

Description of the markings used.....................P.4

Installation instructions..........................................P.5

Connection...................................................................P.6

Indicators and buttons............................................P.6

Use..................................................................................P.7

Software........................................................................P.7

Terms and conditions.............................................P.10

Warranty terms.........................................................P.10

L’innovation française depuis 1965

P. 2

L’innovation française depuis 1965

Designation Reference

120Ω BUS CAN termination 0D.CRD399

Micro-Fit / M12 (NMEA) adapter 0D.CRD630

USB-card micro SD adapter 0R.INF420

USB-C / RJR45 adapter 0R.INT430

GPS antenna - 5M cord 0I.CED522

Power harness 0D.CRD310

Equipment description

The MB-BOX is a complete and scalable solution similar to a home automation box consisting of the physical MB-BOX box and,

optionally, dedicated applications. It can be integrated into land vehicles as well as boats, it centralizes all installation data, controls

equipment and carries out maintenance operations, all remotely and worldwide thanks to the 'application.

Acknowledgement

Thank you for your purchase and we hope that this product is entirely satisfactory.

Before you being using the product, we recommend that you read the following instructions carefully.

This manual explains how to use and install the product according to the use for which it was intended.

Safety warnings

IMPORTANT: Do not dismantle the device

Any contact with the components inside the product can cause injuries.

In the event of a malfunction, only a qualied technician is authorized to repair the device.

IMPORTANT: In the event of an impact

If the product falls or suers violent impacts, immediately contact a qualied person to make sure that the device is working

properly.

IMPORTANT: Unpacking the equipment

After unpacking the product, make sure that it is complete and in good condition: if in doubt, immediately contact someone with the

required professional qualication.

IMPORTANT: Unpacking the equipment

Do not leave any part of the packaging within the reach of children or irresponsible people.

Related accessories

L’innovation française depuis 1965

P. 3

L’innovation française depuis 1965

MB-BOX

REFERENCE 36.159xx.00

POWER SUPPLY 9-32 V DC

PERIPHERAL DEVICES

1 Ethernet port

3 USB ports

2 independent CAN networks (4 connectors)

1 connector for 2 inputs and 1 output

1 SIM card holder

MOTHERBOARD 1.2GHz processor, 8GB eMMC storage,

1GB of RAM (Option 16GB and 32GB of storage)

BUS CAN 4 x 6-way Micro-Fit type connectors

2 separate CAN BUS

COMMUNICATION LTE-M1

GPS GNSS

BLUETOOTH Bluetooth 5.0

WIFI 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

OS Linux

I/O

1 analog input with wake-up function (0 – 32VDC)

1 npn type digital input with wake-up function

1 output 0.5A

USB

2x USB 2.0:

1 USB-C

and

1 USB A* on front panel

Where

1 mini USB HSAUTOLINK* OTG

*Both USB ports cannot be used

at the same time

FIRMWARE VERSION V8.00 or higher

ENVIRONMENTAL CONDITIONS

Indoor use

Altitude up to 2000m

Operating temperature: 0 to +50°C

Relative humidity: 0 to 93% - non-condensing

Protection index: IP20

FIXING DISTANCE 128x87mm

WEIGHT 0,25 Kg

STANDARDS EN 60945

DIMENSIONS (LXLXH)150 x 95 x 25 mm

NOMINAL VOLTAGE (VDC)9-32 VDC

OWN CONSUMPTION 45 mA

2.4GHZ WI-FI CONNECTED 180mA @12V

GPS RECEPTION 204 mA @12V

Electrical characteristics

Characteristics

L’innovation française depuis 1965

P. 4

L’innovation française depuis 1965

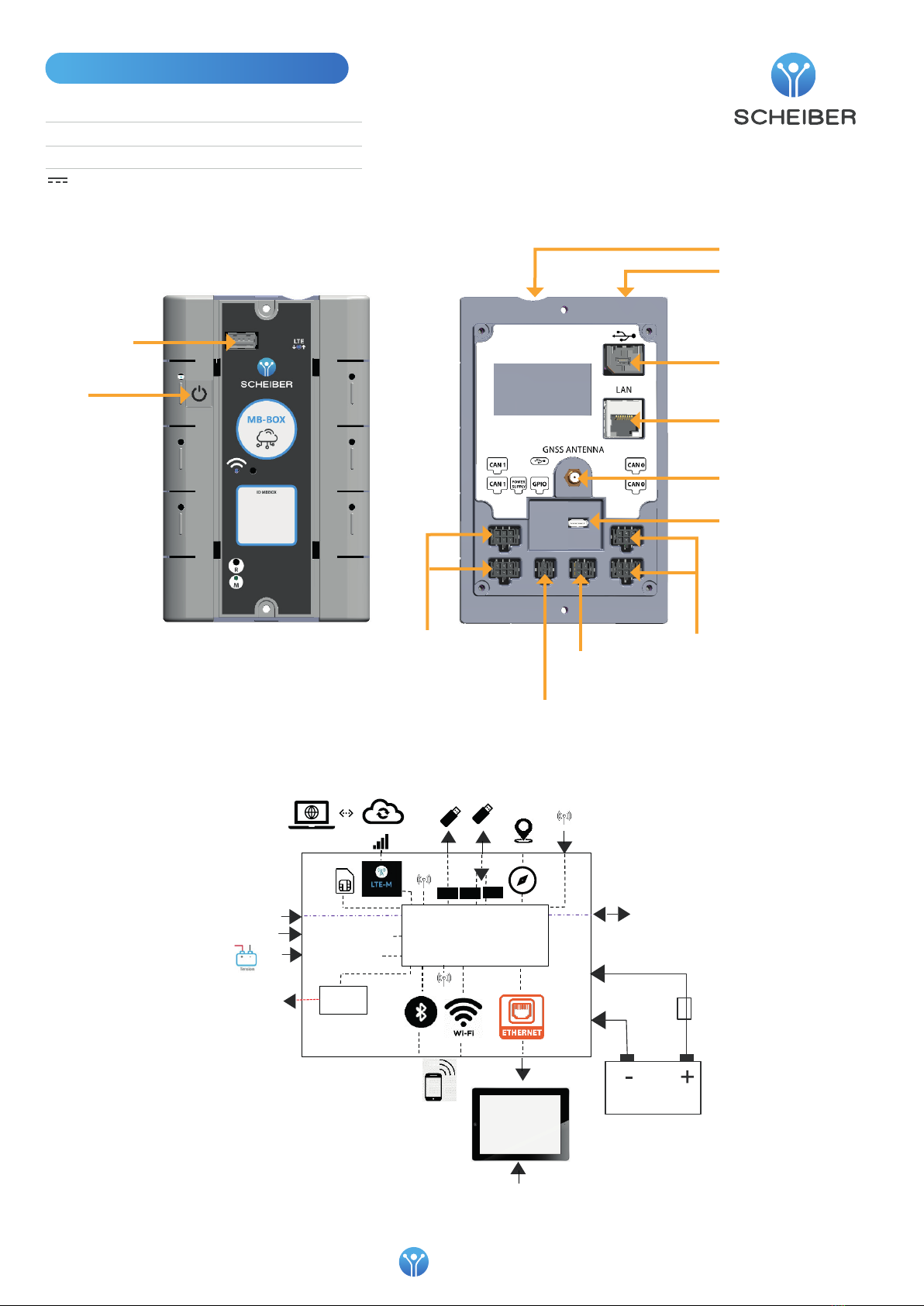

USB

ON/OFF

LTE-M ANTENNAS

AND WIFI INTEGRATED

ETHERNET PORT

USB-C

INPUT/OUTPUT

CONNECTOR

POWER

CONNECTOR

GPS

NETWORK 2

CAN (CAN1)

NETWORK 1

CAN (CAN0)

SIM CARD

CONNECTOR

AUTOLINK MINI USB

MB BOX

1 Entrée numérique (-)

MOS

Alimentation VDC

CONTROLEUR

CAN 1 SCHEIBER

CAN 2

Ecran de

navigation

12/24VDC

1 Entrée analogique

0,5A max

USB1

Carte SIM

Antenne

WIFI

Antenne

LTE-M

USB2

USB3

Antenne

GPS

Description of the markings used

VVolt

AAmpere

ou DC Direct current

L’innovation française depuis 1965

P. 5

L’innovation française depuis 1965

FIXING: 2 SCREWS 2.9X19MM

MOUNTING DISTANCE: 137mm

150

Front view

Prole view Back view

ETHERNET

USB-C

ANTENNE

CAN 1 CAN 0

POWER SUPPLY

I/O

USB-C

Installation instructions

• This device must be placed in a place protecting it from any risk of water splashing. Install in a ventilated location

• Do not install on supports that are sensitive to heat, such as carpet or PVC ooring, etc.

• The product must be installed away from heat and humidity

!WARNING: Connection/disconnection with power on

Do not perform connection or disconnection with power on.

L’innovation française depuis 1965

P. 6

L’innovation française depuis 1965

Connection

1Connect power

• by an external power supply

using the 2-way connection:

Connect the ETHERNET port to the screen or

the HUB of your installation

120Ω

termination

CAN

cable

Connect 2 right CAN connectors to the SCHEIBER network

Connect 2 CAN connectors to the partner network

The 2 networks CAN1 and CAN0 are distinct.

Screw the GPS antenna (optional)

"Power ON" button, a short press on this button

switches on the MB-Box or performs a soft reset if

the MB-Box is already on. A long press on Power ON

exports logs to a USB key.

"SW-WIFI" button,

When pressing the SW-WIFI button briey (<5s), the

MB-Box resets the WIFI conguration parameters to

factory mode:

SSID=scheiber-01

Password = scheiber

During a long press (>5s) on the SW-WIFI button, the

MB-Box performs the following actions:

If WIFI is disabled:

Lighting of the WIFI LED in xed mode

Conguring WIFI in server mode

Activation of the WIFI interface

Conguring the IP address of the WIFI interface

If WIFI is activated in server mode:

Turning o the WIFI LED

Disabling the WIFI interface

If WIFI is activated in hotspot mode:

Turning o the WIFI LED

Conguring WIFI in server mode

Restarting the WIFI interface

Conguring the IP address of the WIFI interface

Lighting of the WIFI LED in xed mode

Edit this section

SW-ON-OFF (powerOFF button at the bottom)

The "Power o" button, one press turns o the MB-

Box, it restarts if a Wake-Up entry is active in the

installation.

1- ON/OFF light, xed light for about 15 seconds

when loading the bootloader, then ashing during the

initialization phase

2- LTE LED, ashing:

LTE network search

on ---- ----

| | | |

o -------- -------- --------

MB-Box connected to the LTE network

on -------- -------- --------

| | | |

o ---- ----

3- Wi-Fi indicator,

the indicator is ON when Wi is activated

ashing light: Hotspot mode activated

4- Mode LED, the LED ashes green when the CAN

BUS 0 is active, the LED ashes red when the CAN BUS

1 is active.

Indicators and buttons

SW-ON-OFF

Mode

SW-WIFI

indicator ON/OFF

SCHEIBER networkPartner network

GROUND

+BAT

GROUND

Analog

input

Digital input (-)

On/O output

Power ON

CAN

cable

CAN

cable

L’innovation française depuis 1965

P. 7

L’innovation française depuis 1965

Software

Web browser compatibility

Use

Le produit MB-BOX est disponible avec plusieurs services :

Remote Services:

- Client application, dashboard, remote control

- Congurations, settings

- Software update

- Maintenance

- Provision of data in the cloud via an API

- Data storage

Embedded services:

- Customer app

- Congurations, settings

- Software update

- Maintenance

- Data storage

Non-exhaustive list, depending on the options chosen by customers and available or to come

Operation is guaranteed with Chrome, we recommend its use.

L’innovation française depuis 1965

P. 8

L’innovation française depuis 1965

LAND VERSION

Example of a remote application compatible with the MB BOX

9:31

Connect to your boat

Scheiber

Remote control

••••••••

Password

Remember me

Connection

Password forgotten ?

9:31

Batteries

25,8 V

-5,5 A

Motor

28,2 V

12 A

40%

Inside

ON/OFF

Data updated in real time

80%

Lighting

Leisure

Side

Fridge

NAUTICAL VERSION

9:31

25,8 V

-5,5 A

28,2 V

12 A

40%

93%

80%

ON/OFF

Data updated in real time

80%

Batteries

Side

Motor

Tanks

Front fuel

Rear fuel

Kitchen fridge

Menu access

Favorites

(displayed on

home page)

Access to settings

3 states depending

on data refresh:

ACTION :

click on the orange banner to

wake up the installation and

refresh the data

Dashboard

ACTIONS :

swipe down: refresh data

slide to the right: menu display

swipe left: access settings

9:31

Batteries

25,8 V

-5,5 A

Motor

28,2 V

12 A

40%

Inside

ON/OFF

Data updated in real time

80%

Lighting

Leisure

Side

Fridge

ord

25,8 V

-5,5 A

oteur

28,2 V

12 A

uel avant

Réservoirs

Dashboard

Tanks

Temperature

Alarms

Batteries

ON / OFF

Surveillance

Power up ...

Data updated 10 days ago

Data updated in real time

L’innovation française depuis 1965

P. 9

L’innovation française depuis 1965

9:31

Alarms

Quarry bilge pump

VHF Battery

Port fire extinguisher

Starboard fire extinguisher

Forward bilge pump

Right now

History

Data updated in real time

9:31

25,8 V

-5,5 A

28,2 V

12 A

40%

80%

Batteries

09%

22,7 V

-4 A

On-board

Motor

Data updated in real time

9:31

ON/OFF

Fridge fly

Deck lights

Kitchen refrigerator

Data updated in real time

9:31

80%

Tanks

Front fuel

Back fuel

Pure water

19%

93%

Data updated in real time

9:31

Temperatures

Square

Port cabin

Starboard cabin

20.5°C

19°C

19.5°C

Data updated in real time

Examples of feature pages

Active alarms are put

at the top of the list

Non-exhaustive list, customization possible.

L’innovation française depuis 1965

P.10

L’innovation française depuis 1965

Terms and conditions

The manufacturer cannot be held responsible and accepts no responsibility in the event of harm to persons or property due to

improper use and in reference to the warnings provided in this manual.

SCHEIBER reserves the right to change the characteristics of its products in the interest of its customers. The manual supplied with this

product must not be reproduced, transmitted, stored in a search system or translated into any language, in full or in part, by any means,

without the prior written consent of SCHEIBER.

Although every eort has been made to provide you full and accurate information in this manual we ask that you inform the SCHEIBER

representative of your country in case of any error or omission we may have overlooked.

SCHEIBER reserves the right to change the characteristics of the hardware and software described in these manuals at any time and

without prior notice.

WARRANTY SUBJECT:

The company SCHEIBER warranties all its products’ range against failures or masked-failures according to the article 1641 and followings

of the Civil Code. Repairs and replacement of the equipment during the warranty period do not change terms or time of this warranty

which is of 2 years. Repairs and replacement of the faulty parts under warranty are made only on presentation of the invoice which

certies the warranty beginning date.

WARRANTY DOES NOT APPLY:

This warranty can not be applied in case of misuse, wrong installation, repair by anyone else than a SCHEIBER authorised technician,

damage arising from improper use (fuses replaced by another value), utilisation in an unsuitable environment or if the equipment has

suered from physical damages through handling, transport. It does not cover calibration or verication due to the normal age of the

components. Warranty modalities: The equipment freight will be charged to the customer. If the returned equipment is not conform,

our company considers it has the right to refuse the free repair and proposes an estimate.

RESPONSIBILITY LIMITS:

In any case, the company SCHEIBER will not be held responsible for direct damages or damages not due to the normal use of the

equipment. In case of a dispute arising between the parties, the case shall be submitted to the French Right to the court specied by

the company SCHEIBER.

Warranty terms & after-sales

Table des matières

Autres manuels Scheiber Équipement de diagnostic

Scheiber

Scheiber BATTERY VIEWER Manuel utilisateur

Manuels Équipement de diagnostic populaires d'autres marques

Mindray

Mindray M7Vet Guide de démarrage rapide

Autel

Autel MaxiProgrammer 201 Manuel utilisateur

TEXA

TEXA TMD2 Manuel utilisateur

Autel

Autel MaxiIM IM608 Manuel utilisateur

Sealey

Sealey BT2012 Manuel utilisateur

Diagnoptics

Diagnoptics Age Reader Manuel utilisateur

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manuel utilisateur

Hella Gutmann

Hella Gutmann Mega macs X Manuel utilisateur

Foxwell

Foxwell I80TS Manuel utilisateur

KaVo

KaVo 3D eXam Manuel utilisateur

ATEQ

ATEQ VT46 Manuel utilisateur

Hella Gutmann

Hella Gutmann mega macs X Manuel utilisateur

Autel

Autel MaxiFlash VCMI Manuel utilisateur

Qiagen

Qiagen QIAcube Connect MDx Manuel utilisateur

Alber

Alber BDSU Manuel utilisateur

St. Jude Medical

St. Jude Medical QUANTIEN Manuel utilisateur

Bosch

Bosch DCU 100 Manuel utilisateur

Launch

Launch CNC-602A Manuel utilisateur
