Scania Fleet Analysis System 2 Manuel utilisateur
ã
Scania CV AB 2002, Sweden
1 713 418
19:03-15
Issue 1 en
Fleet Analysis System 2
Retrofitting and troubleshooting
2ãScania CV AB 2002, Sweden 19:03-15
Contents
General Function.................................................................... 3
Component parts....................................................... 4
Connection diagram.................................................. 6
Installation SIM card ................................................................... 7
Preparation............................................................... 7
Attaching the aerial................................................... 8
Routing the aerial wiring .......................................... 9
Fitting GPS/GSM module ...................................... 10
Routing the FAS wiring.......................................... 11
Installing speaker and microphone......................... 14
Function test ........................................................... 15
Finishing operations ................................................................................ 15
Troubleshooting ................................................................................ 16
Contents
19:03-15 ãScania CV AB 2002, Sweden 3
General
The Fleet Analysis System 2, FAS 2, is supplied
complete with cradle and hand-held computer.
It may be easier to carry out some procedures
with two people.
These instructions describe retrofitting in a left-
hand drive vehicle.
Function
FAS 2 allows:
•one and two-way communication via the
GSM network. This enables the use of
e-mail, SMS and telephone.
•positioning via GPS.
General
4ãScania CV AB 2002, Sweden 19:03-15
Component parts

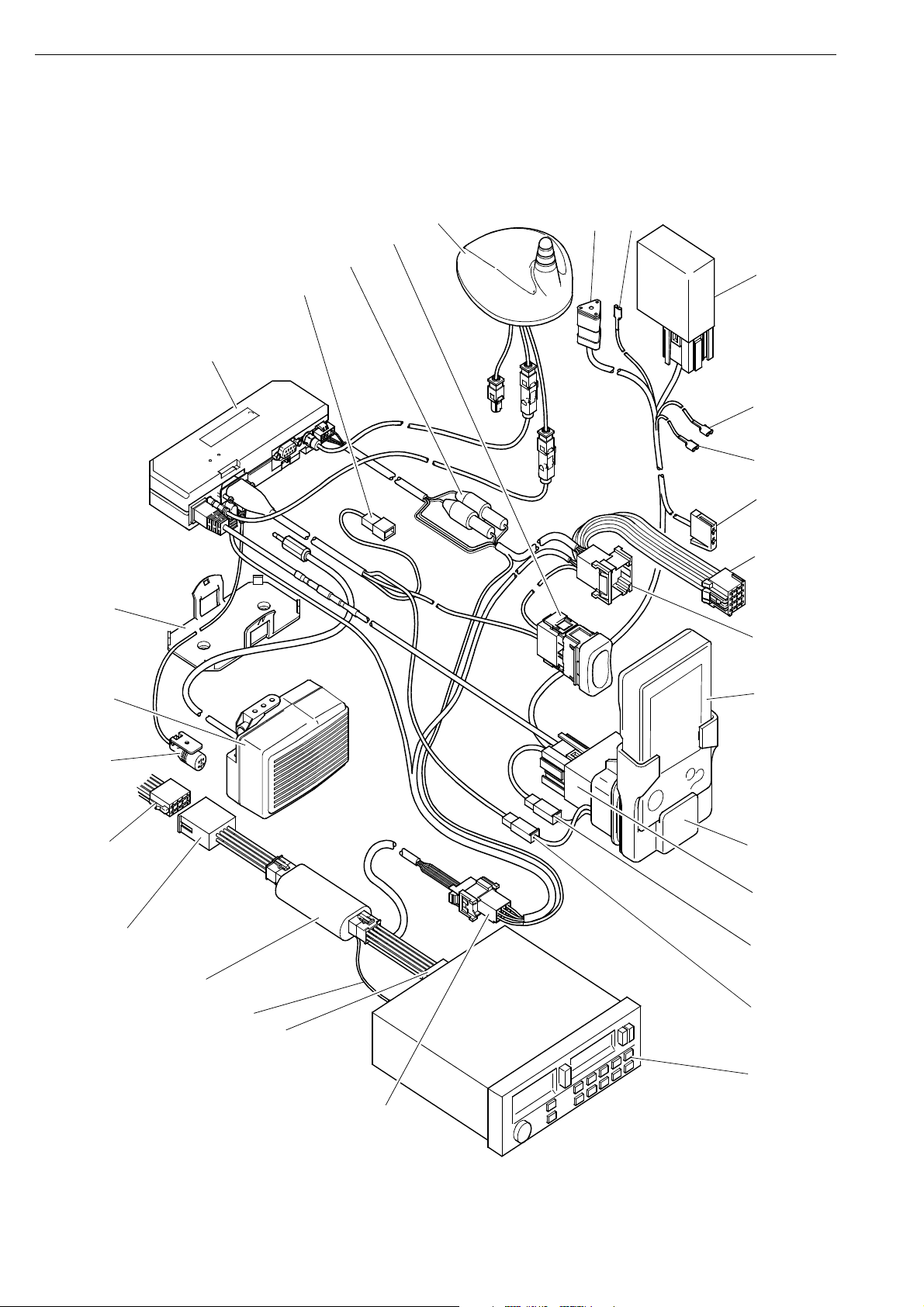

FAS 2 comprises:
9
7
24
23
22
19
18
125501
12
13
10
8
11
5
6
4
32
1
27
26
25
14
17
15
16
20
21
28
General
19:03-15 ãScania CV AB 2002, Sweden 5
1Aerial U10
2Connector C461
3Earth, black G10
4FMS control unit E51
5Battery voltage plus, red F2/40
6Ignition voltage, grey F2/45
7C56/CAN
8Connector which is connected to voltage
converter E38B
9Connector which is connected to voltage
converter wiring E38A
10 Hand-held computer
11 Cradle E52
12 Adapter E57
13 Connector C491
14 Connector C490
15 Radio
16 Connector C492
17 Radio cable E33-B
18 Mute cable E33-A2
19 Mute box E58
20 Radio speaker cable C493/E33
21 Radio speaker connector
22 Microphone U9
23 Speaker
24 Plastic holder for A3D
25 A3D GPS/GSM module E55
26 VPS cable C267
27 Fuses F11, F12
28 Spring-loaded switch S86
General
6ãScania CV AB 2002, Sweden 19:03-15

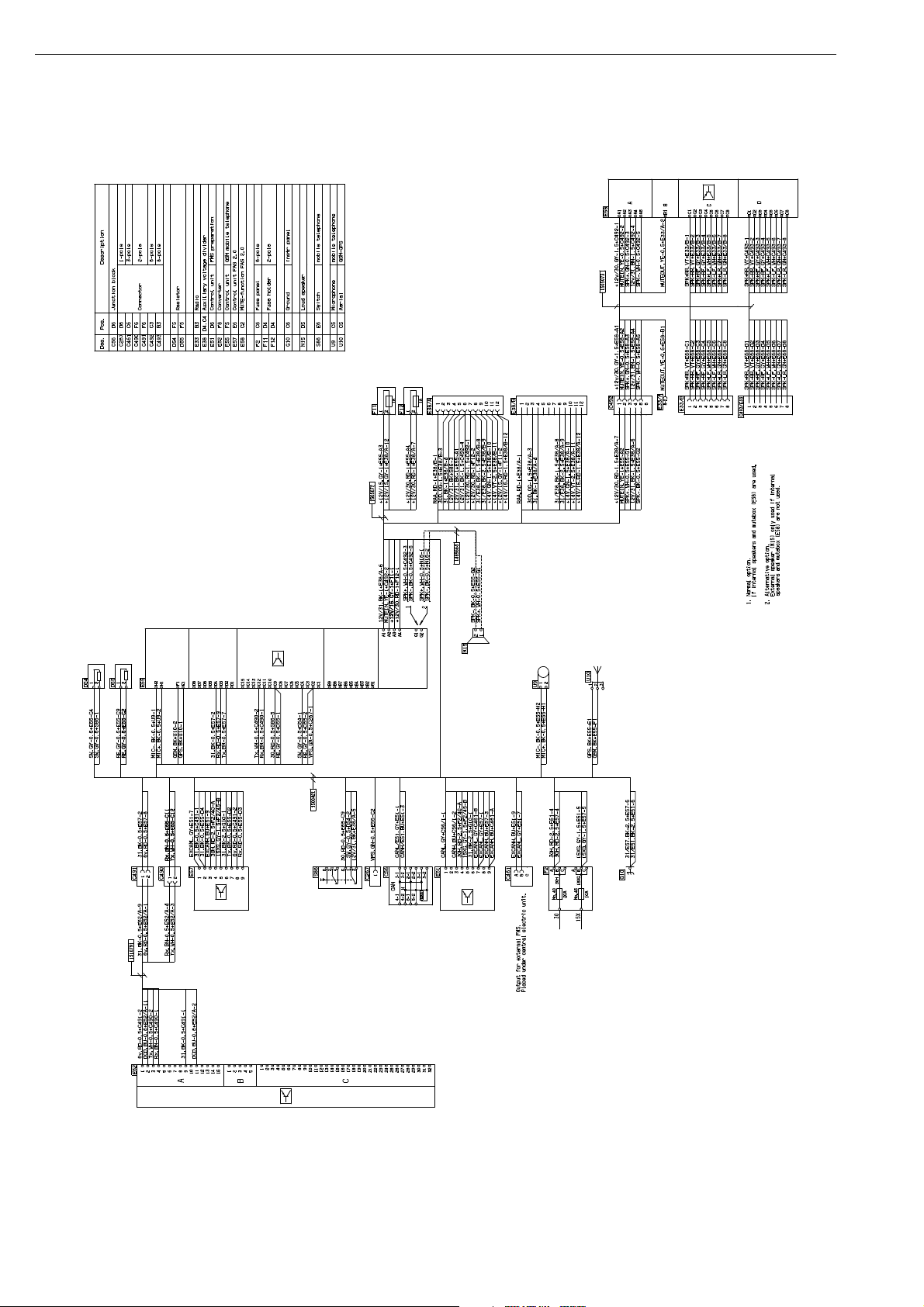

Connection diagram
125502
General
19:03-15 ãScania CV AB 2002, Sweden 7
Installation
Note: Read the directions before installing.
SIM card

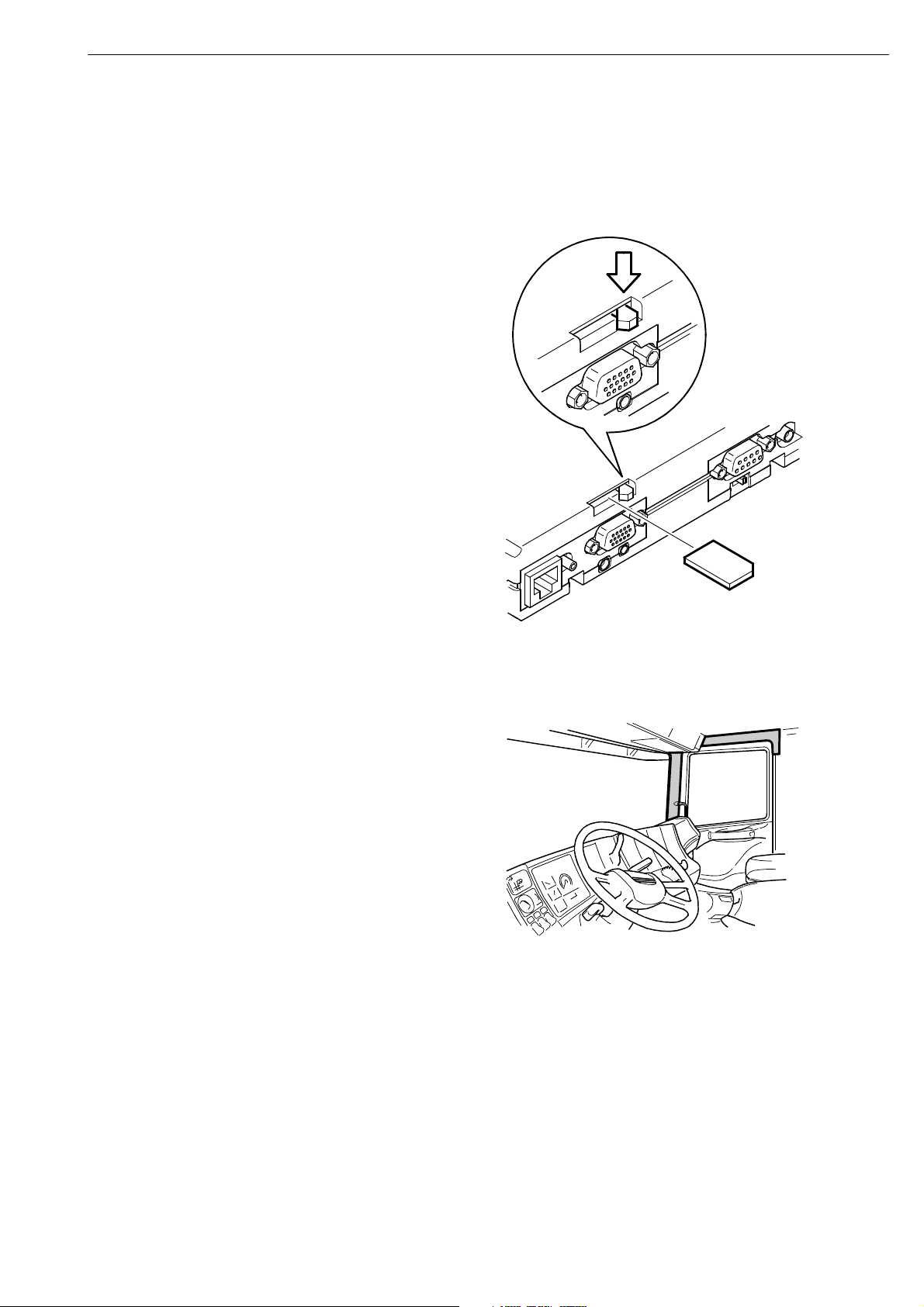

1Slide the SIM card into the slot on the
connector side of the GPS/GSM module.
The SIM card is secured in position when the
catch is locked.
To remove the SIM card, the catch is pressed
down and then the card can be removed. Refer
to the illustration.
125503
Preparation
1Remove the panels above the right-hand
door and the ones covering the right-hand A
pillar.
2Loosen the panels and brackets for the bed,
ladder, etc. to facilitate routing of the cables.
Refer to the description in 18:01-05 Cab,
Interior.
3Loosen the headlining.
4Loosen the roof shelf on cabs with low roof.
This will give access for screwing on the
aerial retaining nut.
125505
Installation
8ãScania CV AB 2002, Sweden 19:03-15
Attaching the aerial
A correct attachment of the aerial assumes that
•the area around the inlet hole is level
(only applies to cabs with a low roof).
•the distance to any other aerials is at least
500 mm. This is necessary to avoid
disturbance in communication.
If there is a suitable hole for the inlet on the
right-hand side of the cab: fit the aerial there.
Otherwise, proceed as follows:

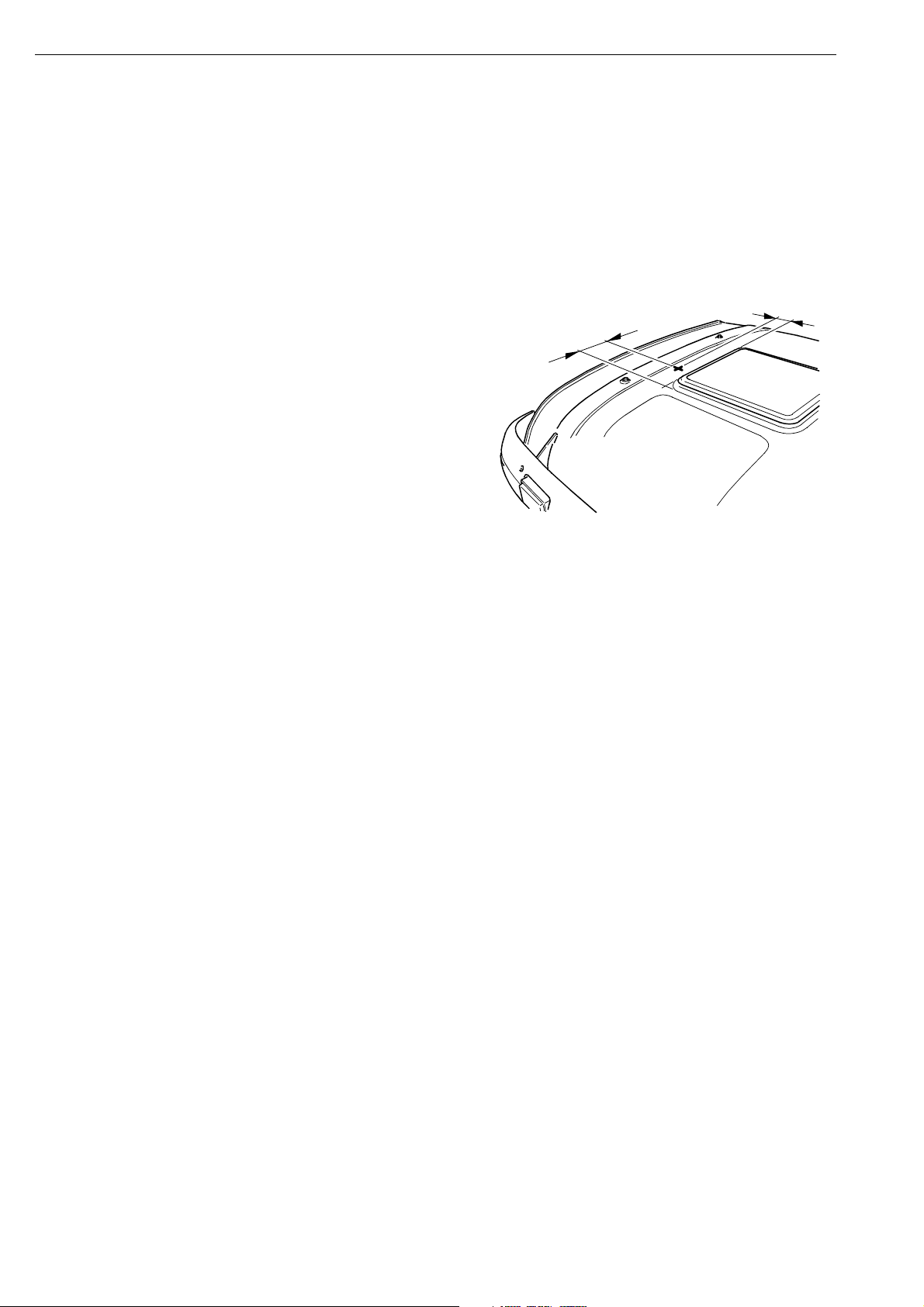

1Make a 19 millimetre diameter hole with a
suitable tool. Refer to the illustration for its
location in relation to the roof hatch. Finely
adjust the position as necessary depending
on other equipment located on the roof.
70 mm
150 mm
125508
Installation
19:03-15 ãScania CV AB 2002, Sweden 9
Note: Make sure no metal shavings are left on
the roof as they will corrode and fasten.
2Apply a little anti-corrosive agent to the
edge of the hole. Allow the agent to dry.
Note: Make sure the aerial nut underneath the
roof is in good contact with the metal. This will
ensure a good earth.
3Pull through the cables and screw the aerial
into the hole.
Routing the aerial wiring

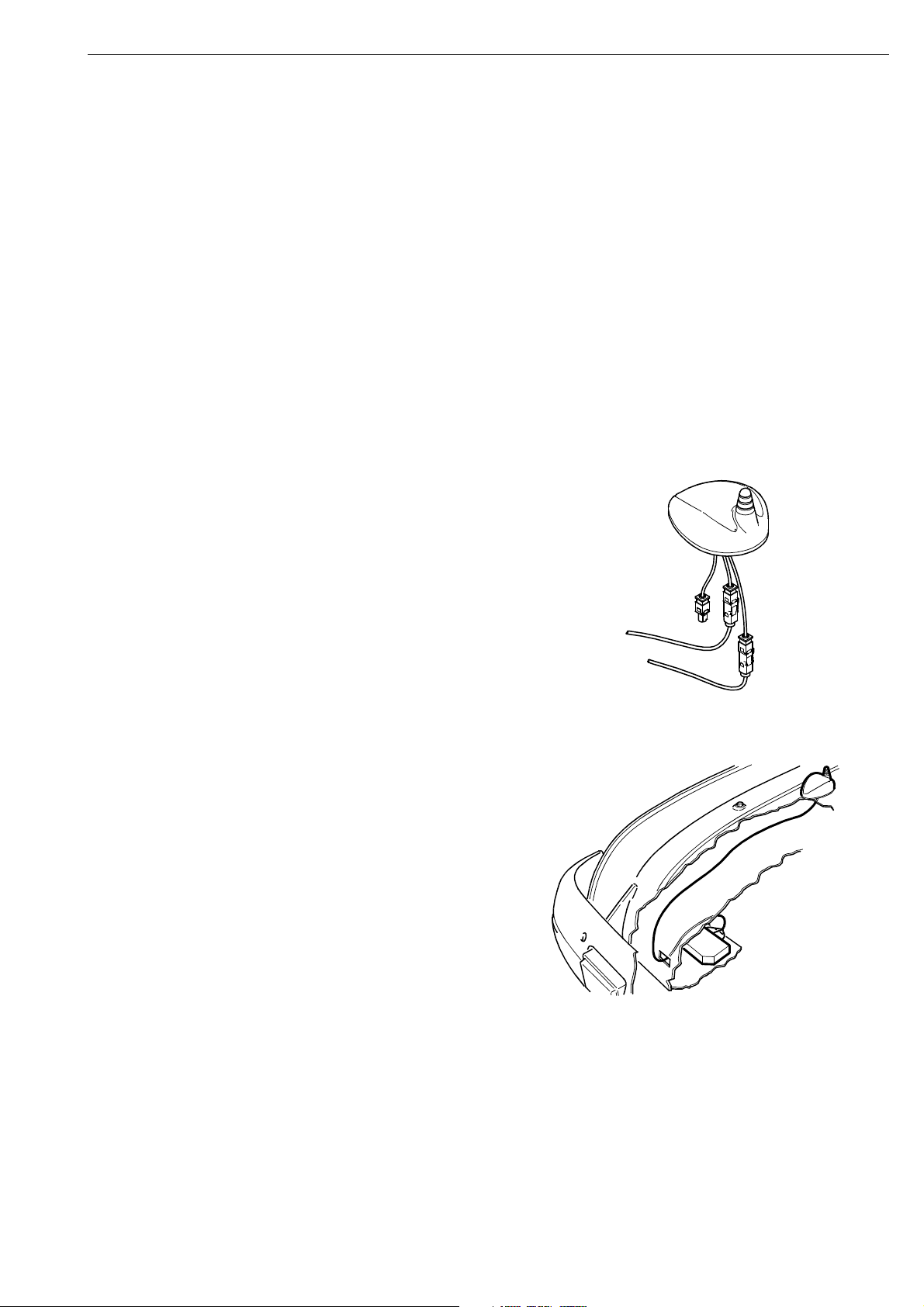

1Attach the GPS and GSM cables to the
aerial cables.
2The extra cable for the FM band can be used
for the radio. If this cable is not being used,
insulate it with tape and fasten it underneath
the roof.
3Run the cables via the headlining panels
towards the windscreen and down behind
the right-hand roof shelf lid. Then pull out
the cables through the hole in the headlining
to where the GPS/GSM module is being
fitted.
125510
125511
Installation
10 ãScania CV AB 2002, Sweden 19:03-15
Fitting GPS/GSM module
1The GPS/GSM module should be fitted in
the centre compartment on the passenger
side roof shelf.
2Remove the rubber mat fitted in the
compartment.

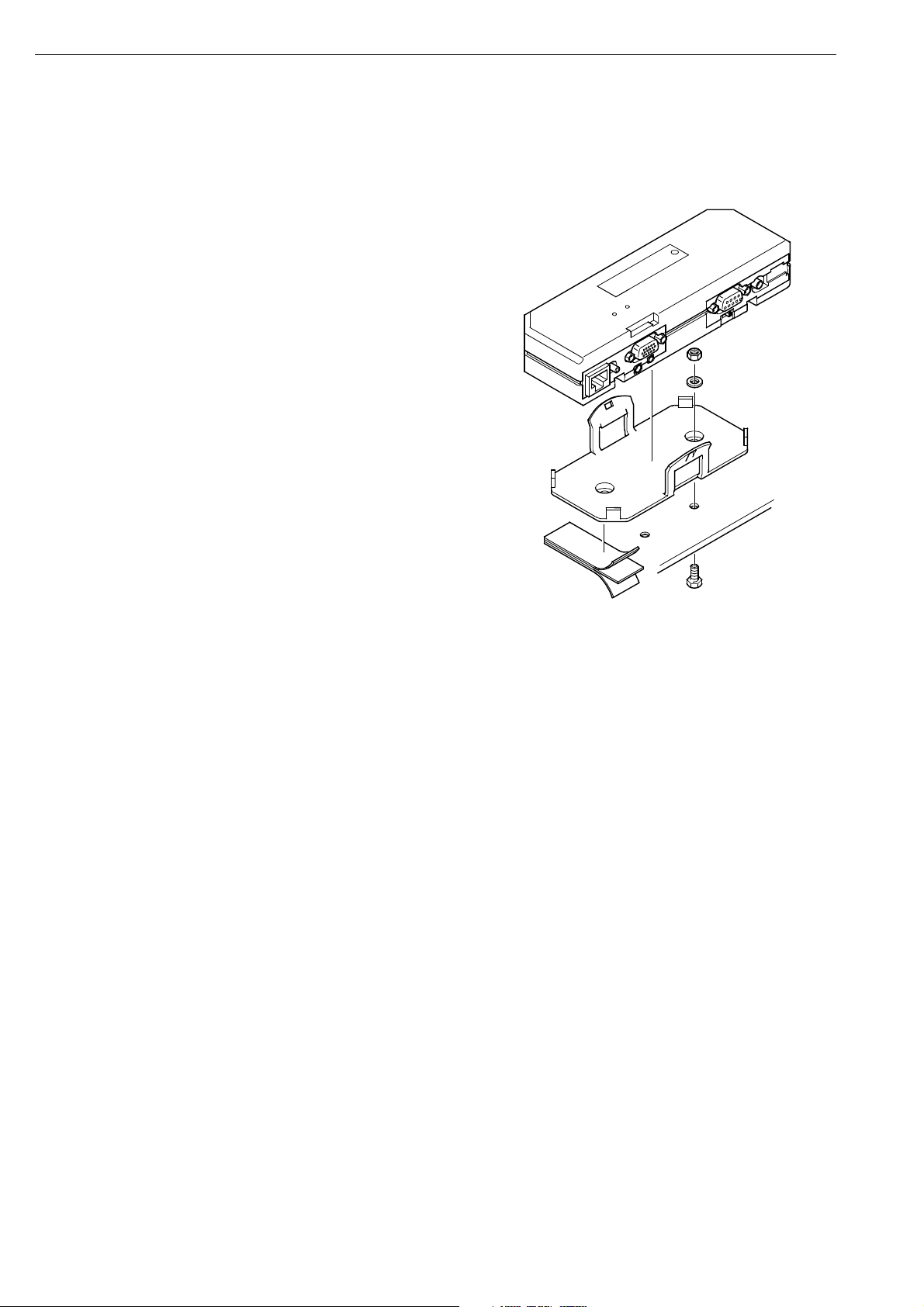

3Position one end of the module bracket into
one of the existing holes in the bottom of the
roof shelf. Fasten the other end of the
module bracket with double-sided adhesive
tape.
4Screw on the plastic bracket with an M5x10
bolt, nut and lock washer in the positioned
hole. Fit the bolt from underneath and the
nut from above.
5Place the GPS/GPM module into the plastic
bracket.
6Connect the aerial cables to the GPS/GSM
module.
125513
Installation
