ACS Series

Digital Counting Scales

USER MANUAL

INTRODUCTION

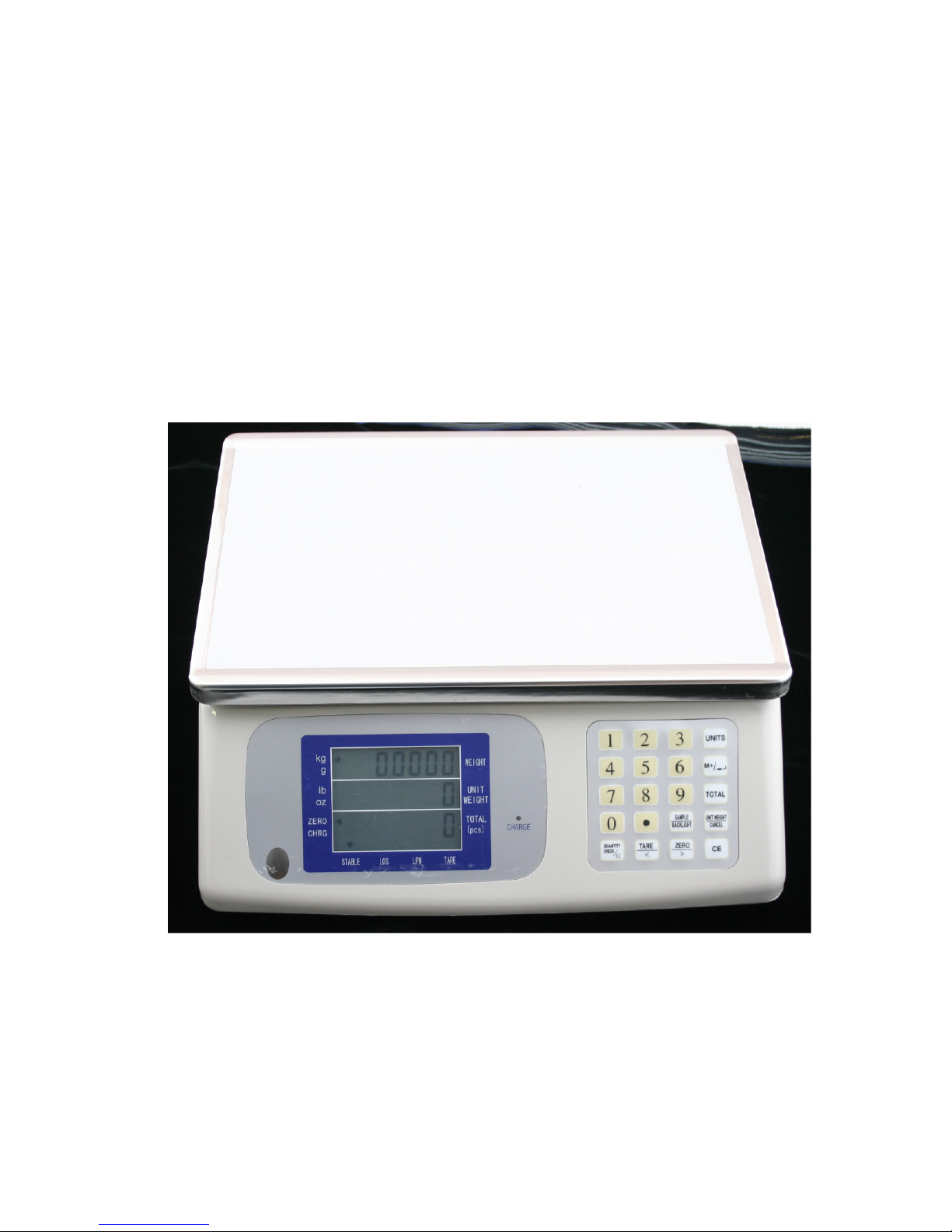

The ACS series of counting scales provides an accurate, fast and versatile

series of counting and check-weighing scales. The scales have selectable

units of kilograms, grams, pounds, and ounces. There are 5 models, with

capacities up to 60lb/30 kg. They all have stainless steel weighing platforms

on an ABS base assembly. All the keypads are sealed, membrane switches

and the displays are large easy to read liquid crystal type displays (LCD). The

LCD’s are supplied with a backlight.

Features include automatic zero tracking, audible alarm for pre-set weights,

automatic tare, pre-set tare and an accumulation facility that allows the count

to be stored and recalled as an accumulated total.

INTRODUCTION ............................................................................................ 3

SPECIFICATIONS.......................................................................................... 5

ACS SERIES.........................................................................................................5

Common Specifications.........................................................................................5

SETUP............................................................................................................ 6

GENERAL INSTALLATION...............................................................................6

INSTALLATION OF ACS A/C SERIES ..............................................................6

KEYBOARD FUNCTIONS.................................................................................7

1). DISPLAY PANEL .......................................................................................7

Figure 1.............................................................................................................7

2). KEYBOARD...............................................................................................8

Figure 2.............................................................................................................8

SCALE OPERATION...................................................................................... 9

Power on:..............................................................................................................9

Figure 3.............................................................................................................9

Figure 4.............................................................................................................9

ZEROING THE DISPLAY .................................................................................10

TARING .............................................................................................................10

NORMAL TARE: ...........................................................................................10

PRETARE:......................................................................................................11

PARTS COUNTING...................................................................................... 11

SETTING UNIT WEIGHT..................................................................................11

WEIGHING A SAMPLE TO DETERMINE THE UNIT WEIGHT ....................11

ENTERING A KNOWN UNIT WEIGHT...........................................................12

PRESET COUNTING ALARM..........................................................................12

ACCUMULATED TOTAL COUNT...................................................................13

BATTERY OPERATION ............................................................................... 13

OPTION SETTINGS..................................................................................... 14

SETUP TABLE 1............................................................................................14

SCALES USA Warranty Information............................................................ 16

SPECIFICATIONS

ACS SERIES

Model # ACS001AC ACS003AC ACS006AC ACS015AC ACS030AC

Maximum Capacity 1.5kg/3lb 3 kg /6 lb 6 kg /15 lb 15kg/30lb 30 kg /60lb

Readability 0.1g/

0.0002lb 0.2g/

0.0005lb 0.5g/

0.001lb 1.0g/

0.002lb 2.0g/

0.005lb

External Resolution 1:15,000 1:15,000 1:15,000 1:15,000 1:15,000

Internal Resolution 1:128,000 1:128,000 1:128,000 1:128,000 1:128,000

Tare Range KG Mode Full

Capacity Full

Capacity

Minimum Capacity .2g .4g 1g 2g 5g

Repeatability (Std Dev) 0.2g 0.4g 1g 2g 4g

Linearity ± 0.2 0.0008lb/

0.4g 1g 2 4g

Units of Measure kg/g/lb/oz kg/g/lb/oz kg/g/lb/oz kg/g/lb/oz kg/g/lb/oz

Recommended

Calibrationtion

Weight

1KG 2KG or

3KG 5KG 10KG 20KG

Common Specifications

Interface RS-232 Output NA

Stabilization Time 2 Seconds typical

Calibration Automatic External

Display 3 x 7 digits LCD digital display

Operating Temperature 0°C - 40°C 32°F - 104°F

Power supply 12Vdc, 500ma AC adapter, Internal

Rechargeable 6V Battery, 4 “D”Drycells

Balance Housing ABS Plastic, Stainless Steel platform

Pan Size 225 x 295mm 8.9 x 11.6”

Overall Dimensions (W x D x

H), 310 x 330 x 114mm (12.2”x 13”x 4.5”)

Gross Weight 4.1kg / 9.1lb

Applications General Purpose Parts Counting Scale

Functions Kilogram/g/lb/oz weighing - parts counting -

accumulating memory - preset count with

alarm

Internal Rechargeable

Battery 6V / 4Ah Sealed Lead Acid Battery

SETUP

GENERAL INSTALLATION

The scale should be sited in a location that will not degrade the

accuracy.

Avoid extremes of temperature. Do not place in direct sunlight or near

air conditioning vents.

Avoid unsuitable tables. The tables or floor must be rigid and not

vibrate. Do not place near vibrating machinery.

Avoid unstable power sources. Do not place near large users of

electricity such as welding equipment or large motors.

Avoid high humidity that might cause condensation. Avoid direct

contact with water. Do not spray or immerse the scale in water.

Avoid air movement such as from fans or opening doors. Do not place

near open windows.

Keep the scale clean.

Do not stack material on the scale when not in use.

INSTALLATION OF ACS A/C SERIES

Level the scale using adjustable feet. Center the bubble in the spirit

level located on the left of the scale control panel. If the scale rocks

readjust the levelers.

The ACS A/C Series comes with a stainless steel platform packed

separately. Place the platform in the locating holes on the top of the

scale. Do not press with excessive force as this could damage the load

cell inside. There is a protective peel-off plastic coating on the platform

and on the display that may be removed if desired.

For AC operation or charging of internal battery, set the power source

selection switch on the lower left side of the scale to the battery

position and attach the power supply cable to the connector on the

bottom of the scale. Be certain that it is firmly seated and that the

shoulder of the plug fits into the hole in the scale case. Plug in the

power supply module. The power switch is located on the bottom right

side of the scale. See Figure 2.

FOR Dry Cell operation, set the power source selection switch on the

lower left side of the scale to Dry Cell. Insert 4 “C SIZE”alkaline

batteries. Do not store the scale with batteries installed if it will not be

used for over 30 days to precent damage from battery corrosion.

The battery charge light will illuminate whenever the scale is attached

to power.

KEYBOARD FUNCTIONS

1). DISPLAY PANEL

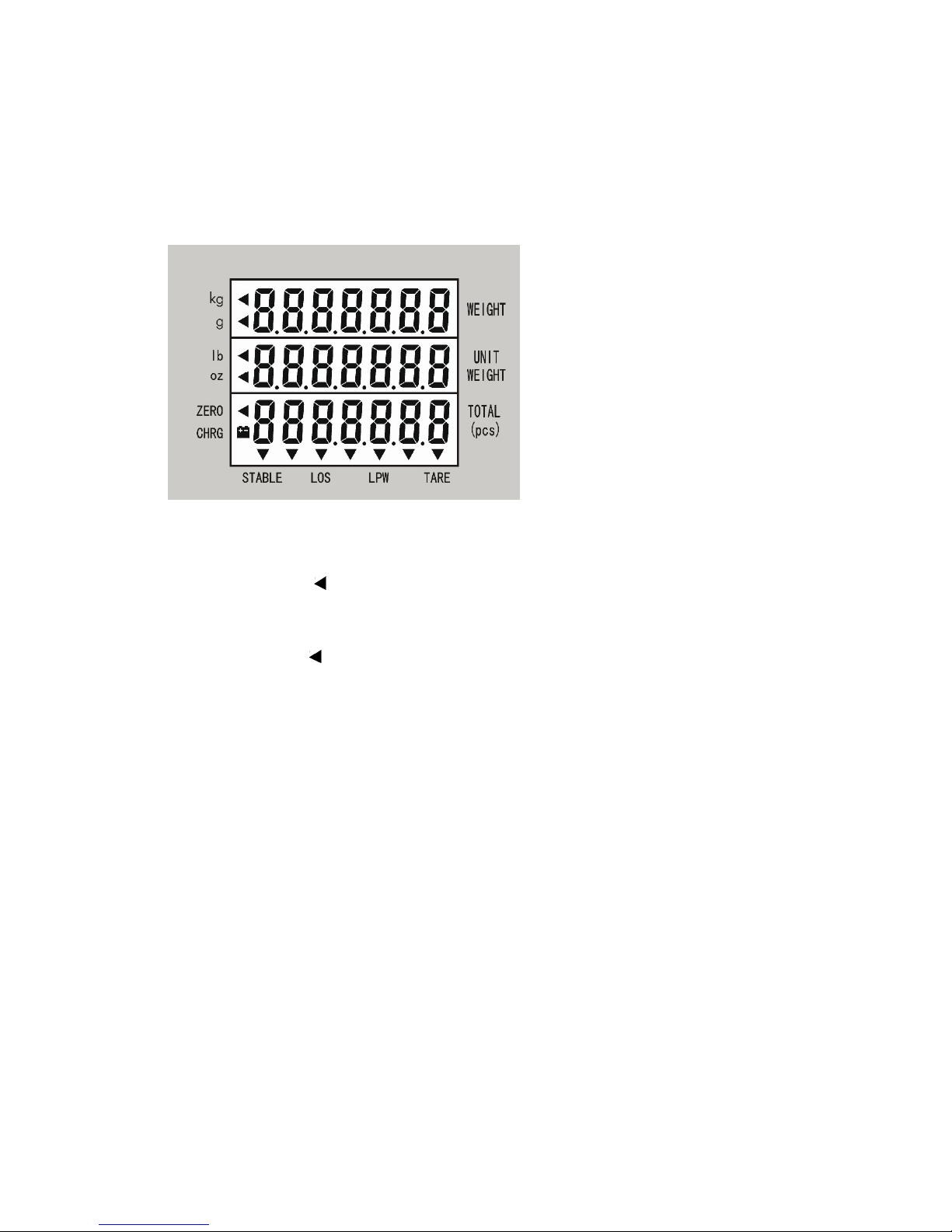

Figure 1

kg g lb oz: The “ ”symbol appears to indicate the weight unit currently

in use. There are are four units selectable. The default startup

unit may be selected in setup.

ZERO: The “ ”symbol appears when scale is displaying zero.

CHRG: Not Used. The charge light on the front panel changes to red when

battery is discharged to yellow while battery is charging, and Green

when battery is charged.

STABLE: The “▼”symbol appears when the reading is stable.

LOS: The Lack of Sample symbol “▼”appears when the sample number on

the platform is not enough for accurate counting operation.

LPW: The Lack of Piece Weight symbol “▼”appears when the sample unit

weight is not heavy enough for accurate counting operation.

TARE: The “▼”symbol appears when tare function is in effect.

WEIGHT: The top display line indicates the gross or net (with the tare function

activated) weight on the platform.

UNIT

WEIGHT: The center display line indicates the average or set unit piece weight.

TOTAL: The bottom display line indicates the accumulated total number of

pieces on the platform.

2). KEYBOARD

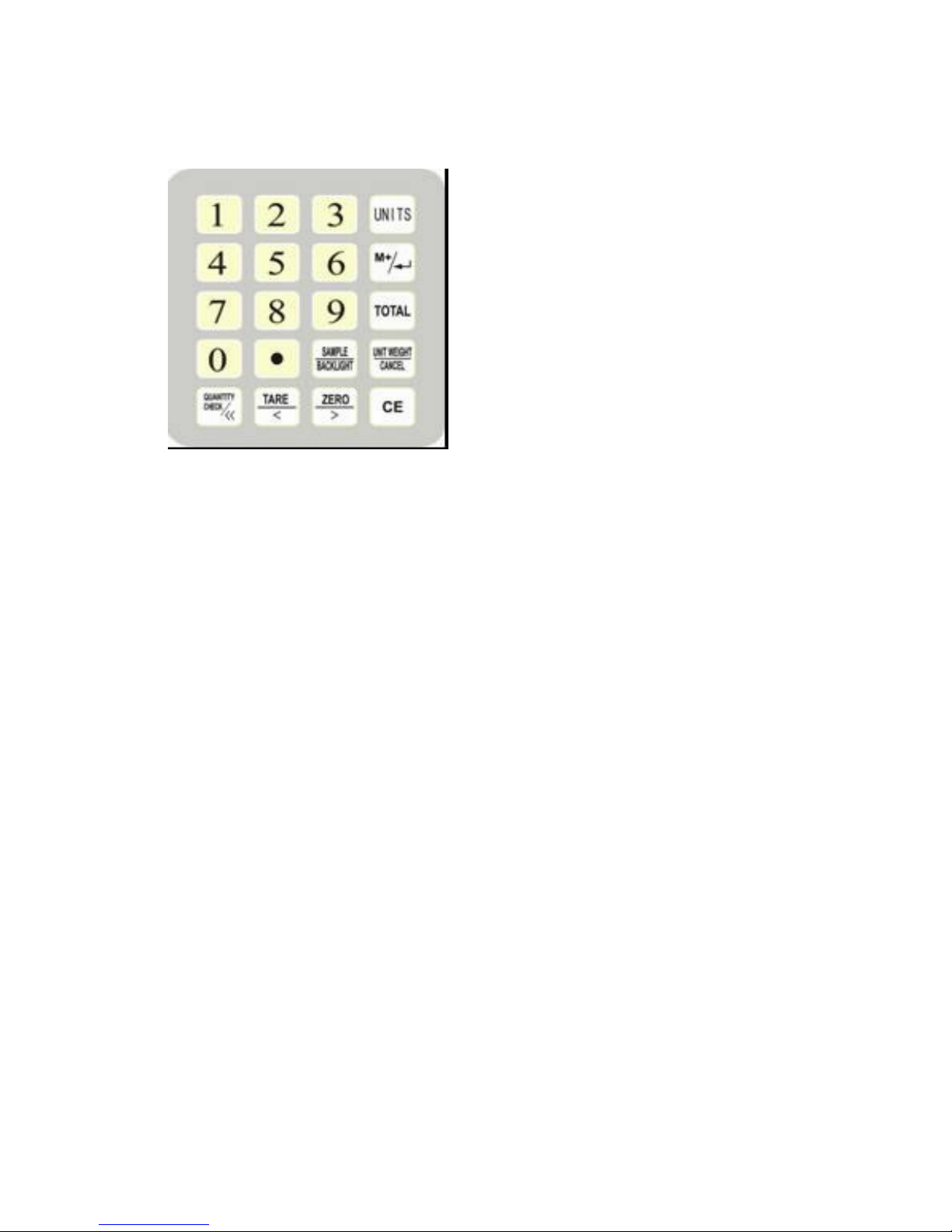

Figure 2

0-9 and .:Numeric and decimal keys.

UNITS: Used to toggle thru weight units. (Set default startup unit in

scale setup)

M+/:Add the current weight/count to the accumulator memory.

Up to 99 values or full capacity of the weight display can be

added. While in scale setup mode, this key can be used as

shift key.

TOTAL: Recalls the total accumulated weight and count from the

memory.

UNIT WEIGHT

/CANCEL: Used to enter the known unit weight. In the setup mode,

this key is used as a cancel and exit key.

SAMPLE /

BACK LIGHT: Used to input the sample size or weight. Turns backlight on

in the weighing mode. (Configure backlight behavior in

scale setup mode)

QUANTITY

CHECK/<<: Used to turn on the check weight mode and for setting

alarm quantity.

TARE/<: Used to subtract the weight of a container. Indicates that

the current reading is the net weight. In setup mode, this

key can be used as a shift key

ZERO/>: Set the weight display to “0”when a minor value is

displayed on the scale (ex. from drifting). In setup mode,

this key can be used as shift key.

CE: Used to clear the displayed numeric readings.

SCALE OPERATION

Power on:

Place the scale horizontally by adjust four leveling feet at the bottom of

the scale, to place the bubble at center of the level eye (Figure 3).

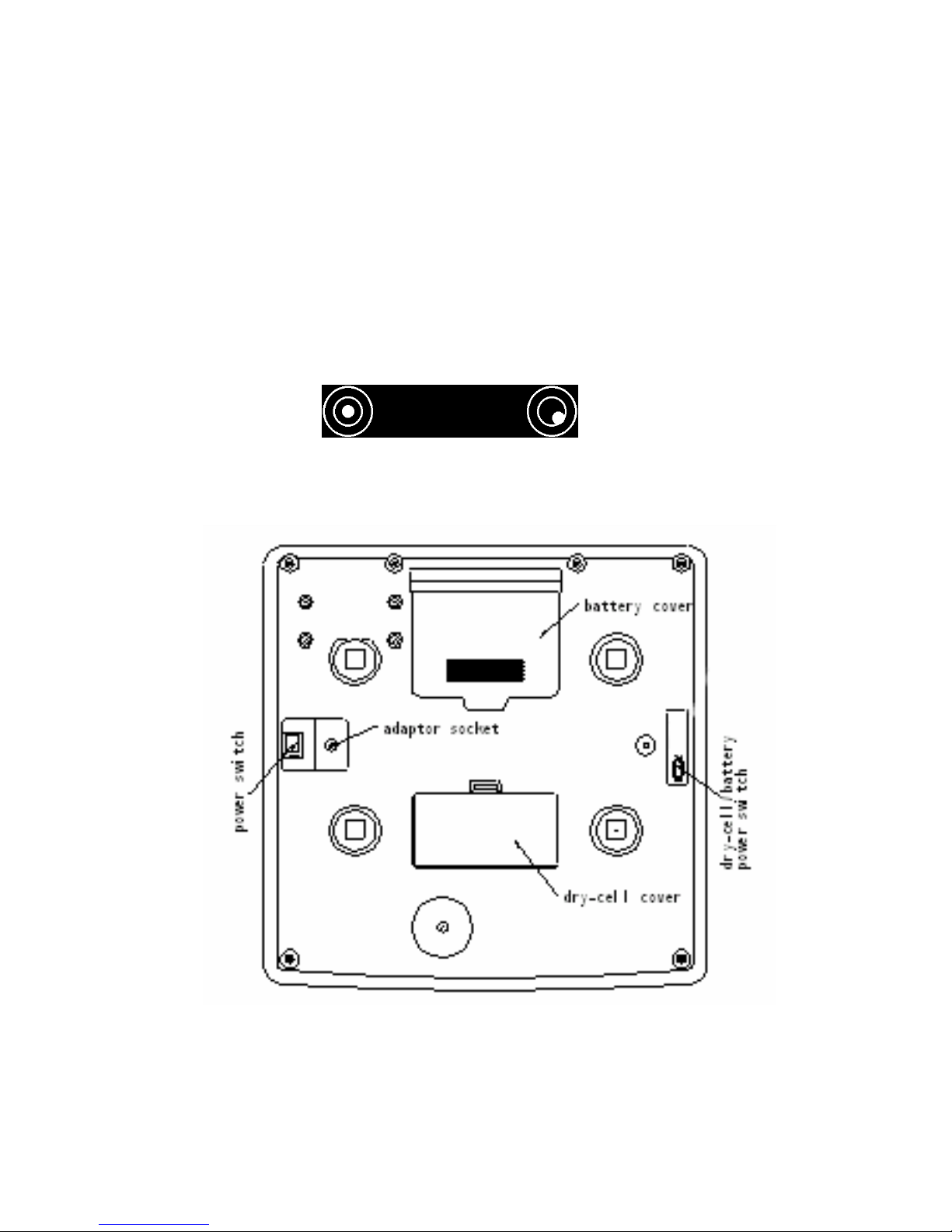

Figure 3

Figure 4

Select the desired position of the Battery Selection to Battery or Dry

Cell power as follows.

For AC operation or charging of internal battery, set the power source

selection switch on the lower left side of the scale to the battery

position and attach the power supply cable to the connector on the

bottom of the scale. Be certain that it is firmly seated and that the

shoulder of the plug fits into the hole in the scale case. Plug in the

power supply module. The power switch is located on the bottom right

side of the scale.

FOR Dry Cell operation, set the power source selection switch on the

lower left side of the scale to Dry Cell. Insert 4 “C SIZE”alkaline

batteries. Do not store the scale with batteries installed if it will not be

used for over 30 days to prevent damage from battery corrosion.

Turn on the power switch at the bottom of the scale (See Figure 4).

The display will show 0—9 sequentially and battery voltage value (over

5.5v) for several seconds. Then it will enter the weighing mode. The

weight will display zero and the zero sign“”appears.

ZEROING THE DISPLAY

You can press the ZERO key at any time to set the zero point from which all

other weighing and counting is measured, It is active within 4% of power up

zero. This will usually only be necessary when the platform is empty. When

the zero point is reached, the Weight display will show the indicator for zero.

The scale has an automatic re-zeroing function to account for minor drifting or

accumulation of material on the platform. However you may need to press

ZERO to re-zero the scale if small amounts of weight are shown when the

platform is empty.

TARING

The Tare function is used to remove the package weight, effectively setting

the weight display to zero. If the item tarred is removed, a negative weight is

displayed. This allows weighing or counting only the contents of the

container.

There are two methods to enter a tare value. Normal Tare uses the weight on

the platform and Pretare uses a value input by the user.

NORMAL TARE:

Zero the scale by pressing the ZERO key if necessary. The zero

indicator will be on.

Place a container on the platform, a value for its weight will be

displayed.

Press the TARE key to tare the scale. The weight that was displayed is

stored as the tare value and that value is subtracted from the display,

leaving zero on the display.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Scales USA Échelle

Scales USA

Scales USA PW500 Manuel utilisateur

Manuels Échelle populaires d'autres marques

AWS

AWS ZEO-50 Manuel utilisateur

Gima

Gima Glass Body Fat Analyzer Manuel de la liste des pièces

Seca

Seca 374 Manuel utilisateur

TEC

TEC TEC SL59 SERIES Manuel utilisateur

Axis

Axis B/E Series Manuel utilisateur

Alecto

Alecto ACW-40 Manuel utilisateur

Rice Lake

Rice Lake MSI-4260 IS Manuel utilisateur

IKA

IKA RCT basic safety control Manuel utilisateur

ADE

ADE M20011 Manuel utilisateur

Duronic

Duronic KS3000 Manuel utilisateur

Digi

Digi SM-720 Manuel utilisateur

Cardinal

Cardinal CS Series Manuel utilisateur

Korona

Korona Kastella Manuel utilisateur

A&D

A&D FC-50Ki Manuel utilisateur

BDA

BDA CAMARGUE Manuel utilisateur

Tanita

Tanita HD-357 Manuel utilisateur

Leifheit

Leifheit 03173 Manuel utilisateur

Lumme

Lumme LU-1340 Manuel utilisateur
