Satir HotFind-S Manuel d'instructions
1
Hotfind - S
User’s Manual
[QUICK USER GUIDE]
Trademark Acknowledgements
Other names and products not mentioned above may be registered
trademarks or trademarks of their respective companies
SATIR is trademark of SATIR Europe (Ireland) Ltd.
Advance Thermal Camera
2
Figure
Explanation
Front View
1
Laserpointer
2
VisualCamera
3
Illuminator
4
IRlens
5
Focusring
6
Definabletrigger
7
LCDDisplay
8
MicroUSB
9
TFCardSlot
10
Battery
3
ComponentGuide
Figure
Explanation
Back / Bottom View
1
PowerIndicator
2
Cancel
3
Autoadjust
4
Enter
5
Powerswitch
6
Freeze/Active
7
Omni selector
8
Videooutput
1
2
3
4
8
7
5
6
4
Turning the Power ON / OFF
1. Presstheholdbutton for3seconds. Powerindicatorlightwillshow
2. HoldthePowerButtonfor3secondswillalsoturnofftheunit
PowerButton
3. AfterawhiletheStart-Upimagewillappearonthescreen
4. Afterthebootuptouchthe SATIRIcontostarttheMainMenu
5
ANALYSIS SETTINGS
1. Touchthe(SettingIcon)inthemainmenutoenterintotheSettingsmenu
2.Choose(GlobalParam)intheSettingMenu
3. Choose “Left Arrow” to reduce the value and “right Arrow “ to increase
6
ADD SPOT ANALYSIS
1. After starting the main-menu touch the SPOT Icon
2. Drag the (Spot) to the desired position, if you want to delete spot
analysis drag the (Spot) to the Highlighted / Bin area
7

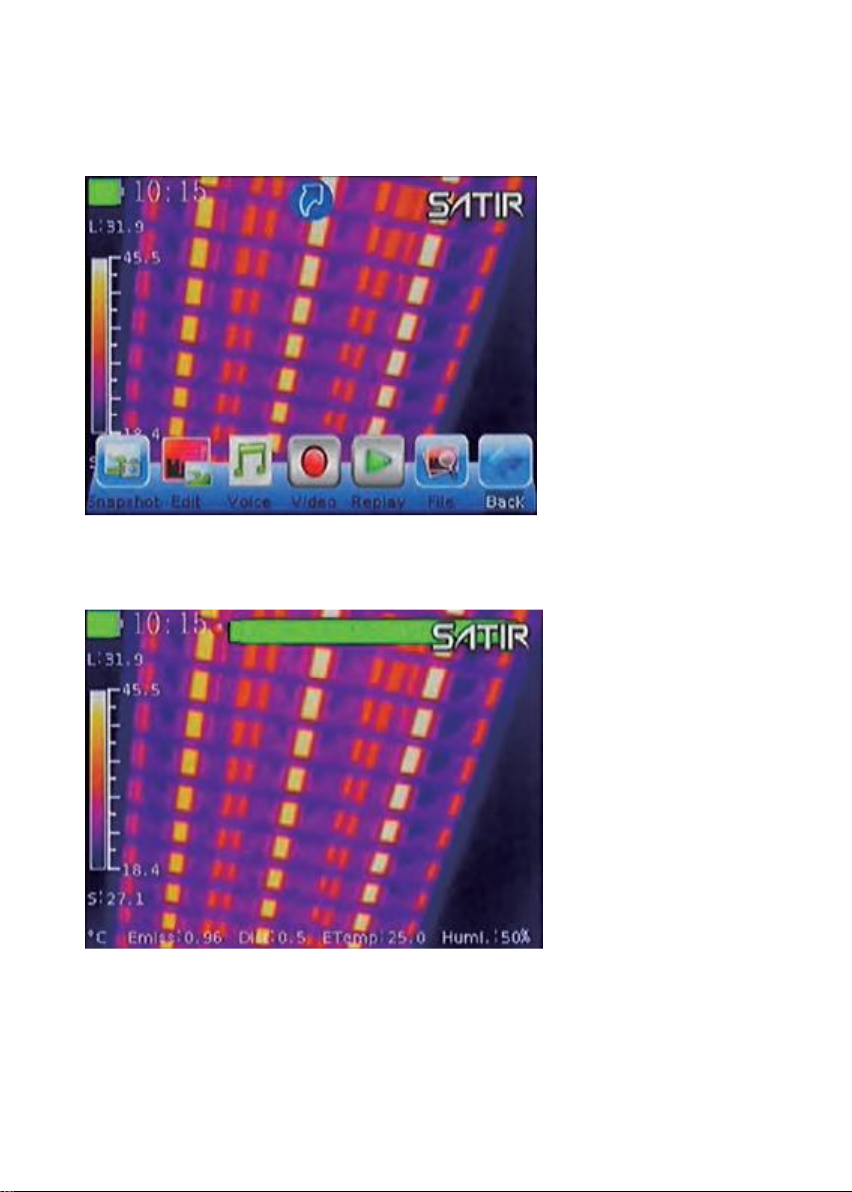

SAVE IMAGE
1. Rotating the focus ring until the camera focuses on the subject
then press (S) key on the key board to freeze the image
2.Once in the Media Mode .Touch “snapshot. Characters like “save
to xxx.jpg” will then show on the top of the screen”
8
Review Images
1. Touch (File) to enter the File mode
2. Select the file /image you want, then touch to open it.
9
Packing List
HotFind V/L / VR / LR /S Series
Description
Quantity
HotFind Thermal Camera
1
Hotfind V / L
Battery Charger
1
Power Cord
1
Battery
2
2Gb MiniSD Card
1
USB Card Reader
1
Card Adapter
1
USB Cable (VG & LG only)
1
Bluetooth Headset (VG & LG only)
1
Hotfind VR / LR / S
Sunshield
1
Video Cable with BNC
1
ReportIR Std Software CD-ROM
1
Calibration Certificate
1
Electronic Manual
1
Camera Hard Carry Case
1
Desiccant
1
Packing List
1
10
For After-Sales Support
