Sanyo SC-270 Manuel utilisateur
-
1
-
FILE No.
PARTS LIST
Specifications
Wiring Diagram
Vacuum Cleaner SC-270
(U.S.A.)
PRODUCT CODE NO.
1 - 326 730 02 ( Y )
REFERENCE NO. PL6510290-00
Power source : AC 120 V 60 Hz
Power consumption
: 7.0 A
Motor revolution : 31,200 r.p.m.
Vacuum : 17,500 Pa
Dimensions : 14 - 27/32” x 9 - 7/16” x 10 - 1/4”
L X W X H (377 x 240 x 260 mm)
Net weight : 6 lbs. 6 ozs. ( 2.9 Kg )
Attachment : Suction hose, Floor tool,
Rotary bend, Connection pipe,
Crevice tool, Upholstery brush,
Toll storage
Carbon brush
BlackBlack
Switch Cord reel
Yellow
A C
Stator
Stator
Rotor
-
2
-

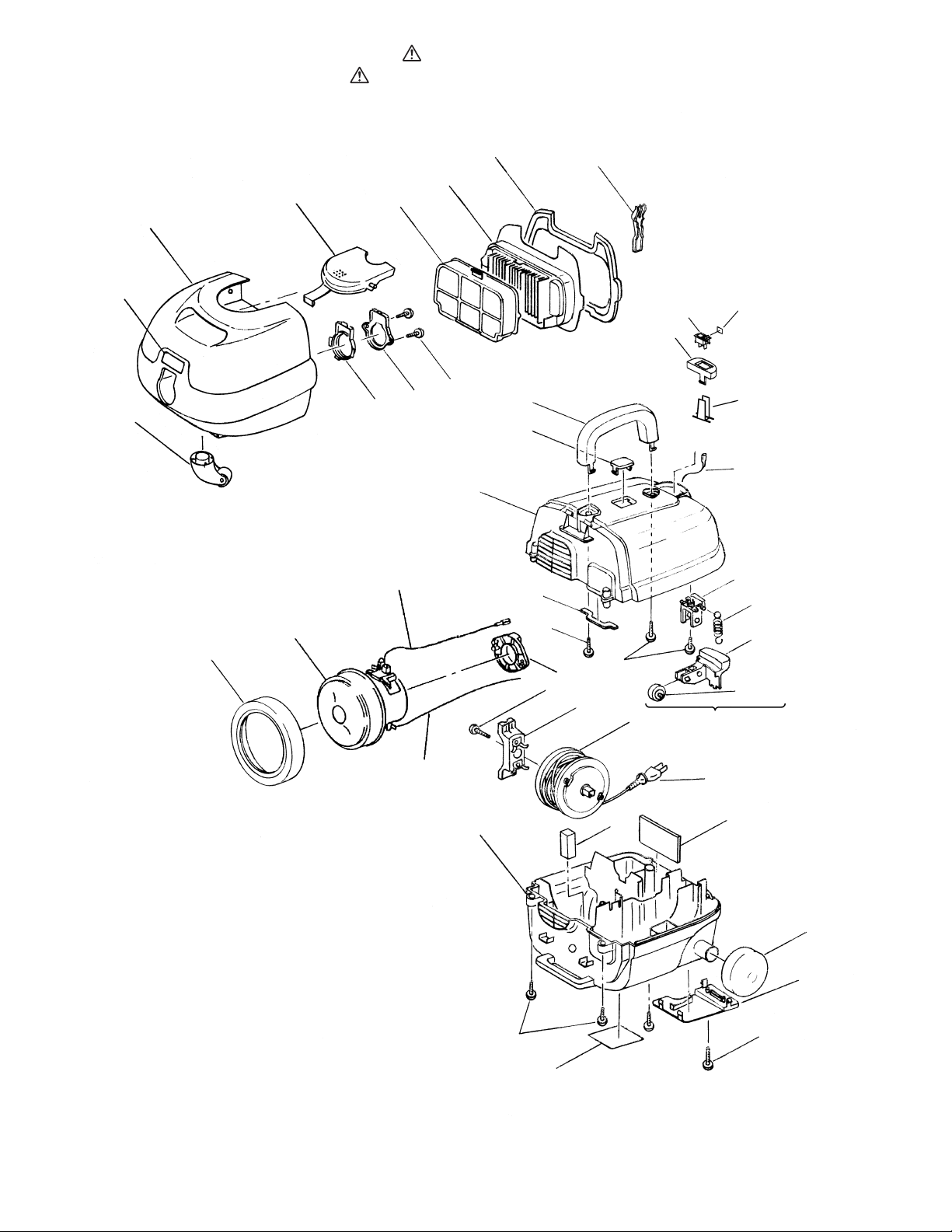

Exploded View
(Main unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-270 (U.S.A.)
A28
5
9
6
4
38
3
16
2
14 17
15
26
8
13
A18
10
A30
1
11
A12
A33
A29
25
7
32
A35
24
36
27
23
37
39
24
42
40
41
A34
22
24
20
21
19(20 - 23)
31
-
3
-
Parts List
(Main unit)
NOTE
:
The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
SC-270(U.S.A.)
Key
No.
Key
No.
Parts No. Description Q'ty Parts No. Description Q'ty
COLOR CODE:Y-101/Y104(YELLOW),NN-B(BLACK)
1 663 000 0014 DUST BOX (Y-108) 1
2 663 000 0021 DUST BOX INSCLIPTION 1
3 663 000 0038 CASTER 1
4 663 000 0045 CRAMP HOOK (Y-101) 1
5 663 000 0052 AIR INLET PACKING (NN-B) 1
6 663 000 0069 AIR INLET FITTING 1
7 663 000 0076 SCREW (4X16) 2
8 663 000 0083 PRE FILTER (NATURAL) 1
9 663 000 0090 DUST FILTER ASSEMBLY 1
10 663 000 0106 DUST FILTER PACKING (NN-B) 1
11 663 000 0113 DUSTER ARM (NN-B) 1
A12 663 000 0120 SWITCH 1
13 663 000 0137 SWITCH ORNAMENT (Y-101) 1
14 663 000 0144 HANDLE (NN-B) 1
15 663 000 0151 CASE ORNAMENT (Y-101) 1
16 663 000 0656 CAUTION LABEL 1
17 663 000 0175 SWITCH HOLDER 1
A18 663 000 0182 CORD ASSEMBLY (BLACK) L=280 1
19 663 000 0199
BRAKE ROLLER ASSEMBLY A KEYNO.20-23
1
20 663 000 0205 BRAKE ARM BRACKET 1
21 663 000 0212 BRAKE SPRING 1
22 663 000 0229 BRAKE ARM (Y-101) 1
23 663 000 0236 BRAKE ROLLER ASSEMBLY B 1
24 663 000 0243 SCREW (4X20) 6
25 663 000 0250 CASE UPPER (Y-101) 1
26 663 000 0267 POLYURETHANE FOAM A 1
27 663 000 0274 MOTOR CUSHION FRONT 1
A28 663 000 0281 MOTOR COMP. (AC 120 V) 1
A663 000 0298 CARBON BRUSH ASSEMBLY 2
A29 663 000 0304 CORD ASSEMBLY (BLACK) L=350 1
A30 663 000 0311 CORD ASSEMBLY (YELLOW) L=300 1
31 663 000 0328 MOTOR CUSHION REAR 1
32 663 000 0335 SCREW (4X16) 1
A33 663 000 0342 REEL SUPPORTER ASSEMBLY 1
A34 663 000 0359 CORD REEL COMP. INCL/P.CO 1
A35 663 000 0366 POWER CORD (U2) 1
36 663 000 0373 CASE LOWER (Y-101) 1
37 663 000 0380 INDICATOR FILTER 1
38 663 000 0397 OUTLET FILTER 1
39 663 000 0403 WHEEL REAR (NN-B) 2
40 663 000 0410 CORD INLET COVER (Y-101) 1
41 663 000 0427 SCREW (3X20) 1
42 663 000 0779 NAME PLATE 1
-
4
-
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311

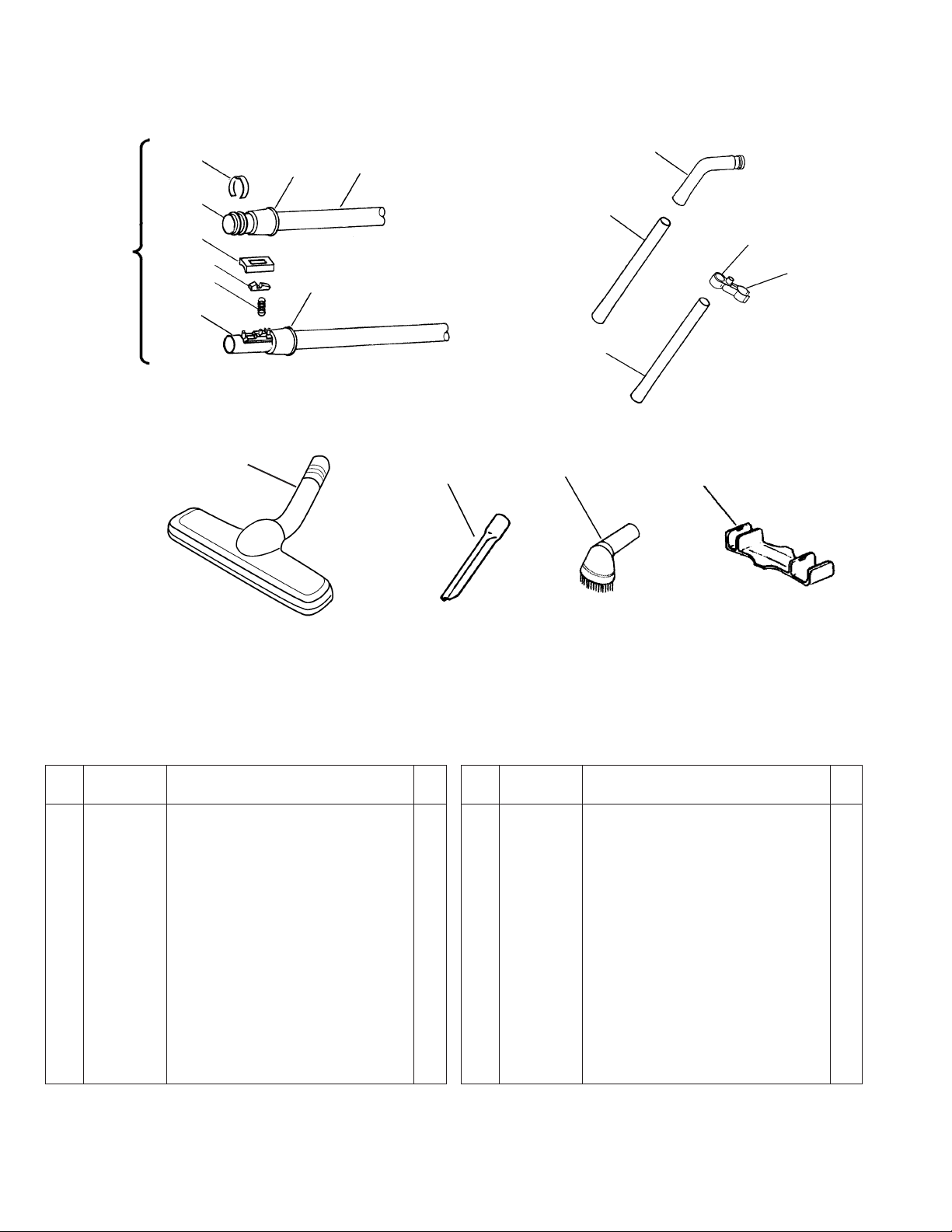

Exploded View
(Attachment)
Parts List
Jun./2001/60 Printed in Japan
SC-270 (U.S.A.)
Key
No.
Key
No.
Parts No. Description Q'ty Parts No. Description Q'ty
COLOR CODE:Y-101(YELLOW),NN-B(BLACK)
1 663 000 0441 SUCTION HOSE COMP. KEYNO.2-9 1 16 663 000 0595 UPHOLSTERY BRUSH ASSEMBLY 1
2 663 000 0458 ROTARY BEND SET RING (NN-B) 1 17 663 000 0601 TOOL STORAGE (Y-101) 1
3 663 000 0465 SUCTION HOSE COVER (NN-B) 2 663 000 0762 INSTRUCTION MANUAL 1
4 663 000 0472 SUCTION HOSE (NN-B) 1
5 663 000 0489 HOSE GRIP PIPE (NN-B) 1
6 663 000 0496 HOSE HOOK COVER 1
7 663 000 0502 HOSE HOOK 1
8 663 000 0519 HOSE HOOK SPRING 1
9 663 000 0526 HOSE JOINT PIPE A (NN-B) 1
10 663 000 0533 ROTARY BEND (NN-B) 1
11 663 000 0540 CONNECTION PIPE (NN-B) 2
12 663 000 0557 PIPE RETAINER A (NN-B) 1
13 663 000 0564 PIPE RETAINER B (NN-B) 1
14 663 000 0571 FLOOR TOOL COMP. 1
15 663 000 0588 CREVICE TOOL 1
12
1(2 - 9) 13
3
5
24
9
8
6
10
7
11
16 1715
14
3
11
