INSTRUCTION MANUAL

Colour Television

CP14G1

CP21G1

CP14SA1G

CP21SA1G

CP14SR1G

CP20SR1G

CATV Hyper

Video Status

Plug & Play

100 Programmes with Automatic Tuning

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 1

Plug & Play . . . . . . . . . . . . . . . . . . . . 3

Aerial Connection . . . . . . . . . . . . . . 3

Front Controls . . . . . . . . . . . . . . . . . 4-5

Remote Control Transmitter . . . . . . . 6

Battery Installation of

the Remote Control Transmitter . . . 6

Warnings and Cautions . . . . . . . . . . 7

General Operation

Power ON/OFF . . . . . . . . . . . . . . 8

Auto Shut Off Function . . . . . . . . 8

Direct Programme Selection . . . . 8

Programme UP and Down . . . . . 8

Channel Scanning . . . . . . . . . . . 8

Volume Control . . . . . . . . . . . . . . 9

Recall . . . . . . . . . . . . . . . . . . . . . 9

Sound Mute . . . . . . . . . . . . . . . . 9

Alternate . . . . . . . . . . . . . . . . . . . 9

Quick Picture Controls . . . . . . . . 9

Off Timer . . . . . . . . . . . . . . . . . . 10

On Timer . . . . . . . . . . . . . . . . . . 10

Picture Adjustment . . . . . . . . . . . . . 11

Tuning of the Channels

Automatic Tuning . . . . . . . . . . . . 12

Semi-auto Tuning and Manual Tuning .

.13

Channel Copy . . . . . . . . . . . . . . . 14

Channel Swapping . . . . . . . . . . . 14

Skip Channel Set and Cancel . . . 15

Setting of the Private Position . . . . . 16

Connecting other Equipment

Connecting to the AV Input Jacks

. . . . . 17

Selecting the Colour System in AV mode

.18

Connecting to the Monitor Output Jacks

.18

AV Connection to the Aerial Socket

. . . . 18

Helpful Hints-Problems/Solutions . . 19

Specifications . . . . . . . . . . . . Last Page

Contents

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 2

ANT. 75Ω

Note:

Telescopic Aerial and Matching Box of the

model CP21G1 and CP21SA1G are not

supplied with the TV set.

INPUT

OUTPUT

ANT. 75Ω

Telescopic

Aerial Telescopic

Aerial Feeder

Matching

Box

Aerial Socket

Cabinet Back

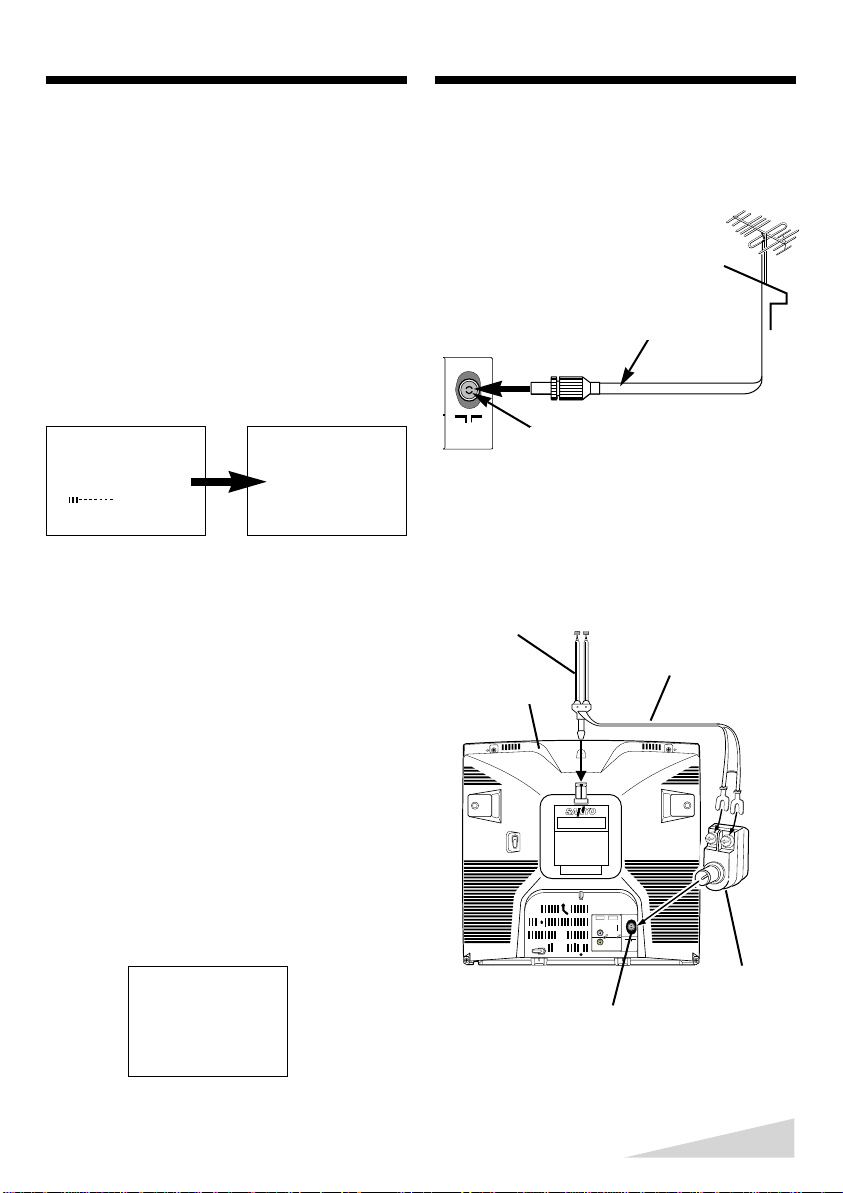

Plug & Play

B/G

I AM SEARCHING

ALL PROGRAMMES.

PLEASE WAIT. AUTO SET-UP

COMPLETED.

HAPPY VIEWING !



AUTO

This TV set provides a self-automatic tuning

and sorting system function called “Plug &

Play”. It automatically begins searching and

storing of all available channels when switch-

ing-on the TV set for the first time.

2Press any of the control buttons to

make the ending message disappear.

(Or will automatically return to normal

TV display after 10 seconds.)

After completing this procedure, the

programme position 1 is selected and the

ending messages on the screen.

Note: The Plug & Play can be cancelled at

any time by pressing the MENU button.

✐ This procedure only appears at the first

switch-on time.

1Connect power cord of the TV set to a

wall outlet, and turn on the TV set by

pressing the Mains ON/OFF button.

Self-automatic tuning system will be

started as follows;

Let’s start !

NO STATION.

PLEASE CONNECT

ANTENNA PLUG.

■ If no TV stations are found, the display

shown below will appear. Please check if

the antenna is connected properly.

If it isn’t connected properly, connect anten-

na and Automatic Tuning will be reset.

Aerial Cable

Connect the cable with a plug from a UHF

(or VHF) aerial to the aerial socket on the

cabinet back.

Aerial Socket

For all aerial circuit problems please

consult your local dealer.

Outdoor Aerial

Connecting Outdoor Aerial

Automatic setting up channels

Aerial Connection

Mounting Telescopic Aerial

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 3

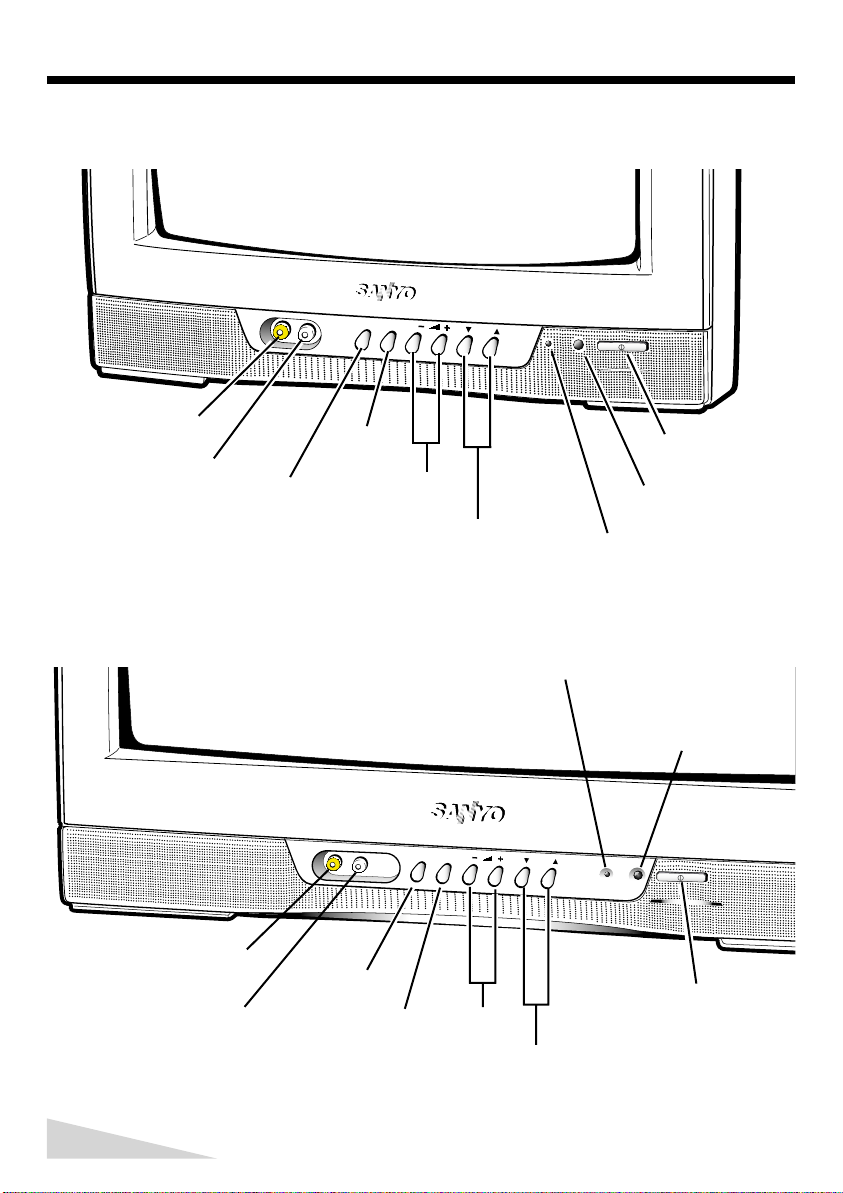

Front Controls Each button listed in this section has the same function as it’s

corresponding button on the remote control.

VIDEO

AUDIO

TV/AVMENU

VIDEO

AUDIO

TV/AVMENU

Model CP14G1

Mains ON/OFF

button

CHANNEL

UP/DOWN

VOLUME

TV/AV

Selector

Audio Input Jack

Video Input Jack

Remote Control

Detector

Stand-by and Power

Indicator

Model CP21G1

Mains ON/OFF

button

CHANNEL UP/DOWN

VOLUME

Audio Input Jack

Video Input Jack

Remote Control

Detector

Stand-by and Power Indicator

TV/AV

Selector

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 4

VIDEO AUDIO

GAME

CHANNEL

UP/DOWN

VOLUME

GAME

(TV/AV

Selector)

Audio Input Jack

Video Input Jack

Remote Control Detector

Stand-by and Power Indicator

Mains ON/OFF

button

Model CP20SR1G

GAME

VIDEO AUDIO

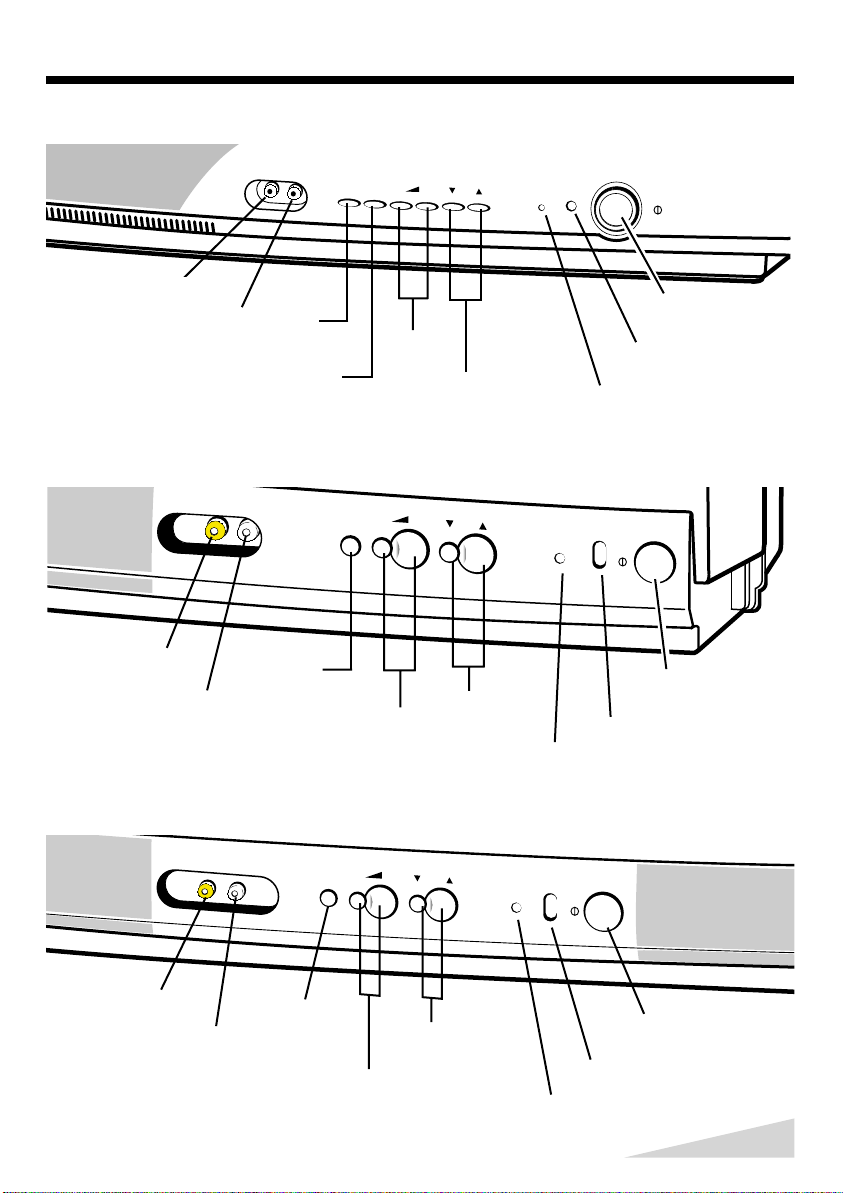

Front Controls

TV/AV

VIDEOAUDIO

Model CP14SA1G / CP21SA1G

Mains ON/OFF

button

CHANNEL

UP/DOWN

VOLUME

TV/AV

Selector

Audio Input Jack

Video Input Jack

Remote Control

Detector

Stand-by and Power

Indicator

Model CP14SR1G

Mains ON/OFF

button

CHANNEL

UP/DOWN

VOLUME

GAME

(TV/AV

Selector)

Audio Input Jack

Video Input Jack

Remote Control Detector

Stand-by and Power Indicator

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 5

1. Open the battery cover.

2. Install two “AA”1.5 volt batteries so that the “+” and “-”

marks on the batteries match the “+” and “ - ” marks

inside the unit.

3. Close the battery cover.

Note: Replace the batteries when the TV set is showing

the following symptoms:

Operation is unsteady or erratic, sometimes the TV set

does not work with transmitter.

Discharged batteries may leak and damage the unit.The

normal life of batteries should be from nine to ten months.

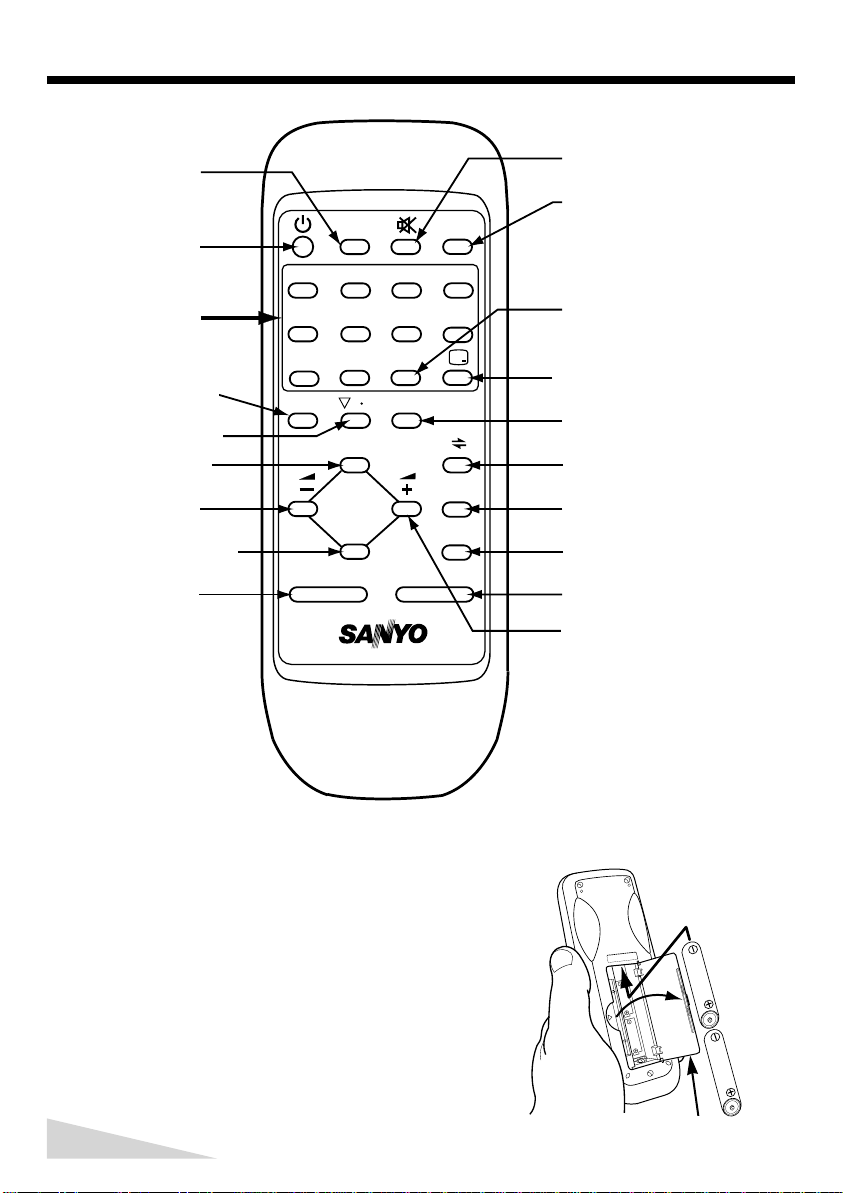

Remote Control Transmitter

6Battery Cover

Battery installation of the Remote ControlTransmitter

P▲

P▼

JXMYA

-/--

TV/AV

A B

CH SCAN

TIMER

MENU PIC MODE

SWAP

BASS

SURROUND

SOUND MUTE

TV/AV Selector

Digit

RECALL /

COLOUR SYSTEM

VOLUME +

PROGRAMME DOWN

ALTERNATE

CHANNEL SCAN

TIMER

POWER ON/OFF

Programme

Selector

PROGRAMME UP

VOLUME

MENU PICTURE MODE

SWAP

BASS

STEREO/MONO SURROUND

The selected mode will switch

alternately between TV mode

and AV mode each time the

TV/AV Selector is pressed.

This button is not used.

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 6

If the television is to be built into a compart-

ment or similarly enclosed, the minimum

distances must be maintained. Heat build-

up can reduce the service life of your televi-

sion, and can also be dangerous.

Never stand on, lean on or push suddenly

the television or its stand.

You should pay special attention to children.

Serious injury may result if it should fall.

Do not place your television on an unstable

cart, stand, shelf or table. Serious injury to

an individual, and damage to the television,

may result if it should fall.

When the television receiver is not used for

an extended period of time, it is advisable to

disconnect the AC power cord from the AC

outlet.

Avoid exposing the television receiver to

direct sunlight and other source of the heat.

Do not stand the television receiver directly

on other products which give off heat. E.g.

video cassette players, audio amplifiers.

Do not block the ventilation holes in the

back cover.

Adequate ventilation is essential to prevent

failure of electrical components.

Do not squash power supply cord under the

television receiver.

Warning

High voltages are used in the operation

of this television receiver. Do not remove

the cabinet back from your set. Refer

servicing to qualified service personnel.

To prevent fire or electrical shock hazard,

do not expose the television receiver to

rain or moisture.

Do not drop or push objects into the

television cabinet slots or openings.

Never spill any kind of liquid on the

television receiver.

Caution

Warning

Caution

5cm

10cm

20cm

Minimum distances

Caution

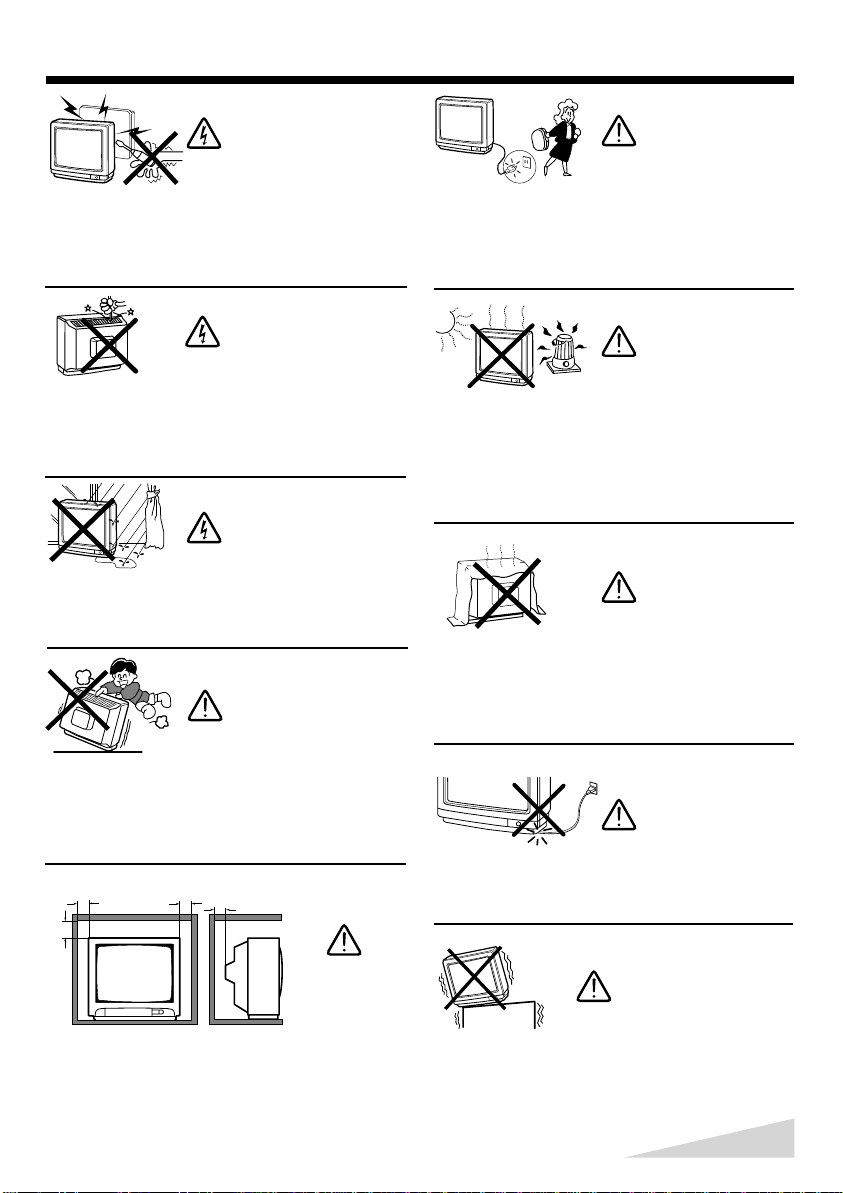

Warnings and Cautions

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 7

OFF 0:10

1423

TV/AV

TIMER

-/--

1 0

-/--

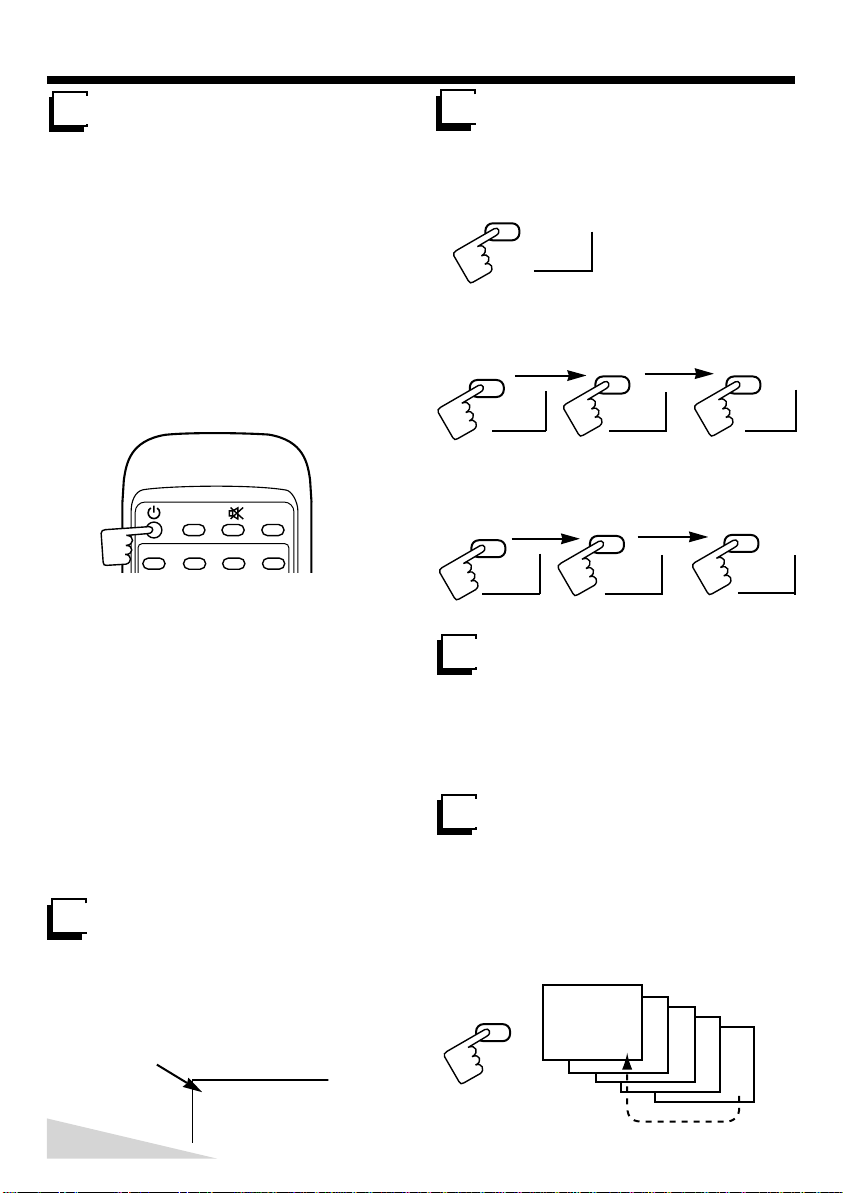

General Operation

To switch on or off theTV ;

Press the Mains ON/OFF button.

The power of the TV is turned on or off com-

pletely. If no picture appears but the Standby

and Power indicator illuminates, press the

Power ON/OFF button of the remote control

transmitter as the TV set is in standby

mode.

To set theTV to standby mode;

Press the Power ON/OFF button.

During Standby mode the Standby and

Power indicator illuminates more brightly.

To turn on the TV from the standby

mode, press any of the following button.

● Power ON/OFF button of the remote

control transmitter.

● Programme UP/DOWN of the remote

control transmitter or the TV set.

● 1to 9,0 button on the remote control

transmitter.

Important !

Be sure to set the Mains ON/OFF switch to

the off position, if the power failure occurs

while viewing.

This TV set incorporates the AUTO SHUT

OFF function. Even if the TV is left on after

you have gone to sleep, the TV set changes

to the standby mode within 10 minutes after

all broadcasts have ended.

Press the Programme UP (P▲ ) button to

select the next programme position.

Press the Programme DOWN (P▼ ) button

to select the previous programme position.

Channel Scanning

Press the CHANNEL SCAN button to

search for a programme.The channel posi-

tions are automatically scanned, and the

channel scanning will stop at the position

where it began.To stop at the position you

want, press this button again.

To select programme position 8;

Press the Digit button. Press “2”button. Press “7”button.

To select programme position 10;

- - 10

Press the Digit button. Press “1”button. Press “0”button.

To select programme position 27;

2 -

1 -

Press “8”button.

- -

Power ON/OFF

Auto Shut Off Function

Direct Programme Selection

Example

Programme Up and Down

CH SCAN

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 8

Should you wish to mute the sound (e.g.

While talking on the telephone), press the

SOUND MUTE button.

To switch the sound back on, press the

SOUND MUTE button again. Picture mode that is

gentle on the eyes.

Perfect for TV game due

to subdued colour and

soft contrast.

To display the on screen indications, press

the RECALL/COLOUR SYSTEM button.

Press the ALTERNATE button, and the

programme position will alternately select

the previous position and the present

position.

Screen display disappears after about 5 seconds.

Quick Picture Controls

Picture Settings are set

to your preference.

(Refer to page 11 .)

Press the PICTURE MODE button to select

the following picture modes; “PERSONAL”,

”DYNAMIC”, ”NATURAL”, “ECO” and

“GAME”. Select picture modes to suit pic-

ture type you are watching.

Each time the PICTURE MODE button is

pressed, picture settings changes as follows;

Emphasize very vibrant

colours.(Suitable for AV

mode in brightly-lit room

condition)

Emphasize original

colours.

PERSONAL

GAME

ECO

DYNAMIC

NATURAL

Low power mode.

OFF 0:30

ON 3:30 6

Off Timer

General Operation

On Timer

Programme

Position

Volume Control

RECALL

Sound Mute

ALTERNATE

Increase or decrease the sound volume

level by

pressing the VOLUME (+ or -) buttons.

SOUND 21

SOUND MUTE 00

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 9

Programme position for when TV

is switched on by ON TIMER.

■If no operation is performed after the TV has

been switched on by the ON TIMER, such as if

you are not at home, the TV will be automati-

cally switched off after approximately 2 hours.

■If the TV is already switched on when the time

set for the ON TIMER has been reached, only

the programme position will be changed to the

set programme position.

■Cancelling ON TIMER

To cancel the ON TIMER, press the VOLUME

(+or

) button to set it to “ON 0:00” while the

ON TIMER screen is shown. Switching off the

TV by pressing the Mains ON/OFF button will

also cancel the ON TIMER settings.

■The OFF TIMER cancels when the TV set is

turned off or if a power failure occurs.

OFF TIMER

The OFF TIMER will switch off the TV auto-

matically after 30 minutes, 1 hour, 1 hour

and 30minutes, or 2 hours.

1Press the TIMER button.

2Press the VOLUME ( + or -) button to

select the time period.

OFF 0:00 (OFF TIMER setting mode)

Each time the TIMER button is pressed,

timer function is changed as follows;

OFF 0:00 ON 0:00 2

(Off Timer)

(Display Off)

(On Timer)

■ Just one minute before switching off the TV,

“OFF 0:01” will be display on the screen.

■To cancel the OFF TIMER, select “OFF 0:00”

by pressing the VOLUME (+ or - ) button.

When the ON TIMER is set.TV will auto-

matically be switched on to the selected

programme position when the specified time

has elapsed.

Setting programme position for when

TV is switched on by ONTIMER

1Press the TIMER button twice.

(ON TIMER setting

mode)

ON 0:00 2

2Press the VOLUME ( + or -) button.

The set time will be increased or

decreased by 10 minutes each time

the button is pressed ; the maximum

time which can be set is 24 hours.

When the ON-TIMER has been set,

the colour of Standby and Power

Indicator changes to yellow.

To set programme position to between 0

and 9, press the desired number button “0” -

“9” while the ON TIMER screen is shown.

For example, to set programme position 26,

press the Digit button, “2” button then “6”

button while the ON TIMER screen is shown.

ON 3:30 9

ON 3:30 26

General Operation

It is also possible to set the programme

position by pressing the PROGRAMME UP

or DOWN button.

To set an AV position for when the TV is

switched on by the ON TIMER, press the

TV/AV Selector while the ON TIMER

screen is shown to select position AV.

ON 3:30 2 ON 3:30 AV

ON TIMER

INST. MANUAL-C4EY(Aus/NZ) 03.1.14 14:02 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo TV

Sanyo

Sanyo 14MT1 Manuel utilisateur

Sanyo

Sanyo DS13330, DS19330, DS25320 Manuel utilisateur

Sanyo

Sanyo CE21DN3-C Manuel utilisateur

Sanyo

Sanyo CTP8680 Manuel utilisateur

Sanyo

Sanyo DS32224 Manuel d'exploitation et d'entretien

Sanyo

Sanyo CP21G1(C) Manuel utilisateur

Sanyo

Sanyo CE25B5-C Manuel utilisateur

Sanyo

Sanyo PDP-42XR8DA Manuel utilisateur

Sanyo

Sanyo DP50741 Manuel utilisateur

Sanyo

Sanyo CP28WF1 Manuel utilisateur

Sanyo

Sanyo DS31520 Manuel utilisateur

Sanyo

Sanyo LCD-24XR12F Manuel utilisateur

Sanyo

Sanyo CE21P1-C Manuel utilisateur

Sanyo

Sanyo DP37647 - 37" Vizzon LCD TV Manuel utilisateur

Sanyo

Sanyo DP32640 - 31.5" Diagonal LCD HDTV 720p Manuel utilisateur

Sanyo

Sanyo LCD-37XR9SDA Manuel utilisateur

Sanyo

Sanyo DS27930, DS32424 Manuel utilisateur

Sanyo

Sanyo CPP2530 Manuel utilisateur

Sanyo

Sanyo CP25SE1 Manuel utilisateur

Sanyo

Sanyo CZP3011V Manuel utilisateur

Sanyo

Sanyo DS20930 Manuel utilisateur

Sanyo

Sanyo C21TF26S Manuel utilisateur

Sanyo

Sanyo CZP2515V Manuel utilisateur

Sanyo

Sanyo CEM3022SU Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
