Sanyo MAR-B3089 Manuel utilisateur

OPERATING

INSTRUCTIONS

MAR-B3089

AM/FM Stereo Radio with

Full Detachable Panel and

Auto-Reverse Cassette Player

ISO Mounting with

Removable Trim Ring

CONTENTS

Accessories ....................................................................................................1

DIN Front-Mount (Method A) ..........................................................................2

Installation.......................................................................................................3

Electrical Connections...............................................................................4 - 5

Using the Detachable Front Panel.............................................................6 - 7

Operation.................................................................................................8 - 11

Specifications ...............................................................................................12

Warranty........................................................................................................13

ACCESSORIES

Please retain the carton and packing materials, as this is the best protection for the

unit should it be necessary to return it for servicing.

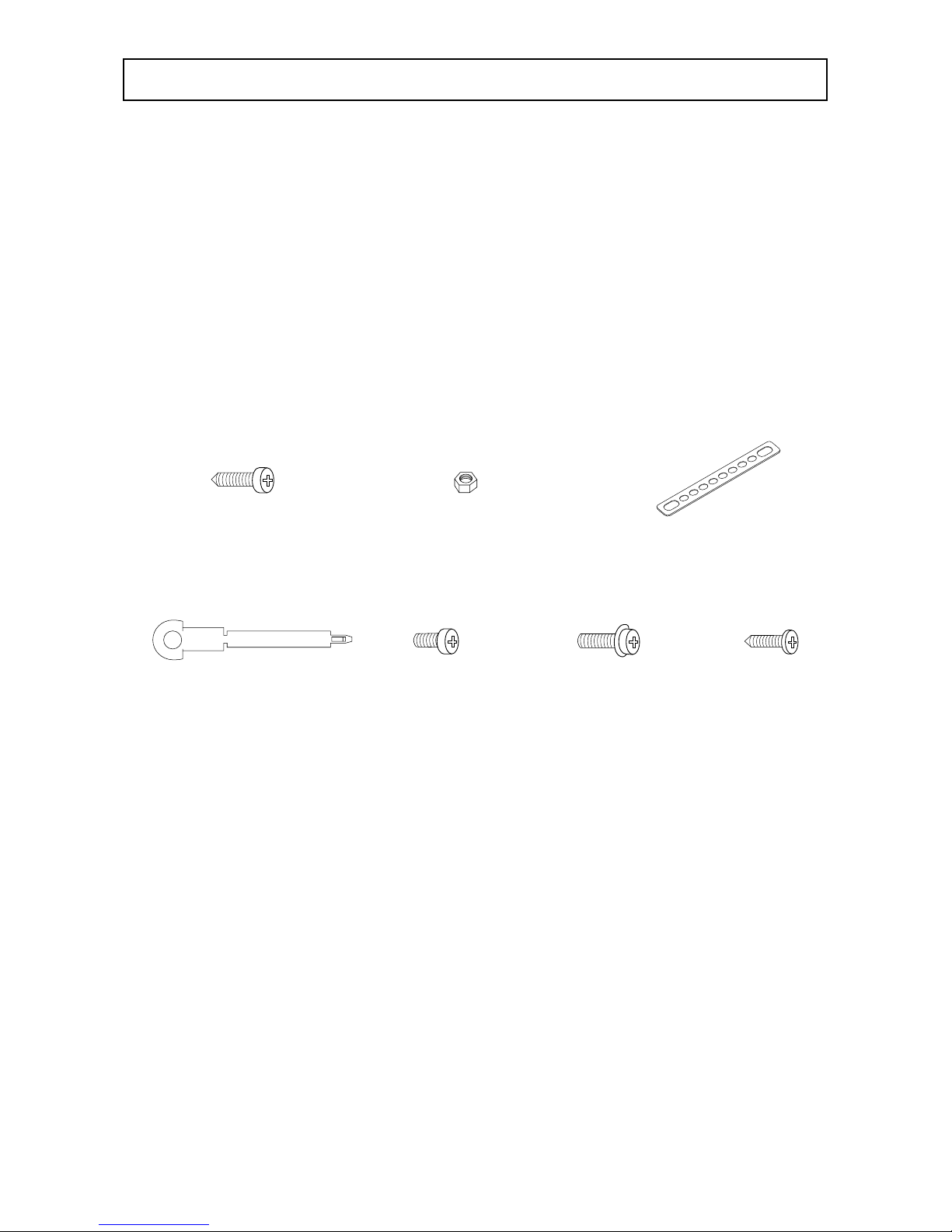

Check the packing carefully for the following accessories:

(1) 2 x Screw 5x14mm (used to fix the mounting bracket to the eye/support bracket)

(2) 1 x Hexagon Nut (used for fixing the mounting bracket to the eye/support bracket)

(3) 1 x Metal Bracket

(4) 2 x Release Key

(5) 4 x Screw 4x6mm

(used to fix the factory radio mounting bracket to the eye/support bracket)

(6) 4 x Washer Head Screw 5x6mm

(used to fix the factory radio mounting bracket to the eye/support bracket)

(7) 1 x Screw 2x4mm (used to secure the front panel for anti-theft purposes)

(1) (2) (3)

Screw Hexagon Nut Metal Bracket

(4) (5) (6) (7)

Release Key Screw Washer Head Screw Screw

CAUTION

• This unit is designed to operate on 12 volts DC, negative ground electrical systems

only.

• When fuse replacement is necessary, use only an 10 amp fuse. Do not replace with

a higher rated fuse. If the fuse blows often, carefully check all electrical connections

for any short circuits and have your car’s voltage regulator checked also.

• Do not install the unit where it will be exposed to direct sunlight or hot air discharged

from the car heater.

• Do not expose the unit to water or moisture.

• This AM/FM Radio with Cassette should not be adjusted or repaired by anyone

except qualified service personnel. If servicing is required, return the unit to an

authorized SANYO mobile audio dealer.

• Changes or modifications not expressly approved by SANYO may void the user’s

authority to operate this equipment.

• This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

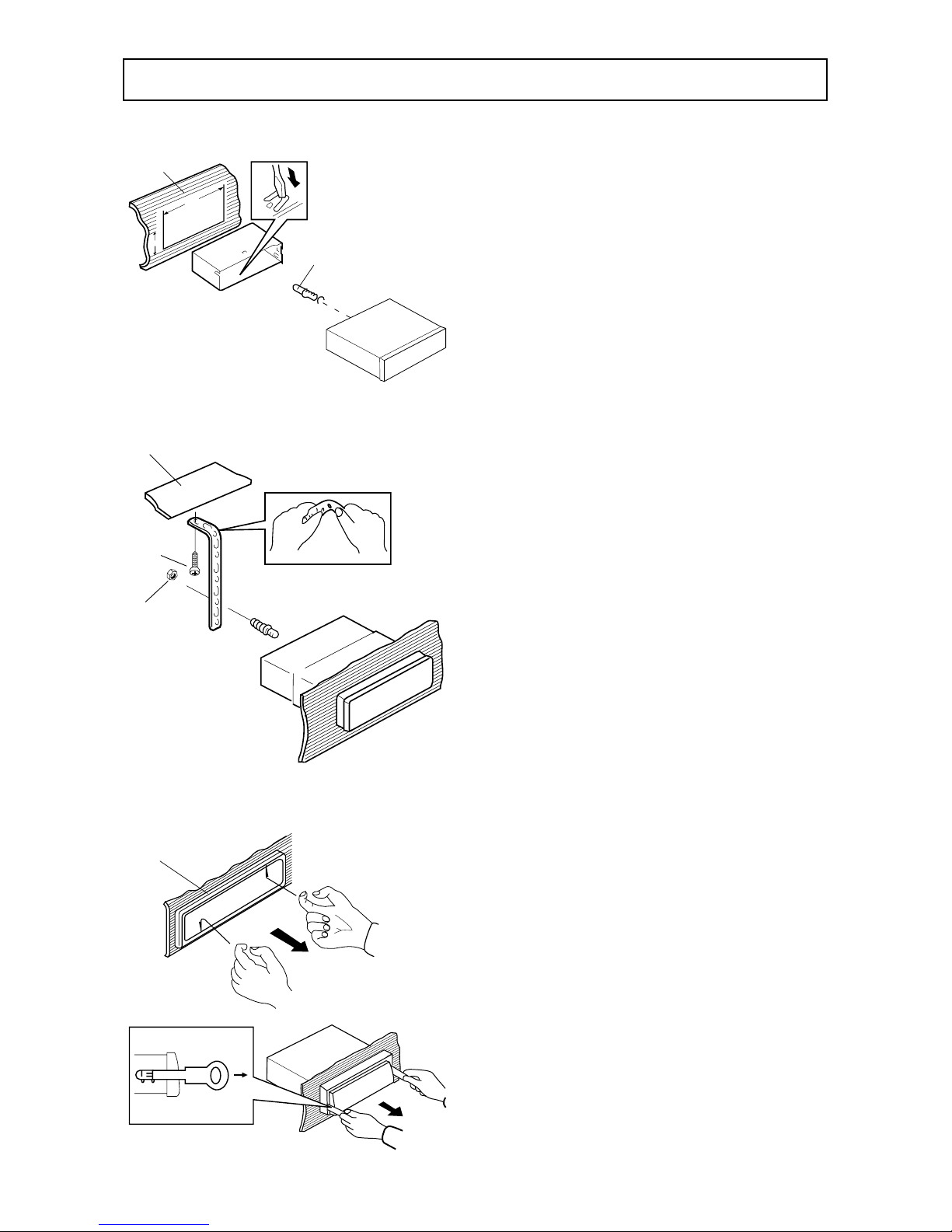

DIN FRONT-MOUNT (METHOD A)

Installation with the rubber bushing

1. Dashboard

2. Half Sleeve

After inserting the sleeve into the

dashboard, select the appropriate tabs

according to the thickness of the

dashboard material, then bend them

outward to secure the sleeve in place.

3. Screw

Installation without the rubber bushing

1. Dashboard

2. Nut (5mm)

3. Screw (5 x 14mm)

4. Strap

Be sure to use the strap to secure the

back of the unit. The strap can be bent

by hand to the desired angle.

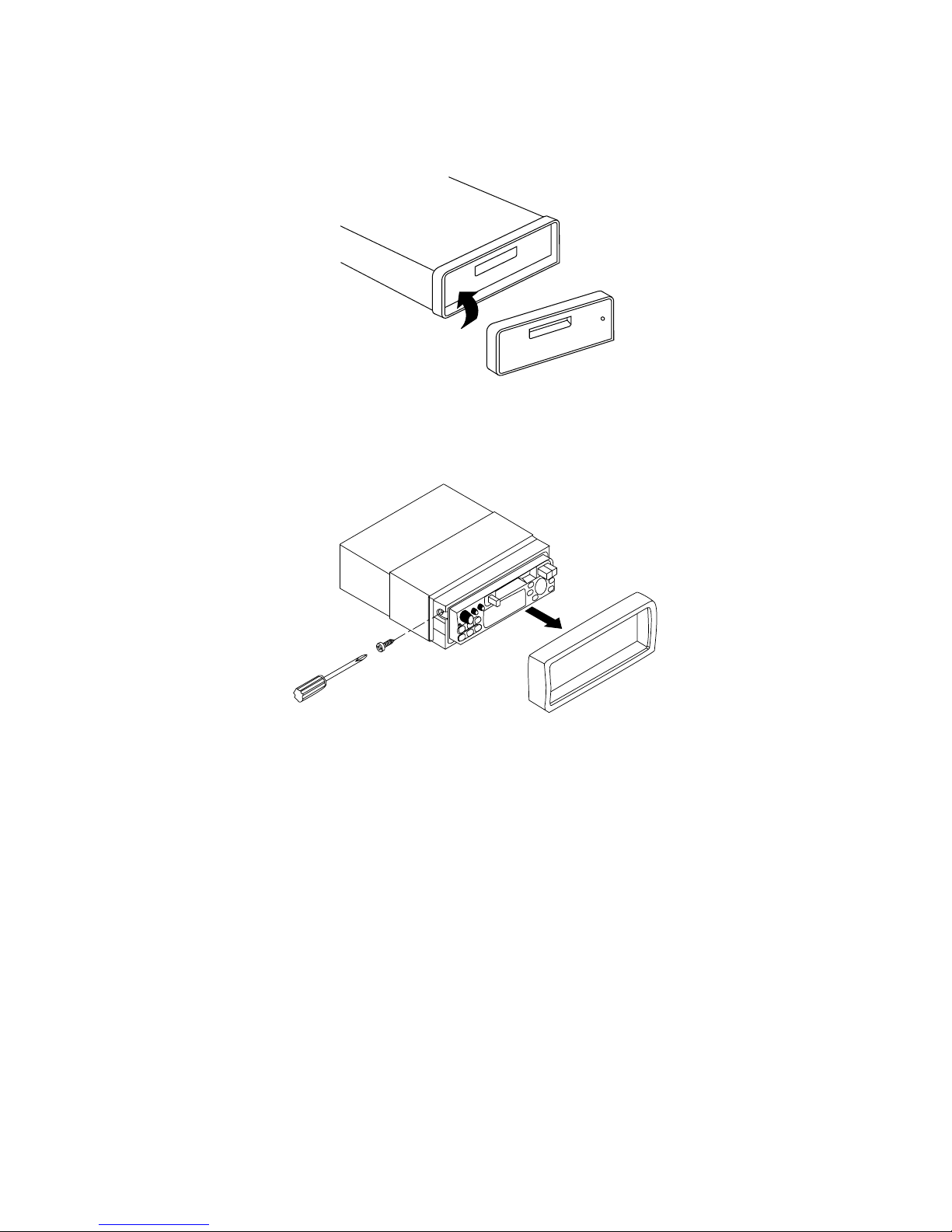

Removing the unit

1. Removable Trim Ring

2. Grasp the center area of the trim ring

from the top or bottom edge, then pull

outward to remove it. (When reattaching

the trim ring, carefully align it with the

front panel of the unit, then press it

into place.

3. Levers

Insert the levers supplied with the unit

into the grooves on both sides of the

chassis (as shown in the figure) until they

click into place. Carefully pull outward

to remove the unit.

182

INSTALLATION

Note:

• Before installing the unit, connect the wiring temporarily and verify that the unit is

operating properly.

• Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

• Consult your dealer if the installation requires drilling of holes, or other modifications

to the vehicle.

• Install the unit where it will not interfere with the driver’s ability to control the vehicle

or cause injury to a passenger in the event of a sudden stop.

• To ensure optimum performance, do not install the unit at an angle of more than

30°from the horizontal.

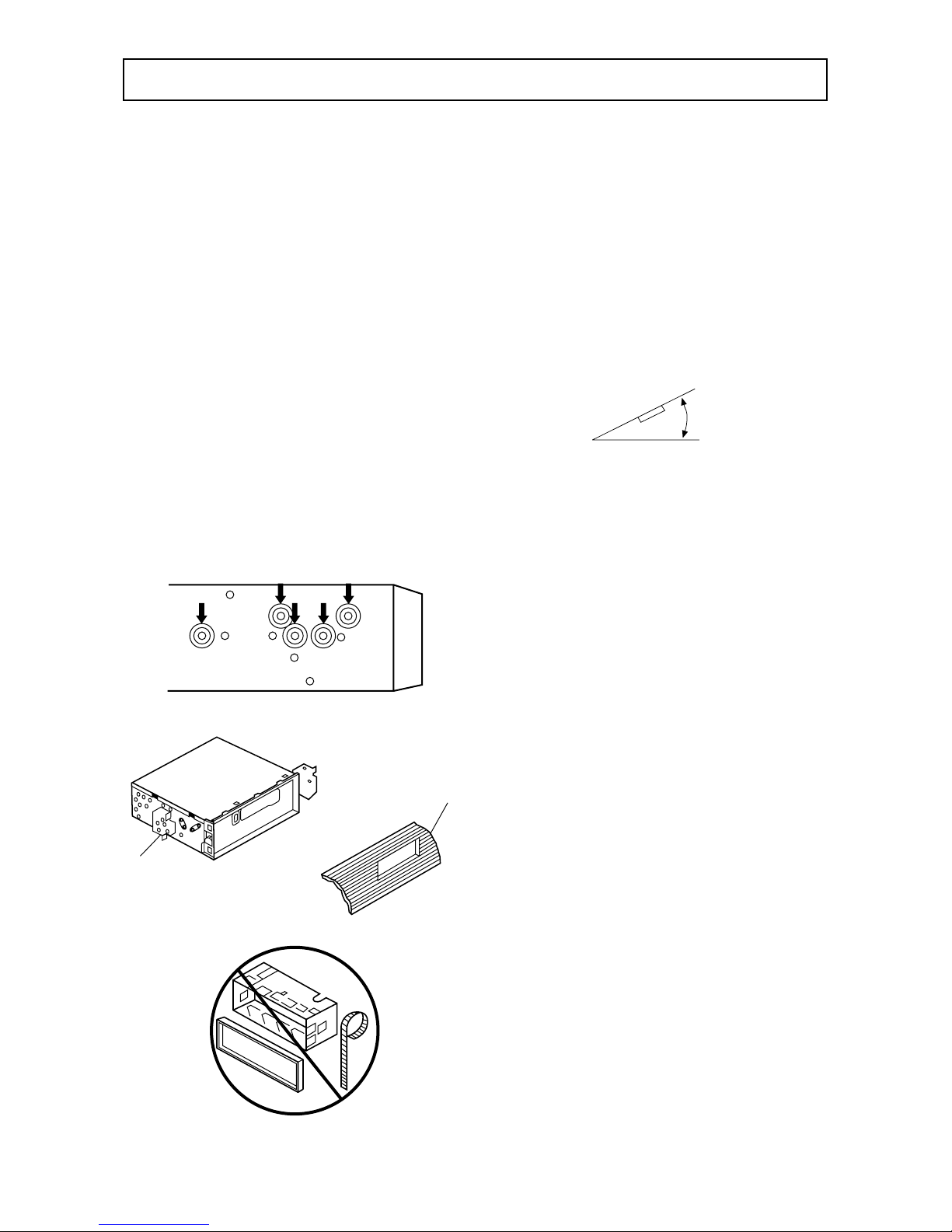

DIN FRONT/REAR-MOUNT

This unit can be installed either from the front (by using the mounting sleeve), or from

the rear (by using the threaded mounting holes on the sides of the unit). For details,

refer to the illustrations of the following installation methods.

Installing the unit by using the factory radio

mounting bracket(s).

1. Determine the correct position where

the holes on the mounting bracket and

the side of the unit match.

Mount 2 screws on each side of the unit.

Use the washer head screws (5x7mm)

and the holes marked “N” or “T” or the

pan head screws (4x8mm) and the holes

marked “S”.

(The holes marked “T” are for Toyota

and the holes marked “N” are for

Nissan.)

2. Factory radio mounting bracket

3. Dashboard or Console

Note: The support strap, outer trim ring

and half-sleeve are not used in the method

B installation.

30˚

T N

ELECTRICAL CONNECTIONS

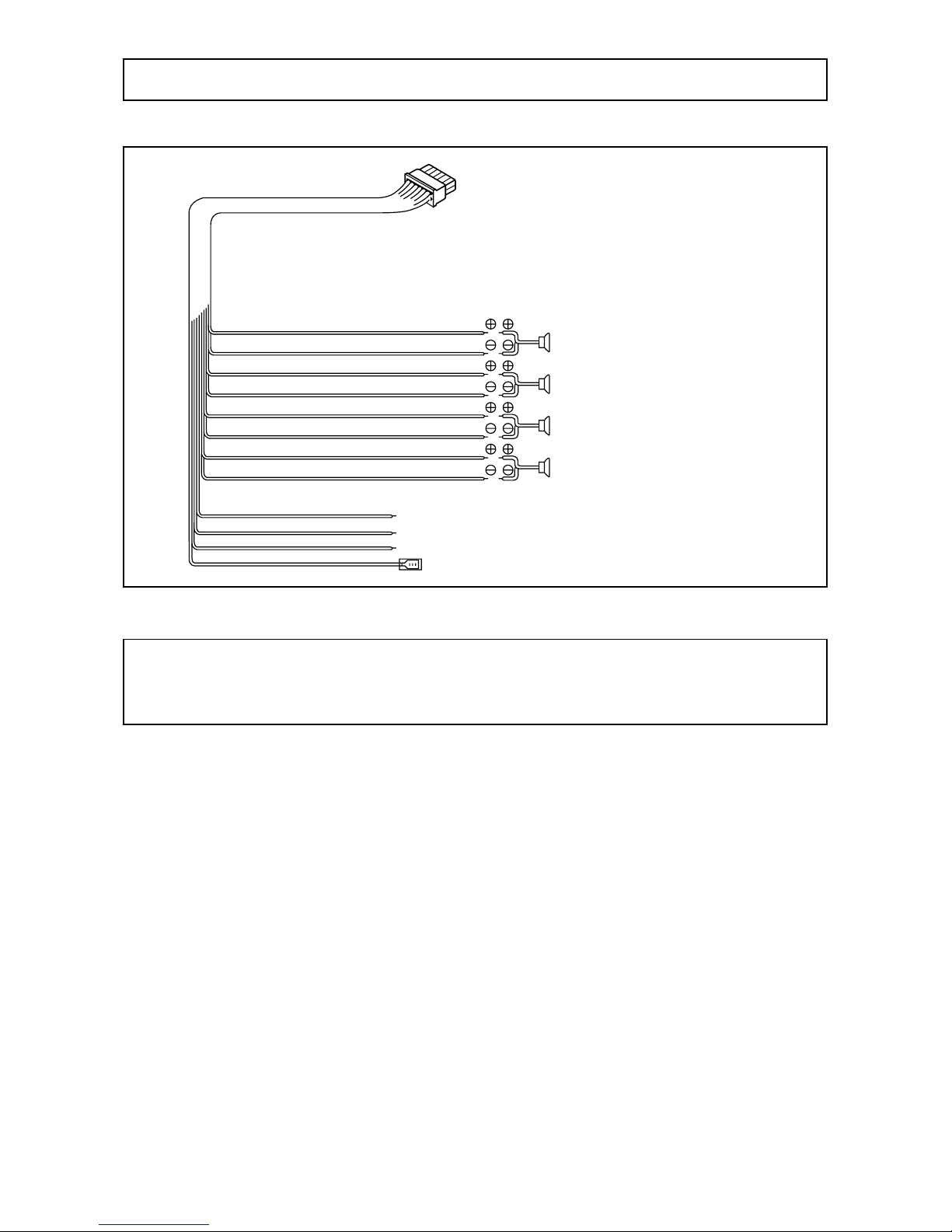

WIRING FOR MAR-B3089

Caution

• DO NOT connect any speaker wires to the metal body or chassis of the vehicle.

• Connect each speaker wire directly to each speaker terminal.

• All speaker common (–) wires must remain floating.

1Antenna socket

• Insert the plug from the antenna installed in your vehicle into this socket.

(If your vehicle has a dual antenna system, a dual antenna to single antenna

cable adaptor may be required.)

2+12V Constant Power Supply (Yellow)

• Connect this wire to the +12V power terminal which receives power continuously.

3+12V Accessory/Switched (Red)

• Connect this wire to the terminal which receives power while the ignition switch

is ON or in the ACCESSORY position.

• If the ignition switch does not have an ACC position, connect this wire to a

+12V power terminal which receives power continuously. (Same as item 2.)

4Ground wire (Black)

• Connect this wire to the vehicle chassis.

5Power Antenna/Amplifier Turn On (Blue/Red)

• Connect this wire to the control terminal of a Power Antenna or an external

amplifier.

• When not using a Power Antenna or an external amplifier, this wire is not

connected.

(White)

(White/Black)

(Gray)

(Gray/Black)

(Green)

(Green/Black)

(Violet)

(Violet/Black)

Front Left

Speaker

Front Right

Speaker

Rear Left

Speaker

Rear Right

Speaker

+12V Constant Power Supply (yellow)

+12V Accessory/Switched (Red)

Ground Wire (Black)

Power Antenna/Amplifier Turn On (Blue/Red)

- When fuse replacement is necessary, remove the blown fuse by opening the Filter

Box, then install a new 10 amp fuse (switched power supply) or 0.5 amp fuse

(constant power supply).

- RCA Line Out Jacks

Connect a patch cable (not supplied) from the White (left channel) and Red (right

channel) RCA line output jacks to the line input terminals of an external amplifier.

USING THE DETACHABLE FRONT PANEL

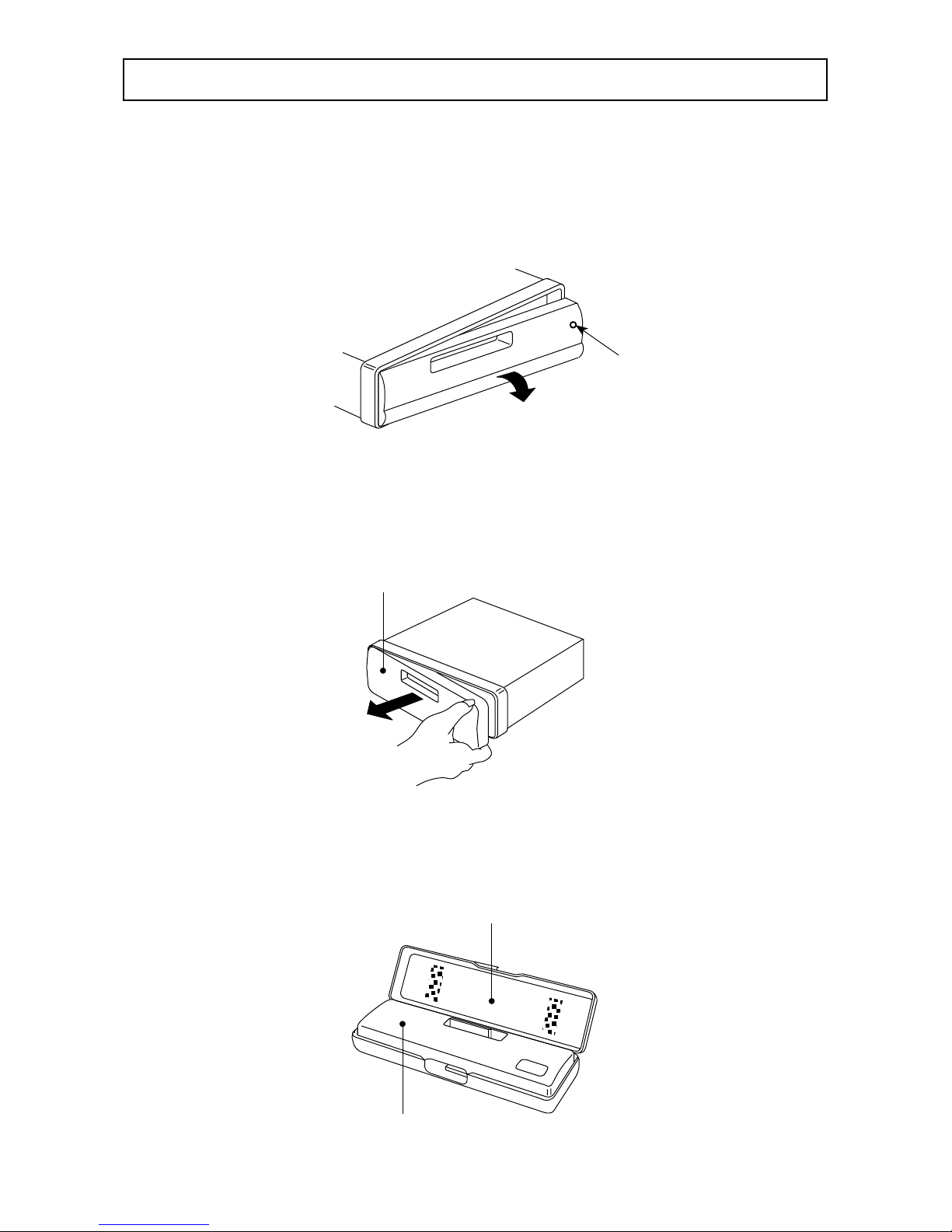

To Detach the Front Panel

1. Press the release button (REL). The right side of the panel will release from the

main unit.

2. Remove the front panel by pulling the left-hand side outward.

3. For safekeeping, store the front panel in the supplied protective case immediately

after removing it.

Releasing Button

Front Panel

Protective Case

To Reinstall the Front Panel

1. First, align the left side of the panel with the front of the unit, then press the right

side against the unit until it clicks into place. Do not force the panel into place.

2. Note:

If the front panel is not locked into the proper position, pushing the eject button

may not release the panel and the other control buttons may not function.

SECURITY

To avoid theft or loss of the front panel, you can inactivate the release knob by

installing the screw provided as shown.

Precautions when Handling the Front Panel

1. Do not drop the front panel.

2. Do not put pressure on the display or control buttons when detaching or reinstalling

the front panel.

3. Do not touch the contacts on the front panel or on the main unit body. It may result

in poor electrical contact.

4. If any dirt or foreign substances have adhered to the contacts, they can be removed

with a clean, dry cloth.

5. Do not expose the front panel to high temperatures or direct sunlight.

6. Do not expose the front panel to benzene, thinner, insecticides or any other strong

chemicals. These will damage the finish of the panel.

7. Do not attempt to disassemble the front panel.

OPERATION

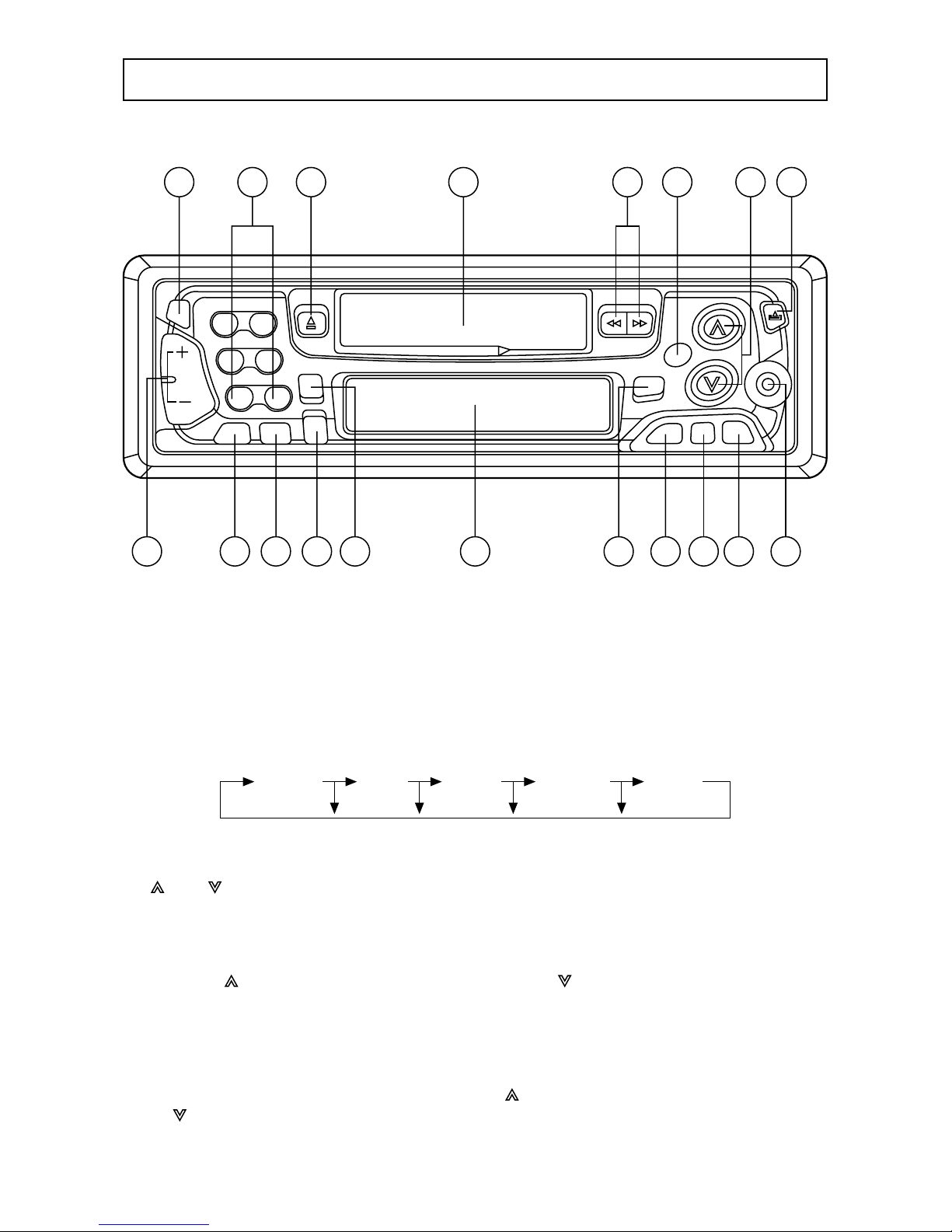

CONTROLS AND FUNCTION KEYS

1. PWR (=POWER)

Press the button to turn on the unit, press again to turn it off.

2. REL (=RELEASE)

Press the button to detach the faceplate.

3. SEL (=SELECT)

Press to select audio control mode. The desired mode can be selected as below:

Each mode is indicated on display. The initial state is Volume mode.

4. VOL (=VOLUME UP/DOWN)

Used for audio UP/DOWN control when the SEL button is pressed. Sound quality

is controlled as below:

• In volume mode:

Press ‘ ’ to increase volume level, and press ‘ ’ to decrease the level.

The volume level is updated correspondingly and its status is shown on the

display.

Note: The unit is initially set to volume mode.

• In bass mode:

While “BAS” is shown on display, press ‘ ’ to increase bass level, and press

‘ ’ to decrease the level.

The bass level is updated correspondingly and its status is shown on display.

1 14

1918 58 9712

16 17 15 2

10611 13

3 4

Volume Bass Treble Balance Fader
