INSTRUCTION
MANUAL
Room Air Conditioner
( With Warranty Card )
Thank you for choosing SANYO air conditioner. Our design is based on the best efficiency and the
lowest noise operation and it can keep the room comfortable. Please read this Instruction Manual
carefully before operating the unit and keep it for consultation. If you still have any difficulties or
problems, consult your dealer for help.
CONTENT
Function and working temperature range
Technical specifications
Operating condition and power requi rement
Installation
Notes for installation
Part identification 7
Air conditioner operation
Operation tips 10
Caution
Care and maintenance
When trouble shooting
1
2
3
4
6
8
11
12
13
Warranty card
1
Function and working temperature range
Introduction
Window type room air conditioners of SANYO can regulate the room temperature,dry
the room. It is convenient for your work,study and life. It can be widely used in residence,
shop, hotel, office, library and laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down
room air by transferring heat out.
Open storm door to keep the fresh air in the
room.
Exchange fresh air

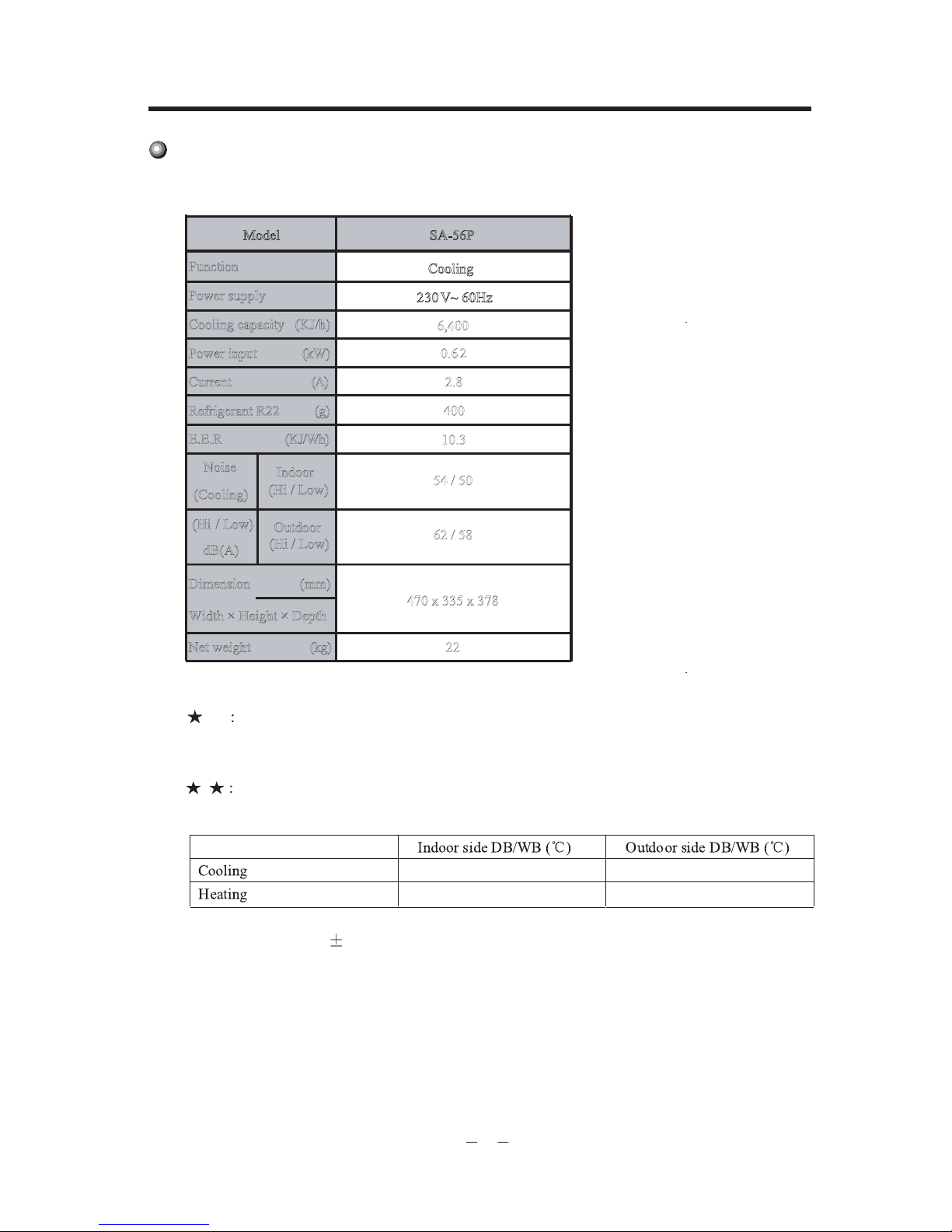

Technical specifications
All the above subject to change without notice and the correct parameter is on the name
plate of your air conditioner.
The product specifications are based on the following rating conditions.
Voltage: AC 230 V 10%
27 / 19
--- ---
35 / 27
Noise
(Cooling)
(Hi / Low)
dB(A)
470 x 335 x 378
0.6
6, 00
Model
Current (A)
Function
Power supply
Refrigerant R22 (g)
Power input (kW)
Indoor
(Hi / Low)
Cooling capacity (KJ/h)
SA-56P
Cooling
Width × Height × Depth
Net weight (kg)
Dimension (mm)
22
Outdoor
230 V~ 60Hz
2.8
400
54 / 50
62 / 58
E.E.R (KJ/Wh)
10.3
(Hi / Low)
4
2
3
Electric circuit:
Must use special socket, do not use longer power lines, do not share
a same socket with other electric appliances to avoid fire etc.
The earthing method must be reliable.
Work within correct voltage range.
Earth wire do not connect earth wire to following places.
Water pipe Gas pipe
Rated voltage range: AC 230V 10 %
The compressor would vibrate violently to damage the
refrigerant system, when voltage is too high.
AC 230V

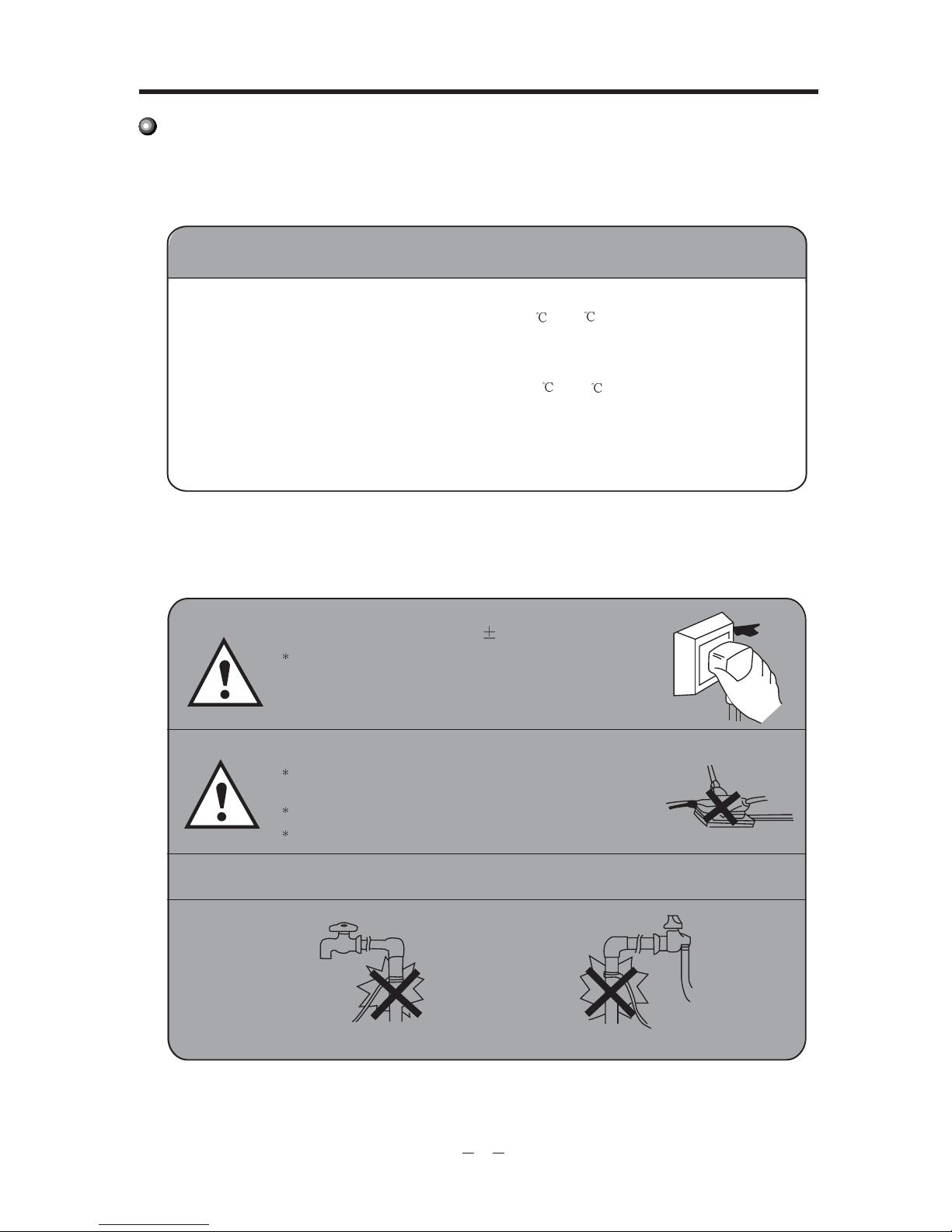

Cool mode operation
Operating condition
Power requirement
1. Outdoor temperature should be in range of 19 to 43 . Otherwise it is possible
for air conditioner to breakdown.
2. Room temperature should be in the range of 19 to 32 .
3. Room humidity should be lower than 90%, Otherwise it is possible to dew at air
conditioner surface anf even drop water.
Please operate air conditioner in correct conditions as following:
Installation precaution:
Window type conditioner is so valuable and the improper installation of
it will cause a lot of damage! Please associate the professional techni-
cian to install the unit and don’t install it by yourself.
Otherwise,wearenotresponsibleforthedamagelikethis.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs and polluted by sulphurous gas, or other special areas,
please contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.
How to install:
Choose a location where there are no any obstacle surrounding the unit.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.
4
Before installation, check that the voltage of the electric supply in your
home or office is the same as the voltage shown on the name plate.
Installation
470 mm
335 mm
(Top view)
Over
150 mm
Over
500 mm
Over
150 mm
Over
150 mm
(Front view)
Fence or
likewise
Wall
Cooling
378 mm
Less than
220 mm
Over
500 mm
(Side view)
Over
150 mm
5
Horizontal line
Sunshade board
Wall
Wooden frame
Rubber plate
Support
Horizontal line

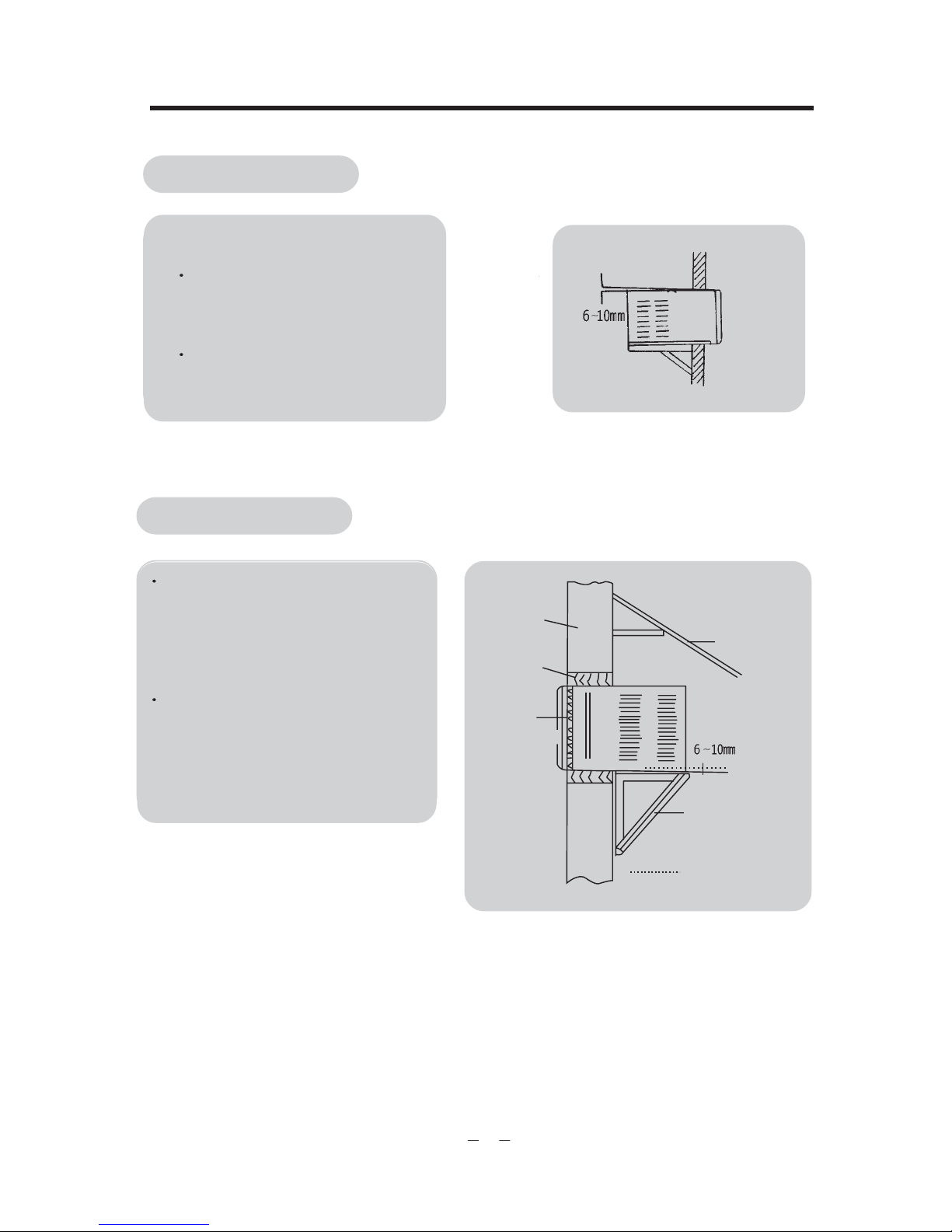

Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.
6

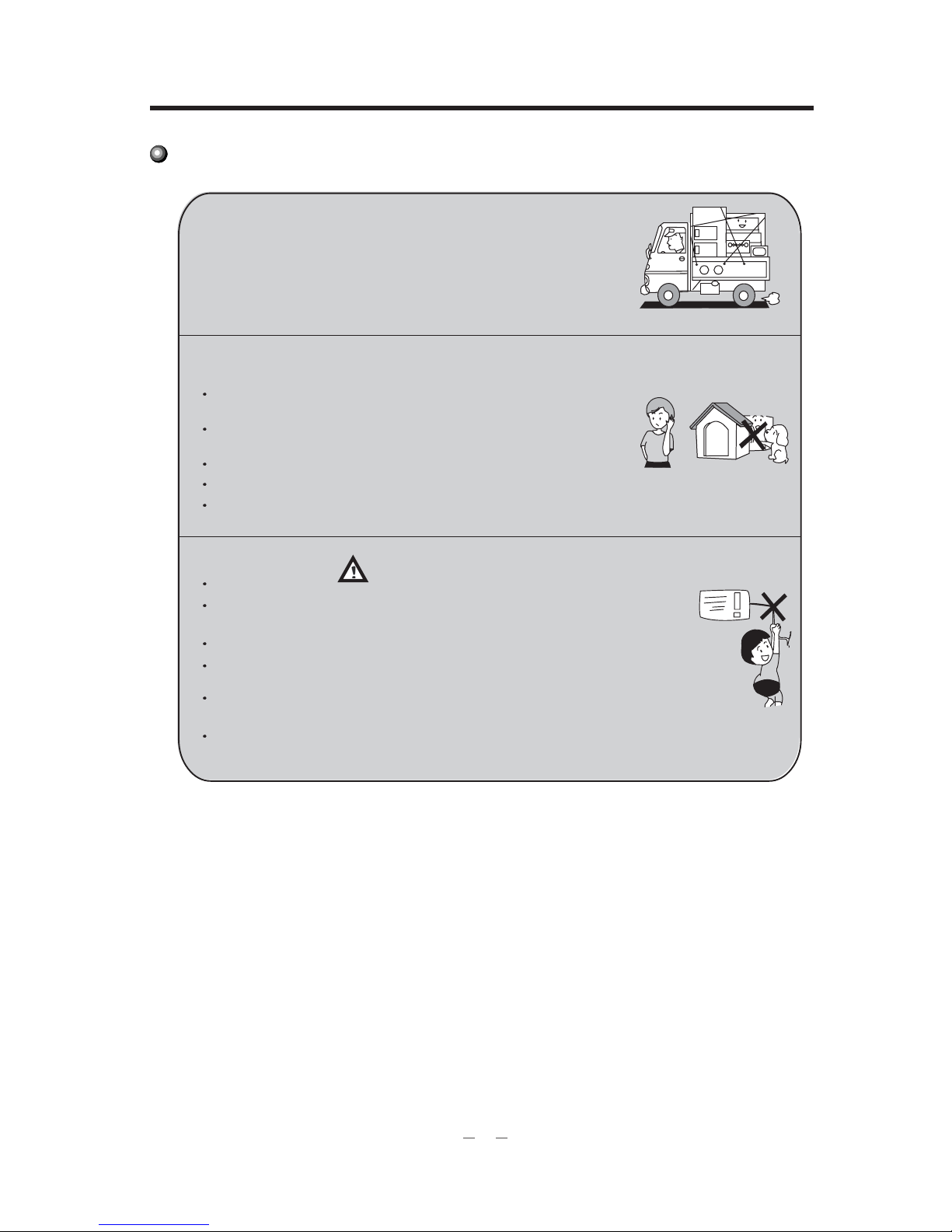

Notes for installation
Remove
Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
Don’t pull the power cord strongly.
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Air switch (thermal-magnetic breaker) should be installed in the circuit and its recommended
capacity is 10A.
The fixed wiring should be more than 2.5mm2in area.
