Sangean WR-15WL Manuel utilisateur
WR-15 / WR-15BT
Version 1
中文
GB
1
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
SANGEAN ELECTRONICS INC. is under license.
2
GB
IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet. consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
3
11.
12.
13.
14.
15.
16.
17.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or table specied
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged. liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
To Reduce the Risk of Fire or Electric Shock, Do not Expose
This Appliance To Rain or Moisture.
The Shock Hazard Marking and Associated Graphical Symbol
is provided on the bottom panel of unit.
Apparatus shall not be exposed to dripping or splashing and no
objects lled with liquids, shall not be placed on the apparatus.
4
GB
18. Excessive sound pressure on ear-and headphones could
impair the hearing ability. Higher setting that idle on the
equalizer leads to higher signal voltages on the output for ear
and headphones.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user's
authority to operate the device.
CAUTION:
To reduce the risk of the electric shock, do not perform any
servicing other than that contained in the operating instructions
unless you are qualied to so.
5

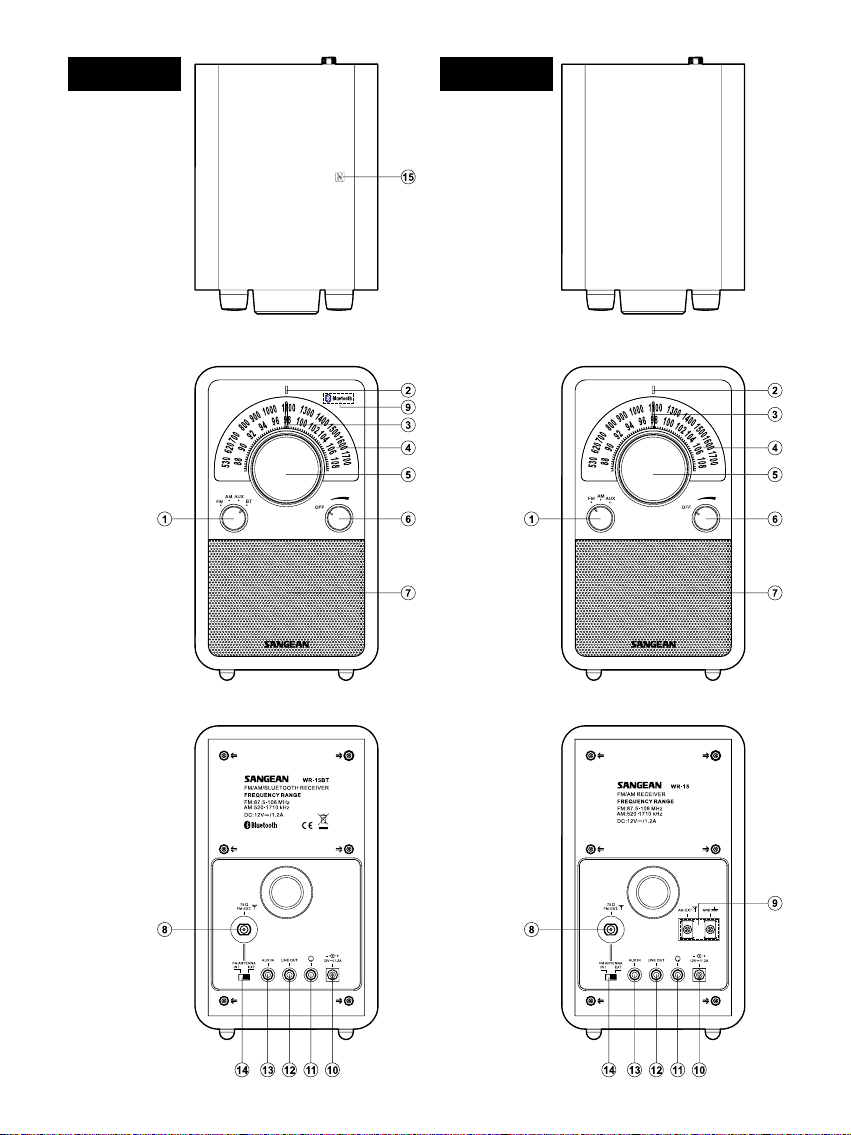

WR-15BT WR-15
6
GB
Controls
AM/FM/Aux in/Bluetooth band selecting rotary (Bluetooth band
is only available in WR-15BT)
Tuning LED indicator
Dial indicator
Dial scale
Tuning Control
Volume control/Power knob
Speaker
F-type external antenna terminal
WR-15: AM external antenna terminal
WR-15BT: Bluetooth status indicator
12VDC socket
Headphone socket
Line out socket
Aux in socket
External/Internal antenna switch
NFC detection area (WR-15BT only)
15
13
12
14
2
5
11
7
9
10
3
4
1
8
6
7
Power your radio
The AC power adaptor required for this unit should be 12 volts
DC at 1.2A center pin positive. Insert the adaptor plug into the DC
socket on the rear of the radio. Plug the adaptor into a standard
manis socket outlet.
Important:
The mains plug or an appliance coupler is used as the means
of connecting the radio to the mains supply. The mains plug or
an appliance coupler used for the radio must remain accessible
during normal use. In order to disconnect the radio from the mains
completely, the mains plug should be removed from the mains
outlet completely.
Operating your radio FM
1. Connect the Antenna
The radio comes with built-in AM/FM antenna. To improve FM
reception, insert the end of the supplied FM wire antenna into the
F-type antenna terminal and adjust the wire for best reception. A
75 ohm coaxial cable of outdoor antenna may also be attached
to the terminal. Be sure to switch external/internal antenna switch
to external position while using the supplied wire antenna or connect
the outdoor antenna. In some of the European countries, you may
have to connect the supplied antenna terminal adaptor to connect
with the outdoor antenna.
2. Turn on your radio by switching the Power knob to volume position.
Then rotate the Band selecting rotary to FM position.
3. Rotate the Tuning Control to select the desired station. On FM,
the tuning scale is marked in MHz (Megahertz). The tuning LED
indicator will appear brightest when best tuning has been achieved.
4. Adjust the Volume Control for comfortable listening.
5. To switch off the radio, turn the Power knob to OFF position.
8
GB
Operating your radio AM
1. Connecting the antenna
The radio comes with built-in AM antenna which should be enough
for normal listening. To improve the AM reception, you may connect
the outdoor AM antenna with AM antenna terminal (USA version
only).
2. Turn on your radio by switching the Power knob to volume position.
Then rotate the Band selecting rotary to AM position.
3. Rotate the Tuning Control to select the desired station. On AM,
the tuning scale is marked in kHz (Kilohertz). The tuning LED will
appear brightest when best tuning has been achieved.
4. Rotate your radio for best reception.
5. Adjust the Volume Control for comfortable listening.
6. To switch off your radio, turn the power knob to OFF position.
Note:
When your radio has any interference in AM band by its adaptor,
please move your radio away from its AC adaptor over 30 cm.
Listening to music via Bluetooth streaming
(available only in WR-15BT)
You need to pair your Bluetooth device with your radio before you
can auto-link to play/stream Bluetooth music through your radio.
Paring creates a `bond' so two devices can recognize each other.
