Samsung Gear S Manuel de service

QUICK REFERENCE MANUAL

Need more help? Go to

www.samsung.com/us/gearsupport

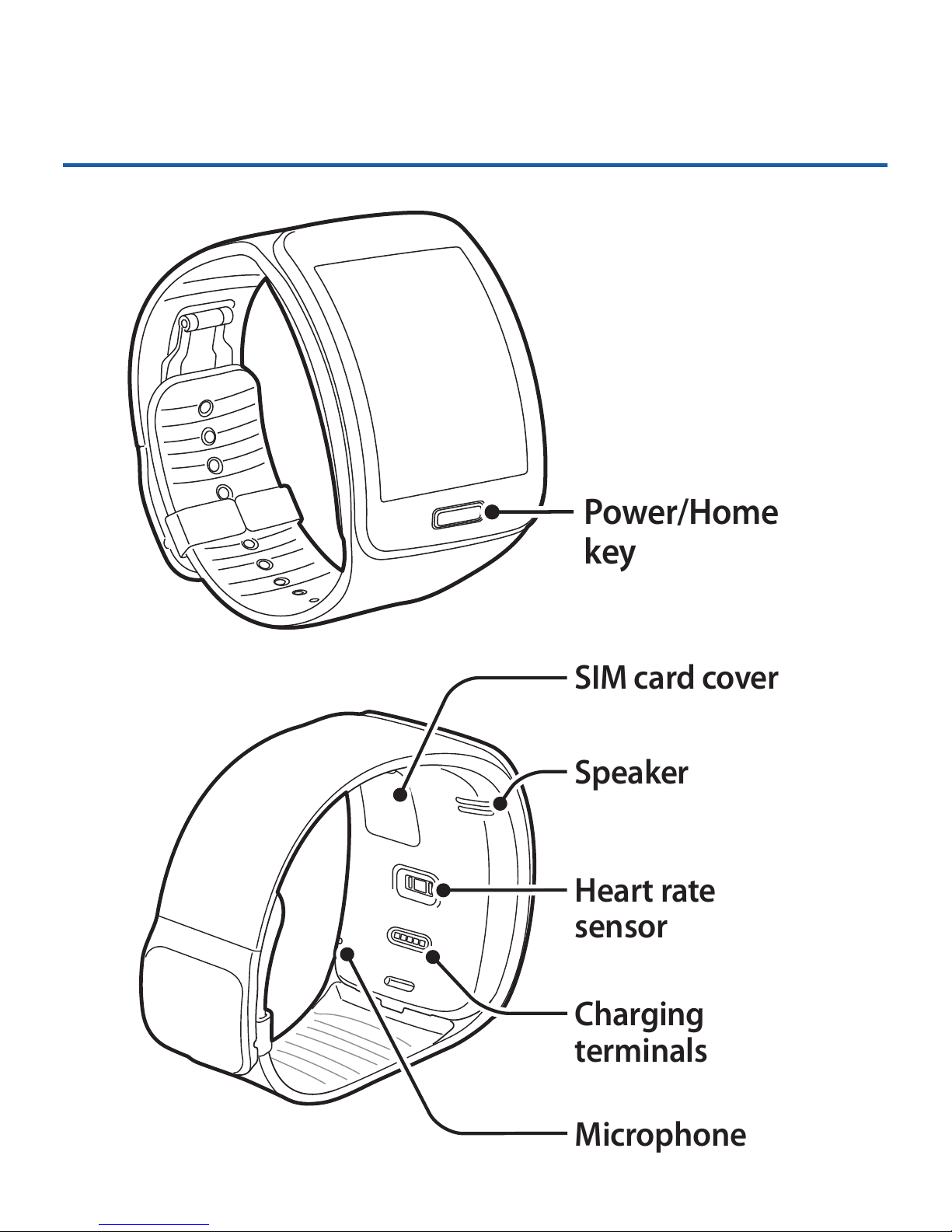

Device Functions

Power/Home

key

Charging

terminals

SIM card cover

Speaker

Heart rate

sensor

Microphone

Water and Dust Resistance

This device is rated IP67 using the Ingress Protection

rating system.

Your device has been tested in a controlled environment

and shown to be water and dust resistant in certain

circumstances (meets requirements of classiﬁcation

IP67 as described by the international standard IEC

60529 - Degrees of Protection provided by Enclosures [IP

Code]; test conditions: 15 - 35 °C, 86 - 106 kPa, 1 meter,

for 30 minutes). Despite this classiﬁcation, your device

is not impervious to water damage in any situation. It is

important that all compartments are closed tightly. Follow

these tips carefully to prevent damage to the device.

• Whenever your device gets wet, dry it thoroughly

with a clean, soft cloth.

• Do not expose the device to salt water or ionized

water, or to water over 1 meter deep for more than

30 minutes. If your device is exposed to fresh water,

dry it thoroughly with a clean, soft cloth. If the device

is exposed to any liquid other than fresh water, rinse

the device with fresh water immediately and dry it

thoroughly with a clean, soft cloth. Failure to rinse

the device in fresh water and dry it as instructed

may cause the device to suffer from operability or

cosmetic issues.

• Do not expose the device to water at high pressure,

such as ocean waves or a waterfall.

• If the device is dropped or receives an impact, the

water and dust resistant features of the device may

be damaged.

Setting Up Your Gear S

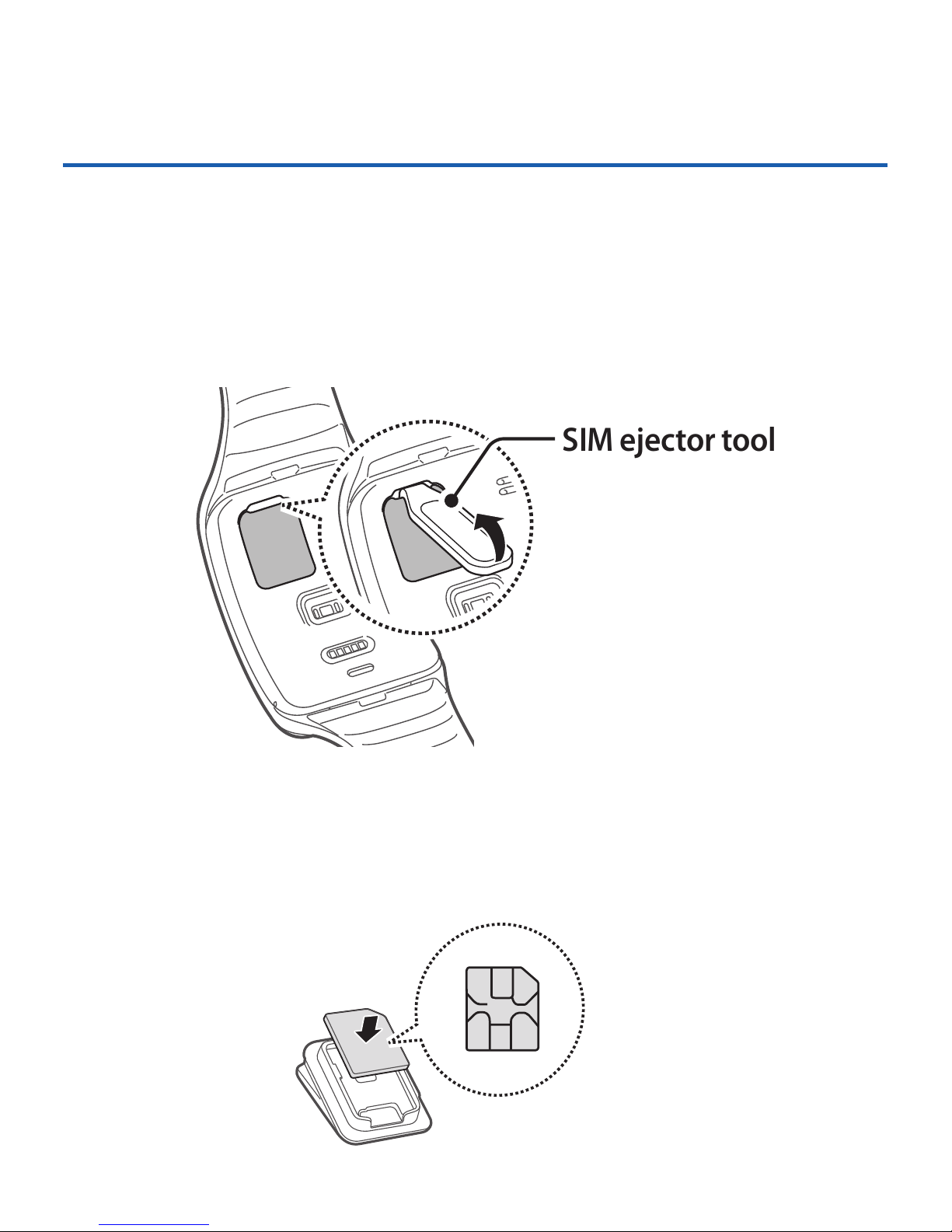

Step 1. Installing the SIM card

1. Remove the SIM card cover, with the SIM ejector tool

that is included in the box.

SIM ejector tool

NOTE: Do not use other objects to open the SIM card cover.

2. Insert the SIM card in the inside of the SIM card cover

with the gold contacts facing up and replace the cover.

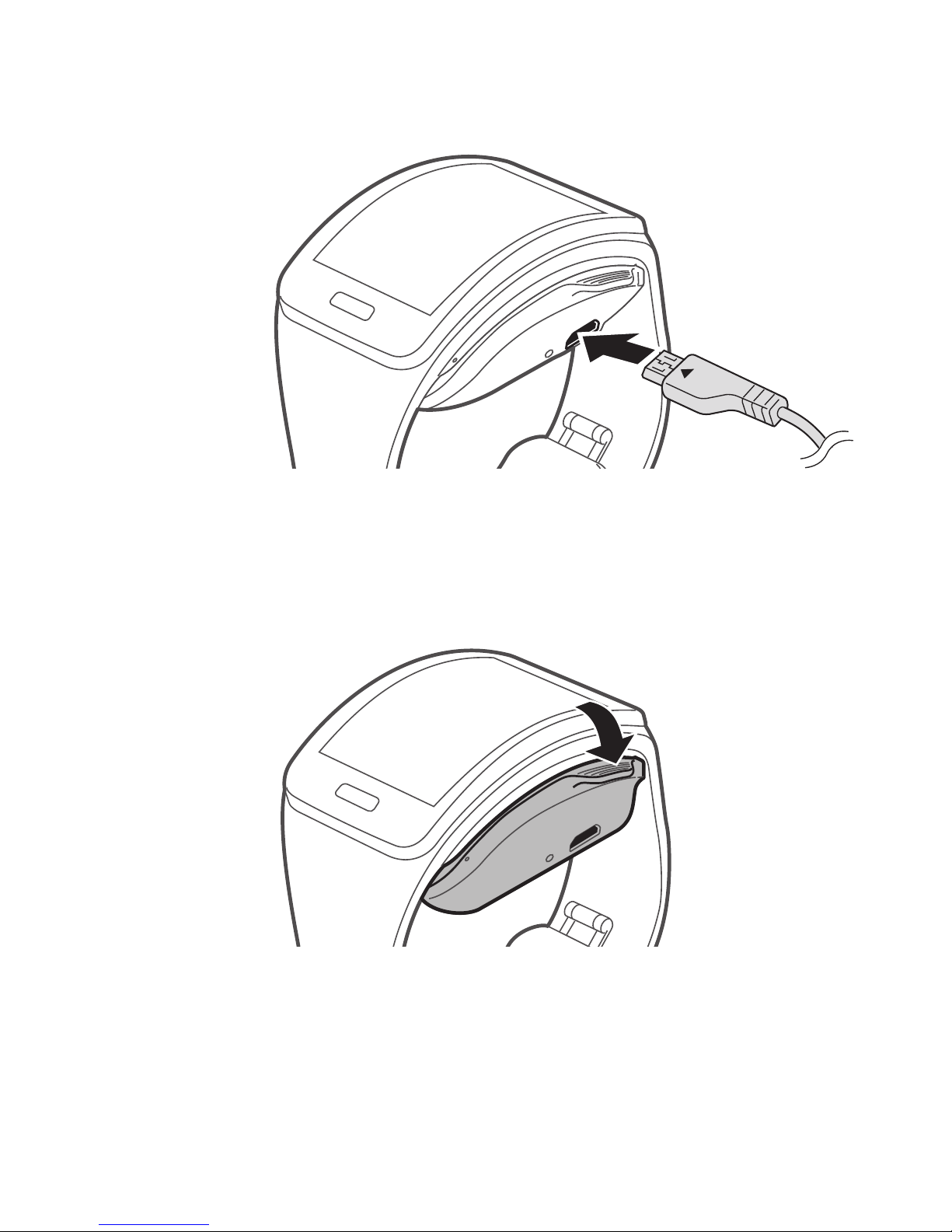

Step 2. Charging the Gear S

1. Carefully place the Gear S on the charging dock with

the charging terminals facing each other and connect

to the charger.

Charging

terminals

Charging dock with

battery

Charging

Port

Caution!: Use the Samsung charger that came with your device.

Use of other chargers may damage the device and void

the warranty.

2. Plug in the charger.

3. When ﬁnished charging, disconnect the Gear S from

the charging dock.

NOTE: The charging dock can be used as a backup charger,

simply connect it to your Gear S (no cable needed). The

charging dock automatically charges while the Gear S is

charging or can be charged independently without the

Gear S.

Extending Battery Life

• Enable Power saving mode: To access Power saving

mode, swipe up from the bottom of the screen, and

tap Settings gPower saving.

• Close unused apps: To close all apps, touch and hold

on the screen with two ﬁngers, and tap Close all.

• Adjust display settings to reduce brightness and limit

the screen timeout. To access settings, swipe up

from the bottom of the screen, and tap Settings g

Display.

• Turn off connection services, such as Bluetooth, Mobile

networks, and Location when they’re not needed. To

access settings, swipe up from the bottom of the

screen, and tap Settings gConnections

Step 3. Turning Your Gear S On and Off

• To turn ON, press and hold the Power/Home key.

• To turn OFF, press and hold the Power/Home key

and tap Power off.

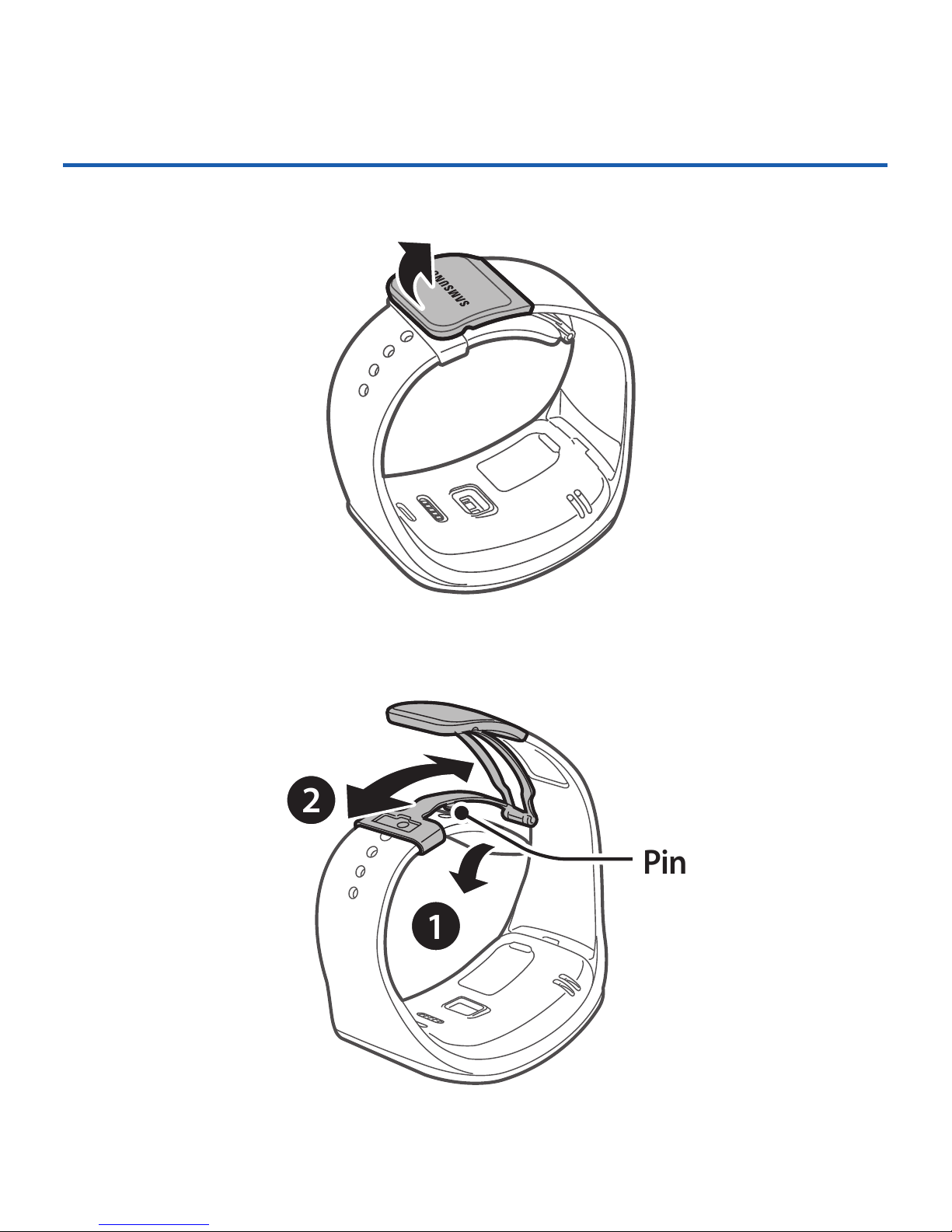

Wearing the Gear S

1. Release the clasp and ﬁt the strap to your wrist.

2. Use the pin to adjust the length of the strap.

3. Press the clasp together to fasten the strap.

SAMSUNG TELECOMMUNICATIONS AMERICA

1301 E. Lookout Drive | Richardson, TX 75082

1.888.987.HELP

www.samsung.com/mobile

all trademarks of Samsung Electronics Co., Ltd. Bluetooth is a registered

trademark of Bluetooth SIG. Other company and product names mentioned

herein may be trademarks of their respective owners. Screen images

simulated. Appearance of device may vary.

Printed in Korea | 09/2014 | TCS524544.1 | GH68-42446A
