Samsung WT85S33 Manuel utilisateur

Before operating the unit, please read this manual throughly,

and retain for future reference.

BEFORE USING THE WASHER 1

CAUTIONS 1

PRECAUTIONS WHEN OPERATING 1

DESCRIPTION OF PARTS 2

CONTROL PANEL 2

WASHING PROCEDURE 3

TO WASH 3

SPIN DRY 3

RINSING 4

OVER FLOW RINSE 4

ADDITIONAL RINSE 4

INSTALLATION 5

ENVIRONMENT 5

HOW TO CLEAN THE FILTER 5

CONNECTING DRAIN HOSE 5

CLEANING THE MACHINE 5

LAUNDRY GUIDE 6

MAINTENANCE 6

TROUBLESHOOTING 6

SPECIFICATIONS

Owner s Instructions

Code no : DC68-01985A-00

BEFORE USING THE WASHER

CAUTIONS

PRECAUTIONS WHEN OPERATING

In case of pump drained washer,

remove the cap-hose from

the drain hole.



Be sure that the washer is grounded.

To avoid electrical shock,use

a metal pipe for the ground

connection. But, don't ground

the washer with gas pipes or

telephone lines to avoid to

dangers of explosion or lightning strike.



Do not put your hands into the spin

dryer basket when it is spinning.

Your fingers can be caught

by spinning laundry and

damaged.



Ventilation opnning must not be obstructed

by carpeting when the washing machine is

installed on a carpeted floor.



If the supply cord of this appliance is damaged,

it must only be replaced by a repair shop

appointed by the manufacturer,because

special purpose tools are required.



To avoid overfilling and damages this appliance

must be filled with the operator present using a

moderate water supply pressure only.



Never allow children to operate

or play with the washer .

Children playing with the washer

may accidentally fall into the

washing tub.



Be sure to cover with the inner

cover on laundry before spinning.

This prevents laundry from

being tossed out and damaged.



Before washing,check all pockets.

If nails or pins remain in pockets,they may

damage the washer or clothes.



Close the water tap a little if the

water pressure is too high.



To avoid water splashes,

close the wash tub lid.



Be sure lay the drain hose down

(in case no drain pump)



Never splash water on the control panel.



Disconnect the power cord from the

power supply when not in use.



Don't use excessively hot water .

(50ûC or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or decolored.





DESCRIPTION OF PARTS

INNER LID

When you open this lid while

the spin basket is spinning,

the spinning will be stopped

by breake system.

POWER CORD

WATER DRAIN HOSE

(WITHOUT PUMP)

DRAIN HOSE

(WITH PUMP)

SPIN DRYER

BASKET

WASH TUB LID

Be sure to keep the lid

closed during washing

and spinning.

LINT FILTER

WASH TUB

PULSATOR

DRAIN FILTER

(with pump)

The plugÕs shape may not

correspond with this drawing.

1. WASH SELECTOR

This is used to select wash action.

2. WASH TIMER

This is used to set the wash time, 1-15 minutes.

3. CYCLE SELECTOR

This is used to select the Washing /

Rinsing or draining

4. SPIN DRY TIMER

This is used to set the spin time, 1-5 minutes.(1-10 minites)

5.WATER SELECTOR

During washing,WATER SELECTOR KNOB should

be selected to wash.During spin rinsing,WATER

SELECTOR KNOB should be selected to spin.

CONTROL PANEL

SPIN DRYER LID

1 2 5 3 4

2. Set the WASH SELECTOR KNOB

to the desired mode.

WASHING PROCEDURE

SPIN DRY

1. Before starting washing, check the following;

Connect the water supply hose and open the water tap.

- Lay the drain hose down toward a sinkhole.

(In case no drain pump)

- Place the drain hose in sink or bath.

(In case drain pump)

-Connect the power cord to the power supply outlet .

3. Set the CYCLE SELECTOR KNOB to

‘

WASH RINSE .(in case drain pump “

“

WASH )

5. Load laundry in the

wash tub.

6. Fill water in the wash tub

and add the detergent.

7. Set the WASH TIMER 1-15minutes.

8. After washing,set the

CYCLE SELECTOR KNOB

to 'DRAIN' for drain.

1. Transfer the clothes into the spin basket

and arrange the clothes evenly.3. Close the spin dryer lid.

4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and

close the inner lid.

inner lid

safty cover

4. Set the WATER SELECTOR

KNOB to WASH .

TO WASH

FOR B TYPE

(1-10 minutes)

ADDITIONAL RINSE

Set the WATER SELECTOR KNOB to

SPIN and CYCLE

SELECTOR KNOB to

ÔDRAINÕ.

RINSING

OVER FLOW RINSE

1. Set the CYCLE SELECTOR KNOB to

‘

WASH RINSE .(In case drain pump “

“

WASH )

2. Supply the proper amount of water

as not to overflow the top of the

washing tub.

3. Set the WASH TIMER

2~3minutes.

3.As soon as the WASH TIMER

shuts off, turn off the water tap.

1.Keep suppling water

4. Drain the water.

Set the CYCLE

SELECTOR

KNOB to DRAIN

5.Repeat this cycle until drain water

is clean. (2~3 cycle)

2.Set the WASH

TIMER 6~8minutes. 4. Set the CYCLE

SELECTOR KNOB

to DRAIN .

inner lid

safety cover

After rinsing you can select this

course for more effective rinse

(Don't select only this course

for rinse.) Load the laundry

evenly into the spin basket.

Supply water for about 1minute.

Adjust the water flow to prevent

overflow from the wash tub.

After stopping water

supply, cover the

laundry with safety cover

and close the inner lid.

Close the spin dryer

lid.

Set the SPIN DRY

TIMER 2~3 minutes.

(Without pump) (with pump)

Adjust water pressure to ensure

that the amount of water supplied

does not exceed that water drained.

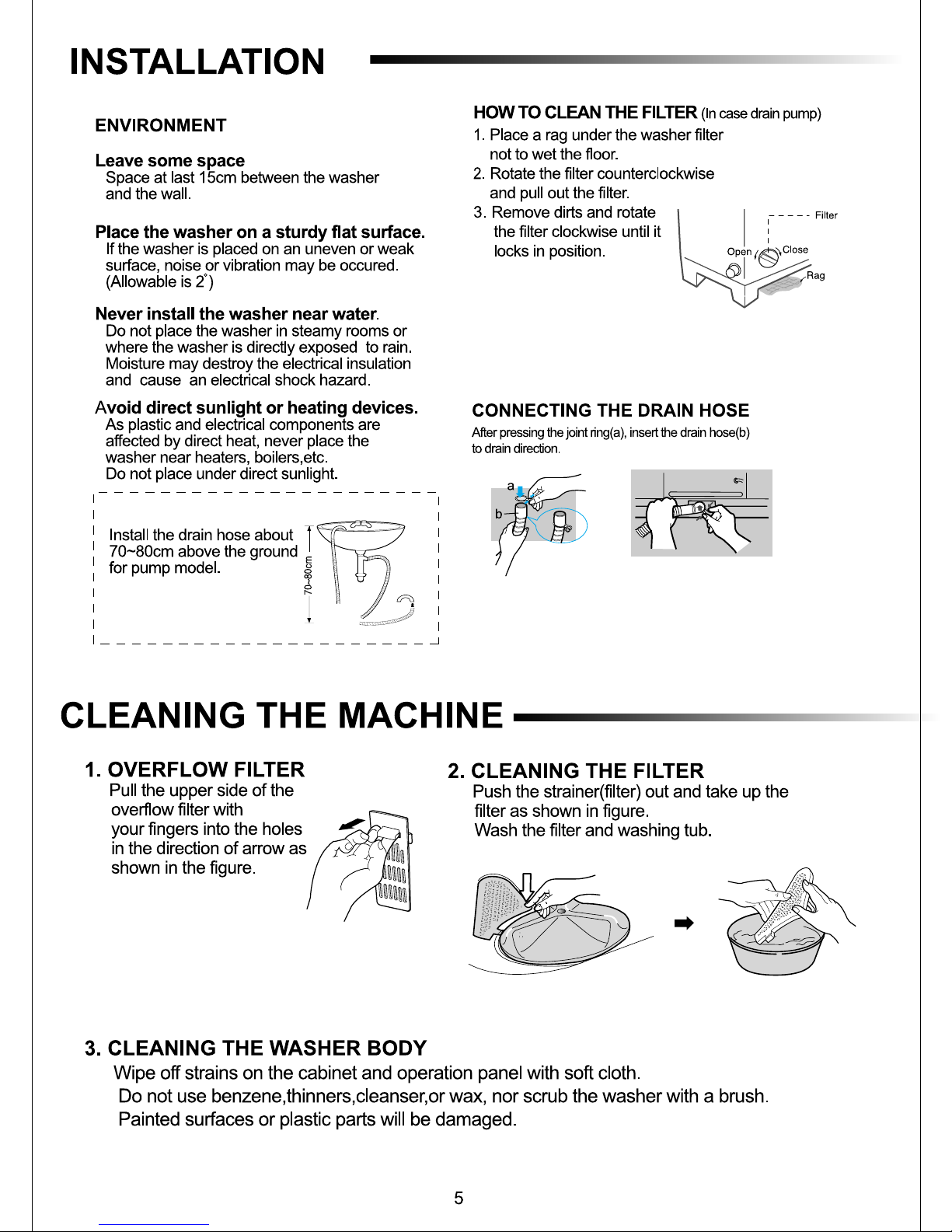

CONNECTING THE DRAIN HOSE

INSTALLATION

Leave some space

Space at last 15cm between the washer

and the wall.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak

surface, noise or vibration may be occured.

(Allowable is 2 )

Never install the washer near water.

Do not place the washer in steamy rooms or

where the washer is directly exposed to rain.

Moisture may destroy the electrical insulation

and cause an electrical shock hazard.

Avoid direct sunlight or heating devices.

As plastic and electrical components are

affected by direct heat, never place the

washer near heaters, boilers,etc.

Do not place under direct sunlight.

CLEANING THE MACHINE

ENVIRONMENT

1. OVERFLOW FILTER

Pull the upper side of the

overflow filter with

your fingers into the holes

in the direction of arrow as

shown in the figure.

2. CLEANING THE FILTER

Push the strainer(filter) out and take up the

filter as shown in figure.

Wash the filter and washing tub.

3. CLEANING THE WASHER BODY

Wipe off strains on the cabinet and operation panel with soft cloth.

Do not use benzene,thinners,cleanser,or wax, nor scrub the washer with a brush.

Painted surfaces or plastic parts will be damaged.

Place a rag under the washer filter

not to wet the floor.

Rotate the filter counterclockwise

and pull out the filter.

3. Remove dirts and rotate

the filter clockwise until it

locks in position.

HOW TO CLEAN THE FILTER (In case drain pump)

Install the drain hose about

70~80cm above the ground

for pump model.

After pressing the joint ring(a), insert the drain hose(b)

to drain direction.

1. Disassemble a screws from the spin dryer hatch.

2. The spin dryer hatch is fixed to the brim by the concave

and convex parts at two places. Expand the concave

and convex parts, and pull up the spin

dryer hatch to remove it.

3. Remove the clothing

4. Close the spin dryer hatch.

Push in hatch firmly until

the catch at the front is

engaged securely.

TROUBLE

The washer

does not work.

Clothes will

not move freely.

Incomplete

spinning

TROUBLE

Incomplete

draining

The spin dryer

basket will not

run.

CHECK POINT

Check that the power cord is

connected to a power outlet well.

Power stoppage?

Is the laundry overloaded?

Are the laundry arranged evenly?

LAUNDRY GUIDE

MAINTENANCE

TROUBLE SHOOTING

SPIN DRY TIME

DETERGENT

WHEN YOU LOAD THE LAUNDRY INTO

THE SPIN BASKET.

Press the laundry evenly and put the safety

cover into the spin basket drum as shown in

the figure.

TIME

1min.

1~2min.

3~5min.

5min.

TYPE OF LAUNDRY

Thin(synthetic fiber)

wool

cotton

thick(cotton)

CHECK POINT

Is the filter clogged

with lint?

Is the spin dryer lid closed

completely?

Are laundry(socks,etc.)falling

out of the spin dryer basket and

clinging to the axle?

See To pick out...

on page 6.

AMOUNT OF

DETERGENT

37 g

45 g

54 g

WATER

LEVEL

Low (37l)

Mid (45l)

High (54l)

The amount of detergent is average.

Follow the instruction detergent printed

on the package for amount of detergent.

Choose the amount of detergent

depending on the fabric type.

TO PICK OUT THE CLOTHING WHICH HAS

FALLEN BETWEEN THE BASKET AND TUB.

For safty,pull the power supply plug out of the socket.

WASHING

SELECTION

NORMAL

SOFT

WASHING TIME

10 to15minutes

8 to10minutes

7minutes

2 to 5minutes

KINDS OF CLOTHING

Extremely solid heavy fabric

Linen,cotton,etc.

Ordinary clothes

(underwear,etc)

Slightly solied synthetic

fiber

100%wool,mixed wool knitting,

thin synthetic fiber with tags

indicating hand washing

WASHING TIME

screw



IF YOU NEED HELP.

Do not hesitate to call your local samsung service center.

They will be willing to help you.

Be sure to give them your name,address,telephone number and the purpose of the call.

SPECIFICATION

DIMENSIONS (W x D x H)mm

WATER PRESSURE

WEIGHT

EXTRACTION EFFICIENCY

STANDARD QUANTITY OF WATER

NOMAL CAPACITY

MOTOR INPUT

MOTOR MAX INPUT

RATING TIME

0.05~0.78 MPa

0.5 ~ 8.0 kg.f/cm

With out pump

With pump

792 x 465 x 951

29 kg

31 kg

50 %

54l

Washing : 6.0kg / Spinning 6.0kg

Washing 330W / Spinning 160W

480W

Washing 1Hour / Spinning 15minutes

Autres manuels Samsung Rondelle

Samsung

Samsung WM1255AGS/XEN Manuel utilisateur

Samsung

Samsung WF8624AH Manuel utilisateur

Samsung

Samsung WF419AAU/XAA Manuel utilisateur

Samsung

Samsung WW95H7410E Series Manuel utilisateur

Samsung

Samsung WD75K6 Series Manuel utilisateur

Samsung

Samsung WW8 Series Manuel utilisateur

Samsung

Samsung WF17T6000 Series Manuel utilisateur

Samsung

Samsung WA166DRHD Series Manuel utilisateur

Samsung

Samsung WD19N8710K Series Manuel utilisateur

Samsung

Samsung WF45H6100 Mode d'emploi

Samsung

Samsung WF702W2 Series Manuel utilisateur

Samsung

Samsung WA85H4000H Manuel utilisateur

Samsung

Samsung WW71T301MWW/LE Manuel utilisateur

Samsung

Samsung WW7 TA Series Manuel utilisateur

Samsung

Samsung WA50F9A6D series Manuel utilisateur

Samsung

Samsung WF702U2BB Series Manuel utilisateur

Samsung

Samsung WA80G5 Manuel utilisateur

Samsung

Samsung W/V/S/C/R WF7602NA Manuel utilisateur

Samsung

Samsung WA10RA Manuel utilisateur

Samsung

Samsung WF21T6300 Series Manuel utilisateur

Samsung

Samsung WA70H4200S Series Manuel utilisateur

Samsung

Samsung WW90K6 Series Manuel utilisateur

Samsung

Samsung WW9 Series Manuel utilisateur

Samsung

Samsung WF8604FF(A/C/D/F/G/H/R/S/T/V/W/Z) Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
