Samsung WF433BTGJWR/A1 Manuel

WASHING MACHINE

Technical Information

Code No. : DC68-03152C_EN

• Due to possibility of personal injury or property damage, always contact an authorized

technician for servicing or repair of this unit.

• Refer to Service Manual for detail installation, operating, testing, troubleshooting, and

disassembly instructions.

Model: WF433B*GJ**

All safety information must be followed as provided in Service Manual.

CAUTION

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

(Techsheet)WF433GJ-03152C_EN_20120621.indd 1 2012-06-21 �� 12:12:38

ALIGNMENT AND ADJUSTMENTS

GENERAL ERROR FUNCTION

Error Code

(Diagnostic Code

Error Image)

Description Corrective Action

1 dc An unbalanced load that prevents

your washer from spinning.

Redistribute the load, press the Start/

Pause button.

2 dS The door is open when the washer is

running.

Close the door tightly and restart

the cycle. If the code reappears, call

customer service.

3 FL Your washer failed to lock the door.

Make sure the door is rmly closed.

Press the Power button to turn o

your washer, then turn it on again.

If the code reappears, call customer

service.

4 Hr A water temperature control problem.

(Heater control problem) Call customer service.

5 LE Your washer has tried to ll, but has

not reached the proper water level. Call customer service.

6 LO The door will not unlock.

Make sure the door is rmly closed.

Press the Power button to turn o

your washer, then turn it on again.

If the code reappears, call customer

service.

7 nd

Your washer is not draining. This can

also mean that the unit senses a small

clog while draining.

1. Turn o the unit for 10 seconds and

then turn it on again.

2. Select the Spin Only cycle.

3. Press the Start/Pause to drain the

water.

If it still does not drain, call for service.

8 nF

Your washer has tried to ll but was

unsuccessful.

Make sure the water faucets are open

all the way. Check for bent hoses.

Check the inlet screens on the hoses.

If you are using a Flood Safety Device,

please remove the device and connect

the water hoses directly to the unit.

Check if the hot water supply hose is

connected.

You must connect the hot water supply

hose because hot water is supplied by

the Auto Temperature Control (A.T.C.)

function if the temperature of the cold

water is lower than 59°F.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

(Techsheet)WF433GJ-03152C_EN_20120621.indd 2 2012-06-21 �� 12:12:38

ALIGNMENT AND ADJUSTMENTS

Error Code

(Diagnostic Code

Error Image)

Description Corrective Action

9 nF1

The hot/cold water hose connection is not

correct.

Please connect the hot/cold water

hose connection correctly.

10 OE A fault is detected in the water level

sensor. Call customer service.

11 1E The Water Level sensor is not working

properly. Call customer service.

12 E2 A jammed key. Call customer service.

13 tE A temperature sensor problem.

Press the Power button to turn o

your washer, then turn it on again.

If the code reappears, call customer

service.

14 3E A motor problem. Restart the cycle. If the code

reappears, call customer service.

15 2E High/Low voltage detected. Restart the cycle. If the code

reappears, call customer service.

16 AE A Communication error between the

SUB(Sensor) PBA and the MAIN PBA Call customer service.

17 8E A MEMS sensor problem. Call customer service.

SF1

SF2

SF3

A system error Call customer service.

19 SUdS

Too many suds are detected during the wash session. The unit is put on hold

until the amount of suds have been reduced. The unit will then go back to

operating. When it nishes washing, the “End” and “SUdS” codes will blink in

turn.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

(Techsheet)WF433GJ-03152C_EN_20120621.indd 3 2012-06-21 �� 12:12:38

ALIGNMENT AND ADJUSTMENTS

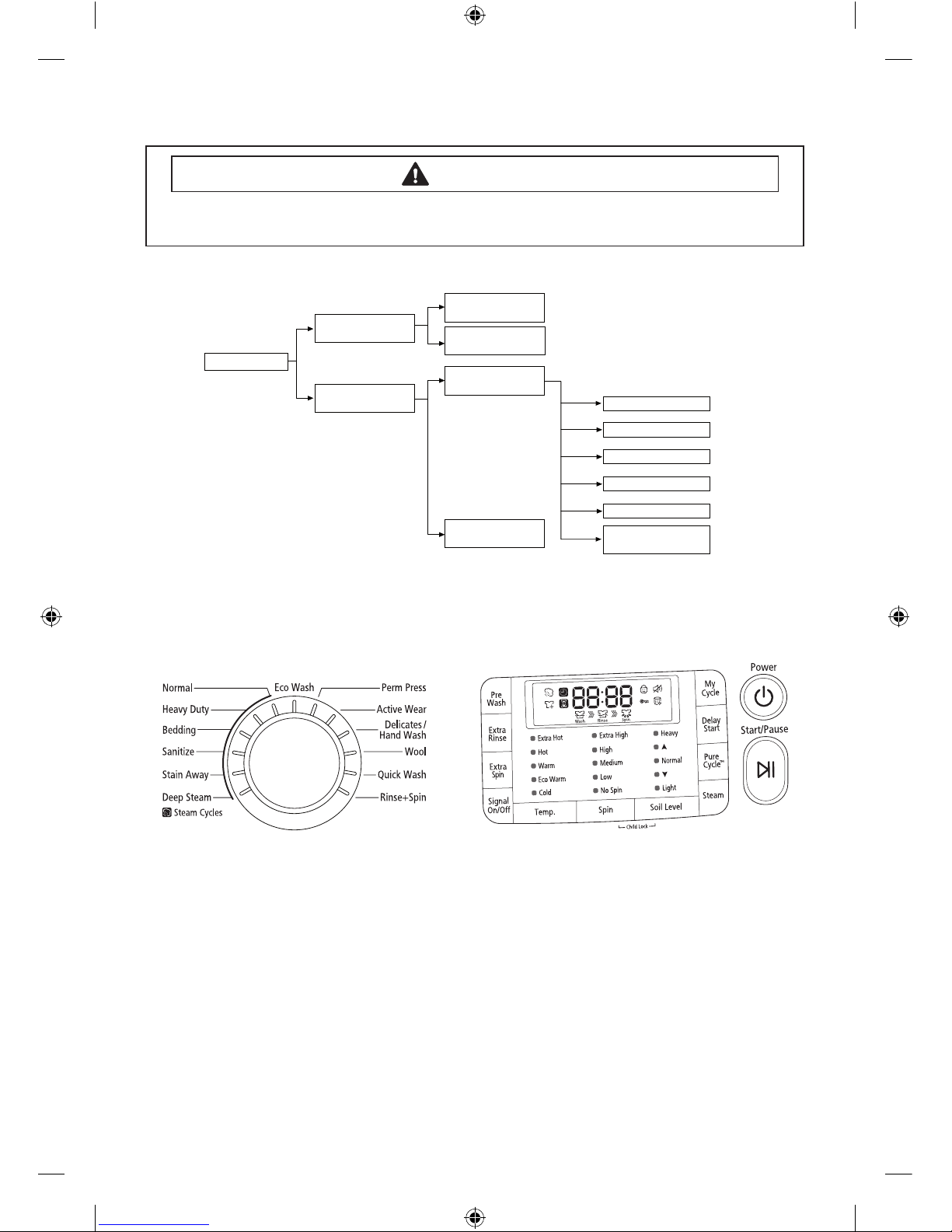

TEST MODE

Test Mode:

Each Test Mode for the GRACE S is as follows in the coming pages.

Quick Test Mode

How to Enter:

- Plug in the unit.

- Press Soil Level Key, Spin Key and Power Key at the same Time.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Special Test Mode

Power O State Quick Test Mode

Service Mode

Quick Spin Test Mode

Cycle Count Check Mode

S/W Version Check Mode

Fast Time Down Test Mode

Board Input Test Mode

Diagnostic Code

CheckMode

Demo Mode Wash

EEPROM Clear

Mode

Power On State

(Normal User Mode)

Special Test Mode

Power O State

Quick Test Mode

Service Mode

Demo Mode

Quick Spin Test Mode

Cycle Count Check Mode

S/W Version Check Mode

Fast Time Down Test Mode

Board Input Test Mode

Diagnostic Code

CheckMode

EEPROM Clear

Mode

Power On State

(Normal User Mode)

(Techsheet)WF433GJ-03152C_EN_20120621.indd 4 2012-06-21 �� 12:12:38

ALIGNMENT AND ADJUSTMENTS

1. All LED’s light up and it sends out Beep Sound when it enters into the Quick Test Mode.

(Including 7-Segment)

2 Displays software version for a sec and Clear EEprom. (Ex. If S/W Version is 49, 7-Segment will

display Y349)

3. When the version is displayed, turn the Jog-Dial. Press the following keys to test the various

components.

- Temp. Key : Water Valve Test

- Spin Key : Door Lock/Unlock Test

- Soil Level Key : Water Heater Test

- Steam : Drain Pump / Direct Valve Test

Service Mode

Denition of Service Mode:

- Service Mode enables service technicians to verify the operation of the washing machine and

do troubleshooting.

- Service Mode can be entered during all washing cycle without interrupting the cycle except

some of test modes.

- Various tests can be done with Service Mode. So, troubleshooting can be done based on the

resulting diagnostic codes.

How to Enter:

- To enter the Service Mode, press the Signal and Extra Rinse Keys for 3 seconds or until the unit

sends out beeping sounds.

Quick Test Mode:

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Quick Test Mode

S/W Version display

All LEDs On for 1 sec

(include 7-Segment)

All Devices Test using keys

Temp. Key Soil Level Key SteamSpin Key

(Techsheet)WF433GJ-03152C_EN_20120621.indd 5 2012-06-21 �� 12:12:39

ALIGNMENT AND ADJUSTMENTS

Service Mode:

1. The washer must be on to go into the Service Mode.

2. The motor speed will be displayed when started (It displays 0 when the motor does not spin).

3. The present state of the machine will not be changed.

(i.e., the current cycle in progress will not be interrupted and only the display will change)

4. Following Instructions To exit Service Mode.

Press Signal and Extra Rinse Keys for 3 second again, or Power Key.If no key is operated during

Service Mode for 5 minutes, the machine will return to normal user mode.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Service Mode

Signal + Extra Rinse

3 sec

Service Mode is canceled if no key is pressed for 5 minutes

before the washer operation begins. However, this is not true

when the washer operation has already started.

Power On State

(Normal User Mode) Service Mode

(Techsheet)WF433GJ-03152C_EN_20120621.indd 6 2012-06-21 �� 12:12:39

ALIGNMENT AND ADJUSTMENTS

Quick Spin Test Mode

Denition of Quick Spin Test Mode:

- Quick Spin Test Mode is to do Spin Check. (High RPM)

How to Enter:

- During Service Mode, press the Delay Start + Rinse Add Keys for 3 seconds to enter Quick Spin

Test Mode.

- Cannot enter once the washing cycle has started.

Quick Spin Test Mode:

As it enters into the Quick Spin Test Mode, it starts spinning and reaches to its maximum RPM.

Once the Spin speed reaches the maximum RPM, the speed drops immediately.

To hold Quick Spin Test Mode (entering Hold Speed Mode), press the Start/Pause button. If the

Start/Pause button is pressed during Quick Spin Test Mode, it will stop accelerating and hold its

spinning speed for 10 minutes before going back to Quick Spin Test Mode.

Also, to cancel the hold and allow Quick Spin Test Mode to continue, press the SPIN Key If you

PressSPIN key when the washing machine is not in Hold Speed Mode, Quick Spin Mode is exited

and Service Mode is restored.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Delay Start + Rinse Add

for 3sec or after 10 minutes

Delay Start + Rinse Add

3 sec

While a cycle is not running

While it is not in Hold Speed Mode

Service Mode

Start/PauseQuick Spin Test Mode Hold Speed Mode

Delay Start + Rinse Add

(Techsheet)WF433GJ-03152C_EN_20120621.indd 7 2012-06-21 �� 12:12:39

ALIGNMENT AND ADJUSTMENTS

Cycle Count Check Mode

Denition of Cycle Count Check Mode:

- Cycle Count Check Mode is to tally up the number of washings.

How to Enter:

- To enter the Cycle Count Check Mode, press the Signal Key during Service Mode.

Cycle Count Check Mode:

1. Activate the Service Mode in advance.

2. When the Signal key is pressed, the total number of washings will light up and a signal LED will

glow.

3. The maximum number of cycles will be 9999.

The counter will roll over to 0 and start counting again after 9999.

4. The counting will be carried out at the end of the normal cycle.

(For normal and Continuous Run cycles, the count is carried out at the end of the cycles.

5. To exit the Cycle Count Check Mode, press the “Signal” key again.

S/W Version Check Mode

Denition of S/W Version Check Mode:

- S/W Version Check Mode is to bring up S/W Version information.

How to Enter:

- To enter the S/W Version Check Mode, press the Soil Level Key during Service Mode.

S/W Version Check Mode:

1. Activate the Service Mode in advance.

2. Press the Soil Level Key to bring up its software Version

EX) Generate dE49 at Version 49 (dE is Micom code, 49 is it’s software version)

3. To exit the S/W Version Check Mode, press the Soil Level S/W once again.

Then, it returns to the Service Mode with motor RPM illuminating.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Signal

Service Mode Cycle Count

Soil Level

Service Mode S/W Version Check

Mode

(Techsheet)WF433GJ-03152C_EN_20120621.indd 8 2012-06-21 �� 12:12:40

ALIGNMENT AND ADJUSTMENTS

Fast Time Down Test Mode

Denition of Fast Time Down Test Mode:

- Fast Time Down Test Mode is to forward the program to the next cycle stage.

How to Enter:

- To enter the Fast Time Down Test Mode, press the Temp. key during Service Mode.

Fast Time Down Test Mode:

1. Activate the Service Mode in advance.

2. To forward the program to the next cycle stage, press the Temp. key.

Each stage is located at key points of a complete cycle as follows:

- End of Each Fill (Beginning of Wash or Rinse Tumble Session)

Caution: Check if the current water level is higher than the Reset water level and then perform

the Fast time down test.

- Beginning of Drain Session

- Beginning of Spin Session (Here, it checks the water level. So, if it is over the reset level, it carries

out draining before the spinning.)

- Beginning of Fill Session

- Beginning of Bleach Fill

- Beginning of Fabric Softener Fill

- Every 3 minutes during Wash and Rinse Tumble Session

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Temp.

Service Mode Fast Time Down

Test Mode

(Techsheet)WF433GJ-03152C_EN_20120621.indd 9 2012-06-21 �� 12:12:40

ALIGNMENT AND ADJUSTMENTS

Board Input Test Mode

Denition of Board Input Test Mode:

- Board Input Test Mode is to displays a specied Input after a key press.

How to Enter:

- To enter the Fast Time Down Test Mode, press the Temp. key During Service Mode.

Board Input Test Mode:

- If the product enters Board Input Test Mode, ‘in’ is displayed.

- The information that is displayed in the Board Input Test is as follows.

1. The Water Temperature in Celsius.

2. The Water Temperature in Fahrenheit.

3. The door status (OP if open, CL if closed).

4. The Door Lock Switch status (UL if unlocked, LO if locked).

5. The Water Level Pulse

- You can change each information using the Cycle Selector.

To avoid risk of electrical shock, personal injury or death; disconnect power to washer

before servicing, unless testing requires power.

WARNING

Extra Rinse

Service Mode Board Input Test

(Techsheet)WF433GJ-03152C_EN_20120621.indd 10 2012-06-21 �� 12:12:40

Autres manuels pour WF433BTGJWR/A1

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Rondelle

Samsung

Samsung WD702U4BK Series Manuel utilisateur

Samsung

Samsung WA54R7600AC Manuel utilisateur

Samsung

Samsung WA50M7450A series Manuel utilisateur

Samsung

Samsung WA21M8700 Series Manuel utilisateur

Samsung

Samsung WF8802 Manuel utilisateur

Samsung

Samsung WW9 K4 Series Manuel utilisateur

Samsung

Samsung WD22T6300 Series Manuel utilisateur

Samsung

Samsung WA45K7600A series Manuel utilisateur

Samsung

Samsung WF45H6100 Mode d'emploi

Samsung

Samsung WW8 T Series Manuel utilisateur

Samsung

Samsung WF361 Series Manuel utilisateur

Samsung

Samsung WA19J3000A Series Manuel utilisateur

Samsung

Samsung WW5000 Manuel utilisateur

Samsung

Samsung WD15H7 Series Manuel utilisateur

Samsung

Samsung WA52M8650AV Manuel utilisateur

Samsung

Samsung WW70J4 Series Manuel utilisateur

Samsung

Samsung WF8604 Manuel utilisateur

Samsung

Samsung WA10F5S4 Manuel utilisateur

Samsung

Samsung WA45H7200A Manuel

Samsung

Samsung WF652U2SH Series Manuel utilisateur

Samsung

Samsung WD10T534ABW Manuel utilisateur

Samsung

Samsung WF338 XAA Series Manuel utilisateur

Samsung

Samsung WD7704C8C Manuel utilisateur

Samsung

Samsung WF455ARG SERIES Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
