Samsung WB24K2 Manuel utilisateur
ٛ
ERVICE
WASHING MACHINE CONTENTS
WASHING MACHINE
1. Precautions
2. Specifications
3. Features
4. Operating Instructions
5. Schematic and Circuit Diagrams
6. Disassembly and Reassembly
7. Troubleshooting
8. Exploded Views
Manual
1
When performing trouble - shooting and part replacement during servicing note the following safety precautions.
1-1 Safety Precautions
1-2 Servicing Precautions
1. Precautions
Samsung Electronics Co., LTD.
All right reserved.
The information in this manual is subject to change without notice.
Copyright
1-1-1 Use Genuine Parts
The components of the washing machine have
safety -features such as non - combustibility and
voltage withstanding. Therefore, always use the
same part as used when replacing parts. In
particular, be sure to use only designated parts in
case of major safety parts identified by the making.
1-1-2 Grounding
Connect the grounding wire to the shell plate, and
bury it under at least 25cm of earth ; alternatively,
connect the ground wire to the appropriate pin on a
properly grounded power receptacle.
•Never ground it to the telephone line, lightning rod,
or gas pipe.
1-2-1 Observe warnings
Be sure to follow special warnings and precautions
that are described on part labels and in the owner's
manual.
1-2-2 Special Precautions for Parts Assembly
and wiring
When assembling parts that use safety - insulation
material (such as tube and tape), or when installing
internal wiring, be sure to restore all parts and wiring
to their original positions.
Take special care to avoid contact with sharp edges.
1-2-3 Safety Checks after Servicing
After servicing, check to see that the screws, parts,
and wiring are restored to their original positions,
and check the insulation between the external
metals and the socket plug. In addition, place the
washing machine in a level position (less than 1° of
grade) to prevent vibration and noise during
operations.
1-2-4 Insulation Check
Pull out the plug from the power receptacle, pour
water into the spin tub, and then set the timer.
Check to see that the insulation resistance
between the terminals of the plug and the
exposed metal is greater, than 1 M
Ω
.
Note :
When it is impossible to perform the
insulation check with a 500V insulation
resistance tester, use other testers for
inspection.
2
* Caution during service
1-2-5 Before Repair
a) In case of laying the washing machine, do not lay
it down to the front(round) side. It may cause the
deformation of round part not to match with top-park
and round part together.
b) In case of removing top-cover from out case, take
care that wire bundle down to bottom may not touch
the sharp edge and may not be interrupted from tention.
c) When disassembling of top-cover, take care not to
be deformed of Check-S/W
d) In case of moving the washing machine over the rough
floor, do not pull it as possible. (Otherwise, runner
packing may come out and excessive vibration may
occur during spinning.)
1-2-6 During Repair
a) In case of replacing suspension-bar assembly,
obviously check the position of springs and do
not mix them up.(Otherwise, excessive vibration
can occur during spinning.)
b) The installation of a deformed check-S/W rod will
result in malfunction of the safety switch during
severe vibration, thus causing an unbalanced error.
Shape
CASE-D BAR-S SPRING COLLOR-S
Front White White Yellow Red
Rear White Yellow Yellow Ntr
Checker-S/W
Front
Rear
3

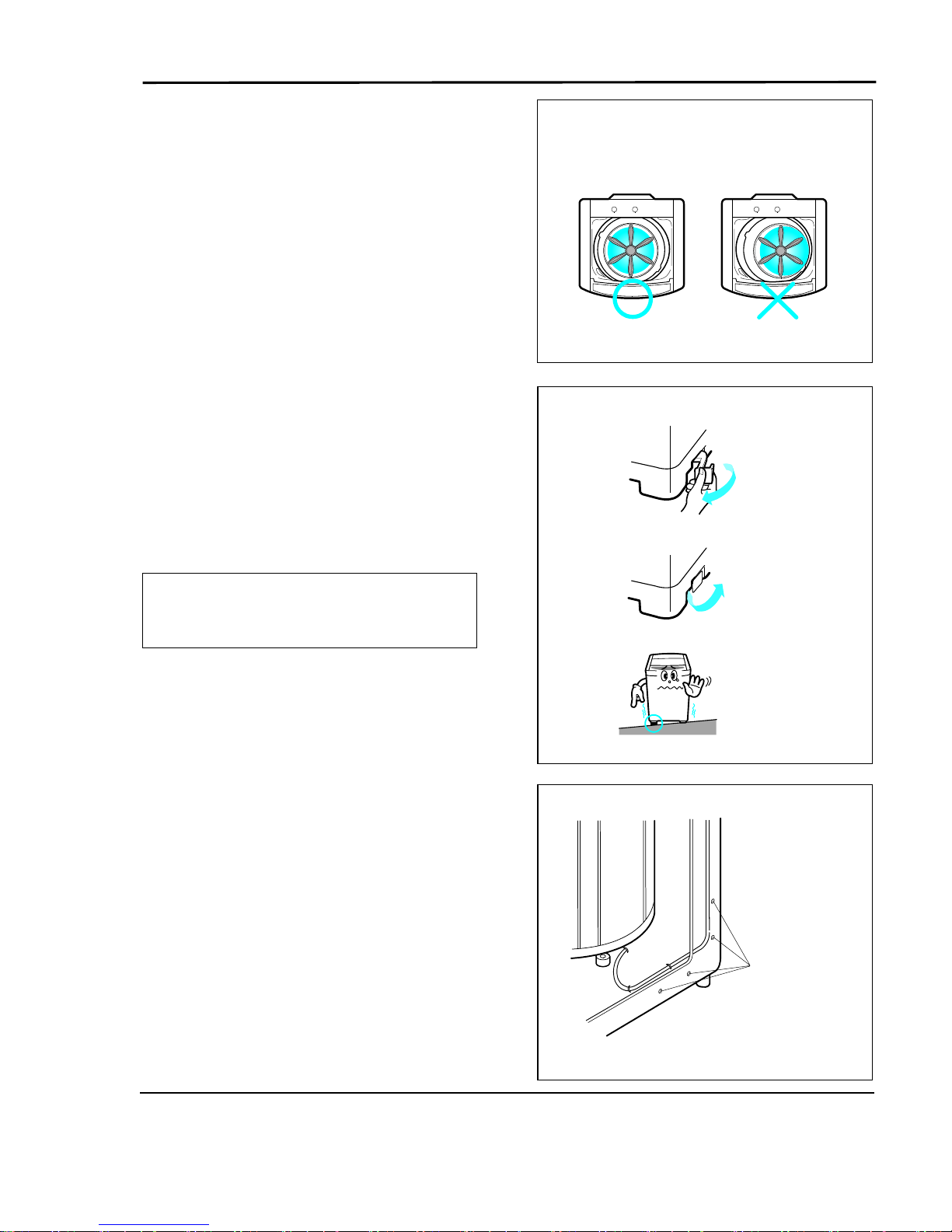

1-2-7 After Repair
a) Confirm the level of washing machine. When
leveling,left&rightsidelevelingshouldbe
performed after front side leveling. (In case that
the machine is not leveled, excessive vibration
may occur.)
b) Level the machine with leveling legs.
◎Pull down the handles of leveling legs in
front side,
◎level the machine
◎after leveling, push back the handles of
leveling legs.
Caution
Do not kick or step on the handles of the
leveling legs.
c) Install the washer on sturdy flat surface.
d) When the lower wiring is arranged, it should be
arranged not to be tensioned in case that the
tub assembly is biased to one side.(When the
tension is not considered, that may cause
vibration and noise.)
e) The wiring and connector should be kept dry.
(Otherwose, that may cause fire and short circuit.)
Leveled Un leveled
Handle of
leveling leg
Pull
Push
WIRE HOLDER
Check the level with position of spin
basket on opening the door.
