Contents

PREPARATION

Safety information 3

INSTALLATION

Installing a Clean Station 13

OPERATION

Charging the Jet Bot 14

Using the Jet Bot 17

Basic use 17

Operation status on the LED Status Indicator

Cleaning Functions 19

Additional functions 20

Attaching Boundary Markers 21

Parts diagram 22

Jet Bot 22

Clean Station 22

MAINTENANCE

Cleaning the Jet Bot 23

Emptying and cleaning the Dustbin 23

Cleaning the brush 24

Cleaning the Sensor Window 25

Cleaning the Driving Wheel 25

Cleaning the Spin Brush 26

Cleaning the Clean Station 27

Replacing the Dust Bag 27

Cleaning the Fine dust Filter 27

APPENDIX

SmartThings App 28

Setting up the wireless router 28

Downloading the SmartThings App 29

Setting up a SAMSUNG account 29

Registering a device to the SmartThings App

Software Update 30

Functions of the SmartThings App 31

Notes and cautions 33

Installation 33

Charging 33

Using 34

Cleaning and maintenance 35

Battery usage 36

Corrective measures before reporting a

problem 37

Troubleshooting 38

Open Source Announcement 43

How to reset to the factory default 43

Product Specication 44

English

1_VR8500_EN_00858E-00_ST.indd 2 2021-11-01 오후 11:01:59

PREPARATION

Safety information

• Before operating the appliance, please read this manual thoroughly and

retain it for your reference.

• Because the following operating instructions cover various models, the

characteristics of your vacuum cleaner may differ slightly from those

described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

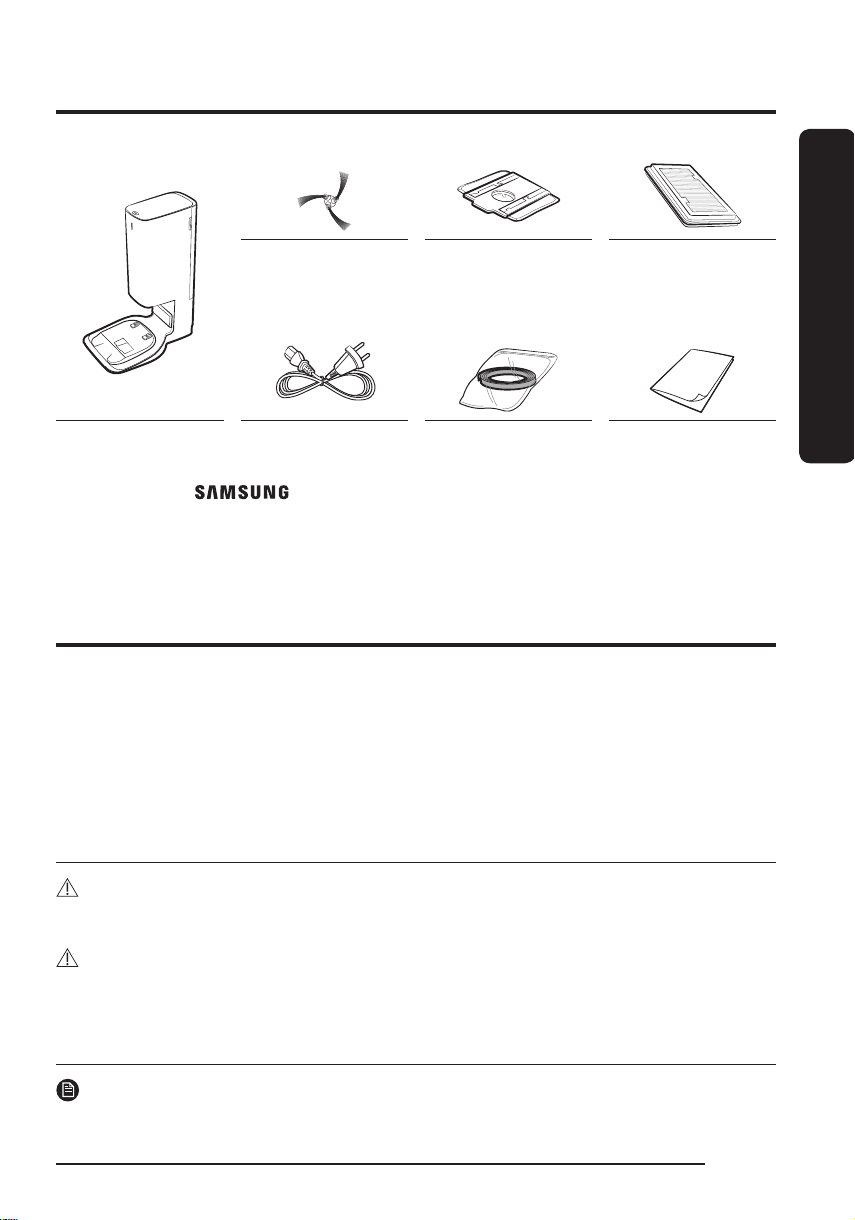

Accessories

Accessories may differ depending on the models.

Spin Brush: 2units

(Inside the product:

1unit, Spare: 1unit)

Dust Bag: 2units

(Inside the product:

1unit, Spare: 1unit)

Pre-motor Filter:

2units

(Inside the product:

1unit, Spare: 1unit)

Clean Station Power cord Boundary Markers User Manual

 If you want to purchase an additional Dust Bag, check the model name (VCA-RDB95) and

SAMSUNG logo ( ) rst, then contact your nearest SAMSUNG Electronics retailer or

SAMSUNG service center.

English 3

1_VR8500_EN_00858E-00_ST.indd 3 2021-11-01 오후 11:02:00

PREPARATION

Failure to meet these requirements could cause damage to the internal parts

of the vacuum and void your warranty.

General

• Do not allow to be used as a toy. Close attention is necessary when used

by or near children.

• Use only as described in this manual.

• Do not operate the Jet Bot or the Clean Station if it has been damaged in

any way.

• If the vacuum cleaner is not working as it should, has been dropped,

damaged, left outdoors, or dropped in water, return it to a customer care

center.

• Do not handle the Clean Station or the Jet Bot if your hands are wet.

• Use only on dry, indoor surfaces.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should not clean or perform maintenance on the vacuum without

adult supervision.

• Move the cords of other appliances so they are not in the area that is to

be cleaned.

• Do not operate the vacuum in a room where an infant or child is sleeping.

• Do not operate the vacuum in an area where there are lit candles or

fragile objects on the oor.

• Do not operate the vacuum in a room that has lit candles on furniture that

the vacuum may accidentally hit or bump into.

• Do not allow children to sit on the vacuum.

• Do not use the vacuum on a wet surface.

• If the supply cord is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualied person in order to avoid a hazard.

English

1_VR8500_EN_00858E-00_ST.indd 4 2021-11-01 오후 11:02:00

PREPARATION

Clean Station

• Do not modify the polarized plug to t a non-polarized outlet or extension

cord.

• Do not use outdoors or on wet surfaces.

• Unplug the Clean Station from the outlet when not in use and before

servicing.

• Use only the Clean Station supplied by the manufacturer to recharge.

• Do not use with a damaged cord or a plug or a loose power outlet.

• Do not pull or carry by the cord, use the cord as a handle, close the door

on the cord, or pull the cord around sharp edges or corners. Keep the cord

away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying

capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the

cord.

• Do not mutilate or incinerate batteries as they will explode at high

temperatures.

• Do not attempt to open the Clean Station. Repairs should only be carried

out by a qualied customer care center.

• Do not expose the Clean Station to high temperatures or allow moisture or

humidity of any kind to come into contact with the Clean Station.

• Do not charge the non-rechargeable batteries with the Clean Station.

English 5

1_VR8500_EN_00858E-00_ST.indd 5 2021-11-01 오후 11:02:00

PREPARATION

Jet Bot

• Do not pick up hard or sharp objects such as glass, nails, screws, coins,

and etc.

• Do not use without a lter in place. When servicing the unit, never put

ngers or other objects into the fan chamber in case the unit accidentally

turns on.

• Do not put any objects into openings. Do not use with any openings

blocked; keep openings free of dust, lint, hair, and anything that may

reduce air ow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner,

etc.).

• Do not pick up anything that is burning or smoking, such as cigarettes,

matches, or hot ashes.

• Do not use to pick up ammable or combustible liquids such as gasoline

or use in areas where they may be present.

• Also do not use in:

– Locations with candles or desk lamps on the oor.

– Locations with unattended res (re or embers).

– Locations with distilled alcohol, thinner, ashtrays with burning

cigarettes, etc.

• Do not use the Jet Bot in an enclosed space lled with vapors given off by

oil based paint, paint thinner, moth proong substances, ammable dust,

or other explosive or toxic vapors.

• Leaks from battery cells can occur under extreme usage or temperature

conditions. If the liquid gets on the skin, wash quickly with water. If the

liquid gets into the eyes, ush them immediately with clean water for a

minimum of 10 minutes. Seek medical attention.

English

1_VR8500_EN_00858E-00_ST.indd 6 2021-11-01 오후 11:02:00

PREPARATION

Power related

WARNING

• Please prevent any risk of electric shock or re.

– Do not damage the power cord.

– Do not pull the power cord too hard or touch the power plug with wet

hands.

– Do not use a power source other than rated volatge of the charger and

also do not use a multi-outlet to supply power to a number of devices at

the same time. (Do not leave the cord carelessly on the oor.)

– Do not use a damaged power plug, a power cord or a loose power outlet.

• Clean dust or any foreign matter on the pin and the contact part of the

power plug.

– There is a risk of electric shock or malfunction.

Before use

WARNING

• Do not use the Jet Bot near a heater or combustible materials.

– Do not use the Jet Bot near re or ame such as a movable heater, a

candlelight, a desk lamp, a replace, etc. or in a place where combustible

materials such as gasoline, alcohol, thinner, etc. exist.

• Make sure there are no dangerous objects around the Jet Bot’s cleaning

area to prevent collision and unplug any electric heaters or fans.

– The Jet Bot can be damaged or malfunction.

• The Jet Bot is intended for household use therefore do not use it in an

attic, basement, storage, an industrial building, out of indoor space, places

with moisture (such as a bathroom, a laundry room), on the table or

shelves.

– The Jet Bot can be damaged or malfunction.

• Attach the Boundary Markers to a place where the Jet Bot may fall such

as a stair or a banister to prevent product damage and injury.

– Please keep the Cliff Sensor clean all the time for safety.

English 7

1_VR8500_EN_00858E-00_ST.indd 7 2021-11-01 오후 11:02:01

PREPARATION

• Be sure the Jet Bot does not suck in or touch any kind of liquids (water,

beverage, lth, etc.).

– The Jet Bot can be severely damaged and it may contaminate other

areas if the wheels pass through liquid.

• Do not spill any liquids on the Clean Station.

– There is a risk of re or electric shock.

• Do not use the Clean Station for anything other than its intended

purposes.

– There is a risk of re or severe damage to the Clean Station.

• Always keep the Cliff Sensor clean for your safety.

• As this wireless installation may cause radio interference, it cannot

provide a service related with human safety.

CAUTION

• Insert the Dustbin before using the Jet Bot.

• When installing the Clean Station, do not leave the cord carelessly on the

oor since the Jet Bot may get tangled by it.

• To clean all areas of your house, open all rooms and set the No-go Zones

with the SmartThings App or attach the Boundary Markers to the places

where the Jet Bot may get damaged such as a front door, a veranda, a

bathroom, and stairs for safety.

• Follow these recommendations for proper automatic recharging.

– Always turn on the power of the Clean Station.

– Install the Clean Station where the Jet Bot can easily nd.

– Do not leave any objects in front of the Clean Station.

• Do not use the Jet Bot on black colored oors.

– The Jet Bot may not be able to operate normally.

• Do not place any objects within 0.5 m of either side of the Clean Station

or within 1m of the front of the Clean Station.

• Make sure the Clean Station’s charging contact is not damaged or have

any foreign matter on it.

English

1_VR8500_EN_00858E-00_ST.indd 8 2021-11-01 오후 11:02:01

PREPARATION

• For the very low areas where the Jet Bot may get stuck, set the No-

go Zones with the SmartThings App or attach the Boundary Markers to

prevent the Jet Bot from getting in.

• Do not install the Clean Station in an area with a dark oor.

– If the oor around the Clean Station is dark, recharging is hindered.

• Move any obstacles that may disturb the Jet Bot’s movement (such as

children’s indoor swing or slides) before cleaning.

• Do not use the Jet Bot in a place which is narrower than its turning radius

0.5m or less.

• Before operating the Jet Bot, remove the objects which could break such

as glass, a frame, a mirror, and porcelain items so that the Jet Bot works

without interruption.

• If a brush or a brush cover is not assembled correctly, scratches may occur

on the oor, or product malfunction may occur.

• Use both hands to carry the product.

• Do not place the Clean Station in a place where people pass by frequently,

in entrance way or narrow passage.

– People may trip over it and be injured, or product damage may occur.

• Do not push the Clean Station.

English 9

1_VR8500_EN_00858E-00_ST.indd 9 2021-11-01 오후 11:02:01

PREPARATION

In use

WARNING

• If any abnormal sounds, smells or smoke come from the Jet Bot,

immediately shut off the power switch of the Jet Bot and contact a service

center.

CAUTION

• Using the Jet Bot on a thick carpet may damage both the Jet Bot and the

carpet.

– The Jet Bot cannot pass over a carpet with ber longer than 2 cm.

• Do not use the Jet Bot on tables or other high surfaces.

– There is a risk of damage if it falls.

• The Jet Bot may bump into chairs or desk legs, therefore move them away

for faster and efcient cleaning.

• When the Jet Bot is operating, do not lift it up or carry it to another area.

• Do not hold by Driving Wheels of the Jet Bot when carrying it to another

area.

• Do not put any objects on top of the Jet Bot since it may cause

malfunction of the LiDAR sensor or the Jet Bot.

• Remove any large papers or plastic bags immediately when using the Jet

Bot since they may block the intake.

• Do not lie down around the Jet Bot that is running.

– Your hair may be caught in the brush, resulting in physical injury.

• Do not allow children to play with the Jet Bot.

• Make sure hair, ngers, clothes do not get caught in a spin brush or

Driving Wheels.

• Do not allow children to sit on the Jet Bot and do not place an object on

the Jet Bot.

• Leave over 3 cm space from the inner doorstep placed in the entrance.

Otherwise, the robot vacuum can ride on it and go outside.

English

1_VR8500_EN_00858E-00_ST.indd 10 2021-11-01 오후 11:02:01

Autres manuels pour Jet Bot VR30T85 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Aspirateur

Samsung

Samsung POWERbot VR20J9250U Series Manuel utilisateur

Samsung

Samsung SR1AM70 Series Manuel utilisateur

Samsung

Samsung SC07F60 Series Manuel utilisateur

Samsung

Samsung SC8571 Manuel utilisateur

Samsung

Samsung Vacuum cleaner Manuel utilisateur

Samsung

Samsung SU33xx SERIES Manuel utilisateur

Samsung

Samsung Vacuum cleaner Manuel utilisateur

Samsung

Samsung VC-6313H Manuel utilisateur

Samsung

Samsung VC-7423 Series Mode d’emploi

Samsung

Samsung POWERbot SR1 M70 Series Manuel utilisateur

Samsung

Samsung SU3480 Manuel utilisateur

Samsung

Samsung SC4750 User Manual (Windows 7) Manuel utilisateur

Samsung

Samsung VC-8918V Manuel utilisateur

Samsung

Samsung VC-8926EN Manuel utilisateur

Samsung

Samsung DJ68-00321K Manuel utilisateur

Samsung

Samsung SS6AK60 Series Manuel utilisateur

Samsung

Samsung Vacuum cleaner Manuel utilisateur

Samsung

Samsung SC8790 Manuel utilisateur

Samsung

Samsung Jet Bot VR30T85 Series Manuel utilisateur

Samsung

Samsung SC88 series Manuel utilisateur

Samsung

Samsung VAS-2690R Manuel utilisateur

Samsung

Samsung VAC9013BP Manuel utilisateur

Samsung

Samsung VS20R90 Series Manuel utilisateur

Samsung

Samsung SR8930 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
