Samsung SP-43H3HT Manuel d'instructions

English - 1

Connecting to the External Input/Outputs

➢

EXT1 is used for the equipment with an RGB output, such as video game devices or video disc players.

Rear of the TV

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

①

This end can be fitted with:

◆A SCART connector

◆An S-Video connector and two audio RCA connectors (L+R); EXT 2

◆Three RCA connectors (VIDEO + AUDIO-L and R)

②

If you have a second VCR and wish to copy cassette tape, connect the

source VCR to EXT1 and the target VCR to EXT2 so that you can redirect

the signal from EXT1 to EXT2.

③

If you have a decoder, connect the decoder to the VCR and the VCR to

the television.

➃

When you wish to record a programme, connect the receiver to EXT1 and

the VCR to EXT2 so that you can redirect the signal from EXT1 to EXT2.

①

DVD

②

➃

③

☛Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 71

English -2

Connecting to the RCA Input

➢The RCA (VIDEO + AUDIO-L and R) connectors are used for the equipment, such as camcorders,

video disc players, and some video game devices.

Side of the TV

Camcorder

Video game device

Video disc player

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 72

English - 3

Connecting to the S-Video Input

➢The S-VIDEO INPUT and RCA (AUDIO-L and R) connectors are used for equipment with an S-Video

output, such as a camcorder or VCR.

Camcorder

VCR

①

To play pictures and sound, both the S-VIDEO INPUT and RCA connectors must be used.

and

①

Side of the TV

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 73

English - 4

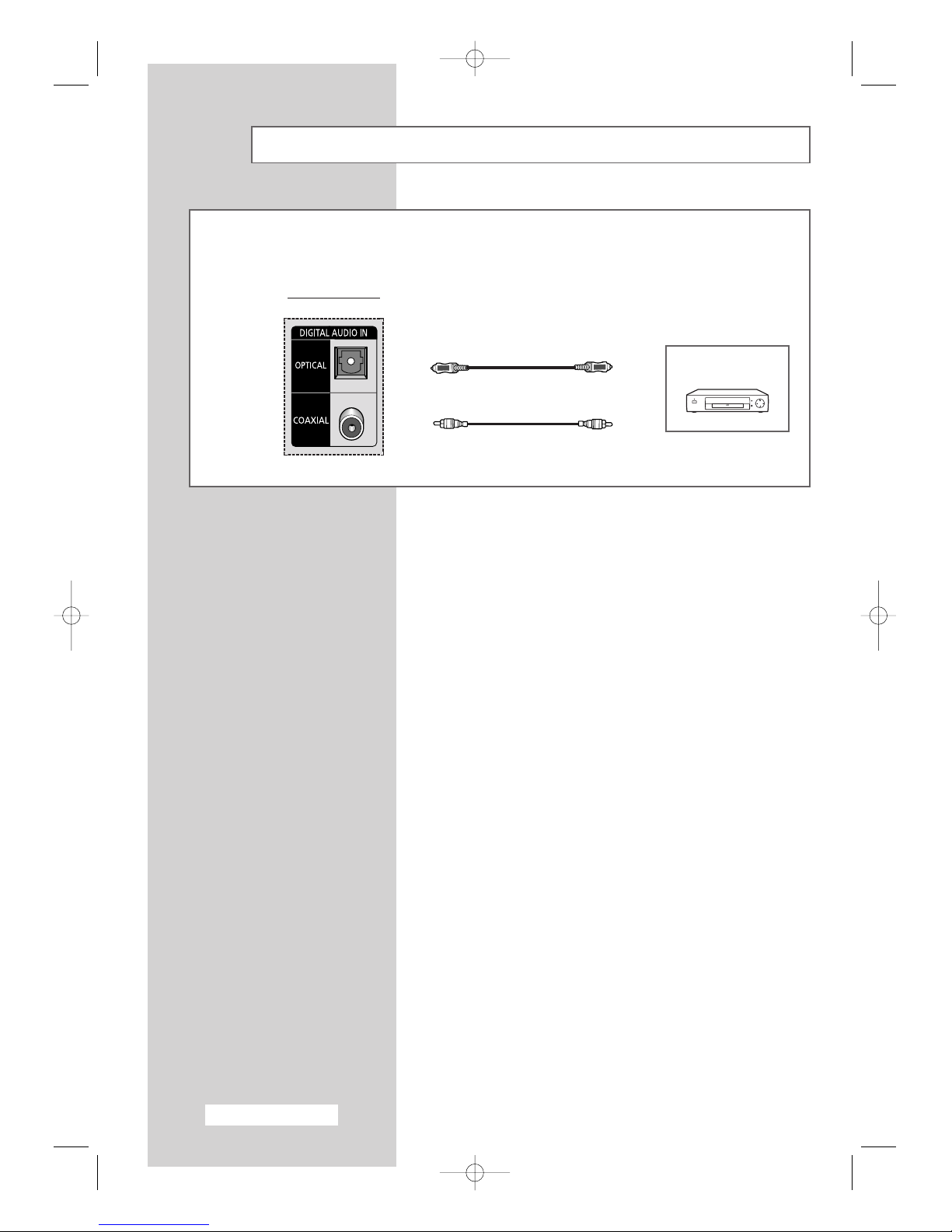

Connecting to the Digital Audio Input

➢The DIGITAL AUDIO IN (OPTICAL IN and COAXIAL IN) connectors are used for equipment with a

digital output (to take digital sound).

Rear of the TV

DVD

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 74

English - 5

Connecting to the Component Input

➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.

(480i, 480p, 576i,576p, 1080i)

DVD

Rear of the TV

DTV receiver

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 75

English - 6

Connecting Additional Speakers

①

The SURROUND SPEAKER OUT connectors are used for sound output to external speakers.

The factory default of SURROUND SPEAKER OUT SELETION is set to INT.

For sound output to external speakers, set to EXT. Sound to the internal speaker is off.

➢To improve the sound quality, connect the:

◆Red wire to the red terminal

◆Black wire to the black terminal

➢Speakers can be purchased separately.

BP68-00341A (J61A_Euro_ENG) 4/19/04 8:30 PM Page 76
