YOUR NEW TV

1 2 4 5

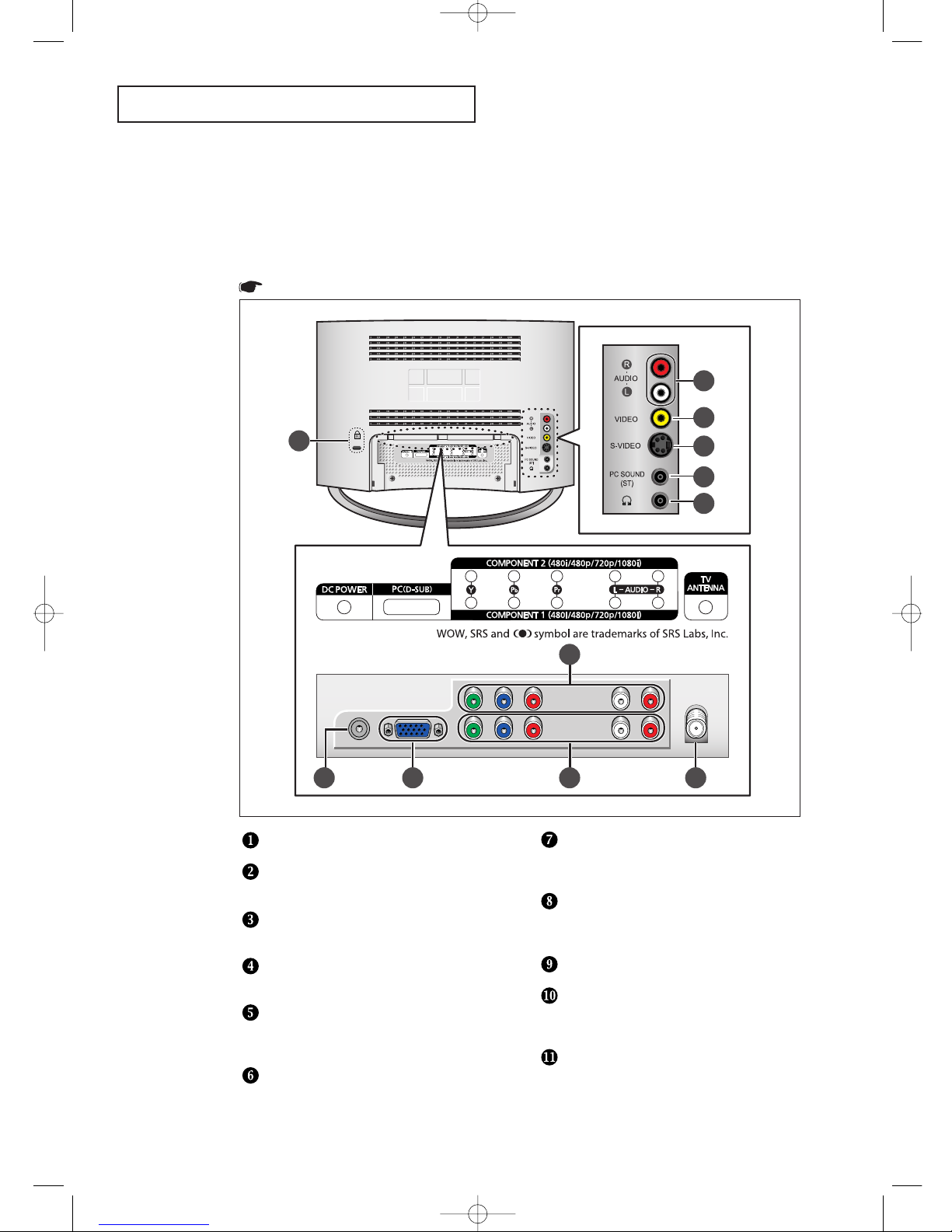

Rear Panel Jacks

Use the rear panel jacks to connect an A/V component that will be connected

continuously, such as a VCR or a DVD player.

POWER INPUT

PC VIDEO INPUT

Connect to the video output port on your PC.

COMPONENT 2

Connect a component video/audio.

COMPONENT 1

Connect a component video/audio.

TV ANTENNA

Connects to an antenna or to a cable

TV system.

AUDIO INPUT

Connect audio signal(L/R) from a

camcorder or VCR.

VIDEO INPUT

Connect a video signal from a

camcorder or VCR.

SUPER VIDEO INPUT

Connect an S-Video signal from a

camcorder or VCR.

PC SOUND INPUT

HEADPHONE JACK

Connect a set of external headphones to

this jack for private listening.

KENSINGTON LOCK

Colors may vary depending on the model you purchase

victoryia 01-14 3/3/04 10:30 PM Page 3

English-2

INSTALLATION

Connect a coaxial

cable between the

ANTENNA OUT

terminal on the VCR

and the antenna

terminal on the TV.

Connect a set of

audio cables

between the AUDIO

OUT jacks on the

VCR and the AUDIO

jacks on the TV.

Connect a video

cable between the

VIDEO OUT jack on

the VCR and the

VIDEO jack on the

TV.

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

# Each external input source device has a different back panel configuration.

A coaxial cable is usually included with a VCR. (If not, check your local electronics store).

If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up

to the left and right audio input jacks of the TV. If your VCR is stereo, you must con-

nect two cables.

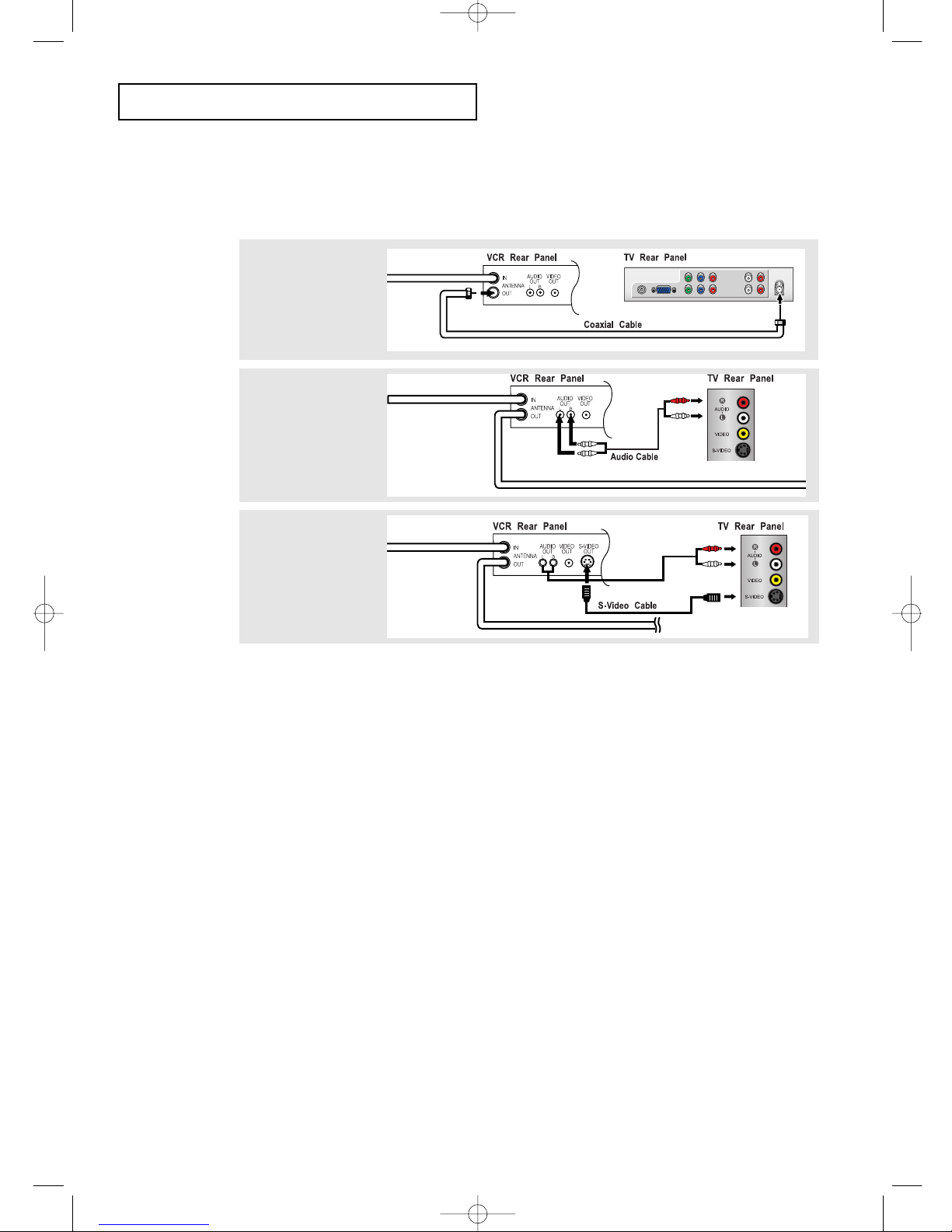

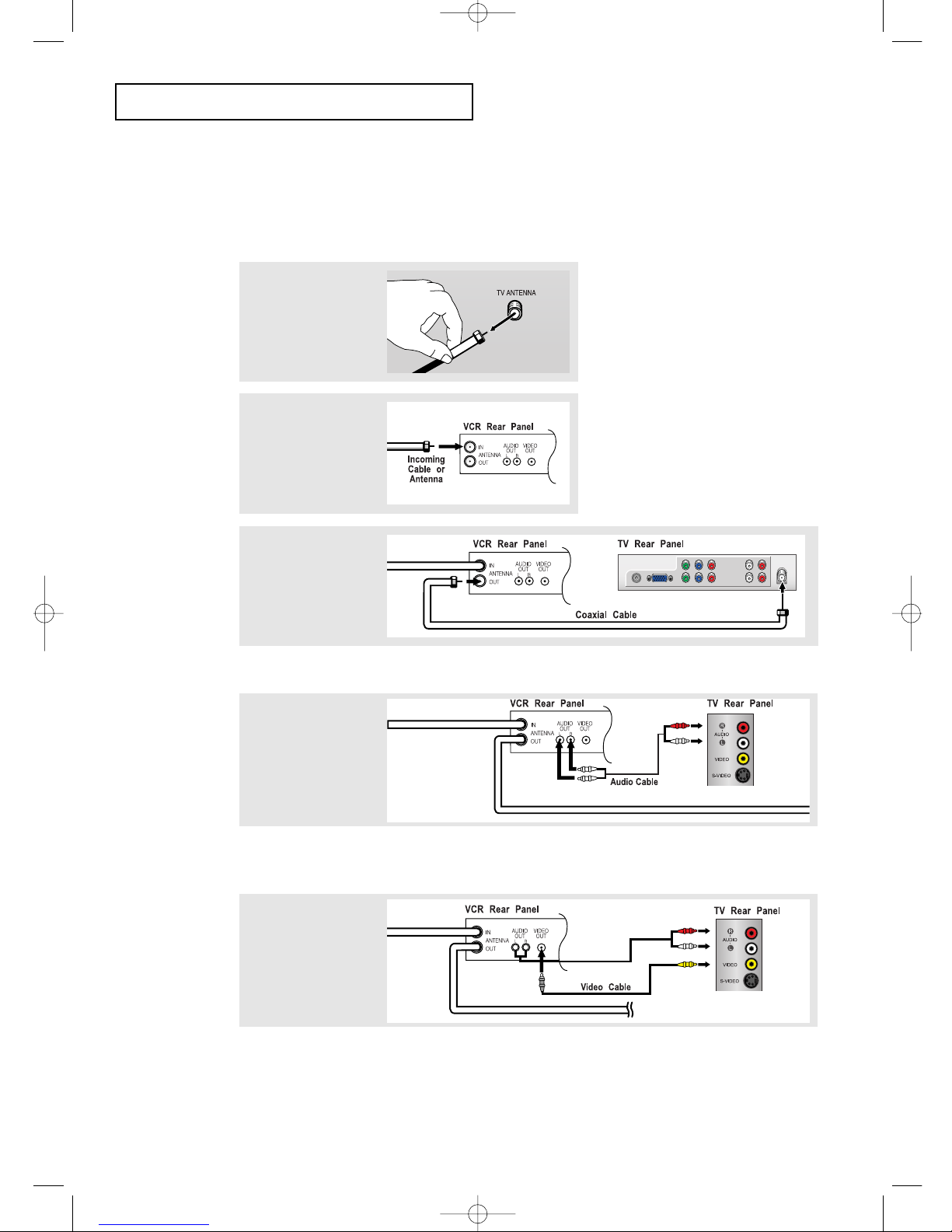

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a

cable TV system .

Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or

antenna from the

back of the TV.

Connect the cable or

antenna to the

ANTENNA IN terminal

on the back of the

VCR.

victoryia 01-14 6/27/03 2:04 AM Page 11

English-3

INSTALLATION

Connect an S-video

cable between the

S-VIDEO OUT jack on

the VCR and the

S-VIDEO INPUT jack

on the TV.

An S-video cable is usually included with an S-VHS VCR.

(If not, check your local electronics store.)

# Each external input source device has a different back panel configuration.

To begin, follow

steps 1–3 in the

previous section to

connect the antenna

or cable to your

VCR and your TV.

Connecting an S-VHS VCR

Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.

(This connection delivers a better picture as compared to a standard VHS VCR.)

Connect a set of audio

cables between the

AUDIO OUT jacks on

the VCR and the

AUDIO INPUT jacks

on the TV.

victoryia 01-14 6/27/03 2:04 AM Page 12

English-4

INSTALLATION

Note: For an explanation of Component video, see your DVD player owner's manual.

# Each external input source device has a different back panel configuration.

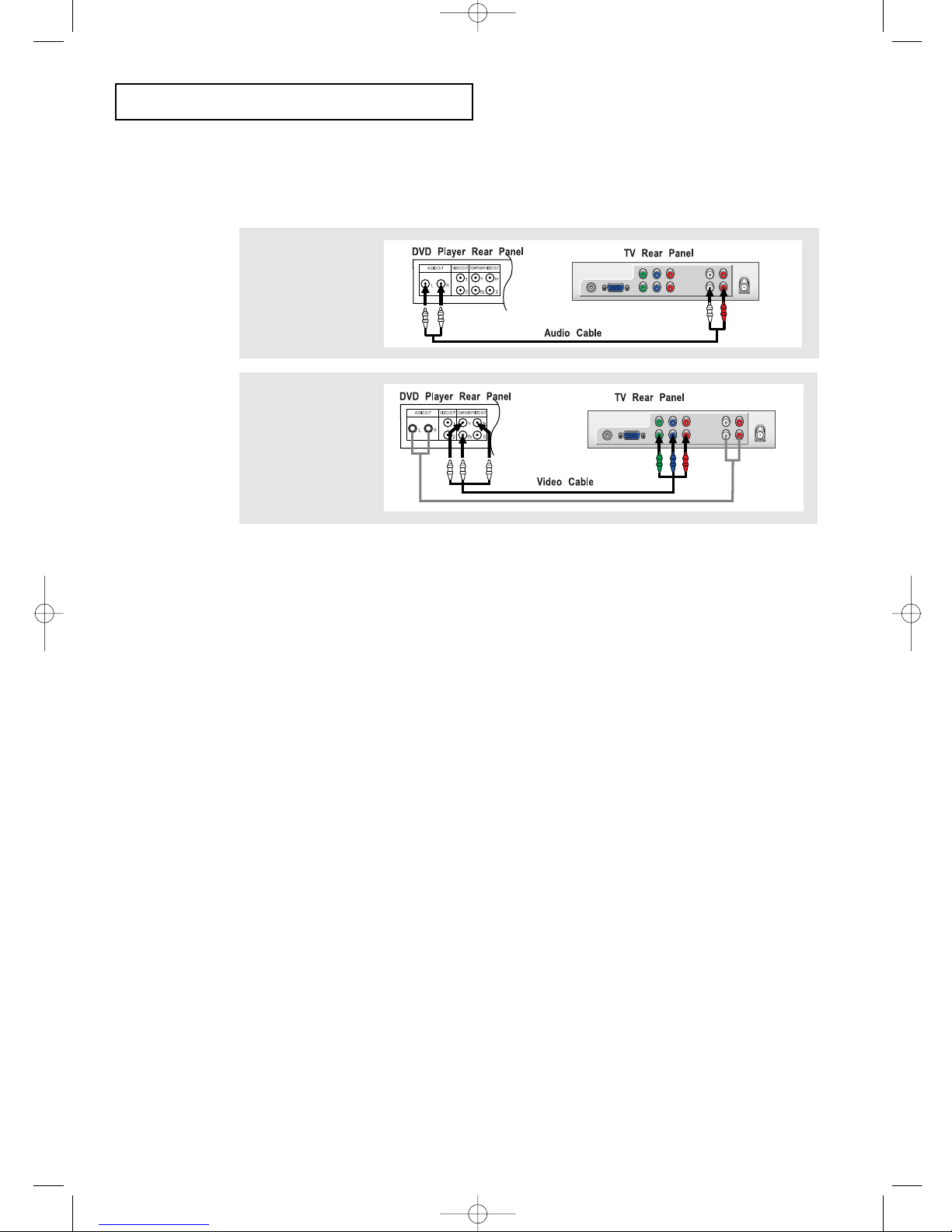

Connecting a DVD Player

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Connect a set of audio

cables between the

L, R AUDIO INPUT

jacks on the TV and

the AUDIO OUT jacks

on the DVD player.

Connect a video cable

between the

COMPONENT1

(Y, Pb, Pr) jacks on

the TV and the Y, Pb,

Pr jacks on the DVD

player.

victoryia 01-14 6/27/03 2:04 AM Page 13

English-5

INSTALLATION

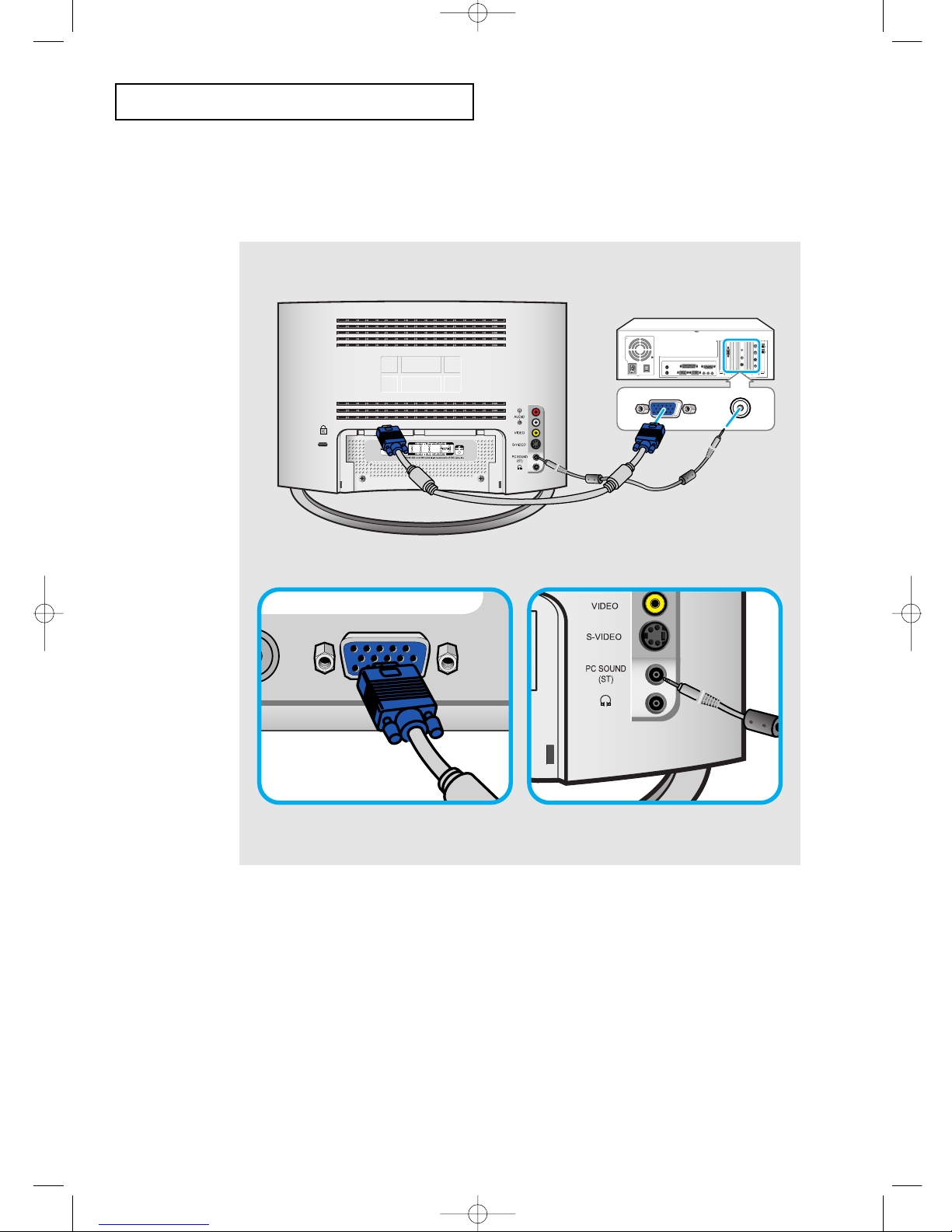

Connecting a PC

Note: This figure shows the Standard Connector-jack panel. The actual configuration

on your TV may be different, depending on the model.

• PC AUDIO INPUT

Connect these to the audio-output jacks on your PC.

• PC VIDEO INPUT

Connect to the video output port on your PC.

# Each external input source device has a different back panel configuration.

TV rear panel

PC VIDEO INPUT (15-pin D-SUB) PC SOUND INPUT (Optional)

PC rear

victoryia 01-14 6/27/03 2:04 AM Page 14

English-6

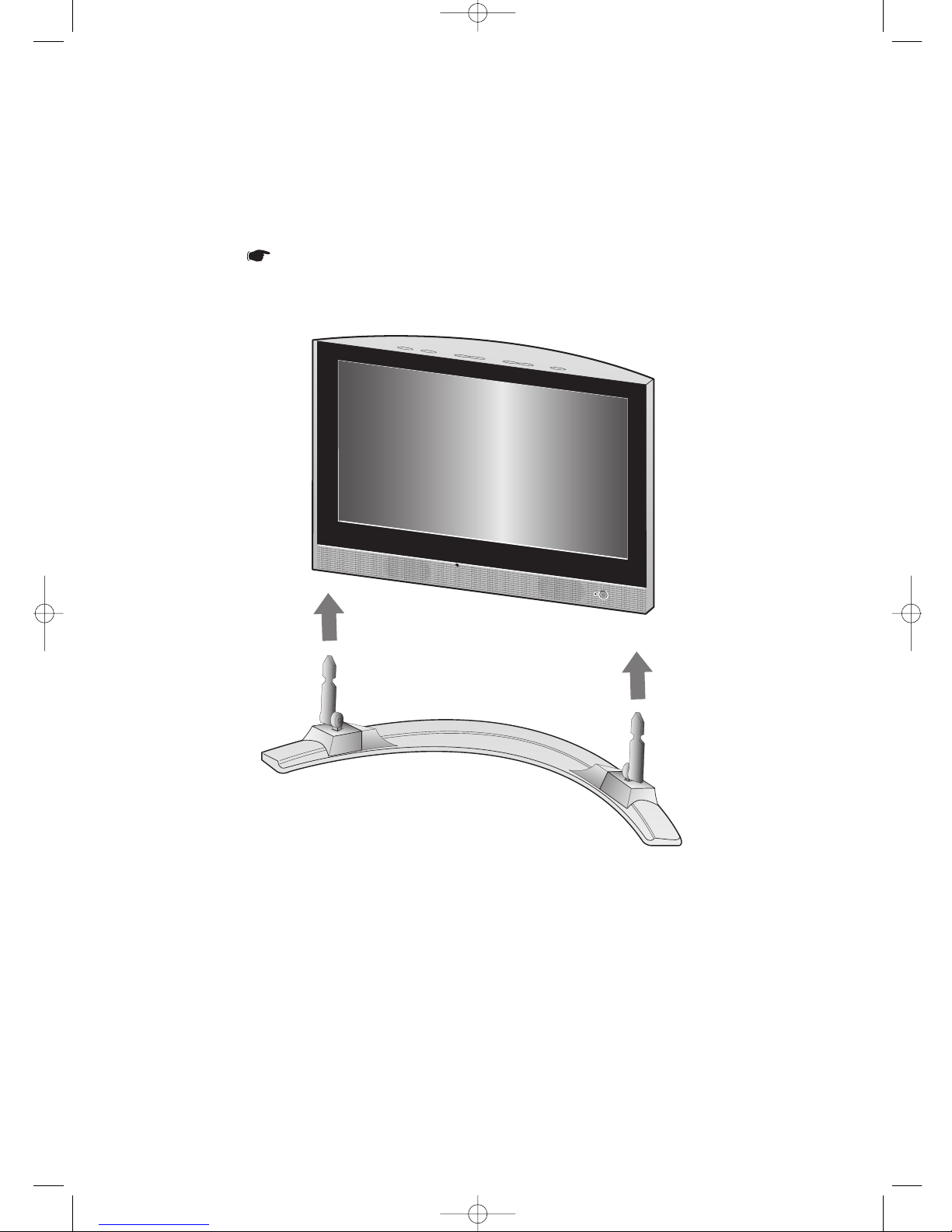

How to assemble the TV set and stand base

NOTE : The curved side of the stand base should be placed

at the back of the TV set as shown in the above figure.

Colors may vary depending on the model you purchase

victoryia 54-59 3/3/04 10:34 PM Page 54

English-7

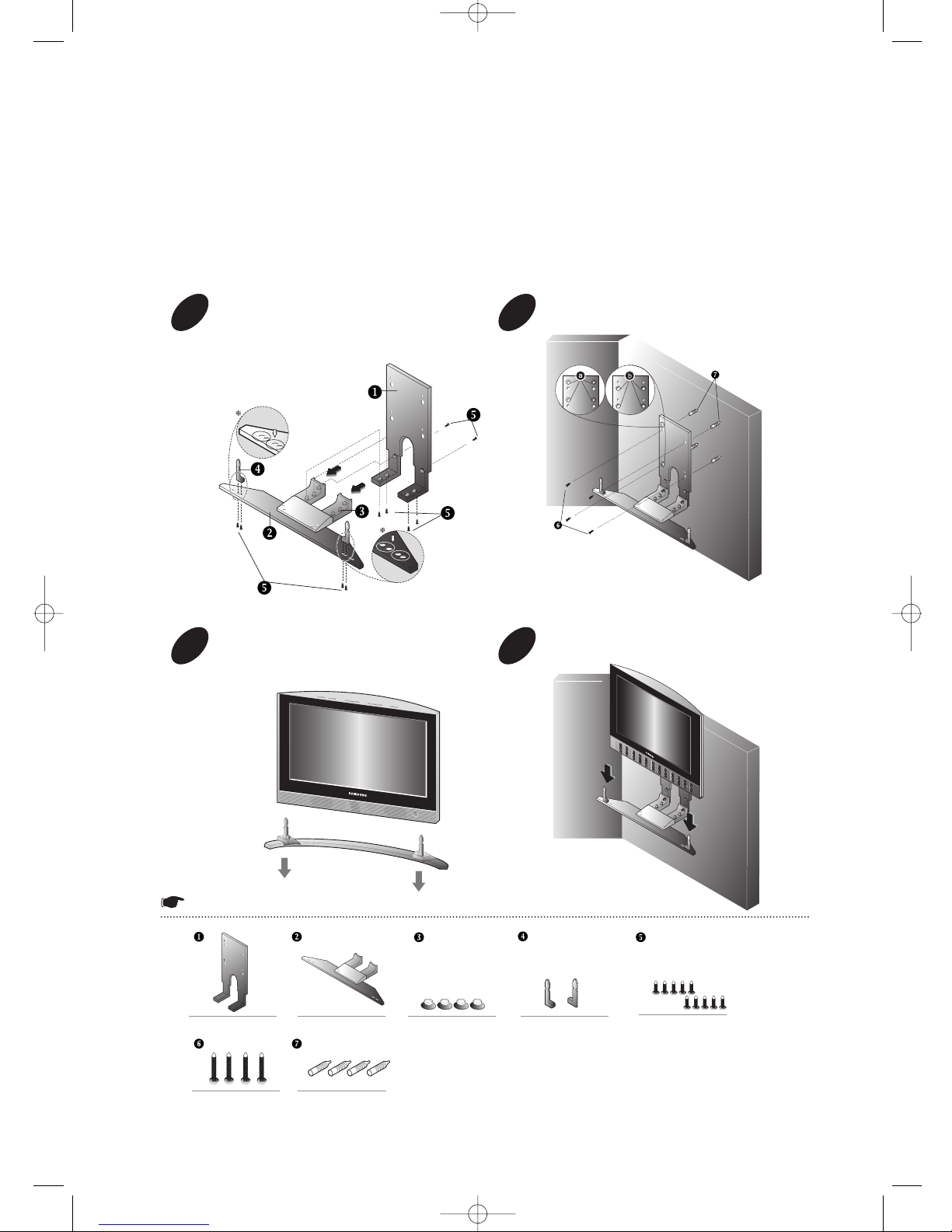

Installing the Wall Mount Kit (sold separately)

Connect the hinge to the wall mount bracket.

1Secure the bracket to the wall.

Remove the base from the TV set.

3Mount the TV on the wall mount bracket.

#The wall mount bracket is sold separately.

Use (a) holes to attach the VESA mount.

Use (b) holes to attach the wall mount.

Holder-Wall : 1EA Rubber : 4EA

Holder-LCD L/R : 2EA

Holder-Ass'y : 1EA

Screw FH 4 x 8 : 10EA

Anchor : 4EA

Screw BH 4 x 25 : 4EA

This installation is to be used when attaching the wall mount to a concrete wall.

When attaching to other building materials, please contact your nearest dealer.

Colors may vary depending on the model you purchase

victoryia 54-59 3/3/04 10:34 PM Page 55

English-8

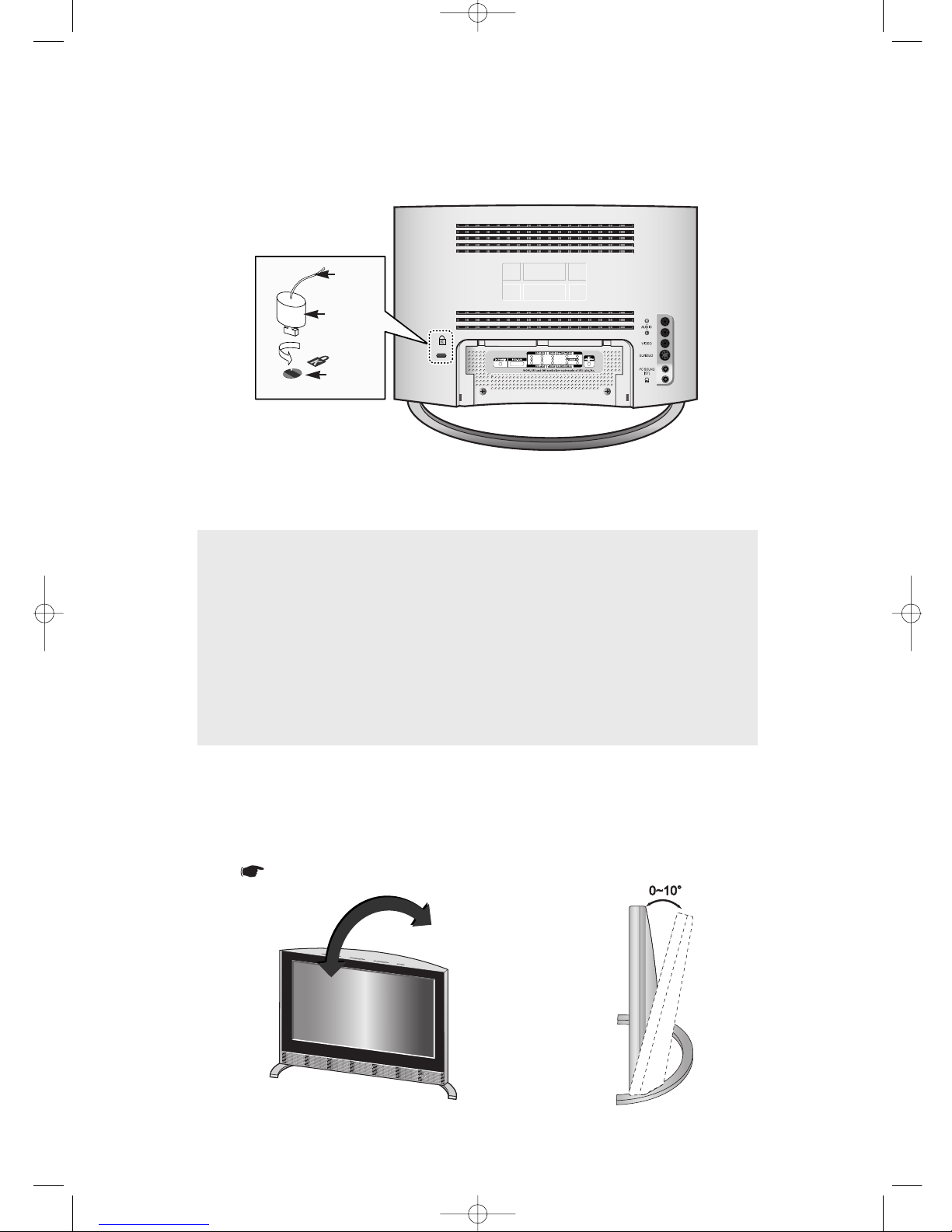

Using the Anti-Theft Kensington Lock

Retractable Stand

Note: The maximum tilt angle is 10 degrees in the backward direction.

Please do not tilt the TV outside the specified range. Using excessive force

to tilt the TV may cause permanent damage to the mechanical part of the stand.

Figure 2

Figure 1

Cable

The Kensington lock is a device used to physically fix the system when using it in a public place. The locking

device has to be purchased separately. The appearance and locking method may differ from the illustration

depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Insert the locking device into the Kensington slot on the LCD TV(Figure 1),

and turn it in the locking direction(Figure 2).

Connect the Kensington lock cable.

Fix the Kensington lock to a desk or a heavy stationary object.

Colors may vary depending on the model you purchase

victoryia 54-59 3/3/04 10:34 PM Page 56
