Samsung LN40A500 Manuel utilisateur

English-1

1-800-SAMSUNG (7267864)

Samsung Electronics America, Inc.

105 Challenger Road Ridgefield Park, NJ 07660-0511

Samsung Electronics Canada Inc., Customer Service

55 Standish Court Mississauga, Ontario L5R 4B2

Call center hours of operation (Mon-Sun 9AM-12AM EST).

To register this product please visit

www.samsung.com/global/register.

LN40A500T1F/LN46A500T1F

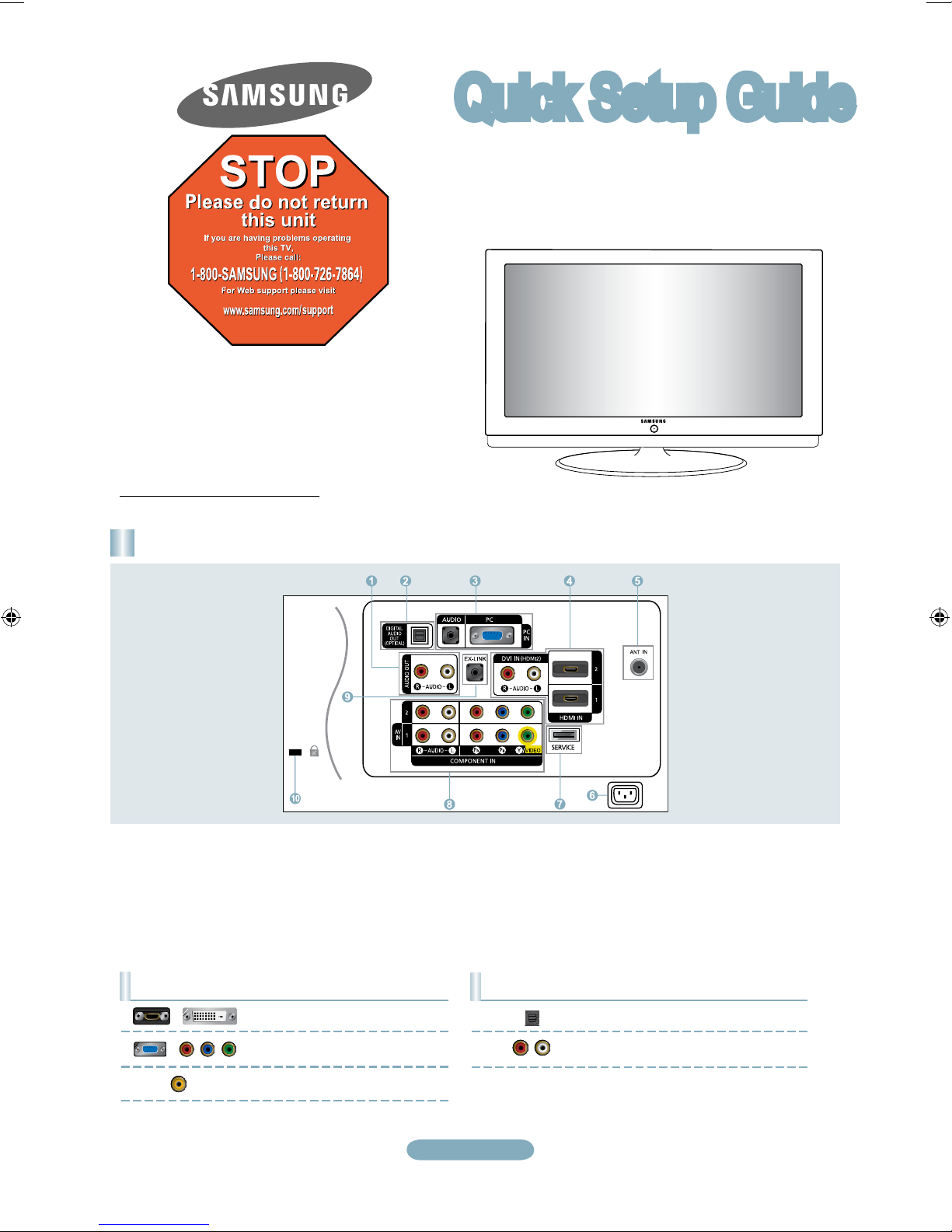

Rear Panel

1AUDIO OUT

2DIGITAL AUDIO OUT (OPTICAL)

3PC IN [PC] / [AUDIO]

4HDMI IN 1, 2 / DVI IN (HDMI2)

[R-AUDIO-L]

5ANT IN

6POWER INPUT

7SERVICE

8COMPONENT IN 1, 2 / AV IN

9EX-LINK

0KENSINGTON LOCK

Audio Output Performance Comparison

OPTICAL (Digital)

AUDIO (Analog)

Best

Normal

Video Input Performance Comparison

HDMI/DVI

PC/COMPONENT

VIDEO

Best

Better

Normal

Quick Setup Guide

Book 1.indb 1 2008-07-29 �� 6:39:22

English-2

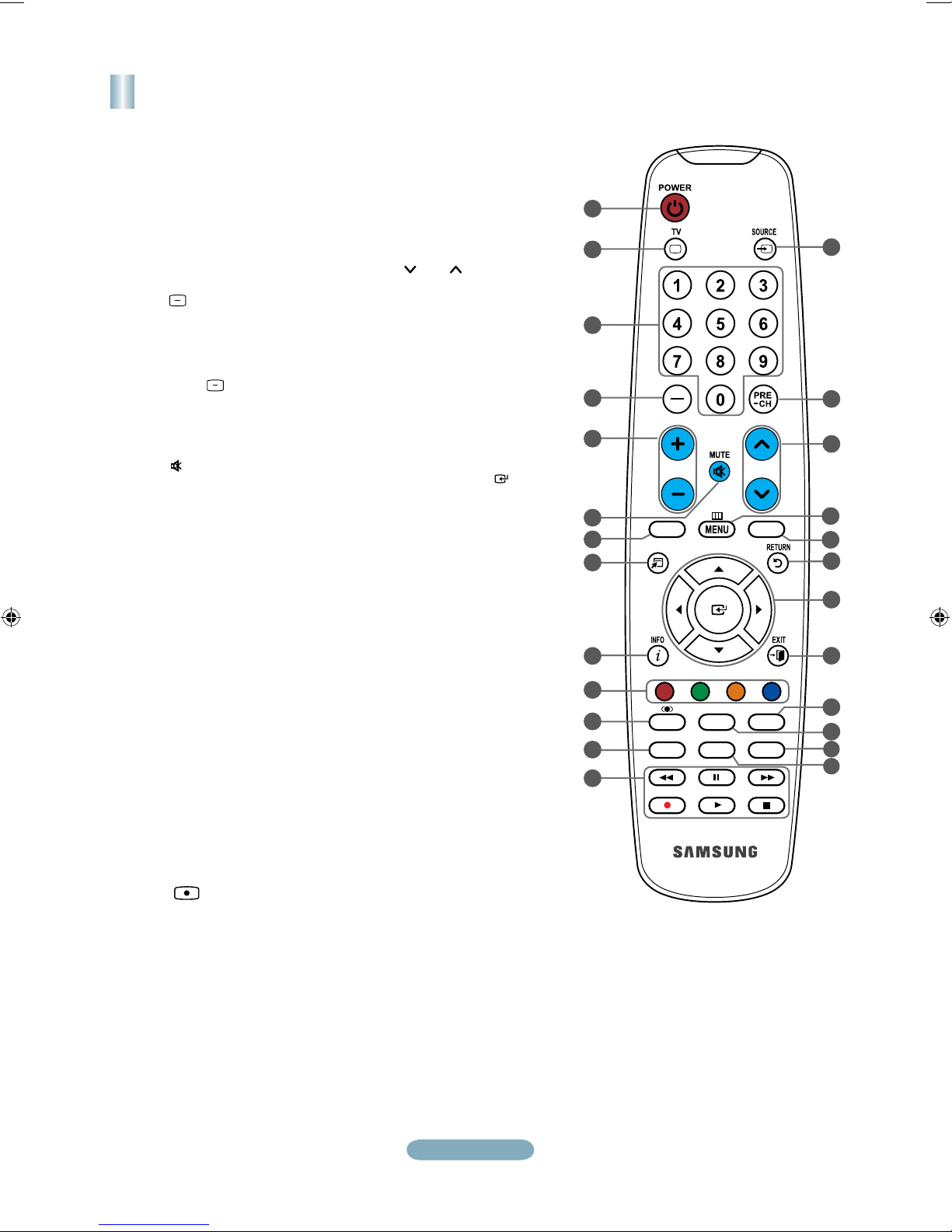

Remote Control

See “Remote Control” in the owner’s instructions for details.

POWER

Turns the TV on and off.

Selects the TV mode directly.

NUMERIC BUTTONS

Press to directly select the

channel.

Press to select additional

channels (digital and analog)

being broadcast by the same

station. For example, to select

channel “54-3”, press “54”, then

press “ ” and “3”.

VOL – / VOL +

Press to increase or decrease

the volume.

(MUTE)

Press to temporarily cut off the

sound.

CH LIST

Used to display Channel Lists

on the screen.

TOOLS

Use to quickly select frequently

used functions.

INFO

Press to display information on

the TV screen.

COLOR BUTTONS

Use these buttons in the

Channel list, etc.

SRS

Selects SRS TruSurround XT

mode.

E.MODE

Press to select the preset

display and sound modes for

sports, cinema and games.

Use these buttons in the

DMA, and Anynet+modes.

( : This remote can be

used to control recording on

Samsung recorders with the

Anynet+feature)

SOURCE

Press to display and select the

available video sources.

PRE-CH

Tunes to the previous channel.

CH / CH

Press to change channels.

Displays the main on-screen

menu.

Controls the caption decoder.

(

RETURN

Returns to the previous menu.

)

 UP▲/DOWN▼/LEFT◄/

RIGHT►/ENTER

Use to select on-screen menu

items and change menu

values.

EXIT

Press to exit the menu.

DMA (Digital Media Adapter)

Use this when connecting

a SAMSUNG DMA device

through an HDMI interface and

switching to DMA mode.

For more information on the

operating procedures, refer to

the user manual of the DMA.

This button is available when

“Anynet+(HDMI-CEC)” is “On”.

MTS

Press to choose stereo, mono

or Separate Audio Program

(SAP broadcast).

FAV.CH

Press to switch to your favorite

channels.

P.SIZE

Picture size selection.

The performance of the remote control may be affected by bright light.

➣

TOOLS

DMAMTSSRS

E.MODE P.SIZE FAV.CH

CH LIST

VOL CH

Book 1.indb 2 2008-07-29 �� 6:39:23

English-3

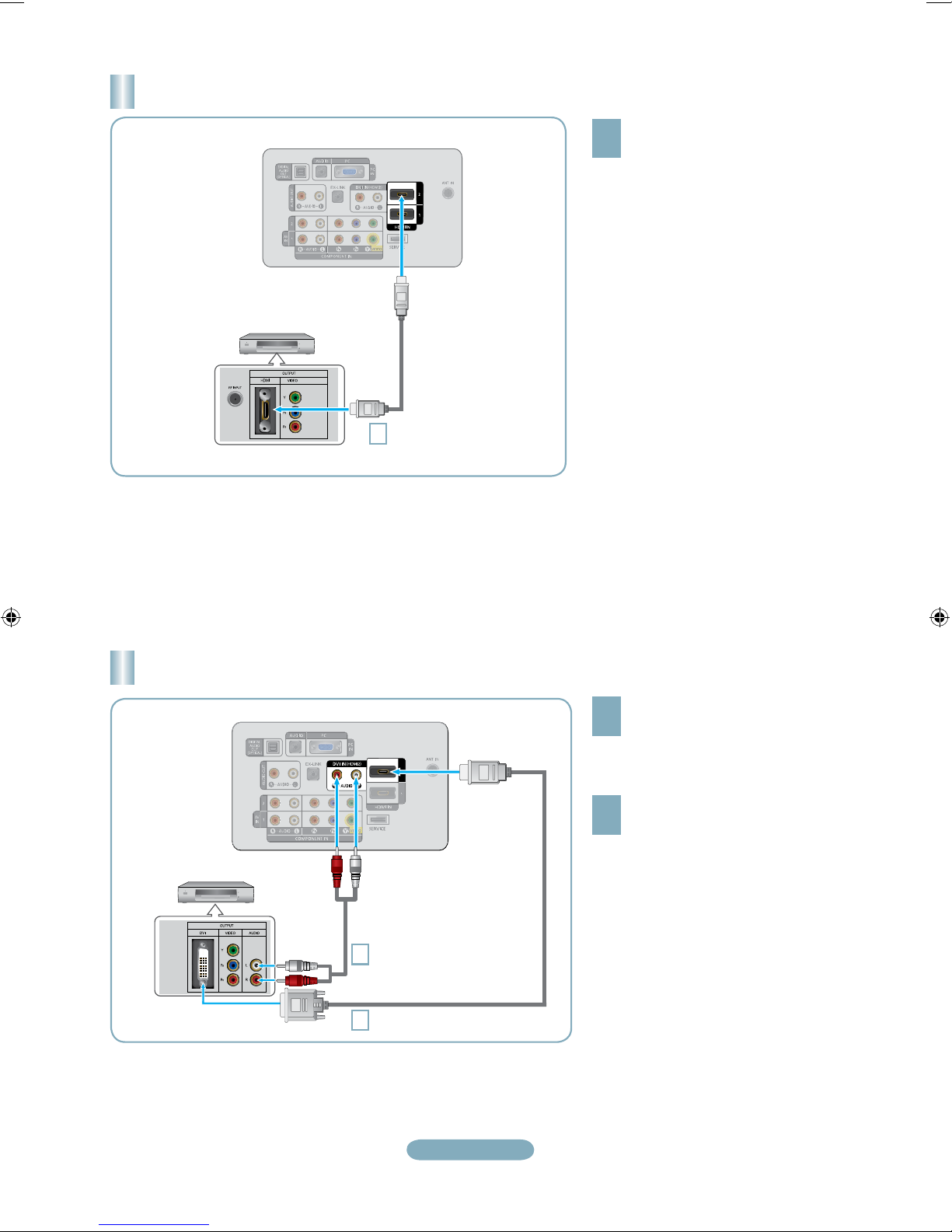

Connecting a DVD or Cable Box/Satellite receiver (Set-Top Box) via DVI

TV Rear Panel

DVI to HDMI Cable (Not supplied)

2Audio Cable (Not supplied)

Connect a DVI to HDMI Cable or

DVI-HDMI Adapter between the

HDMI IN 2 jack on the TV and the

DVI jack on the DVD Player or Cable

Box/Satellite receiver (Set-Top Box).

Connect Audio Cables between the

DVI IN (HDMI 2) [R-AUDIO-L] jack on

the TV and the DVD Player or Cable

Box/Satellite receiver (Set-Top Box).

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

What is HDMI?

•

HDMI(High-Definition Multimedia

Interface), is an interface that enables the

transmission of digital audio and video

signals using a single cable.

•

The difference between HDMI and DVI

is that the HDMI device is smaller in

size and has the HDCP (High Bandwidth

Digital Copy Protection) coding feature

installed.

Connect an HDMI Cable between

the HDMI IN (1 or 2) jack on the

TV and the HDMI jack on the

DVD Player or Cable Box/Satellite

receiver (Set-Top Box).

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the

cable.

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

➣

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

The TV may not output sound and pictures may be displayed with abnormal color when DVD players/Cable Boxes/Satellite

receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound,

connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of

the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI

version, then request an upgrade.

HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

➣

TV Rear Panel

HDMI Cable (Not supplied)

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Book 1.indb 3 2008-07-29 �� 6:39:25

English-4

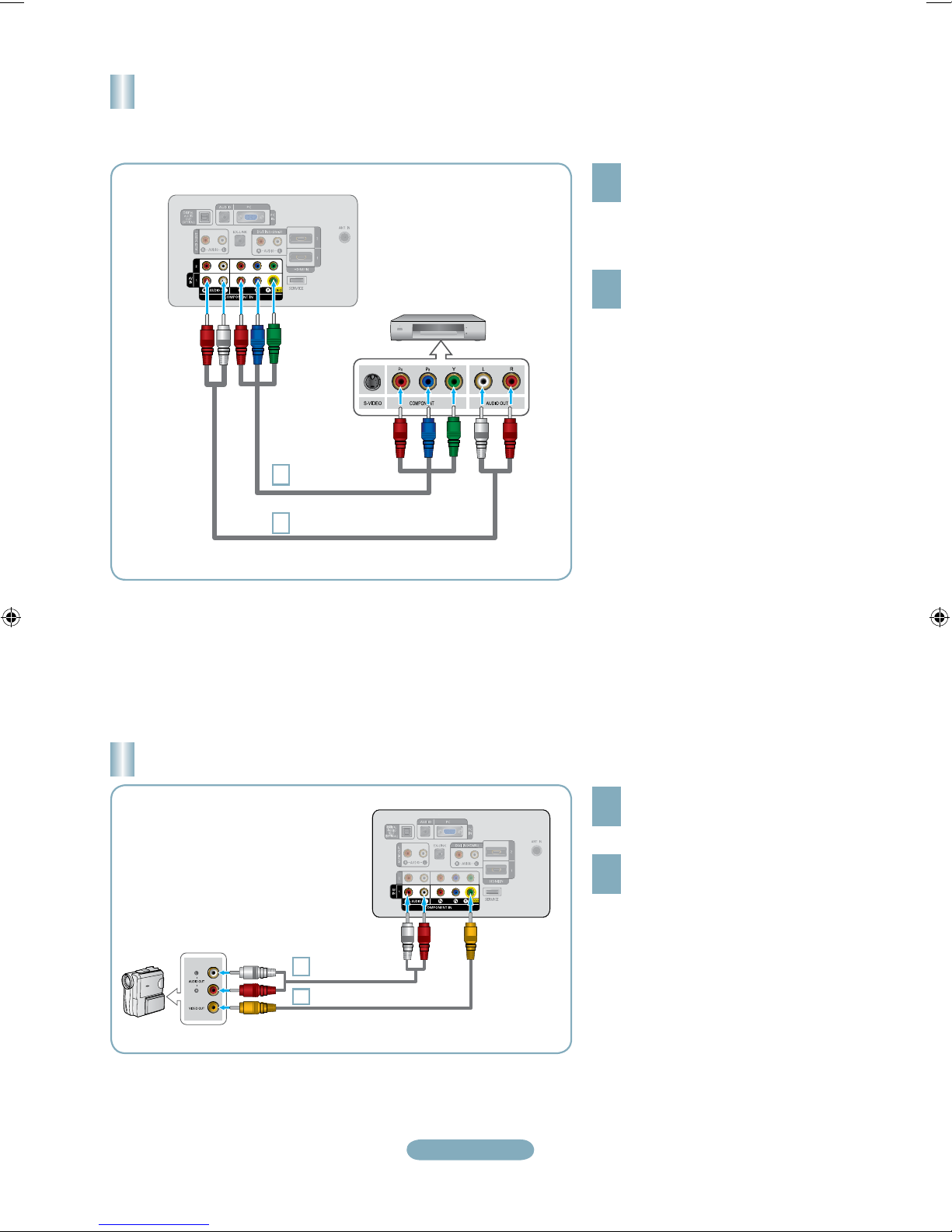

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box)

via Component cables

TV Rear Panel

1Component Cable

(Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

2Audio Cable (Not supplied)

Connect a Component Cable between

the COMPONENT IN (1 or 2)

[Y, P

, P

] jacks on the TV and the

COMPONENT [Y, P

, P

] jacks on

the DVD Player or Cable Box/Satellite

receiver (Set-Top Box).

Connect Audio Cables between the

COMPONENT IN(1 or 2) [R-AUDIO-L]

jacks on the TV and the AUDIO OUT

jacks on the DVD Player or Cable Box/

Satellite receiver (Set-Top Box).

Component video separates the video

into Y (Luminance (brightness)), Pb

(Blue) and Pr (Red) for enhanced video

quality. Be sure to match the component

video and audio connections.

For example, if connecting a Component

video cable to COMPONENT IN 1,

connect the audio cable to

COMPONENT IN 1 also.

Each DVD Player or Cable Box/Satellite

receiver (Set-Top Box) has a different

back panel configuration.

When connecting a DVD Player or

Cable Box/Satellite receiver (Set-Top

Box), match the color of the connection

terminal to the cable.

➣

Connecting a Camcorder

Connect a Video Cable between

the AV IN [Y/VIDEO] jack on the TV

and the VIDEO OUT jack on the

camcorder.

Connect Audio Cables between the

AV IN [R-AUDIO-L] jacks on the TV

and the AUDIO OUT jacks on the

camcorder.

Each Camcorder has a different back

panel configuration.

When connecting a Camcorder, match

the color of the connection terminal to

the cable.

➣

Camcoder

TV Rear Panel

2Audio cable

(Not supplied)

Video cable (Not supplied)

Book 1.indb 4 2008-07-29 �� 6:39:26

English-5

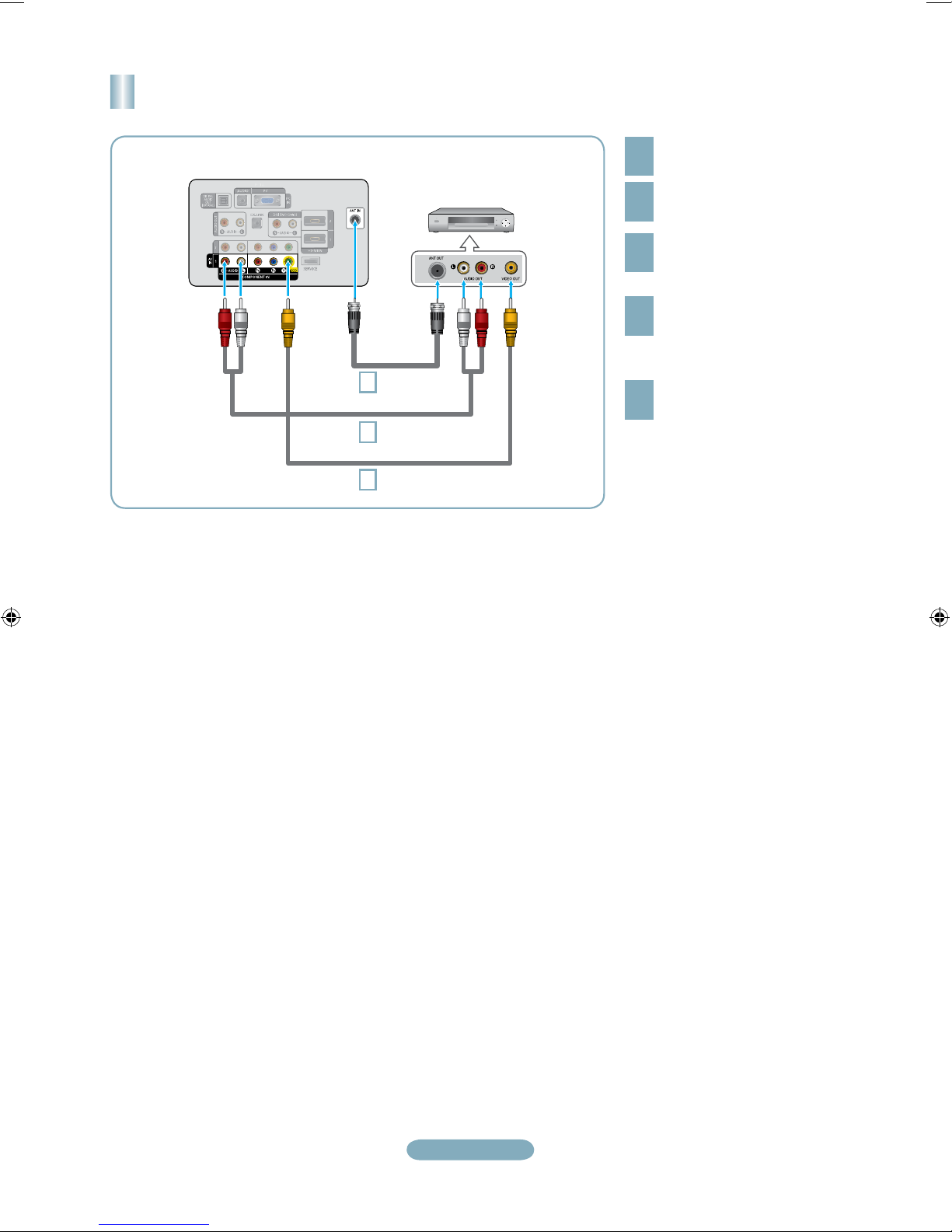

Connecting a VCR

If you have a “mono” (non-stereo) VCR,

use a Y-connector (not supplied) to

connect to the right and left audio input

jacks of the TV. Alternatively, connect

the cable to the “R” jack. If your VCR is

stereo, you must connect two cables.

➣

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

Each VCR has a different back panel configuration.

When connecting a VCR, match the color of the connection terminal to the cable.

When connecting to AV NI, the color of the AV IN [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).

➣

TV Rear Panel

3RF Cable

(Not supplied)

5Audio Cable

(Not supplied)

VCR Rear Panel

Video Cable

(Not supplied)

Connect the cable or antenna

to the ANT IN terminal on the

back of the VCR.

Connect an RF Cable between

the ANT OUT terminal on the

VCR and the ANT IN terminal

on the TV.

Connect a Video Cable between

the VIDEO OUT jack on the

VCR and the AV IN [Y/VIDEO]

jack on the TV.

Unplug the cable or antenna

from the back of the TV.

Connect Audio Cables between

the AUDIO OUT jacks on the

VCR and the AV IN [R-AUDIO-L]

jacks on the TV.

Book 1.indb 5 2008-07-29 �� 6:39:27

English-6

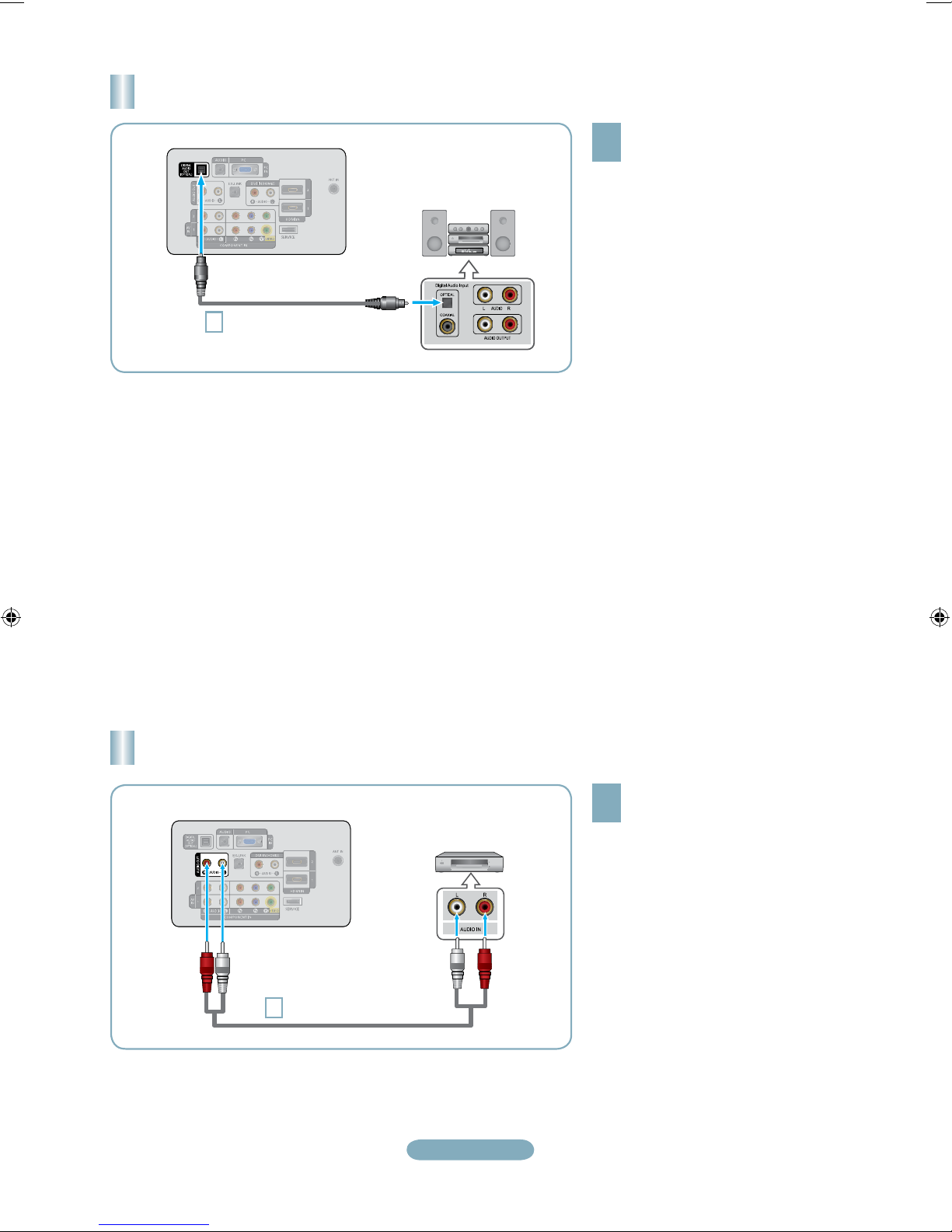

Connecting a Digital Audio System

TV Rear Panel

1Optical Cable (Not supplied)

Digital Audio System

Connect an Optical Cable between

the “DIGITAL AUDIO OUT

(OPTICAL)” jacks on the TV and

the Digital Audio Input jacks on the

Digital Audio System.

When a Digital Audio System is

connected to the “DIGITAL AUDIO

OUT (OPTICAL)” jack: Decrease

the volume of the TV and adjust

the volume level with the system’s

volume control.

5.1CH audio is possible when the TV

is connected to an external device

supporting 5.1CH.

Each Digital Audio System has a

different back panel configuration.

When the receiver (home theater) is

set to On, you can hear sound output

from the TV’s Optical jack. When the

TV is displaying a DTV(air) signal, the

TV will send out 5.1 channel sound to

the Home theater receiver. When the

source is a digital component such as

a DVD and is connected to the TV via

HDMI, only 2 channel sound will be

heard from the Home Theater receiver.

If you want to hear 5.1 channel audio,

connect the DIGITAL AUDIO OUT

(OPTICAL) jack on the DVD player

or Cable/Satellite Box directly to an

Amplifier or Home Theater, not the TV.

➣

Connecting an Amplifier/DVD Home Theater

TV Rear Panel

1Audio Cable (Not supplied)

Amplifier/DVD Home Theater

Connect Audio Cables between the

AUDIO OUT [R-AUDIO-L] jacks on

the TV and AUDIO IN [R-AUDIO-L]

jacks on the Amplifier/DVD Home

Theater.

When an audio amplifier is connected

to the “AUDIO OUT [R-AUDIO-L]”

jack: Decrease the volume of the TV

and adjust the volume level with the

Amplifier’s volume control.

Each Amplifier/DVD Home Theater has

a different back panel configuration.

When connecting an Amplifier/DVD

Home Theater, match the color of the

connection terminal to the cable.

➣

Book 1.indb 6 2008-07-29 �� 6:39:29

English-7

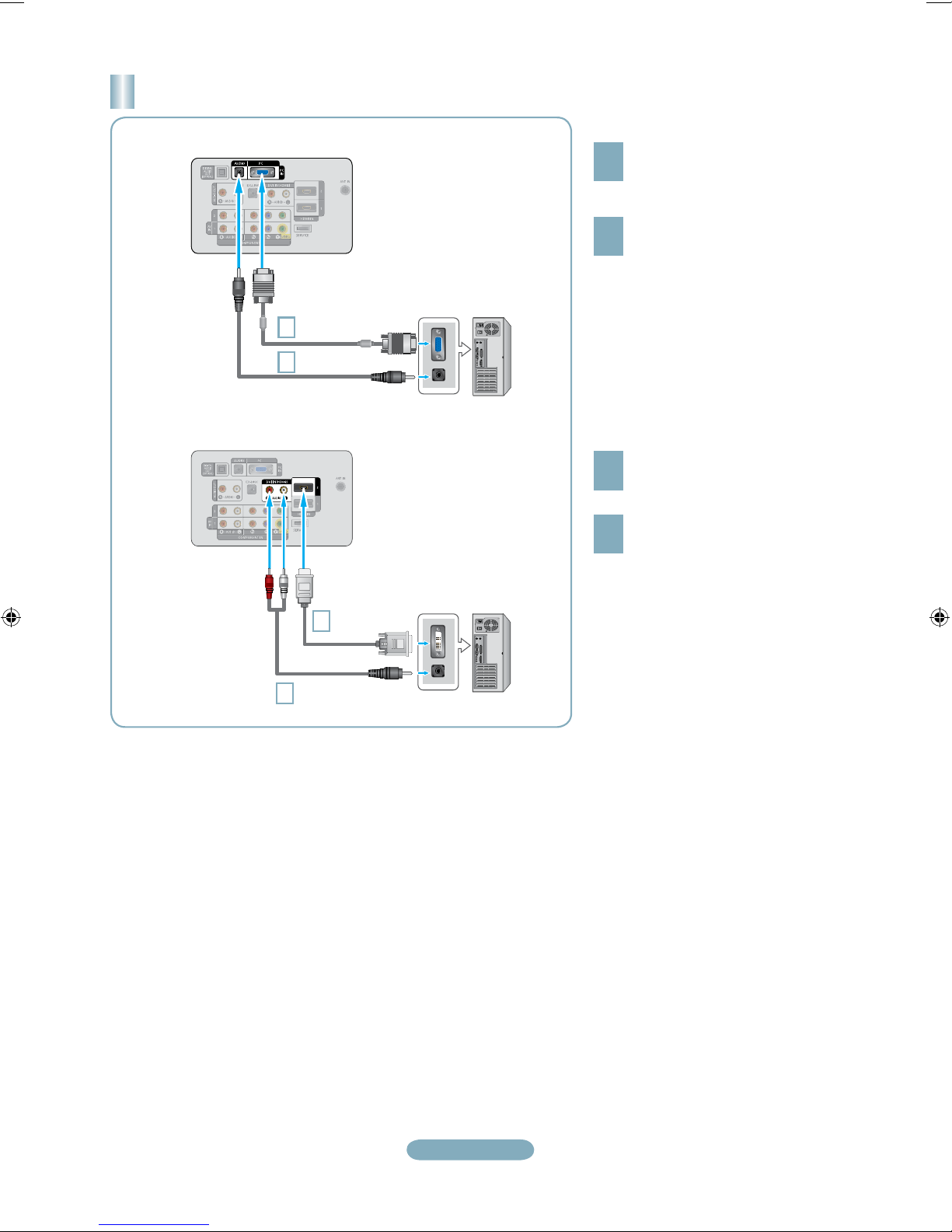

Connecting a PC

TV Rear Panel

1D-Sub Cable

(Not supplied)

2PC Audio Cable

(Not supplied)

Connect a D-Sub Cable between

PC IN [PC] connector on the TV and

the PC output connector on your

computer.

Connect a PC Audio Cable between

the PC IN [AUDIO] jack on the TV

and the Audio Out jack of the sound

card on your computer.

Each PC has a different back panel

configuration.

When connecting a PC, match the

color of the connection terminal to the

cable.

When using an HDMI/DVI cable

connection, you must use the HDMI

IN 2 terminal.

➣

Using the D-Sub Cable

Connect an HDMI/DVI cable between

the HDMI IN 2 jack on the TV and

the PC output jack on your computer.

Connect a 3.5 mm Stereo mini-

plug/2RCA Cable between the DVI

IN(HDMI2) [R-AUDIO-L] jack on the

TV and the Audio Out jack of the

sound card on your computer.

Using the HDMI/DVI Cable

Using the D-Sub Cable

TV Rear Panel

1HDMI/DVI Cable

(Not supplied)

23.5 mm Stereo mini-plug/

2RCA Cable (Not supplied)

Using the HDMI/DVI Cable

Book 1.indb 7 2008-07-29 �� 6:39:31

English-8

TOOLS

DMAMTSSRS

E.MODE P.SIZE FAV.CH

CH LIST

VOL CH

ReturnEnter

Auto Program

Select the Antenna source to memorize.

Air

Cable

Auto

Move

Start

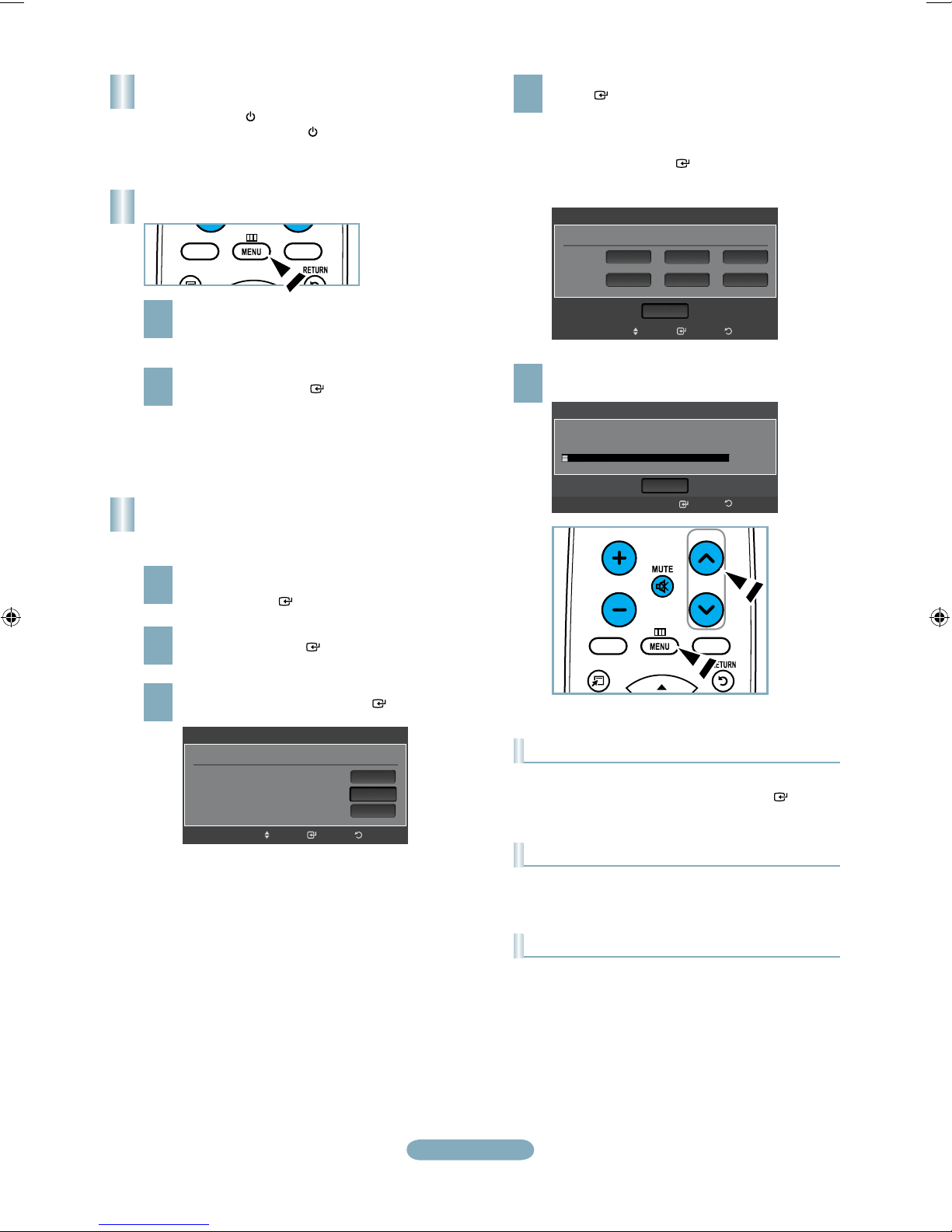

Turning the TV On and Off

Press the POWER button on the remote control.

You can also use the POWER button on the TV.

With the power on, press the MENU button.

The main menu appears on the screen.

The menu’s left side has icons: Picture, Sound,

Channel, Setup, Input, Application.

Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER button to access the

icon’s sub-menu. Press the EXIT button to exit.

The on-screen menus disappear from the

screen after about one minute.

➣

Storing Channels in Memory

(Automatic Method)

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then

press the ENTER button.

Press the ▲ or ▼ button to select “Auto Program”,

then press the ENTER button.

Press the ▲ or ▼ button to select the antenna

connection, then press the ENTER button.

When selecting the Cable TV system: Press the

ENTER button to start the auto program.

Press the ▲,▼, ◄ or ► to select the correct analog

signal cable system source among “STD”, “HRC”

and “IRC”. Press the ▲ or ▼ button to select “Start”,

then press the ENTER button. If you have Digital

cable TV, select the cable system signal source for

both Analog and Digital.

Viewing the Menus

The TV begins memorizing all available stations.

Press the EXIT button to exit.

To Stop the Auto Program Function

Press the MENU button while the Auto Program function is

being executed. You can also press the ENTER button

to stop the setup.

Checking to see if Channels were Stored in Memory

Press the CH button. Only the channels stored in memory

will be selected (in order).

Selecting the antennas

• Air: “Air” antenna signal.

• Cable: “Cable” antenna signal.

• Auto: “Air” and “Cable” antenna signals.

Auto Program

Auto Program in Progress.

Stop

Enter

Cable 11

Return

DTV Cable : -- Cable : --

TOOLS

DMAMTSSRS

E.MODE P.SIZE FAV.CH

CH LIST

VOL CH

ReturnEnter

Auto Program

Selects the cable system.

Analog

Digital

HRC IRC

Move

STD

Start

STD

Book 1.indb 8 2008-07-29 �� 6:39:32

English-9


Mode

Standard

►

Backlight : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50

Detailed Settings

Mode : Standard

Backlight : 7

►

Contrast : 95

Brightness : 45

Sharpness : 50

Color : 50

Tint (G/R) : G50/R50

Detailed Settings

Picture Option


7Backlight

Enter ReturnAdjustMove

2 Air

4 Air

4-2 ♥ TV #8

8 Air

13 Air

13-1 ♥ TV #3 M. Spillane’s mike Hammer

All Channels

Air



Antenna



Zoom



Select TOOLS

Option

Delete

Add to Favorite

Timer Viewing

Channel Name Edit

Auto Program

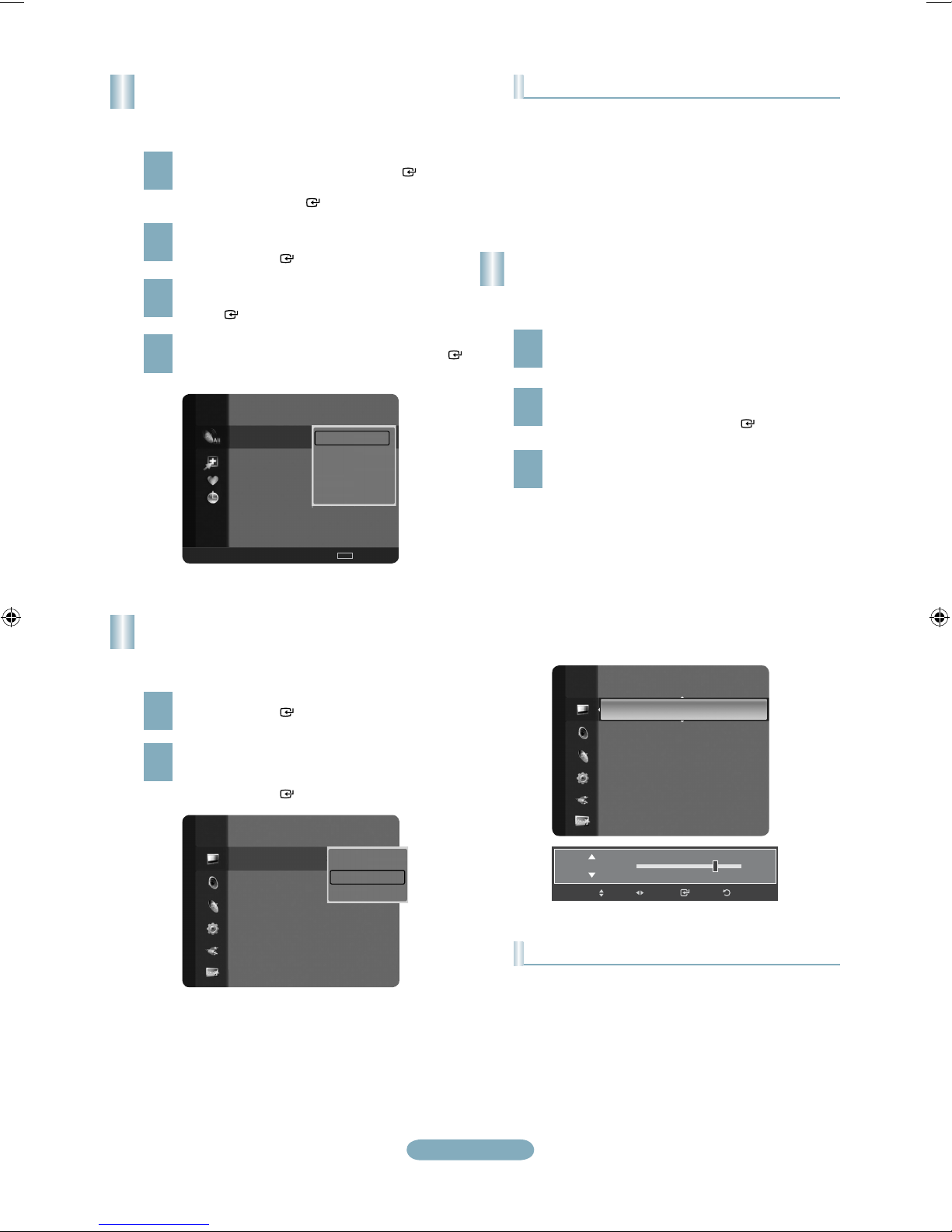

Setting the Channel List

You can delete or add a channel to display the channels

you want.

Press the MENU button. Press the ▲ or ▼ button to

select “Channel”, then press the ENTER button.

Press the ▲ or ▼ button to select “Channel List”,

then press the ENTER button.

Press the ◄ button to select “Added Channels”.

Press the ▲ or ▼ button to select “All Channels”.

Press the ENTER button.

Press the ▲ or ▼ button to select a channel to

delete, then press the TOOLS button. Press the

ENTER button to select “Delete”.

Press the ▲ or ▼ button to select a channel to add,

then press the TOOLS button. Press the ENTER

button to select “Add”.

Changing the Picture Standard

You can select the type of picture which best corresponds

to your viewing requirements.

Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

Press the ENTER button to select “Mode”.

Press the ▲ or ▼ button to select “Dynamic”,

“Standard” or “Movie”.

Press the ENTER button.

Customizing the Picture Settings

Your television has several setting options that allow you to

control the picture quality.

To select the desired picture mode, follow the

“Changing the Picture Standard” instructions

numbers 1 and 2.

Press the ▲ or ▼ button to select “Backlight”,

“Contrast”, “Brightness”, “Sharpness”, “Color” or

“Tint(G/R)”, then press the ENTER button.

Picture Mode

• Dynamic: Selects the picture for high-definition in a bright

room.

•

Standard: Selects the picture for the optimum display in a

normal environment.

•

Movie: Selects the picture for viewing movies in a dark

room.

Press the ◄ or ► button to decrease or increase

the value of a particular item. Press the EXIT button

to exit.

When you make changes to “Backlight”,

“Contrast”, “Brightness”, “Sharpness”, “Color”

or “Tint(G/R)”, the OSD will be adjusted

accordingly.

In PC mode, you can only make changes to

“Backlight”, “Contrast” and “Brightness”.

Settings can be adjusted and stored for each

external device you have connected to an input

of the TV.

➣

Picture Adjustment

• Backlight: Adjusts the brightness of LCD back light.

•

Contrast: Adjusts the contrast level of the picture.

•

Brightness: Adjusts the brightness level of the picture.

•

Sharpness: Adjusts the edge definition of the picture.

•

Color: Adjusts color saturation of the picture.

•

Tint(G/R): Adjusts the color tint of the picture.

Dynamic

Standard

Movie

Book 1.indb 9 2008-07-29 �� 6:39:33

English-10

AV ----

Component1 ----

Component2 ----

PC ----

HDMI1 ----

HDMI2/DVI ----

Refresh TOOLS

Option

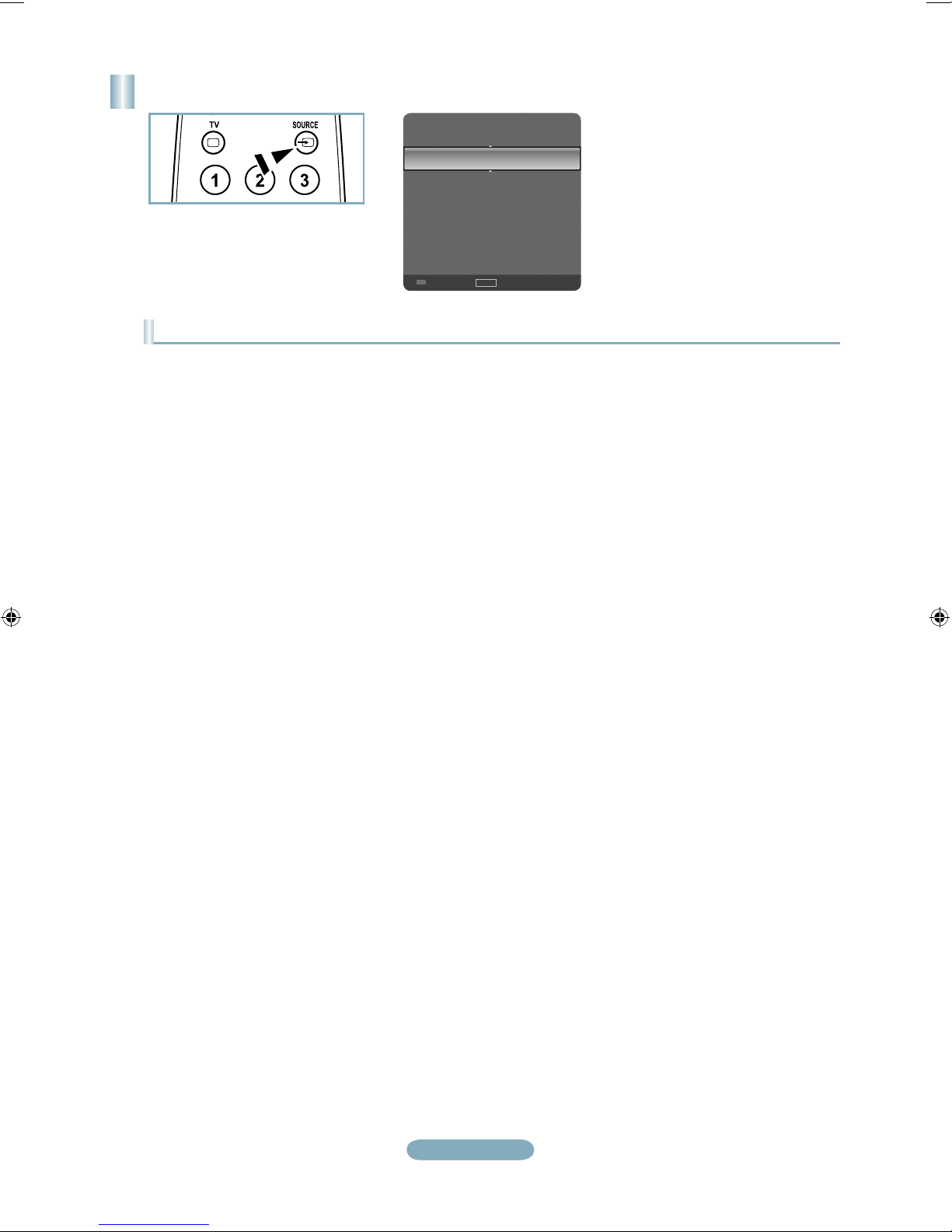

To Select the Source

Press the SOURCE button on the Remote Control

You can select the TV mode or an input source connected to the TV set. Use this button to choose an input source that you

would like to watch.

Available signal sources: TV, AV, Component1, Component2, PC, HDMI1, HDMI2/DVI.

You can choose only those external devices that are connected to the TV. In the “Source List”, connected inputs will be

highlighted and sorted to the top. Inputs that are not connected will be sorted to the bottom.

Using the Color buttons on the remote with the Source list

• Red (Refresh): Refreshes the connecting external devices.

• TOOLS (Option): Displays the “Edit Name” and “Information” menus.

➣

TOOLS

DMAMTSSRS

E.MODE P.SIZE FAV.CH

CH LIST

VOL CH

Book 1.indb 10 2008-07-29 �� 6:39:33

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung TV

Samsung

Samsung CL-21K40MQ Manuel utilisateur

Samsung

Samsung UN40HU6900 Manuel utilisateur

Samsung

Samsung UN50MU6070FOM Manuel utilisateur

Samsung

Samsung UE50J6150 Manuel utilisateur

Samsung

Samsung HLP4663W - 46" Rear Projection TV Guide de configuration

Samsung

Samsung CT15K8W6X/XAP Manuel utilisateur

Samsung

Samsung HL72A650C1F Manuel utilisateur

Samsung

Samsung UN55LS003AF Manuel utilisateur

Samsung

Samsung TX-S2740X Manuel utilisateur

Samsung

Samsung UA43KU7500 Manuel utilisateur

Samsung

Samsung HG43NE460S Manuel utilisateur

Samsung

Samsung TX-S3064WR, TX-S3065WR Manuel utilisateur

Samsung

Samsung 2AE0 Manuel utilisateur

Samsung

Samsung HW-M360 Manuel utilisateur

Samsung

Samsung HL-S5066W Manuel utilisateur

Samsung

Samsung HL-R6767W - 67" Rear Projection TV Manuel utilisateur

Samsung

Samsung ue40h6500 Manuel utilisateur

Samsung

Samsung 43QN9 C Series Manuel utilisateur

Samsung

Samsung UN40D5550RF Manuel d'installation et d'exploitation

Samsung

Samsung CZ20F32TSXXEH Manuel utilisateur

Samsung

Samsung CW29A1081G Manuel utilisateur

Samsung

Samsung TX-S2740X Manuel utilisateur

Samsung

Samsung SP-42Q2 Manuel d'utilisation et d'entretien

Samsung

Samsung UA78KS9500 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
