Samsung LN-R408D Manuel utilisateur

Remote Control (BN59-00460A)

& Batteries (AAA x 2)

Please make sure the following items are included with your LCD TV.

If any items are missing, contact your dealer.

Accessories

RF Cable

(AA39-00039A)

Power Cord

(3303-000085)

Owner's Instructions Anynet AV

Owner’s

Instructions

Cover-Bottom

LN-R408D

(BN63-01640A)

List of Parts

BN68-00515U-00

Anynet Cable

(BN39-00518B)

Cleaning Cloth

(BN63-001798A)

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 1

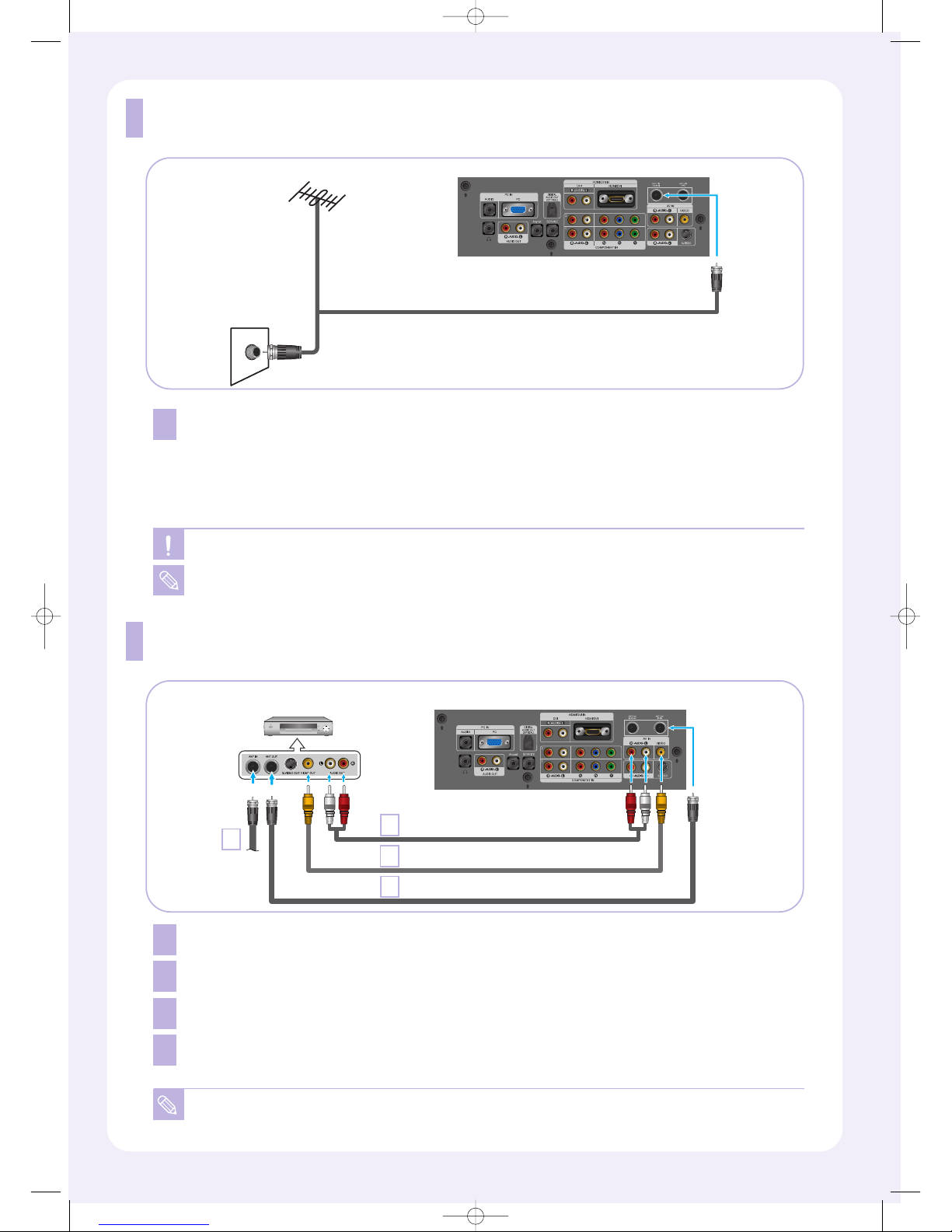

Connecting Antenna/Cable TV

Plug the antenna/cable TV lead into the ANT1 IN (CABLE) terminal on the bottom of the back

panel.

When connecting the RF cable to the antenna input terminal, keep the copper wire portion of

the RF cable straight to avoid bending it.

For more detailed antenna/cable TV connections, see pages 7-10 of the owner's manual.

Connecting a VCR

Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

Connect an RF cable between the ANT OUT terminal on the VCR and the ANT1 IN (CABLE) or

ANT 2 IN (AIR) terminal on the TV.

Connect an audio cable between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L]

jacks on the TV.

Connect a video cable between the VIDEO OUT jack on the VCR and the AV IN [VIDEO]jack on

the TV.

If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the

R-AUDIO-L jacks on the TV.

TV Rear Panel

RF Cable

Audio Cable (Option)

VCR Rear Panel

Video Cable (Option)

TV Rear Panel

RF Cable

Antenna

Cable TV

Cable

Antenna

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 2

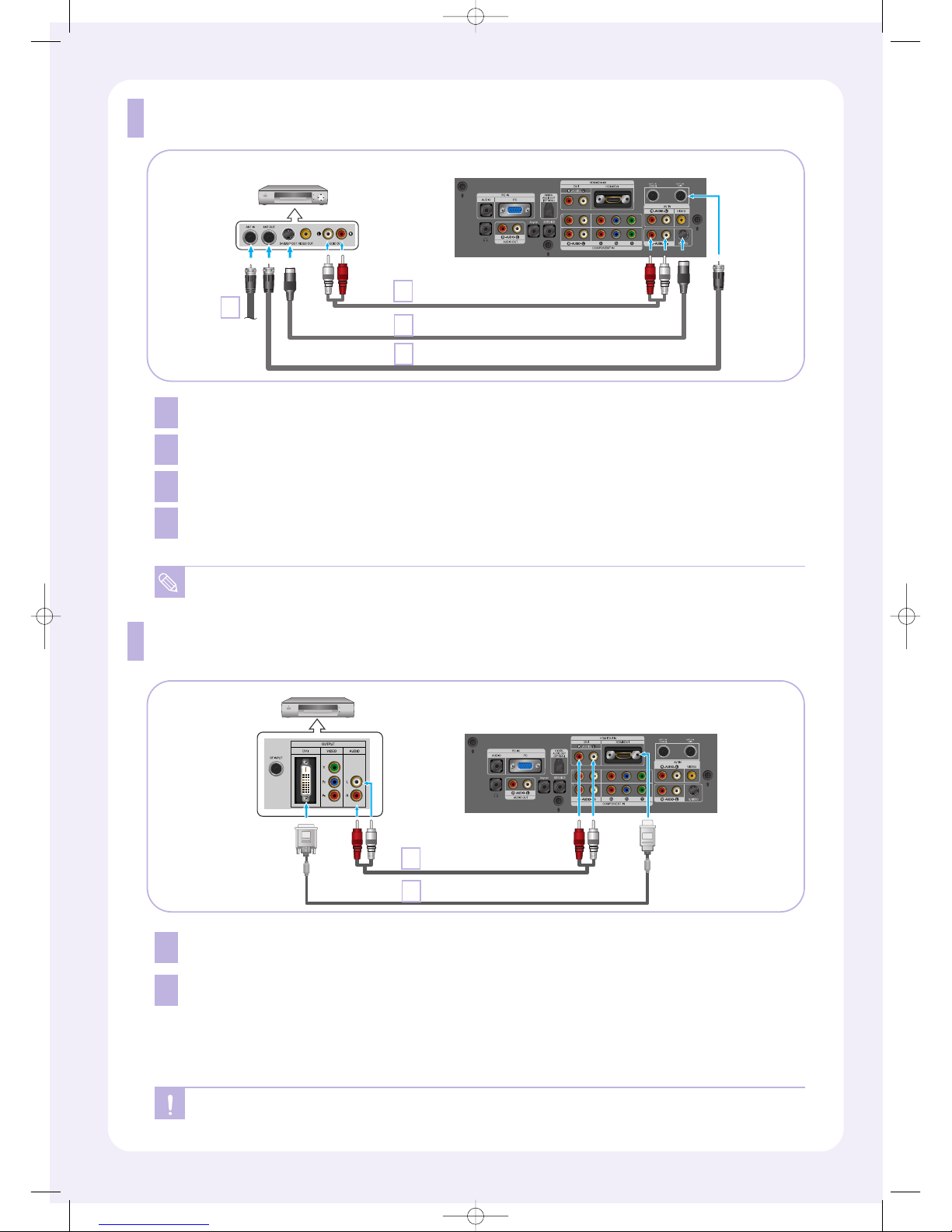

Connecting a DVD/ Samsung Set-top box via DVI

Connecting an S-VHS VCR

Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

Connect an RF cable between the ANTOUT terminal on the VCR and the ANT1 IN(CABLE) or

ANT 2 IN(AIR) terminal on the TV.

Connect an audio cable between the AUDIO OUT jacks on the VCR and the [R-AUDIO-L]

jacks on the TV.

Connect an S-video cable between the S-VIDEO OUT jack on the VCR and the [S-VIDEO]jack on

the TV.

An S-Video cable is usually included with an S-VHS VCR.

Connect a DVI to HDMI cable or DVI-HDMI Adapter (DVI to HDMI) between the HDMI/DVI

connector on the TV and DVI connector on the DVD player/Set-top box.

Connect an audio cable between the DVI [R-AUDIO-L]jacks on the TV and the AUDIO OUT jacks

on the DVD player/Samsung Set-top box.

DVI-D does not support PC function.

S-Video Cable (Option)

Audio Cable (Option)

TV Rear Panel

RF Cable

VCR Rear Panel

DVI to HDMI Cable (Option)

Audio Cable (Option)

DVD Player Rear Panel

TV Rear Panel

Cable

Antenna

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 3

Connecting a DVD Player

Connect an audio cable between the COMPONENT IN 1 [R-AUDIO-L]jacks on the TV and the

AUDIO OUT jacks on the DVD player.

Connect a component video cable between the COMPONENT IN 1 or COMPONENT 1 IN [PR, PB, Y]

jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD player.

Each external input source device (DVD, STB, VCR etc.) has a different back panel

configuration.

Audio Cable (Option)

Component Cable (Option)

DVD Player Rear Panel TV Rear Panel

Connecting a DVD/ Set-top box via HDMI

1Connect a HDMI cable between the HDMI/DVI connector on the TV and the HDMI

connector on the DVD player/Set-top box.

What is HDMI?

• HDMI, or high-defintion multimedia interface, is a next-generation interface that enables the

transmission of digital audio and video signals using a single cable without compression.

• “Multimedia interface” is a more accurate name for it especially because it allows multiple

channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI

device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection)coding feature

installed, and supports multi-channel digital audio.

TV Rear Panel

1HDMI Cable (Option)

DVD Player Rear Panel

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 4

Connecting a PC

Connect the D- Sub cable to “PC” (PC IN) on the TV.

Connect the stereo audio cable to “AUDIO” (PC IN) on the TV and the other end to

“Audio Out” of the sound card on the computer.

Connecting a Digital Audio System

1Connect an audio Optical between the DIGITAL AUDIO OUT (OPTICAL) jack on the TV

and the Digital Audio Input (OPTICAL) jack on the Digital Audio System.

Digital Audio System

TV Rear Panel

Optical Cable (Option)

PC Audio Cable (Option)

TV Rear Panel

PC Video Cable (Option)

Connecting an Amplifier/DVD Home Theater

Connect an audio cables between the AUDIO OUT [R-AUDIO-L] jacks on the rear of your TV and

the other ends to the corresponding audio in jacks on the Amplifier or DVD Home Theater.

Amplifier/DVD Home Theater

Audio Cable (Option)

TV Rear Panel

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 5

Plug & Play

When the TV is initially powered on, two basic customer settings proceed

automatically and subsequently: Setting Auto program, Clock.

Press the POWER button on the remote

control.

The message “Menu language, Channels and

Time will be set.” is displayed

. Press the

ENTER button, then “Select the language

of the OSD” menu is automatically displayed.

Press the ENTER button to enter the

language.

Press the UP/DOWN buttons to select

language, then the ENTER button.

“Select the antennas to memorize.” menu is

automatically displayed.

Press the UP/DOWN buttons to

memorize the channels of the selected

connection. Press the ENTER button to

select “Start”.

Press the UP/DOWN buttons to select

“Digital Channel”, then press the ENTER

button.

Press the UP/DOWN buttons to select

“STD”, “HRC” or “IRC”, press the ENTER

button.

Press the UP/DOWN buttons to select

“Analog Channel”, then press the ENTER

button. Press the UP/DOWN buttons to

select “STD”, “HRC” or “IRC”, press the

ENTER button.

Press the UP/DOWN buttons to select

“Start”, then press the ENTER button to

memorize the channels.

BN68-00515U-X0Eng.qxd 1/5/05 10:00 PM Page 6

The TV will begin memorizing all of the

available channels. After all the available

channels are stored, the Auto program menu

reappears. Press the ENTER button when

channel memorization is complete. “Set to

daylight savings time.” menu is auto

matically displayed.

Press the ENTER button. Press the

UP/DOWN buttons to select “Yes” or

“No”, then the ENTER button.

“Select your time zone in which you live” menu

is automatically displayed.

Press the UP/DOWN buttons to

highlight the time zone for your local area

(and to move the highlight to the appropriate

time zone on the map of the United States).

Press the ENTER button.If you have

received a digital signal, the time will

be set automatically. If not, see page 70 to set

the clock.

The message “Completed.

Time will be updated automatically.” is

displayed. When you have finished, press the

ENTER button.

BN68-00515U-X0Eng.qxd 1/5/05 10:01 PM Page 7

To Select the Source

You can select the TV mode or an input

source (AV, S-Video, Component 1,

Component 2, PC, HDMI) connected to the

TV set. Use this button to choose an input

source that you would like to watch.

Press the SOURCE button on the remote control

Setting the Function Help

Displays help on the menu functions.

Press the MENU button to display the

menu. Press the UP/DOWN buttons to

select “Setup”, then press the ENTER

button.

Press the UP/DOWN buttons to select

”Function Help:, then press the ENTER

button.

Press the UP/DOWN buttons to select

”On”, then press the ENTER button.

BN68-00515U-X0Eng.qxd 1/5/05 10:01 PM Page 8

Remote control Functions Chart

POWER

Turns the TV on and off.

ANTENNA

Press to select “AIR” or “CABLE”.

GUIDE

Press to display he on-screen

Electronic Program Guide (EPG).

Press to select additional channels

(digital and analog) being broadcast by

the same station. For example, to

select channel “54-3”, press “54”,

then press “-” and “3”.

MUTE

Press to temporarily cut off

the sound.

Anynet

Press the Anynet button to bring up the

Anynet menu.

Refer to “Anynet AV

Owner’s Instructions”.

Displays the main on-screen

menu.

CH.LIST

Displays the channel list.

FAV.CH

Press to switch to your favorite

channels.

STILL

Press to stop the action during a

particular scene.

Press again to resume normal video.

P.SIZE

Press to change the screen size.

DNIe

Press to improve the digital video

quality.

SRS

Selects TruSurround XT mode.

SET

Adjusts 5 separate devices - TV,

VCR, CABLE, DVD or Samsung

Set-top box.

MODE

Selects a target device to be con

trolled by the Samsung remote control

(

TV, VCR, CABLE, DVD or Samsung

Set-top box

)

Press to make sure that the TV LED,

STB LED, VCR LED, CATV LED, or

DVD LED is illuminated.

NUMERIC BUTTONS

Press to change the channel.

PRE-CH

Tunes to the previous channel.

CH and CH

(Channel UP/Down)

Press CH or CH to

change channels.

VOL + and VOL -

Press to increase or decrease

the volume.

SOURCE

Press to display all of the available

video sources.

INFO

Use to see information on the current

broadcast.

EXIT

Press to exit the menu.

UP / DOWN / LEFT / RIGHT /

ENTER

Use to select on-screen menu items

and change menu values.

MTS

Press to choose stereo, mono or

Separate Audio Program (SAP

broadcast).

PIP

Picture-in-Picture ON/OFF.

SLEEP

Press to select a time for the TV to

turn off automatically.

Displays the available channels

in sequence.

(These buttons change channels

in the PIP window only.)

CAPTION

Controls the caption decoder.

VCR/DVD Functions

(Only Anynet mode)

- Rewind

- Stop

- Play/Pause

- Rast/Forward

RESET

When your remote does not work,

change the batteries and press the

Reset button for 2-3 seconds before

use.

Note: If you are trying to program this remote to use another manufacturer's DVD, VCR or

Cable box, see page 31 of the owner's manual.

BN68-00515U-X0Eng.qxd 1/5/05 10:01 PM Page 9

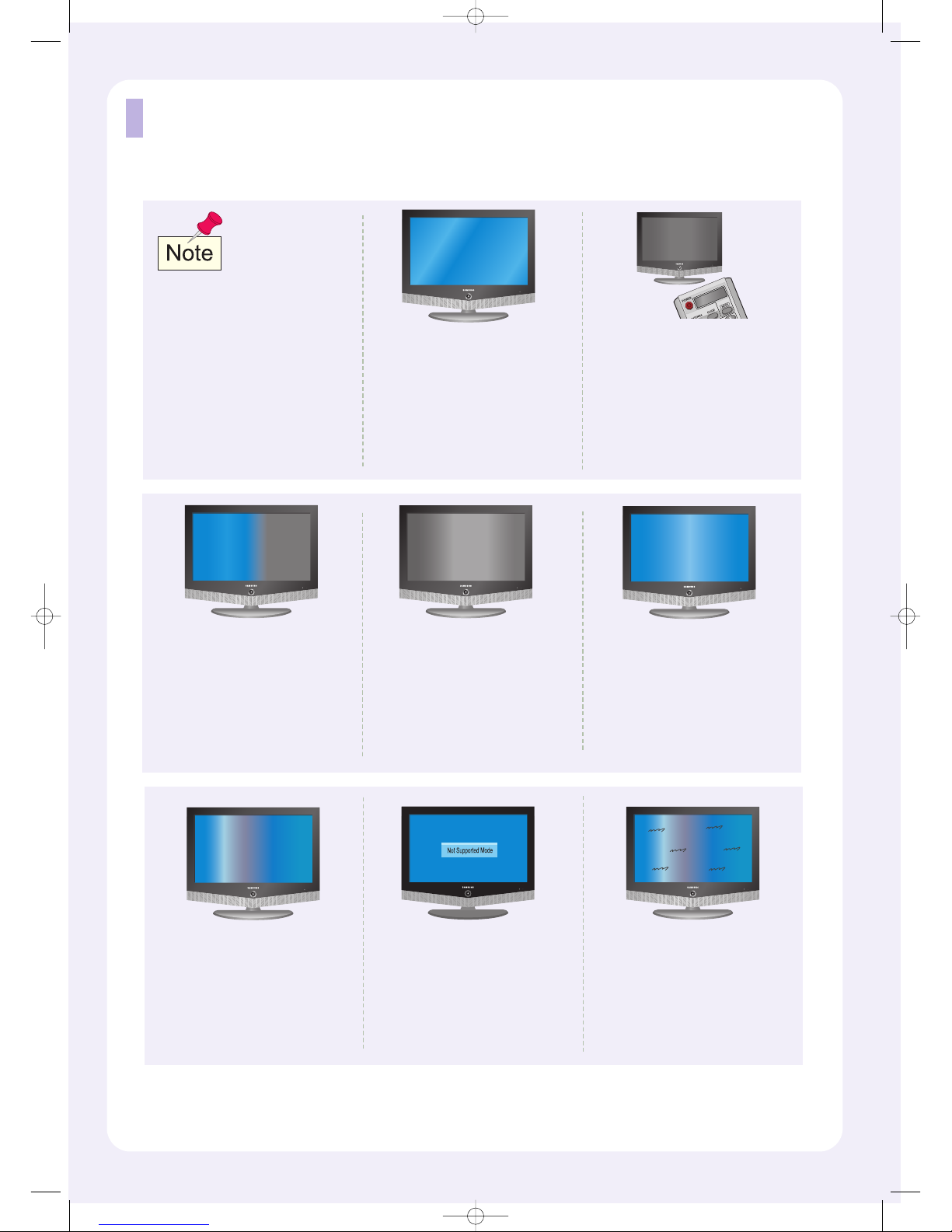

FAQ

If a still image is displayed for an

extended period of time, residual

images or blurring may appear.

When you need to leave the TV unused

for an extended period of time, adjust

the settings so that the TV automatically

goes into energy saving mode or

activates the screen saver to display

moving images.

No picture or sound.

Try another channel.

Press the SOURCE button.

Make sure the TV is plugged in.

Check the antenna connections.

Poor picture

Try another channel.

Adjust the antenna.

Check all wire connections.

Image is not centered on the

screen.

Adjust the horizontal and vertical

position. The screen position must be

adjusted on the output source

(i.e. STB) with a digital signal.

“Not Supported Mode”

message.

Check the maximum resolution and

the frequency of the Video Adapter.

Compare these values with the data

in the Display Modes.

Remote control malfunctions

Replace the remote control batteries.

Clean the upper edge of the remote

control (transmission window).

Check the battery terminals.

No sound or sound is too low

at maximum volume.

First, check the volume of units connected

to your TV (digital broadcasting receiver,

DTV, DVD, cable broadcasting receiver,

VCR, etc.). Then, adjust the TV volume

accordingly.

Image is not stable and may

appear to vibrate.

If the setting is not correct, use your

computer utility program to change

the display settings.

Check the following

items before calling

a Samsung authorized

service center.

BN68-00515U-X0Eng.qxd 1/5/05 10:01 PM Page 10

Autres manuels pour LN-R408D

Table des matières

Autres manuels Samsung TV

Samsung

Samsung MU7000 Series Mode d’emploi

Samsung

Samsung HL-R4656W Manuel utilisateur

Samsung

Samsung BT-316NR Manuel utilisateur

Samsung

Samsung TX-R3079WH Manuel utilisateur

Samsung

Samsung SP-43L2HX Manuel utilisateur

Samsung

Samsung CK3373TR4X/BWT Manuel utilisateur

Samsung

Samsung HL-R4667W - 46" Rear Projection TV Manuel utilisateur

Samsung

Samsung WS28V53NS8XXEC Manuel utilisateur

Samsung

Samsung TX-T2781, TX-T2782, TX-T2082 Manuel utilisateur

Samsung

Samsung F5410AW Mode d’emploi

Samsung

Samsung WS32Z46VSGXXEC Manuel utilisateur

Samsung

Samsung PN51D530A3F Manuel utilisateur

Samsung

Samsung CS14V10MJ0XXSE Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung CL-21Z43ML Manuel utilisateur

Samsung

Samsung 43UA9 Series Manuel utilisateur

Samsung

Samsung UE82MU7000U Manuel utilisateur

Samsung

Samsung pl43e490 Manuel utilisateur

Samsung

Samsung QE50LS01BAUXXC Mode d’emploi

Samsung

Samsung 5+ SERIES Manuel utilisateur

Samsung

Samsung TV Mode d’emploi

Samsung

Samsung CS-29K40 Manuel utilisateur

Samsung

Samsung CS21Z43 Manuel utilisateur

Samsung

Samsung HL-T5075S - 50" Rear Projection TV Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
