Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model Serial No.

LED TV

Installation manual

[HC890_ZA]Install_Guide_00ENG.indd 1 2014-04-02  1:39:03

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

Introduction

This TV B2B (Business to Business) model is designed for hotels or the other hospitality businesses, supports a variety of special functions, and lets you

limit some user (guest) controls.

Operational Modes

This TV has two modes : Interactive and Stand-alone mode.

• Interactive mode : In this mode, the TV communicates with and is fully or partially controlled by a connected Set Back Box (SBB) or Set Top Box

(STB) provided by a hospitality SI (System Integration) vendor. When the TV is initially plugged in, it sends a command that attempts to identify the

SSB or STB connected to it. If the TV identiﬁes the SBB or STB and the SBB or STB identiﬁes the TV, the TV gives full control to the SBB or STB.

• Stand-alone mode : In this mode, this TV works alone without an external SBB or the STB.

The TV has a Hotel (Hospitality) Menu that lets you easily set its various hospitality functions. Please see pages 25 to 29.

The Menu also lets you activate or de-activate some TV and hospitality functions so you can create your optimal hospitality conﬁguration.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such as TV channel logos, panorama or 4:3 format images, stock or news

bars or crawls) on the screen. Displaying still pictures continually can cause uneven screen wear, which will affect image quality. To reduce the chance that

this effect will occur, please follow the recommendations below:

• Avoid displaying the same TV channel for long periods.

• Always try to display a full screen image.

• Reduce brightness and contrast to help prevent the occurrence of after-images.

• Use all TV features designed to reduce image retention and screen burn-in. Refer to the proper user manual section for details.

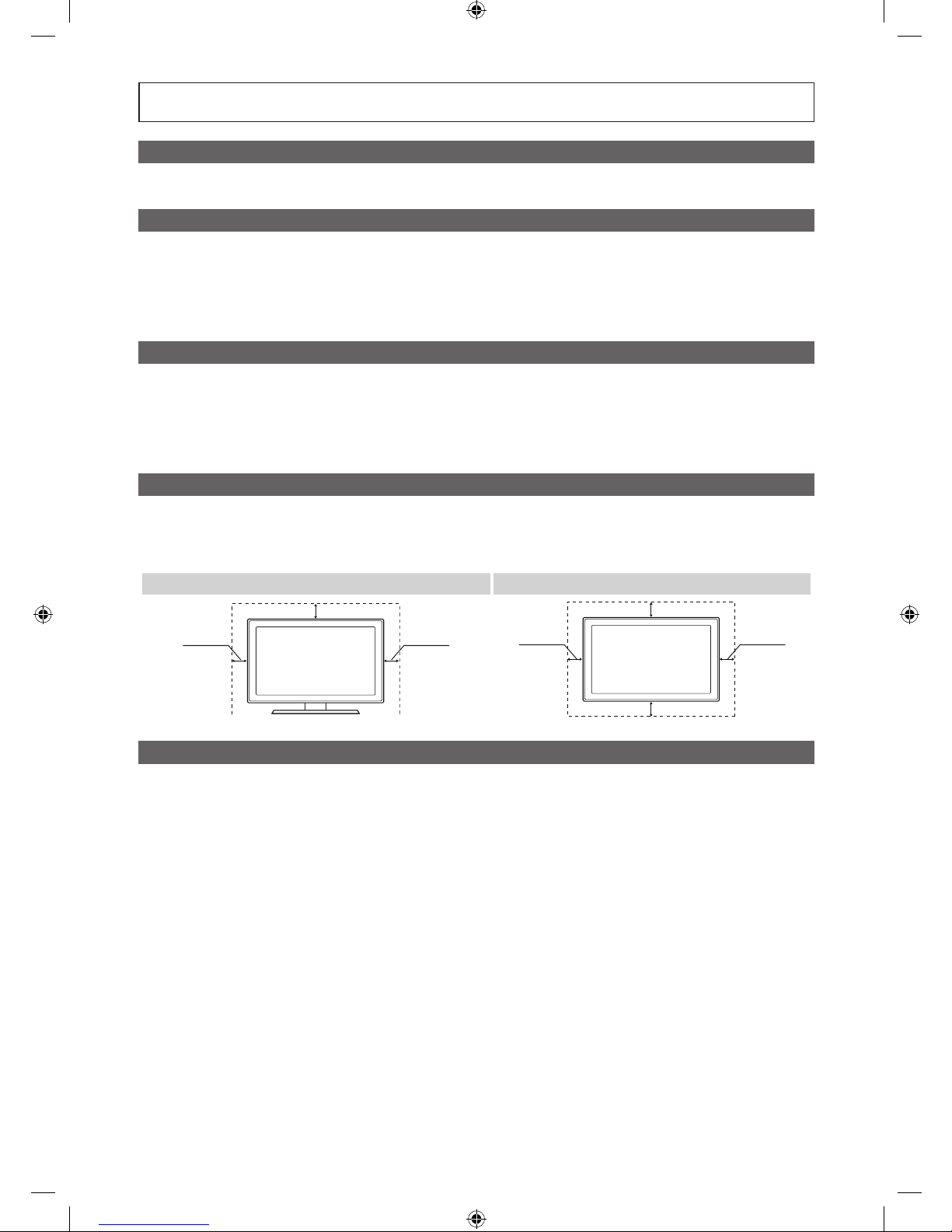

Ensuring Proper Ventilation

When you install the TV, maintain the distances shown below between the TV and other objects (walls, cabintet sides, etc.) to ensure proper ventilation.

Failing to do so may result in a ﬁre or problems with the TV caused by an increase in its internal temperature.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may cause a problem with the product or cause the product to fall, leading to serioius injury.

Installation with a stand. Installation with a wall-mount.

4 inches4 inches

4 inches

4 inches4 inches

4 inches

Additional Information

✎

The appearance of the TV and its accessories may differ from the illustrations in this manual, depending on the TV.

✎

Be careful when you touch the TV if it is on or has been on for a period of time. Some parts can be hot.

[HC890_ZA]Install_Guide_00ENG.indd 2 2014-04-02  1:39:03

Contents

ENGLISH

English

Symbols Used in this Manual

Indicates that you can press the

TOOLS button on the remote control

to use this function.

Note One-Touch Button

TOOLS

yIntroduction .............................................................................................................................................................. 2

yOperational Modes ................................................................................................................................................... 2

yStill image warning.................................................................................................................................................... 2

yEnsuring Proper Ventilation ...................................................................................................................................... 2

yAdditional Information ............................................................................................................................................... 2

yAccessories .............................................................................................................................................................. 4

yInstalling the LED TV Stand....................................................................................................................................... 5

yUsing the TV's Controller .......................................................................................................................................... 6

yThe Connection Panel............................................................................................................................................... 7

yThe Remote Control.................................................................................................................................................. 9

yUsing the Samsung Smart Control.......................................................................................................................... 11

yConnecting to the Network ..................................................................................................................................... 16

yConnecting the TV to an SBB or STB ..................................................................................................................... 18

yConnecting the Bathroom Speakers ....................................................................................................................... 21

yConnecting the RJP (Remote Jack Pack)................................................................................................................ 22

ySetting the Hotel Option Data ................................................................................................................................. 24

yInstalling the Wall Mount ......................................................................................................................................... 45

ySecuring the TV to the Wall..................................................................................................................................... 46

ySpeciﬁcations ......................................................................................................................................................... 48

yDisplay Resolution................................................................................................................................................... 49

yDimensions............................................................................................................................................................. 50

[HC890_ZA]Install_Guide_00ENG.indd 3 2014-04-02  1:39:04

English

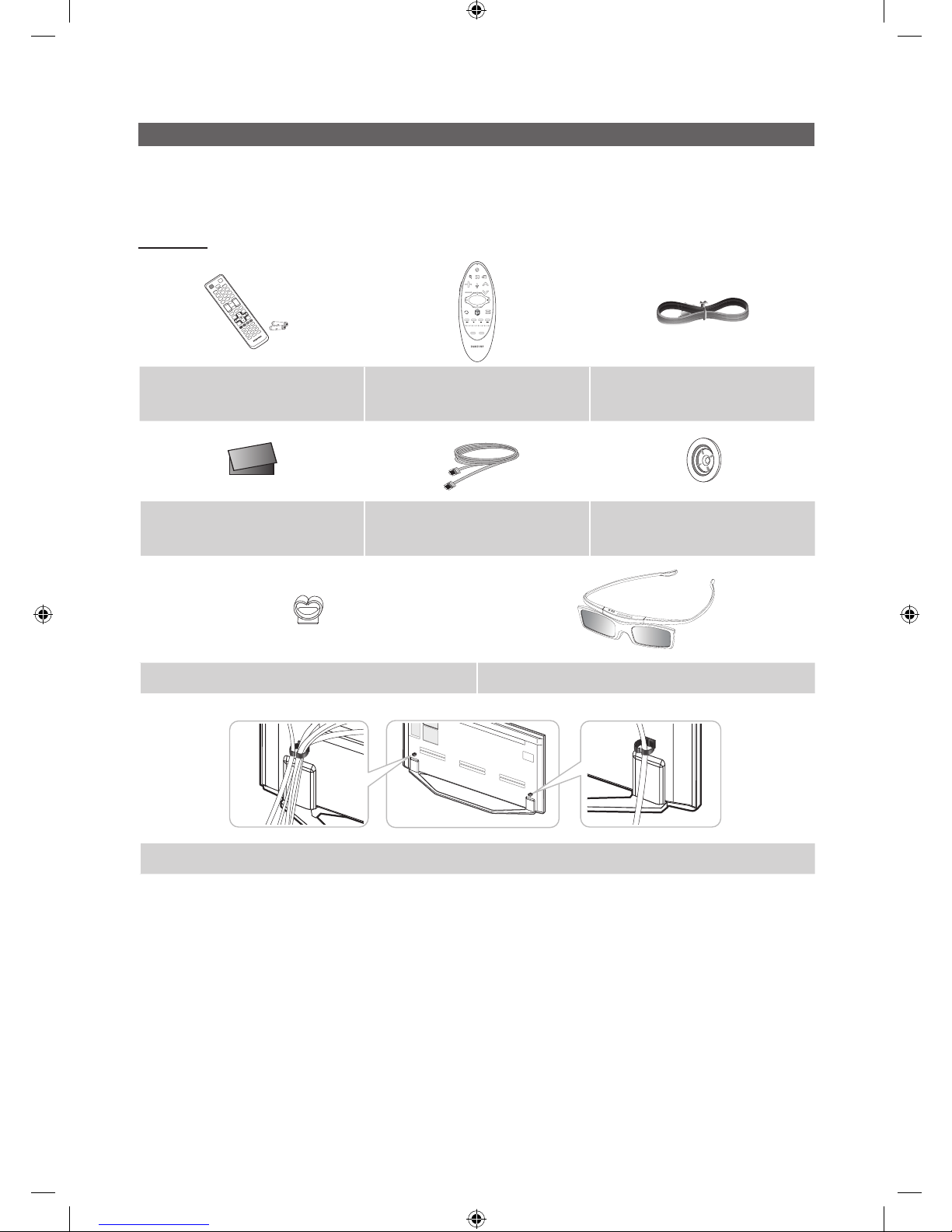

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ color and shape may vary, depending on the model.

✎

The parts for the stand are listed under Stand Components on the following page.

List of Parts

RETURN

EXIT

GUIDE

CH.LIST

SMARTHUB

KEYPAD SOURCE

VOL CH

VOICE

MIC

yRemote Control (AA59-00817A) &

Batteries (AAA x 2)

ySmart Control(BN59-01181N) &

Batteries (AA x 2) yPower Cord

ySafety Guide / Quick Setup Guide

(Not available in all locations)

yData Cable

(depending on the model)

(BN39-00865B, BN39-01011C)

yHolder Ring

(4EA, in more than 65" models only)

yCable Holder (2 EA) y3D glasses (BN96-31824A, Sold separately)

yAssembling the Holder Wire Stand

[HC890_ZA]Install_Guide_00ENG.indd 4 2014-04-02  1:39:06

English

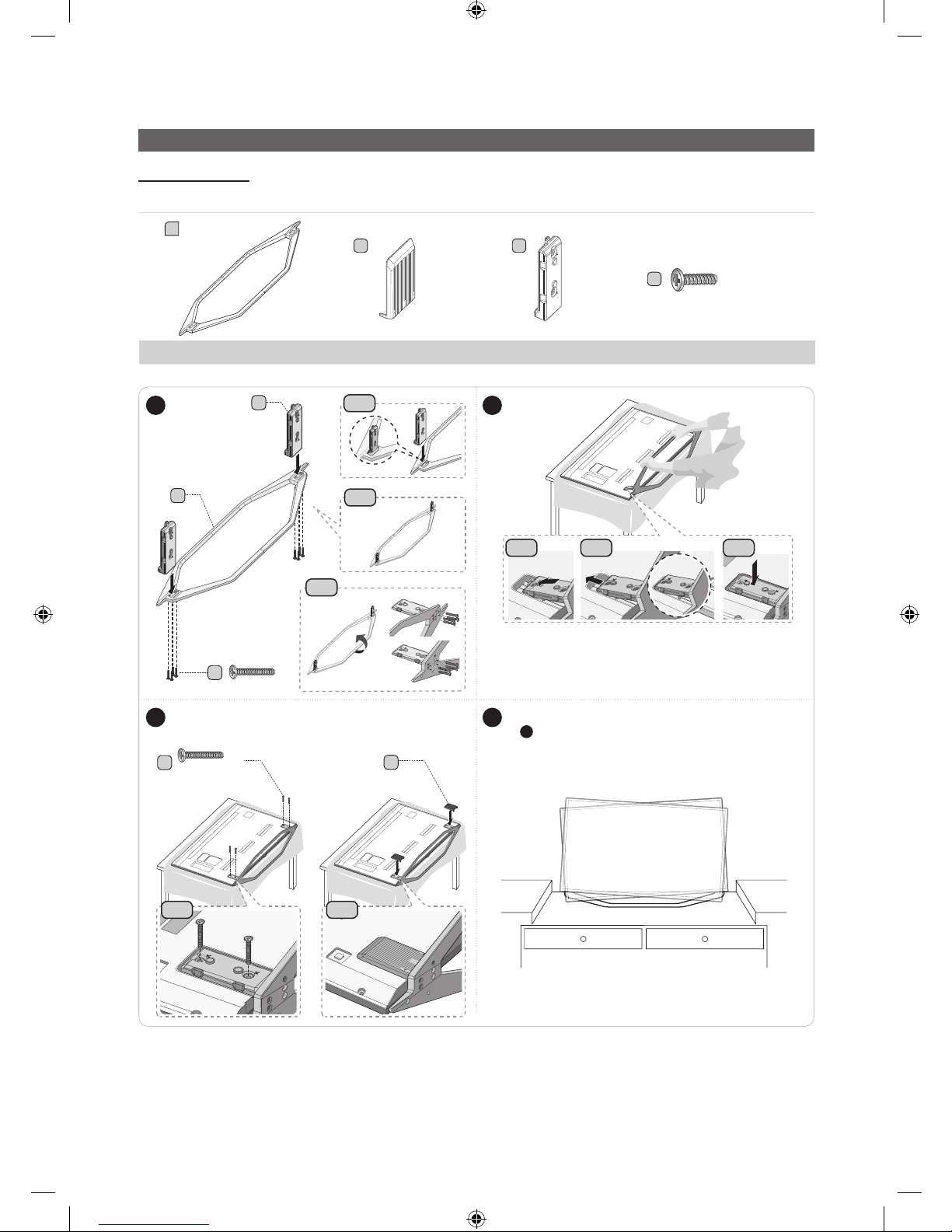

Installing the LED TV Stand

Stand Components

When installing the stand, use the provided components and parts.

1 EA

X 2

x12 (M4 X L14)

tand

yGuide Stand

yBracket Stand

yScrews

Tight the bottom of the screw ﬁrst, and stow the

upper side of screw last.

When the declination happened, try reassemble

category.

✎Place a soft cloth over the table to protect the TV, and then place

the TV on the cloth screen-side down.

✎Insert the Stand Guide into the slot on the bottom of the TV.

✎Slide and assemble it to the end line in the direction of arrow.

✎Make sure to assembling stand guide attached on the TV.

1-1

1-2

1-3

(M4 X L14)

2-32-1 2-2

3-1 3-2

(M4 X L14)

✎

NOTE

yMake sure to distinguish between the front and back of each component when assembling them.

yMake sure that at least two persons lift and move the TV.

[HC890_ZA]Install_Guide_00ENG.indd 5 2014-04-02  1:39:12

English

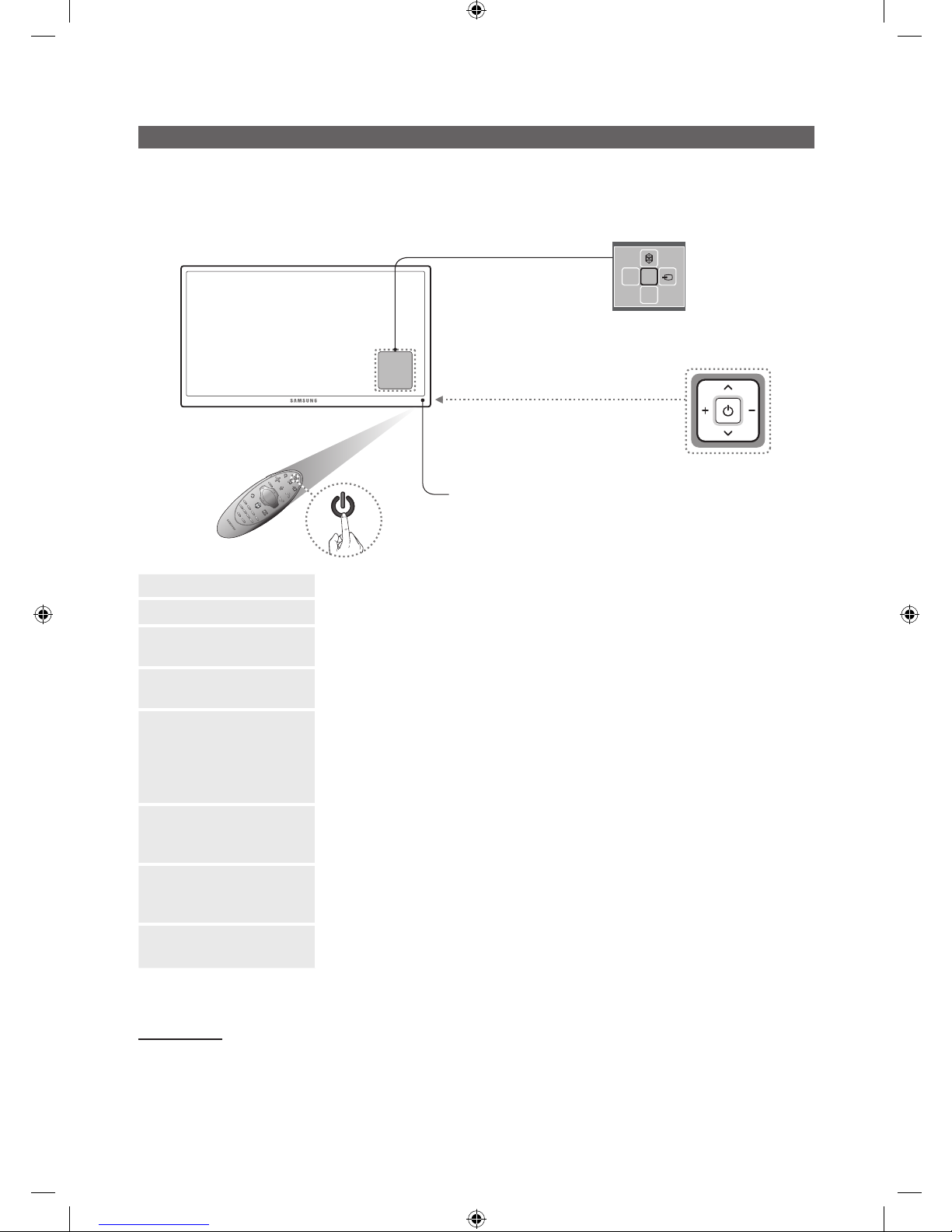

Using the TV's Controller

✎

The color and shape of the TV Controller may vary depending on the model.

✎

The TV's Controller, a small joy stick like button on the bottom right side of the TV, lets you control the TV without the

remote control.

Turn off the TV.

Open Smart Hub.

Open the menu. Select a source.

Remote control sensor

When you use the Samsung Smart

Control, the standby LED does not

respond, except when you press the

Pbutton.

TV Controller

The control stick is located on the lower-

left corner of the back of the TV

Power on Turn the TV on by pressing the Controller when the TV is in standby mode.

Adjusting the volume

Adjust the volume by moving the Controller from side to side when the power is on.

Selecting a channel Select a channel by moving the Controller backwards and forwards when the

power is on.

Using the Function menu To view and use the Function menu, press and release the Controller when the

power is on. To close the Function menu, press and release the Controller again.

Selecting the MENU (

)With the Function menu visible, select the MENU (

) by moving the Controller

to the left. The OSD (On Screen Display) Menu appears. Select an option by

moving the Controller to the right. Move the Controller to the right or left, or

backwards and forwards to make additional selections. To change a parameter,

select the it, and then press the Controller.

Selecting SMART HUB (™)

With the Function menu visible, select SMART HUB (™) by moving the

Controller upwards. The SMART HUB main screen appears. Select an

application by moving the Controller, and then pressing the Controller.

Selecting a Source (

)

With the Function menu visible, open the Source screen (s) by pushing the Controller

to the right. The Source screen appears. To select a source, move the Controller back

and forth. When the source you want is highlighted, press the Controller.

Power Off (

)With the Function menu visible, select Power Off (

) by pulling the Controller

forwards, and then press the Controller.

✎

To close the Menu, SMART HUB, or Source, press the Controller for more than 1 second.

Standby mode

Your TV enters Standby mode when you turn it off, and continues to consume a small amount of electric power. To be safe

and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on

vacation, for example). It is best to unplug the power cord.

[HC890_ZA]Install_Guide_00ENG.indd 6 2014-04-02  1:39:12

English

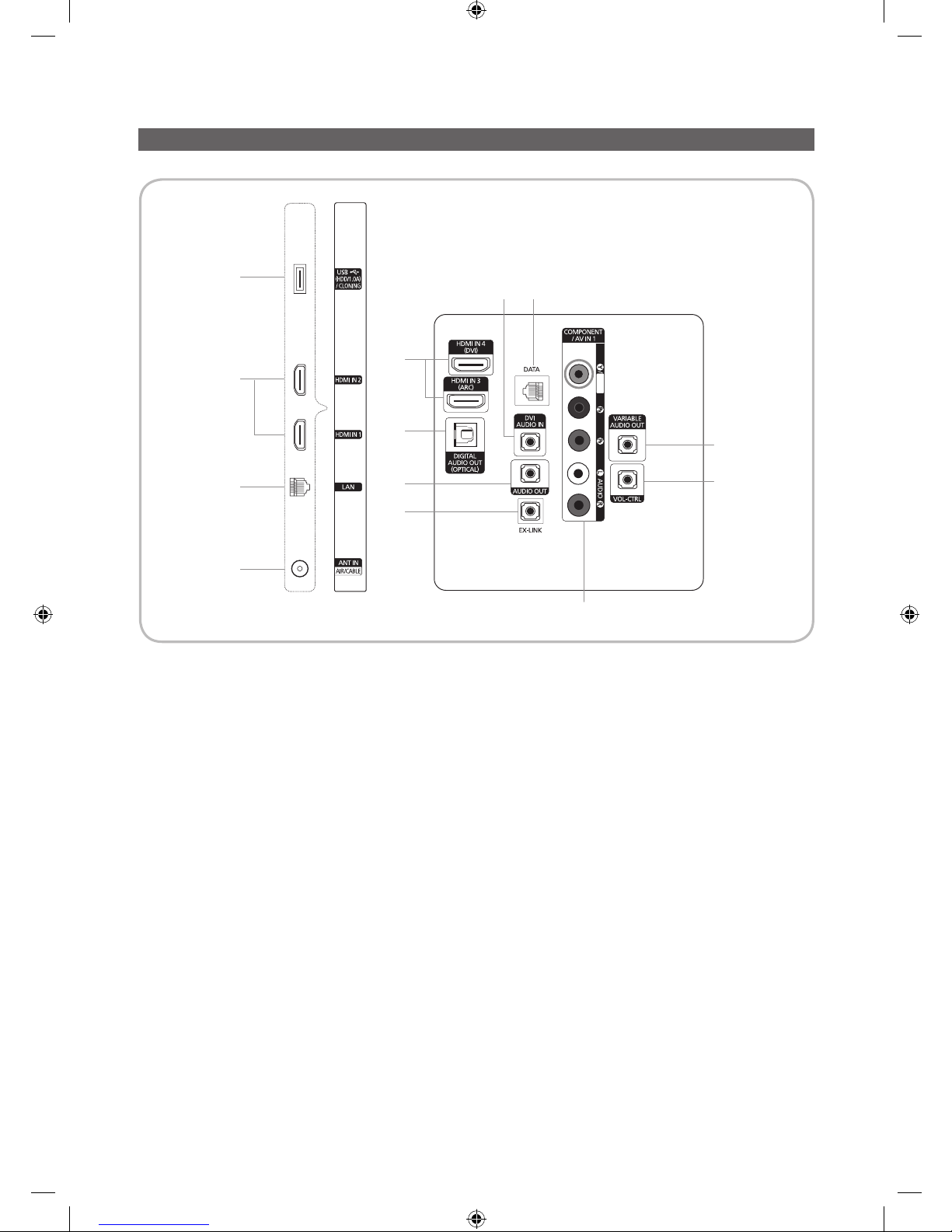

The Connection Panel

VIDEO

@ !

VIDEO

@ !

VIDEO

8 9

@ !

✎

Whenever you connect an external device to your TV, make sure that power on the TV and the device is turned off.

✎

When connecting an external device, match the color of the connection terminal to the cable.

1 USB (HDD/1.0A) / CLONING

– Connector for software upgrades and Media Play, etc.

– Service connection.

2 HDMI IN 1, 2, 3(ARC), 4(DVI): Connects to the HDMI jack of a device with an HDMI output.

✎

No separate sound connection is needed for an HDMI to HDMI connection. HDMI connections carry both audio

and video.

✎

Use the HDMI IN 4(DVI) jack for a DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI

adapter (DVI to HDMI) for the video connection and the PC/DVI AUDIO IN jacks for audio. Some DVI or HDMI

devices may not or should not need a DVI AUDIO IN connection for audio.

✎

It is recommended that the external device of the HDMI 1.3 or 1.4 version will be used with this TV. If you meet the

compatible problem like no sound or the abnormal screen or etc with the device of the HDMI 1.2 version, contact

to the Samsung customer care center. Refer to page 54 for the information of the Samsung customer care center.

3 LAN: Connect to a wired LAN using CAT 7 cable.

4 ANT IN (AIR/CABLE)

– To view television channels correctly, the TV must receive a signal from one of the following sources:

– An outdoor antenna / A cable television system / A satellite receiver

5 DIGITAL AUDIO OUT (OPTICAL): Connects to a Digital Audio component.

6 AUDIO OUT: Connects to the audio input jacks on an Ampliﬁer/Home Theater.

7 EX-LINK: Connect this jack to the jack on the optional RJP (Remote Jack Pack). This will allow you to connect external

devices (Camcoder, PC, DVD players etc.) easily.

[HC890_ZA]Install_Guide_00ENG.indd 7 2014-04-02  1:39:13

English

8 COMPONENT IN / AV IN

– Use to connect to Component video / audio devices such as DVD players and AV (Composite) devices such as VCRs.

– Connect audio cables to "R-AUDIO-L" on your TV and the other ends to corresponding audio out jacks on A/V or

Component devices.

– The COMPONENT IN jack is also used as the VIDEO 1 jack.

– Connect component video cables (not supplied) to the component jacks ("PR", "PB", "Y") on the rear of your TV and the

other ends to corresponding component video out jacks on a DVD player. Match the colors on the jacks and cables.

– If you want to connect both a Set-Top Box and a DVD player, you should connect the Set-Top Box to the DVD and

connect the DVD to the component jacks ("PR", "PB", "Y") on your TV.

– The PR, PB and Y jacks on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.

– For AV devices, connect RCA audio cables (not supplied) to "R - AUDIO - L" on the rear of the TV set and the other

ends to corresponding audio out jacks on an external device.

– When your are connecting a composite (AV) device to AV IN1 [Y/Video], connect the video cable (Yellow) to the

AV IN1 [Y/VIDEO] jack (Green/Yellow) .

9 VOL-CTRL: Used to control the volume of the Bathroom speaker. Connect the Bathroom Wall Box and the VOLCTRL port.

0 VARIABLE AUDIO OUT: Used for the audio output to the Bathroom speaker. Connect the Bathroom Wall Box and the

Variable port (RCA).

! DATA

– Used to support data communication between the TV and the SBB or STB.

– Connects using RJ-12 TV type plugs.

@ DVI AUDIO IN: Connects to the audio out jack of an external DVI device using a 1/8th inch stereo phone jack cable.

Some DVI devices may not or should not need this connection audio.

[HC890_ZA]Install_Guide_00ENG.indd 8 2014-04-02  1:39:13

English

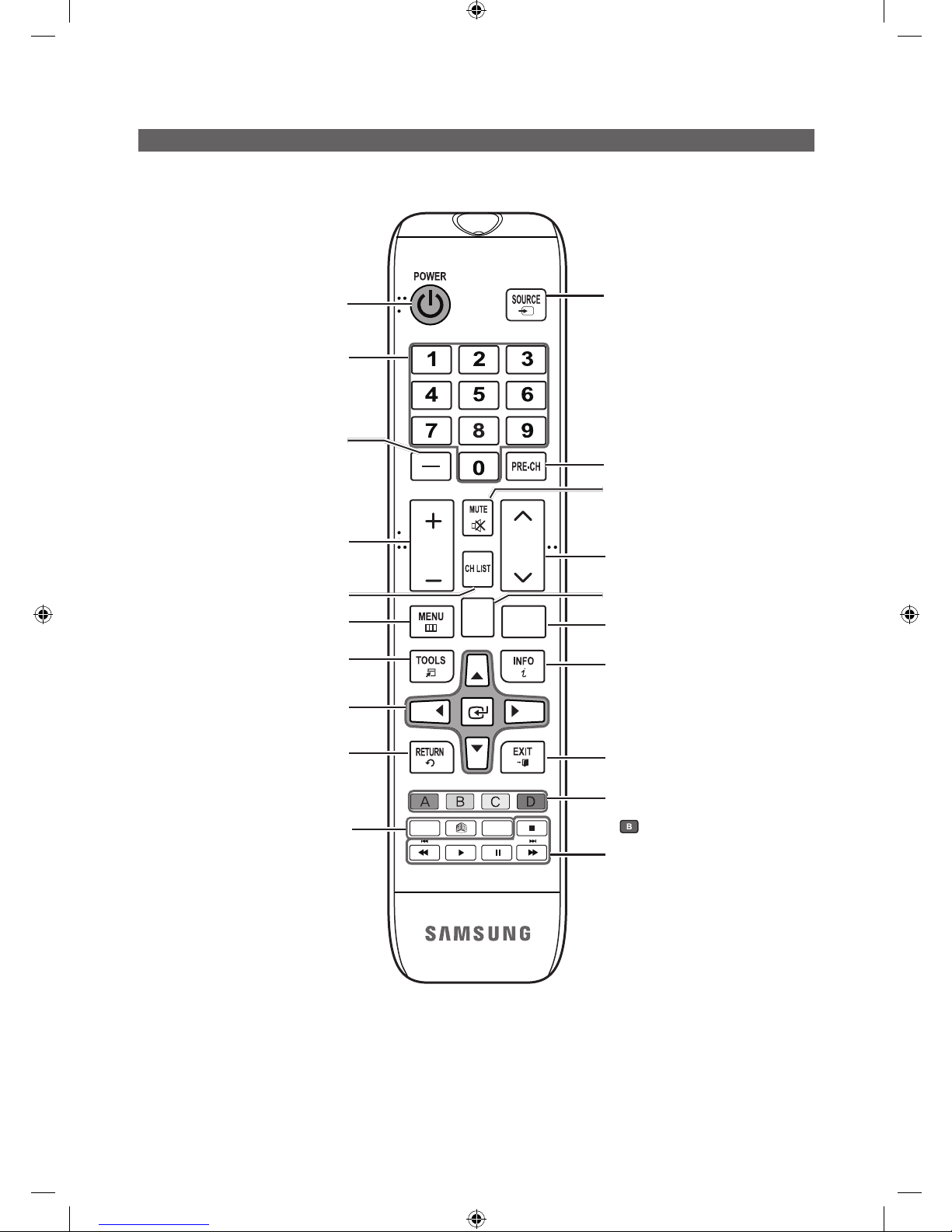

The Remote Control

✎This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually

impaired customers.

HOME

CONTENT

ALARM

SLEEPCC

CHVOL

Turns the TV on and off. Display and select the available video

sources.

Return to the previous channel.

Change channels.

Displays My Contents, Watch TV and

Source icons on the TV screen.

Exit the menu.

Press to display channel and TV information

on the TV screen.

SLEEP: Set when TV will automatically be

turned off for the sleep timer.

: Turns the 3D image on or off.

CC: Controls the caption decoder.

Cut off the sound temporarily.

Press to directly access channels.

Adjust the volume.

Display the channel list on the screen.

Display the main on-screen menu.

Press to display the HOME menu or the

REACH menu or the SINC menu

Quickly select frequently used functions.

Return to the previous menu.

Use these buttons in the Media Play and

Anynet+ modes.

Select on-screen menu items and change

menu values.

Press to select additional digital channels

being broadcast by the same station. For

example, to select channel ‘54-3’, press

‘54’, then press '-' and ‘3’.

Buttons used in Channel list, Media Play

menu, etc.

button: Set when TV will automatically

is turned on for the alarm

[HC890_ZA]Install_Guide_00ENG.indd 9 2014-04-02  1:39:13

English

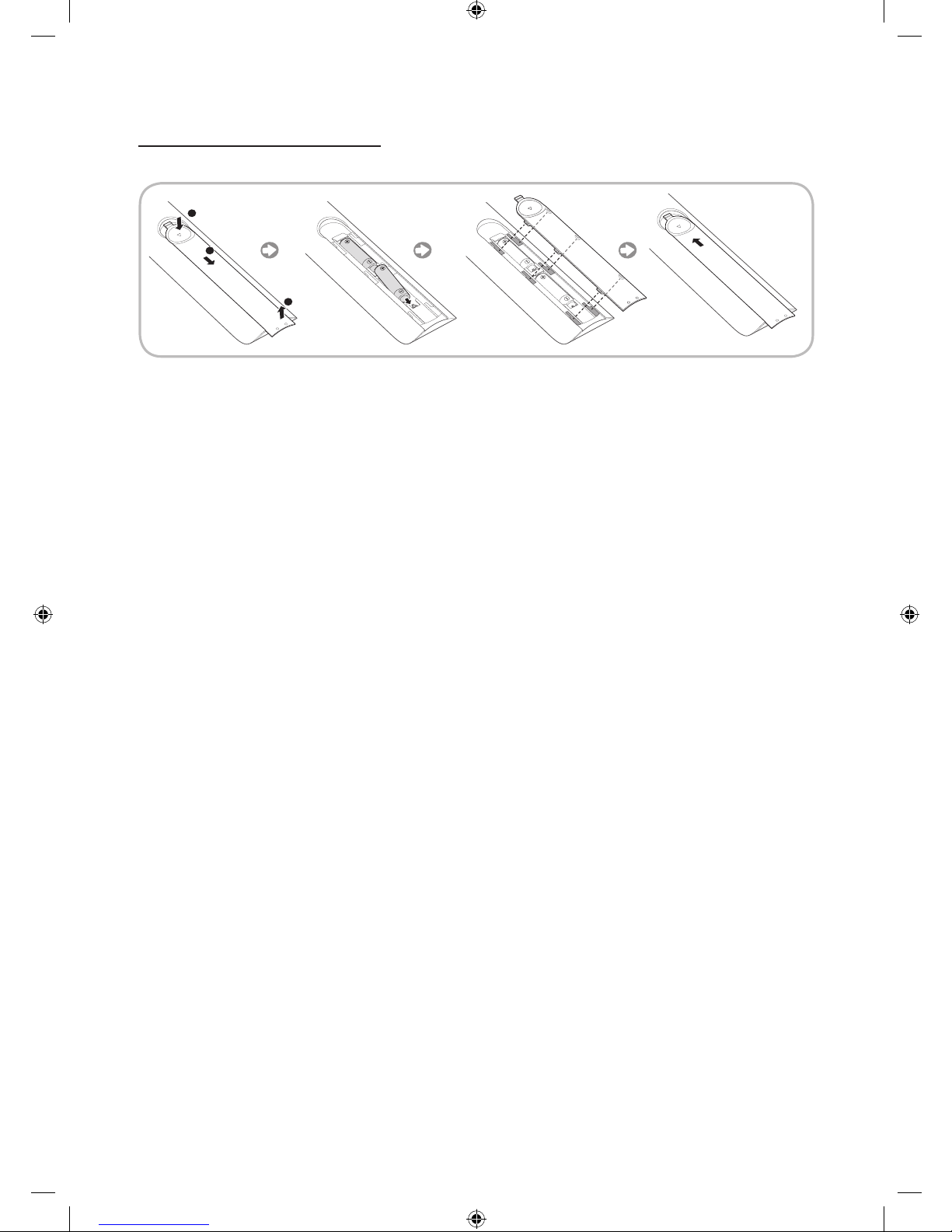

Installing batteries (Battery size: AAA)

Match the polarity of the batteries to the symbols in the battery compartment.

After you have installed the batteries, use a screwdriver to screw in the screw that holds the battery cover

closed.

✎

NOTE

•Use the remote control within 23~33 feet of the TV.

•Bright light may affect the performance of the remote control. Avoid using near ﬂuorescent lights or neon

signs.

•The color and shape of the remote may vary depending on the model.

[HC890_ZA]Install_Guide_00ENG.indd 10 2014-04-02  1:39:13

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung TV

Samsung

Samsung CW29A1081G Manuel utilisateur

Samsung

Samsung UE75MU7000 Manuel utilisateur

Samsung

Samsung TX-P2670WH Manuel utilisateur

Samsung

Samsung CS 2Z45 Manuel utilisateur

Samsung

Samsung PDP Display Mode d’emploi

Samsung

Samsung CS2Z45ZGQ Manuel utilisateur

Samsung

Samsung CL-21N11MJ Manuel utilisateur

Samsung

Samsung PN50C680G5F Manuel utilisateur

Samsung

Samsung Q70T Manuel utilisateur

Samsung

Samsung CS21A530FLKXSV Manuel utilisateur

Samsung

Samsung UE40NU7120K Mode d’emploi

Samsung

Samsung QN95C Series Manuel utilisateur

Samsung

Samsung UE49MU6202 Manuel utilisateur

Samsung

Samsung QN800B Series Manuel utilisateur

Samsung

Samsung SyncMaster ME40A Manuel utilisateur

Samsung

Samsung HL-T5089S Manuel utilisateur

Samsung

Samsung 85CU7175U Manuel utilisateur

Samsung

Samsung UN55C6900VF Manuel utilisateur

Samsung

Samsung OMB Series Manuel utilisateur

Samsung

Samsung QN900A Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Samsung

Samsung CS29Z7HRGX/XTT Manuel utilisateur

Samsung

Samsung CS-29Q1PW Manuel utilisateur

Samsung

Samsung KS9000 Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
