Samsung Galaxy Tab GT-P7510 Manuel utilisateur

GSM TELEPHONE

GT-P7510

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List _11.05.13

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair_Rev 1.3 / 11.05.13

9. Reference data

Notice: All functionality, features, specifications, and

other product information provided in this document,

including but not limited to, benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice. Samsung reserves the right to alter this doc

-ument or the product described herein at anytime,

without obligation to provide notification of such

changes.

GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Samsung Electronics Co.,Ltd.

2011. 05. Rev.1.0

ⓒ

7. Level 2Repair

7-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Be careful not to scratch cover. Follow the numbered sequence when you disjoint

Be careful not to damage the FPCBs Be careful not to damage the FPCBs

7-1. Disassembly and assembly Instructions

7-1-1. Disassembly

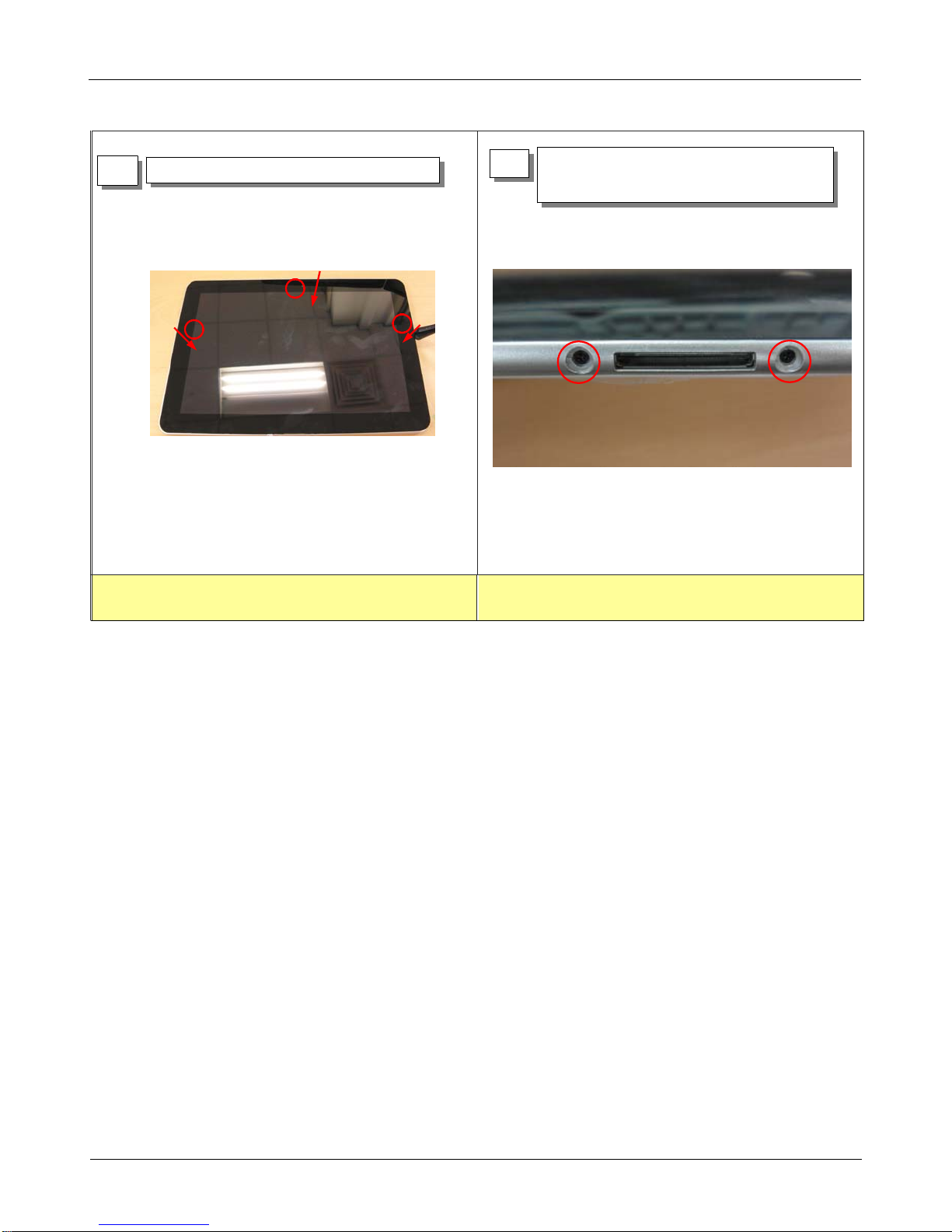

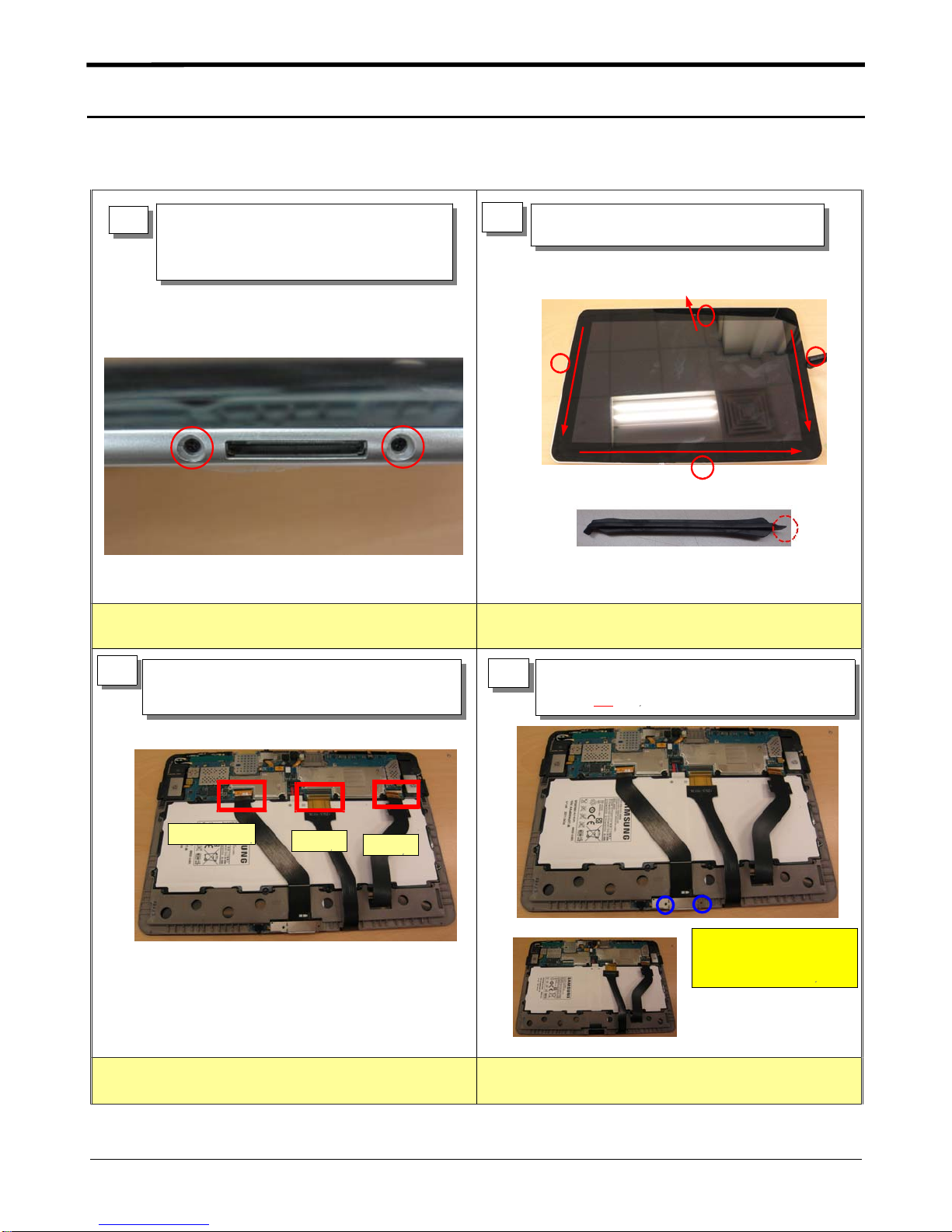

Carefully release the screws

at 2different locations

(Torque 1.1 ± 0.1 kgf.cm) (Size:1.4*2.0)

1Disengage the rear cover with the front

cover by using the hook

3Separate the 30 PIN I/F connector, TSP

connector, LCD connector from the PBA.

30 PIN I/F TSP LCD

◆blue:L2.5

(2Point)

Release the screw at 2points (Size:)(Torque:

1.1±0.1 kgf.cm)

Level 2Repair

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

7-2

Be careful not to damage the FPCBs Be careful not to scratch cover

Be careful not to damage the wires Be careful not to damage the FPCBs

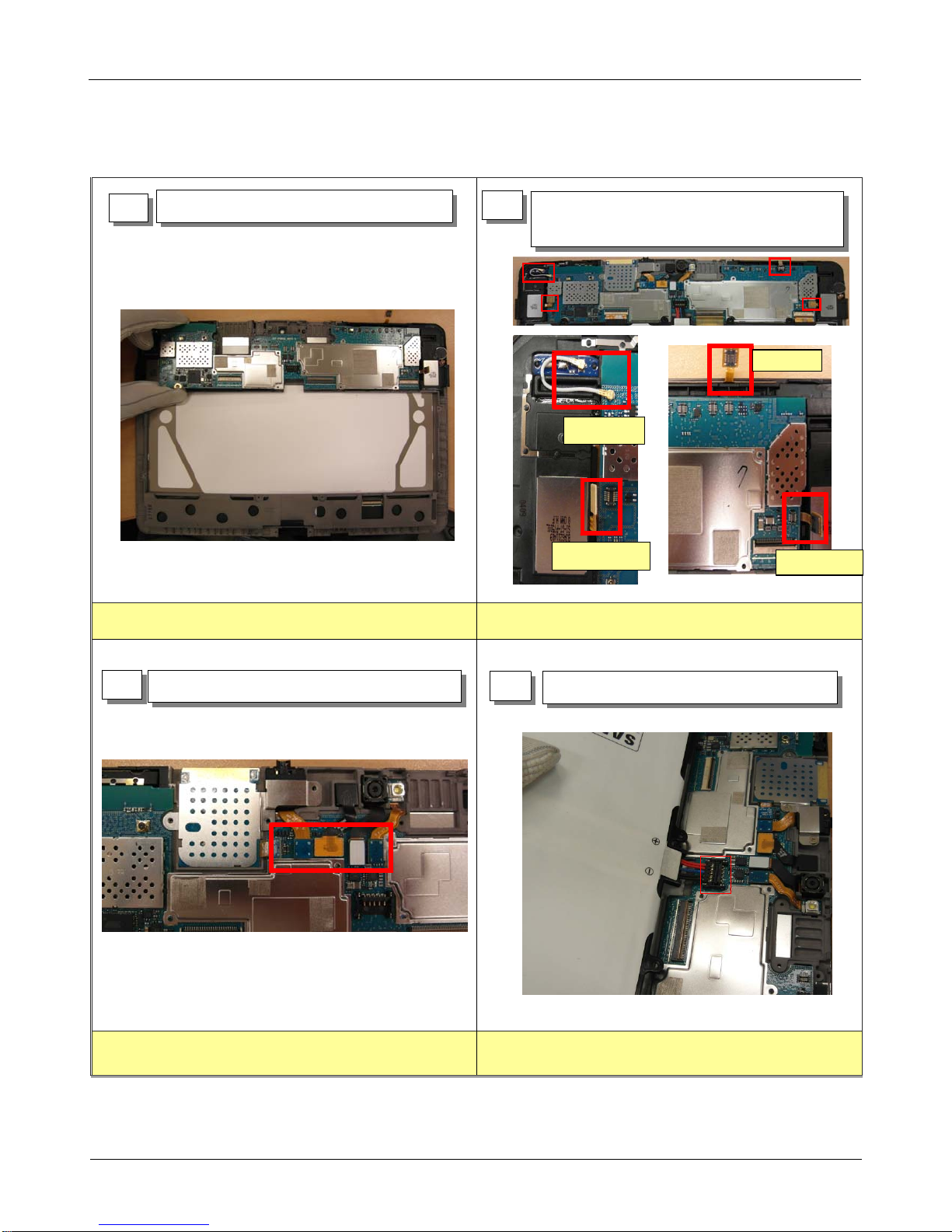

Open the black thin bar and Separate the

LCD FPCB from the Front.

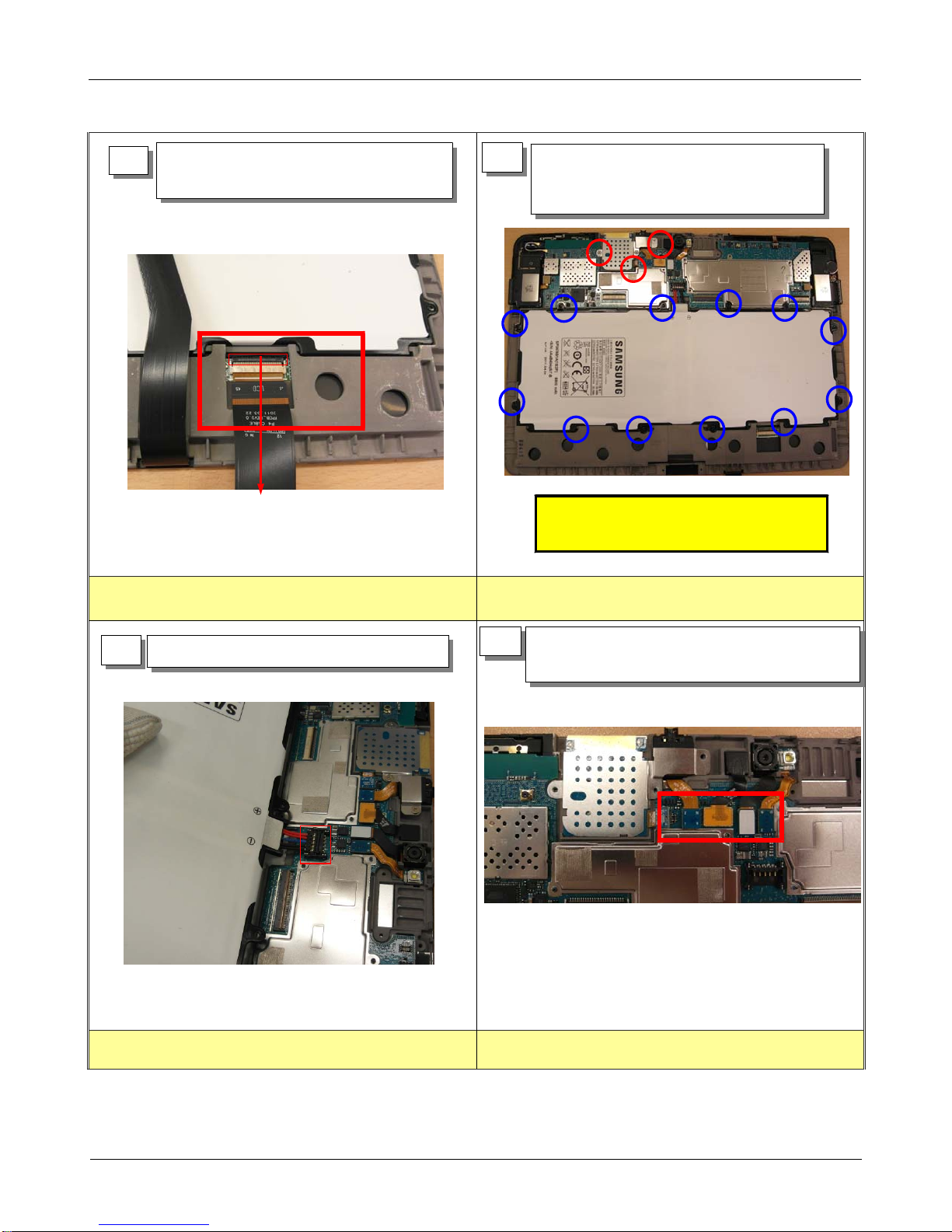

5Carefully release the screws at 13 different

locations from the Front.

(Torque 1.1 ± 0.1 kgf.cm)

Separate the Battery from PBA

7Separate all connector(E/J, 2M, 3M Camera,

Sensor) ribbons from the PBA.

◆blue:L2.5 (10Point)

◆red:L2 (3Point)

Level 2Repair

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

7-3

Be careful not to damage the FPCBs Be careful not to scratch cover

Separate the SPK Module, GPS CABLE,

SIDE KEY from the PBA

9Separate the PBA from Ass'y

GPS CABLE

SPK Module(left) SPK Module(right)

SIDE KEY

Level 2Repair

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

7-4

Be careful not to scratch cover Be careful not to damage the FPCBs

Be careful not to damage the FPCBs Be careful not to damage the wires

7-1-2. assemble

Insert the PBA in the hook

1Attach the SPK Module, GPS CABLE,

SIDE KEY

Attach the E/J, 2M, 3M Camera, Sensor.

3Attach the battery

GPS CABLE

SPK Module(left) SPK Module(right)

SIDE KEY

Level 2Repair

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

7-5

Be careful not to scratch cover

screw:1.4*2.0, 1.4*2.5 (Torque 1.1 ± 0.1, '+' type) Be careful not to damage the FPCBs

Be careful not to damage the FPCBs Be careful not to damage the FPCBs

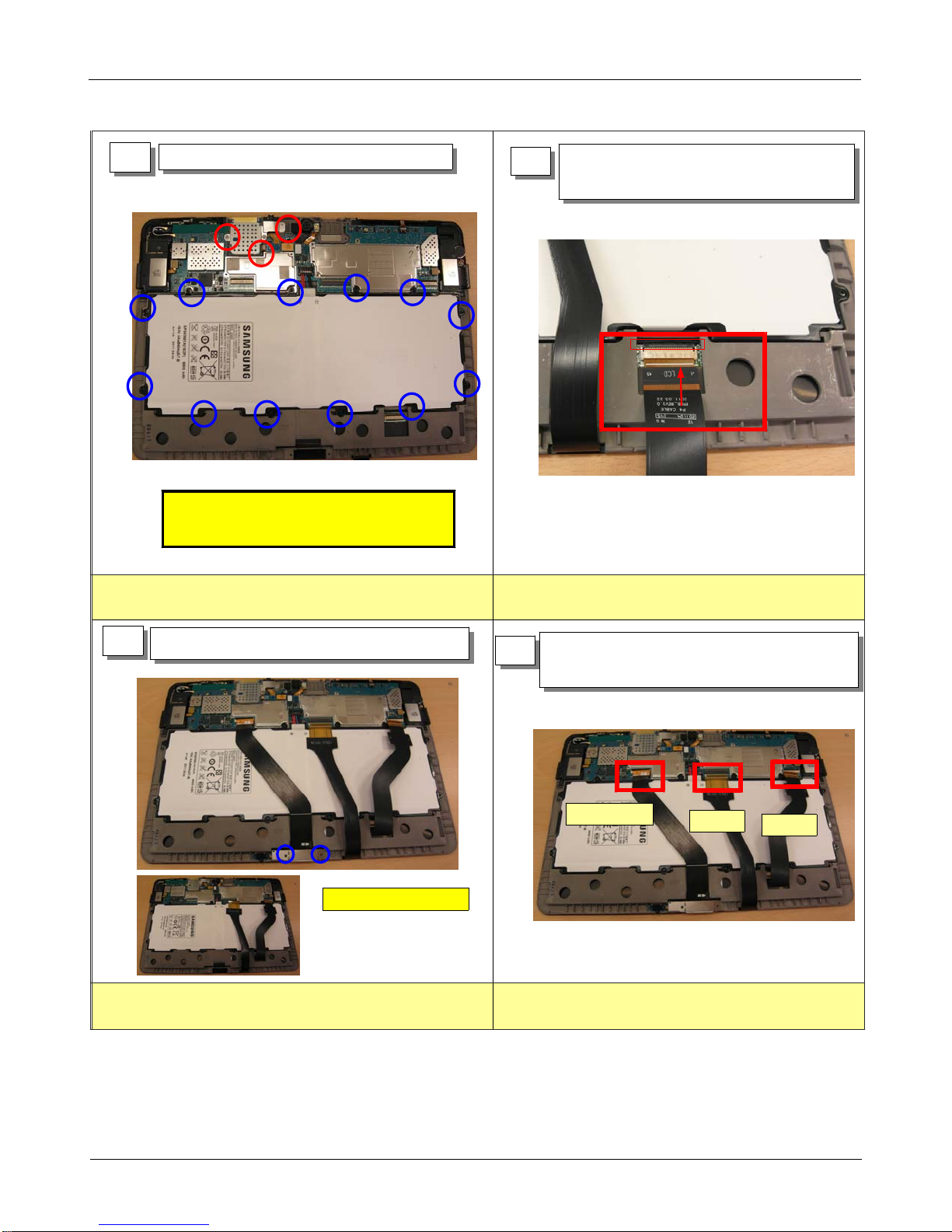

screws at 13 points

◆blue:L2.5 (10Point)

◆red:L2 (3Point)

Put the LCD FPCB and Close the black

thin bar

◆blue:L2.5

screws at 2Points 8Insert the 30 PIN I/F, TSP, LCD Connector

and Close the black thin bar

30 PIN I/F TSP LCD

Level 2Repair

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

7-6

Follow the order (Torque 1.1 ± 0.1, '+' type)(Size: 1.4*2.0)

Be careful not to scratch rear cover

Joint the Rear and the Front.

Screws at 2points

Attach screw sheet

4. Exploded View and Parts List

4-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

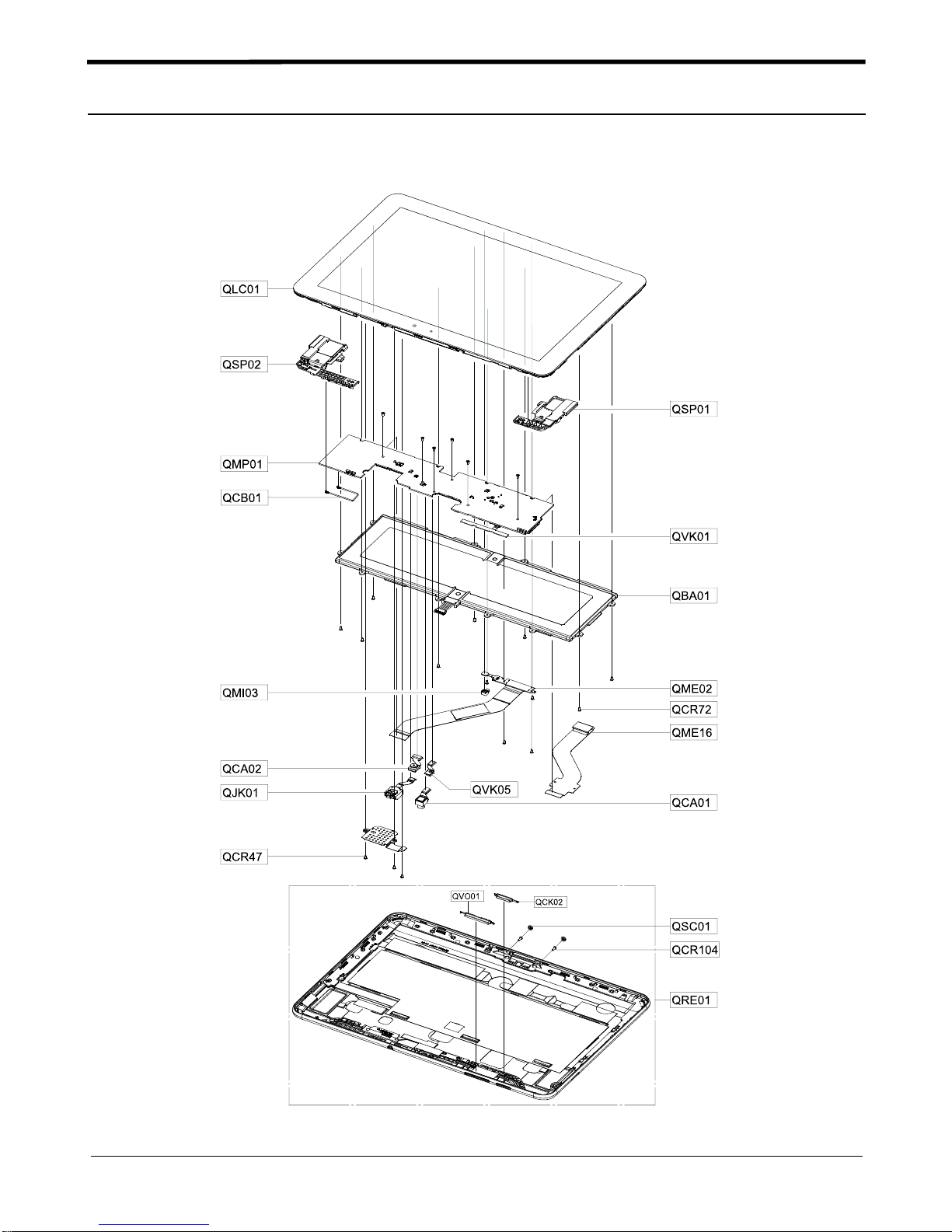

4-1. Cellular phone Exploded View

Exploded View and Parts List

Distribution, transmission, or infringement of any content or data from this document without Samsung’

swritten authorization is?

strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

4-1

4-2. Cellular phone Parts list

QCR47

ㅤ

SCREW-MACHINE 6001-001695

QCR72

ㅤ

SCREW-MACHINE 6001-002051

QCR104

ㅤ

SCREW-MACHINE 6001-002686

QCB01

ㅤ

CBF COAXIAL CABLE-30MM (GT-P7500) GH39-01485A

QBA01

ㅤ

INNER BATTERY OPTION GH43-03562A

QJK01

ㅤ

ASSY ETC-EARJACK FPCB (GT-P7500) GH59-11203A

QME16

ㅤ

ASSY ETC-CON TO CON FPCB(GT-P7500) GH59-11210A

QVK05

ㅤ

KEY FPCB-FLASH LED FPCB(GT-P7500) GH59-11211A

QME02

ㅤ

ASSY ETC-SUB PCB(30PIN FPCB+MIC FPCB) GH59-11213A

QVK01

ㅤ

KEY FPCB-POWER+VOL KEY ASSY(GT-P7500) GH59-11217A

QSP01

ㅤ

MODULE-SPEAKER+MOT(LEFT) GH59-11219A

QSP02

ㅤ

MODULE-SPEAKER+INT (RIGHT) GH59-11220A

QME03

ㅤ

TOUCH/PANEL-GT-P7500, LOGO_X (ITO FILM) GH59-11647A

QMI03

ㅤ

RMO RUBBER-MIC HOLDER GH73-15090A

QMP01

ㅤ

A/S ASSY-PBA MAIN(XAB)GT-P7510,64G,SVC GH82-06011A

QCA01

ㅤ

ASSY CAMERA-MODULE GT-P7500,1/5"(3M) GH96-05184A

QCA02

ㅤ

ASSY CAMERA-MODULE GT-P7500,1/5"(2M) GH96-05185A

QFR01

ㅤ

MEA FRONT-LCD ASSY (P4),GT-P7510 GH97-12600A

QSC01

ㅤ

ASSY COVER-SCREW CAP GH98-20396B

QRE01

ㅤ

ASSY CASE-REAR(NORTH AMER_GRAY) GH98-20667C

ㅤ

QVO01 PMO KEY-VOLUME GH72-64107B

ㅤ

QCK02 PMO KEY-POWER GH72-64108B
