USER MANUAL

HW-R650

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

•To prevent injury, this apparatus must be

securely attached to the oor/wall in

accordance with the installation instructions.

CAUTION

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases, on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

CAUTION (for Canada)

This device contains licence-exempt

transmitter(s)/receiver(s) that comply with

Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is

subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

This device and its antenna(s) must not be co-

located or operation in conjunction with any other

antenna or transmitter.

This device may automatically discontinue

transmission if there is no information to

transmit, or an operational failure. Note that this

is not intended to prohibit the transmission of

control or signaling information or the use of

repetitive codes where required by the

technology.

This Class B digital apparatus complies with

Canadian ICES-003.

ENG - iii

Radiation Exposure Statement

This equipment complies with IC RSS-102

radiation exposure limits set forth for an

uncontrolled environment. This equipment should

be installed and operated with minimum distance

20 cm between the radiator & your body.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug

does not t into your outlet, consult an

electrician for replacement of the obsolete

outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11. Only use attachments/accessories specied

by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14. Refer all servicing to qualied service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

ENG - iv

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (3~4 inches).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC

plug from the wall outlet. Unplug the unit if

you intend to leave it unused for a long

period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - v

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can

download.

USER MANUAL

See this manual for safety instructions, product installation,

components, connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on Samsung’s on-line

customer support center by scanning the QR code on the left.

To see the manual on your PC or mobile device, download the

manual in document format from Samsung’s website.

(http://www.samsung.com/support)

Design and specications are subject to change without prior notice.

ENG - vi

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 3

03 Connecting the Soundbar 4

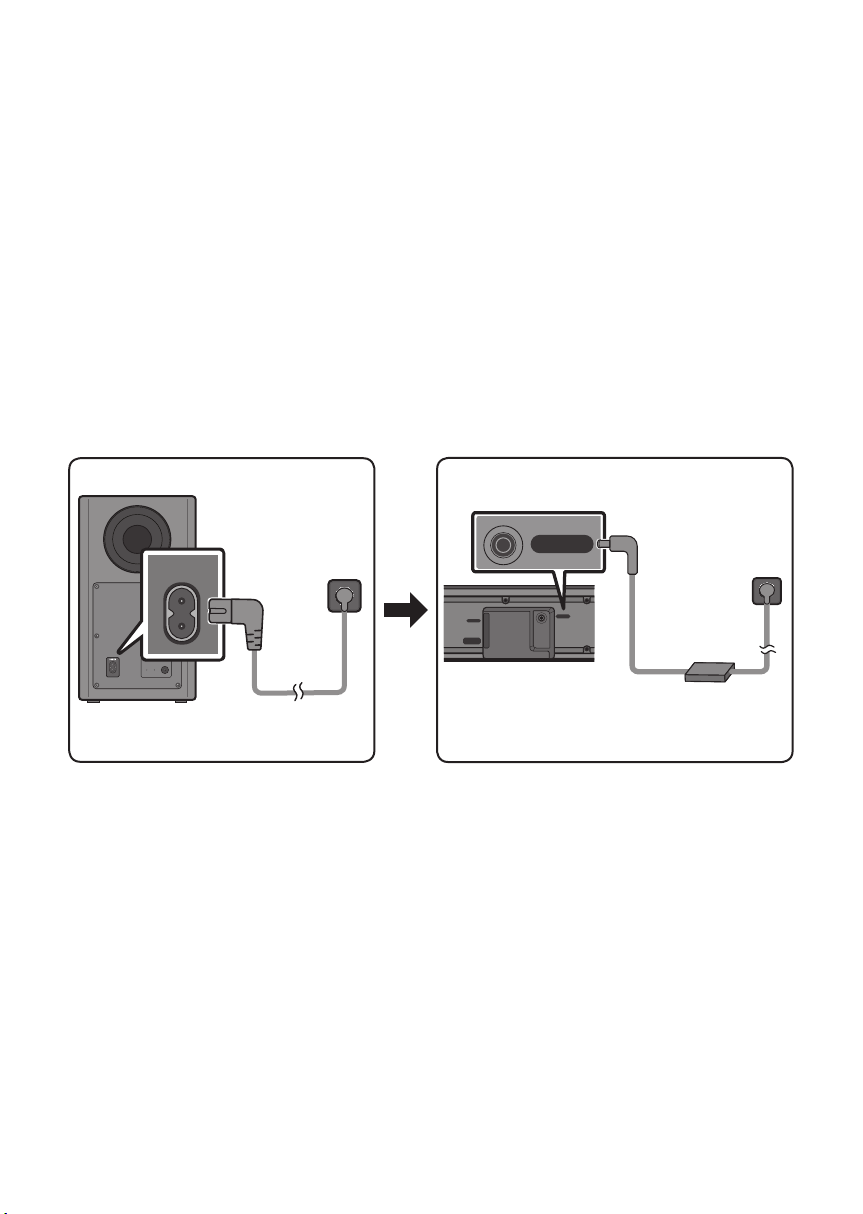

Connecting Electrical Power ------------------------- 4

Connecting the Soundbar to the Subwoofer ------------------------- 5

– Automatic connection between the Subwoofer and the Soundbar ------------------------- 5

– Manually connecting the Subwoofer if automatic connection fails ------------------------- 6

Connecting an SWA-8500S (Sold Separately) to your Soundbar ------------------------- 7

04 Connecting to your TV 9

Method 1. Connecting with a Cable ------------------------- 9

– Connecting using an Optical Cable ------------------------- 9

– Connecting a TV using an HDMI Cable ------------------------- 10

Method 2. Connecting Wirelessly ------------------------- 11

– Connecting a TV via Bluetooth ------------------------- 11

05 Connecting an External Device 13

Connecting using an Optical or Analog Audio (AUX) Cable ------------------------- 13

Connecting using an HDMI Cable ------------------------- 14

06 Connecting a USB Storage Device 15

Software Update ------------------------- 15

ENG - vii

07 Connecting a Mobile Device 16

Connecting via Bluetooth ------------------------- 16

08 Using the Remote Control 17

How to Use the Remote Control ------------------------- 17

Adjusting the Soundbar volume with a TV remote control ------------------------- 20

09 Installing the Wall Mount 21

Installation Precautions ------------------------- 21

Wallmount Components ------------------------- 21

10 Troubleshooting 24

11 License 25

12 Open Source License Notice 25

13 Important Notes About Service 25

14 SpecicationsandGuide 26

Specications ------------------------- 26

ENG - 2

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Subwoofer Remote Control / Batteries

1 2 3

Power Cord

(Subwoofer)

AC/DC Adapter

(Main Unit)

Power Cord

(AC/DC Adapter)

Optical Cable

x 2 x 2

Wall Mount Guide Holder-Screw Screw Bracket-Wall

Mount L

Bracket-Wall

Mount R

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•The power components are labelled (1, 2, 3). For more information about power connections,

see page 4.

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•Depending on the region, the appearance of the AC plug may differ from the plug displayed above,

or it may be supplied integrated with the AC/DC adapter.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

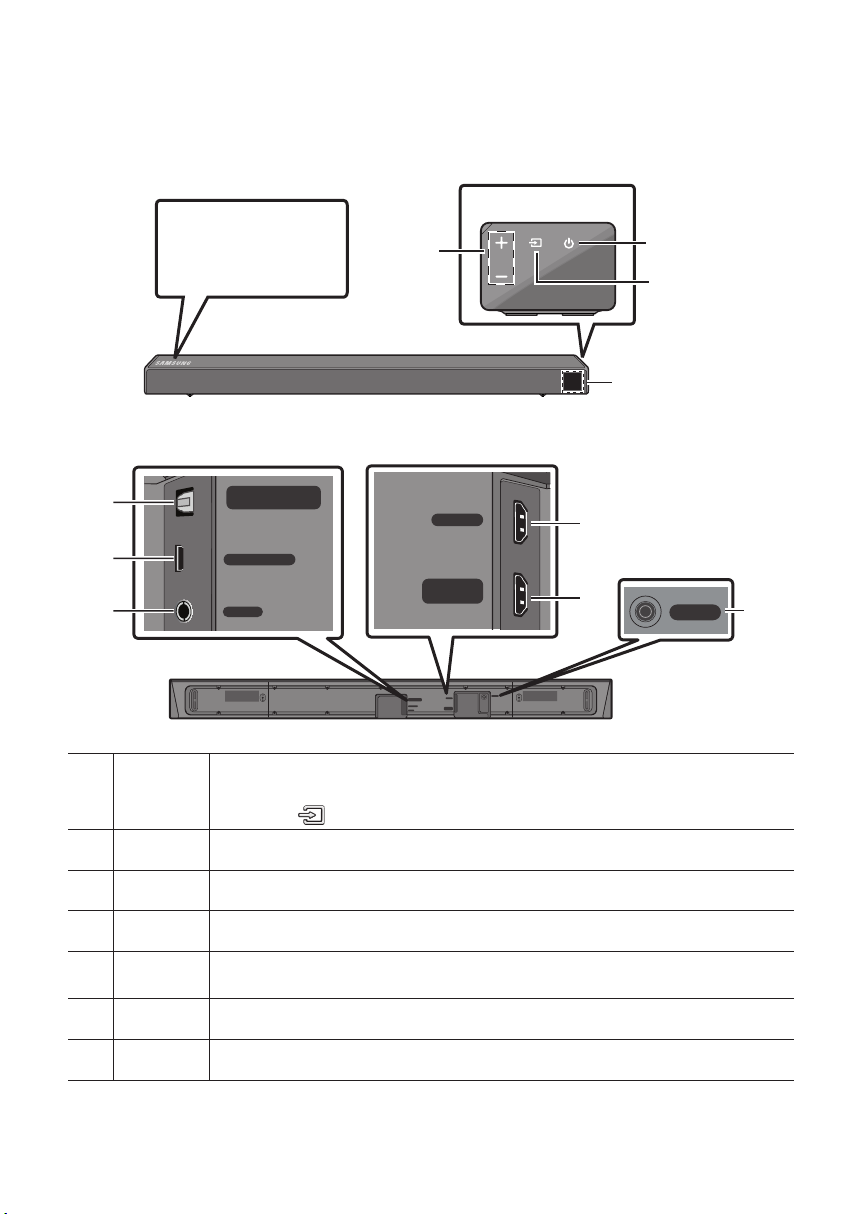

Front Panel / Right Side Panel of the Soundbar

Position the product so

that the SAMSUNG logo

is located on the top.

Volume

󱂓

Power

Display

Right Side of the Soundbar

Bottom Panel of the Soundbar

HDMI IN

HDMI OUT

(TV-ARC)

USB (5V 0.5A)

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

HDMI OUT

(TV-ARC)

HDMI IN

DC 24V

HDMI OUT

(TV-ARC)

USB (5V 0.5A)

AUX IN

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

󱂗

󱂘󱂙

󱂔

󱂕

󱂖

󱂓Source

Selects the source input mode. (D.IN / AUX / HDMI / BT / USB)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the (Source) button for more than 5 seconds.

󱂔D.IN Connect to the digital (optical) output of an external device.

󱂕USB Connect a USB device here to play music les on the USB device through the Soundbar.

󱂖AUX Connect to the Analog output of an external device.

󱂗HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂘HDMI OUT Connect to the HDMI (ARC) jack on a TV.

󱂙DC 24V Connect the AC/DC power adapter. (Power Supply In)

ENG - 4

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components (1, 2

, 3

) to connect the Subwoofer and Soundbar to an electrical outlet in

the following order:

1 Connect the power cord to the Subwoofer.

2 Connect the power output cable to the power adapter, and then to the Soundbar.

Connect the power cord to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label: Bottom of the Soundbar Main Unit)

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

HDMI IN

HDMI OUT

(TV-ARC)

DC 24V

Bottom of the

Soundbar Main Unit 2 AC/DC Adapter

3Power Cord

Connecting

Electrical Power

•Make sure to rest the AC/DC Adapter at on a table or the oor. If you place the AC/DC Adapter so

that it is hanging with the AC cord input facing upwards, water or other foreign substances could

enter the Adapter and cause the Adapter to malfunction.

Autres manuels pour HW-R650

Table des matières

Langues :

Autres manuels Samsung Intervenants

Samsung

Samsung HW-J7500R Manuel utilisateur

Samsung

Samsung HW-R430 Manuel utilisateur

Samsung

Samsung HW-H450 Manuel utilisateur

Samsung

Samsung HW-T650 Instructions d'installation

Samsung

Samsung HW-J7500 Manuel utilisateur

Samsung

Samsung HW-M550 Instructions d'installation

Samsung

Samsung MX-ST40B Instructions d'installation

Samsung

Samsung HW-MS6500 Manuel utilisateur

Samsung

Samsung HW-J7501R Manuel utilisateur

Samsung

Samsung HW-J470 Manuel utilisateur

Samsung

Samsung HW-KM57C Manuel utilisateur

Samsung

Samsung HW-Q800T Instructions d'installation

Samsung

Samsung EO-SG900 Manuel utilisateur

Samsung

Samsung HW-M550/ZA Instructions d'installation

Samsung

Samsung HW-B450/XY Instructions d'installation

Samsung

Samsung HW-N650 Manuel utilisateur

Samsung

Samsung HW-Q750B Instructions d'installation

Samsung

Samsung HW-J6000R Manuel utilisateur

Samsung

Samsung MX-ST5CB Instructions d'installation

Samsung

Samsung HW-J7500R Manuel utilisateur

Samsung

Samsung Harman JBL NANO K Series Manuel utilisateur

Samsung

Samsung HW-R430 Instructions d'installation

Samsung

Samsung HW-T400/XL Instructions d'installation

Samsung

Samsung HW-J4000 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
