Samsung HW-K470 Manuel utilisateur

Wireless Audio - Soundbar

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

User manual

HW-K470

Wireless Subwoofer

(PS-WK450)

Wireless Receiver Module (SWA-8000S)

GETTING STARTED

FEATURES

GETTING STARTED

Samsung Remote App

Hold the control of your Soundbar in the palm of your

hand with an Android smart device and the Samsung

Audio Remote app. This convenient app lets you control

all the Soundbar's basic functions such as power,

volume, and the media controls, and lets you control

customizable functions such as the equalizer.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and

spaciousness to your listening experience.

TV SoundConnect

Listen to TV audio through the Soundbar by connecting

your TV and the Soundbar via Bluetooth with

TV SoundConnect. Easy connectivity and the absence of

trailing wires between the Soundbar and TV allows you

to showcase the slim and sleek design of both systems,

while maintaining a clean look in your living environment.

Easily control the Soundbar and TV from a single TV

remote.

HDMI

HDMI transmits digital video and audio signals

simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which

lets you listen to sound from your TV through the

Soundbar via an HDMI cable. This function is only

available if you connect the unit to an ARC compliant TV.

USB Host Support

You can connect and play music files from external USB

storage devices such as MP3 players, USB flash

memory, etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar

and enjoy music with high quality stereo sound, all

without wires!

LICENSES

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Audio, Pro Logic, and the double-D symbol

are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited.

DTS, the Symbol, DTS in combination with the Symbol,

and DTS 2.0 Channel are registered trademarks or

trademarks of DTS, Inc. in the United States and/or other

The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing LLC in the

United States and other countries.

ENG

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that this product has

included important literature concerning

operation and maintenance.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult Instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied with

this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause

severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from

children. If the battery compartment does not close securely, stop using the remote and make sure to

keep it away from children. If you think the battery might have been swallowed or placed inside any part of the body,

seek immediate medical attention.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Unplug the power

cable from the AC wall socket if the unit malfunctions.

Your product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures.

If transporting the unit during the winter, wait

approximately 2 hours until the unit has reached room

temperature before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The battery used with this product contains chemicals

that are harmful to the environment. Do not dispose of

the battery in the general household trash. Do not

expose the battery to excess heat, direct sunlight, or fire.

Do not short circuit, disassemble, or overheat the battery.

Danger of explosion if the battery is replaced incorrectly.

Replace only with the same or equivalent type.

99.1mm 99.1mm

68.6

99.1mm

ENG

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Features

3 Safety Information

6 What’s Included

7DESCRIPTIONS

7 Front / RIGHT SIDE Panel

8 Bottom Panel

9 Remote Control

12 INSTALLATION

12 Installing the Soundbar

12 Installing the Wall Mount

17 CONNECTIONS

17 Connecting the Subwoofer and the

SWA-8000S

18 Connecting the Surround Speakers

19 Connecting to a TV

19 Connecting to a TV Using a Digital Optical

Cable

20 Connecting to a TV Using an HDMI (Digital)

Cable

20 TV SoundConnect

22 Connecting to External Devices

22 Optical or Analog Audio Cable

23 HDMI Cable

23 USB

25 FUNCTIONS

25 Input Mode

26 Bluetooth

29 Software Update

30 TROUBLESHOOTING

30 Troubleshooting

31 APPENDIX

31 Specifications

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user

manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

Check for the supplied accessories shown below.

●The appearance of the accessories may differ slightly from the illustrations above.

+Speaker Components

Remote Control /

Lithium Battery

(3V : CR2032)

Power Cord : 3 EA AC/DC Adapter Optical Cable

Wall Mount Guide Holder-Screw : 2 EA Screw : 2 EA

Bracket-Wall Mount L Bracket-Wall Mount R

SURROUNDSPEAKERS OUT

SPEAKER IMPEDANCE : 3Ω

IDSET

Surround Speaker : 2 EA Subwoofer Speaker Cable : 2 EA Wireless Receiver

Module (SWA-8000S)

ENG

DESCRIPTIONS

FRONT / RIGHT SIDE PANEL

1 /

(Volume) Button

Controls the volume level.

The numeric value of the volume level appears in the front

panel display.

2 (Source) Button

Selects the D.IN, AUX, HDMI, BT, TV, or USB input.

●While the unit is powered on, pressing the (Source)

button for more than 3 seconds sets the button to act

as the (Mute) button. To cancel the (Mute)

button setup, press the (Source) button for more

than 3 seconds again.

3 (Power) Button

Turns the power on and off.

Right Side

Display

Displays the current mode.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

BOTTOM PANEL

●When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

●Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the

Adapter and cause the Adapter to malfunction.

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

HDMI IN

HDMI OUT

(TV-ARC)

DC 24V

HDMI IN

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 24V

(Power Supply In)

Connect the AC/DC power

adaptor to the power supply

jack, and then connect the

AC/DC power adaptor plug

to a wall outlet.

DIGITAL AUDIO IN

(OPTICAL)

Connect to the digital (optical)

output of an external device.

HDMI OUT (TV-ARC)

Outputs digital video and audio signals simultaneously

using an HDMI cable.

HDMI IN

Inputs digital video and audio signals simultaneously using

an HDMI cable. Use when connecting a supported external

device.

AUX IN

Connect to the Analog output of

an external device.

(Micro USB Port)

Connect a Micro USB to

Standard USB adapter (not

supplied) to the Micro USB port,

and then connect a USB device

to the adapter to play music

from the USB device. Refer to

the USB Cable specification on

page 23.

LABEL

ENG

DESCRIPTIONS

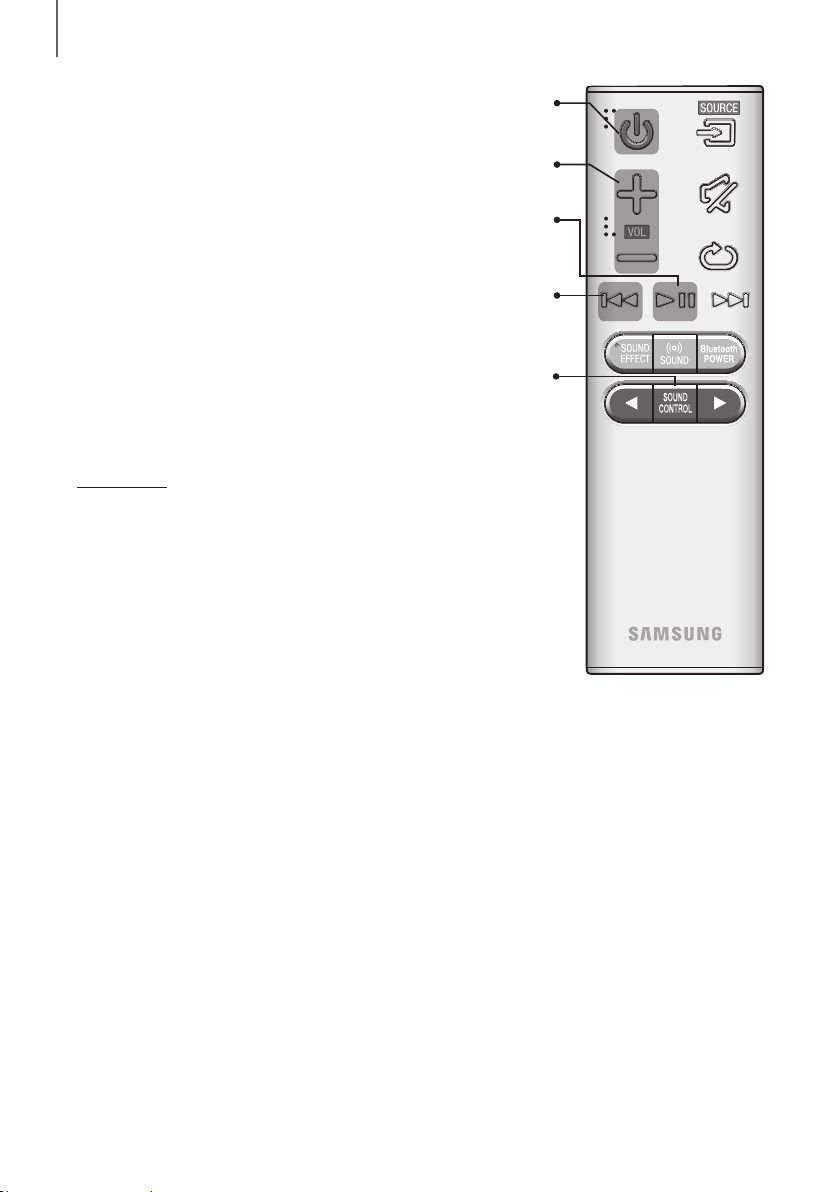

REMOTE CONTROL

Repeat

Press to set the Repeat function during music playback from a USB device.

OFF - REPEAT : Cancels Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

RANDOM - REPEAT : Plays tracks in random order repeatedly.

(A track that has already been played may be played again.)

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the ]button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off. See pages 21 and 27 for details.

SOUND

Surr.Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surr.Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

SOUND EFFECT

You can select from 6 different sound modes - STANDARD (Original Sound),

MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending

on the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

Press and hold the



button for about 5 seconds to turn the Anynet+ function

on or off.

OFF - ANYNET+, ON - ANYNET+

The Anynet+ function lets you control the Soundbar with the remote from an

Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

●Soundbar is a Samsung proprietary name.

●Operate the TV using the TV's remote control.

Press and hold the



button for about 5 seconds to turn the Auto Power Link

function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack

so it turns on automatically when you turn on your TV. (See page 19)

• This function is only available in the D.IN mode.

DESCRIPTIONS

Volume

Adjusts the volume level of the unit.

Power

Turns the Soundbar on and off.

SOUND CONTROL

Press to select TREBLE, BASS, SUB WOOFER LEVEL, AUDIO SYNC,

REAR

SPEAKER, or REAR LEVEL

Then, use the





buttons to adjust the Treble or Bass volume from -6 ~ +6,

SUB WOOFER LEVEL volume from -12, -6 ~ +6.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust

the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,

5KHz and 10KHz are selectable and each can be adjusted to a setting between

-6 and +6.

• To adjust the woofer level using the Samsung Audio Remote mobile app,

press the

[

, ] buttons to decrease or increase the woofer level within 3

seconds of pressing the WOOFER button.

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to select AUDIO SYNC to

sync the audio with the video. Use the





buttons to set the audio delay

between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio

Sync function is not available.

To control the volume of the rear speaker sound, select REAR SPEAKER in

Sound Control

, and then adjust the volume between OFF-RS and ON-RS by

using the , buttons.

To control the volume of the rear level sound, select REAR LEVEL in

Sound

Control

, and then adjust the volume between RS -6~+6 by using the , 

buttons.

• The REAR SPEAKER and the REAR LEVEL mode are only available when

you connect the SWA-8000S.

Play / Pause

Press the

button to pause a file temporarily.

Press the

button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press

the

[

button, the previous file is selected.

Autres manuels pour HW-K470

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Intervenants

Samsung

Samsung Sound+ SWA-9000S Manuel utilisateur

Samsung

Samsung HW-J7500 Manuel utilisateur

Samsung

Samsung HW-R550 Manuel utilisateur

Samsung

Samsung HW-R530 Manuel utilisateur

Samsung

Samsung HW-K650 Manuel utilisateur

Samsung

Samsung HW-S801B/XL Instructions d'installation

Samsung

Samsung HW-J8501R Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F450 Manuel utilisateur

Samsung

Samsung HW-K450 Manuel utilisateur

Samsung

Samsung BSP6000 Manuel utilisateur

Samsung

Samsung HW-J6500R Manuel utilisateur

Samsung

Samsung HW-Q6CB/ZA Instructions d'installation

Samsung

Samsung MX-T70 Instructions d'installation

Samsung

Samsung Level Box Slim Manuel utilisateur

Samsung

Samsung HW-H7500 Manuel utilisateur

Samsung

Samsung SWA-9200S Manuel utilisateur

Samsung

Samsung MX-ST50B Manuel utilisateur

Samsung

Samsung HW-R470 Manuel utilisateur

Samsung

Samsung HW-K651 Manuel utilisateur

Samsung

Samsung HW-H750 Manuel utilisateur

Samsung

Samsung HW-N450 Instructions d'installation

Samsung

Samsung HW-J8501R Manuel utilisateur

Samsung

Samsung HW-J470 Manuel utilisateur

Samsung

Samsung HW-Q710GC Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
