Samsung HW-J8500R Manuel utilisateur

User manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

HW-J8500R

HW-J8501R

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

ENG

GETTING STARTED

PRECAUTIONS

99.1mm 99.1mm

68.6

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied with

this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause

severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from

children. If the battery compartment does not close securely, stop using the remote and make sure to

keep it away from children. If you think the battery might have been swallowed or placed inside any part of the body,

seek immediate medical attention.

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Unplug the power

cable from the AC wall socket if the unit malfunctions.

Your product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The battery used with this product contains chemicals

that are harmful to the environment. Do not dispose of

the battery in the general household trash. Do not

expose the battery to excess heat, direct sunlight, or fire.

Do not short circuit, disassemble, or overheat the battery.

Danger of explosion if the battery is replaced incorrectly.

Replace only with the same or equivalent type.

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Safety Information

5 What’s Included

6 DESCRIPTIONS

6 Top / Front Panel

7 Rear / Bottom Panel

8 Remote Control

10 INSTALLATION

10 Installing the Soundbar

10 Installing the Wall Mount

14 Placing the Soundbar on a TV stand

15 Installing the Soundbar as a Free-Standing

Unit

16 Assembling the Clamp-Wire

16 Mounting the Cover-Feet

(4 EA) onto the Subwoofer

17 CONNECTIONS

17 Connecting the Subwoofer

19 Connecting to a TV

19 TV SoundConnect

20 Connecting to a TV Using an HDMI (Digital)

Cable

20 Connecting to a TV Using a Digital Optical

Cable

21 Connecting to External Devices

21 HDMI Cable

22 Optical or Analogue Audio Cable

23 FUNCTIONS

23 Input Mode

24 Bluetooth

26 Using the Multiroom App

27 Using the Network Standby On

Function

28 Software Update

30 TROUBLESHOOTING

30 Troubleshooting

31 APPENDIX

31 Specifications

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user

manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

ENG

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be cancelled.

Note

Indicates tips or instructions on the page that help you operate a function.

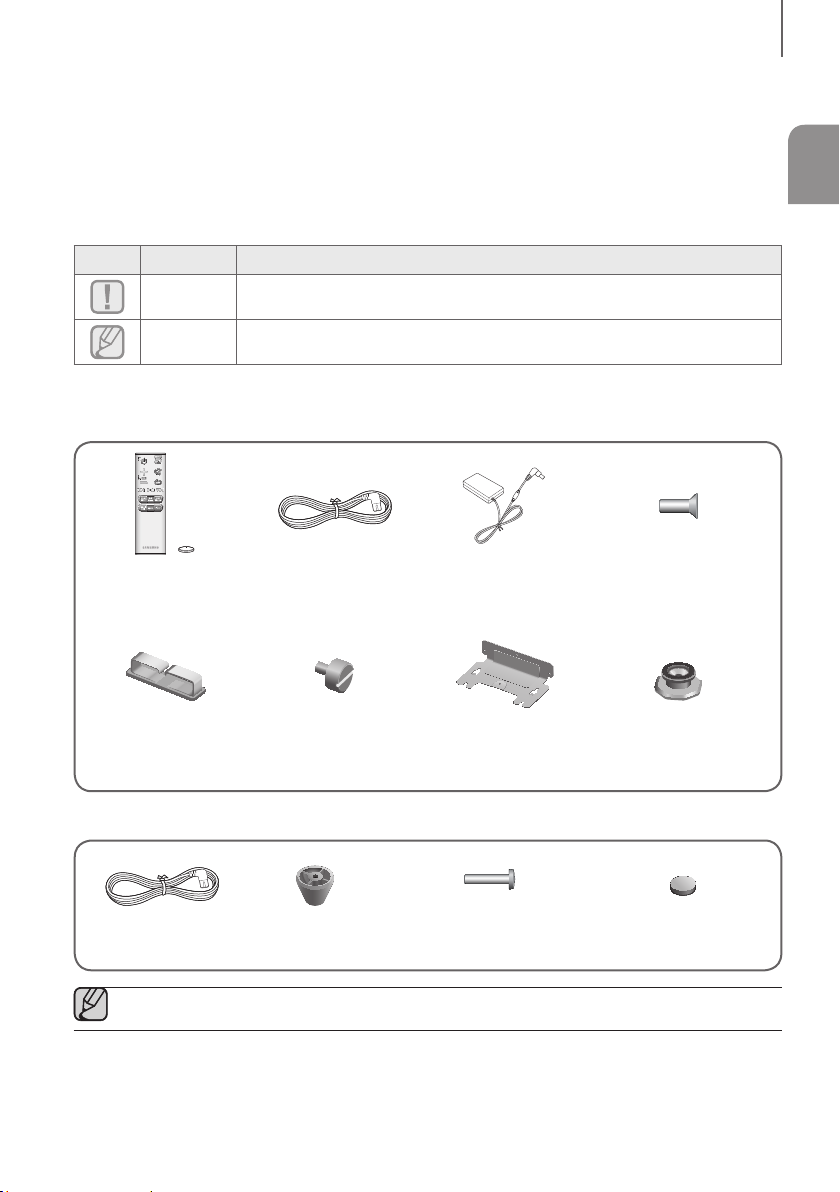

Check for the supplied accessories shown below.

Main Unit

Remote Control /

Lithium Battery

(3V : CR2032)

Power Cord AC/DC Adapter Holder-Screw 2

: 4 EA

Clamp-Wire Holder-Fix Mount Wall-Mount Bracket Holder-Screw 1

: 4 EA

Subwoofer

Power Cord Cover-Foot : 4 EA Screw-Taptite : 4 EA Foot Rubber : 4 EA

●The appearance of the accessories may differ slightly from the illustrations above.

DESCRIPTIONS

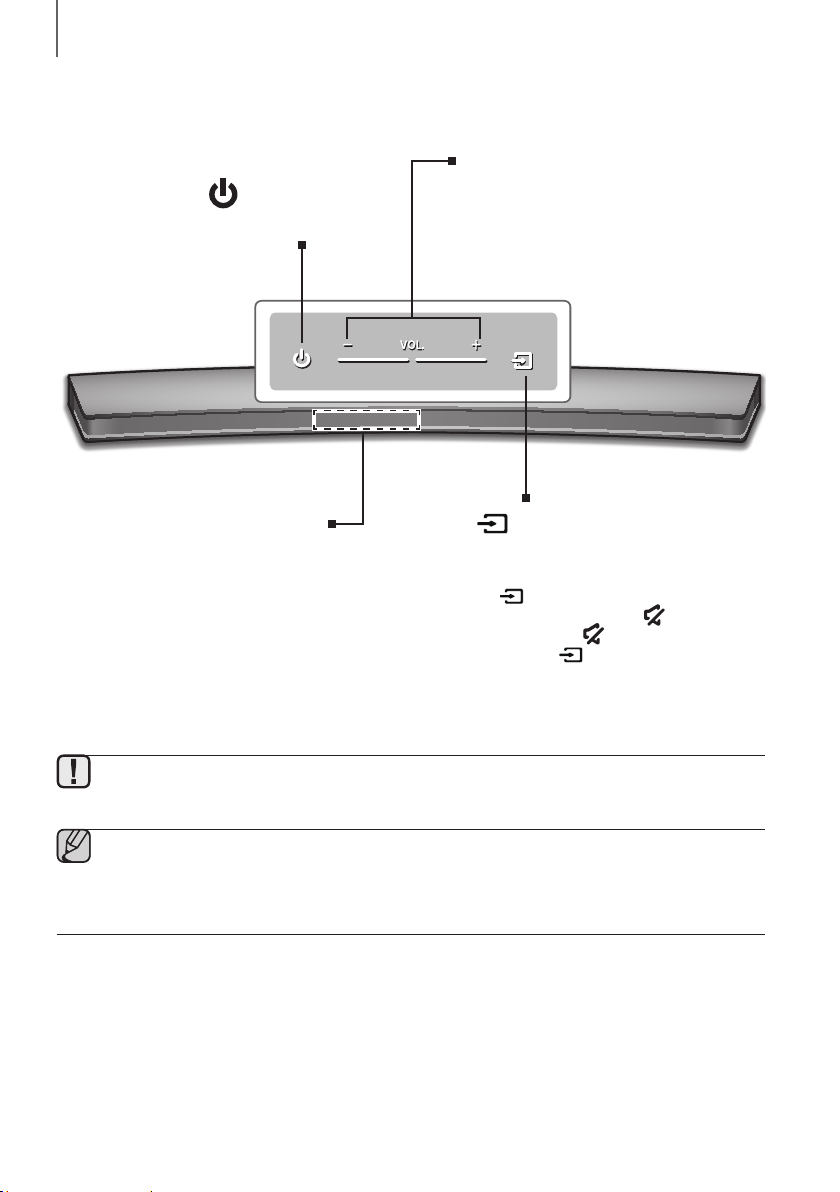

TOP / FRONT PANEL

(Power) Button

Turns the power on and off.

VOL. - / +

Controls the volume level.

The numeric value of the volume level

appears in the front panel display.

Display

Displays the current mode.

(Source) Button

Selects the D.IN, AUX, HDMI, BT, or TV input.

●While the unit is powered on, pressing the

button for more than 3 seconds sets

the button to act as the (Mute) button.

To cancel the (Mute) button setup,

press the button for more than

3 seconds again.

●To clean this apparatus, unplug the power cord from the wall outlet and wipe the product using a soft, dry

cloth. Due to aluminum being a positive electrostatic material, static discharge may occur.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

ENG

DESCRIPTIONS

REAR / BOTTOM PANEL

AUXIN LAN HDMIIN OPTICALIN

HDMIOUT

(TV-ARC)

SERVICE

SPKADDWi-FiSETUP DC24V

SPK ADDWi-Fi SETUP DC 24V

SERVICE

Wi-Fi SETUP

Press this button to

connect your Soundbar

to your network using

Wi-Fi setup. (Requires a

smart device and the

Samsung Multiroom app.

See page 26.)

SPK ADD

Press the button to connect

the Soundbar to a Samsung

HUB (purchased separately)

or a network. (Requires a

smart device and the

Samsung Multiroom app.

See page 26.)

DC 24V

(Power Supply In)

Connect the DC power

adaptor to the power

supply jack, and then

connect the AC power

adaptor plug to a wall

outlet.

SERVICE

To upgrade the product's

software through the USB

Port.

OPTICAL IN (D.IN)

Connect to the digital (optical) output of an external device.

HDMI OUT (TV-ARC)

Outputs digital video and audio signals simultaneously using an

HDMI cable.

HDMI IN

Inputs digital video and audio signals simultaneously using an HDMI

cable. Use when connecting a supported external device.

AUX IN

Connect to the Analogue output of an external device.

LAN

Lets you connect to a network using a LAN cable.

LABEL

●When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

●Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the

Adapter and cause the Adapter to malfunction.

DESCRIPTIONS

REMOTE CONTROL

Anynet+

Press the Anynet+ button to turn the Anynet+ function on or off.

(Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF

- ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the

Soundbar with the remote from an Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical

jack so it turns on automatically when you turn on your TV. (See page 21)

Auto Power Link function is only available in the D.IN mode.

You can also activate Wi-Fi SETUP function by pressing and holding Anynet+

button on the remote for over 7 seconds.

Repeat

The Repeat function is available only when playing back music from Songs on phone

or DMS of Samsung Multiroom app.

OFF - REPEAT : Cancells Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the

]

button, the next file is selected.

SOUND CONTROL

Press to select TREBLE, BASS or AUDIO SYNC. Then, use the

[

]

buttons to adjust the TREBLE or BASS volume from -3 ~ +3.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust

the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,

5KHz, and 10KHz are selectable and each can be adjusted to a setting between

-6 ~ +6.

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to sync the audio with the

video. Use the

[

]

buttons to set the audio delay between

0 ms ~ 300 ms. In TV mode, and BT mode, the Audio Sync function may not

available.

●Operate the TV using the TV's remote control.

ENG

DESCRIPTIONS

STREAMING MUSIC

Press STREAMING MUSIC button to listen to an Internet radio station. Each

time you press this button, the Soundbar switches to the next default station,

cycling through the 3 default stations.

To use the STREAMING MUSIC function, the Soundbar must be connected to

the Internet. (See page 27)

DRC (Dynamic Range Control) *

Lets you apply dynamic range control to Dolby Digital.

Press and hold the STREAMING MUSIC button to toggle the DRC (Dynamic

Range Control) function ON and OFF.

WOOFER

Press the WOOFER button. Then, use the

[

]

buttons to adjust the

Subwoofer volume from -12, -6

+6.

You can also activate SPK ADD function of the Soundbar by pressing and

holding WOOFER button of the remote for over 5 seconds.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

Volume

Adjusts the volume level of the unit.

Power

Turns the Soundbar on and off.

SOUND EFFECT

You can select from 6 sound modes - STANDARD (Original Sound),MUSIC,

CLEAR VOICE,SPORTS,MOVIE, and NIGHT MODE - depending on the

content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

Play / Pause

Press the

button to pause a file temporarily.

Press the

button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press the

[

button, the previous file is selected.

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the

remote control's battery cover

counterclockwise to remove it

as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting

the battery. Put the battery cover on and

align the '●' marks side by side as

shown in the figure above.

3. Use a suitable coin to

turn the remote control

battery cover clockwise

as far as it will go to fix it

in place.

INSTALLATION

INSTALLING THE SOUNDBAR

INSTALLING THE WALL MOUNT

+Installation Precautions

●Install on a vertical wall only.

●For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of

the set.

●Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the

unit on a different wall that can support the unit's weight.

●Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board,

wood, etc.). If possible, fix the support screws into wall studs.

●Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.

-Diameter : M5

-Length: 35 mm or longer recommended.

●Connect cables from the unit to external devices before you install it on the wall.

●Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

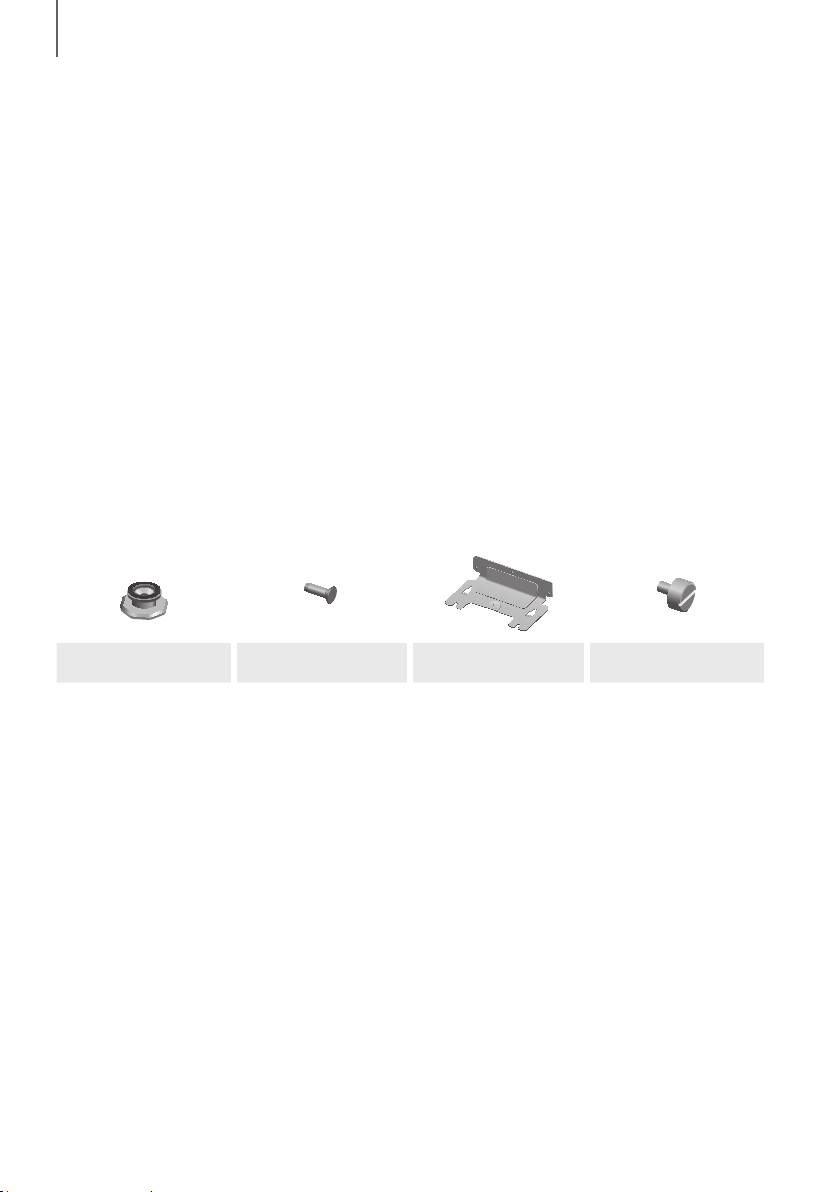

Check for the supplied accessories shown below.

Holder-Screw 1 : 4 EA Holder-Screw 2 : 4 EA Wall-Mount Bracket Holder-Fix Mount

INSTALLATION

Autres manuels pour HW-J8500R

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Intervenants

Samsung

Samsung HW-H500 Manuel utilisateur

Samsung

Samsung HW-K335 Manuel utilisateur

Samsung

Samsung SWA-W700 Manuel utilisateur

Samsung

Samsung HW-K950 Manuel utilisateur

Samsung

Samsung HW-Q800T Instructions d'installation

Samsung

Samsung HW-M4500 Instructions d'installation

Samsung

Samsung Radiant 360 R1 Manuel utilisateur

Samsung

Samsung SWA-9200S Manuel utilisateur

Samsung

Samsung HW-K390 Manuel utilisateur

Samsung

Samsung HW-R550 Manuel utilisateur

Samsung

Samsung HW-H500 Manuel utilisateur

Samsung

Samsung WAM3501 Manuel utilisateur

Samsung

Samsung VL350 Manuel utilisateur

Samsung

Samsung HW-H750 Manuel utilisateur

Samsung

Samsung HT-SB1G Manuel utilisateur

Samsung

Samsung HW-R470 Manuel utilisateur

Samsung

Samsung HW-MS6500 Instructions d'installation

Samsung

Samsung MX-ST50B Manuel utilisateur

Samsung

Samsung HW-MS6500 Instructions d'installation

Samsung

Samsung EO-SB330 Manuel utilisateur

Samsung

Samsung HW-J470 Manuel utilisateur

Samsung

Samsung Shape WAM-750 Manuel utilisateur

Samsung

Samsung HW-J6000 Manuel utilisateur

Samsung

Samsung HW-K550 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
