Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

User manual

HW-J6000R

HW-J6001R

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

ENG

GETTING STARTED

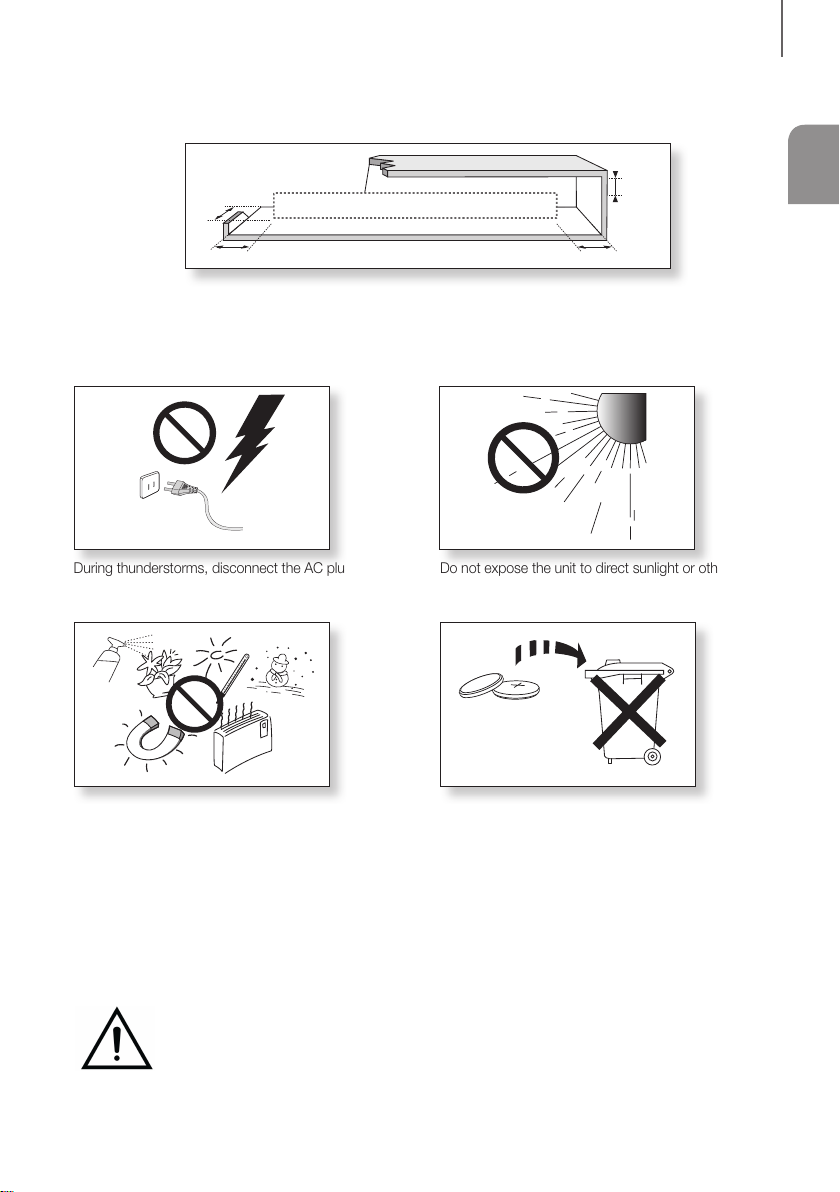

PRECAUTIONS

99.1mm 99.1mm

68.6

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose of

batteries in the general household trash. Do not dispose

of batteries in a fire. Do not short circuit, disassemble, or

overheat the batteries. There is a danger of explosion if

the battery is incorrectly replaced. Replace only with the

same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied

withthis product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can

cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away

from children. If the battery compartment does not close securely, stop using the product and keep it

away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek

immediate medical attention.

GETTING STARTED

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user

manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

CONTENTS

2 GETTING STARTED

2 Safety Information

5 What’s Included

6 DESCRIPTIONS

6 Top / Front Panel

7 Rear / Bottom Panel

8 Remote Control

11 INSTALLATION

11 Installing the Soundbar

11 Installing the Wall Mount

14 Placing the Soundbar on a TV stand

14 Installing the Soundbar as a Free-Standing

Unit

15 CONNECTIONS

15 Connecting the Subwoofer

16 Connecting the SWA-8000S

(Sold Separately)

18 Connecting to a TV

18 TV SoundConnect

19 Connecting to a TV Using an HDMI (Digital)

Cable

20 Connecting to a TV Using a Digital Optical

Cable

21 Connecting to External Devices

21 HDMI Cable

21 Optical or Analogue Audio Cable

22 USB

24 FUNCTIONS

24 Input Mode

25 Bluetooth

28 Software Update

29 TROUBLESHOOTING

29 Troubleshooting

30 APPENDIX

30 Specifications

ENG

GETTING STARTED

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be cancelled.

Note

Indicates tips or instructions on the page that help you operate a function.

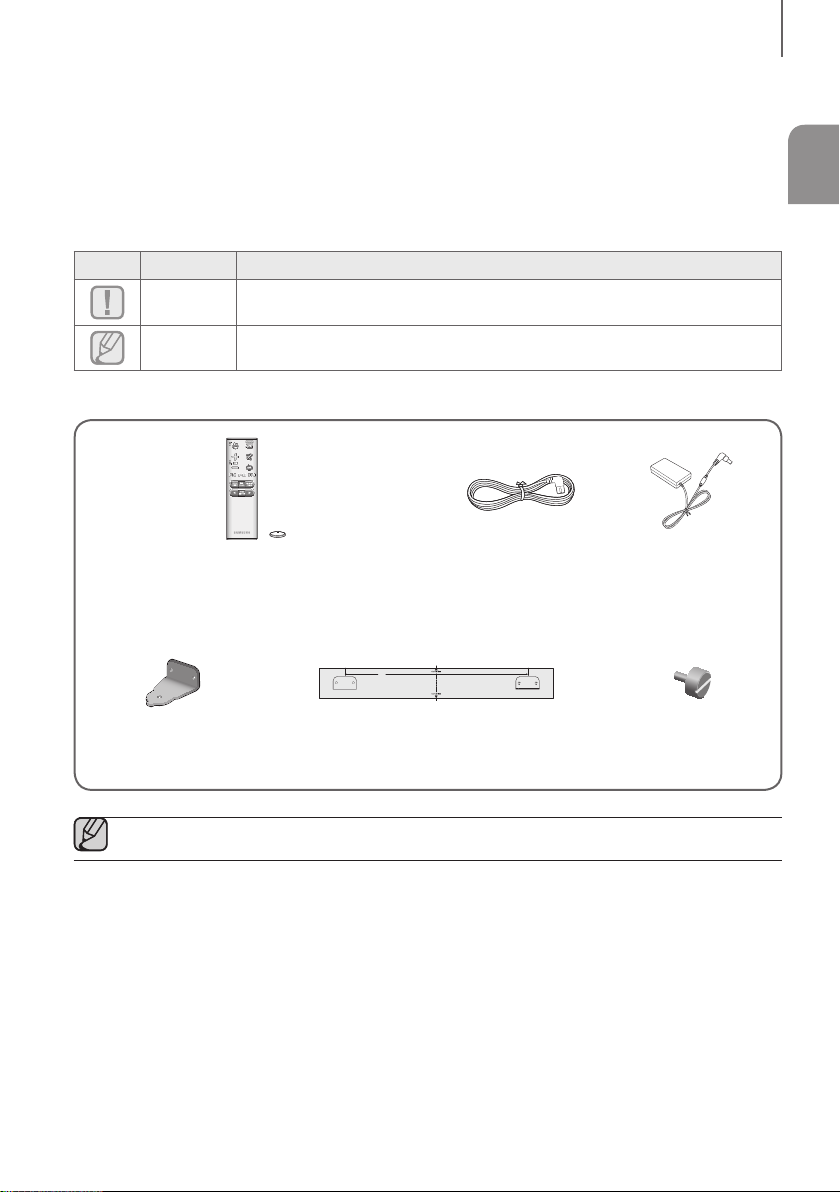

Check for the supplied accessories shown below.

Remote Control / Lithium Battery

(3V : CR2032) Power Cord : 2 EA AC/DC Adapter

430

Bracket-Wall : 2 EA Wall Mount Guide Holder-Fix Mount : 2 EA

●The appearance of the accessories may differ slightly from the illustrations above.

DESCRIPTIONS

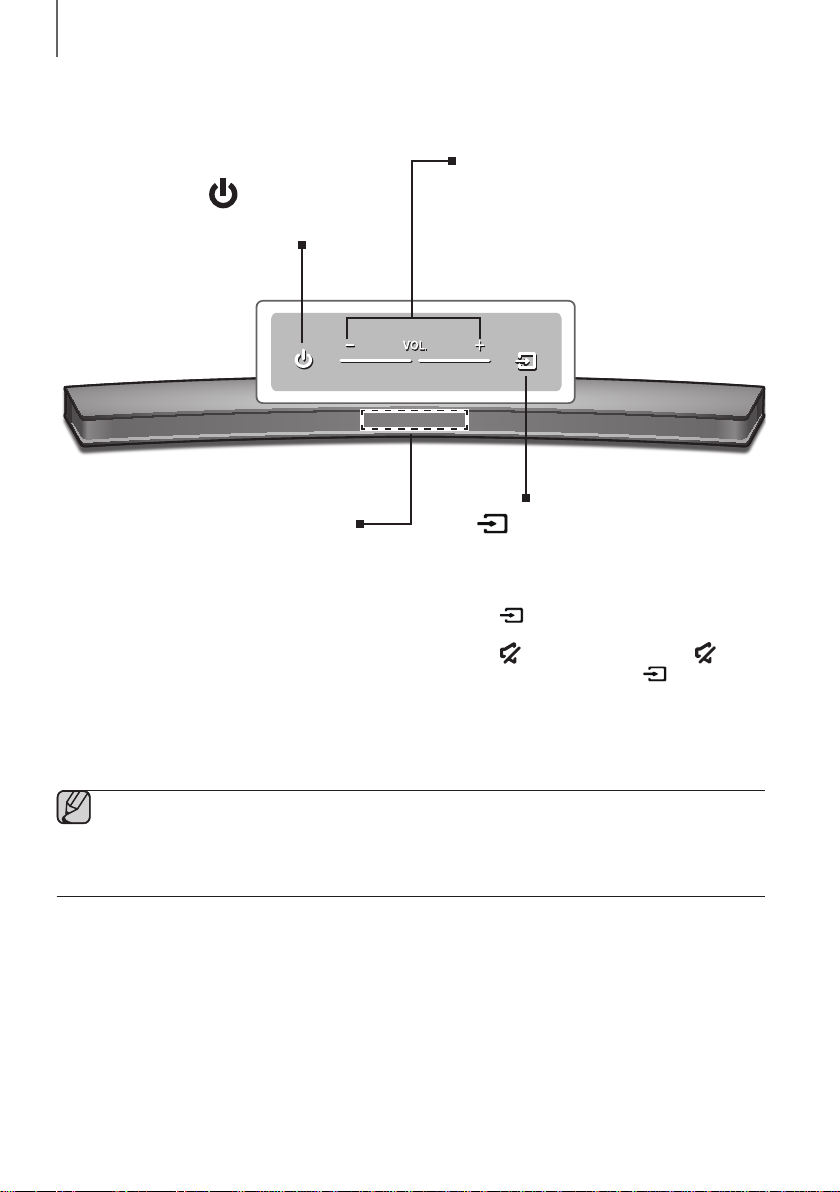

TOP / FRONT PANEL

(Power) Button

Turns the power on and off.

VOL. - / +

Controls the volume level.

The numeric value of the volume level

appears in the front panel display.

Display

Displays the current mode.

(Source) Button

Selects the D.IN, AUX, HDMI, BT, TV, or USB

input.

●While the unit is powered on, pressing the

button for more than 3 seconds sets

the button to act as the

(Mute) button. To cancel the (Mute)

button setup, press the button for

more than 3 seconds again.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

ENG

DESCRIPTIONS

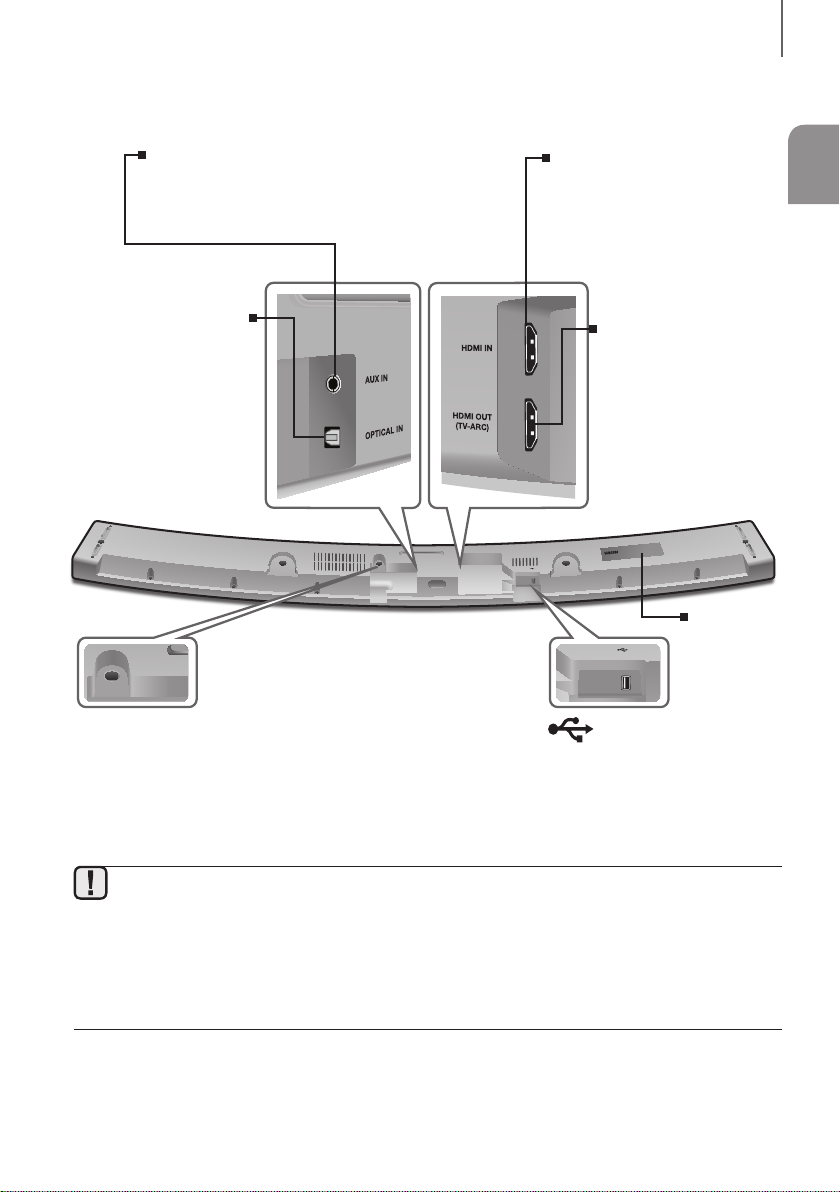

REAR / BOTTOM PANEL

DC14V

AUXIN

OPTICALIN

HDMIIN

HDMIOUT

(TV-ARC)

5V0.5A

DC14V

5V 0.5A

DC 14V

(Power Supply In)

Connect the DC power adaptor to the

power supply jack, and then connect the

AC power adaptor plug to a wall outlet.

(USB Port)

Connect USB devices here to play

files on the devices.

OPTICAL IN (D.IN)

Connect to the digital

(optical) output of an

external device.

HDMI OUT (TV-ARC)

Outputs digital video and

audio signals simultaneously

using an HDMI cable.

HDMI IN

Inputs digital video and audio

signals simultaneously using an

HDMI cable. Use when connecting

a supported external device.

AUX IN

Connect to the Analogue output of an

external device.

LABEL

●When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

●Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it

is hanging with the AC cord input facing upwards, water or other foreign substances could enter the

Adapter and cause the Adapter to malfunction.

DESCRIPTIONS

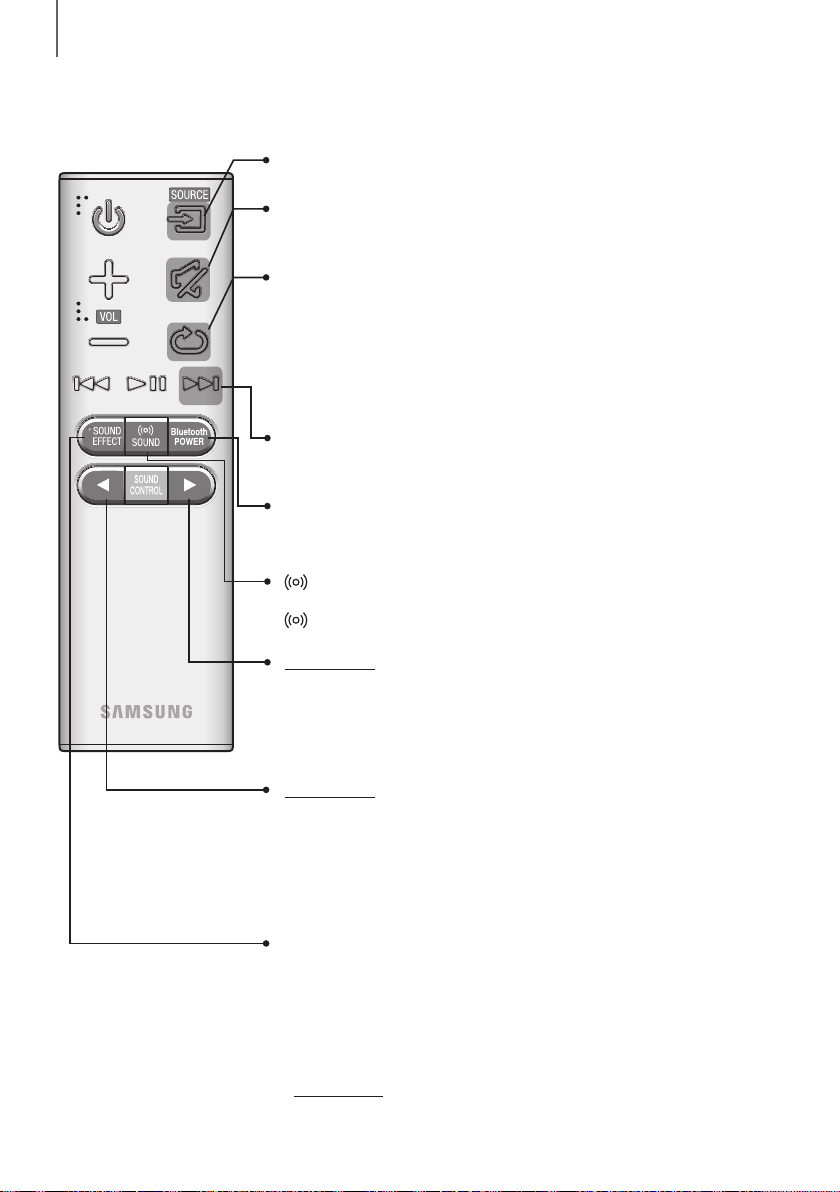

REMOTE CONTROL

Repeat

Press to set the Repeat function during music playback from a USB device.

OFF - REPEAT : Cancels Repeat Playback.

TRACK - REPEAT : Plays a track repeatedly.

ALL - REPEAT : Plays all tracks repeatedly.

RANDOM - REPEAT : Plays tracks in random order.

(A track that has already been played may be played again.)

Mute

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the ]button, the next file is selected.

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off. See pages 19 and 26 for details.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

SOUND EFFECT

You can select from 6 different sound modes - STANDARD (Original Sound),

MUSIC, CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending on

the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

*DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital.

Press and hold the SOUND EFFECT button for about 5 seconds in STANDBY

mode to turn the DRC (Dynamic Range Control) function on or off.

Press and hold the



button for about 5 seconds to turn the Anynet+ function

on or off.

OFF - ANYNET+, ON - ANYNET+

The Anynet+ function lets you control the Soundbar with the remote from an

Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

Press and hold the



button for about 5 seconds to turn the Auto Power Link

function on or off.

OFF - POWER LINK, ON - POWER LINK

* Auto Power Link

Synchronizes the Soundbar to a connected Optical source via the Optical jack

so it turns on automatically when you turn on your TV. (See page 20)

Auto Power Link function is only available in the D.IN mode.

ENG

DESCRIPTIONS

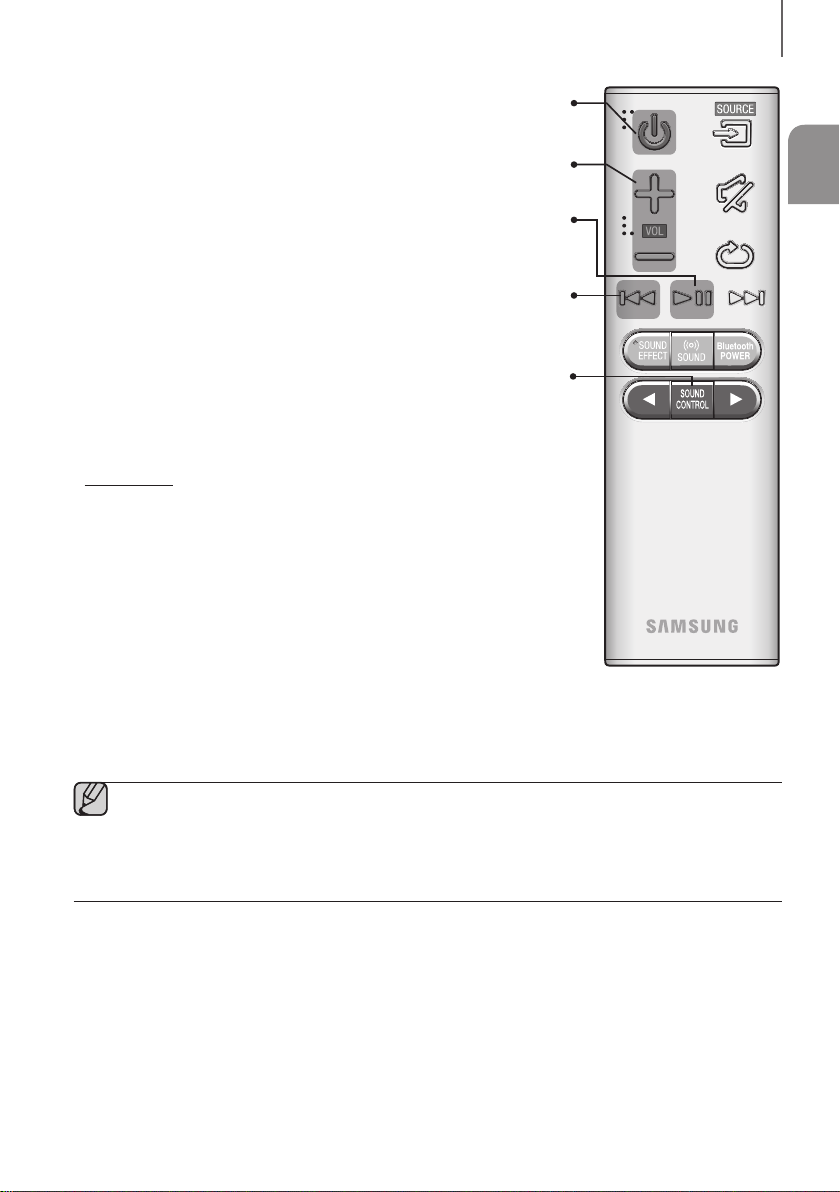

Volume

Adjusts the volume level of the unit.

Power

Turns the Soundbar on and off.

SOUND CONTROL

Press to select TREBLE, BASS, SUBWOOFER LEVEL, AUDIO SYNC,

REAR SPEAKER, or REAR LEVEL.

Then, use the , buttons to adjust the TREBLE or BASS volume from

-6 ~ +6, SUBWOOFER LEVEL volume from -12, -6 ~ +6.

Press and hold the SOUND CONTROL button for about 5 seconds to adjust the

sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz

and 10KHz are selectable and each can be adjusted to a setting between -6 ~ +6.

If the Soundbar is connected to a digital TV and the video appears out of sync

with the audio, press the SOUND CONTROL button to sync the audio with the

video. Use the , buttons to set the audio delay between

0 ms ~ 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function

may not available.

To turn on or off of the rear speaker sound, select REAR SPEAKER in Sound

Control, and then adjust the volume between OFF-RS and ON-RS by using the

, buttons.

To control the volume of the rear level sound, select REAR LEVEL in Sound

Control, and then adjust the volume between RS -6~+6 by using the , 

buttons.

Play / Pause

Press the

button to pause a file temporarily.

Press the

button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press

the

[

button, the previous file is selected.

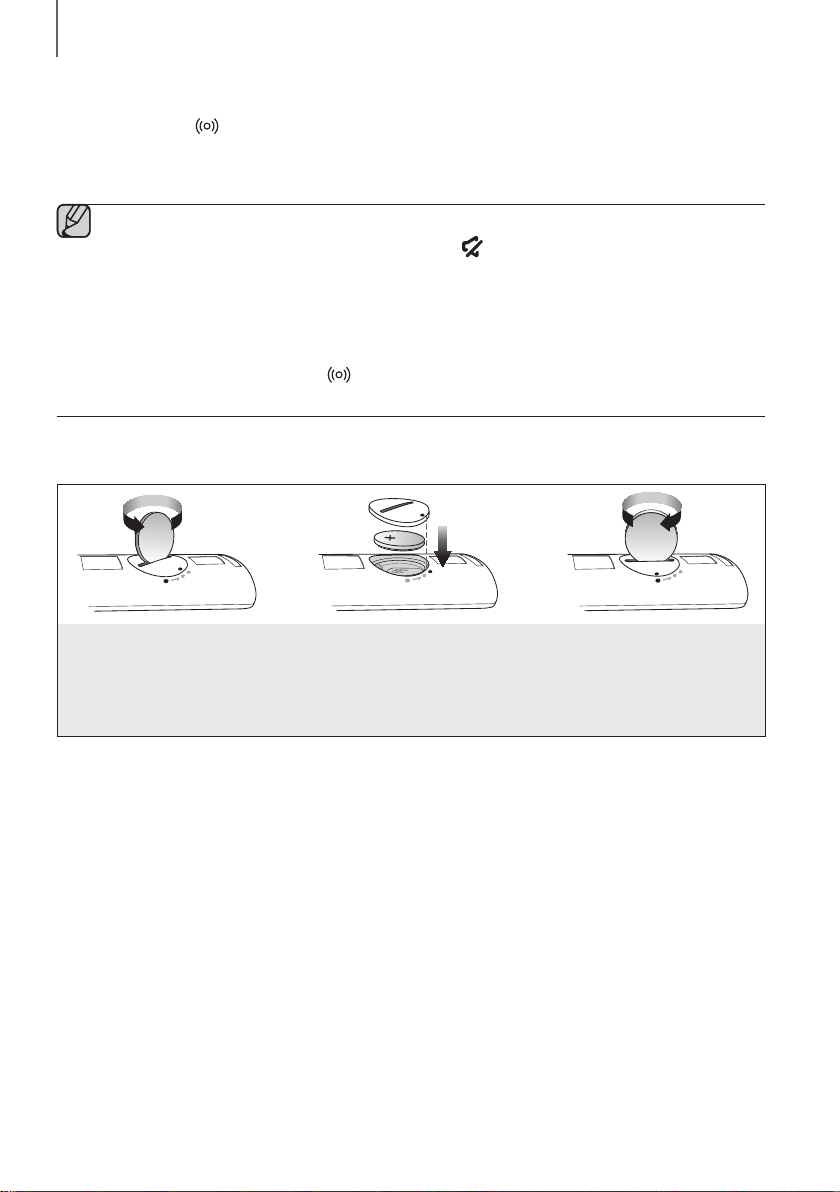

●The REAR SPEAKER and the REAR LEVEL mode are only available when you connect the SWA-8000S

(sold separately).

-If the SWA-8000S is disconnected, REAR SPEAKER and REAR LEVEL remain displayed but the

functions are not available.

●Operate the TV using the TV's remote control.

DESCRIPTIONS

+Controlling the Soundbar using Your TV Remote Control

1. Press and hold the

SOUND

button for more than 5 seconds while the Soundbar is turned on.

2. "ON - TV REMOTE" appears on the Soundbar's display.

3. In the TV's menu, set the TV speaker to external speaker.

●Not available if the TV ARC function or HDMI mode is in use.

●All buttons are not available except the VOL +/- and the (Mute) buttons in this function.

●TV menus differ by manufacturer and model. Refer to the TV's user manual for further information.

●Manufacturers supporting this function:

-VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

-This function may not be compatible with your TV's remote depending on the remote control's

manufacturer.

●To turn off this function, press the

SOUND

button for 5 seconds.

"OFF - TV REMOTE" appears on the Soundbar's display.

INSTALLING THE BATTERY IN THE REMOTE CONTROL

1. Use a suitable coin to turn the

remote control's battery cover

counterclockwise to remove it

as shown in the figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting

the battery. Put the battery cover on and

align the '●' marks side by side as

shown in the figure above.

3. Use a suitable coin to

turn the remote control

battery cover clockwise

as far as it will go to fix it

in place.

Autres manuels pour HW-J6000R

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Intervenants

Samsung

Samsung MX-ST40B Instructions d'installation

Samsung

Samsung HW-J6000 Manuel utilisateur

Samsung

Samsung HW-N450 Instructions d'installation

Samsung

Samsung HW-Q750B Instructions d'installation

Samsung

Samsung HW-M435 Instructions d'installation

Samsung

Samsung HW-J6500 Manuel utilisateur

Samsung

Samsung HW-K650 Manuel utilisateur

Samsung

Samsung HW-H500 Manuel utilisateur

Samsung

Samsung HW-MS650 Manuel utilisateur

Samsung

Samsung HW-K950 Manuel utilisateur

Samsung

Samsung HW-N450 Instructions d'installation

Samsung

Samsung HW-R430 Manuel utilisateur

Samsung

Samsung HW-R450 Manuel utilisateur

Samsung

Samsung HW-J6500 Manuel utilisateur

Samsung

Samsung SWA-9200S Manuel utilisateur

Samsung

Samsung HW-KM55C Manuel utilisateur

Samsung

Samsung HW-M360 Manuel utilisateur

Samsung

Samsung HW-K360 Manuel utilisateur

Samsung

Samsung HW-JM4000C Manuel utilisateur

Samsung

Samsung HW-MS550 Manuel utilisateur

Samsung

Samsung HW-K550 Manuel utilisateur

Samsung

Samsung HW-J370 Manuel utilisateur

Samsung

Samsung HW-K450 Manuel utilisateur

Samsung

Samsung HW-J7500R Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
