HW-S60A / S61A

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

Wiring the Main Power Supply

Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with

a moulded plug incorporating a fuse. The value of

the fuse is indicated on the pin face of the plug

and if it requires replacing, a fuse approved to

BS1362 of the same rating must be used.

Never use the plug with the fuse cover removed.

If the cover is detachable and a replacement is

required, it must be of the same colour as the fuse

tted in the plug. Replacement covers are

available from your dealer. If the tted plug is not

suitable for the power points in your house or the

cable is not long enough to reach a power point,

you should obtain a suitable safety approved

extension lead or consult your dealer for assistance.

ENG - 3

However, if there is no alternative to cutting off the

plug, remove the fuse and then safely dispose of

the plug. Do not connect the plug to a mains

socket as there is a risk of shock hazard from the

bared exible cord. Never attempt to insert bare

wires directly into a mains socket. A plug and fuse

must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in

accordance with the following code:– BLUE =

NEUTRAL BROWN = LIVE As these colours may not

correspond to the coloured markings identifying

the terminals in your plug, proceed as follows:– The

wire coloured BLUE must be connected to the

terminal marked with the letter N or coloured

BLUE or BLACK. The wire coloured BROWN must

be connected to the terminal marked with the

letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO

THE EARTH TERMINAL WHICH IS MARKED WITH

THE LETTER E OR BY THE EARTH SYMBOL ,

OR COLOURED GREEN OR GREEN AND YELLOW.

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 4

Fabric cleaning

Remove any dirt or stain on the product surface

immediately.

Removing and cleaning can be less effective for

some substances or if left for a prolonged time.

CAUTION

•Use a vacuum cleaner or an adhesive lint

roller to remove dust, handprints, and the

likes.

– Some cleaning brushes may damage the

product, depending on the materials they

contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

•Do not use a nail or other tools to scratch the

dirt off. It may damage the fabric.

•To remove oil or liquid stains, use a clean

white cloth moist with water. If the stain

persists, wipe it with a mixture of water and

neutral detergent (such as dishwashing

soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discolouration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discolouration or fabric damage.

ENG - 5

CONTENTS

01 Checking the Components 7

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 7

02 Product Overview 8

Top Panel of the Soundbar ------------------------- 8

Bottom Panel of the Soundbar ------------------------- 10

03 Using the Remote Control 11

How to Use the Remote Control ------------------------- 11

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 14

Output specications for the different sound effect modes ------------------------- 14

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

04 Connecting the Soundbar 16

Connecting Electrical Power ------------------------- 16

Connecting an SWA-9100S (Sold Separately),

SWA-W500 (Sold Separately) to your Soundbar ------------------------- 16

05 Using a wired connection to the TV 17

Method 1. Connecting with HDMI ------------------------- 17

Method 2. Connecting using an Optical Cable ------------------------- 19

06 Using a wireless connection to the TV 20

Method 1. Connecting via Bluetooth ------------------------- 20

Method 2. Connecting via Wi-Fi ------------------------- 22

07 Connecting an External Device 23

Connecting using an Optical Cable ------------------------- 23

ENG - 6

08 Connecting a Mobile Device 24

Method 1. Connecting via Bluetooth ------------------------- 24

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 27

Getting Started with Amazon Alexa (Built-in Alexa) ------------------------- 28

Getting Started with Alexa on Amazon Product (Works with Alexa) ------------------------- 30

Using the Tap Sound ------------------------- 32

09 Connecting To Apple AirPlay 2 33

10 Installing the Wall Mount 34

Installation Precautions ------------------------- 34

Wallmount Components ------------------------- 34

11 Installing the Soundbar in front of TV 36

12 Software Update 37

Auto Update ------------------------- 37

USB Update ------------------------- 37

Reset ------------------------- 38

13 Troubleshooting 39

14 Licence 41

15 Open Source Licence Notice 41

16 Important Notes About Service 42

17 SpecicationsandGuide 43

Specications ------------------------- 43

ENG - 7

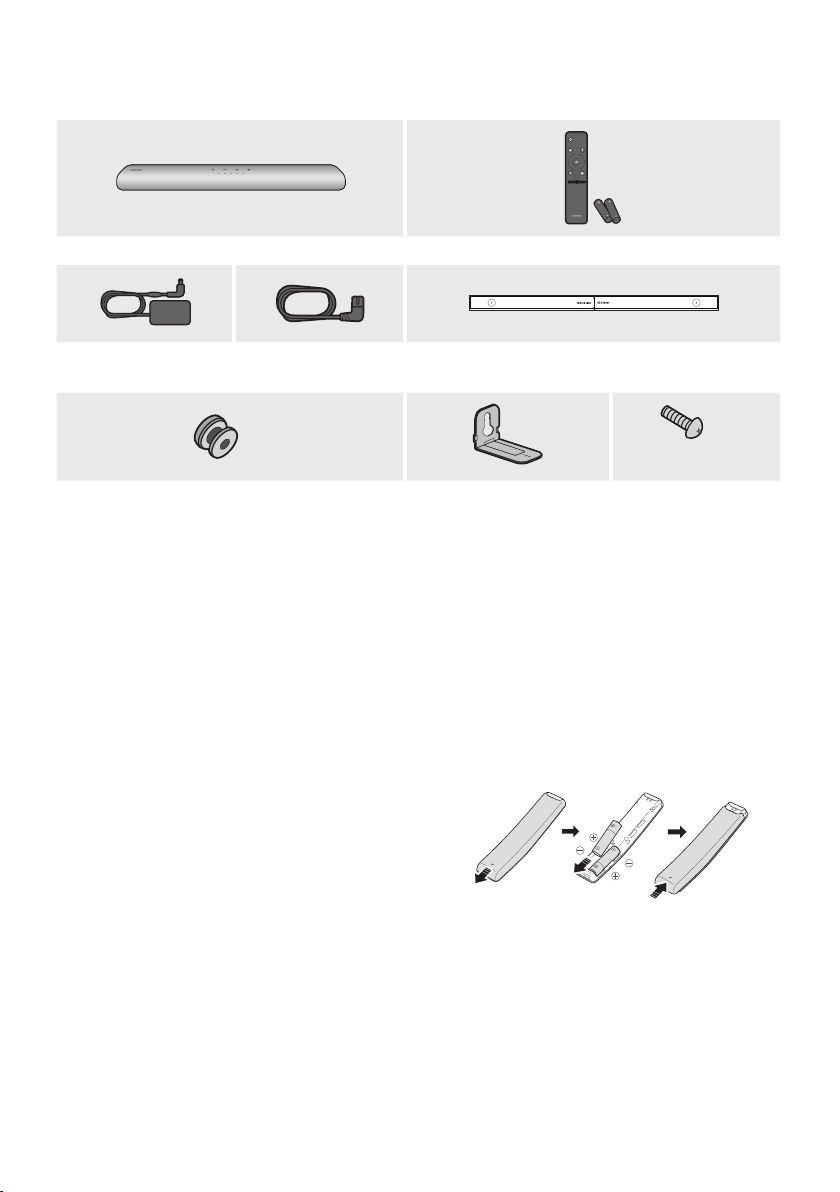

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

/ Batteries

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Wall Mount Guide

x 2 x 2

(M4 x L10)

x 2

Holder-Screw Bracket-Wall Mount Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•For more information about the wallmount see page 34.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 8

02 PRODUCT OVERVIEW

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂔 󱂖󱂕

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, and Blue depending on the

mode or status.

󱂔

Multi

Function

Button

•In standby mode, press the (Multi Function)button to turn on the Soundbar.

•Press the (Multi Function) button to change the mode. Each time you change the

mode, the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” or

“TV ARC”“Wi-Fi” “Bluetooth”

󱂕Volume

Button Press the (Volume) button to adjust the volume.

ENG - 9

󱂖

Mic

On/Off

Button

Press the (Mic On/Off) button to turn on or off the microphone.

LED Indicator

Red On

“Mic Off”“Mic On”

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

•You can turn on and off audio feedback by using SmartThings app. To learn about using the

SmartThings app, refer to “Method 2. Connecting via Wi-Fi (Wireless Network)”.

ENG - 10

Bottom Panel of the Soundbar

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

󱂓 󱂔 󱂕 󱂖 󱂗 󱂘

󱂓

ID SET

Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.

(The surround speaker, subwoofer are sold separately.)

󱂔NETWORK

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

󱂖DC 19V (Power Supply In)

Connect the AC/DC power adapter. (See page 16)

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 23)

󱂘HDMI (ARC)

Connect to the HDMI (ARC) port on a TV. (See page 17)

•When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

Autres manuels pour HW-S60A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-Q990B/ZA Instructions d'installation

Samsung

Samsung HW-S801B Instructions d'installation

Samsung

Samsung HW-T550 Manuel utilisateur

Samsung

Samsung HW-Q600A Instructions d'installation

Samsung

Samsung HW-Q800B Instructions d'installation

Samsung

Samsung HW-S800B Instructions d'installation

Samsung

Samsung MX-T70 Instructions d'installation

Samsung

Samsung MultiXpress K430 SERIES Manuel utilisateur

Samsung

Samsung HW-S800B Instructions d'installation

Samsung

Samsung WAM5500 Manuel utilisateur

Samsung

Samsung HW-M460 Instructions d'installation

Samsung

Samsung HW-F350 Manuel utilisateur

Samsung

Samsung HW-MS750/ZA Instructions d'installation

Samsung

Samsung HW-B67C Instructions d'installation

Samsung

Samsung HW-Q900T Manuel utilisateur

Samsung

Samsung TW-J5500 Manuel utilisateur

Samsung

Samsung HW-Q935GC Manuel utilisateur

Samsung

Samsung MX-T70 Instructions d'installation

Samsung

Samsung HW-J250/ZA Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F550 Manuel utilisateur

Samsung

Samsung HW-S40T Instructions d'installation

Samsung

Samsung HW-K950/ZA Manuel utilisateur

Samsung

Samsung HW-MS6500 Manuel utilisateur

Samsung

Samsung HW-Q990B Instructions d'installation

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
