Samsung HW-K960 Manuel utilisateur

User manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

HW-K960

GETTING STARTED

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for

further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the

apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power

plug must be easily and readily accessible at all times.

GETTING STARTED

ENG

GETTING STARTED

PRECAUTIONS

99.1mm 99.1mm

68.6

99.1mm

Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker

located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or

other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect

the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose of

batteries in the general household trash. Do not dispose

of batteries in a fire. Do not short circuit, disassemble, or

overheat the batteries. There is a danger of explosion if

the battery is incorrectly replaced. Replace only with the

same or equivalent type.

GETTING STARTED

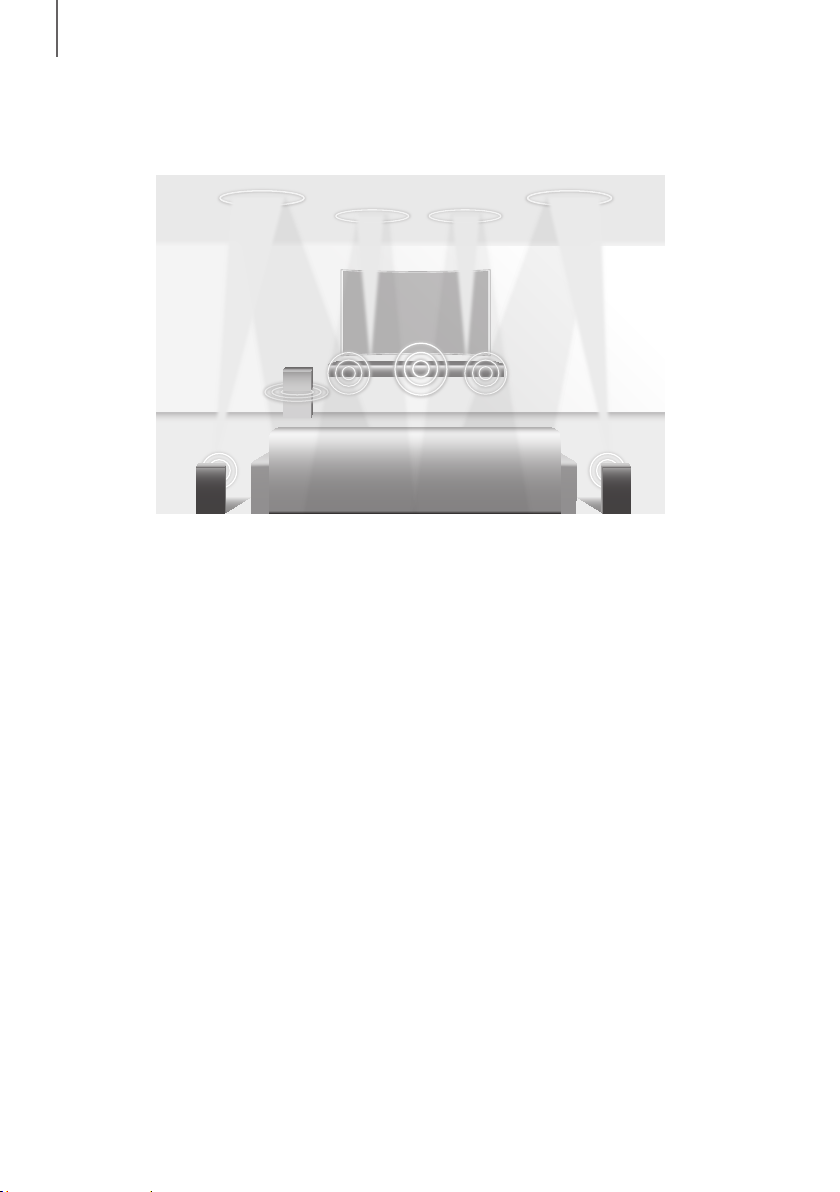

DOLBY ATMOS®

This product supports Dolby Atmos®.

* What is Dolby Atmos®?

Atmos technology enhances existing 5.1 channel surround sound systems by adding an overhead speaker.

This envelops the listener in 360 degrees of sound, delivering an immersive, high-definition, rich, detailed, and deeper

experience. See page 24 to learn how to connect the system.

ENG

GETTING STARTED

CONTENTS

2 GETTING STARTED

2 Safety Information

4 Dolby Atmos®

6 What’s Included

7 DESCRIPTIONS

7 Front / Right Side Panel

8 Bottom Panel

9 Remote Control

14 INSTALLATION

14 Installing the Soundbar

14 Installing the Wall Mount

17 Detaching the Soundbar from the Wall

18 Installing the Surround Speakers on a

Wall

19 CONNECTIONS

19 Connecting the Subwoofer and

Surround Speakers

22 Connecting to a TV

22 Connecting to a TV Using an HDMI (Digital)

Cable

23 Connecting to a TV Using a Digital Optical

Cable

24 Connecting to External Devices

24 Connecting Devices in Order to Use Dolby

Atmos®

25 HDMI Cable

26 Optical or Analogue Audio Cable

27 FUNCTIONS

27 Input Mode

28 Bluetooth

30 Using the Multiroom App

32 Using the Network Standby On

Function

33 Software Update

35 TROUBLESHOOTING

35 Troubleshooting

36 APPENDIX

36 Specifications

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there

is no defect with the product (i.e. where the

user manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

GETTING STARTED

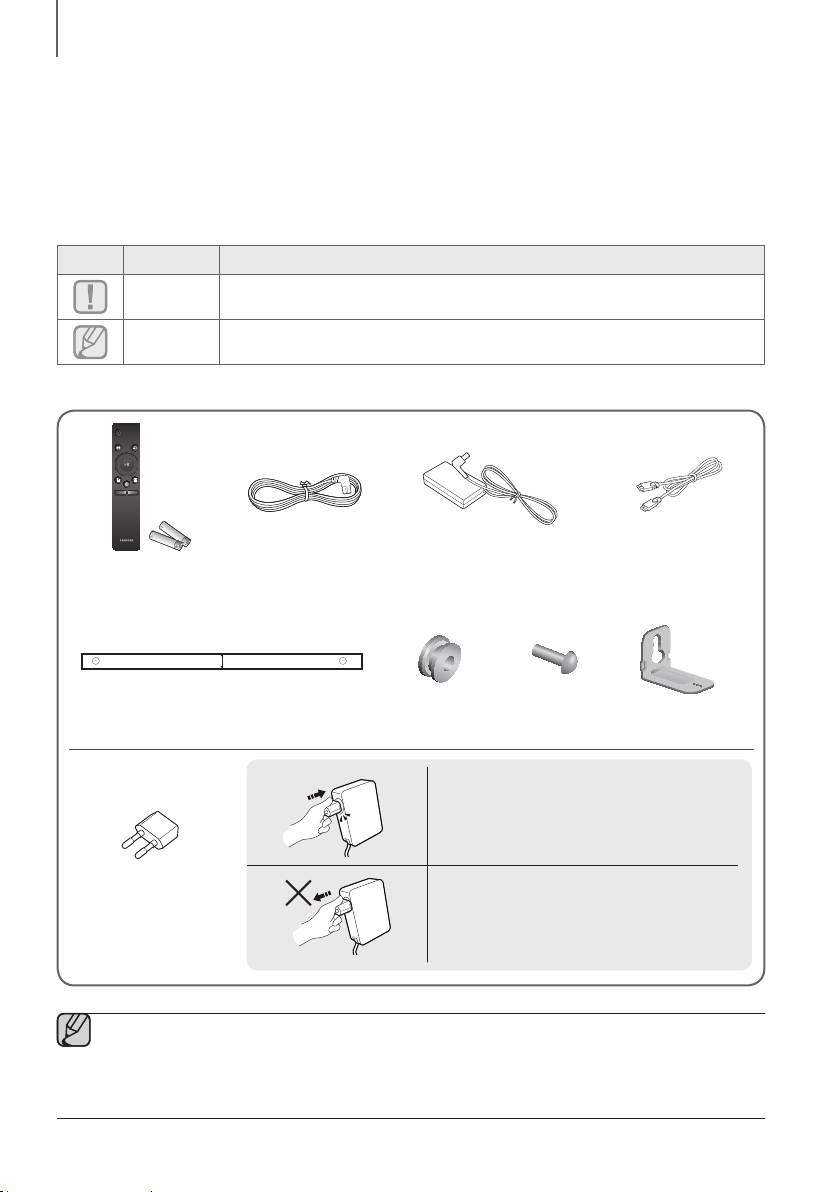

WHAT’S INCLUDED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be cancelled.

Note

Indicates tips or instructions on the page that help you operate a function.

Check for the supplied accessories shown below.

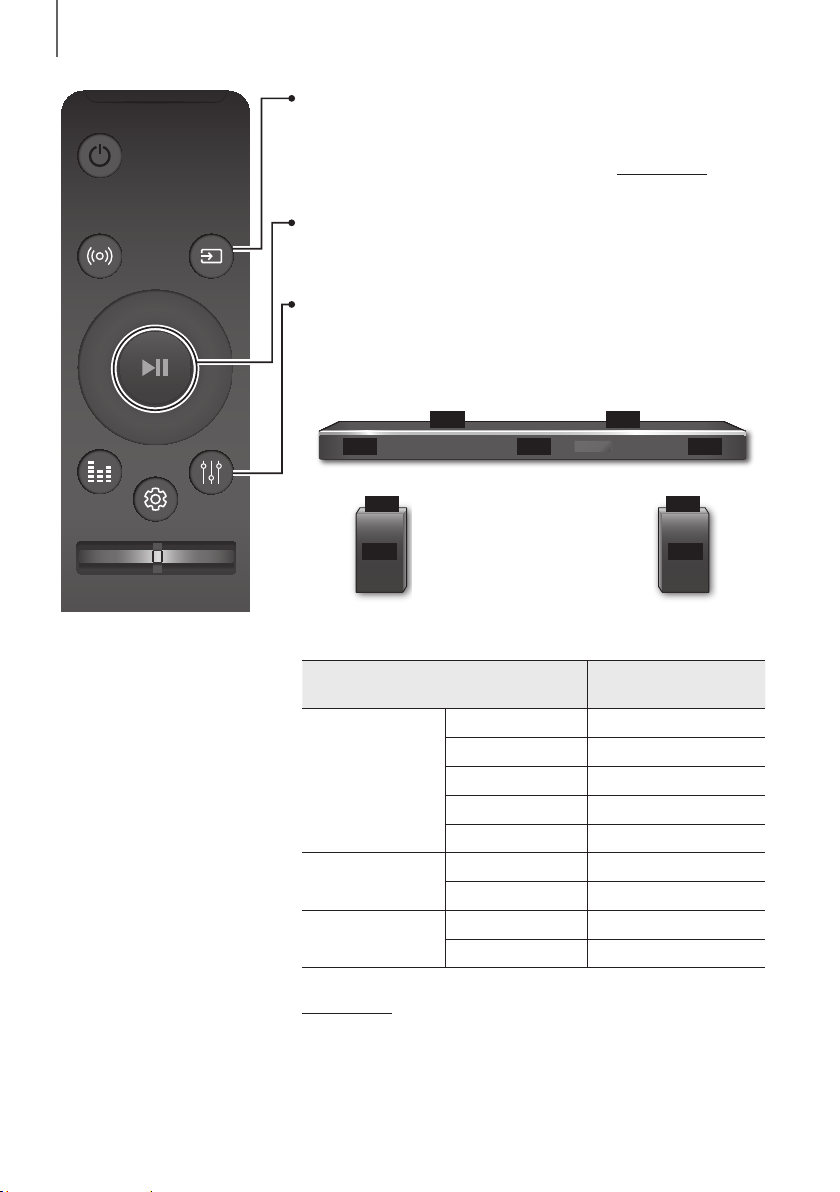

SOUND SOURCE

EFFECT LEVEL

VOL WOOFER

SOUNDBAR

Remote Control /

Batteries (AA Size) Power Cord : 3 EA AC/DC Adapter

(for main unit)

HDMI Cable

C TYPE : 700mm

CENTERLINE

C C

Wall Mount Guide Holder-Screw :

2 EA

Screw :

2 EA

Bracket-Wall Mount :

2 EA

AC Plug

(Depending on the country

and model)

Connect the AC plug to the adapter until you

hear a "snapping" sound to ensure they are

securely fastened.

Do not detach the AC plug from the adapter

(it will not be removed once it has been

attached).

●The appearance of the accessories may differ slightly from the illustrations above.

●To distinguish the left surround speaker from the right, check the label on the rear of each speaker.

●Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with the

adapter.

ENG

DESCRIPTIONS

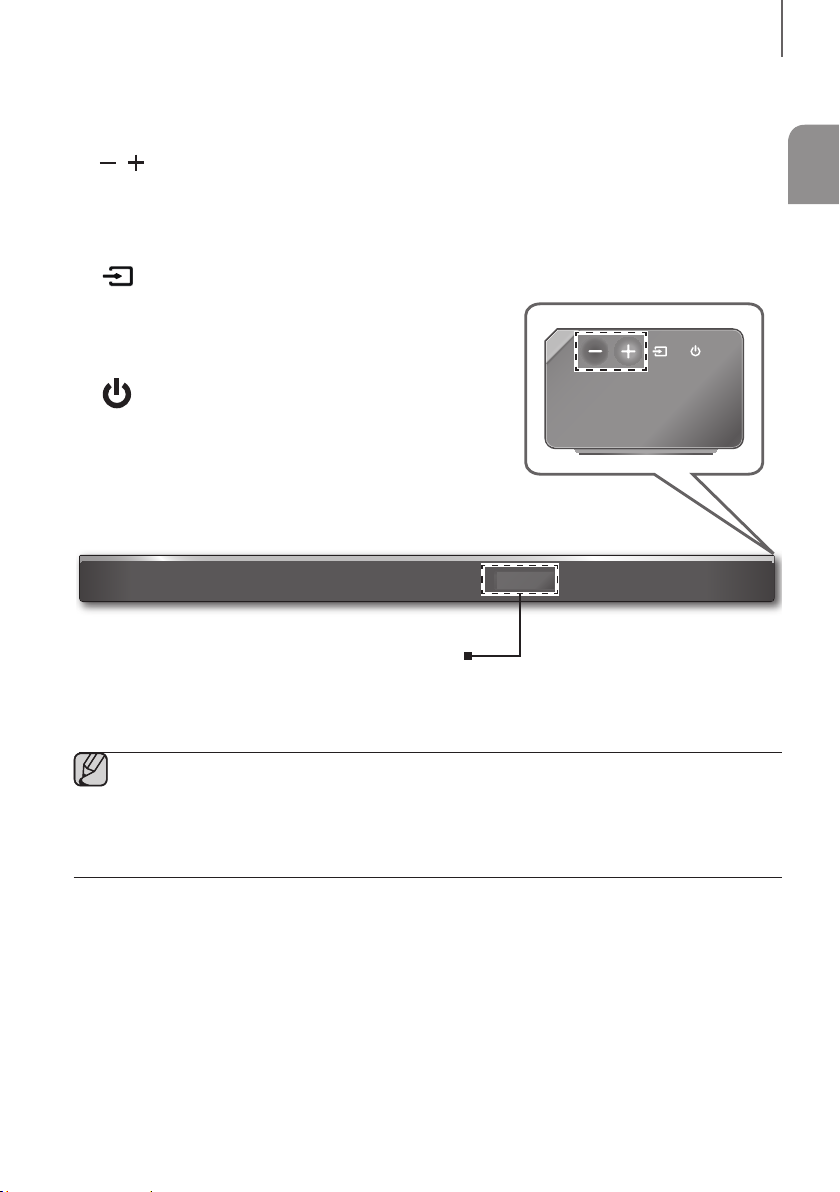

FRONT / RIGHT SIDE PANEL

(Volume) Button

Controls the volume level.

The numeric value of the volume level appears in the front panel

display.

2 (Source) Button

Selects the D.IN, AUX, HDMI1, HDMI2, or BT input.

●To turn on BT PAIRING mode, press and hold this button in BT

mode.

3 (Power) Button

Turns the power on and off.

2 3

Right Side

Display

Displays the current mode.

●When you plug in the AC cord, the power button will begin working in 4 to 6 seconds. When you press the

power button, there will be a 20 second delay before the unit produces sound.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup

menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

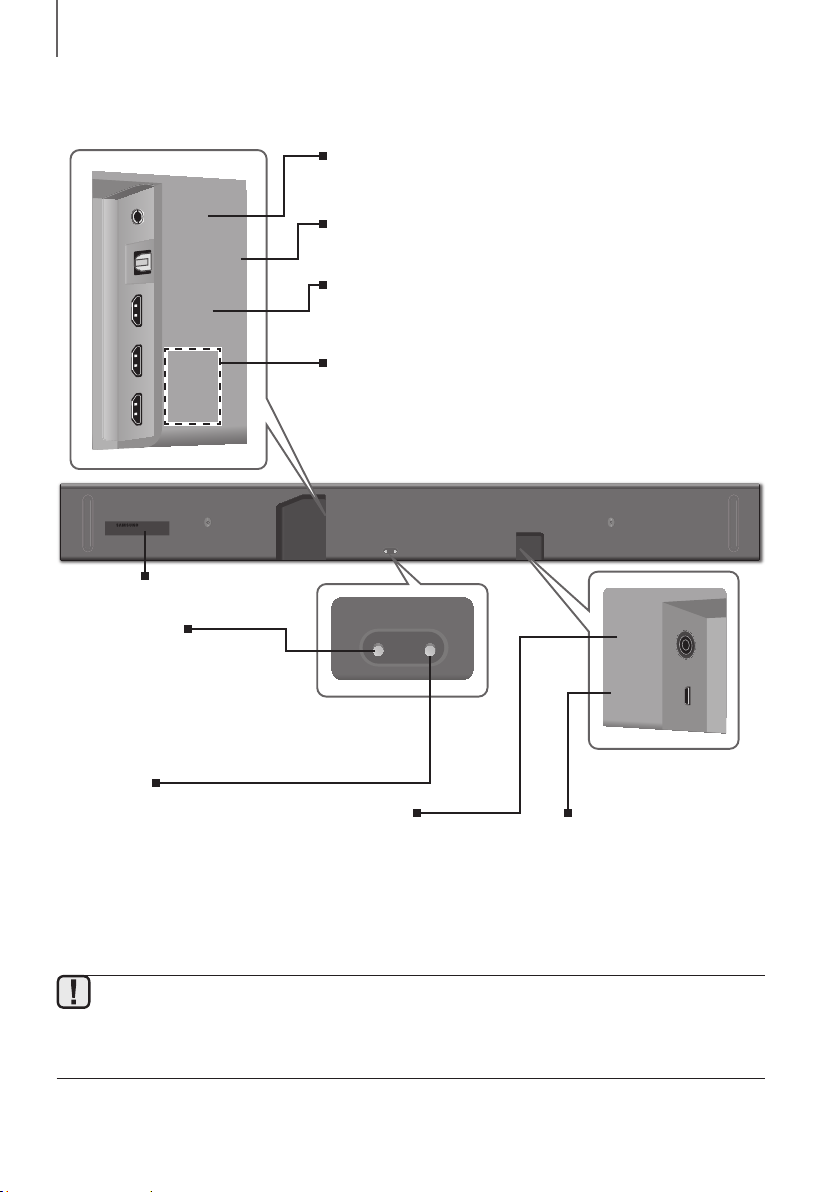

BOTTOM PANEL

Wi-Fi SETUP SPK ADD

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

HDMI OUT

(TV-ARC)

HDMI IN 1

HDMI IN 2

DC 19V

SERVICE

DC 19V

SERVICE

Wi-Fi SETUP SPK ADD

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

HDMI OUT

(TV-ARC)

HDMI IN 1

HDMI IN 2

DIGITAL AUDIO IN

(OPTICAL)

HDMI OUT

(TV-ARC)

HDMI IN 1

HDMI IN 2

AUX IN

HDMI IN 1, HDMI IN 2

Inputs digital video and audio signals simultaneously using an HDMI

cable. Use when connecting a supported external device.

Wi-Fi SETUP

Press this button to connect your

Soundbar to your network using

Wi-Fi setup. (Requires a smart

device and the Samsung

Multiroom app. See page 30.)

SPK ADD

Press this button to connect the

Soundbar to a Samsung HUB

(purchased separately) or a network.

(Requires a smart device and the

Samsung Multiroom app.

See page 30.)

AUX IN

Connect to the Analogue output of an external device.

DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

HDMI OUT (TV-ARC)

Outputs digital video and audio signals simultaneously using an HDMI

cable.

LABEL

DC 19V

(Power Supply In)

Connect the AC/DC power

adaptor to the power supply

jack, and then connect the

AC/DC power adaptor plug to

a wall outlet.

SERVICE

USB micro jack. To upgrade the

product's software. Requires a

USB adapter. (Sold separately.)

See page 33.

●When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

ENG

DESCRIPTIONS

REMOTE CONTROL

SOUND SOURCE

EFFECT LEVEL

VOL WOOFER

SOUNDBAR

Power

Turns the Soundbar on and off.

SOUND

Surround Sound adds depth and spaciousness to the sound. Pressing the

SOUND button repeatedly cycles through the Surround Sound settings :

ON - SURROUND SOUND,OFF - SURROUND SOUND

• ON: Play sound over all the speakers.

• OFF: Play sound through the original source channel.

Up/Down/Left/Right

Press the indicated areas to select Up/Down/Left/Right.

Press Up/Down/

Left/Right on the button to select or set functions.

You can also activate the Wi-Fi SETUP function by pressing and holding

the Up button on the remote for more than 5 seconds.

You can also activate the SPK ADD function of the Soundbar by pressing

and holding the Down button of the remote for more than 5 seconds.

Music Skip

Press the Right button to select the next music; press the Left button to

select the previous music.

Anynet+

Press and hold

the Right

button for about 5 seconds

to turn the Anynet+

function on or off.

(Default : ON - ANYNET+ or OFF - ANYNET+)

The Anynet+ function lets you control the Soundbar with the remote from an

Anynet+ compatible Samsung TV.

The Soundbar must be connected to the TV via an HDMI cable.

Auto Power Link

Press and hold the

Left

button for about 5 seconds to turn the Auto Power

Link function on or off.

(Default :

OFF - POWER LINK

ON - POWER LINK

)

Synchronizes the Soundbar to a connected Optical source via the Optical

jack so it turns on automatically when you turn on your TV. (See page 23)

The Auto Power Link function is only available in the D.IN mode.

EFFECT

You can select from 6 sound modes - STANDARD (Original Sound),

MUSIC,CLEAR VOICE,SPORTS,MOVIE, and NIGHT - depending on

the content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

* DRC (Dynamic Range Control)

Lets you apply dynamic range control to Dolby Digital tracks.

Press and hold the EFFECT button for about 5 seconds in standby mode

to toggle the DRC (Dynamic Range Control) function ON - DRC and

OFF - DRC.

●Operate the TV using the TV's remote control.

DESCRIPTIONS

SOUND SOURCE

EFFECT LEVEL

VOL WOOFER

SOUNDBAR

SOURCE

Press to select a source connected to the Soundbar.

* BT PAIRING mode

To turn on BT PAIRING mode in Bluetooth function, press and hold the

SOURCE button for more than 5 seconds.

Play / Pause (BT / WIFI)

Press the

button to pause a music temporarily.

Press the

button again to play the selected music.

LEVEL

The ATMOS Soundbar has 5.1.4 channel sound. Use this button to adjust

the volume of each of the speakers. Press this button, use the Left/Right

buttons to select a speaker, and then use the Up/Down buttons to increase

or decrease the level (volume).

FL FR

FTRFTL

Main Unit

STL

Surround

Speaker L

STR

Surround

Speaker R

Speaker Displayed on OLED

when adjusting the level

Main Unit

Front Left FL

Front Top Left FTL

Centre C

Front Right FR

Front Top Right FTR

Surround Speaker L Surround Left SL

Surround Top Left STL

Surround Speaker R Surround Right SR

Surround Top Right STR

* Network Standby On/Off

Press and hold

the LEVEL

button for about 5 seconds

to turn the Network

Standby on or off.

(See page 32)

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-Q800T Manuel utilisateur

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-K335 Manuel utilisateur

Samsung

Samsung Harman Kardon HW-Q60R Manuel utilisateur

Samsung

Samsung HW-B530 Instructions d'installation

Samsung

Samsung HW-K850/ZA Manuel utilisateur

Samsung

Samsung HW-S800B Manuel utilisateur

Samsung

Samsung HW-LST70T/ZC Instructions d'installation

Samsung

Samsung MAX-DVD9910 Manuel utilisateur

Samsung

Samsung HW-H751 Manuel utilisateur

Samsung

Samsung HW-N400 Instructions d'installation

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-F350 Manuel utilisateur

Samsung

Samsung HW-S60B Manuel utilisateur

Samsung

Samsung HW-J7501 Manuel utilisateur

Samsung

Samsung HW-Q930B Instructions d'installation

Samsung

Samsung HW-M430 Instructions d'installation

Samsung

Samsung HW-A40M Instructions d'installation

Samsung

Samsung HW-T430 Instructions d'installation

Samsung

Samsung Harman Kardon HW-Q7CR Manuel utilisateur

Samsung

Samsung HW-S60B Instructions d'installation

Samsung

Samsung HW-Q7CB Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q90R Instructions d'installation

Samsung

Samsung HW-B670 Instructions d'installation

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
