Samsung HW-K360 Manuel utilisateur

For further information, refer to the Web Manual.

Web manual : www.Samsung.com →Support →

Product name search →HW-K360

HW-K360

* Design and specifications are subject to change without prior notice.

User Manual

· 1 · English

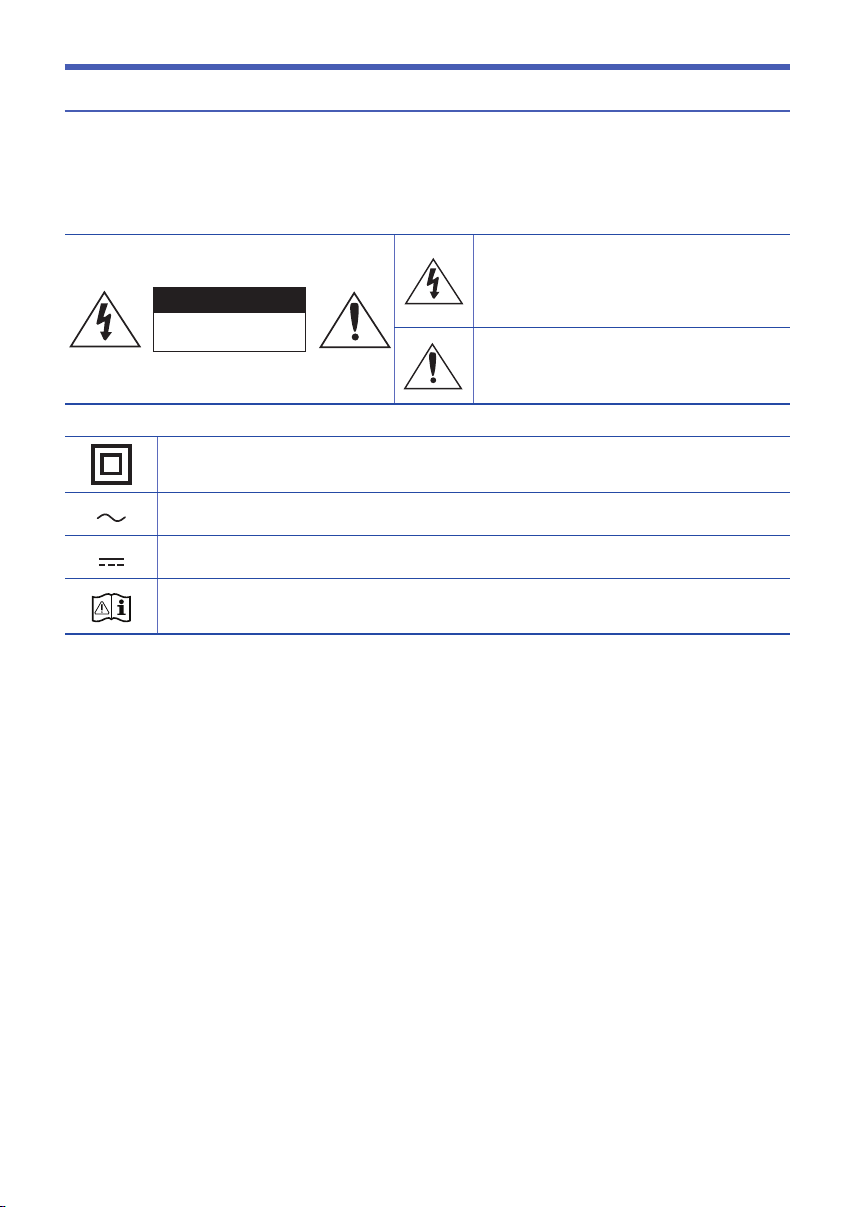

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any

kind of contact with any internal part of this

product.

This symbol indicates that this product has

included important literature concerning

operation and maintenance.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC

voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC

voltage.

Caution, Consult Instructions for use : This symbol instructs the user to consult the user

manual for further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on

the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the

power plug must be easily and readily accessible at all times.

· 2 · English

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with

enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the

unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long

period of time.

2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage

the unit.

3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit

to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong

magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is

not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored

in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached

room temperature before using.

5. The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit,

disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace

only with the same or equivalent type.

WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD,

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is

swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries

away from children. If the battery compartment does not close securely, stop using the product and keep it away from

children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate

medical attention.

· 3 · English

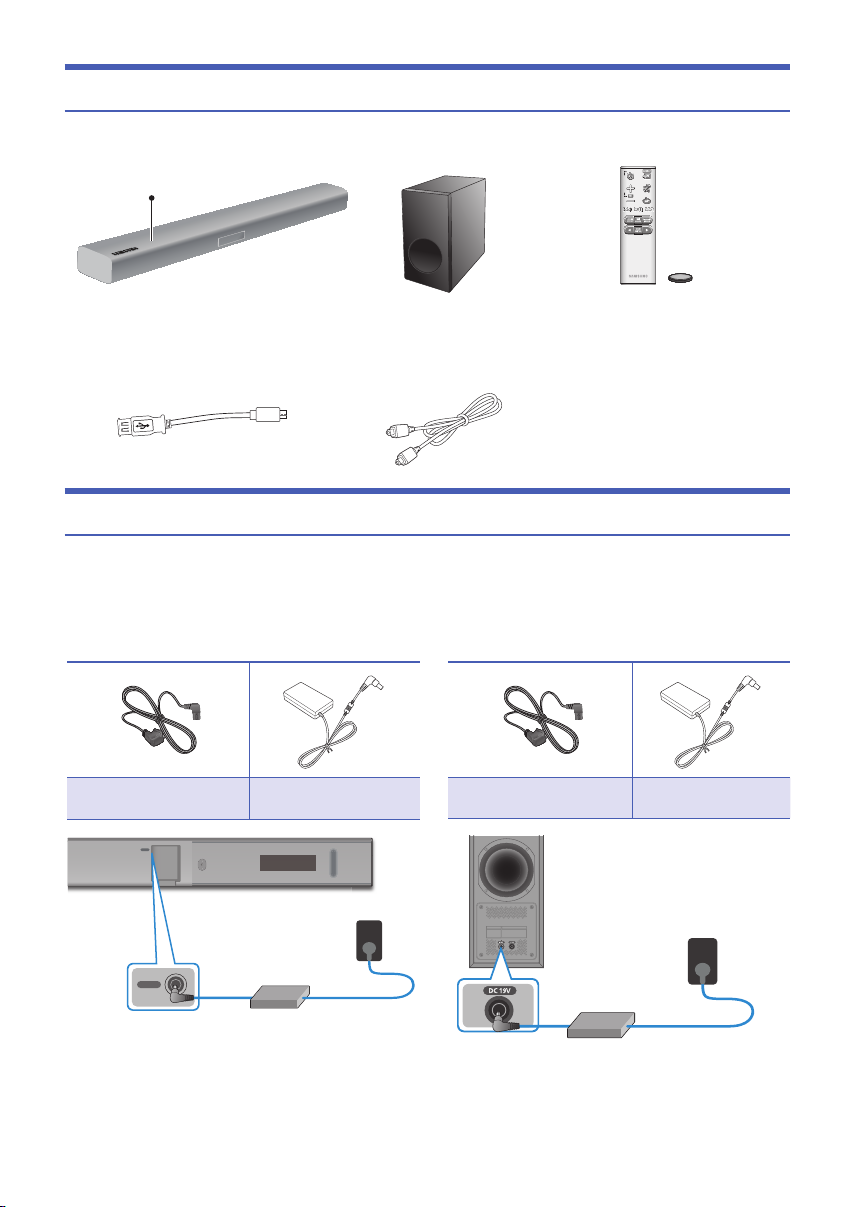

UNPACKING

Main Unit Subwoofer Remote Control / Battery

Micro USB to USB adapter

Cable Optical Cable

cThe package also includes wall

mounting hardware. See page 8.

CONNECTING ELECTRICAL POWER

Use the following accessories to connect the Soundbar to electrical power.

cFor more information about the power supply and power consumption, refer to the label attached to the

product. (Label : Bottom of main unit)

Main Unit Subwoofer

Power Cord AC/DC Adapter Power Cord AC/DC Adapter

DC 19V

AC/DC Adapter

DC 19V

(Power Jack) DC 19V

(Power Jack)

AC/DC Adapter

cMake sure to rest the AC/DC Adapters flat on a table or the floor. If you place an AC/DC Adapter so that it is

hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter

and cause the Adapter to malfunction.

Top

· 4 · English

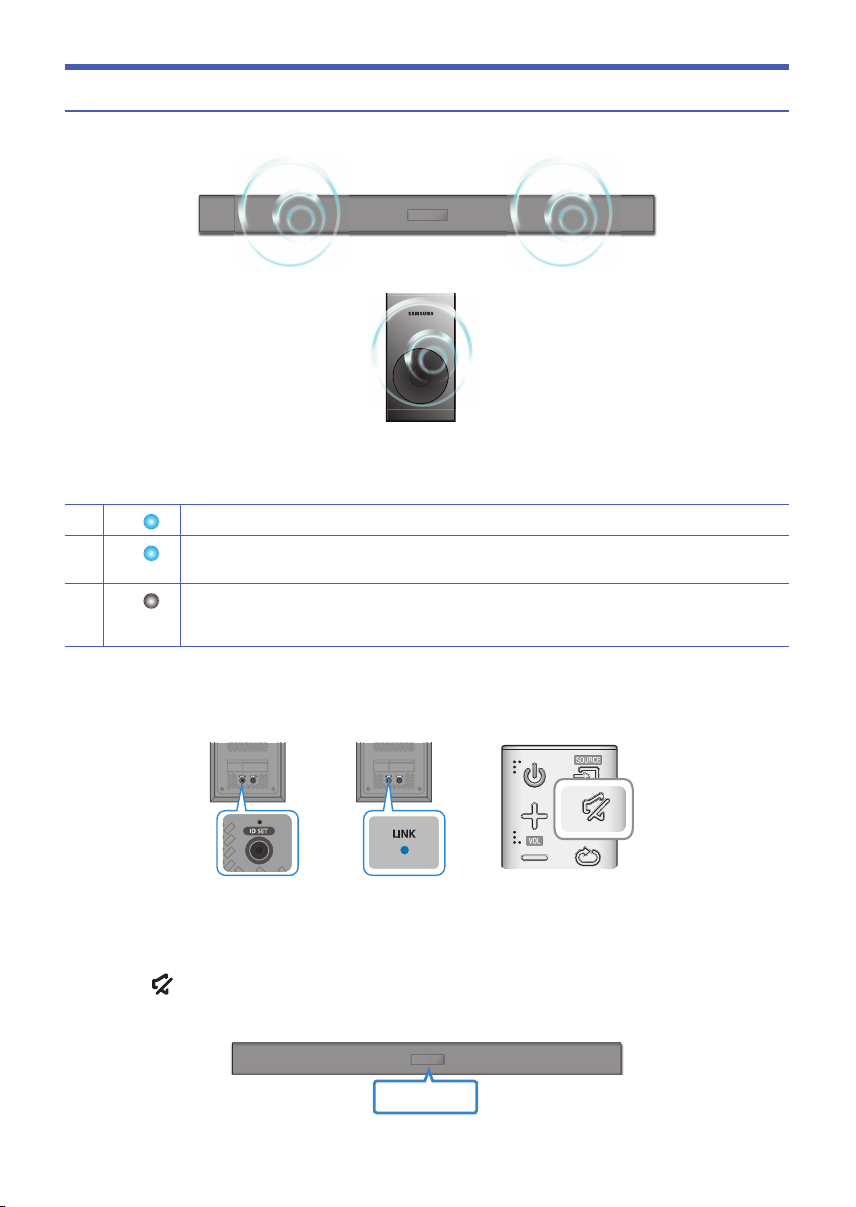

CONNECTING THE SUBWOOFER TO THE MAIN UNIT

You can enjoy rich bass tones and better sound quality by linking the subwoofer to the main unit.

Main Unit

Subwoofer

The main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are

turned on. When auto-connection is complete, the blue indicator on the rear of the subwoofer stops blinking and

glows blue continuously. The subwoofer's LED indicator modes are listed below:

󱂓blue

Auto-connection is complete.

󱂔blue

blinking

Auto-connection is not complete.

󱂕blue

is not lit

a. Is the power cord plugged into the outlet? If not, connect the power plug to the outlet.

b. If the power cord is plugged in correctly, check the main unit. If your main unit is off (in standby

mode), the subwoofer will also be in standby mode and the blue LED won't be lit.

cIf the indicator on the rear of the subwoofer does not glow continuously in blue, the subwoofer has not

connected. If this occurs, follow the directions below to connect the subwoofer manually.

cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.

1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the rear of the subwoofer with a small, pointed object for 5 seconds.

cThe LINK indicator (Blue LED) on the subwoofer blinks quickly.

3. Press the button on your remote control for 5 seconds while the main unit is turned OFF.

4. The ID SET message appears on the display of the main unit for a short period of time, and then disappears.

ID SET

· 5 · English

5. While the subwoofer's indicator is blinking blue, press the button on your remote control or on the right

side of the main unit to turn on the main unit.

6. The connection is complete if the indicator on the rear of the subwoofer stops blinking and glows

continuously.

cIf the connection process fails, the blue indicator will flash continuously. Go back to Step 2 and start again.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear

Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately)

cFor further information, refer to the Web Manual.

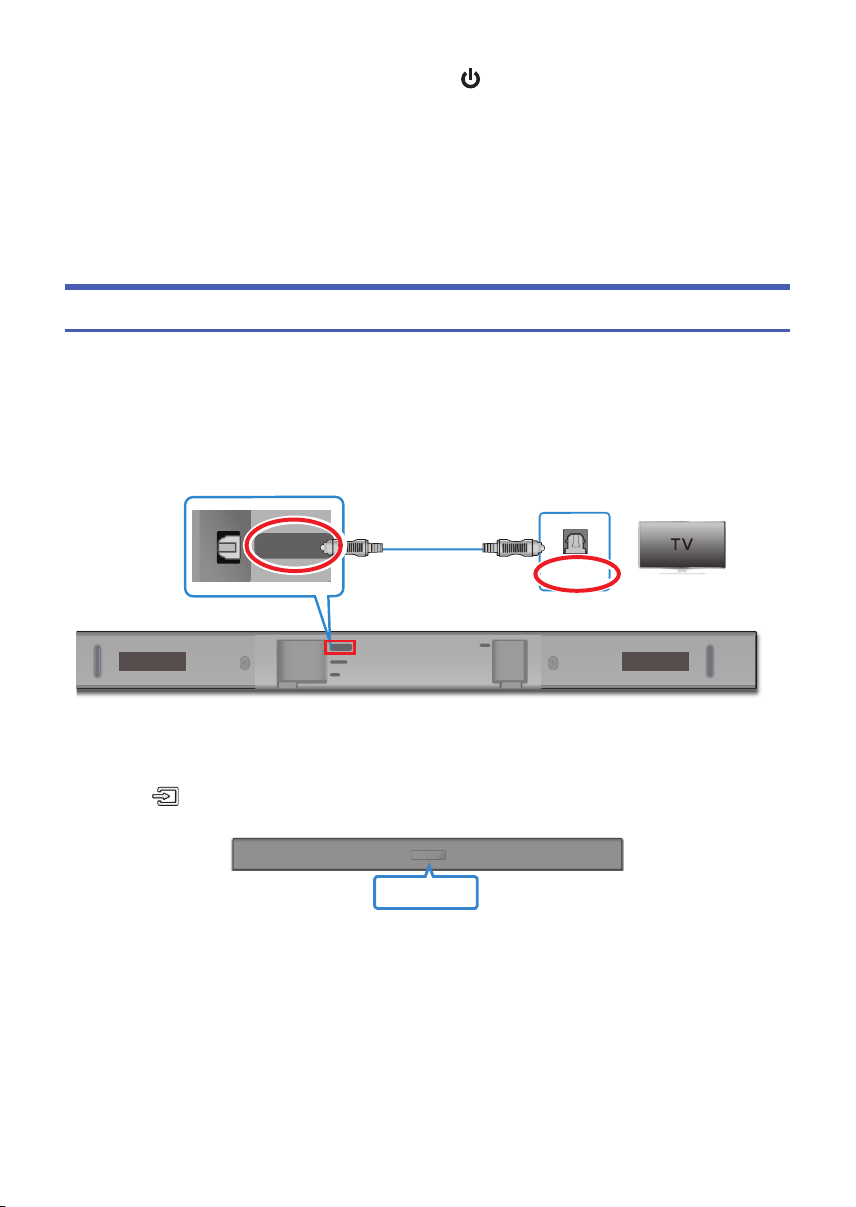

CONNECTING TO YOUR TV

You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.

cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.

Method 1. Connecting with a Cable

DIGITALAUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

OPTICAL OUT

DIGITAL AUDIO IN

(OPTICAL)

Optical Cable

Bottom of main unit

Check the DIGITAL AUDIO IN (OPTICAL)

port of the main unit. Check the OPTICAL OUT

port of your TV.

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with

a digital optical cable.

2. Press the button on the right side of the Soundbar or the SOURCE button on the remote control to

select the D.IN mode.

D.IN

cIf you have connected the main unit to a TV with a digital optical cable, you can set Auto Power Link to ON

and have the Soundbar turn on automatically when you turn the TV on.

cThis function is only available when the Soundbar is in the D.IN mode.

· 6 · English

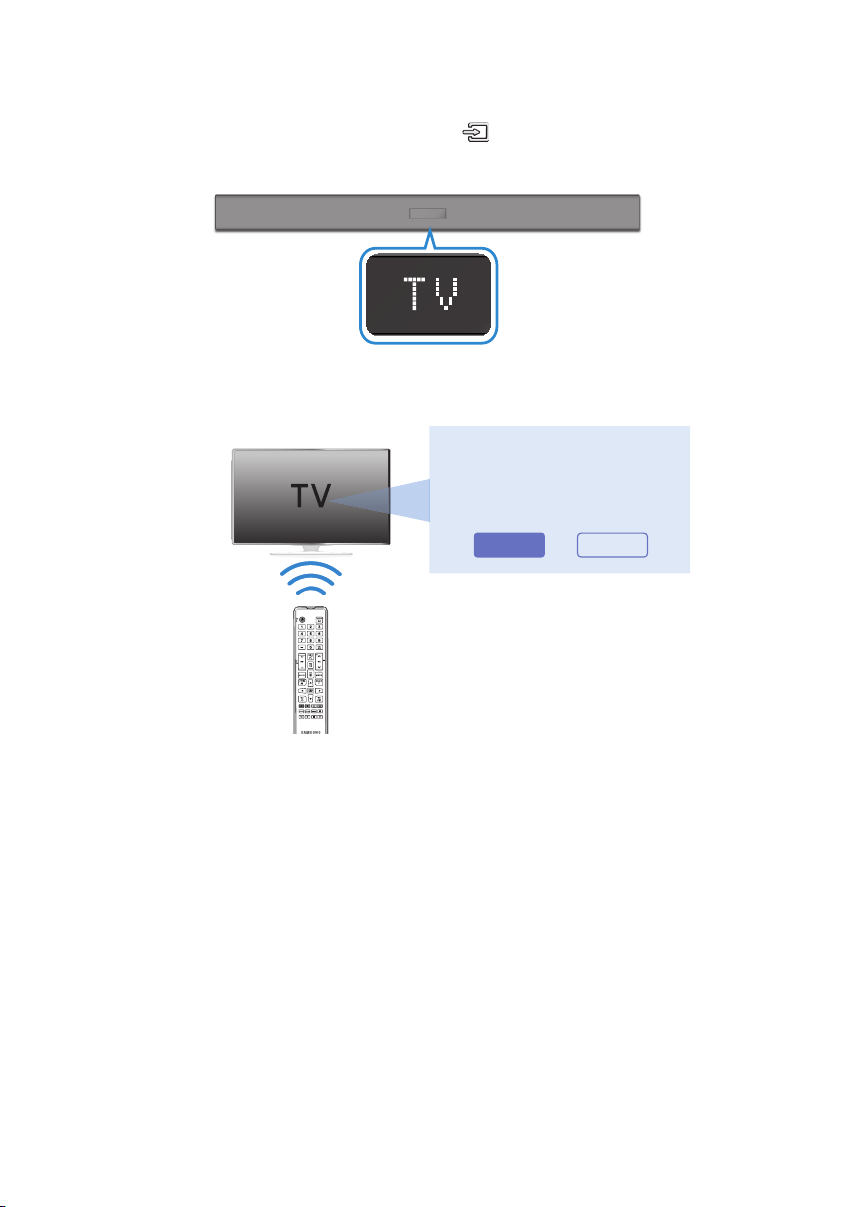

Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)

1. Turn on your Samsung TV and the Soundbar.

2. Select TV mode in your Soundbar display by pressing the button on the right side of the Soundbar or

the SOURCE button on your remote control. (Modes are displayed in the following order: D.IN →AUX →BT

→TV →USB.)

3. When the connection message shown below appears on the TV screen, select <Yes> with your TV remote

control.

Samsung Audio Device detected.

Do you want to hear TV sound

through this device?

Device Name: [Samsung] Sound...

Yes No

Select <Yes> with your TV remote control.

4. The Soundbar outputs TV sound.

cIf the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select Add

New Device, and set Add New Device to ON. Then, try again.

cIf your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the volume

with the Soundbar's remote or the TV's remote. You can also have the Soundbar turn on and off automatically

when you turn the TV on or off by setting the Bluetooth POWER On function to On. See page 12.

cThe TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since

2012.

cIf you want to disconnect the existing connection to your TV and establish a new connection to another TV,

press the &button on your remote control for more than 5 seconds.

cIn the TV SoundConnect mode, the Soundbar cannot be paired or connected to another Bluetooth device.

cDo not place electronic devices or metallic objects on top of the product.

e.g., Wired/wireless router, set-top box, or modem.

cPlacing the product on the floor may degrade wireless network performance, depending on the floor material.

· 7 · English

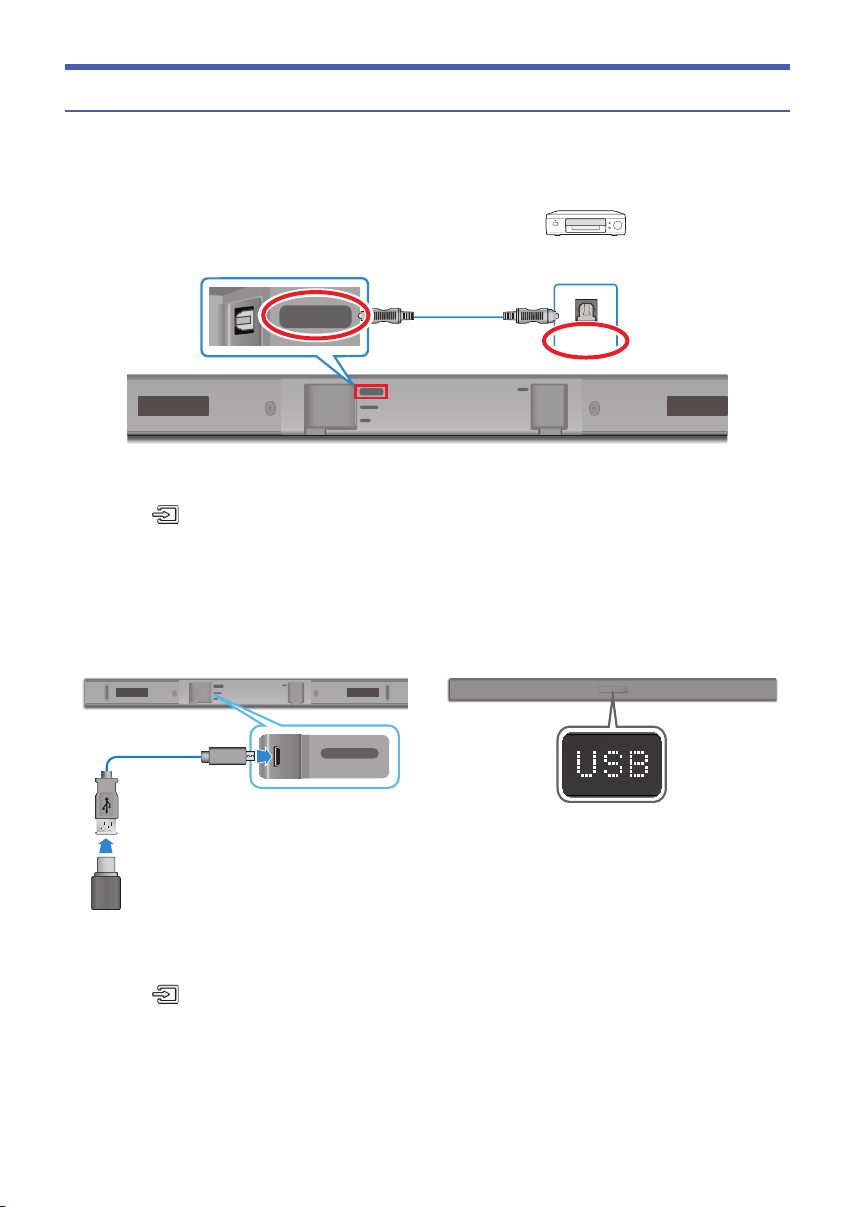

CONNECTING TO AN EXTERNAL DEVICE

Optical Cable

You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by

connecting them to your Soundbar.

DIGITALAUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

OPTICAL OUT

Bottom of Soundbar

External Device

Optical Cable

1. Connect an Optical Cable as shown in the picture above.

2. Press the button on the right side of your Soundbar or the SOURCE button on your remote control to

select D.IN mode.

3. The Soundbar shows D.IN on its display and outputs sound from the connected device.

USB

You can play music files located on USB storage devices through the Soundbar.

DIGITALAUDIO IN

(OPTICAL)

USB(5V 0.5A)

AUXIN

DC19V

USB (5V 0.5A)

Display

USB port

Micro USB to USB

adapter

1. Connect a Micro USB to USB adapter with a male USB 2.0 Micro USB plug (Type B) on one end and a

standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

2. Connect your USB device to the female end of the adapter cable.

3. Press the button on the main unit’s right side or the SOURCE button on the remote control to select the

USB mode.

4. USB appears on the display screen.

•

The Soundbar connection to the USB device is complete.

•

The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more

than 5 minutes.

· 8 · English

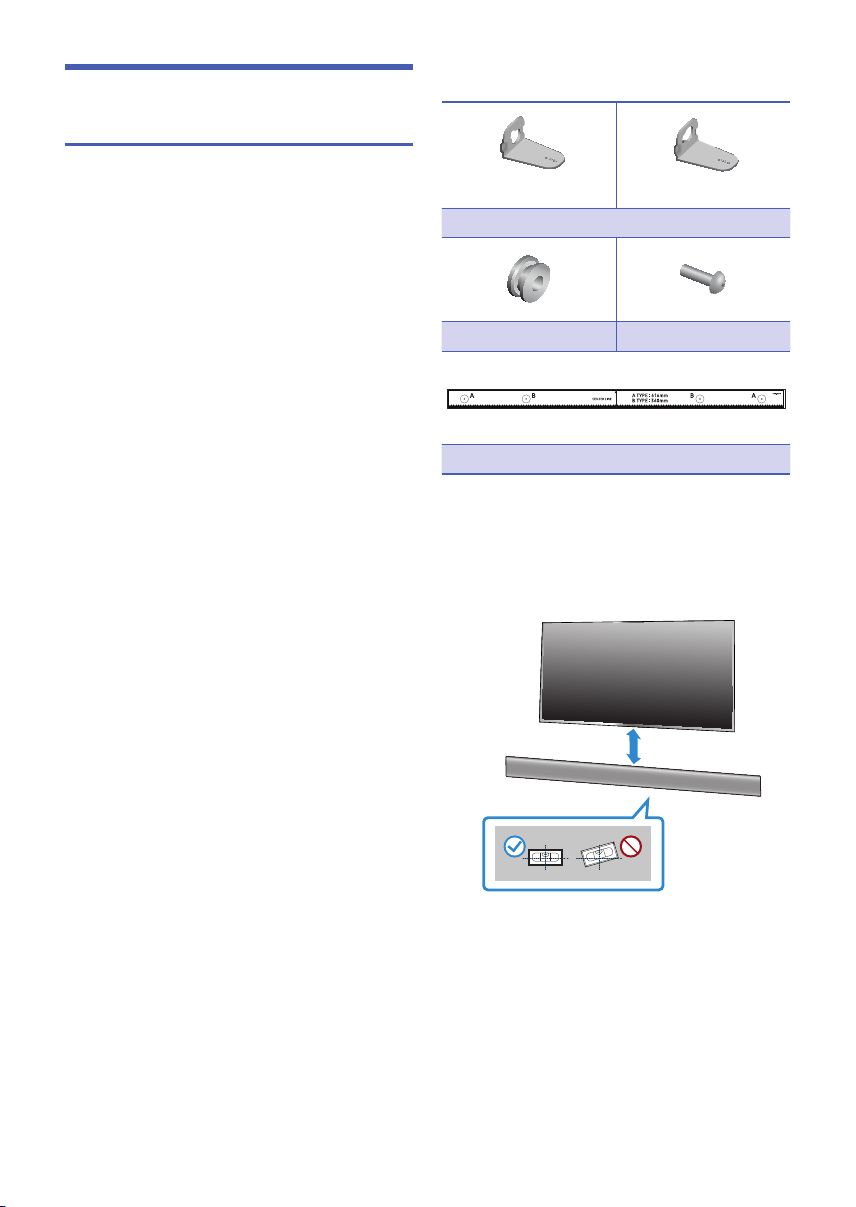

INSTALLING THE WALL

MOUNT

You can use the wall mount bracket to mount this unit

on a wall.

Installation Precautions

• Install on a vertical wall only.

• For the installation, avoid a location with high

temperature or humidity, or a wall that cannot

sustain the weight of the set.

• Check the strength of the wall. If the wall is not

strong enough to support the unit, reinforce the

wall or install the unit on a different wall that can

support the unit's weight.

• Purchase and use the fixing screws or anchors

appropriate for the kind of wall you have (plaster

board, iron board, wood, etc.). If possible, fix the

support screws into wall studs.

• Purchase wall mounting screws according to the

type and thickness of the wall you will mount the

Soundbar on.

- Diameter: M5

- Length: 35 mm or longer recommended.

• Connect cables from the unit to external devices

before you install it on the wall.

• Make sure the unit is turned off and unplugged

before you install it. Otherwise, it may cause an

electric shock.

Accessories for Wall-mounting

(Wall Mount L) (Wall Mount R)

Bracket-Wall Mount (2 EA)

Holder-Screw (2 EA) Screw (2 EA)

Wall Mount Guide

1. Place the Wall Mount Guide against the wall

surface.

• The Wall Mount Guide must be level.

• If your TV is mounted on the wall, install the

Soundbar at least 5 cm below the TV.

5 cm or more

· 9 · English

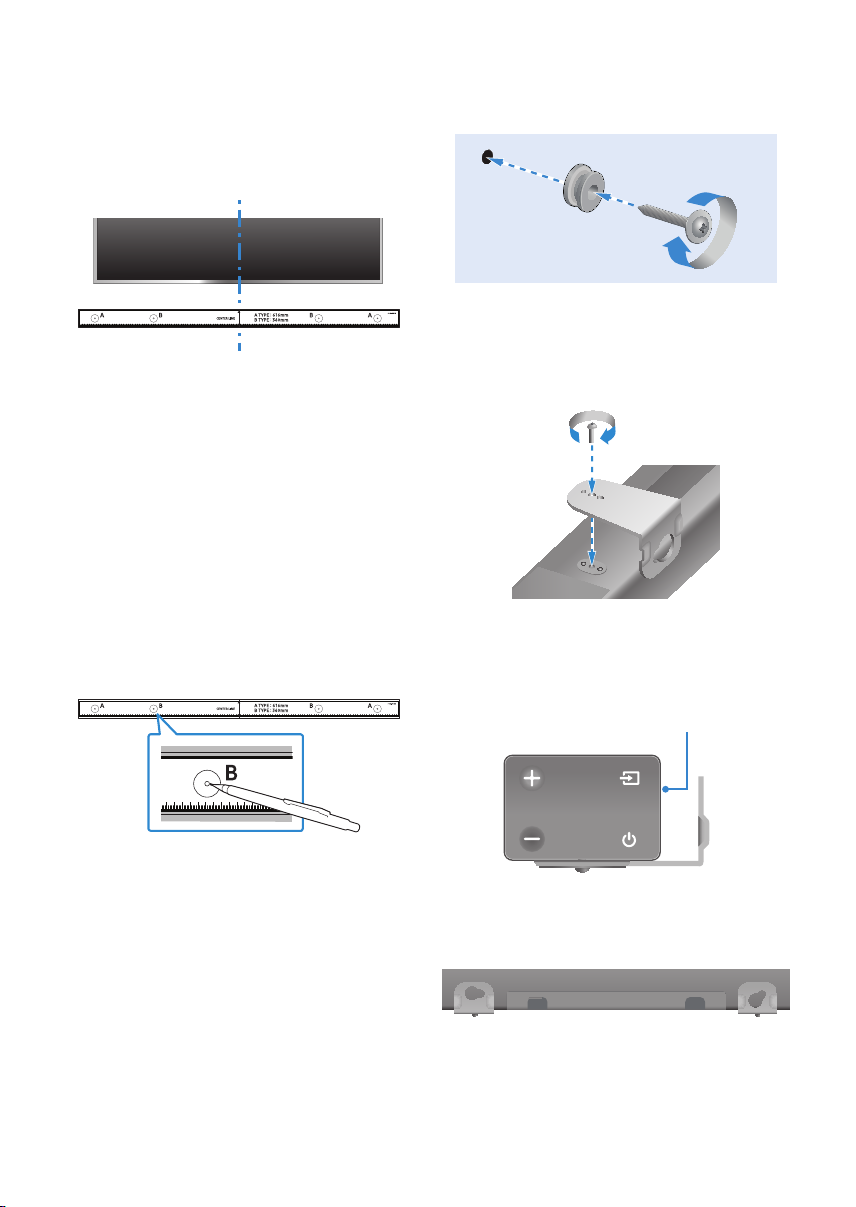

2. Align the Wall Mount Guide's Centre Line with the

centre of your TV (if you are mounting the

Soundbar below your TV), and then fix the Wall

Mount Guide to the wall using tape.

cIf you are not mounting below a TV, place the

Centre Line in the centre of the installation area.

Centre Line

3. Push a pen tip or sharpened pencil tip through the

centre of the B-TYPE images on each end of the

Guide to mark the holes for the supporting

screws, and then remove the Wall Mount Guide.

4. Using an appropriately sized drill bit, drill a hole in

the wall at each marking.

cIf the markings do not correspond to the

positions of studs, make sure you insert

appropriate anchors or mollies into the holes

before you insert the support screws. If you use

anchors or mollies, make sure the holes you drill

are large enough for the anchors or mollies you

use.

5. Push a screw (not supplied) through each

Holder-Screw, and then screw each screw

firmly into a support screw hole.

6. Use the two Screws (M4 x L14) to attach both

Bracket-Wall Mount L and Rto the Soundbar's

bottom. For a proper fit, make sure to align the

bumps on the Soundbar to the holes on the

brackets.

• When assembling, make sure the hanger part

of the Bracket-Wall Mounts are located behind

the rear of the Soundbar. See the illustration

below.

Rear of Soundbar

Right end of Soundbar

• The left and right mounts are different shapes.

Make sure to position them correctly.

Wall Mount LWall Mount R

Autres manuels pour HW-K360

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-S60B Manuel utilisateur

Samsung

Samsung HW-HM45C Manuel utilisateur

Samsung

Samsung HW-B650 Manuel utilisateur

Samsung

Samsung HW-C450 Manuel utilisateur

Samsung

Samsung HW-S60A Instructions d'installation

Samsung

Samsung MX-T70 Instructions de montage

Samsung

Samsung HW-E350 Manuel utilisateur

Samsung

Samsung HW-H500 Manuel utilisateur

Samsung

Samsung HW-T650 Instructions d'installation

Samsung

Samsung HW-B53M Instructions d'installation

Samsung

Samsung HW-N660 Manuel utilisateur

Samsung

Samsung HW-T400 Instructions d'installation

Samsung

Samsung HW-N550 Manuel utilisateur

Samsung

Samsung HW-A670 Manuel utilisateur

Samsung

Samsung HW-R430 Instructions d'installation

Samsung

Samsung HW-Q6CB Instructions d'installation

Samsung

Samsung HW-H570 Manuel utilisateur

Samsung

Samsung HW-H600 Manuel utilisateur

Samsung

Samsung HW-S60B Instructions d'installation

Samsung

Samsung HW-N550 Instructions d'installation

Samsung

Samsung HW-Q950A Manuel utilisateur

Samsung

Samsung HW-S60A/XN Manuel utilisateur

Samsung

Samsung HW-S61T Instructions d'installation

Samsung

Samsung HW-Q930C Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
