FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth connection and lets you

control the sound.

SURROUND SOUND

The SURROUND SOUND feature adds depth and spaciousness to your listening experience.

Special Sound Effects

You can select different Sound Effects - STANDARD (Original Sound) / MUSIC / VOICE / SPORTS / CINEMA / NIGHT

MODE - depending on the type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory,

etc. using the Soundbar's USB HOST function.

Bluetooth Function

You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

Using Samsung Audio Remote App

To control the product with your Smart Device via the Samsung Audio Remote app, download the Samsung Audio

Remote App by accessing the app through Google Play store.

LICENSES

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby

Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the

Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 2 2016/11/25 11:30:02

ENG

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO

NOT OPEN

This symbol indicates “dangerous voltage” inside

the product that presents a risk of electric shock or

personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug

shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects ﬁlled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug

must be easily and readily accessible at all times.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 3 2016/11/25 11:30:02

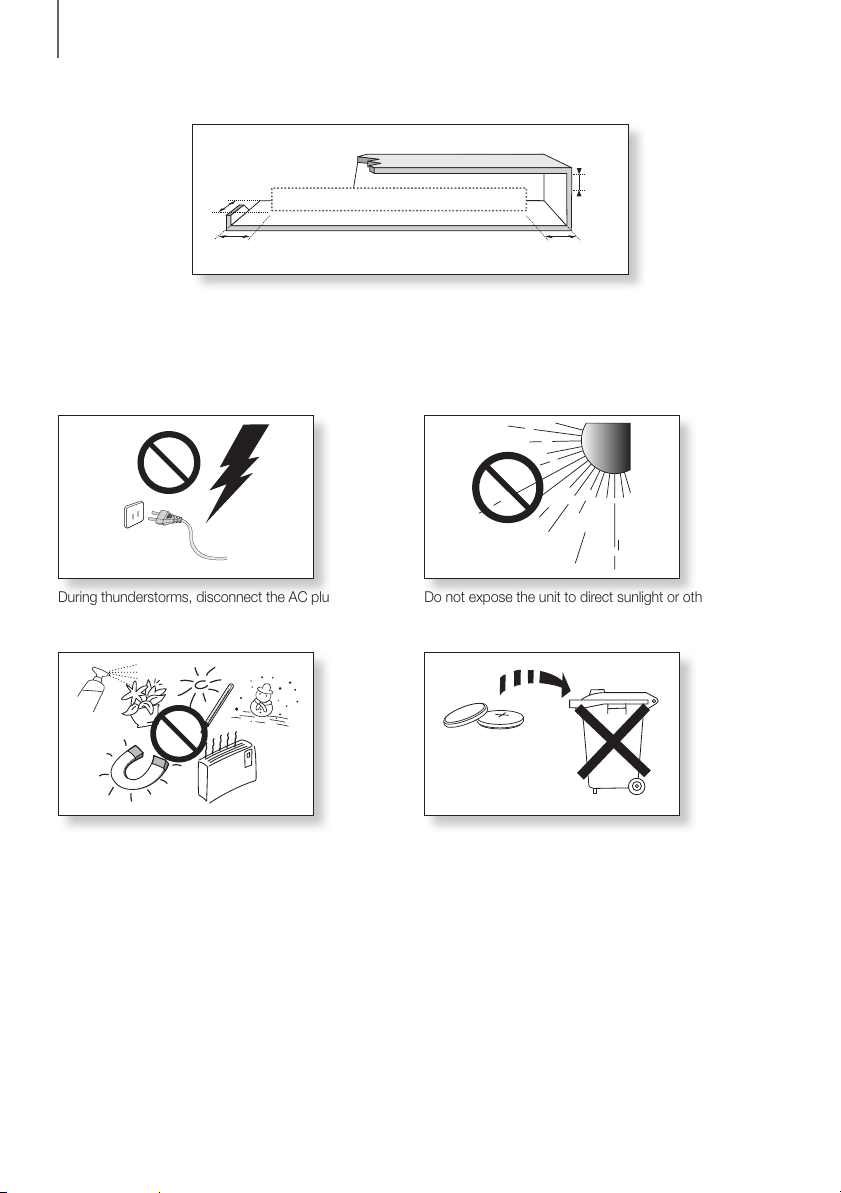

SAFETY INFORMATION

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only. Condensation may occur if your

product has been stored in cold temperatures. If

transporting the unit during the winter, wait approximately

2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose of

batteries in the general household trash. A warning that

batteries (battery pack or batteries installed) shall not be

exposed to excessive heat such as sunshine, fire or the

like. Do not short circuit, disassemble, or overheat the

batteries. Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent type.

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough

space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on

amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the

unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of

time.

99.1mm 99.1mm

68.6

99.1mm

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 4 2016/11/25 11:30:04

ENG

CONTENTS

2 FEATURES

2 Licenses

3 SAFETY INFORMATION

3 Safety Warnings

4 Precautions

6 GETTING STARTED

6 Before reading the User’s Manual

6 What’s Included

7 DESCRIPTIONS

7 Top/Front Panel

8 Rear Panel

8 Installing the Ferrite Core on the Subwoofer

Speaker Cable

9 REMOTE CONTROL

9 Remote Control Buttons and Functions

11 CONNECTIONS

11 Installing the Wall Mount

12 Detaching the Wall Mount

12 Installing the bracket without referring to

the Wall-mount Installation Guide

13 Connecting an External Device using Audio

(analogue) cable or Optical (digital) cable

14 FUNCTIONS

14 Input Mode

15 Bluetooth

17 USING SAMSUNG AUDIO REMOTE APP

18 TV SoundConnect

19 USB

20 Software update

21 TROUBLESHOOTING

22 APPENDIX

22 Specifications

CONTENTS

● Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

● An administration fee may be charged if either

(a) An engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) You bring the unit to a repair centre and there

is no defect with the product (i.e. where the

user manual has not been read).

● You will be informed of the administration fee

amount before a technician visits.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 5 2016/11/25 11:30:04

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

+Safety Instructions and Troubleshooting

1) Be sure to familiarize yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 21)

+Copyright

Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

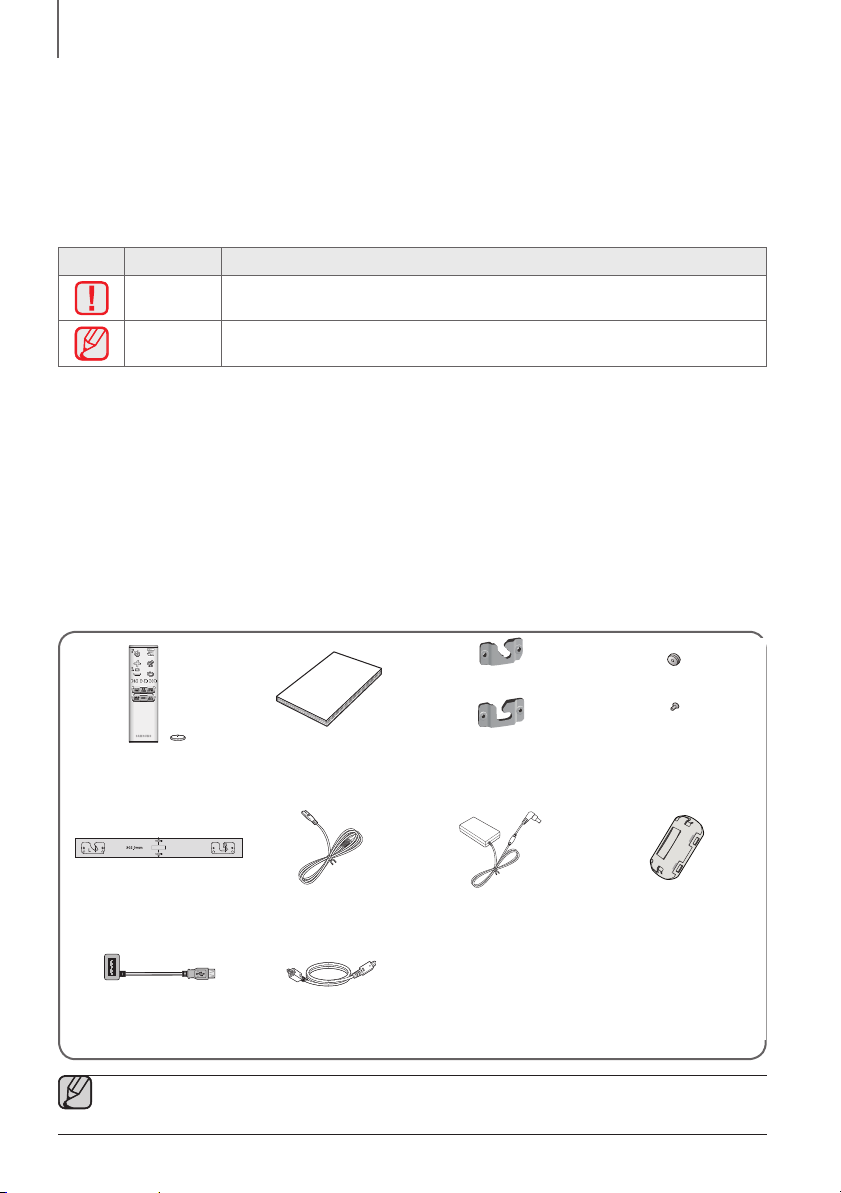

Check for the supplied accessories shown below.

(Wall Mount L: 1EA)

(Wall Mount R: 1EA) (Holder-screw2: 2EA)

(Holder-screw1: 2EA)

Remote Control / Lithium

Battery (3V : CR2032) User Manual Bracket-Wall Mount Holder-screw

Wall Mount Guide Power Cord DC Adapter Toroidal Ferrite core

USB Cable Optical Cable

●The appearance of the accessories may differ slightly from the illustrations above.

●Use the dedicated USB cable to connect external USB devices to the unit.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 6 2016/11/25 11:30:06

ENG

DESCRIPTIONS

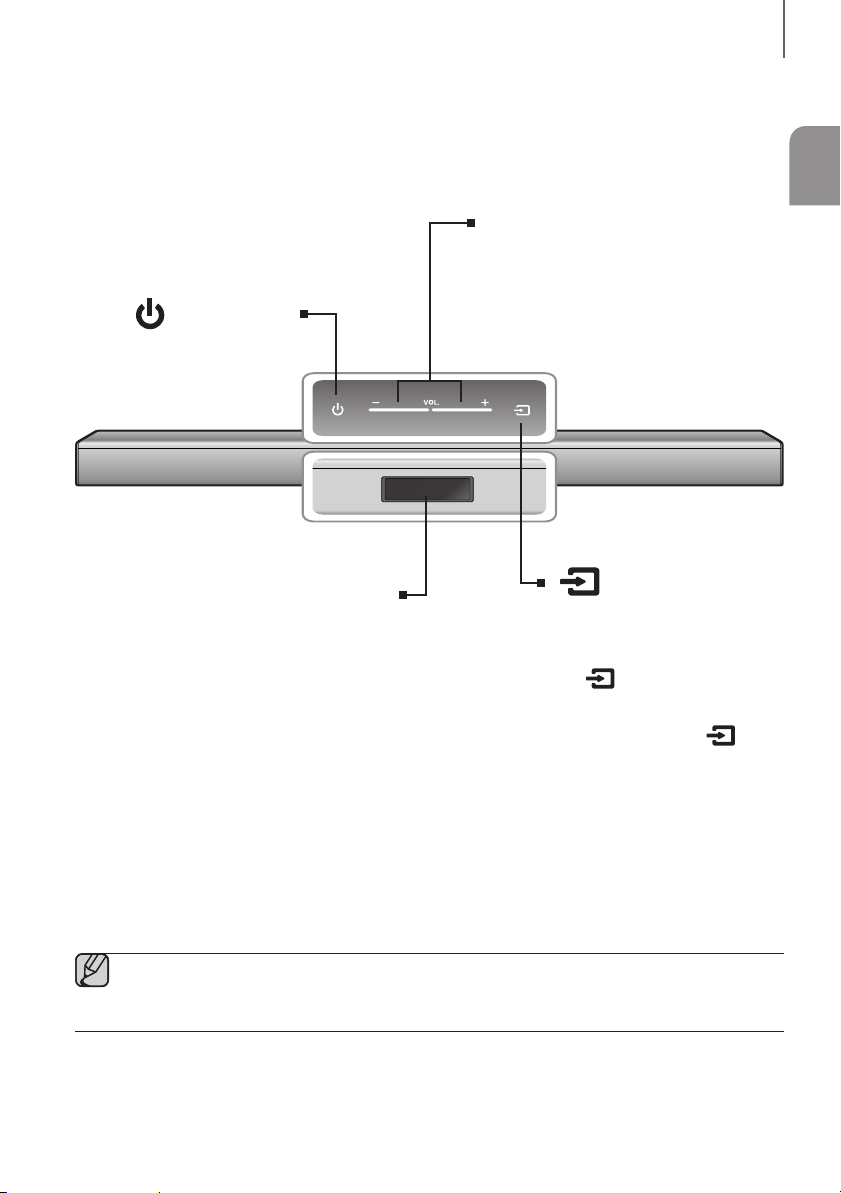

TOP/FRONT PANEL

(Power) Button

Turns the power on and off.

VOL -/+

Controls the volume level.

The numeric value of the volume level appears in

the front panel display.

Display

Displays the current mode.

●If there is no input from the product or

remote control for 25 seconds, the display

will dimmer automatically.

(Source) Button

Selects the D.IN, AUX, BT, TV, USB

input.

While the unit is powered on, pressing

the ( ) button for more than 3

seconds sets the button to act as

MUTE button. To cancel MUTE

button setup, press the ( )

button for more than 3 seconds

again.

● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

● If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the Audio

Setup menu of your TV. Refer to the owner's manual supplied with your TV.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 7 2016/11/25 11:30:07

DESCRIPTIONS

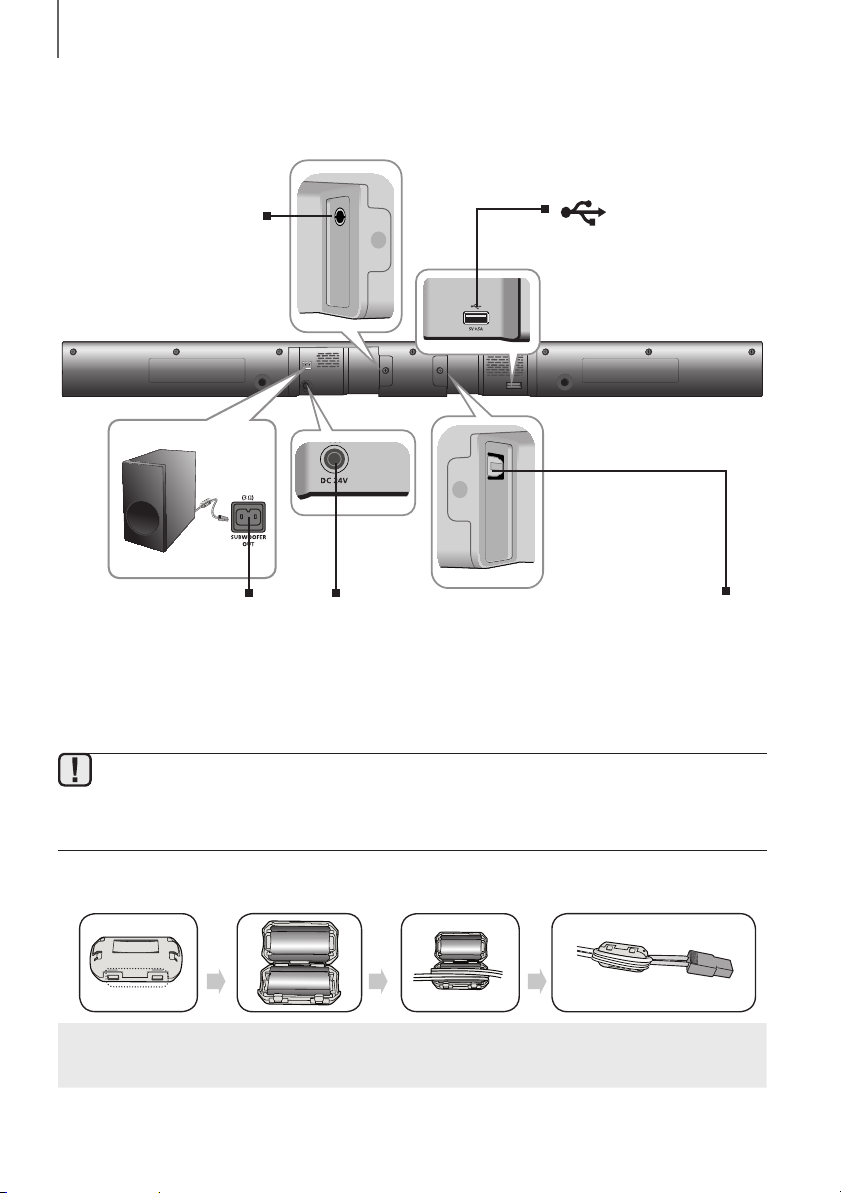

REAR PANEL

AUX IN

OPTICAL IN

(USB Port)

Connect USB devices such as

MP3 players here to play files on

the devices.

OPTICAL IN

Connect to the digital (optical) output

of an external device.

AUX IN

Connect to the Analog output of

an external device.

DC 24V (Power Supply In)

Connect the DC power adaptor to

the power supply jack, and then

connect the AC power adaptor

plug to a wall outlet.

SUBWOOFER

( Connector Terminal)

Connect the connector jack of the

Subwoofer.

● When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug.

Do not pull the cable.

● Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

+Installing the Ferrite Core on the Subwoofer Speaker Cable

Lift up to release the

lock and open the core.

Place the Subwoofer

speaker cable on the

opened core.

Close the lock.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 8 2016/11/25 11:30:07

ENG

REMOTE CONTROL

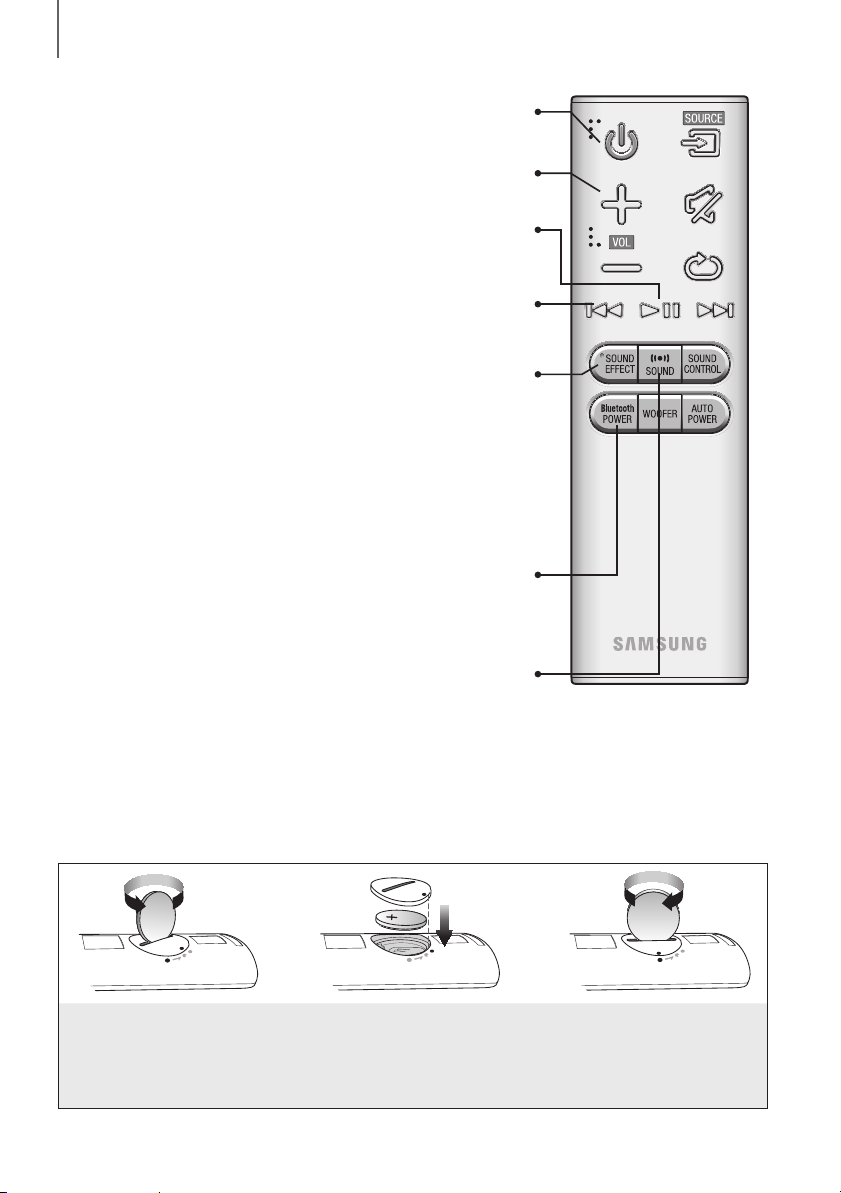

REMOTE CONTROL BUTTONS AND FUNCTIONS

WOOFER (* Use the [,]button to adjust the Volume.)

You can control the woofer volume.

Press the [,]button to increase or decrease the subwoofer volume.

You can select SW (-12, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6).

REPEAT

Press to set the REPEAT function during music playback from a USB device.

OFF-REPEAT : Cancels Repeat Playback.

TRACK-REPEAT : Repeatedly play a track.

ALL-REPEAT : Repeatedly play all tracks.

RANDOM-REPEAT : Plays tracks in random order. (A track that has already

been played may be played again.)

MUTE

You can turn the volume down to 0 with the push of a button.

Press again to restore the sound to the previous volume level.

SOURCE

Press to select a source connected to the Soundbar.

Skip Forward

If there is more than one file on the device you are playing, and you press

the ]button, the next file is selected.

● Soundbar is a Samsung proprietary name.

● Operate the TV using the TV's remote control.

AUTO POWER

Press the AUTO POWER button. Each time the button is pressed, the

selection changes as follows : OFF-POWER LINK ON-POWER LINK.

ON-POWER LINK: Synchronizes the Soundbar to a connected Optical source

via the Optical jack so it turns on automatically when you turn on your TV.

SOUND CONTROL (*Use the

[

]

buttons to adjust level.)

Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the

[

]

buttons to adjust the Treble, Bass volume from -6 to +6.

If the Soundbar is connected to a digital TV and the video appears out of

sync with the audio, press the SOUND CONTROL button to sync the

audio with the video.

Use the [,]buttons to set the audio delay between

0 ms and 300 ms.

In USB mode, TV mode, and BT mode, the Audio Sync

function may not work.

Press and hold the SOUND CONTROL button for about 5 seconds to

adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz,

2.5KHz, 5KHz and 10KHz are selectable and each can be adjusted to a

setting between -6 and +6.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 9 2016/11/25 11:30:08

1110

DESCRIPTIONS

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER on function on and off.

See pages 16 and 18 for details.

SOUND

Press the SOUND button on the remote to add depth and spaciousness to

the sound.

Press the SOUND on the remote control.

Each time the button is pressed, the selection changes as follows :

OFF-SURROUND SOUND ON-SURROUND SOUND

VOLUME

Adjusts the volume level of the unit.

POWER

Turns the Soundbar on and off.

SOUND EFFECT

You can select different sound modes - STANDARD, MUSIC, VOICE,

SPORTS, CINEMA, and NIGHT MODE - depending on the type of

sources you want to enjoy.

Press the SOUND EFFECT button on the remote control.

Select the STANDARD mode if you want to enjoy the original sound.

* Night Mode

This will regulate and stabilize the volume level against a drastic volume

change caused by a channel change or scene transition.

Play/Pause

Press the +# button to pause playing the file temporarily.

Press the +# button again to play the selected file.

Skip Back

If there is more than one file on the device you are playing, and you press

the [button, the previous file is selected.

+Installing the Battery in the Remote Control

1. Use a suitable coin to turn

the remote control's battery

cover counter clockwise to

remove it as shown in the

figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when

inserting the battery. Put the battery

cover on and align the '●' marks side

by side as shown in the figure above.

3. Use a suitable coin to

turn the remote control

battery cover

clockwise as far as it

will go to fix it in place.

HW-J365_XE_AH68-02984G_ENG-00_20161123.indd 10 2016/11/25 11:30:08

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-M360 Manuel utilisateur

Samsung

Samsung HW-Q60T Instructions d'installation

Samsung

Samsung harman/kardon HWQ60RXY Instructions d'installation

Samsung

Samsung HW-A450 Instructions d'installation

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuel utilisateur

Samsung

Samsung HW-S800B Instructions d'installation

Samsung

Samsung HW-M360 Instructions d'installation

Samsung

Samsung MX-HS8000 Manuel utilisateur

Samsung

Samsung HW-H500 Manuel utilisateur

Samsung

Samsung HW-T550 Manuel utilisateur

Samsung

Samsung HW-N400 Manuel utilisateur

Samsung

Samsung HW-Q65T Instructions d'installation

Samsung

Samsung HW-J6500R Manuel utilisateur

Samsung

Samsung HW-N550 Instructions d'installation

Samsung

Samsung HW-R450 Manuel utilisateur

Samsung

Samsung HW-Q870A Instructions d'installation

Samsung

Samsung MM-VB9 Manuel utilisateur

Samsung

Samsung HW-S60B Manuel utilisateur

Samsung

Samsung HW-B530 Instructions d'installation

Samsung

Samsung HW-S50A Instructions d'installation

Samsung

Samsung HW-N400/XN Instructions d'installation

Samsung

Samsung HW-N860 Manuel utilisateur

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-T450 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
