Samsung HW-H600 Manuel utilisateur

Wireless Audio - SoundStand

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

User manual

HW-H600

HW-H610

HW-H600_H610_EUR_ENG_141028.indd 1HW-H600_H610_EUR_ENG_141028.indd 1 2014-10-28  5:18:092014-10-28  5:18:09

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your SoundStand via a Bluetooth connection and lets you

control the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which lets you listen to sound from your TV through the SoundStand

via an HDMI cable. This function is only available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and spaciousness to your listening experience. Surround Sound

Expansion is powered by Sonic Emotion.

Special Sound Modes

You can select different sound modes - CINEMA / SPORTS / VOICE / MUSIC / STANDARD (OFF) - depending on the

type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory,

etc. using the SoundStand's USB HOST function.

Bluetooth Function

You can use connect a Bluetooth device to the SoundStand and enjoy music with high quality stereo sound, all

without wires!

NFC (Only HW-H610 model)

Connect your NFC compatible device via Bluetooth to the SoundStand using this simple set-up procedure and play

music on the device through the SoundStand.

HW-H600_H610_EUR_ENG_141028.indd 2HW-H600_H610_EUR_ENG_141028.indd 2 2014-10-28  5:18:122014-10-28  5:18:12

ENG

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside

the product that presents a risk of electric shock or

personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug

shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug

must be easily and readily accessible at all times.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on

the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the

plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as

the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power

points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved

extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse

and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the

bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these

colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire

coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured

BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER

E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.

HW-H600_H610_EUR_ENG_141028.indd 3HW-H600_H610_EUR_ENG_141028.indd 3 2014-10-28  5:18:122014-10-28  5:18:12

SAFETY INFORMATION

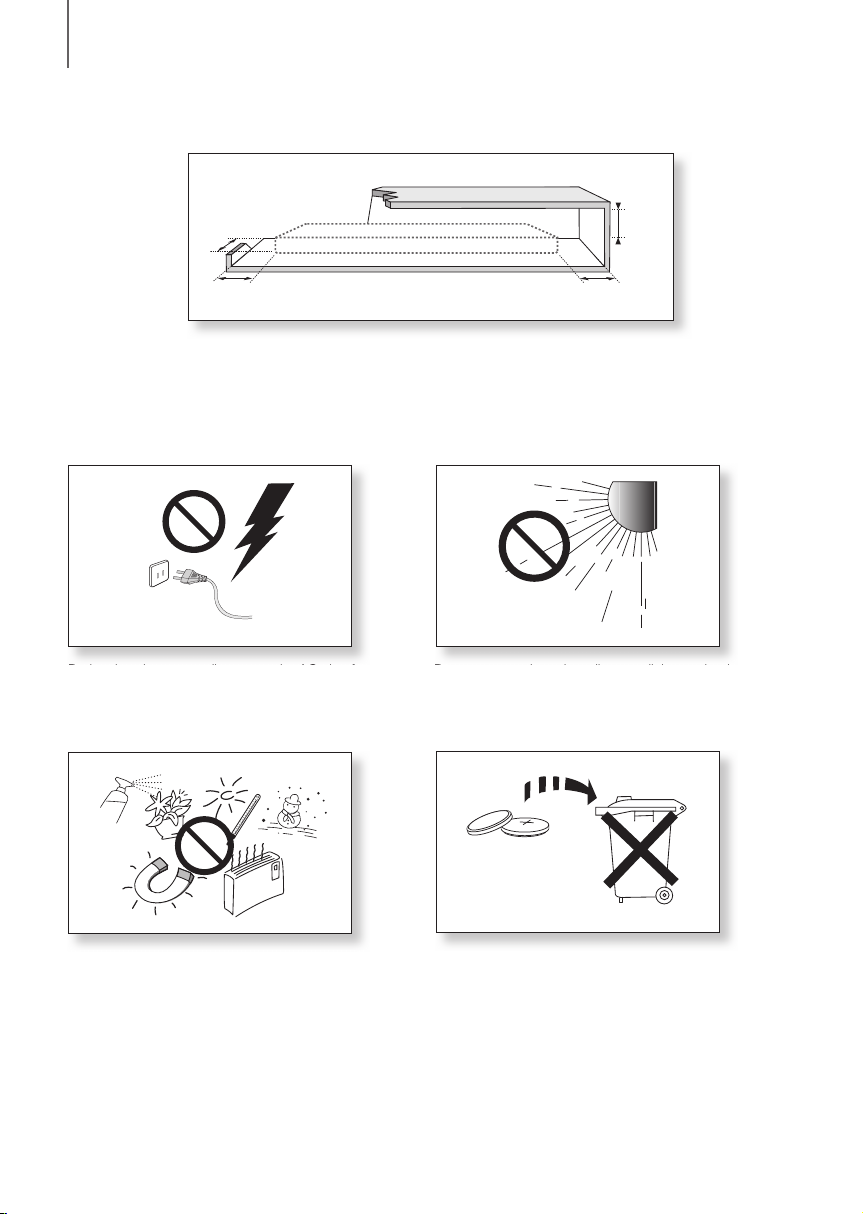

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only.

Condensation may occur if your product has been stored

in cold temperatures. If transporting the unit during the

winter, wait approximately 2 hours until the unit has

reached room temperature before using.

Do not expose the unit to direct sunlight or other heat

sources.

This could lead to overheating and cause the unit to

malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Do not dispose of batteries in a fire.

Do not short circuit, disassemble, or overheat the

batteries.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

P t tth d tf i t (i ) d

Dhidilihhh

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough

space around it for ventilation 7~10 cm. Make sure the ventilation slots are not covered. Do not place the unit on

amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the

unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of

time.

99.1mm 99.1mm

68.6

99.1mm

HW-H600_H610_EUR_ENG_141028.indd 4HW-H600_H610_EUR_ENG_141028.indd 4 2014-10-28  5:18:122014-10-28  5:18:12

ENG

CONTENTS

2 FEATURES

3 SAFETY INFORMATION

3 Safety warnings

4 Precautions

6 GETTING STARTED

6 Before reading the user’s manual

6 What’s included

7 DESCRIPTIONS

7 Top/front panel

8 Rear panel

9 REMOTE CONTROL

9 Remote control buttons and functions

11 INSTALLATION

11 SoundStand installation

12 CONNECTIONS

12 Connecting an external device using an

HDMI cable

13 Connecting an external device using

OPTICAL (DIGITAL) cable or AUDIO

(ANALOGUE) cable

CONTENTS

14 FUNCTIONS

14 Input mode

14 ARC (HDMI OUT)

15 Bluetooth

17 NFC (Only HW-H610 model)

18 TV SoundConnect

19 USB

20 Software upgrade

21 TROUBLESHOOTING

22 APPENDIX

22 Specifications

22 License

●Figures and illustrations in this User Manual are

provided for reference only and may differ from

actual product appearance.

●An administration fee may be charged if either

(a) an engineer is called out at your request and

there is no defect with the product (i.e. where

the user manual has not been read).

(b) you bring the unit to a repair centre and there is

no defect with the product (i.e. where the user

manual has not been read).

●You will be informed of the administration fee

amount before a technician visits.

HW-H600_H610_EUR_ENG_141028.indd 5HW-H600_H610_EUR_ENG_141028.indd 5 2014-10-28  5:18:132014-10-28  5:18:13

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

+Safety Instructions and Troubleshooting

1) Be sure to familiarise yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 21)

+Copyright

Samsung Electronics Co.,Ltd.

WHAT’S INCLUDED

Check for the supplied accessories shown below.

(Protection pad : 4ea)

Remote Control /

Lithium Battery

(3V : CR2032)

User Manual AUX Cable Pad

Adapter Power Cord USB Cable NFC Sticker

(Only HW-H610 Model)

●The appearance of the accessories may differ slightly from the illustrations above.

●Use the dedicated USB cable to connect external USB devices to the unit.

HW-H600_H610_EUR_ENG_141028.indd 6HW-H600_H610_EUR_ENG_141028.indd 6 2014-10-28  5:18:142014-10-28  5:18:14

ENG

DESCRIPTIONS

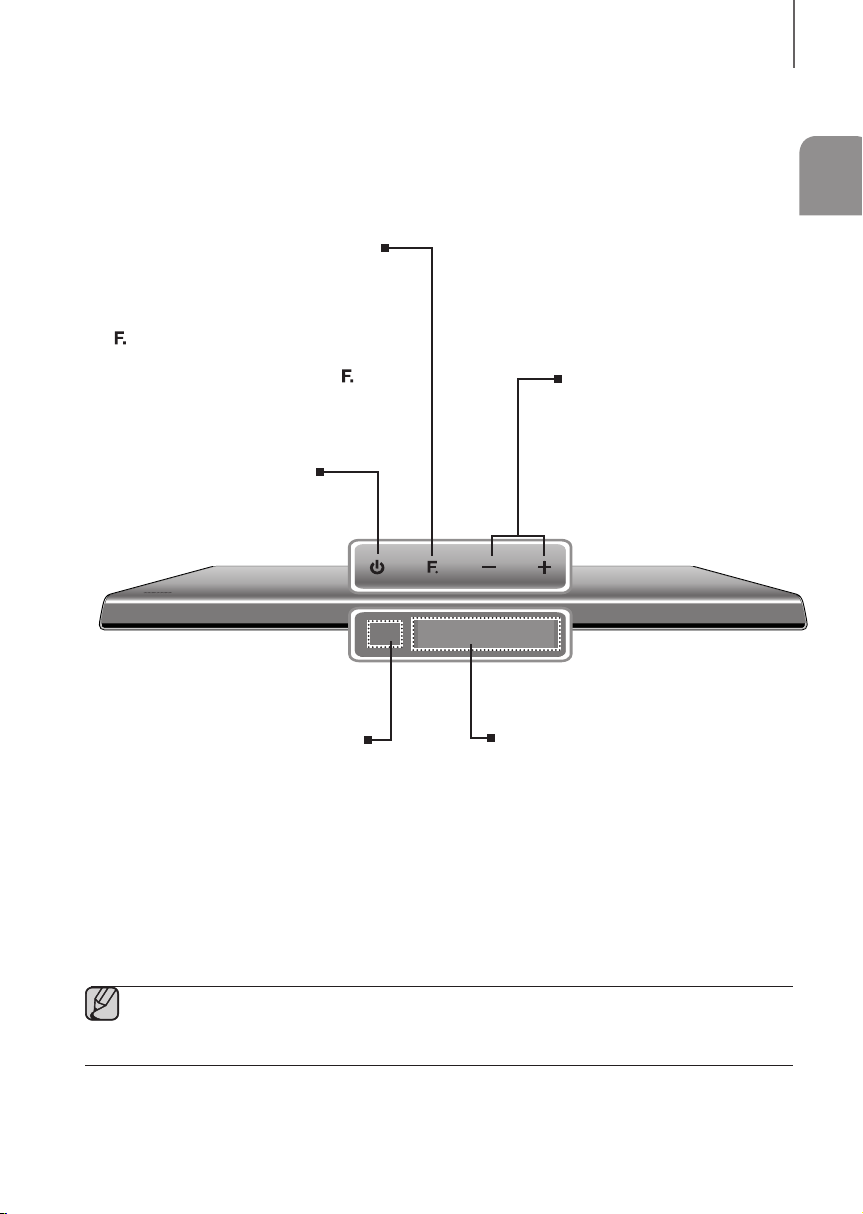

TOP/FRONT PANEL

POWER BUTTON

Turns the power on and off.

REMOTE CONTROL SENSOR

The remote control can operate

SoundStands made by SAMSUNG only.

VOLUME +/-

Controls the volume level.

The numeric value of the volume level

appears in the front panel display.

DISPLAY

Displays the current mode.

FUNCTION BUTTON

Selects the D.IN, AUX, HDMI, BT, TV, USB

input.

●While the unit is powered on, pressing the

( ) button for more than 3 seconds sets

the button to act as MUTE button. To

cancel MUTE button setup, press the ( )

button for more than 3 seconds again.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy the sound only from the SoundStand, you must turn off the TV's speakers in the Audio

Setup menu of your TV. Refer to the owner's manual supplied with your TV.

HW-H600_H610_EUR_ENG_141028.indd 7HW-H600_H610_EUR_ENG_141028.indd 7 2014-10-28  5:18:152014-10-28  5:18:15

DESCRIPTIONS

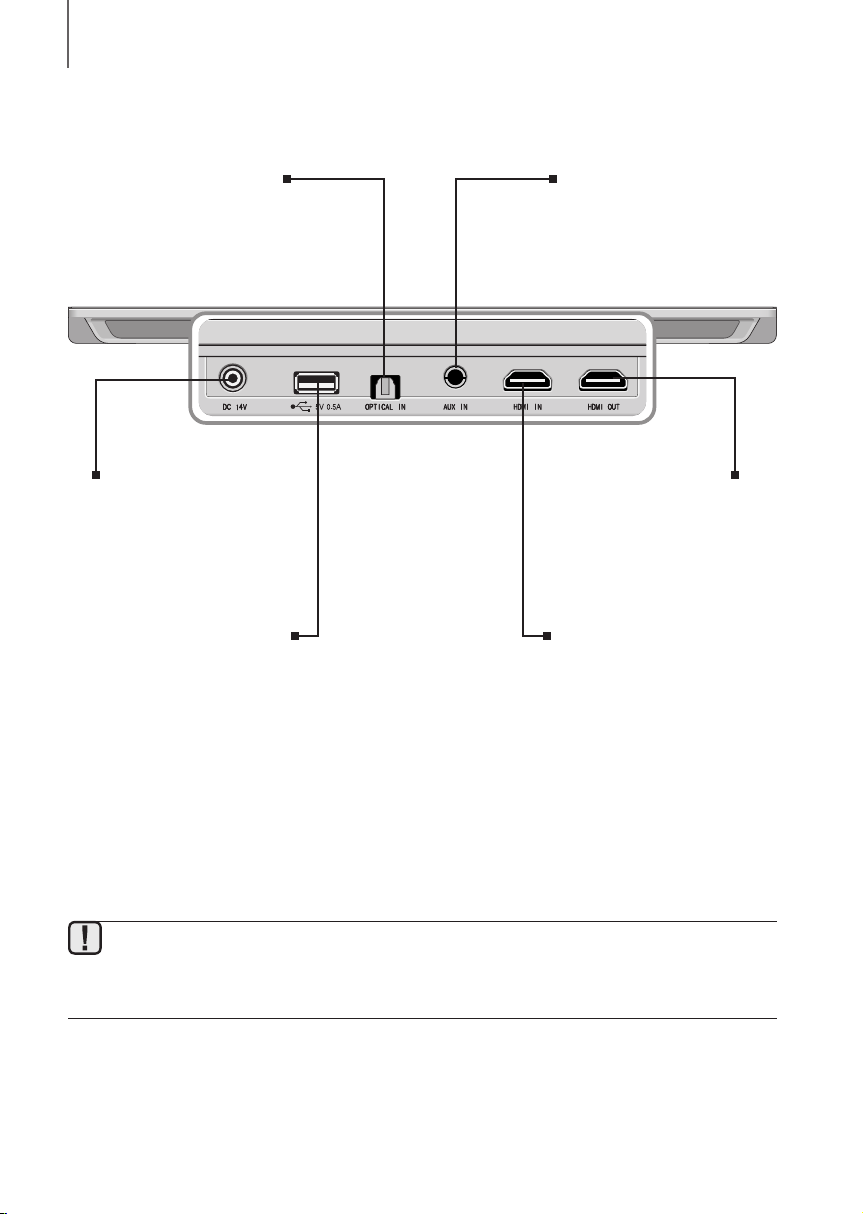

REAR PANEL

Power Supply IN

Connect the AC power adaptor to

the power supply jack, and then

connect the AC power adaptor plug

to a wall outlet.

USB PORT

Connect USB devices such as

MP3 players here to the play files

on the devices.

AUX IN

Connect to the Analogue output

of an external device.

HDMI IN Jack

Inputs digital video and audio

signals simultaneously using an

HDMI cable. Use when connecting

a supported external device.

HDMI OUT Jack

Outputs digital video and audio

signals simultaneously using an HDMI

cable.

OPTICAL IN

Connect to the digital (optical)

output of an external device.

●When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not

pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

HW-H600_H610_EUR_ENG_141028.indd 8HW-H600_H610_EUR_ENG_141028.indd 8 2014-10-28  5:18:152014-10-28  5:18:15

ENG

REMOTE CONTROL

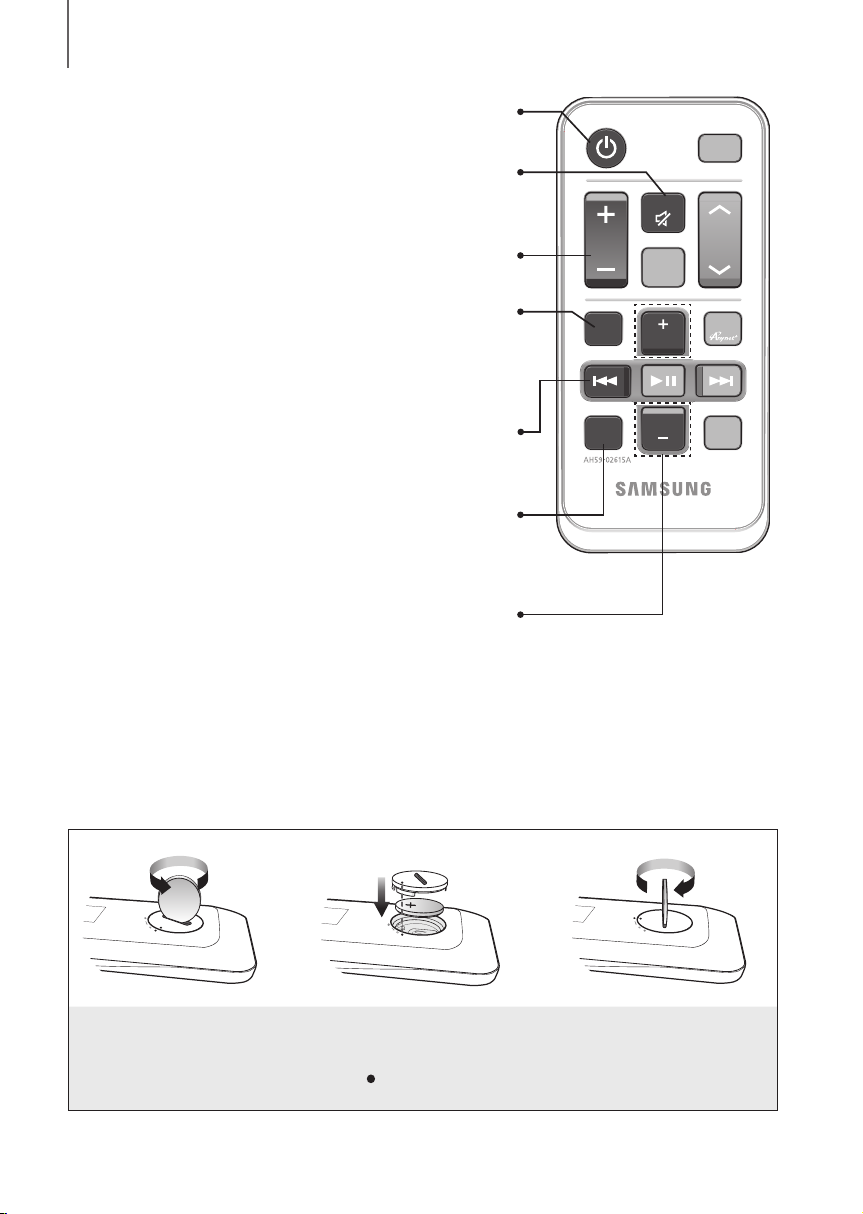

REMOTE CONTROL BUTTONS AND FUNCTIONS

Play/Pause

Press the

►

button to pause playing the file temporarily.

Press the

►

button again to play the selected file.

SOURCE

MUTE

SYNC

POWER

SOUND

EFFECT

REPEAT

Bluetooth

POWER

VOL

WOOFER

LEVEL

Surr.

Sound

DIMMER

SOURCE

Press to select a source connected to the SoundStand.

Skip Forward

If there is more than one file on the device you are playing, and you

press the $button, the next file is selected.

REPEAT

You can set the REPEAT function during music playback from a USB

device.

REPEAT OFF : Cancels Repeat Playback.

REPEAT FILE : Repeatedly play a track.

REPEAT ALL : Repeatedly play all tracks.

REPEAT RANDOM : Plays tracks in random order. (A track that has

already been played may be played again.)

DIMMER/ANYNET+

DIMMER : Press the DIMMER/ANYNET+ button on the remote to

control the brightness of the display.

ANYNET+ : Turns on the ANYNET+ function which lets the remote

from your Anynet+ Samsung TV control the SoundStand. The

ANYNET+ function toggles on and off each time the DIMMER/

ANYNET+ button is pressed and held for more than 5 seconds.

Surr.Sound (Surround Sound Expansion)

Surr.Sound adds depth and spaciousness to the sound. Pressing the

Surr.Sound button repeatedly cycles through the Surr.Sound settings:

AUTO, ON, OFF.

SURROUND SOUND AUTO : If the sound source is more than 2

channels then SURROUND SOUND ON turns on automatically. On the

other hand, if the sound source is less than 2 channels (STEREO), then

mode is automatically set to SURROUND SOUND OFF.

WOOFER LEVEL

You can control the woofer volume.

Press or button on the WOOFER LEVEL button to increase or

decrease the woofer volume. You can set it from SW -6 to SW +6.

●SoundStand is a Samsung proprietary name.

●Operate the TV using the TV's remote control.

HW-H600_H610_EUR_ENG_141028.indd 9HW-H600_H610_EUR_ENG_141028.indd 9 2014-10-28  5:18:152014-10-28  5:18:15

REMOTE CONTROL

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the

Bluetooth Power function on and off.

See pages 16 and 18 for details.

POWER

Turns the SoundStand on and off.

VOLUME

Adjusts the volume level of the unit.

SOUND EFFECT

Press to select a sound effect mode.

Select the STANDARD mode if you want to enjoy the original sound.

When you choose a Sound Effect mode (except STANDARD), Surround

Sound Expansion will automatically be turned OFF.

Skip Back

If there is more than one file on the device you are playing, and you

press the #button, the previous file is selected.

MUTE

You can turn the volume down to 0 with the push of a button. Press

again to restore the sound to the previous volume level.

SOURCE

MUTE

SYNC

POWER

SOUND

EFFECT

REPEAT

Bluetooth

POWER

VOL

WOOFER

LEVEL

Surr.

Sound

DIMMER

AUDIO SYNC

If the SoundStand is connected to a digital TV and the video appears

out of synch with the audio, press the Audio Sync buttons to synch the

audio with the video.

Press the AUDIO SYNC +/- buttons to set the audio delay from 0 to

300 ms. In USB mode, TV mode, or BT mode, the Audio Sync

function may not work.

+Installing the Batteries in the Remote Control

1. Use a suitable coin to turn

the remote control's battery

cover counterclockwise to

remove it as shown in the

figure above.

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when inserting

the battery. Put the battery cover on and

align the ' ' marks side by side as

shown in the figure above.

3. Use a suitable coin to turn

the remote control battery

cover clockwise as far as it

will go to fix it in place.

HW-H600_H610_EUR_ENG_141028.indd 10HW-H600_H610_EUR_ENG_141028.indd 10 2014-10-28  5:18:152014-10-28  5:18:15

Autres manuels pour HW-H600

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-Q700A Instructions d'installation

Samsung

Samsung HW-M450 Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q70R Instructions d'installation

Samsung

Samsung HW-J650 Manuel utilisateur

Samsung

Samsung HW-MS560 Manuel utilisateur

Samsung

Samsung HW-M4500 Instructions d'installation

Samsung

Samsung HW-Q67CB Instructions d'installation

Samsung

Samsung HW-Q900T Instructions d'installation

Samsung

Samsung HW-K950/ZA Manuel utilisateur

Samsung

Samsung HW-A550 Instructions d'installation

Samsung

Samsung HW-H750 Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q70R Manuel utilisateur

Samsung

Samsung HW-HM60C Manuel utilisateur

Samsung

Samsung HW-MM55 Instructions d'installation

Samsung

Samsung HW-K335 Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q80R/ZA Instructions d'installation

Samsung

Samsung HW-Q600A Instructions d'installation

Samsung

Samsung HW-Q990C Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F550 Manuel utilisateur

Samsung

Samsung HW-FM45C Manuel utilisateur

Samsung

Samsung HW-NW700 Manuel utilisateur

Samsung

Samsung HW-T47M Instructions d'installation

Samsung

Samsung HW-Q700A Instructions d'installation

Samsung

Samsung MM-VB9 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
