Samsung IPolis SNO-5080R Manuel utilisateur

NETWORK CAMERA

Quick Guide SNO-5080R

English

PT01-000192A-SNO-5080RN-QG_ENGLI1 1 2011-03-10 오전 9:44:28

2_ English

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Appearance Item Name Quantity Description

User Manual,

Installer S/W DVD,

CMS S/W DVD

Quick Guide 1

Template 1 Product installation guide

Tapping Screw 3 Used for installation on the wall or ceiling

L Wrench 1 Used to adjust the camera orientation

Cable for the testing monitor 1 Used to test the camera connection to a

portable display device

Sunshield 1 It protects the camera from the direct

sunlight.

Sunshield Hold 1 It fixes the sunshield with the camera.

PT01-000192A-SNO-5080RN-QG_ENGLI2 2 2011-03-10 오전 9:44:28

English

English _3

AT A GLANCE

Front Side

Item Description

Sunshield It protects the camera from the direct sunlight.

Sunshield Hold It fixes the sunshield with the camera.

Video Output Port Connected to the monitor so that you can check the video from the camera.

Reset Button

Resets the camera settings to the default. Press and hold it for about 5

seconds to turn off the system indicator and restart the system.

If you reset the camera, the network settings will be adjusted so that

DHCP can be enabled. If there is no DHCP server in the network, you

must run the IP Installer program to change the basic network settings

such as IP address, Subnet mask, Gateway, etc., before you can

connect to the network.

Zoom Lever Turn left or right to adjust the size of an object.

Focus Lever Turn left or right to fit the focus.

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied

ethanol.

M

PT01-000192A-SNO-5080RN-QG_ENGLI3 3 2011-03-10 오전 9:44:28

4_ English

Rear Side

Item Description

Power Port Used to plug the power cable.

Network Port Used to connect a PoE or LAN cable.

I/O Port

ARM-OUT WHITE : Used to connect the alarm output signal.

ARM-IN BLUE : Used to connect the alarm input signal.

A-COM GRAY : Common port where the alarm output signal is

connected.

GND YELLOW : Used for earth-grounding.

PT01-000192A-SNO-5080RN-QG_ENGLI4 4 2011-03-10 오전 9:44:28

English

English _5

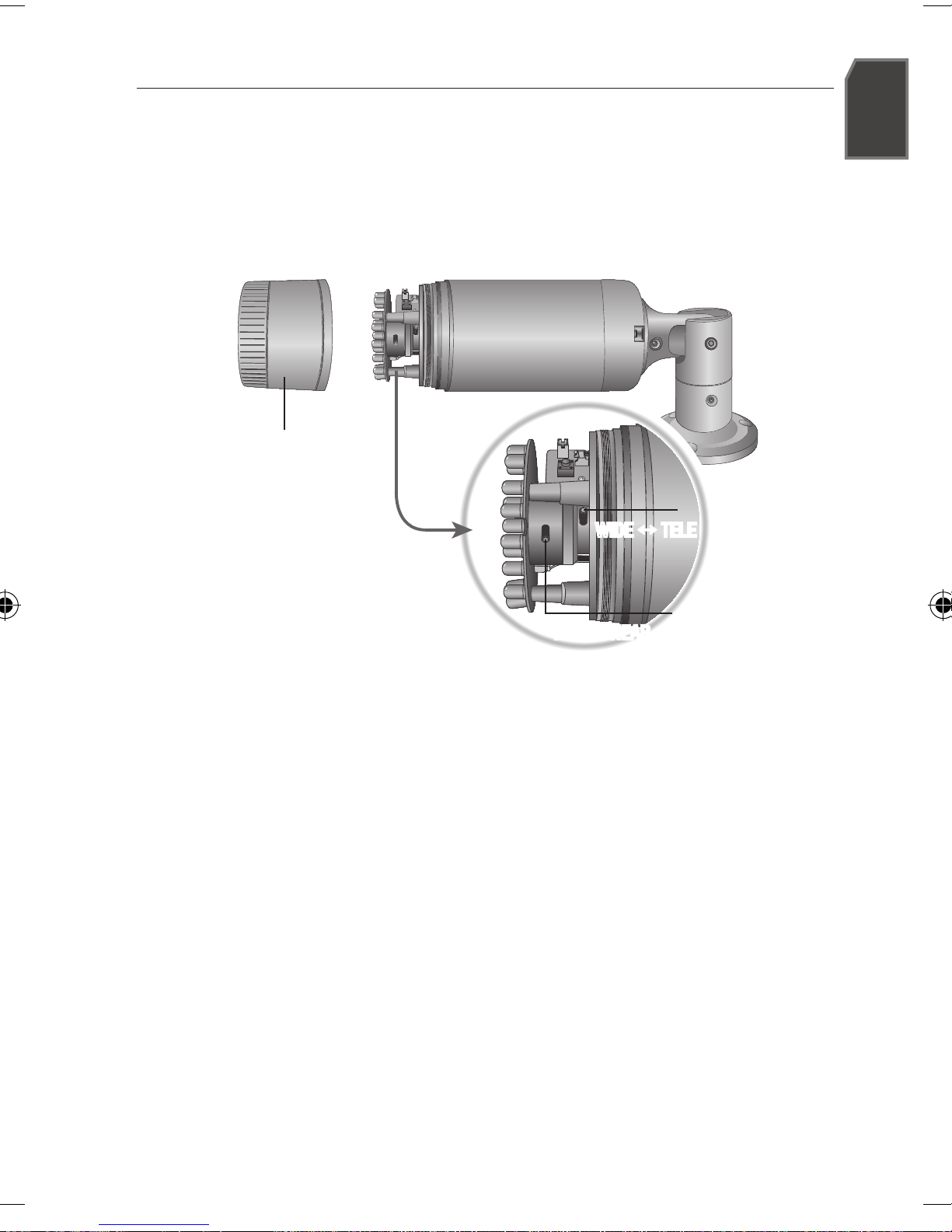

TO ADJUST THE ZOOM FACTOR OR FOCUS

Loosen the front cover as shown.

Loosen the zoom/focus lever slightly.

Position the zoom/focus lever to WIDE (NEAR) or TELE (FAR) as appropriate.

Then, tighten the zoom/focus lever to fix the adjusted position.

Turn the front cover to tighten it.

To ensure seamless waterproofing, tighten up the front cover by turning it to the end.

When fixing the front cover, ensure that the triangle of the main body faces the triangle of the

front cover.

Use the lever to adjust the zoom factor or focus, and turn the lever clockwise to fix it.

Before you can adjust the zoom factor/focus of the lens, loosen and remove the front cover.

J



Front cover

Zoom Lever

Focus Lever

WIDE ↔TELE

FAR ↔NEAR

PT01-000192A-SNO-5080RN-QG_ENGLI5 5 2011-03-10 오전 9:44:29

6_ English

CONNECTING WITH OTHER DEVICE

Connecting to the monitor

Use the test monitor cable to connect the video output port of the camera with the video

input port of the monitor.

In the initial installation of the camera, you can connect the camera to the monitor for checking

the connection status.

You must set <Video output> to <On> before the display screen can be activated.

The BNC Out terminal of the product is provided for easier installation, and is not recommended

for monitoring purposes.

If you keep the BNC cable connected, a risk of lightening may cause damage or malfunction to

the product.

M

J

Power

Ethernet

PT01-000192A-SNO-5080RN-QG_ENGLI6 6 2011-03-10 오전 9:44:29

English

English _7

Ethernet Connection

Connect the Ethernet cable to the local network or to the Internet.

Power Supply

Use the screwdriver to connect each line (+, –) of the power cable to the corresponding

power port of the camera.

Be careful not to reverse the polarity when you connect the power cable.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.

If PoE and DC 12V are both applied, this camera will get supplied with power from PoE.

Please make sure the monitor and camera are turned off when connecting them.

J



PT01-000192A-SNO-5080RN-QG_ENGLI7 7 2011-03-10 오전 9:44:29

8_ English

IP SETUP

Manual Network Setup

Run <IP Installer_vX.XX.exe> to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not

support this function.

Select a camera in the search list.

Find the MAC (Ethernet) address

labeled on the rear of the camera.

Both the [Auto Set] and [Manual Set]

buttons will be activated.

Click [Manual Set].

The Manual Setting dialog appears.

The default values of <IP Address>,

<Subnet Mask>, <Gateway>, <HTTP Port> and <VNP Port> of the camera will

be displayed.

In the <Address> pane, provide the

necessary information.

MAC (Ethernet) Address : The MAC

(Ethernet) address of the applicable

camera will be set automatically so

you don't need to input it manually.

You can configure the static IP settings

only if the DHCP checkbox is unchecked.

In the <Port> pane, provide necessary information.

HTTP Port : Used to access the camera using the Internet browser, defaulted to

80. Use the spin button to change the HTTP Port value.

VNP Port : Used to control the video signal transfer, defaulted to 4520.

Enter the password.

This is the login password for the “admin” user who accesses the camera.

The default password is “4321”.

Click [OK].

Manual network setup will be completed.

When the manual setup including IP is completed, the camera will restart.

M

•

M

•

PT01-000192A-SNO-5080RN-QG_ENGLI8 8 2011-03-10 오전 9:44:29

English

English _9

USING THE LIVE SCREEN

Item Description

Monitoring Move to the monitoring screen.

Setup Move to the Setup screen.

Viewer Screen Displays the Live video on the screen.

Alarm Output Activate the Alarm Out port.

Hide the alarm

indicator Hides the alarm indicator near the border of the viewer screen.

Digital zoom You can use the mouse wheel to activate the digital zooming.

Screen

Optimization,

Full Screen

Adjust the screen to the optimal size, and display the Full Screen icon on the Live

screen.

PT01-000192A-SNO-5080RN-QG_ENGLI9 9 2011-03-10 오전 9:44:29

10_ English

Item Description

Capture Saves the snapshot as an image file in the .bmp format.

Video Format

You can select a profile type in <Video profile> under the <Video> setup menu.

If the “Invalid codec” message is displayed, select a profile type from the profile

list again.

If the temperature drops below the operational range, video signal may not be produced. In such

cases, please wait for the video.

M

PT01-000192A-SNO-5080RN-QG_ENGLI10 10 2011-03-10 오전 9:44:29
