Samsung SSA-R1000 Manuel utilisateur
RFID Reader
user manual
SSA-R1000
SSA-R1100
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please visit our website.
www.samsungsecurity.com
2_ safety information
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to
the product.
Do not connect multiple controllers to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
When installing the controller, fasten it securely and firmly. The fall of controller may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the
controller. Doing so may cause personal injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the
power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in
any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)
. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive
vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -30°C), or high humidity.
Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fire or damage
to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the controller directly towards extremely bright objects such as sun.
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
4.
5.
6.
7.
EnglisEnglish _ 3
SAFETY INFORMATION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
FCC Statement
Caution : Any changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, any cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
8.
9.
1)
2)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus
combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
IMPORTANT SAFETY INSTRUCTIONS
4_ contents
contents
PRODUCT INTRODUCTION
5
5Features
5What’s included
6At a Glance
7Cable Color Scheme
7Cable Selection
INSTALLATION AND EXTERNAL
CONNECTION
8
8Installation
9Precautions on installation
10 External Connection
INITIALIZATION
11
11 Basic Operations
OUTPUT FORMAT
12
12 WIEGAND Output
13 RS-232 Output
TROUBLESHOOTING
14
14 Troubleshooting
PRODUCT SPECIFICATIONS
15
15 Product Specifications
EnglisEnglish _ 5
PRODUCT INTRODUCTION
FEATURES
This product is an elegant-looking proximity reader which has the maximum read range of 10cm (4”), can be easily
installed on a metal doorframe or the wall. Basically, both R1000 and R1100 use the same module with epoxy
molding, which guarantees operation in any weather and environment condition. The two different bezels of two
models are compatible with each other, meaning one can be replaced with the other according to the wall condition
or the applicable situation. Green and red LED indicators and the Piezo buzzer ensure reliable and accurate
operations.
125KHz Proximity Reader
PSK Modulation
26 bit Wiegand / RS-232 Output Format
Control of External LED Indicators
Control of External Buzzer
Reverse Polarity Protection
Weatherproof
WHAT’S INCLUDED
Check if the following items are included in the product package.
What’s included in SSA-R1000
xGn
Bezel of SSA-R1000 READER Module
3.5 x 40 screws (x2)
3.5 x 25 screws (x2)
6 x 30 Plastic Anchors(x2)
Quick Guide CD Manual
What’s included in SSA-R1100
xGn
Bezel of SSA-R1100 READER Module
3.5 x 40 screws (x2)
3.5 x 25 screws (x2)
6 x 30 Plastic Anchors(x2)
Quick Guide CD Manual
◆
◆
◆
◆
◆
◆
◆
product introduction
6_ product introduction
product introduction
AT A GLANCE
Front/Rear
LED Displays the system operation status using red and green indicators.
Buzzer Piezo buzzer.
Connection Cable Used to connect to the power or I/O cable.
Fixing Hole Fixing hole for wall-mounting.
2
4
3
EnglisEnglish _ 7
PRODUCT INTRODUCTION
CABLE COLOR SCHEME
Item Cable Color Signal Line Description
Power
Red DC +12V DC +12V supplied
Black GND Earth-grounding for power
Input
Blue Buzzer Control
BUZZER Control Input Port
Yellow LED Control LED Control Input Port
Output
Green Out Wiegand 0 Wiegand Data 0 Output Port
White Out Wiegand 1 Wiegand Data 1 Output Port
Communication
Brown RS-232(TX) RS-232 Transmission Output Port
Not used
Orange NC Not Connected
CABLE SELECTION
Item
Cable Type
Cable Type
1
Power (DC12V)
Belden #9409, 18 AWG 2 Conductor, Unshielded
Belden #9409, 18 AWG 2 Conductor, Unshielded
2
WIEGAND Output
Buzzer Control
LED Control
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
3
RS-232 Cable Belden #9829, 24 AWG 2-twisted pair, Shielded
8_ installation and external connection
installation and external connection

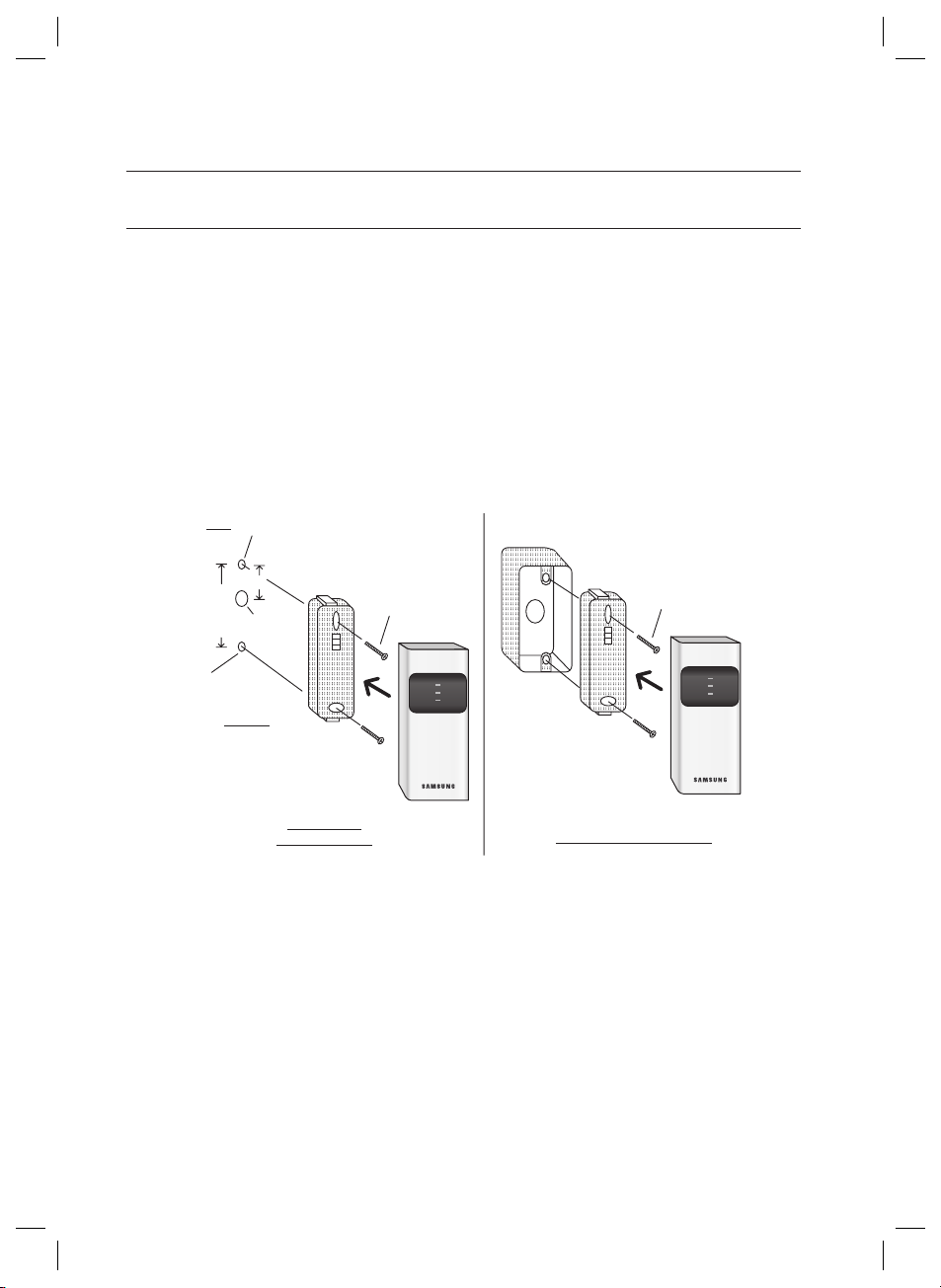

INSTALLATION
- Inserted in the doorframe / attached to the wall
Two 6-32 or M3 holes are 3.3” (8.38 cm) away from each other vertically; between the two exists one 1/2” hole
through which the reader cables are arranged. The midway hole is located 1.7” (4.31cm) down from the upper
hole.
(If the product is already installed, you can skip this step.)
Insert the reader cables to the midway hole and fix the reader module with two 6-32 or M3 screws.
Insert the reader module into the bezel and push it up until you hear a click.
1.
2.
3.
Electric Gang Box Mount
Wall Mount
Mullion Mount
Lower
Reader
Module
Bezel
6-32 hole
3.3”
(8.38cm)
Upper
6-32 hole
1/2”hole
1.7”
(4.31cm)
6-32 or M3 Screws 6-32 or M3 Screws
Reader
Module
Bezel
Gang Box
EnglisEnglish _ 9
INSTALLATION AND EXTERNAL CONNECTION

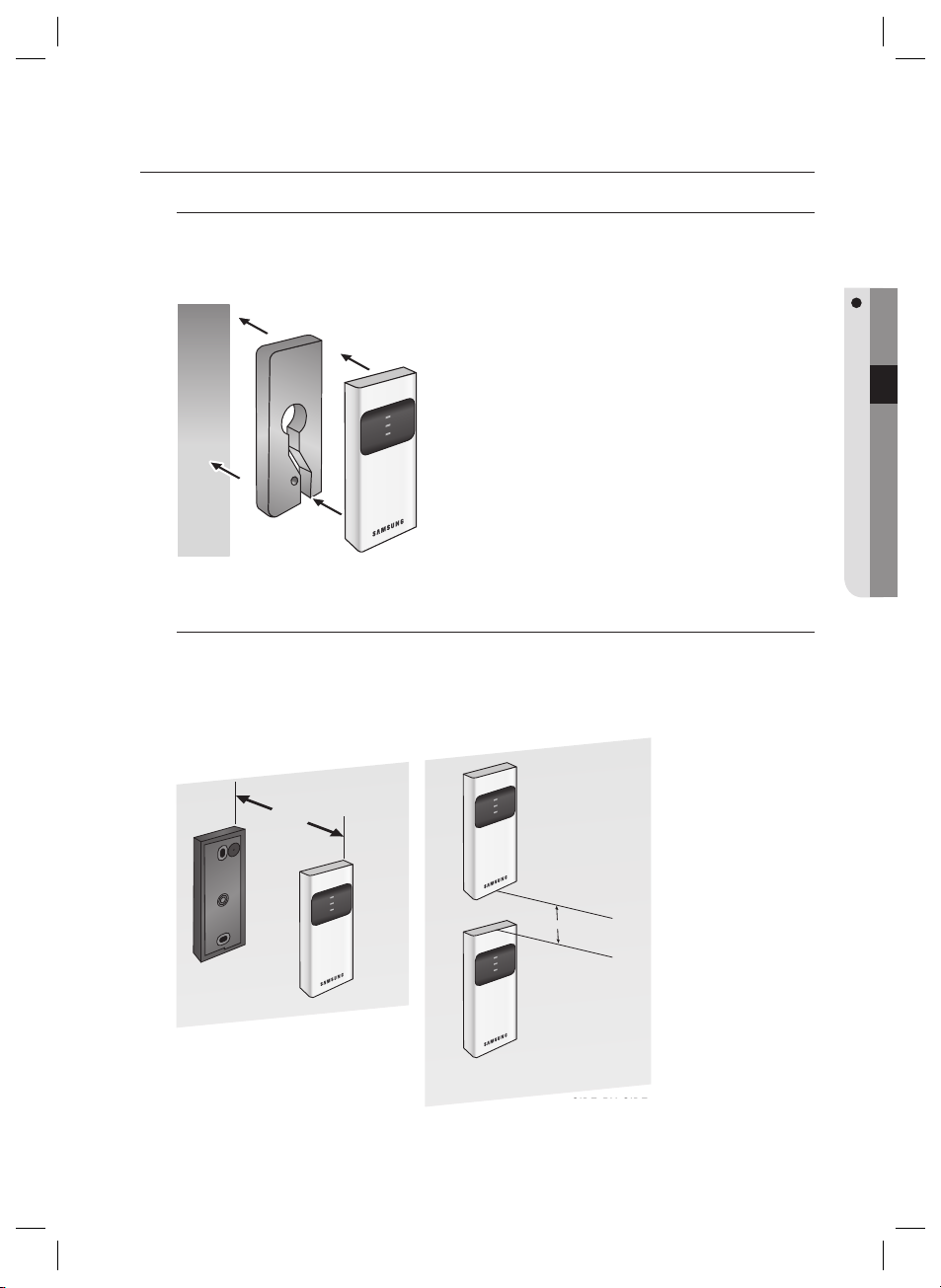

PRECAUTIONS ON INSTALLATION
If installing on a metal wall
If you install the reader on a metal wall, the read range may be reduced.
To avoid this problem, it is recommended to insert the spacer between the metal wall and the reader as shown below.
If installing more than one reader side by side or front and back
If you install more than one reader side by side or front and back, the read range may be reduced. In this case, if
you present a card to one reader, the other reader may recognize the same card, meaning both readers read the
same card simultaneously.
To avoid this problem, keep at least 20 cm of space between the two readers.
BACK TO BACK
INSTALLATION
SIDE BY SIDE
INSTALLATION
<Front and Back>
<Side by Side>
Metal
Wall
Spacer
Reader
#Reader 2
#Reader 1
Minimum 20cm
#Reader 1
#Reader 2
Minimum
20cm
10_ installation and external connection
installation and external connection
EXTERNAL CONNECTION
Wiring Diagram
Item Cable Color
Power Supply Unit
Connect the DC+12V to the red line.
Connect GND to the black line.
Wiegand Connection
Connect the green line of the product to the Wiegand D0 input port of the controller.
Connect the white line of the product to the Wiegand D1 input port of the controller.
LED Control To control the LED indicators, connect the yellow line to the output port (relay) of the
controller.
Buzzer Control To control the built-in buzzer, connect the blue line to the output port (relay) of the
controller.
RS-232 Connection Connect to the COM port of the PC. (Connect pin 2 of the DB-9 connector to the
brown line; connect the GND (black) line of the device to pin 5 of the DB-9 connector.)
Blue
Yellow
RS-232(GND)
RS-232(TX)
Red Black
Buzzer Control In
LED Control In
DC +12V GND
SSA-R1000/SSA-R1100
Wiegand Data 0 Out
Wiegand Data 1 Out
Green
White
Brown
Black
PCCONTROLLER
POWER
