Samsung RT30G Manuel utilisateur

REFRIGERATOR

OWNER`S INSTRUCTIONS

Before operating the unit, please read this

manual thoroughly, and retain for future

reference.

ENGLISH

RT30G/RT30S/RT30D

RT34G/RT34S/RT34D

RT37G/RT37S/RT37D

RT31G/RT31S/RT31D

RT35G/RT35S/RT35D

RT38G/RT38S/RT38D

FEATURES

Large freezer storage area

- Stores large quantities of food in the freezer.

Jumbo storage guard

- Holds large bottles securely.

Adjustable storage guards

- Position them for your convenience and according

to the height of your food containers.

Fresh Bread Zone(option*)

- Some kind of bread for long.

Safety pocket(option*)

- Store safely due to the locking system that makes

children not open it easily.

Silver Nano Deodorizer(option*)

- Powerful deodorizer through catalyst and filter.

UV LED/PHOTOSYNTHESIS LED(option*)

- Using the LED system, the contents in chilled room

and vegetable bin have increased Chlorophyll and

vitamin contents. Also this system makes contents

in container more fresh.

Remark : * There is not some option according to the model and country.

Read Instructions

Please read all safety and operating

instructions before operating this

appliance.

Retain Instructions

Please keep this Owner's Manual for future

reference.

Heed Warnings

All warnings, Cautions and Notes on this

refrigerator are important ; please pay

attention to them.

Follow Instructions

For best results, follow all instructions

given in this manual.

Model and Serial Numbers

Include both the model number and the

serial number when corresponding with

Electrostar or your Dealer concerning this

product.

Because these following operating

instructions cover various models, the

characteristics of your refrigerator may

differ slightly from those described in this

manual.

Safety precautions

This manual is made on the basis of model

RT34G

Date of Purchase:

Model No:

Serial No:

Contents

FEATURES........................................1

SAFETY INSTRUCTIONS.................3

CAUTIONS WHILE USING...............6

INSTALLATION .................................8

LEVELING THE APPLIANCE............9

BASIC PREPARATION .....................9

- Before using....................................9

- Storing food...................................10

PARTS ............................................11

HOW TO USE .................................12

- Temperature control ......................12

- Making ice cubes ..........................14

- Chiller Compartment .....................15

- Vegetable Bin................................15

- Fresh Bread Zone(option).............15

- Safety pocket(option) ....................15

UV LED/Photosynthesis LED(option)......15

- Dispenser(option)..........................16

REPLACING THE LAMP.................16

REMOVING ACCESSORIES..........17

CLEANING THE REFRIGERATOR

...19

BEFORE CALLING SERVICE ........20

Additional tips for proper usage ......21

Ambient room temperature limits ....22

The appliance is not intended for use by persons

(including children) with reduced physical, sensory

or metal capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of theappliance by a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

In the event of a power failure, call the local office

of your Electricity Company and ask how

long it is going to last.

Do not plug several appliances into the same

multiple power board.

Damage to the cord may cause a short-circuit,

fire and/or electric shock

Ensure that none of the pipes on the back of the appliances

are damaged prior to disposal. The pipes shall be broke in

the open space.

SAFETY INSTRUCTIONS

The appliance is not intended for use by persons

(including children) with reduced physical, sensory

or metal capabilities, or lack of experience and

knowledge, unless they have been given supervis-

ion or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

In the event of a power failure, call the local office

of your Electricity Company and ask how

long it is going to last.

Do not plug several appliances into the same

multiple power board.

Damage to the cord may cause a short-circuit,

fire and/or electric shock

Ensure that none of the pipes on the back of the appliances

are damaged prior to disposal. The pipes shall be broke in

the open space.

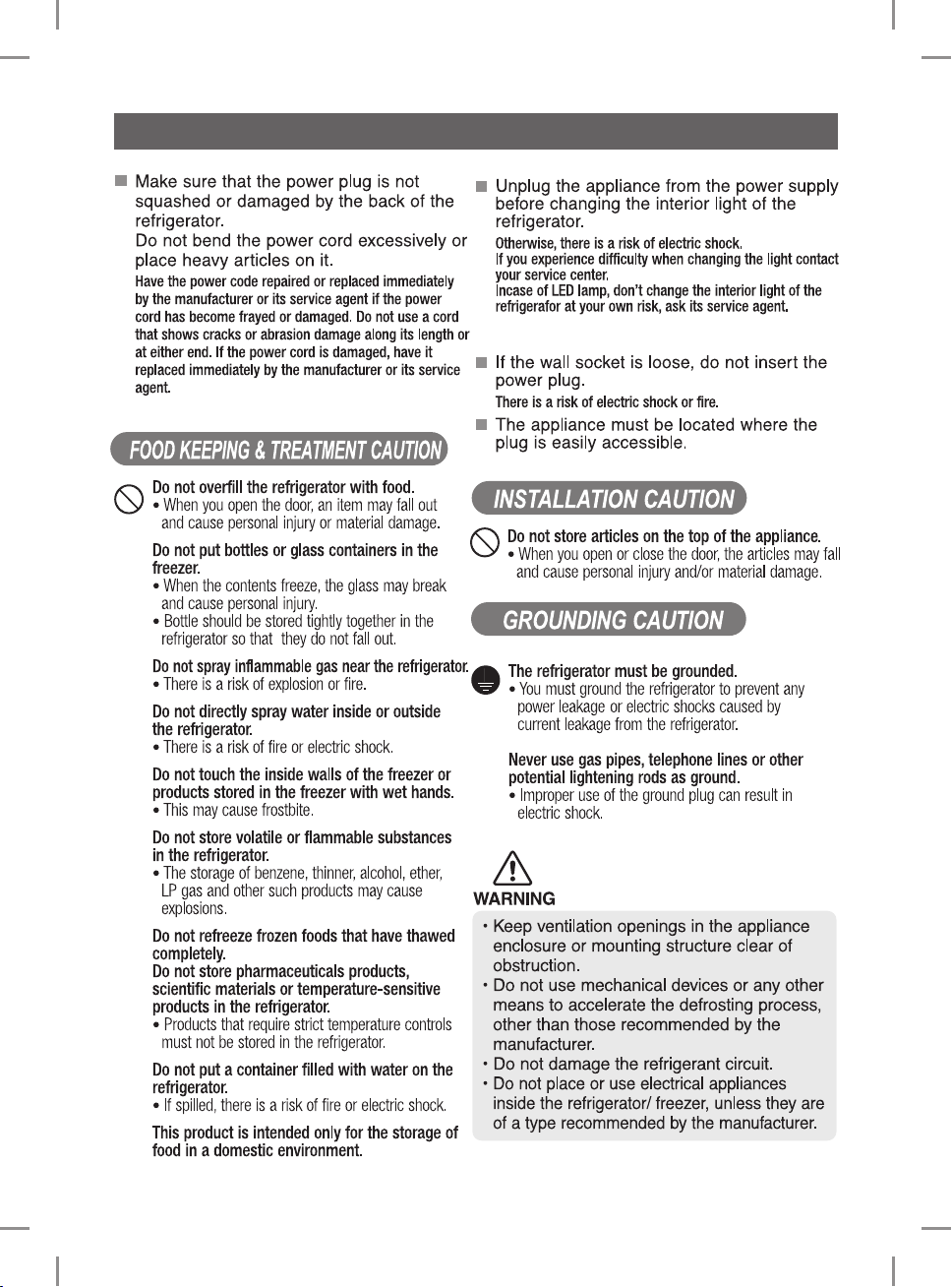

SAFETY INSTRUCTIONS

If you experience difficulty when changing the light,

contact your s ervice c enter.

5 6

SAFETY INSTRUCTIONS

If you experienc e difficulty when c hanging the light,

contact your s ervice c enter.

5 6

SAFETY INSTRUCTIONS

Contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Hermetically sealed system.

Do not vent gases into the atmosphere.

Refrigerant type : R-134a Quantity : 0.16 kg

Global Warming Potential (GWP) = 1300

REMARK This refrigerator use CycloPentance

as insulation blowing gas.

Do not place carbonated or fizzy drinks in the freezer compartment.

This product is intended only for the storage of food in a domestic environ-

ment.

CAUTIONS WHILE USING

NOTE Any increase in temperature of frozen food during

defrosting can shorten its storage life.

• Manufacturer's recommended storage times should be adhered to. Refer

to relevant instructions.

• Please observe maximum storage times and expiry dates of frozen

goods.

• The appliance might not operate consistently (possibility of defrosting

of contens or temperature becoming too warm in the frozen food com-

partment) when sited for an extended period of time below the cold end

of the range of temperatures for which the refrigerating appliance is

designed.

• Do not store food which goes bad easily at low temperature, such as

bananas.

• Your appliance is frost free, which means there is no need to manually

defrost your appliance, as this will be carried out automatically.

• Temperature rising during the defrost can comply with ISO requirement,

But If you want to prevent an undue rise in the temperature of the frozen

food while defrosting the appliance, please wrap the frozen food in sev-

eral layers of newspaper.

Install this refrigerator on a

firm, flat surface.

For optimum operation,

normal room temperature

is recommended. Avoid

locations affected by

draughts or dampness.

For optimum operation,

normal room temper-

ature is recommended.

Avoid locations in

direct sunlight, near heat-

ers, rediators, stoves

or ovens.

Allow a 50mm space between

the refrigerator and the wall.

If your refrigerator is going

into a recessed area, allow at

least 300mm clearance above

the refrigerator.

For personal safety, properly

ground this appliance.

Do not ground this refrigerator

with a telephone line, gas pipe,

etc.

above 300mm

above 50mm above 50mm

INSTALLATION

- Do not allow water to splash onto

the back of the refrigerator.

- Water impairs the insulation of elec-

tric parts and may cause an electri-

cal short or a shock hazard.

- Do not use flammable sprays such

as lacquer and paint near the refrig-

erator.

- Heat from the refrigeration unit may

ignite flammable aerosols.

- Do not allow unattended children to

play in or around refrigerators and

other large appliances, The child may

get hurt or they could damage the

appliance.

- To avoid damage to the refrigerator or

injury to the child, do not allow chil-

dren to hang on the refrigerator door.

- For optimum operation, do not leave the door open

for any longer than necessary.

- Leaving the door open allows warmer air to enter

the refrigerator and causes the refrigeration unit to

use more energy to maintain the cool temperature.

- Do not store volatile chemicals such as ether

and benzene in the refrigerator.

- The fumes, besides damaging food, can build

up and cause an explosion.

- Do not use the refrigerator if it is not operating cor-

rectly or has been damaged. Disconnect it from the

power supply and call your local service center.

- If the power cord is damaged, avoid a hazard by

replacing it through the manufacturer or its service

agent or a similarly qualified person.

CAUTIONS WHILE USING

7 8

Install this refrigerator on a

firm, flat surface.

For optimum operation,

normal room temperature

is recommended. Avoid

locations affected by

draughts or dampness.

For optimum operation,

normal room temperature

is recommended.

Avoid locations in

direct sunlight, near heaters,

rediators, stoves or ovens.

Allow a 50mm space between

the refrigerator and the wall.

If your refrigerator is going

into a recessed area, allow at

least 300mm clearance above

the refrigerator.

For personal safety, properly

ground this appliance.

Do not ground this refrigerator

with a telephone line, gas pipe,

etc.

above 300mm

above 50mmabove 50mm

INSTALLATION
