Samsung RS2533SW Manuel utilisateur
Model:
RS2533SW
SIDE-BY-SIDE REFRIGERATOR
SAMSUNG Home Appliance Service
For the latest parts information,
Please access to our service web site
(http://www.e4buyer.com/refrigerator)
SAM0058
2
1. INTRODUCTION
●●A newly developed SAMSUNG side by side refrigerator in 2002 has the following
characteristics.
1) Twin Cooling System
·The refrigerator and the freezer have two
evaporators. Given this independent system, the
freezer and the refrigerator are cooled individually as
required and are, therefore, more efficient. Food
odor from the refrigerator does not affect food in the
freezer due to separate air flow circulation.
2) Multi-Flow System
·Cool air circulates through multiple vents on every
shelf level. This provides even distribution of cooling
inside cabinets to keep your food fresh longer.
3) Xtra SpaceTM
·Vertical room next to the ice maker in the freezer
provides space for pizza etc.
4) Door Alarm
·Beep sound reminds you the door is open.
5) Xtra FreshTM
·Optimized humidity control keeps vegetables & fruits
fresh.
6) Deodorizer
·Reusable twin deodorizers keep the refrigerator air
fresh and odor free.
7) CoolSelect ZoneTM Drawer(RS2555, RS2577)
·User can select Quick Cool, Thaw and Select buttons
for quickly chill, thaw and cool items. Select Soft
freeze,Chill, and Cool to control the temperature of
the drawer.
3
2. INSTALLATION
1) To protect refrigerator in movement
Use padded hand truck as shown. If entrance width is
less than 39〃
, remove doors prior to installation and
reattach doors according to procedure below.
2) Remove all protective tape and pad in refrigerators.
Connect water lines and power cord. Adjust the
clearance between the doors.
3) Set the temperature control to the temperature and
wait for an hour.
The refrigerator should get slightly chilled and the motor
runs smoothly.
4) Once the refrigerator temperature is sufficiently low
You can store food in the refrigerator. After starting the
refrigerator, it takes a few hours to reach the appropriate
temperature.

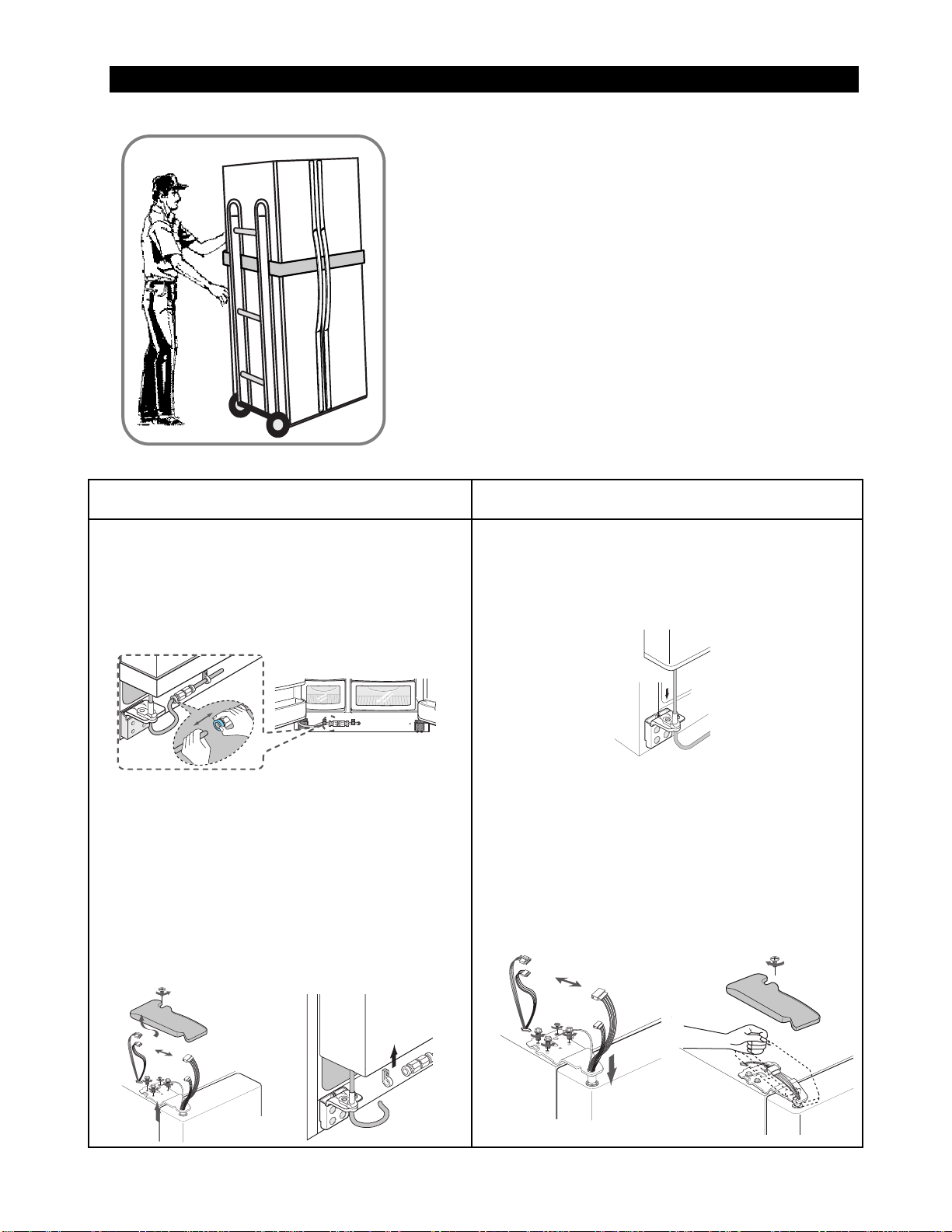

●●Removing Doors
Open the freezer and refrigerator doors, and
then take off the front leg cover assembly by
turning the three screws counter-clockwise.
Remove the screw from clamp disconnect, the
water tube by pressing the coupler, and pulling
the water tube away.
With the door closed, remove the upper hinge
cover using a screwdriver, and then disconnect
the wires. Remove hinge screws and ground
screw counter-clockwise, and take off the upper
hinge. Take care removing the door to ensure that
it does not fall on you.
Remove the door from the lower hinge by
carefully lifting the door so as not to damage the
water tube. Remove the lower hinge from the
lower hinge bracket by lifting the lower hinge.
●●Attaching Doors
Insert the lower hinge in the bracket lower
hinge. Attach the freezer door by inserting the
hose in the lower side of the door into the hole in
the lower hinge and pulling the hose down.
Insert the upper hinge shaft into the hole. After
leveling between the upper hinge hole and the
hole of the cabinet. Reattach hinge screws and
screw in the clockwise direction. Connect the
wires. Put the front part of the upper hinge cover
on the front part of the upper hinge and reattach
from the front part of the upper hinge cover first.
4
3. Nomenclature
2002 Models
R S 25 33 SL /XAA
Product ; R - REFRIGERATOR
Capacity ; CU. FT
Family ; S - SIDE BY SIDE (SBS)
H - HomePADTM (SIDE BY SIDE)
B - BOTTOM MOUNTED FREEZER (BMF)
OPTION ; SBS 33-GOOD 55-BETTER 77-BEST
BMF 55-NO DISPENSER 77-DISPENSER
COLOR ; SBS SW-SNOW WHITE SL-NOBLE STAIN
BMF SW-SNOW WHITE SL-NOBLE GRAY
Company Name
Label Location
4. Specifications
Defrost Control From 24 to 32 hrs
Thermo-Bimetal 54℉(off)/23℉(on)
Defrost Thermistor(502AT) 50℉(off)
Electrical Rating AC115V 60Hz, 4.8 Amps
Maximum Current Leakage 0.25 mA
Maximum Ground Path Resistance 0.1 Ohm
Energy Consumption KWH/mo.
Ambient Temperature 70℉90℉
Refrigerator,℉34∼46 34∼46
Freezer,℉-14∼8 -14∼8
Run Time,% 40 60
Refrigerant Charge (R134a) 7.76 oz
Compressor(MK183C-L2U) 532.3 Btu/hr
Compressor oil Freol α-15
Capillary tube(Dia, Length)
0.033＂＂,130＂＂
Dryer
Molecular Sieve XH-9
Clearance must be provided for air circulation
AT TOP 1＂＂
AT SIDES 0.1＂＂
AT REAR 1＂＂
RS2533(Good), RS2555(Better), RS2577(Best)
Main Board(RS2533) DA41-00139A
Main Board(RS2555,2577) DA41-00107A
Thermistor(Freezer) DA32-10109W
Thermistor(Freezer Evaporator) DA32-00006A
Thermistor(Refrigerator) DA32-10105U
Thermistor(Refrigerator Evaporator)
DA32-00006B
Thermistor(Ambient) DA32-10109V
Thermistor(CoolSelect ZoneTM)
DA32-10109X
Thermistor(Ice-Maker)
DA32-10108B
Thermo-Bimetal DA47-10160E
Relay DA35-10013Q
Overload Relay DA34-10003D
Run Capacitor (12㎌) 2501-001045
Fan-Motor(FRE) DA31-00020E
Fan-Motor(REF) DA31-00002S(RS2533)
Fan-Motor(REF) DA31-00020E(RS2555/2577)
Fan-Motor(Condenser) DA31-00020H
Thermal Fuse DA47-00095C
Fan
Fan
Fan Fan
Fan
Fan
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
Heat exchanger
Heat exchanger
Heat exchangerHeat exchanger
Compressor
Dryer
C-Fan Electric box
Sub-condenser

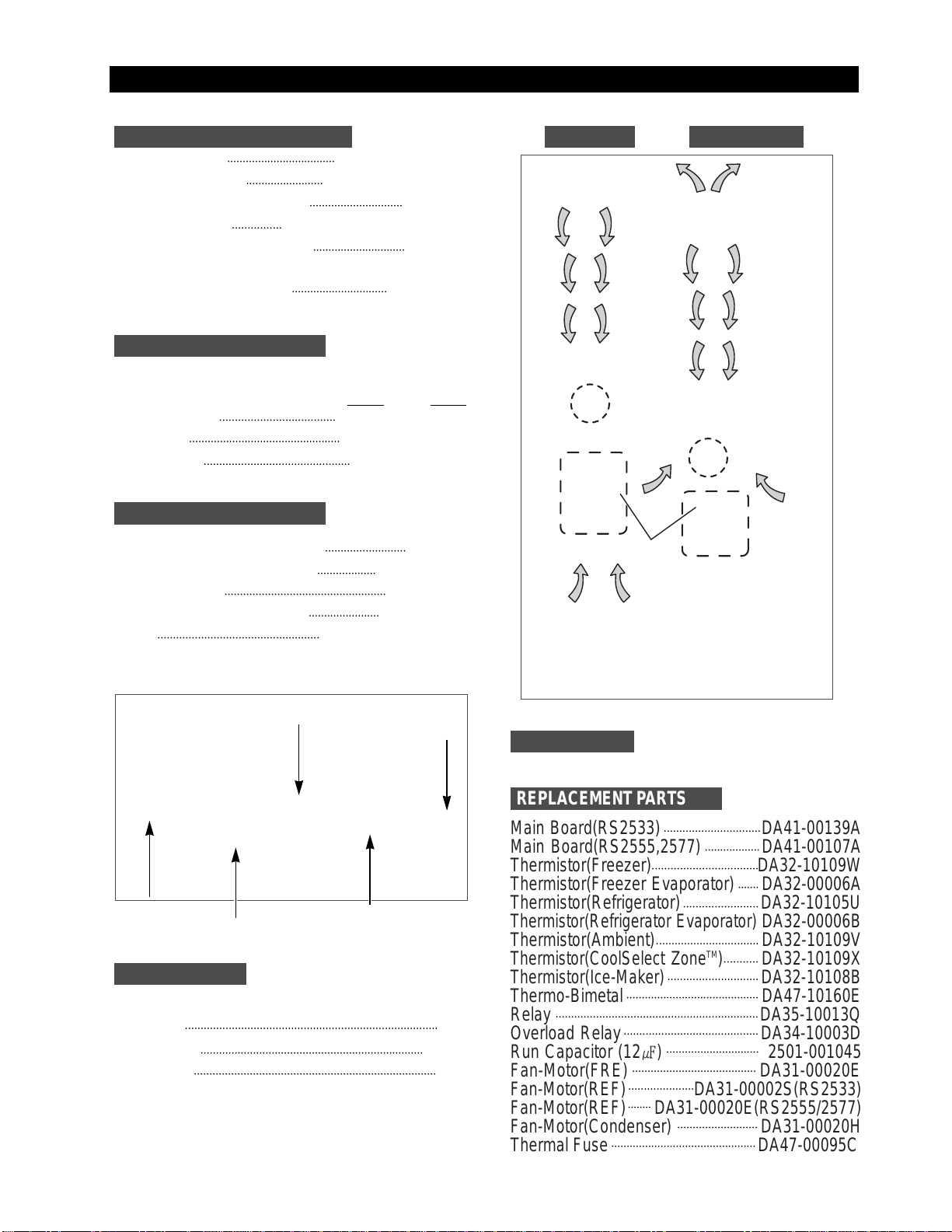

ELECTRICAL SPECIFICATIONS Freezer Refrigerator
NO LOAD PERFORMANCE
REFRIGERATION SYSTEM
INSTALLATION
MODELS
REPLACEMENT PARTS
5
6

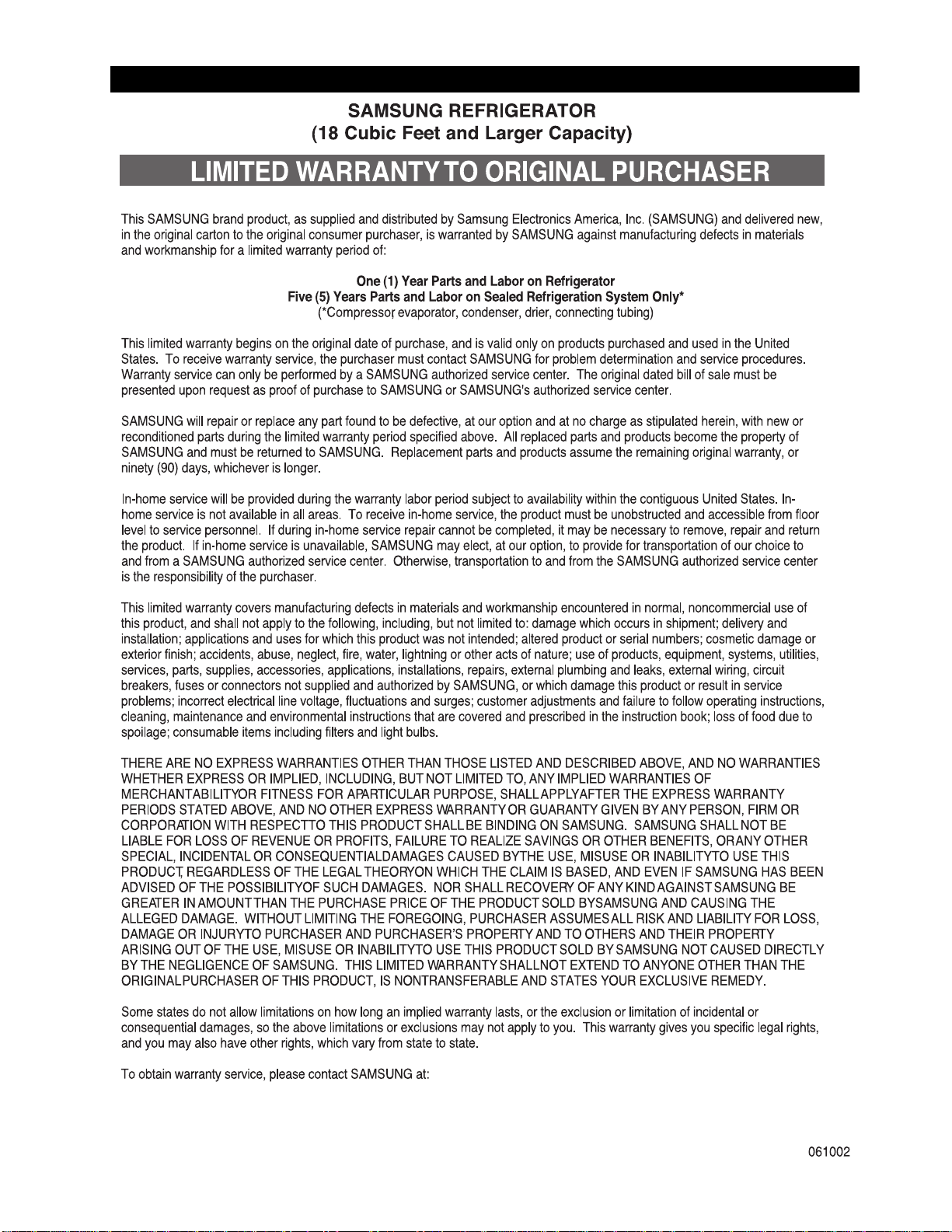

5. Warranty information
7
6. Interior Views and Dimensions
6-1) Shelves and Bins
Freezer
Refrigerator
8
Interior Views and Dimensions

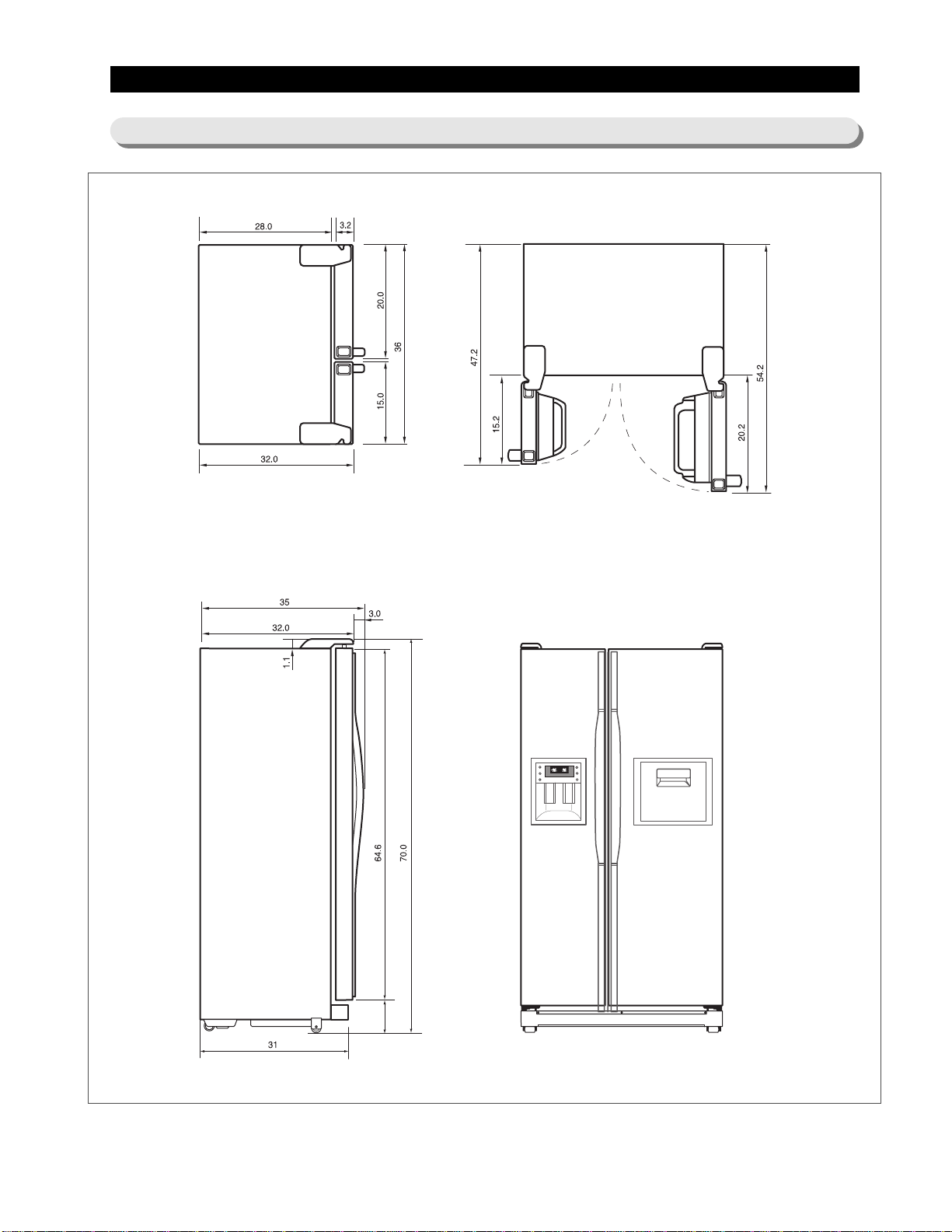

6-2) Dimensions of Refrigerator(RS2533/2555/2577) (Inches)
Beverage Station
TM
(RS2577)
9

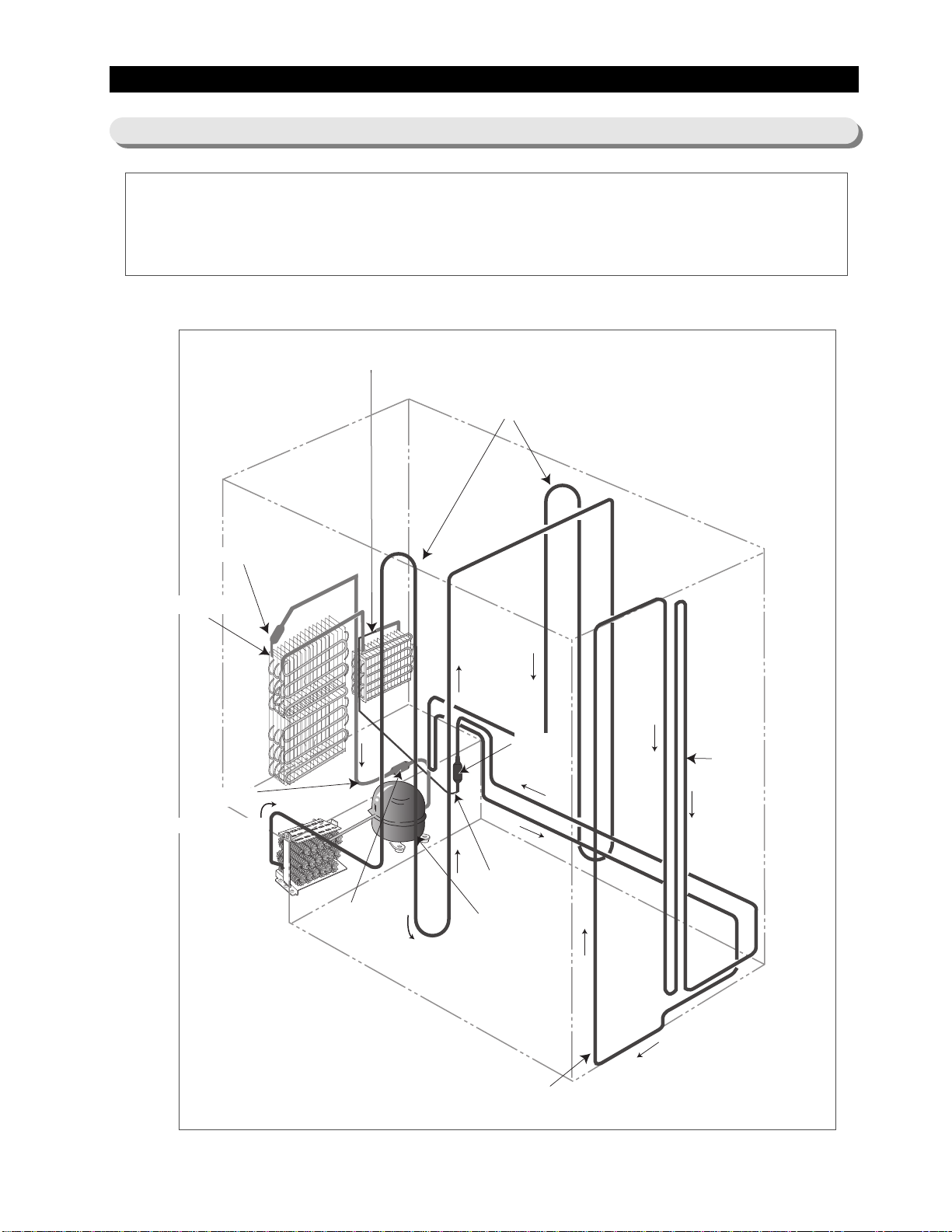

Compressor →Sub-condenser →Side Cluster Pipe(FRE) →Side Cluster Pipe(REF) →Hot Pipe
→Dryer →Capillary Tube →Refrigerator Evaporator →Freezer Evaporator→Suction Pipe →
Compressor
Refrigerator Evaporator
Capillary Tube
ACCUMULATOR
Freezer Evaporator
SUCTION PIPE
Dryer
Muffler
SUB-CONDENSER
Hot Pipe
Hot Pipe
Compressor
SIDE CLUSTER PIPE
7. Refrigeration Cycle and Cool Air Circulation Route
7-1) Refrigerant Route in Refrigeration cycle
10
Refrigeration Cycle and Cool Air Circulation Route
7-2) Cool Air Circulation
Freezer
Refrigerator
