Samsung RB44TS134 Series Manuel utilisateur

English

User servicing manual

MODEL CODE: RB44TS134**, RB46TS334**, RB50RS334**, RB56TS754**

1. You may find the installation, maintenance, repair, cleaning information about the device,

the list of spare parts of the device, and the necessary information for ordering spare

parts that can be supplied by authorized service at http://samsung.com/support or

call center 4447711.

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of

the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional

repair of the product, Samsung is not liable for any damage to the product, any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the product

caused by an attempt to repair the product by any person other than a Samsung certied

service provider will not be covered by the warranty.

CAUTION

•The part name listed on the site may differ from that in this manual. Please make sure you

choose the right part name.

•Replacing hinges requires extreme caution because it involves detaching the door.

•Be sure to wear safety gloves while making repairs.

RB3000RM_User-servicing-manual_EN.indd 1 2021-02-09  5:03:11

English

The actual image and provided parts of the refrigerator may differ, depending on the model

and the country.

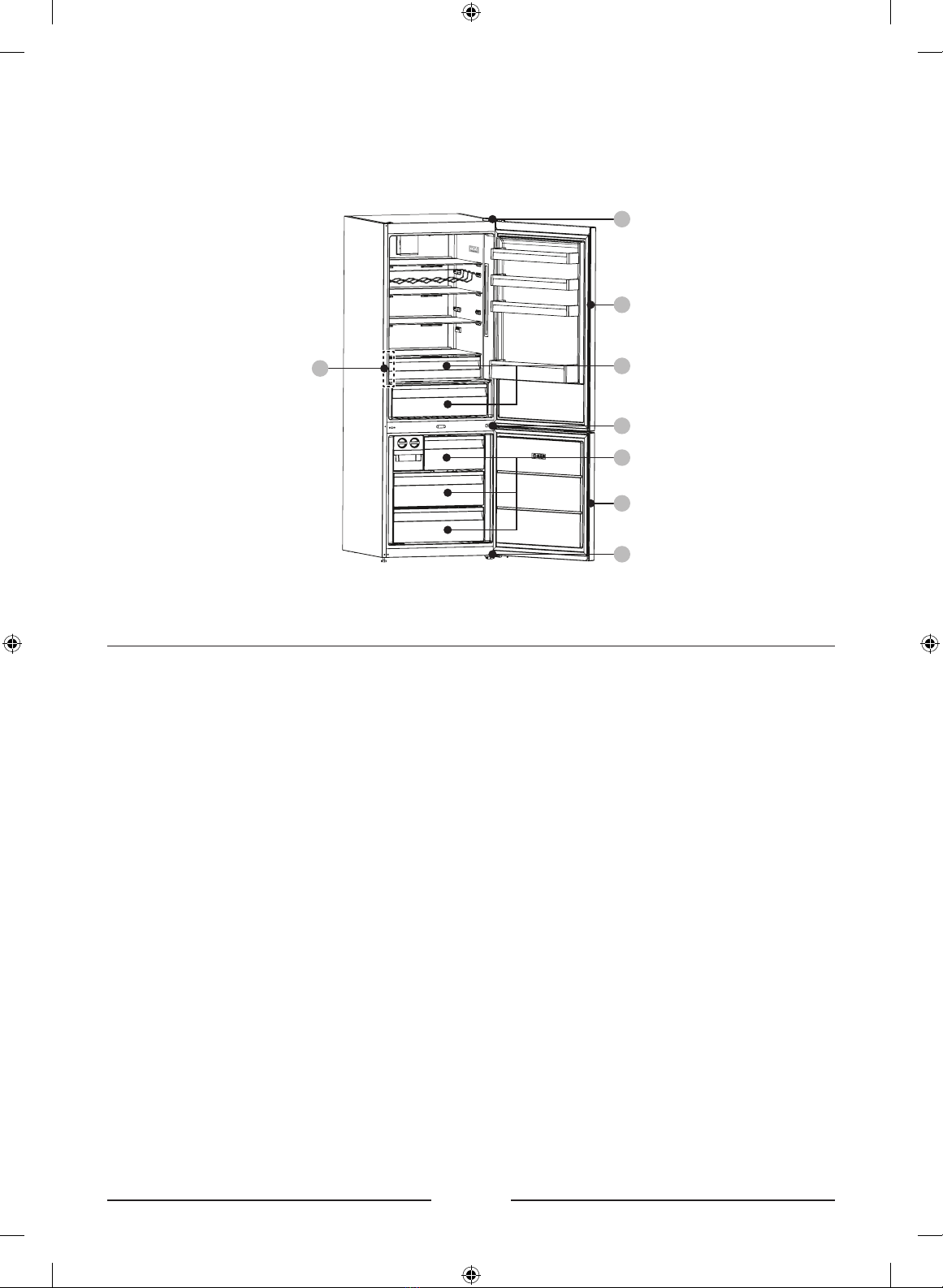

01 Top hinge 02 Gasket

03 Drawer 04 Middle hinge

05 Bottom hinge 06 Barcode label

RB3000RM_User-servicing-manual_EN.indd 2 2021-02-09  5:03:11

English

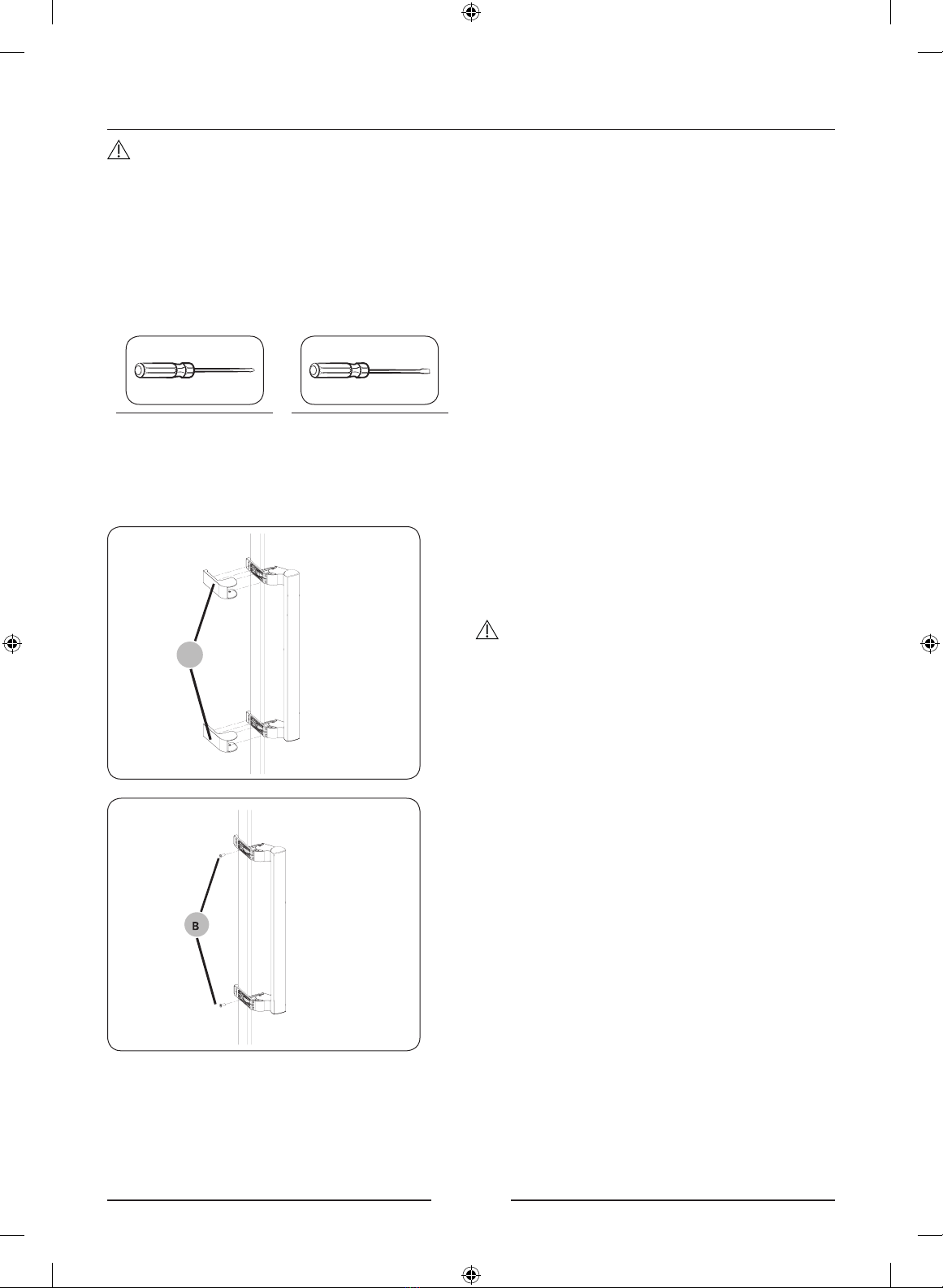

Handle replacement

CAUTION

•When replacing the door handle, take care not to scratch the front of the door.

•Firmly press the handles at the supports. Make sure there is no gap between the supports

and the door.

•Tightly fasten the screws when attaching the handle.

•Check that the handle is rmly attached before using the product.

Tools required (not provided)

Phillips screwdriver Flat-head

screwdriver

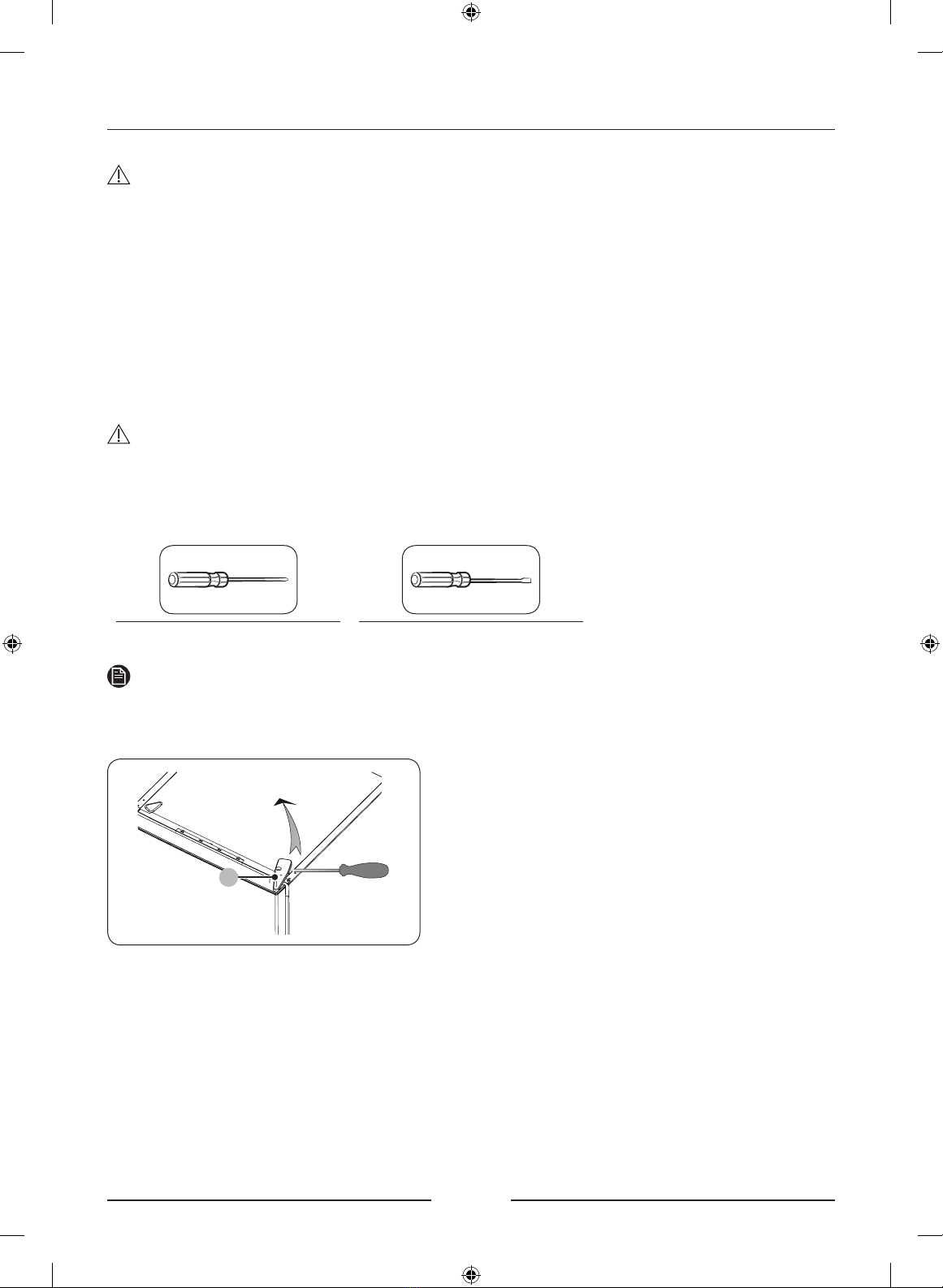

To detach the handles

1. Use a Flat-head screwdriver to remove

handle hinge covers

2. Removing two screws by Phillips

screwdriver disassemble the handle.

CAUTION

•Be careful not to scratch.

•When disassembling, make sure the unit

turned off if you want to assembly by

reverse order.

3. Assemble the new handle in the reverse

order of disassembly.

RB3000RM_User-servicing-manual_EN.indd 3 2021-02-09  5:03:12

English

Gasket replacement

CAUTION

Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

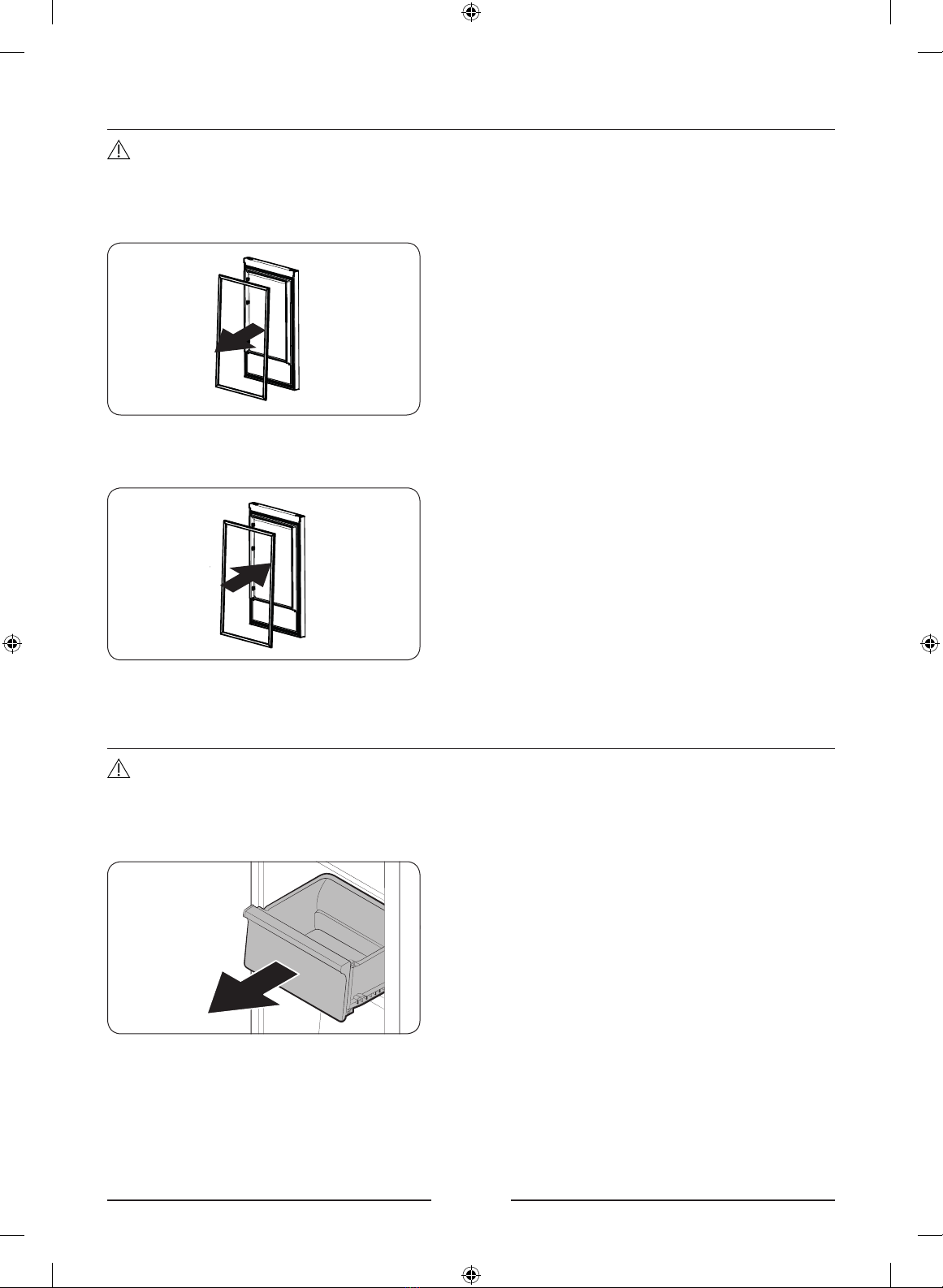

To remove the gasket

Open the door and remove the gasket from

the door.

To replace the gasket

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the new

gasket and the door.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the drawer

Gently lift up the front of the drawer and

slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

RB3000RM_User-servicing-manual_EN.indd 4 2021-02-09  5:03:12

English

Hinge replacement

To replace the hinges, you must remove the doors rst.

CAUTION

•When removing the doors, take extreme caution because the doors are heavy.

•Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the door when you place the doors down.

•As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call for professional technical service.

•If you remove the hinge without holding the door, the door may fall and cause injury.

•Ensure that the shaft is rmly tightened on the hinge.

•Check that the hinge is rmly attached to the cabinet.

•Make sure the wire connectors are connected properly.

•Be careful not to damage the wires when fastening the top cover.

WARNING

•Tilting/laying the refrigerator requires a minimum of 2 people.

•Disconnect the power cord before reversing the doors.

Tools required (not provided)

Phillips screwdriver Flat-head screwdriver

NOTE

For the models with handles, reverse the handles rst. (For detailed information, see the

“Reversing the door handle position (For models with bar handles)” section.)

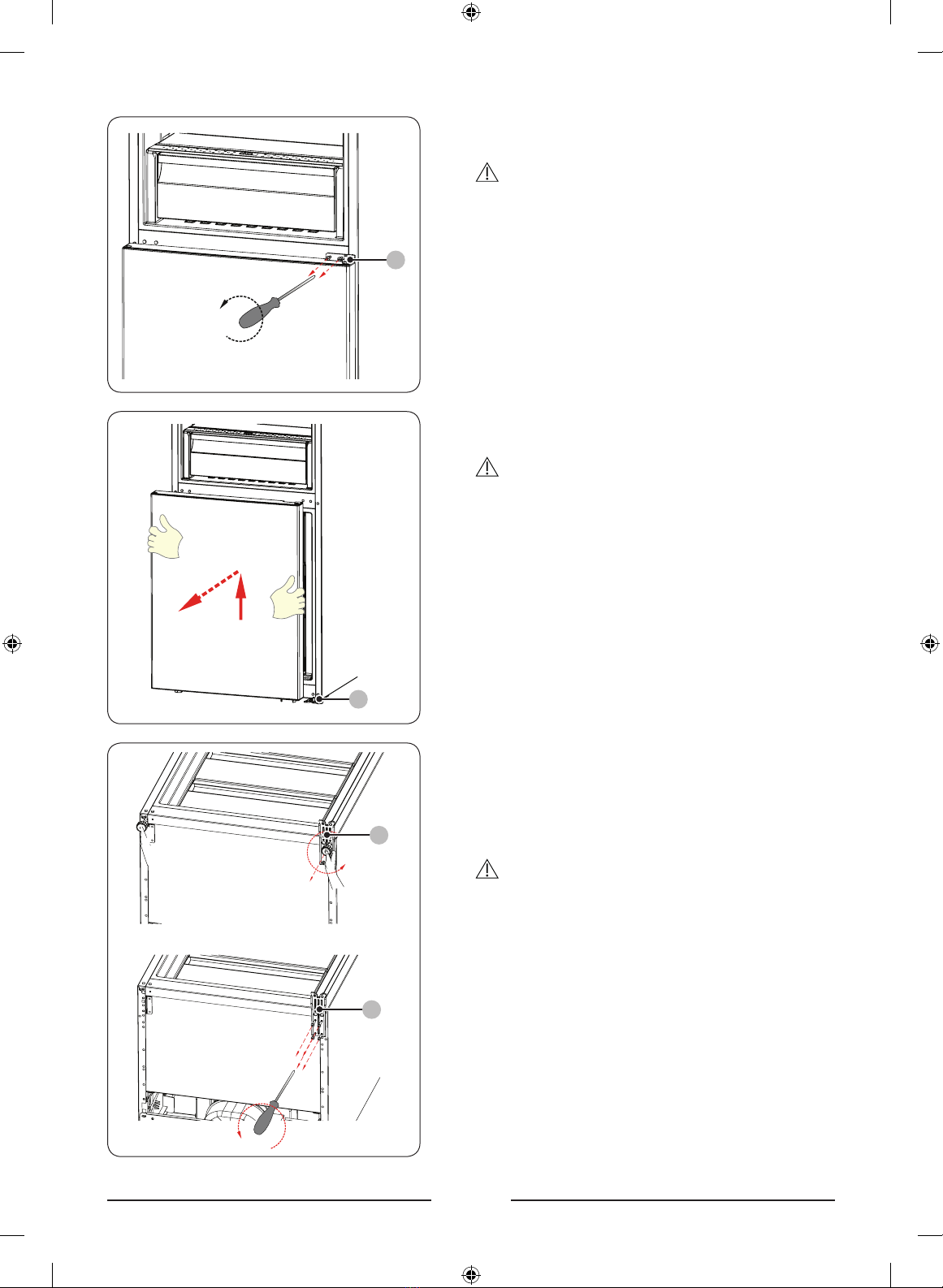

1. With the fridge door closed, use a Flat-

head screwdriver to remove top hinge

cover (A) and remove it toward that

direction. Gently lift the top hinge cover

(A) and place it on top of the refrigerator.

RB3000RM_User-servicing-manual_EN.indd 5 2021-02-09  5:03:12

English

Display on door

2. Disconnect the wire connector (A).

- This step may not apply to some

models.

3. Unscrew the screws xing the top hinge

(A) and remove it.

CAUTION

To prevent the fridge door from falling,

make sure to hold it tight while removing the

screws.

4. lift the fridge door to remove it from the

middle hinge (A). Keep the door in a safe

place.

CAUTION

The door is heavy. To prevent damage or

injury, use caution while removing the door.

RB3000RM_User-servicing-manual_EN.indd 6 2021-02-09  5:03:13

English

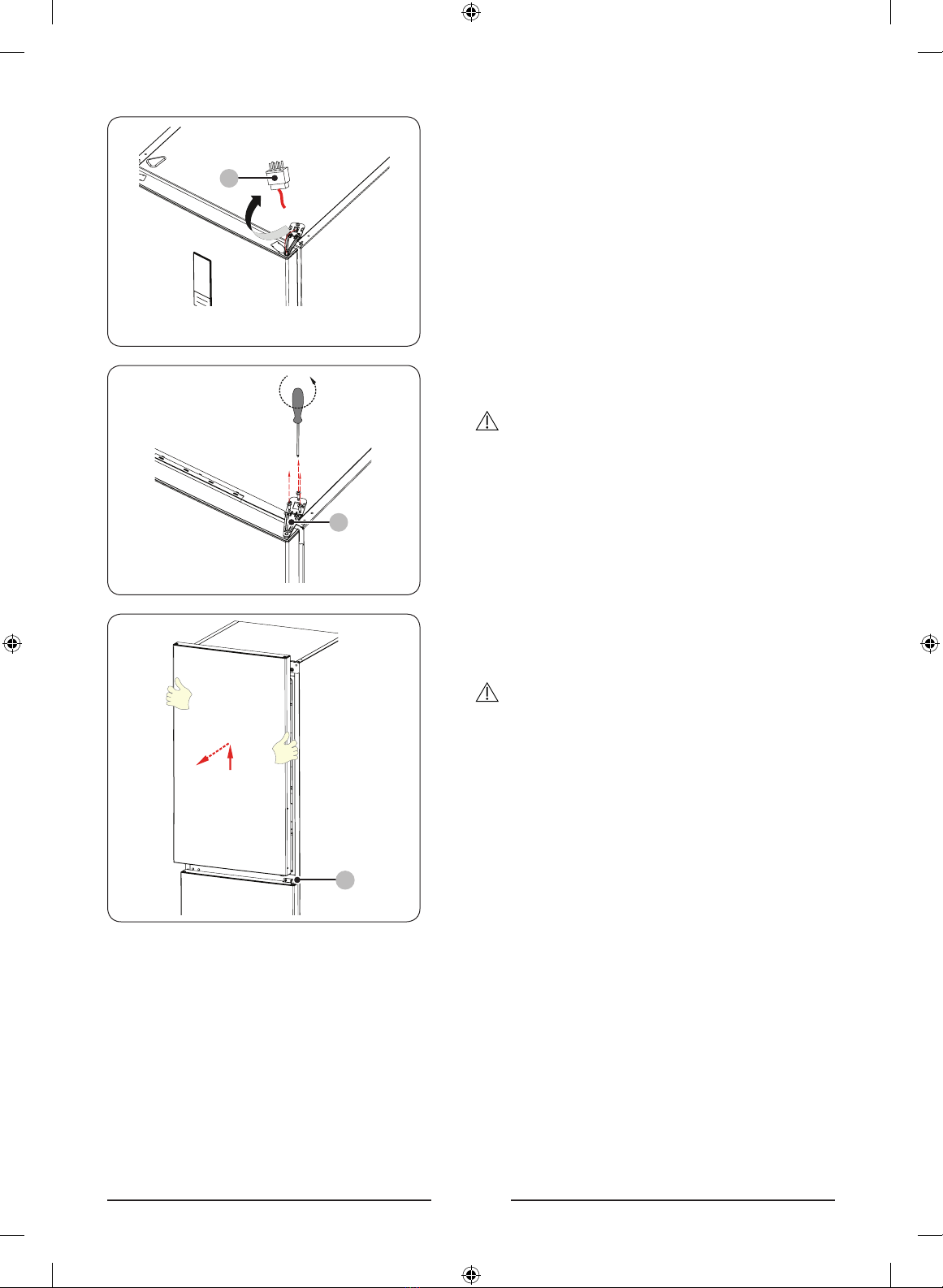

5. Use a Phillips screwdriver to remove the

screws fastening the middle hinge (A).

CAUTION

To prevent the freezer door from falling,

make sure to hold it tight while removing the

screws.

6. lift the door to remove it from the bottom

hinge (A). Keep the door in a safe place.

CAUTION

The door is heavy. To prevent damage or

injury, use caution while removing the door.

To prevent the freezer door from falling,

make sure to hold the freezer door tight until

it is safely removed from the bottom hinge

(A).

7. Use a Phillips screwdriver to remove the

screws fastening the bottom hinge (A).

8. Reassemble in the opposite order of

disassembly after replacing the top,

middle, and/or bottom hinge.

CAUTION

•Make sure the wire connectors are

connected properly.

•Be careful not to damage the wires when

fastening the top hinge cover.

RB3000RM_User-servicing-manual_EN.indd 7 2021-02-09  5:03:13

Türkçe

Kullanıcı servis kılavuzu

MODEL KODU: RB44TS134**, RB46TS334**, RB50RS334**, RB56TS754**

Cihaza ilişkin kurulum, bakım, onarım, temizlik bilgileri, cihazın yedek parçalarının listesi ve

yetkili servis aracılığıyla temin edilebilecek yedek parçaların siparişi için gerekli bilgilere

http://samsung.com/support adresinden veya 4447711 numaralı çağrı merkezinden

ulaşabilirsiniz.

2. Parça satın alma sitesini ziyaret edin ve satın almak için mevcut yedek parçaları

görmek için ürününüzün model kodunu girin. Model kodu ürününüzün dış tarafına

etiketlenmiştir.

- Model kodunu ve sürümü ürünün sol altında bulunan barkod etiketinde görebilirsiniz.

3. Yedek parçalar için parça adının bu kılavuzdaki çizimdekiyle eşleştiğinden emin olun.

- Kullanıcının bakımını yapabileceği parçalar kollar (yalnızca bazı modellerde), contalar,

çekmeceler ve menteşeler ile sınırlıdır.

NOT

Yetkisi olmayan bir servis sağlayıcının yaptığı onarım, kendi kendini onarım veya

ürünün profesyonel olmayan onarımı sonrasında, üründe meydana gelen hasarlardan,

yaralanmalardan veya bu onarım ve bakım talimatlarını dikkatli bir şekilde izlemeden

onarmaya çalışmaktan kaynaklanan ürünle ilgili diğer güvenlik sorunlarından Samsung

sorumlu değildir. Samsung yetkili servis sağlayıcısı haricinde birinin ürünü onarmaya

çalışmasından kaynaklanan üründeki hasarlar garanti kapsamına alınmaz.

DİKKAT

• Sitede listelenen parça adı bu kılavuzdakinden farklı olabilir. Lütfen doğru parça adını

seçtiğinizden emin olun.

• Kapıyı çıkarmak gerektiğinden menteşeleri değiştirme aşırı dikkat gerektirir.

• Onarım yaparken güvenlik eldiveni taktığınızdan emin olun.

RB3000RM_User-servicing-manual_TR.indd 1 2021-02-09  5:03:15

Türkçe

Buzdolabının gerçek görüntüsü ve sağlanan parçalar modele ve ülkeye bağlı olarak

değişebilir.

01Üst menteşe 02Conta

03Çekmece 04Orta menteşe

05Alt menteşe 06Barkod etiketi

RB3000RM_User-servicing-manual_TR.indd 2 2021-02-09  5:03:16

Türkçe

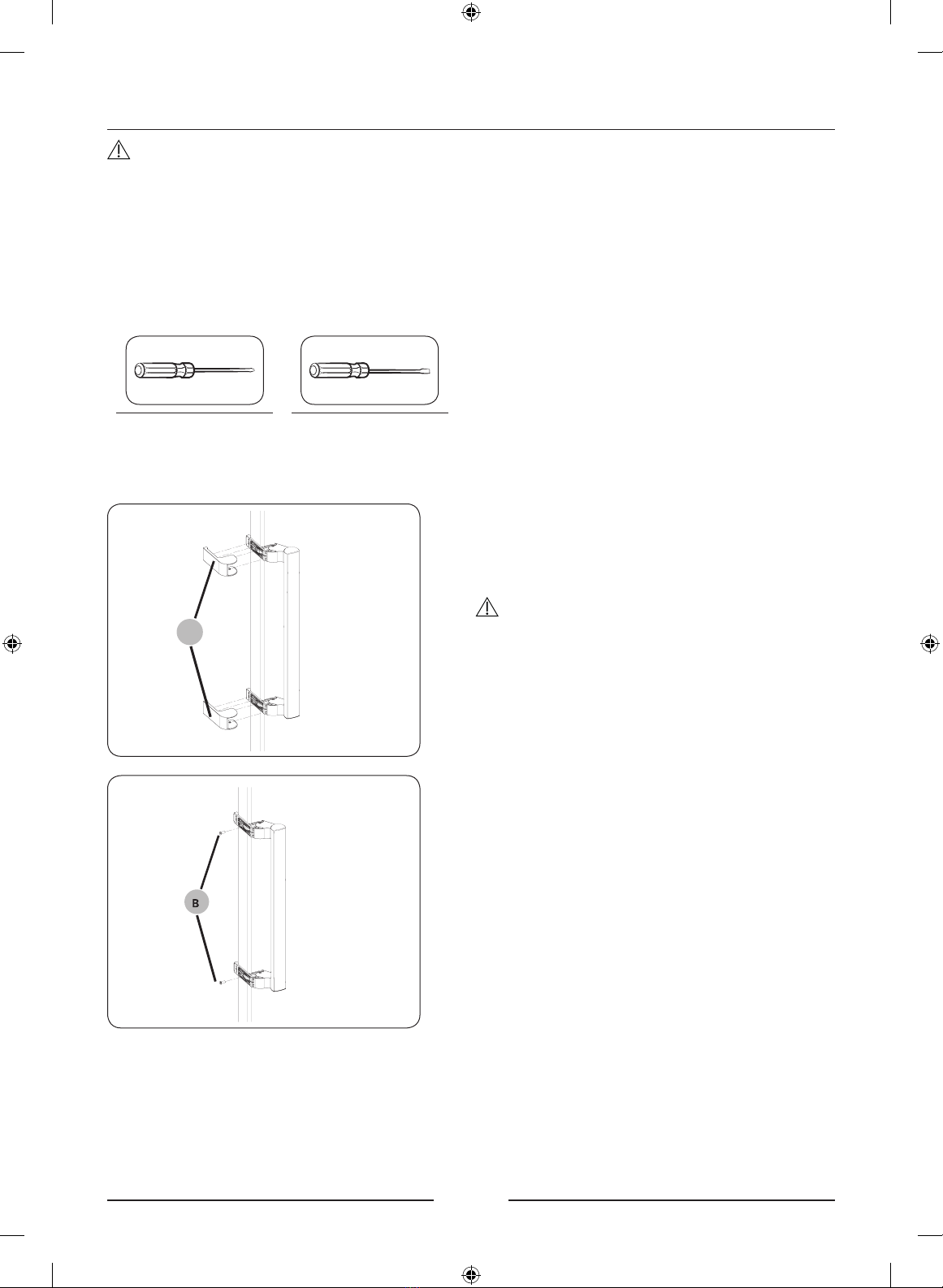

Kol değiştirme

DİKKAT

• Kapı kolunu değiştirirken kapının önünü çizmemeye dikkat edin.

• Sıkıca desteklerdeki kollara basın. Destekler ve kapı arasında hiç boşluk olmadığından

emin olun.

• Kolu takarken vidaları iyice sıkın.

• Ürünü kullanmadan önce kolun iyice takıldığını kontrol edin.

Gerekli aletler (sağlanmaz)

Yıldız tornavida Düz tornavida

Kolları çıkarmak için

1. Kol menteşesi kapaklarını çıkarmak için

düz tornavida kullanın

2. Yıldız tornavida ile iki vidayı çıkararak

kolu sökün.

DİKKAT

• Çizmemeye dikkat edin.

• Sökerken ünitenin kapalı olduğundan

emin olun; birleştirmek istiyorsanız aynı

adımları tersten uygulayın.

3. Yeni kolu sökme adımlarını tersinden

uygulayarak takın.

RB3000RM_User-servicing-manual_TR.indd 3 2021-02-09  5:03:16
