Samsung WA86C Manuel utilisateur

- 1 -

Contents

Interactive Display

User Manual

WA65C WA75C WA86C

Samsung owns the copyright for this manual. Use or reproduction of this manual in

parts or entirety without the authorization of Samsung is prohibited. Trademarks other

than Samsung are property of their respective owners.

The color and the appearance may differ depending on the product, and the content

in the manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day of this product is under 16 hours. If the product

is used for longer than 16 hours a day, the warranty may be void.

- 2 -

I. Introduction

1. Product Information

1.1 Connectivity

1.2 Hardware Specification

1.3 Product Layout

2. Product Installation

3. Wall mount kit specifications (VESA)

4. Remote Control

5. Key SW Features

II. Android OS and S/W Guide

1. Getting Started (OOBE)

2. Home Screen and Widget

2.1 Widgets

2.2 System bar

3. User Account

3.1 User Log-in

3.2 User profile

3.3 Account authorize

3.4 Data Backup to Cloud Drive

3.5 Account Management Server

4. Default Apps

4.1 Note

4.2 Palette

4.3 Visualizer

4.4 Screen Share

4.5 Finder

4.6 Cloud Drive

4.7 Photo

4.8 Music

4.9 Video

5. More tools

5.1 Tool list

5.2 Tools Customize

5.3 OSD Menu

6. System Settings

6.1 Wireless & Network

6.2 Personal

6.3 Input & Output

6.4 Application

6.5 System

6.6 Administrator

6.7 About

III. Reference

1. F&Q

2. Supported Video Codec

- 3 -

I. Introduction

SAMSUNG Interactive Display that provides an engaging educational experience for

the classroom of the future. As an Android OS-based product, it offers a familiar and

intuitive user experience for teachers and students. Teachers can engage students and

boost learning thanks to the display’s excellent compatibility with Android devices and

intelligent apps that can be added to the custom home screen bar for convenience.

Content can be shared back and forth between the large display and individual Android

devices for an interactive lesson that ensures every student is included.

1. Product Information

1.1 Connectivity

Part

Description

Speaker

Speaker output (12W x 2)

The pen is magnetic. Keep it by attaching to the marked location.

Power button &

indicator

Press the button to turn on the product and press and hold the button to turn

off the product.

The power indicator is off when the product is on.

The power indicator is on when the product is off.

Power

Indicator

Light sensor

Speaker

- 4 -

In writing mode, shortly press the Power button to switch to the screen saver

mode.

In case the PIP screen is in Full Screen mode, press the Power button to display

the adjustment menu. Press again to hide.

Light sensor

The light sensor is used to detect ambient light for the Brightness Optimization

function.

• You can turn on or off the Brightness Optimization function at

[Menu]→[Settings]→[System]→[Advanced Settings]→[Brightness Optimization]

You can connect a device using a USB-C cable.

• USB-C connection allows video output and touch-based control of the device.

You must use a USB-C cable that supports video transmission. Use a cable

that supports DP ALT Mode (Video transmission).

Use a USB-C cable that is 1 m or shorter in length.

Charging is also supported up to 65 W. Charging with USB-C cable is only

available when the product is on.

An HDMI port for displaying input from an external source.

Allows touch-based control of the PC screen connected through the HDMI port.

Use the supplied USB cable to connect between the TOUCH port on the rear of

the product and the PC.

Connect to a USB memory device.

The USB ports on the product accept a maximum constant current of 1.0 A. If

the maximum value is exceeded, USB ports may not work.

Serial interface, used for mutual transfer of data between devices.

Connects to a network using a LAN cable. (1000 Mbps)

Below port: Connect RJ45 output terminal

Above port: Connect RJ45 input terminal

Allows touch-based control of the PC screen connected through the HDMI port.

Use the supplied USB cable to connect between the TOUCH port on the rear of

the product and the PC.

Connects to a source device using a HDMI cable.

Connects to a sink device using a HDMI cable.

Used for updating OS Firmware

Carry multichannel sound via optical signals.

Audio output to the external speaker.

Microphone audio input.

VGA input port.

1.2 Hardware Specification

Item

WA65C

WA75C

WA86C

Panel

Diagonal Size

65"

75"

86”

Type

Direct, 60Hz

- 5 -

Resolution

3,840 x 2,160 (Landscape)

Brightness(Typ.)

400cd/m2

Contrast Ratio(Typ.)

1,200:1

Viewing Angle(H/V)

178:178

Response Time(G-to-G)

8ms

Feature

Orientation

Landscape

Internal

Player

(Embedded

H/W)

Processor

A55 X 4

RAM

4GB

8GB

Storage

32GB

64GB

Operating

System

Android 11 (AOSP)

Sound

Speaker Type

Built-in Speaker (12W X 2CH)

Connectivity

INPUT

RGB

VIDEO

HDMI 3(Rear 2, Front 1), USB C(Front), OPS

AUDIO

1(Stereo Mini Jack)

USB

5 (2.0 X1, 3.0X4)

OUTPUT

VIDEO

HDMI Out (Rear)

AUDIO

1(Stereo Mini Jack)

Touch Out

Front 1, Rear 1

INTERNAL

SENSOR

Eco Sensor

EXTERNAL

CONTROL

RS232C In/Out, RJ45 In/Out

BT/WiFi

Yes (Keyboard/Mouse)

Touch

Type

# of Touch

40 points

Touch Pen Type

Passive Pen

Object Recognition Range

5mm/10mm/15mm

Touch Response Time

≤10ms

Drawing Speed

(Touch latency)

≤45ms

Haze

25%

Thickness

3.2T

Power

Type

Internal

Power Supply

AC100-240V 50/60Hz

Power

Consumption

[W/h]

Max

385W

Typical

200W

Rating

350W

400W

Stand-by

0.5

BTU

1313

Mechanical

Dimension

(WxHxD)

Set (mm)

1488×897×88

1709×1020×88

Package

1628×1024×208

1863×1140×225

Weight (kg)

Set

33.9kg

45.5kg

Package

42.9kg

57.6kg

Color

Space Gray

VESA Mount

600 X 400

800 X 400

800 X 600

Protection Glass

Yes

Stand Type

Wall Mount

Media Player Option Type

OPS Slot support

Rotation

Landscape only

Power Cable Length

Accessory

Powe Cord, Remote Controller, HDMI Cable, Touch

Pen(2ea, Black), USB Cable, Warranty/QSG

Operation

Operation Hour

16/7

Operating Temperature

0℃~40℃

TBU

- 6 -

Humidity

10~80%

Security

802.1x(WPA2 Enterprise)

: EAP-TLS, EAP-TTLS, EAP-PEAP

1.3 Product Layout

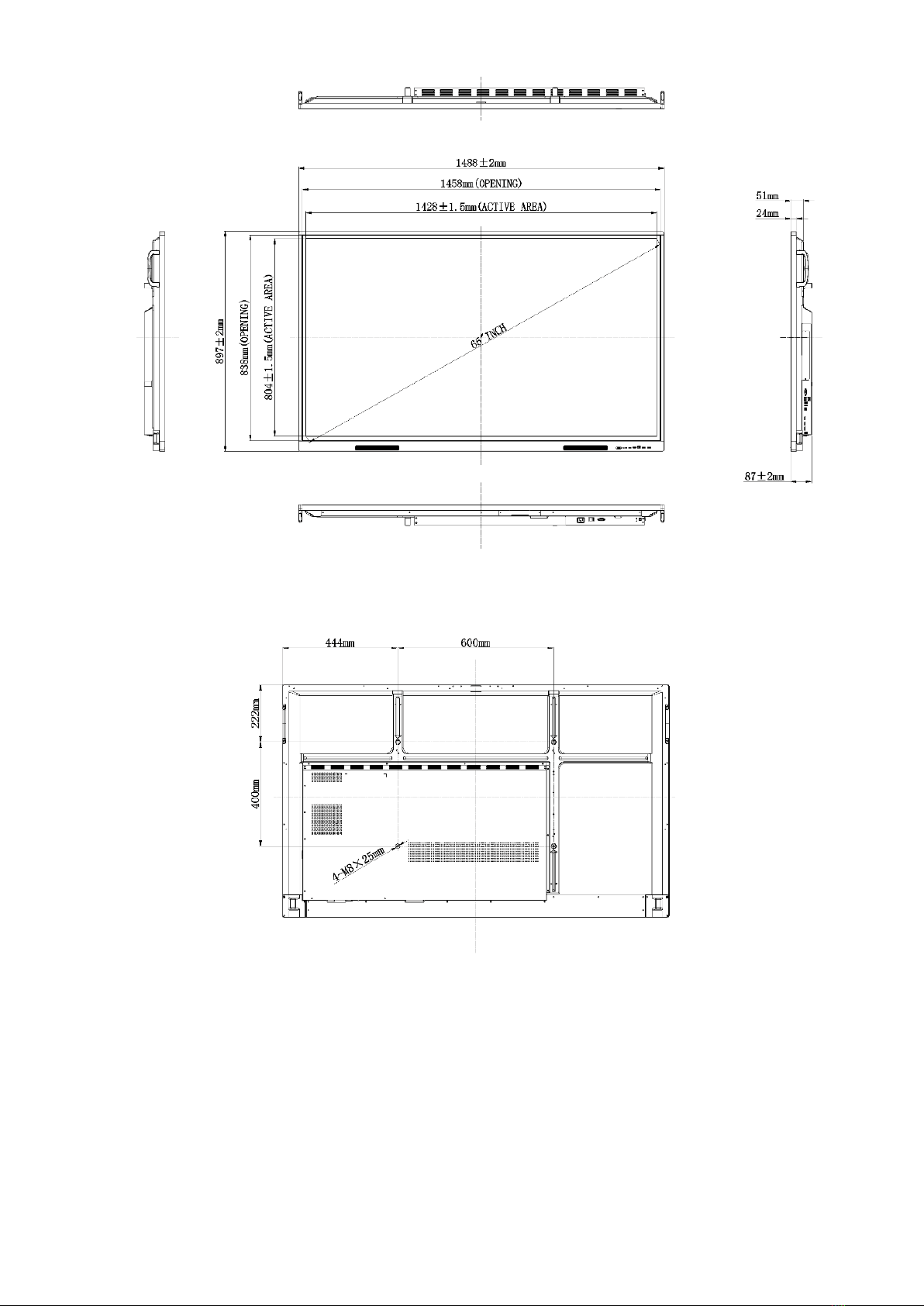

1.3.1 Mechanical layout : WA65C

1.3.1.1 Front, Top, Left & Right

- 7 -

1.3.1.2 Rear

1.3.2 Mechanical layout : WA75C

1.3.2.1 Front, Top, Left & Right

- 8 -

1.3.2.2 Rear

2. Product Installation

- 9 -

Part

Description

OPS Slot

It provides an OPS slot to allow a customer to mount a device for

additional computing (windows, android, etc.) if desired. OPS

module is a separate sale.

Be sure that the device must be powered off before you plug-in

OPS module

OPS stands for Open Pluggable Specification.

OPS cover needs to be removed before installing.

OPS power supply: 16V/4.5 A

Wi-Fi Slot&Module

(SI07B)

The Wi-Fi module only works when it is properly inserted into the

designated slot in the product.

Step ①: Remove Wi-Fi slot’s cover.

Step ②: Fully insert the Wi-Fi module into the slot.

Warning: The device must be powered off while installing.

3. Wall mount kit specifications (VESA)

Samsung wall mount kits contain a detailed installation manual and all parts

necessary for assembly are provided.

Do not use screws that are longer than the standard length or do not comply with the

VESA standard screw specifications.

Screws that are too long may cause damage to the inside of the product. For wall

mounts that do not comply with the VESA standard screw specifications, the length of the

screws may differ depending on the wall mount specifications.

Do not fasten the screws too firmly. This may damage the product or cause the product

to fall, leading to personal injury.

①

②

Wi-Fi

- 10 -

Samsung is not liable for these kinds of accidents. Samsung is not liable for product

damage or personal injury when a non-VESA or non-specified wall mount is used or the

consumer fails to follow the product installation instructions.

Always have at least two people mount the product on a wall. Standard dimensions

for wall mount kits are shown in the table below.

Model

VESA screw hole specs (AxB) in

millimeters

C (mm)

Standard

screw

Qty.

WA65C

600 x 400

28.3 - 30.3

WA75C

800 x 400

28.3 - 30.3

WA86C

800 x 600

28.3 - 30.3

Do not install your Wall Mount Kit while your product is turned on. It may result

in personal injury due to electric shock.

Install your wall mount on a solid wall perpendicular to the floor. To install the

product on the other wall area, contact the nearest agency. If you install the

product on a slanted wall, it may fall and result in severe personal injury.

4. Remote Control

If there is other display device used in the same space as the remote control of this

product, the different display device may be unintentionally controlled.

Buttons that are not described in the image below are not supported by the product.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Moniteur

Samsung

Samsung SyncMaster S23A550H Guide de l'utilisateur

Samsung

Samsung DP17L Series Manuel utilisateur

Samsung

Samsung Odyssey G9 Series Manuel utilisateur

Samsung

Samsung OMD-W Series Manuel utilisateur

Samsung

Samsung S27E330H Manuel utilisateur

Samsung

Samsung SyncMaster 730MP Manuel utilisateur

Samsung

Samsung 320MP-2 - SyncMaster - 32" LCD Flat Panel... Manuel utilisateur

Samsung

Samsung SyncMaster 320PX Manuel utilisateur

Samsung

Samsung PS42PNSB Manuel utilisateur

Samsung

Samsung S27C750P Guide de l'utilisateur

Samsung

Samsung Flip WM85A-W Manuel utilisateur

Samsung

Samsung SyncMaster 152 B Manuel utilisateur

Samsung

Samsung 214T - SyncMaster - 21.3" LCD Monitor Manuel utilisateur

Samsung

Samsung SyncMaster P42HP Manuel utilisateur

Samsung

Samsung PM49F Manuel utilisateur

Samsung

Samsung SyncMaster S19A200NW Manuel utilisateur

Samsung

Samsung SyncMaster 540B Manuel utilisateur

Samsung

Samsung C JG5 Series Manuel utilisateur

Samsung

Samsung C24F392FH series Manuel utilisateur

Samsung

Samsung 320MXn-2 - SyncMaster - 32" LCD Flat Panel... Manuel utilisateur

Samsung

Samsung SyncMaster BX2035 Manuel utilisateur

Samsung

Samsung SyncMaster 220TN Manuel utilisateur

Samsung

Samsung SyncMaster P2770HD Manuel utilisateur

Samsung

Samsung SyncMaster TA950 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
