Samsung T200HD - SyncMaster - 20" LCD Monitor Manuel utilisateur
ii
LCD MONITOR
quick start guide
T200MD/T220MD
Introduction

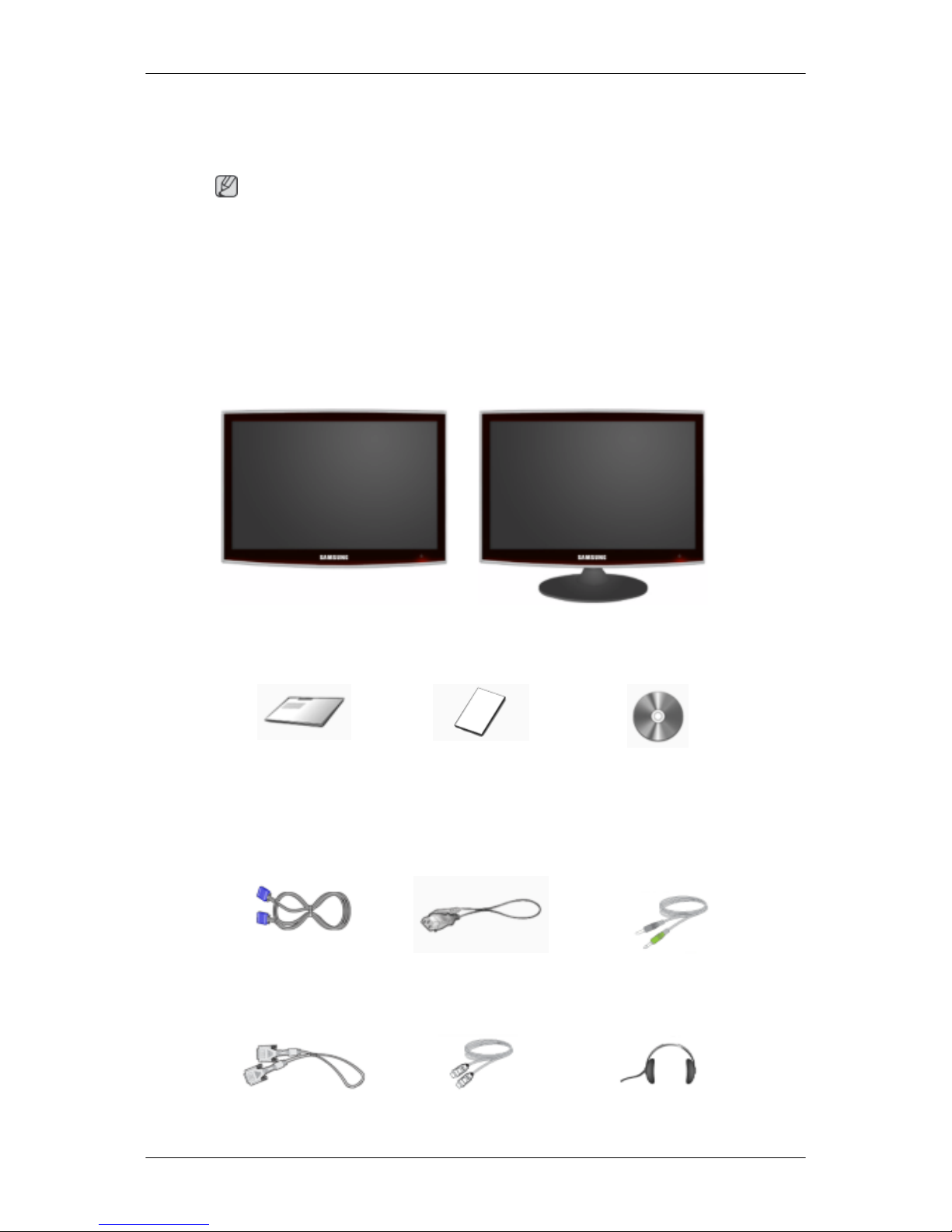

Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without stand With stand
Monitor Monitor
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide

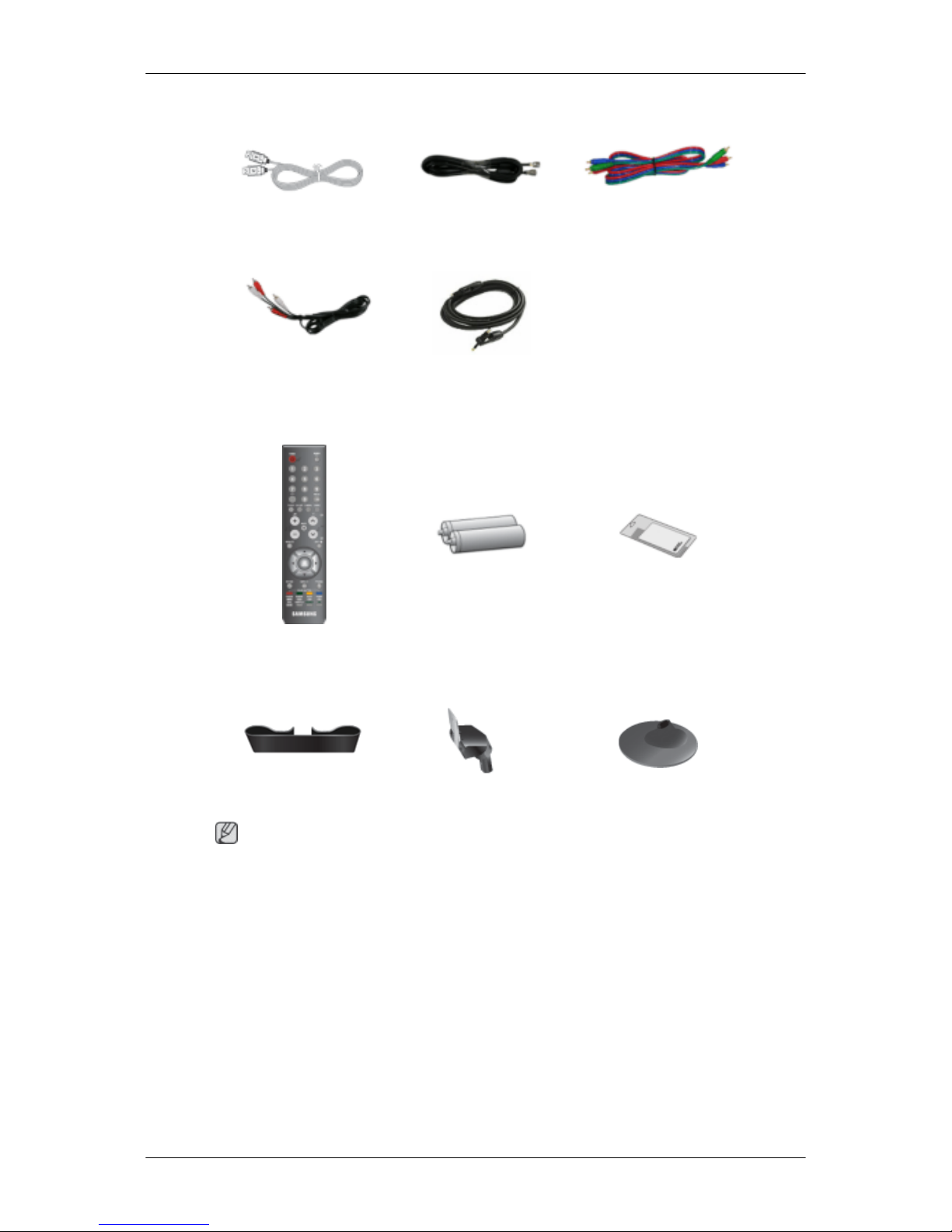

Cables
D-Sub Cable Power Cord
Sold separately
DVI Cable HDMI Cable Headphones
Stereo Cable
Sold separately
TV Antenna Cable
(Coaxial Cable)
Component(PR, PB, Y) Cable
Audio cable Digital audio optic output ca-
ble
Others
Remote Control
BN59-00624A
Batteries (AAA X 2)
(Not available in all loca-
tions)
Cleaning Cloth
Cable holding ring Stand Body Stand Base
Note
Cleaning Cloth is only provided for highly polished black products as a product feature.
Introduction
USB Cable
Your Monitor

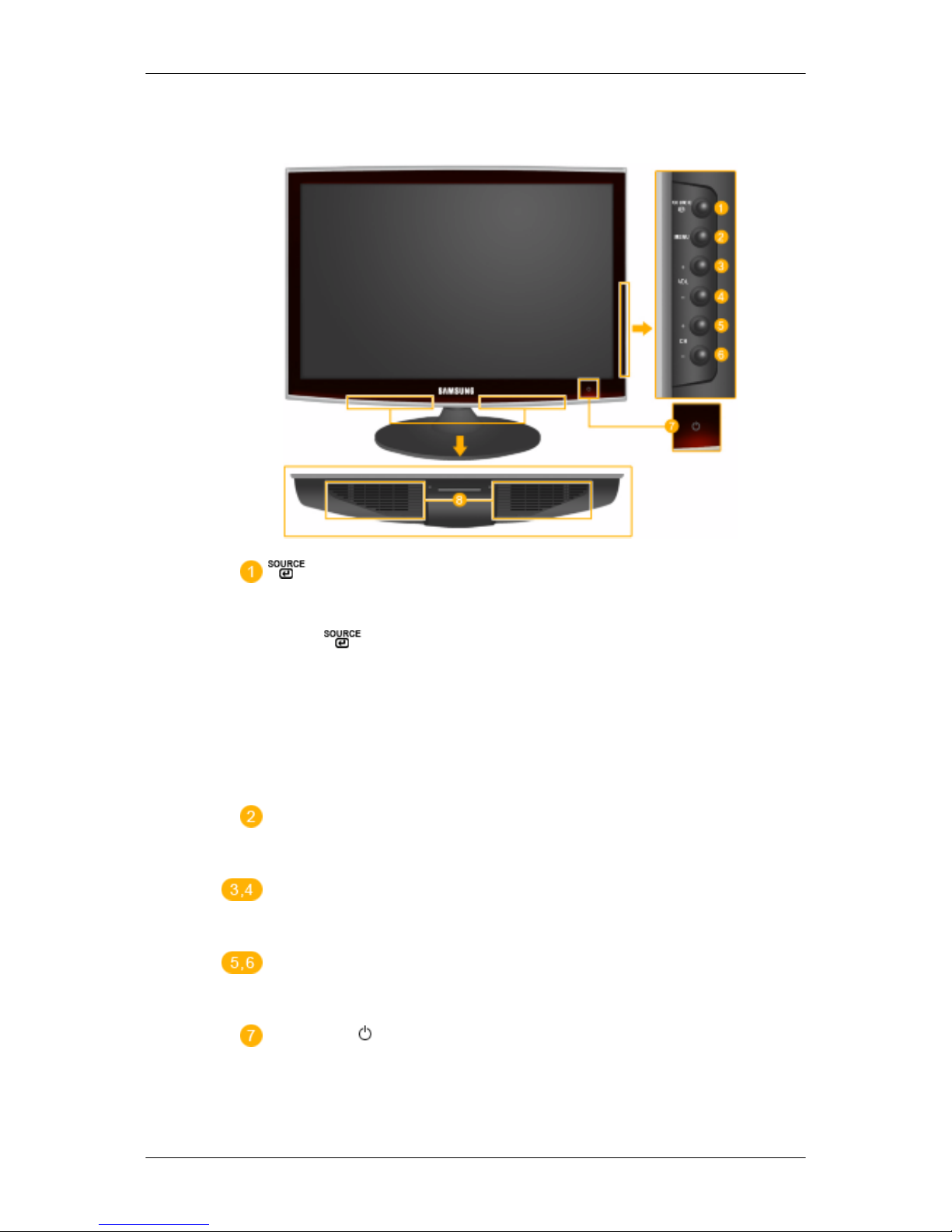

Front
Activates a highlighted menu item.
Push the ' ', button to change the input signal source.
Changing the source is only allowed for external devices connected to the product
at the time.
To switch Screen modes:
[PC] →[Ext.] → [DVI] → [TV] → [Component] → [HDMI1] → [HDMI2]
>> Click here to see an animation clip
MENU
Use this button to open the on-screen menu and to exit from the on-screen menu
or to close the screen adjustment menu.
- VOL+
Moves from one menu item to another horizontally or adjusts selected menu val-
ues. Adjusts the audio volume.
- CH +
Moves from one menu item to another vertically or adjusts selected menu values.
In TV/DTV mode, selects TV/DTV channels.
Power button [ ]
Use this button for turning the product on and off.
Introduction
Note
The button to the right of the monitor are touch-sensitive buttons.
Touch a button lightly with your finger.
Power indicator
This light is lit when operating normally, and blinks once when your adjustments
are saved.
Note
See PowerSaver described in the manual for further information regarding power
saving functions. For energy conservation, turn your monitor OFF when it is not
needed or when leaving it unattended for long periods.
Speaker

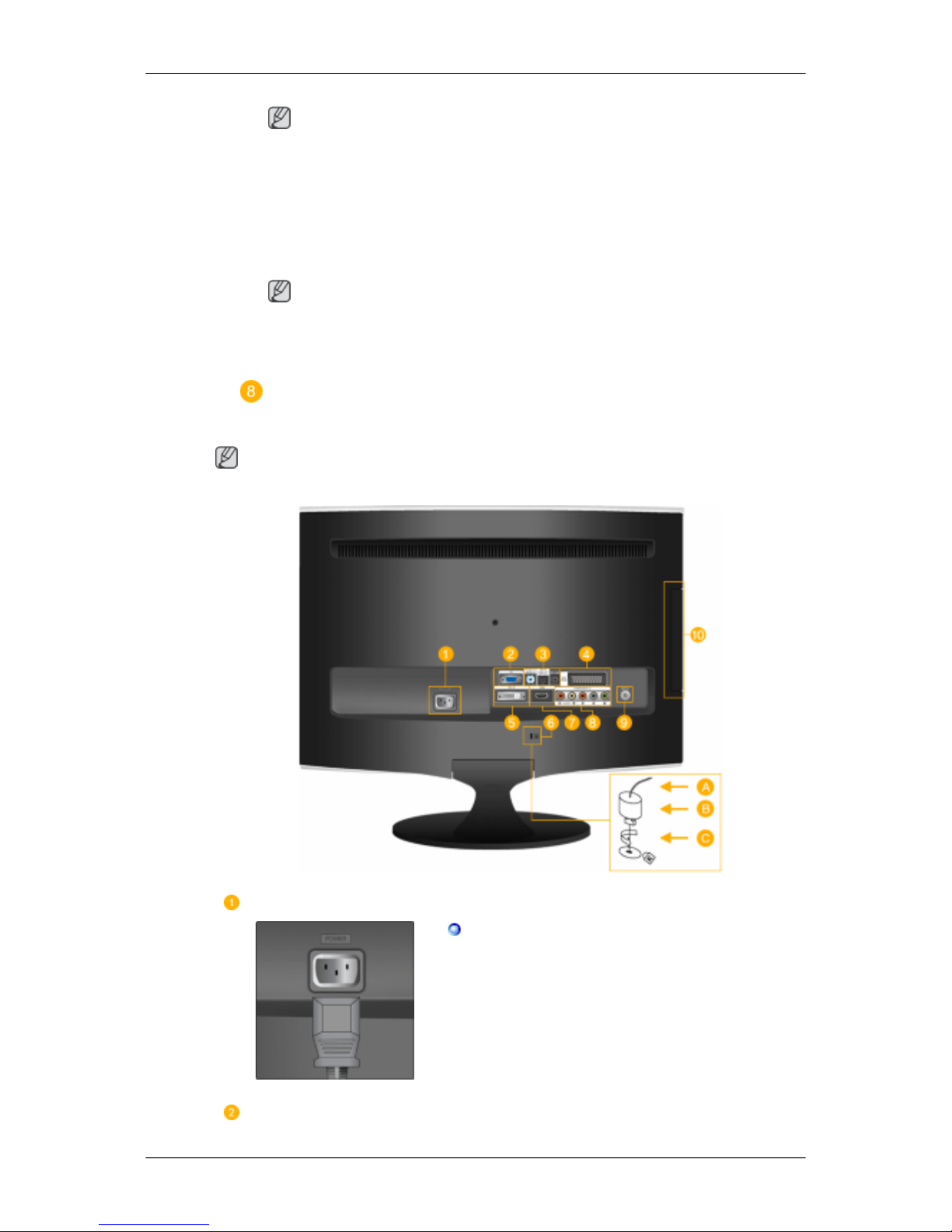

Rear
Note
The configuration at the back of the product may vary from product to product.
POWER
POWER
Connect the power cord for your monitor to the
POWER port on the back of the product.
PC
Introduction

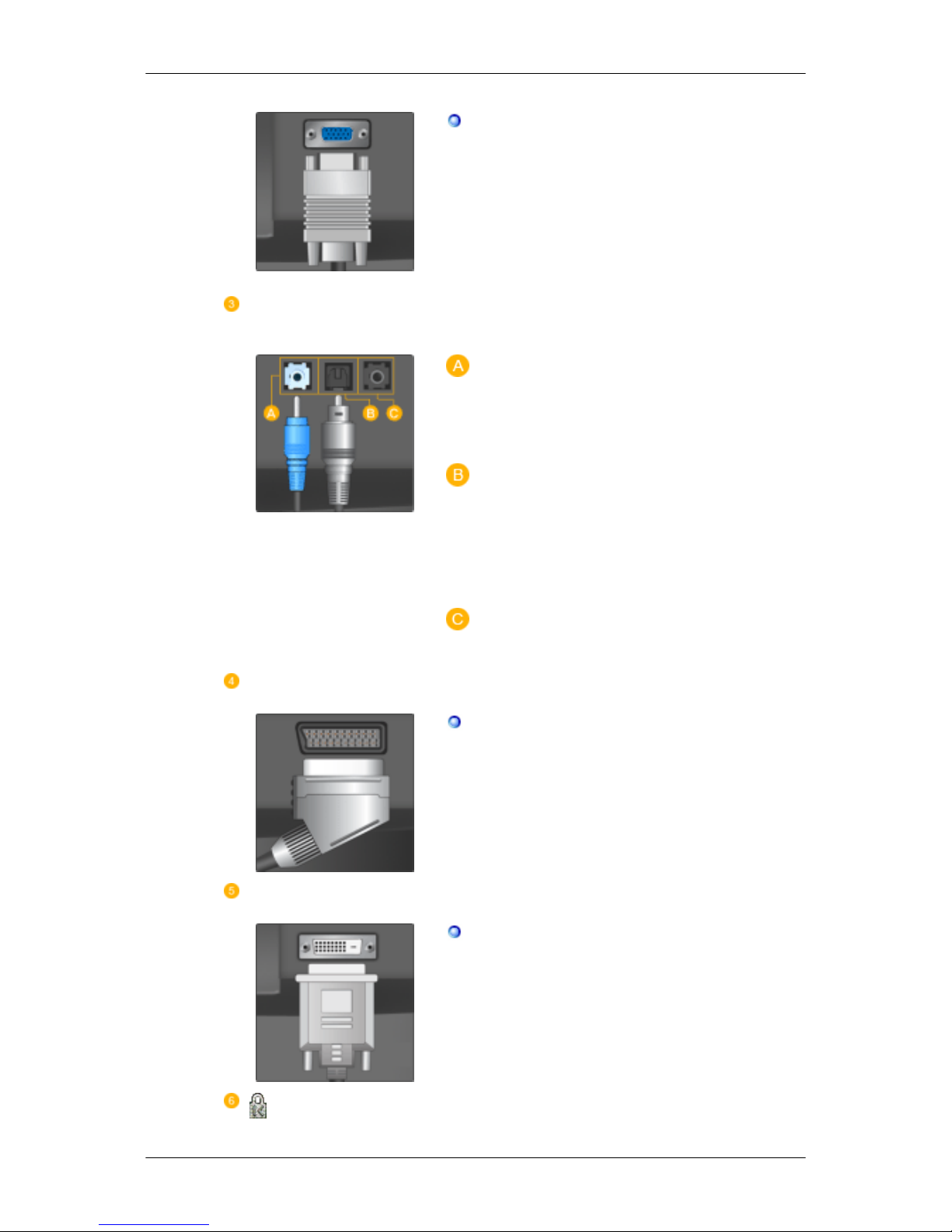

PC
Connect the PC terminal at the back of your
monitor to your computer.
HDMI/PC/DVI-D AUDIO
IN / DIGITAL AUDIO OUT
(OPTICAL) / EX-LINK
HDMI/PC/DVI-D AUDIO IN
Connect the [ HDMI/PC/DVI-D AUDIO IN ] ter-
minal at the back of your product to your com-
puter’s sound card.
DIGITAL AUDIO OUT(OPTICAL)
Connect the [DIGITAL AUDIO OUT(OPTI-
CAL)] terminal of your product to the digital
sound output or standard sound output terminal
of the DVD home theater (or amplifier) using a
digital audio optical output cable.
EX-LINK
This is a reserved terminal used for servicing.
EXT(RGB)
Connect the EXT(RGB) port of the monitor to
the DVD Player using a SCART jack.
As for EXT(RGB) port of the monitor, it makes
TV or Video signal input and output.
DVI-D
DVI-D
Connect the DVI cable to the DVI-D port on the
back of your product.
Kensington Lock
Introduction
The Kensington Lock is a device used to phys-
ically fix the system when using it in a public
place. The locking device has to be purchased
separately. The appearance and locking method
may differ from the illustration depending on the
manufacturer. Refer to the manual provided with
the Kensington Lock for proper use. The locking
device has to be purchased separately.
Note
The location of the Kensington Lock may be dif-
ferent depending on its model.

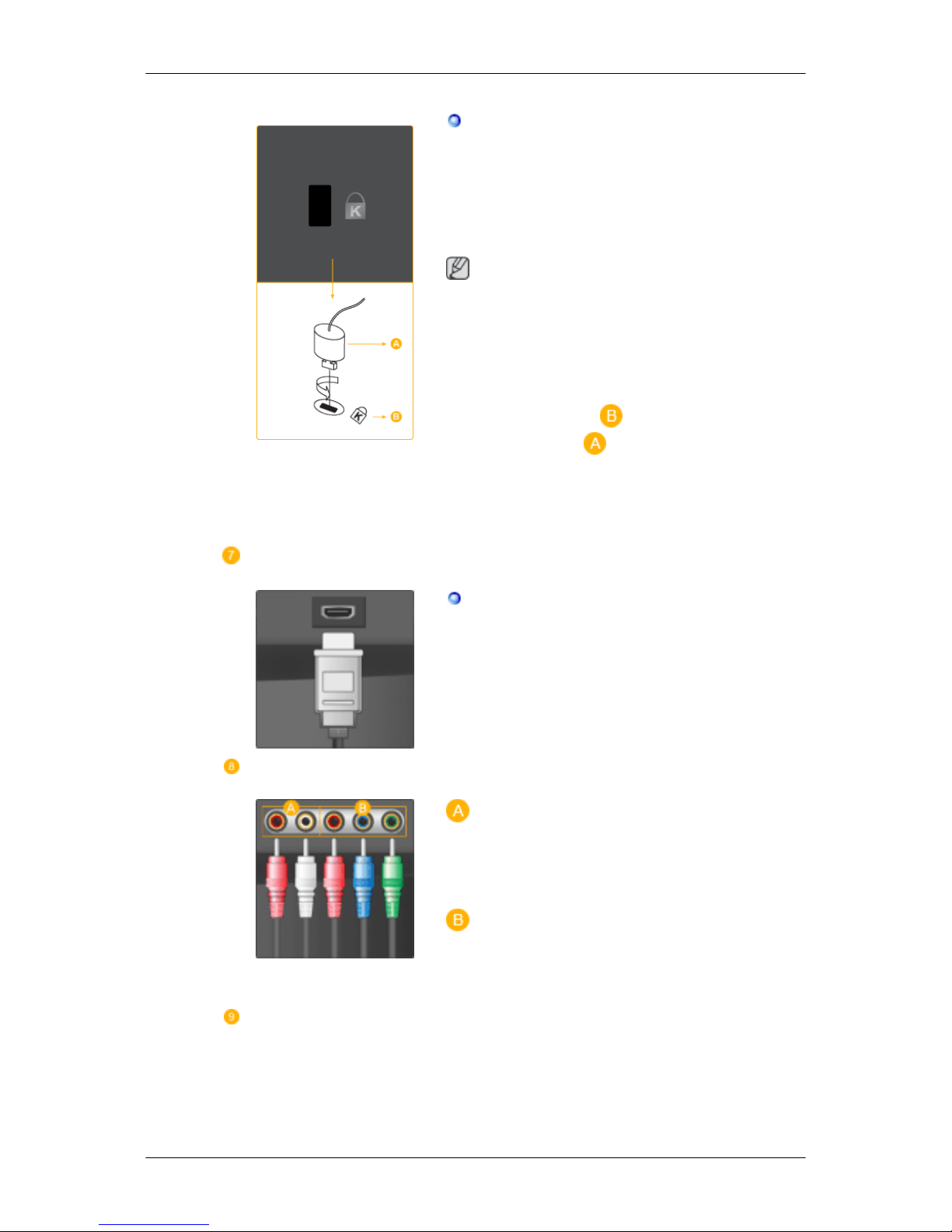

Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington
slot on the Monitor ( ) and turn it in the
locking direction ( ).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy
stationary object.
HDMI IN 1
HDMI IN 1
Connect the [HDMI IN 1] terminal at the back of
your monitor to the HDMI terminal of your digital
output device using a HDMI cable.
COMPONENT IN
R - AUDIO - L
Connect the port of the DVD, VCR (DVD / DTV
Set-Top Box) to the [ R - AUDIO - L] port of the
product.
PR, PB,Y
Connect the VIDEO OUT port of the DVD / DTV
Set-Top Box to the [ PR, PB,Y ] input ports using
a component video cable ( PR, PB,Y ).

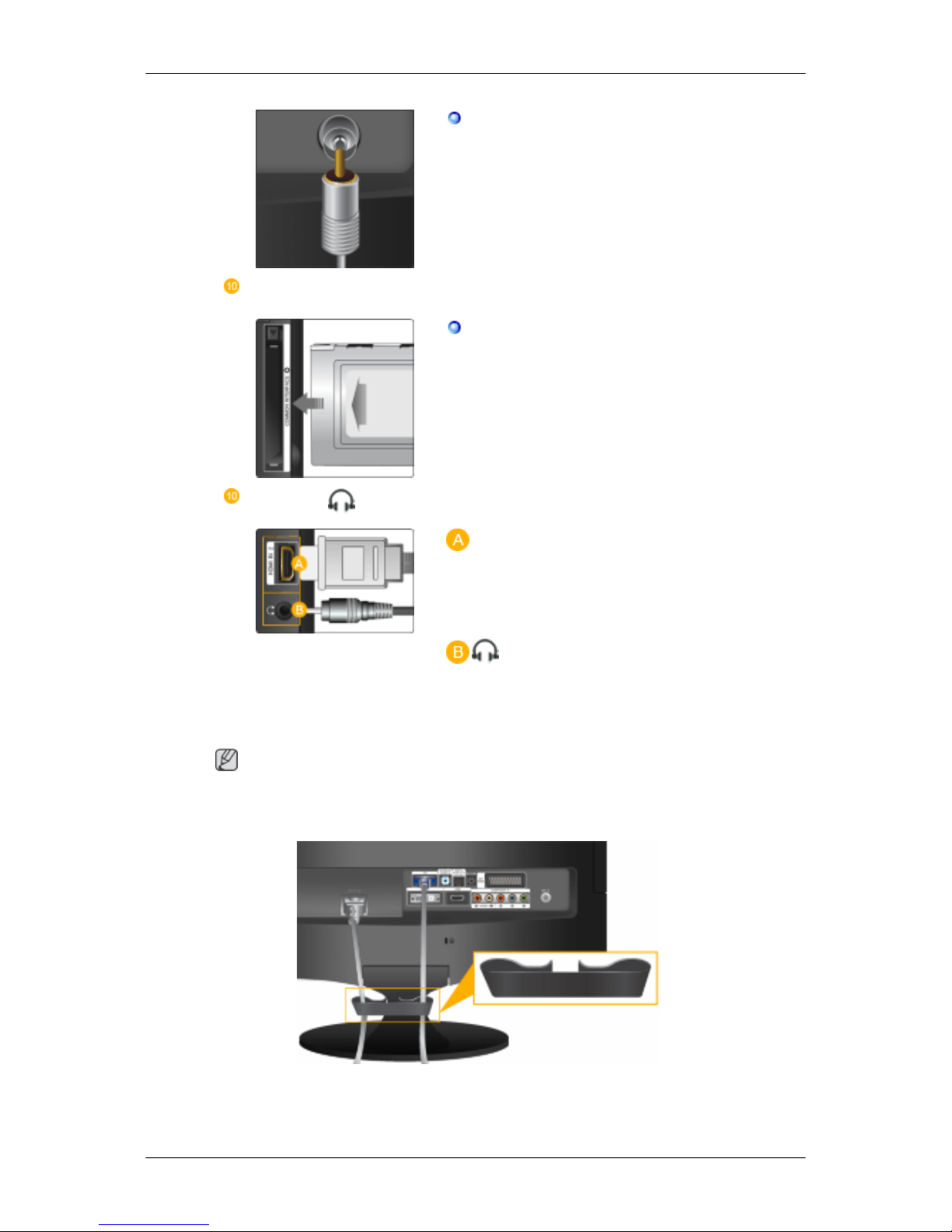

ANT IN
Introduction
Connect the CATV cable or TV antenna cable
to the "ANT IN" port on the rear side of the prod-
uct. Make sure to use a TV antenna cable (sold
separately) as the antenna cable.
COMMON INTERFACE
This contains information on CAM inserted in
the CI slot and displays it.
The Application Info inserting is about the CI
CARD.
You can install the CAM anytime whether the TV
is ON or OFF.
HDMI IN 2 /
HDMI IN 2
Connect the [HDMI IN 2] terminal at the back of
your product to the HDMI terminal of your digital
output device using a HDMI cable.
Connect your headphones to the Headphone con-
nection terminal.
Note
See Connecting Cables for further information regarding cable connections.
Cable holding ring
• Fix the cables using the holding ring, as shown in the figure.
Introduction

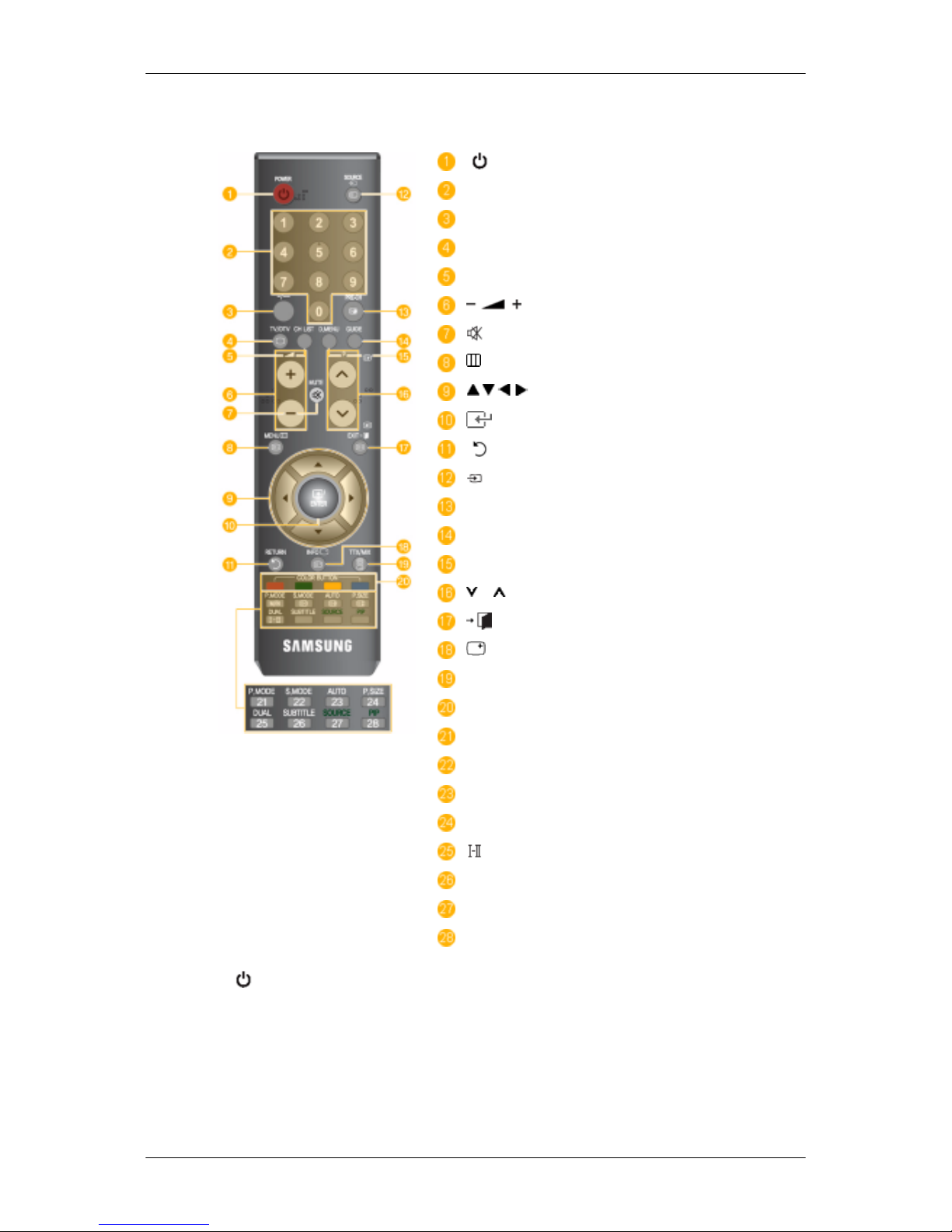

Remote Control
POWER
Number Button
-/--
TV/DTV
CH LIST
MUTE
MENU
Up-Down Left-Right buttons
ENTER
RETURN
SOURCE
PRE-CH
GUIDE
D.MENU
P
EXIT
INFO
TTX/MIX
COLOR BUTTON
P.MODE, M/B (MagicBright)
S.MODE
AUTO
P.SIZE
DUAL
SUBTITLE
SOURCE
PIP
1. POWER Turns the product On/Off.
2. Number button Press to change the channel.
3. -/-- (One/Two-Digit channel selection)
Use to select a channel numbered ten or over.
Press this button, and the "--" symbol is displayed.
Introduction
Enter the two-digit channel number.
4. TV/DTV Selects the TV and DTV mode directly.
5. CH LIST It display "Channel List" on the screen.
6. Adjusts the audio volume.
7. MUTE Adjusts the audio volume.
8. MENU Opens the on-screen menu and exits from the menu or closes the
adjustment menu.
9. Up-Down Left-
Right buttons
Moves from one menu item to another horizontally, vertically or
adjusts selected menu values.
10. ENTER Activates a highlighted menu item.
11. RETURN Returns to the previous menu.
12. SOURCE Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices that
are connected to the monitor at the time.
- You cannot watch TV or DTV using the SOURCE button
- You can only watch TV using the TV or DTV button.
13. PRE-CH This button is used to return to the immediately previous channel.
14. GUIDE Electronic Program Guide (EPG) display.
15. D.MENU DTV menu display
16. P In TV mode, selects TV channels.
17. EXIT Exits from the menu screen.
18. INFO Current picture information is displayed on the upper left corner
of the screen.
19. TTX/MIX TV channels provide written information services via teletext.
- Teletext Buttons
For more information > TTX / MIX
20. COLOR BUTTON Press to add or delete channels and to store channels to the favorite
channel list in the “Channel List” menu.
21. P.MODE, M/B (Magic-
Bright)
Press to select a pre-defined Picture Mode of the monitor or to
change the picture atmosphere as required.
When you press this button, current mode is displayed on the lower
center of the screen.
TV / DTV / Ext. / Component / HDMI: P.MODE
Introduction
