Samsung SyncMaster 700TSn-2 Manuel utilisateur

LCD DISPLAY

quick start guide

700TSn-2,820TSn-2

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

This stand is not for the Floor Standing Type.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide, MagicInfo

Software CD, MagicInfo

Manual CD

Cables

Power Cord

Others

Remote Control Batteries (AAA X 2) Ferrite Core for LAN cable

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Checking the Contents of the Package

Remove the lock from the package box, as shown in the figure above.

Lift up the package box by

holding the grooves on

both sides of the package

box.

Check the contents of the

package.

Remove the Styrofoam

and vinyl cover.

Note

• After unpacking the package, make sure to check the contents of the package.

• Make sure to keep the package box for transporting the product in the future.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

MagicInfo Software CD,

MagicInfo Manual CD

Cables

Power Cord D-Sub Cable

Others

Remote Control

(BP59-00138A)

Batteries (AAA X 2)

(Not available in all loca-

tions)

Sold separately

RGB to BNC Cable DVI Cable LAN Cable

Wall Mount KIT

Introduction

Your LCD Display

Front

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu

values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, press the button to adjust

volume.

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Selects the input source that an

external device is connected to.

[PC] →[DVI] →[AV] →[Component] →[HDMI] →[MagicInfo]

PIP button

Push the PIP button to turn the PIP screen On / Off.

•PC : DVI / AV / HDMI

•DVI / AV : PC

•Component : PC

•HDMI : PC

Power button [ ]

Introduction

Use this button for turning the LCD Display on and off.

Brightness Sensor (Optional)

Automatically detects the surrounding brightness it accordingly.

Note

This function is activated only on the models equipped with an auto bright-

ness sensor.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

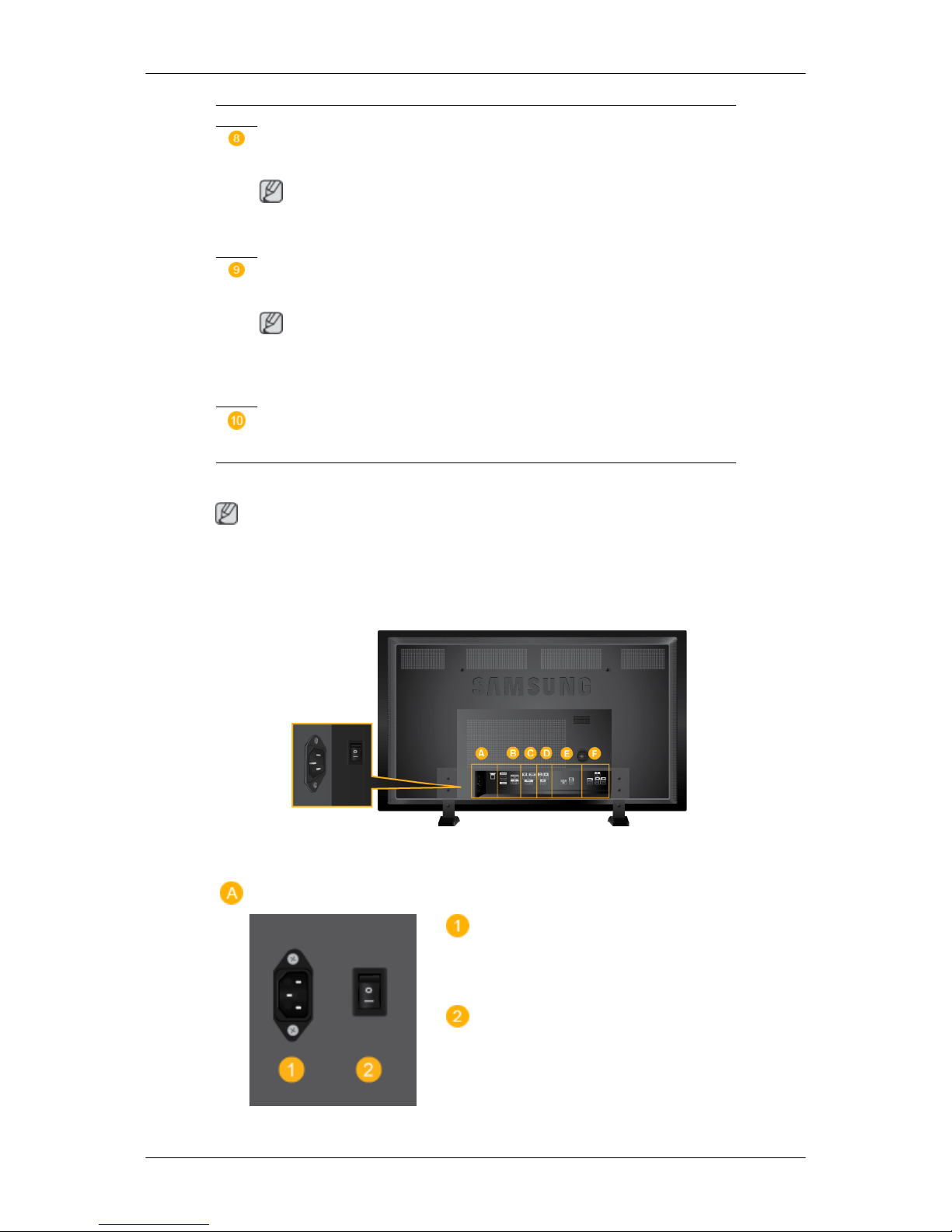

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display 's configuration at the back may vary slightly depending on the LCD

Display model.

POWER

The power cord plugs into the LCD Display

and the wall outlet.

POWER S/W ON [

│

] / OFF [O]

Switches the LCD Display On/Off.

Introduction

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

RGB/COMPONENT IN (PC Connection

Terminal (Input))

•Use a D-Sub Cable (15 pin D-Sub) - PC

mode (Analog PC)

• Connect the RGB/COMPONENT IN port

on the monitor to the COMPONENT port

on the external device using the D-SUB

to COMPONENT cable.

• Connect the RGB/COMPONENT IN port

on the monitor to the BNC port on the PC

using the D-SUB to BNC cable.

DVI IN (PC Video Connection Terminal)

Use a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

DVI / RGB / HDMI AUDIO IN (PC/DVI

Audio Connection Terminal (Input))

AV/COMPONENT AUDIO IN [R - AU-

DIO- L]

Connect the port of the DVD, VCR (DVD /

DTV Set-Top Box) to the [ R - AUDIO - L ]

port of the LCD Display.

DVI OUT

•Connect a monitor to another monitor

through a DVI cable.

• Connect the DVI OUT port on the monitor

to the HDMI IN port on the other monitor

using the DVI to HDMI cable.

• DVI, HDMI and network signals sent via

the DVI OUT port are displayed on the

second display which has the DVI IN port.

Introduction

Note

Up to 6 Full HD or 10 HD monitors can be

connected (May differ depending on the

product).

AV IN [VIDEO]

Connect the [ VIDEO ] terminal of your mon-

itor to the video output terminal of the exter-

nal device using a VIDEO cable.

AUDIO OUT

Headphone/External speaker output termi-

nal.

HDMI IN

Connect the HDMI terminal at the back of

your LCD Display to the HDMI terminal of

your digital output device using a HDMI ca-

ble.

Up to HDMI cable 1.0 can be supported.

INTERNAL / EXTERNAL

Switch

Allows you to select the touch screen mode.

Flip the switch to the left to use the Touch

Screen function in MagicInfo mode and flip it

to the right to use the Touch Screen function

in PC mode.

Note

To use the touch screen function in PC

mode, the touch screen program must be in-

stalled onto your PC and the product must be

connected to the PC using USB.

When the power is off adjust the direction of

the switch that controls the touchscreen.

USB Connection Terminal

To use the touch screen function in PC

mode, connect the product to your PC using

the USB cable.

Introduction

RGB OUT

LAN (LAN Connection Terminal)

USB1,USB2 (USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

POWER

OFF

Number Buttons

DEL / GUIDE button

+ VOL -

SOURCE

D.MENU

TOOLS

Up-Down Left-Right buttons

INFO

COLOR BUTTONS

TTX/MIX

MTS/DUAL

ENTER/PRE-CH

MUTE

CH/P

RETURN

EXIT

MagicInfo

Introduction

1. POWER Turns the product On.

2. OFF Turns the product Off.

3. Number Buttons Press to change the channel.

4. DEL / GUIDE but-

ton

The "-" button is used to select Digital channels.

Electronic Program Guide (EPG) display.

- This function does not work for this LCD Display.

5. + VOL - Adjusts the audio volume.

6. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the LCD Display at the time.

7. D.MENU DTV menu display

- This function does not work for this LCD Display.

8. TOOLS Use to quickly select frequently used functions.

- This function does not work for this LCD Display.

9. Up-Down Left-Right but-

tons

Moves from one menu item to another horizontally, vertically

or adjusts selected menu values.

10. INFO Current picture information is displayed on the upper left

corner of the screen.

11. COLOR BUTTONS Press to add or delete channels and to store channels to the

favorite channel list in the “Channel List” menu.

- This function does not work for this LCD Display.

12. TTX/MIX TV channels provide written information services via tele-

text.

- Teletext Buttons

- This function does not work for this LCD Display.

13. MTS/DUAL - This function does not work for this LCD Display.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual

Change

Stereo Mono ↔ Stereo

SAP Mono ↔ SAP Mono

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

Introduction
