Samsung SYNCMASTER 460TMN Manuel utilisateur

LCD DISPLAY

quick start guide

460TMn

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

MagicInfo Software CD,

MagicInfo Manual CD

Others

Remote Control Batteries (AAA X 2) GND Cable

Others

(Not available in all loca-

tions)

Your LCD Display

Front

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu

values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, push the button to adjust

volume.

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Changing the source is only al-

lowed for external devices that are connected to the LCD Display at the

time.

[HDMI] → [MagicInfo]

D.MENU

Opens the on-screen D.MENU.

Introduction

Note

• This is available when a TV tuner box is installed.

Note

• This function does not work for this LCD Display.

Power button [ ]

Use this button for turning the LCD Display on and off.

Brightness Sensor

The product's Brightness Sensor function automatically detects the sur-

rounding brightness using a brightness sensor and adjusts its brightness

accordingly.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Speaker

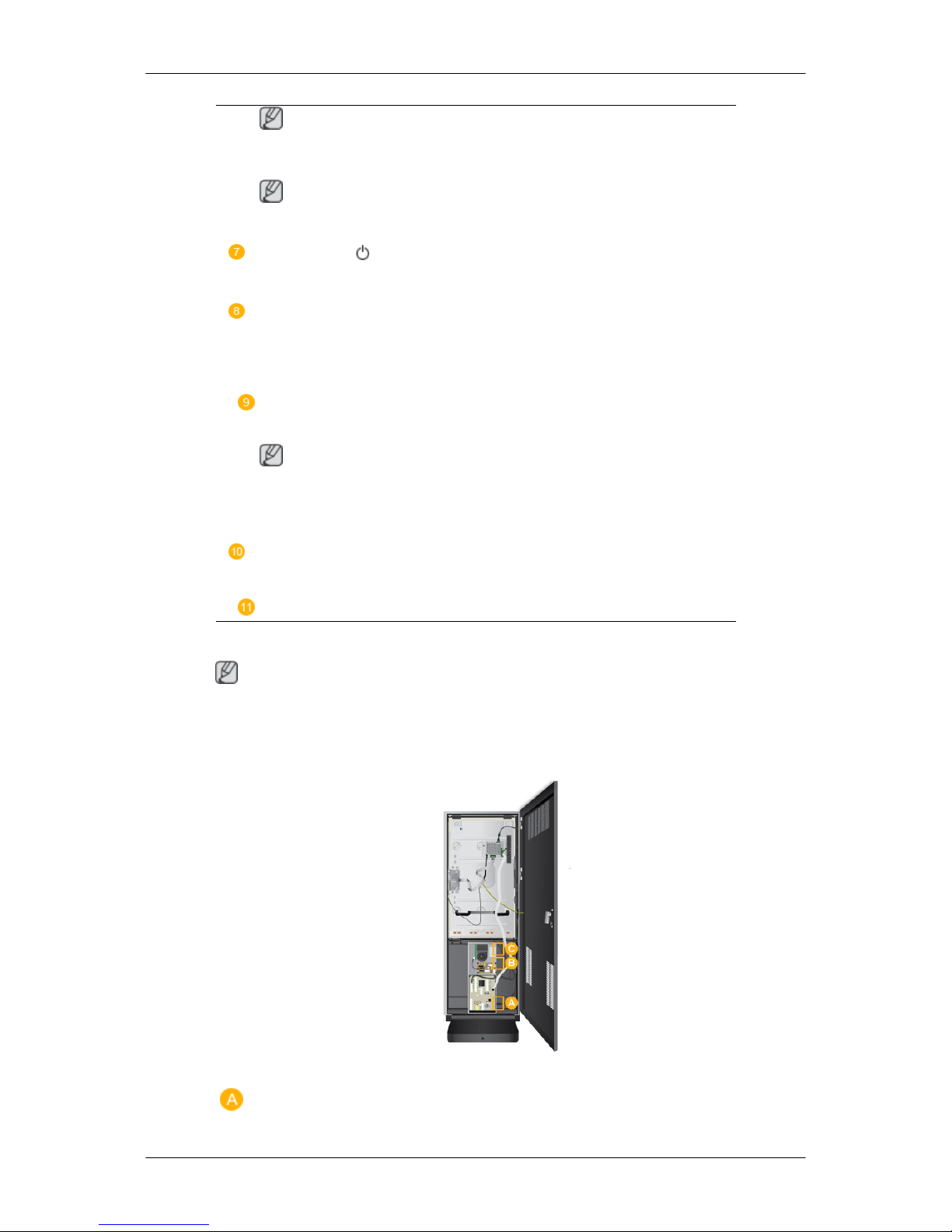

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display 's configuration at the back may vary slightly depending on the LCD

Display model.

Introduction

POWER S/W ON [

│

] / OFF [O]

Switches the LCD Display On/Off.

POWER IN

The power cord plugs into the LCD Display

and the wall plug.

HDMI IN

Connect the HDMI terminal at the back of

your LCD Display to the HDMI terminal of

your digital output device using a HDMI ca-

ble.

Up to HDMI cable 1.0 can be supported.

LAN (LAN Connection Terminal)

USB(USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

AUDIO OUT

Headphone/External speaker output termi-

nal.

RS232C IN (RS232C Serial PORT)

Introduction

Side

1. Connect the GND wires to the bottom part of both sides of the product and then to the

back of the product as shown by figure ( ).

2. Connect the other side of the GND wires to the ground box when indoors or to the ground

pole that has been pushed into the ground when outdoors.

Note

The ground (GND) is used to prevent product noise and to protect people from electric shock

due to electric leakage.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

Introduction

POWER

OFF

Number Buttons

DEL button

+ VOL -

MUTE

TV/DTV

INFO

COLOR BUTTONS

TTX/MIX

STILL

AUTO

S.MODE

MDC

LOCK

SOURCE

ENTER/PRE-CH

CH/P

D.MENU

GUIDE

RETURN

Up-Down Left-Right buttons

EXIT

SRS

MagicInfo

P.MODE

DUAL/MTS

PIP

SWAP

1. POWER Turns the product On.

2. Off Turns the product Off.

3. Number Buttons Press to change the channel.

4. DEL button

The "-" button operates only for DTV. It is used to select

MMS (multi-channel) for a DTV.

Introduction

5. + VOL - Adjusts the audio volume.

6. MUTE Pauses (mutes) the audio output temporarily. This is dis-

played on the lower left corner of the screen. The audio

resumes if MUTE or - VOL + is pressed in the Mute mode.

7. TV/DTV Selects the TV and DTV mode directly.

8. MENU Opens the on-screen menu and exits from the menu or

closes the adjustment menu.

9. Activates a highlighted menu item.

10. INFO Current picture information is displayed on the upper left

corner of the screen.

11.COLOR BUTTONS Press to add or delete channels and to store channels to the

favorite channel list in the “Channel List” menu.

12. TTX/MIX TV channels provide written information services via tele-

text.

- Teletext Buttons

For more information > TTX / MIX

13.STILL Press the button once to freeze the screen. Press it again

to unfreeze.

14.AUTO Adjusts the screen display automatically in PC mode. By

changing the resolution in the control panel, auto function is

performed.

15. S.MODE When pressing this button, the current mode is displayed at

the bottom centre of the screen. The LCD Display has a

built-in high fidelity stereo amplifier. Then press the button

again to circle through available preconfigured modes.

( Standard → Music → Movie → Speech → Custom )

16.MDC MDC Quick Launch Button.

17.LOCK Activates or deactivates all function keys on both the remote

control and the LCD Display except for the Power and LOCK

buttons.

18. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the monitor at the time.

19. ENTER/PRE-CH This button is used to return to the immediately previous

channel.

20. CH/P In TV mode, selects TV channels.

21.D.MENU DTV menu display

22.GUIDE Electronic Program Guide (EPG) display.

Introduction

23. RETURN Returns to the previous menu.

24. Up-Down Left-Right but-

tons

Moves from one menu item to another horizontally, vertically

or adjusts selected menu values.

25. EXIT Exits from the menu screen.

26. SRS Selects SRS TruSurround XT mode.

27.MagicInfo MagicInfo Quick Launch Button.

28. P.MODE When you press this button, current picture mode is dis-

played on the lower center of the screen.

AV / HDMI / TV : P.MODE

The LCD Display has four automatic picture settings that are

preset at the factory. Then push button again to circle

through available preconfigured modes. ( Dynamic →

Standard → Movie → Custom )

PC / DVI / MagicInfo: M/B (MagicBright)

MagicBright is a feature providing the optimum viewing en-

vironment depending on the contents of the image you are

watching. Then push button again to circle through available

preconfigured modes. (Entertain → Internet → Text → Cus-

tom )

29. DUAL/MTS

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

broadcasting type by using the DUAL button on the remote

control while watching TV.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual

Change

Stereo Mono ↔ Stereo

SAP Mono ↔ SAP Mono

30.

PIP

Every time you press the button, a PIP screen appears.

- This fuction does not work for this LCD Display.

31.

SWAP

Swaps the contents of the PIP and main image. The image

in the PIP window will appear on the main screen, and the

main screen image will appear in the PIP window.

- This fuction does not work for this LCD Display.

Introduction

Troubleshooting

Self-Test Feature Check

Note

Check the following items yourself before calling for assistance. Contact a Service Center for

problems that you cannot solve by yourself.

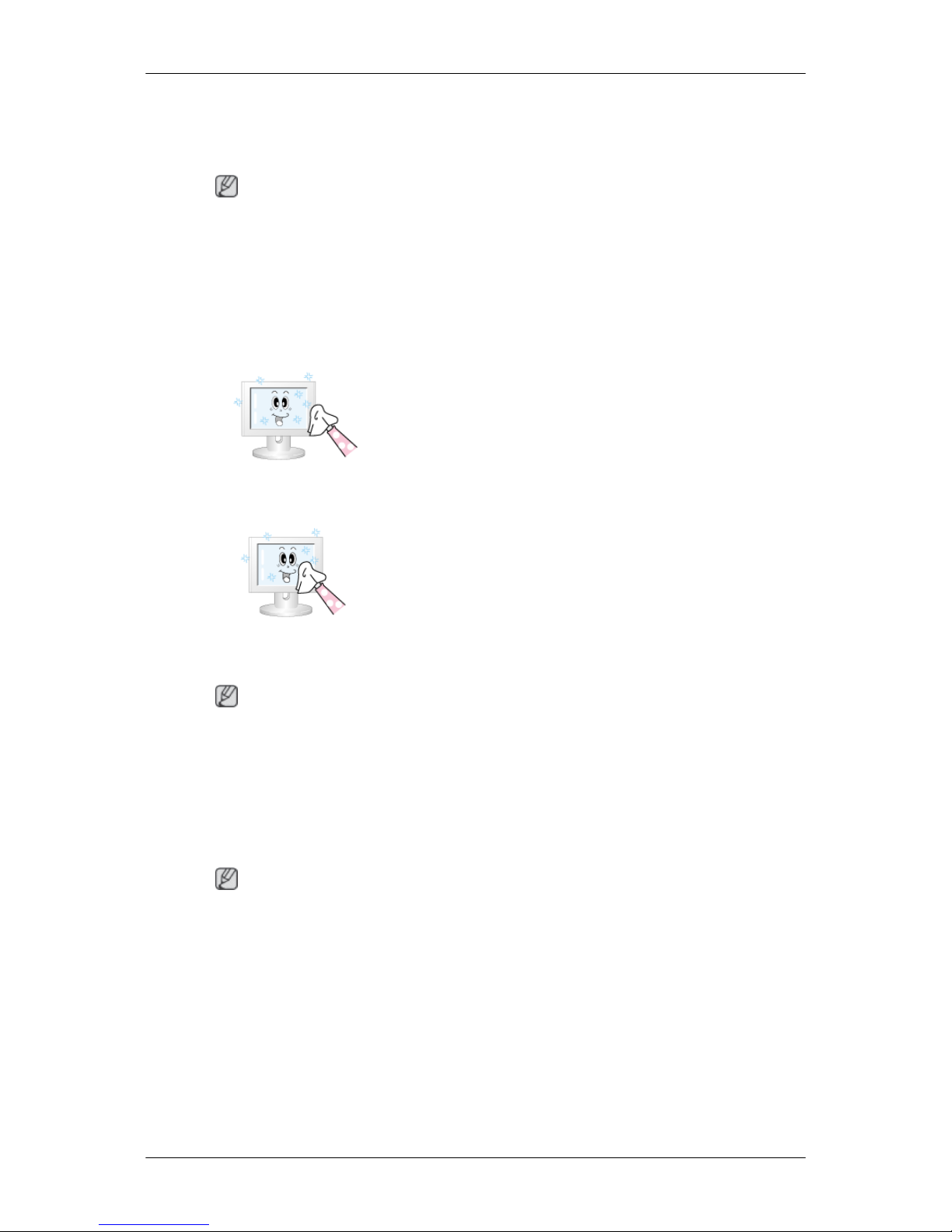

Maintenance and Cleaning

1) Maintaining the LCD Display Case.

Clean with a soft cloth after disconnecting the power cord.

• Do not use benzene, thinner or other flammable sub-

stances, or a wet cloth.

2) Maintaining the Flat Panel Display Screen.

Clean with a soft cloth (cotton flannel) smoothly.

• Never use acetone, benzene or thinner.

(They may cause flaws or deformation of the screen

surface.)

• The user will be required to pay costs and related

expenses for repairing damages caused.

Check List

Note

•The following table lists possible problems and their solutions. Before calling for assis-

tance, check the information in this section to see if you can remedy any problems for

yourself. If you do need assistance, please call the phone number on the Information

section or contact your dealer.

• For more network-related information, refer to the MagicInfo Troubleshooting section.

Problems related to the Screen

Note

Problems related to the LCD Display screen and their solutions are listed.

Q: The screen is blank and the power indicator is off.

A: Ensure that the power cord is firmly connected and the LCD Display is on.

Q: The image is not clear; picture is blurred.

A: Run Frequency Coarse and Fine tuning.

A: Set the resolution and frequency to the recommended ranges.

Q: The image is too light or too dark.
